SKU: CPF30UGMX | UPC: 8017709256449

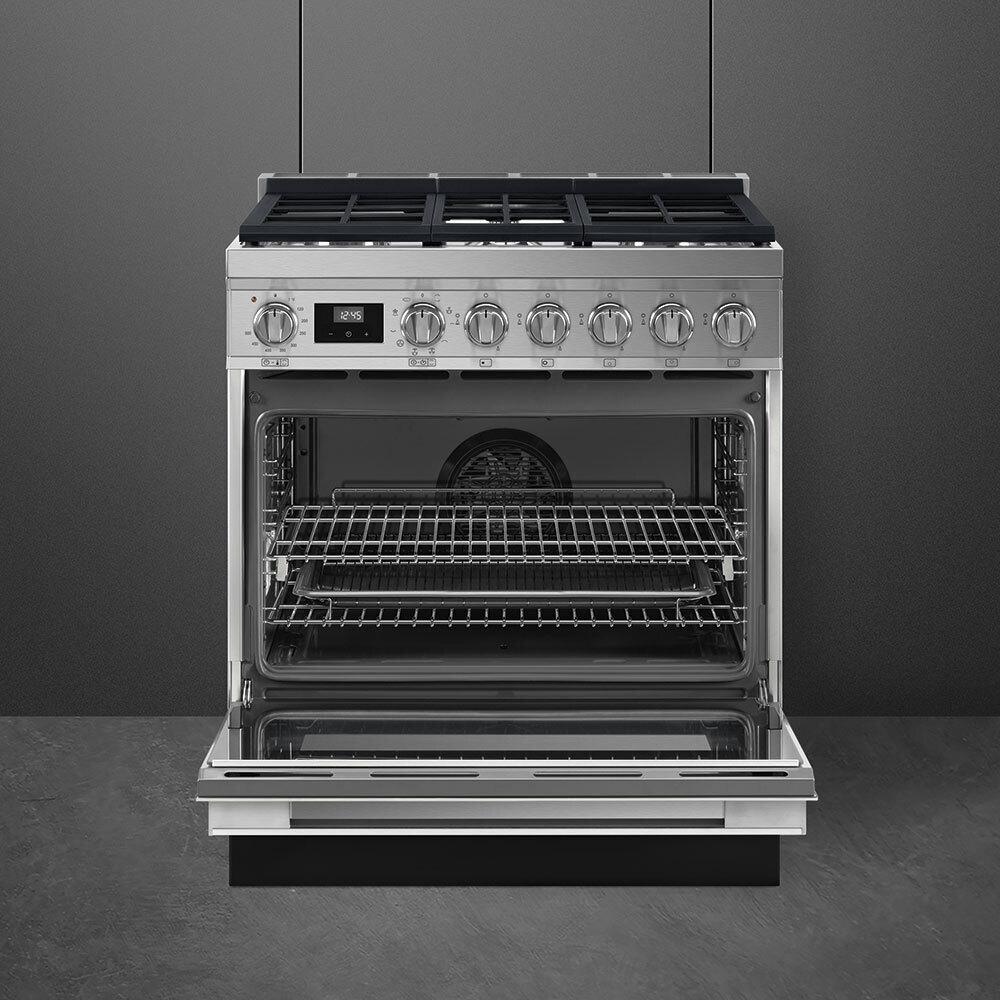

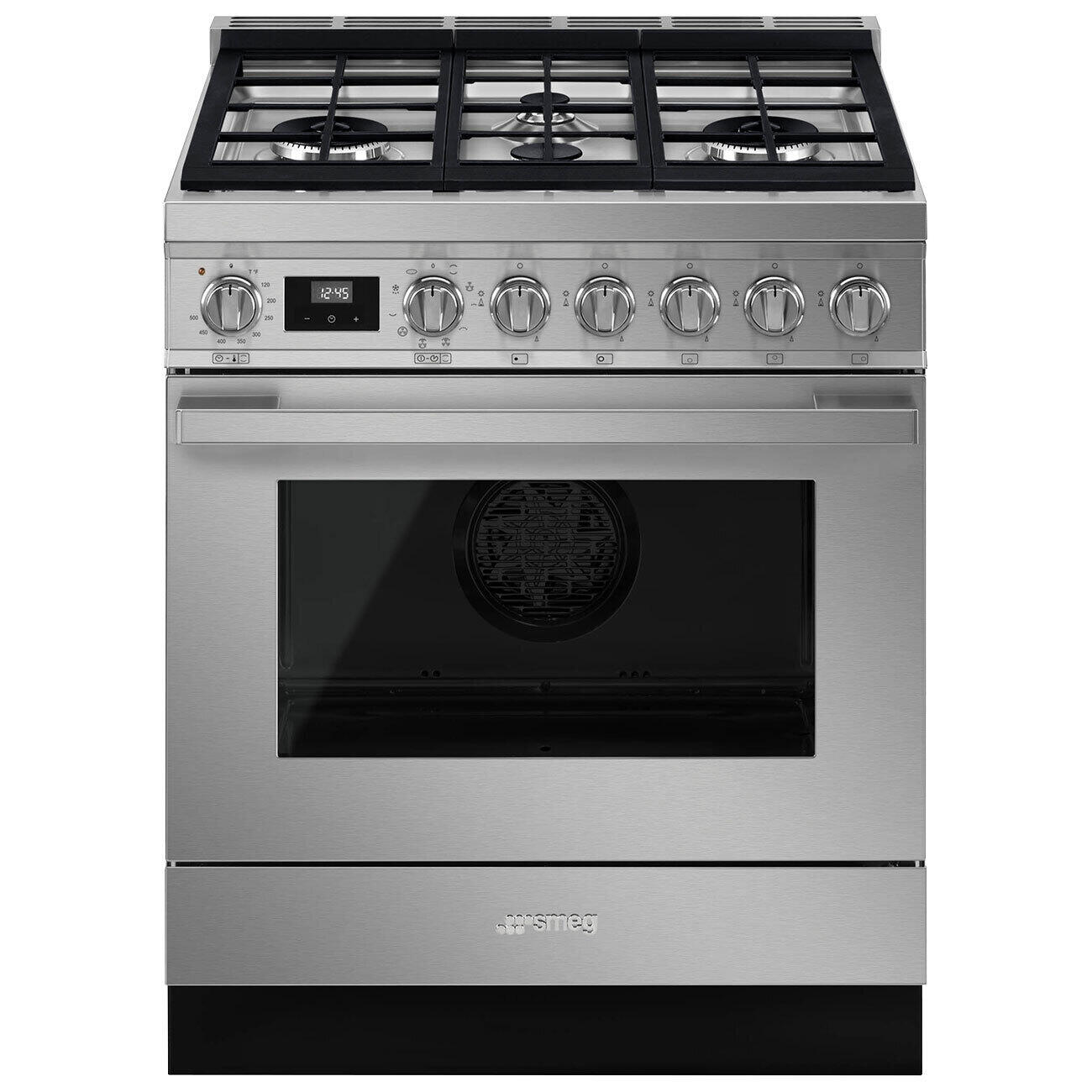

Smeg CPF30UGMX Range with Hob 30" Portofino Aesthetic Stainless steel

Quick Specification More details

Width:
30"
Depth:
25.06"
Height:
36.06"
Type:
Freestanding Ranges

About this product

Easy and intuitive timer setting with a single touch
New cooling system with tangential fan and airflow from the door to the splashback
The best cooking performances guaranteed by ventilated circular flow. - True-convection
Gas provides permanent control of the heat source and the temperature change is immediate - Gas hob

SKU: CPF30UGMX | UPC: 8017709256449

Smeg CPF30UGMX Range with Hob 30" Portofino Aesthetic Stainless steel

Active Rebates

Color:

Smeg CPF30UGMX Range with Hob 30" Portofino Aesthetic Stainless steel

CPF30UGMX

Smeg CPF30UGMYW Range Portofino Yellow

CPF30UGMYW

Discontinued

Smeg CPF30UGGR Range with Hob 30" Portofino Aesthetic Red

CPF30UGGR

Out of stock

Smeg CPF30UGGAN Range with Hob 30" Portofino Aesthetic Anthracite

CPF30UGGAN

Out of stock

Smeg CPF30UGGX Range Portofino Stainless steel

CPF30UGGX

Discontinued

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
30"
Depth:
25.06"
Height:
36.06"
Type:
Freestanding Ranges

About this product

Easy and intuitive timer setting with a single touch
New cooling system with tangential fan and airflow from the door to the splashback
The best cooking performances guaranteed by ventilated circular flow. - True-convection
Gas provides permanent control of the heat source and the temperature change is immediate - Gas hob

Product Details for Smeg CPF30UGMX

Technical Details

Aesthetic

Color	Stainless steel
Design	Flush mounted
Finishing	Satin
Aesthetics	Portofino
Control panel finish	Fingerprint-proof stainless steel
Material	Stainless steel
Upstand	Yes
Cooktop color	Stainless steel
Grates	Cast Iron

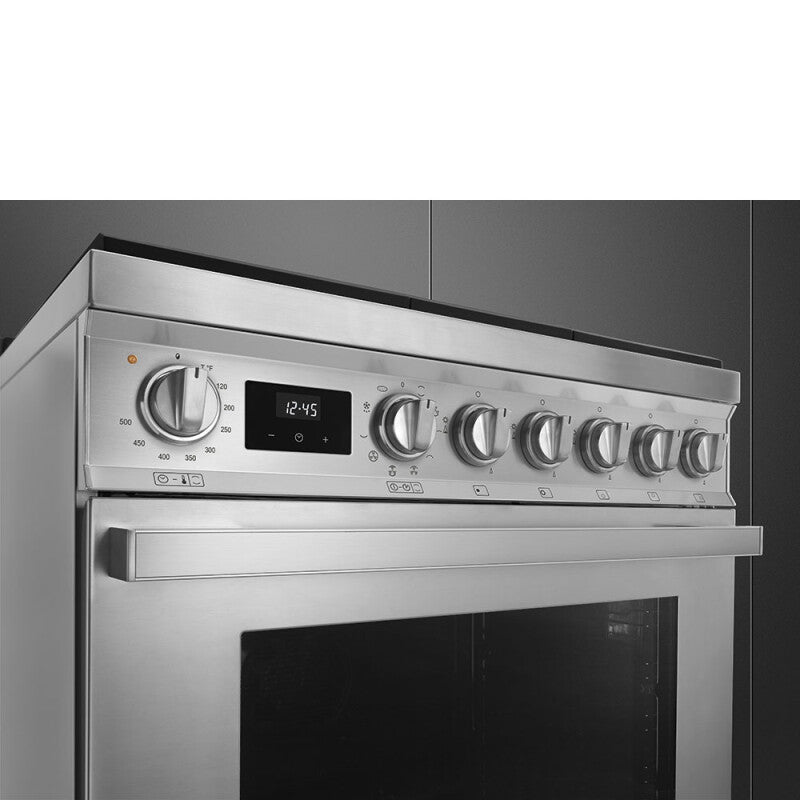

Control setting type	Control knobs
Control knobs	Portofino
Controls color	Stainless steel
No. of controls	7
Display	Touch
Door	With frame
Door glass type	Gray
Handle	Portofino
Handle color	Brushed stainless steel
Storage compartment	Storage drawer
Feet	Stainless steel
Plinth	Black

Type

Product family	Range
Range size	30"
Cooker configuration	Dual fuel
Range fuel	Gas
N. of ovens	1
Main oven	Thermo-ventilated
EAN code	8017709256449
Installation positioning of the appliance	Free-standing, Class 1, Built-in, Class 2-1 norm UNI EN 30-1-1

Main oven options

Timer	Yes
End-of-cooking alarm	Yes
Minimum Temperature	120 °F
Maximum temperature	500 °F

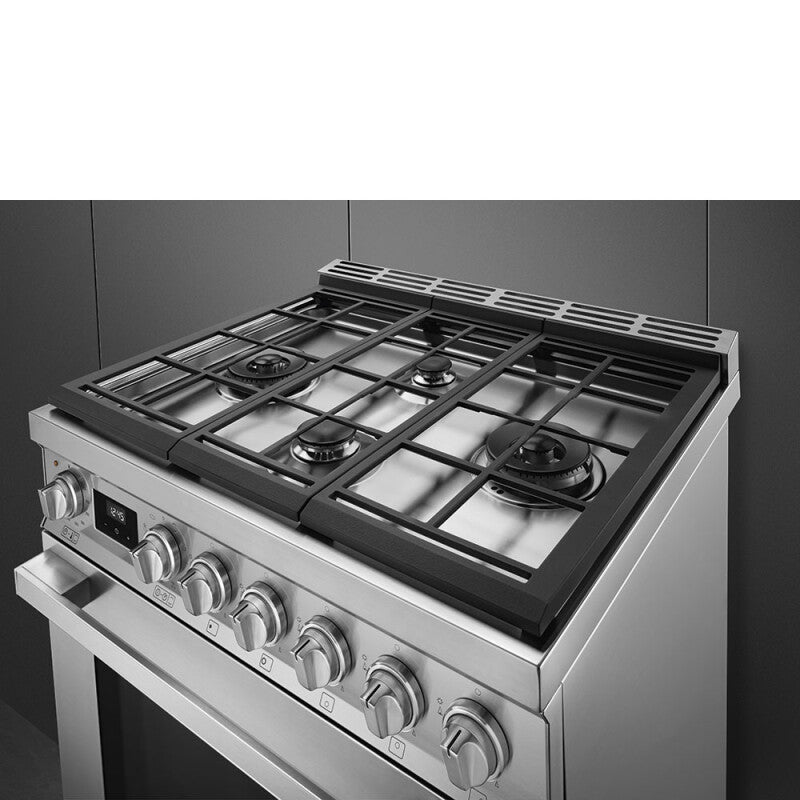

Cooktop technical features

Cooking zones	4
Zone 1 - Type	Gas - Dual ultra-rapid
Zone 2 - Type	Gas - Semi-rapid
Zone 3 - Type	AUX
Zone 4 - Type	Gas - Ultra-rapid
Zone 1 - Power	20000 BTU
Zone 2 - Power	8000 BTU
Zone 3 - Power	4500 BTU
Zone 4 - Power	20000 BTU
Burners type	Standard
Burner caps	Enameled matte black
Automatic gas ignition	Yes
Gas safety valves	Yes

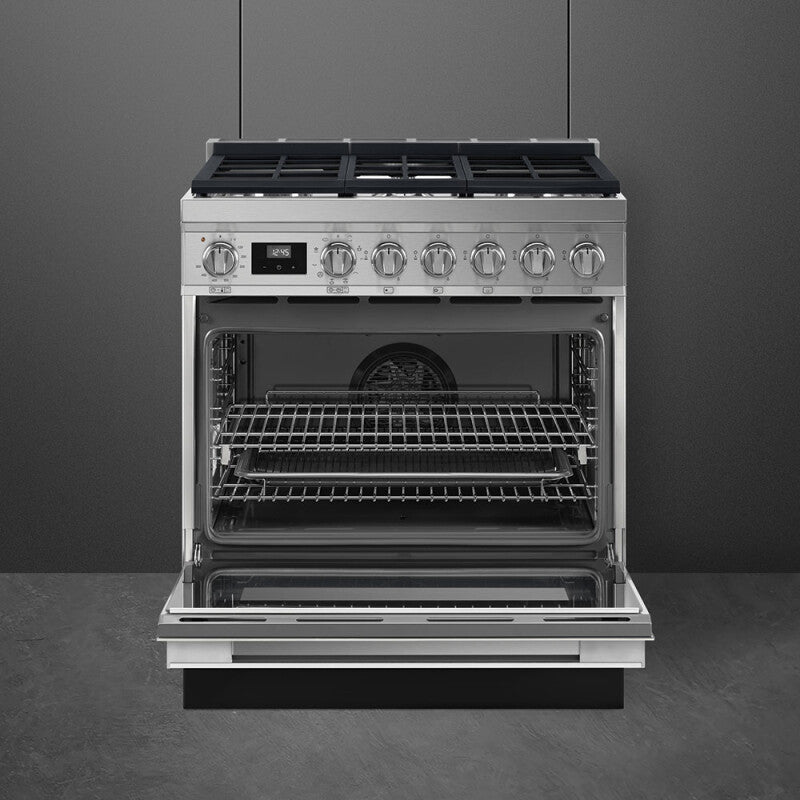

Main oven technical features

Volume	0.13 cu. ft.
Cavity material	EverClean enamel
No. of shelves	4
Shelves type	Metal racks
No. of lights	2
Light type	Halogen
Light Power	40 W
Fan number	1
Time setting	Start and end
Door opening	Drop-down
Light on when door is open	Yes
Removable door	Yes
Full-glass inner door	Yes
Removable inner door	Yes
Total no. of door glasses	3
No.of thermo-reflective door glasses	2
Safety thermostat	Yes
Cooling system	Tangential
Grill type	Electric
Grill power	1700 W
Large grill - Power	2900 W
Bottom heating element - Power	1700 W
Upper heating element - Power	1200 W
Circular heating element - Power	2700 W
Soft Close system	Yes
Temperature control	Electro-mechanical

Electrical connection

Electrical connection rating	3700 W
Current	20 A
Circuit breaker	20 A
Voltage	240/208 V
Frequency	60 Hz
Power cord length	47 1/4 "
Type of electric cable installed	Yes, Double phase

Gas connection

Gas Type

G20/G25 - 20/25 mbar

Dimensions & weight

Width	30.06 in.
Height	36.06 in.
Length	25.06 in.
Weight	232 lbs.
Gross weight	258 lbs
Net weight	232 lbs
Packaged width	34 1/4 "
Packaged depth	29 1/2 "
Packaged height	39 3/4 "

Number of boxes, shipping dimensions, & shipping weight

Shipping Width	34.25 in.
Shipping Height	39.75 in.
Shipping Length	29.5 in.
Source	Calculation

Other

Packaged dimensions	1010X870X750 mm
Maximum stackability	4
Packaging	Cardboard box
Packaging composition - Paper	9 lbs
Packaging composition - Polystyrene	11 lbs
Packaging composition - Wood	5 lbs
Packaging composition - Plastics	1 lbs

Description

The Smeg CPF30UGMX combines iconic Italian styling with professional culinary performance in a 30-inch freestanding dual fuel range. Outfitted with 4 sealed gas burners including a high-power burner for rapid boiling, plus a large-capacity electric oven featuring True European Convection for even baking across multiple racks, this range meets the needs of serious home cooks. It offers 10 cooking modes ranging from broil and bake to proof and dehydrate, giving flexible options for a variety of recipes. The durable continuous grates facilitate easy movement of pots and pans, while the manual clean oven design ensures straightforward maintenance. Finished in a sleek stainless steel exterior with professional-grade knobs and trim, it blends high performance with refined aesthetics for any upscale kitchen.

Product Features

Easy and intuitive timer setting with a single touch
New cooling system with tangential fan and airflow from the door to the splashback
The best cooking performances guaranteed by ventilated circular flow. - True-convection
Gas provides permanent control of the heat source and the temperature change is immediate - Gas hob
The door is equipped with a specific system for silent closing
More space thanks to the lower compartment, ideal for storing accessories or cooking utensils
