SKU: CPF30UGGAN | UPC: 8017709270292

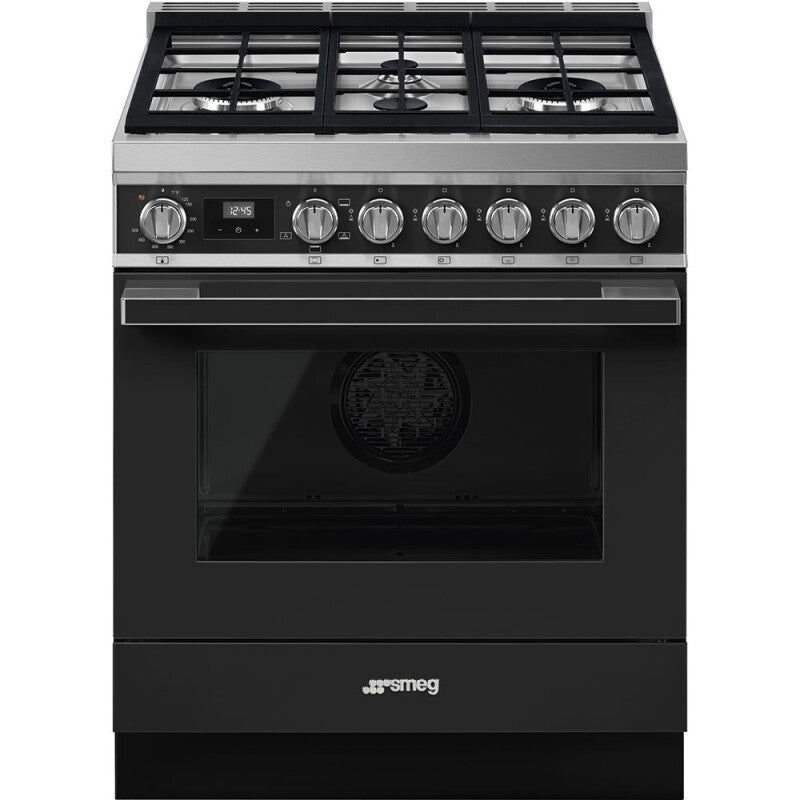

Smeg CPF30UGGAN Range with Hob 30" Portofino Aesthetic Anthracite

Range with Hob 30" Portofino Aesthetic

Quick Specification More details

  • Width:
    30"
  • Depth:
    25.19"
  • Height:
    35.44"
  • Type:
    Freestanding Ranges

About this product

  • Easy and intuitive timer setting with a single touch
  • New cooling system with tangential fan and airflow from the door to the splashback
  • Gas provides permanent control of the heat source and the temperature change is immediate - Gas hob
  • The door is equipped with a specific system for silent closing
Summer Sale

SKU: CPF30UGGAN | UPC: 8017709270292

Smeg CPF30UGGAN Range with Hob 30" Portofino Aesthetic Anthracite

Contact us for Pricing

Active Rebates

Color:

KT Appliance

We’ll confirm fit, specs & delivery before you order.

  •  Chat  • Email  • Call Us

Quick Specification More details

  • Width:
    30"
  • Depth:
    25.19"
  • Height:
    35.44"
  • Type:
    Freestanding Ranges

About this product

  • Easy and intuitive timer setting with a single touch
  • New cooling system with tangential fan and airflow from the door to the splashback
  • Gas provides permanent control of the heat source and the temperature change is immediate - Gas hob
  • The door is equipped with a specific system for silent closing

Related Products

  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Reviews
Contact us for Pricing

Product Details for Smeg CPF30UGGAN

Technical Details

Aesthetic
Color Anthracite
Design Flush mounted
Aesthetics Portofino
Control panel finish Metal enameled
Material Painted metal
Upstand Yes
Cooktop color Stainless steel
Grates Cast Iron
Control setting type Control knobs
Control knobs Portofino
Controls color Stainless steel
No. of controls 7
Display Touch
Door With frame
Door glass type Gray
Handle Portofino
Handle color Colored
Storage compartment Storage drawer
Feet Stainless steel
Plinth Black

Type
Product family Range
Range size 30"
Cooker configuration Full gas
Range fuel Gas
Main oven Gas with grill
EAN code 8017709270292
Installation positioning of the appliance Free-standing, Class 1, Built-in, Class 2-1 norm UNI EN 30-1-1

Main oven options
Timer Yes
End-of-cooking alarm Yes
Minimum Temperature 120 °F
Maximum temperature 500 °F

Cooktop technical features
Cooking zones 4
Zone 1 - Type Gas - Dual ultra-rapid
Zone 2 - Type Gas - Semi-rapid
Zone 3 - Type AUX
Zone 4 - Type Gas - Ultra-rapid
Zone 1 - Power 20000 BTU
Zone 2 - Power 8000 BTU
Zone 3 - Power 4500 BTU
Zone 4 - Power 20000 BTU
Burners type Standard
Burner caps Enameled matte black
Automatic gas ignition Yes
Gas safety valves Yes

Main oven technical features
Volume 0.13 cu. ft.
Cavity material EverClean enamel
No. of shelves 4
Shelves type Metal racks
No. of lights 2
Light type Halogen
Light Power 40 W
Fan number 1
Time setting Start and end
Door opening Drop-down
Light on when door is open Yes
Removable door Yes
Full-glass inner door Yes
Removable inner door Yes
Total no. of door glasses 3
No.of thermo-reflective door glasses 2
Safety thermostat Yes
Cooling system Tangential
Grill type Gas
Soft Close system Yes
Temperature control Electro-mechanical

Electrical connection
Plug (B) NEMA 5-15P
Electrical connection rating 200 W
Current 2 A
Circuit breaker 15 A
Voltage 120 V
Frequency 60 Hz
Power cord length 55 1/8 "
Type of electric cable installed Yes, Single phase

Gas connection
Gas Type G20/G25 - 20/25 mbar

Dimensions & weight
Width 29.94 in.
Height 35.44 in.
Length 25.19 in.
Weight 235 lbs.
Gross weight 262 lbs
Net weight 235 lbs
Packaged width 34 1/4 "
Packaged depth 29 1/2 "
Packaged height 39 3/4 "

Number of boxes, shipping dimensions, & shipping weight
Shipping Width 34.25 in.
Shipping Height 39.75 in.
Shipping Length 29.5 in.
Source Calculation

Other
Packaged dimensions 1010X870X750 mm
Maximum stackability 4
Packaging Cardboard box
Packaging composition - Paper 9 lbs
Packaging composition - Polystyrene 11 lbs
Packaging composition - Wood 5 lbs
Packaging composition - Plastics 1 lbs

Description

Compact- design cooker with gas oven and gas hob: efficient and responsive, the visible heat source allows total control and choice of the right intensity.



Product Features

  • Easy and intuitive timer setting with a single touch
  • New cooling system with tangential fan and airflow from the door to the splashback
  • Gas provides permanent control of the heat source and the temperature change is immediate - Gas hob
  • The door is equipped with a specific system for silent closing
  • More space thanks to the lower compartment, ideal for storing accessories or cooking utensils
