SKU: CPF30UGMAN | UPC: 8017709262699

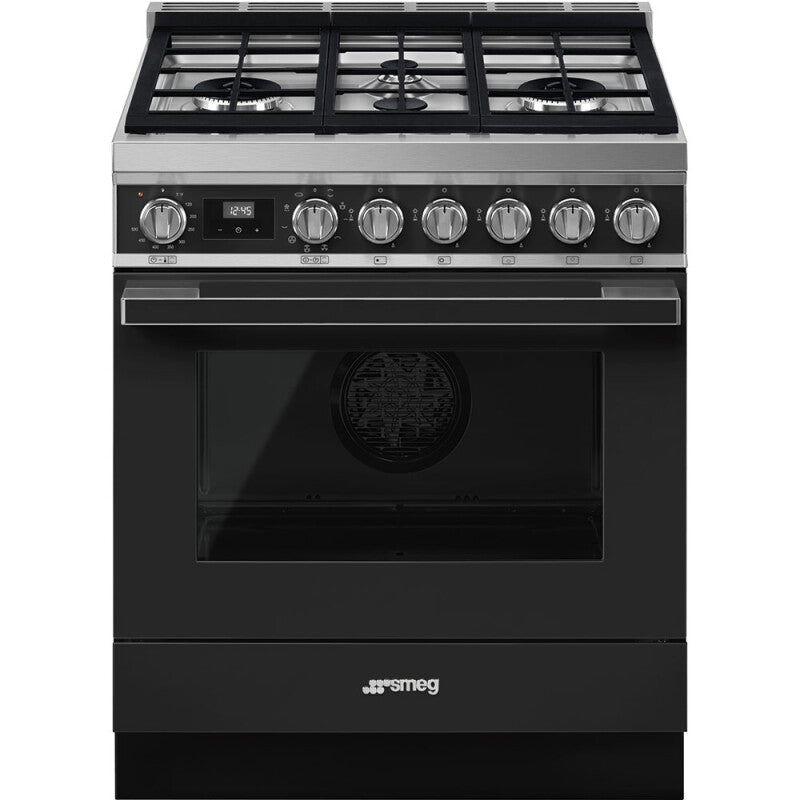

Smeg CPF30UGMAN Range with Hob 30" Portofino Aesthetic Anthracite

Range with Hob 30" Portofino Aesthetic

Quick Specification More details

  • Width:
    30"
  • Depth:
    25.06"
  • Height:
    36.06"
  • Type:
    Freestanding Ranges

About this product

  • Easy and intuitive timer setting with a single touch
  • New cooling system with tangential fan and airflow from the door to the splashback
  • The best cooking performances guaranteed by ventilated circular flow. - True-convection
  • Gas provides permanent control of the heat source and the temperature change is immediate - Gas hob
Summer Sale

SKU: CPF30UGMAN | UPC: 8017709262699

Smeg CPF30UGMAN Range with Hob 30" Portofino Aesthetic Anthracite

Contact us for Pricing

Active Rebates

Color:

KT Appliance

We’ll confirm fit, specs & delivery before you order.

  •  Chat  • Email  • Call Us

Quick Specification More details

  • Width:
    30"
  • Depth:
    25.06"
  • Height:
    36.06"
  • Type:
    Freestanding Ranges

About this product

  • Easy and intuitive timer setting with a single touch
  • New cooling system with tangential fan and airflow from the door to the splashback
  • The best cooking performances guaranteed by ventilated circular flow. - True-convection
  • Gas provides permanent control of the heat source and the temperature change is immediate - Gas hob

Related Products

  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Reviews
Contact us for Pricing

Product Details for Smeg CPF30UGMAN

Technical Details

Aesthetic
Color Anthracite
Design Flush mounted
Aesthetics Portofino
Control panel finish Metal enameled
Material Painted metal
Upstand Yes
Cooktop color Stainless steel
Grates Cast Iron
Control setting type Control knobs
Control knobs Portofino
Controls color Stainless steel
No. of controls 7
Display Touch
Door With frame
Door glass type Gray
Handle Portofino
Handle color Colored
Storage compartment Storage drawer
Feet Stainless steel
Plinth Black

Type
Product family Range
Range size 30"
Cooker configuration Dual fuel
Range fuel Gas
N. of ovens 1
Main oven Thermo-ventilated
EAN code 8017709260699
Installation positioning of the appliance Free-standing, Class 1, Built-in, Class 2-1 norm UNI EN 30-1-1

Main oven options
Timer Yes
End-of-cooking alarm Yes
Minimum Temperature 120 °F
Maximum temperature 500 °F

Cooktop technical features
Cooking zones 4
Zone 1 - Type Gas - Dual ultra-rapid
Zone 2 - Type Gas - Semi-rapid
Zone 3 - Type AUX
Zone 4 - Type Gas - Ultra-rapid
Zone 1 - Power 20000 BTU
Zone 2 - Power 8000 BTU
Zone 3 - Power 4500 BTU
Zone 4 - Power 20000 BTU
Burners type Standard
Burner caps Enameled matte black
Automatic gas ignition Yes
Gas safety valves Yes

Main oven technical features
Volume 0.13 cu. ft.
Cavity material EverClean enamel
No. of shelves 4
Shelves type Metal racks
No. of lights 2
Light type Halogen
Light Power 40 W
Fan number 1
Time setting Start and end
Door opening Drop-down
Light on when door is open Yes
Removable door Yes
Full-glass inner door Yes
Removable inner door Yes
Total no. of door glasses 3
No.of thermo-reflective door glasses 2
Safety thermostat Yes
Cooling system Tangential
Grill type Electric
Grill power 1700 W
Large grill - Power 2900 W
Bottom heating element - Power 1700 W
Upper heating element - Power 1200 W
Circular heating element - Power 2700 W
Soft Close system Yes
Temperature control Electro-mechanical

Electrical connection
Electrical connection rating 3700 W
Current 20 A
Circuit breaker 20 A
Voltage 240/208 V
Frequency 60 Hz
Power cord length 47 1/4 "
Type of electric cable installed Yes, Double phase

Gas connection
Gas Type G20/G25 - 20/25 mbar

Dimensions & weight
Width 30.06 in.
Height 36.06 in.
Length 25.06 in.
Weight 233 lbs.
Gross weight 259 lbs
Net weight 233 lbs
Packaged width 34 1/4 "
Packaged depth 29 1/2 "
Packaged height 39 3/4 "

Number of boxes, shipping dimensions, & shipping weight
Shipping Width 34.25 in.
Shipping Height 39.75 in.
Shipping Length 29.5 in.
Source Calculation

Other
Packaged dimensions 1010X870X750 mm
Maximum stackability 4
Packaging Cardboard box
Packaging composition - Paper 9 lbs
Packaging composition - Polystyrene 11 lbs
Packaging composition - Wood 5 lbs
Packaging composition - Plastics 1 lbs

Description

The brand Smeg CPF30UGMAN presents a sleek and powerful cooking appliance with its 30" Electric Oven in a luxurious Matte Black Portofino Series design. This freestanding unit offers a spacious 4.1 Cu. Ft. oven capacity with True European Convection for precise and even cooking results. The cooktop features 5 sealed gas burners with continuous grates, including a high-performance 18,000 BTU burner for rapid boiling and searing. With soft-close door, digital controls, and a triple fan convection system, this range delivers efficiency and elegance. Designed for chefs who value both aesthetics and functionality, this model also includes easy-clean enamel and self-cleaning capability for hassle-free maintenance.



Product Features

  • Easy and intuitive timer setting with a single touch
  • New cooling system with tangential fan and airflow from the door to the splashback
  • The best cooking performances guaranteed by ventilated circular flow. - True-convection
  • Gas provides permanent control of the heat source and the temperature change is immediate - Gas hob
  • The door is equipped with a specific system for silent closing
  • More space thanks to the lower compartment, ideal for storing accessories or cooking utensils
