FRIGIDAIRE 5304512984 4' 40 AMP 4 WIRE RANGE CORD
- SKU 5304512984
- Type Cooktop, oven & range accessories
- Dimensions 11.6″/9.75″/2.7″
Shop with confidence!
As an authorized dealer, we guarantee genuine products, full manufacturer warranties, and expert
support.
SKU: FCFE3062AS
More on the way
Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.
Enjoy added peace of mind long after the original warranty expires.
This Protection Plan includes:
Product Line | Electric Range |
Power Type | Electric 240v |
Size | 30" |
Installation Type | Free-Standing |
Factory | Springfield |
Color | Stainless Steel |
General Specifications | |
Product Weight | 149 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
Drawer | |
Drawer Handle Style | Integrated |
Drawer Type | Storage |
Cooking Controls Function | |
Delayed Bake | Yes |
Program Fahrenheit or Celsius | Yes |
Silent Control Panel | Yes |
Electrical Specifications | |
Connected Load @ 240V | 13 kW |
Minimum Circuit Required | 40 Amps |
Voltage Rating | 240 V |
Certifications and Approvals | |
ADA Compliant | Yes |
Cooking Controls | |
Bake | Yes |
Broil | Yes |
Cancel | Yes |
Clear Off | Yes |
Clock | Yes |
Cook Time | Yes |
Delay Start | Yes |
Keep Warm | Yes |
Kitchen Timer | Yes |
Lockout | Yes |
On / Off (for each element) | Yes |
Oven Light | Yes |
Preheat | Yes |
Probe | No |
Steam Clean | Yes |
Temperature Display | Yes |
Timed Bake | Yes |
Timer On / Off | Yes |
Warm Zone | Yes |

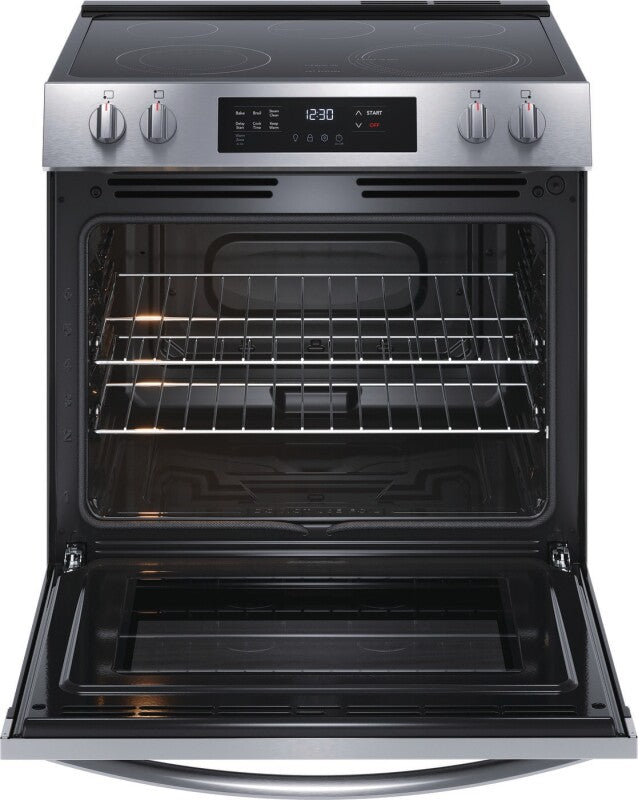

Oven | |
Bake Element | 2,500 Watts |
Bake Element Pass | 8 |
Bake Element Type | Hidden |
Bake System | Yes |
Broil Element | 3,000 Watts |
Broil Element Pass | 4 |
Broil System | Yes |
Cleaning System | Yes |
Number of Rack Positions | 6 |
Oven Interior Color | Midnight Black |
Oven Light Quantity | 1 |
Oven Light Type | Halogen |
Oven Light Watts | 40 Watts |
Rack Position Type | Embossed |
Rack Type 1 | Flat |
Rack Type 1 Quantity | 2 |

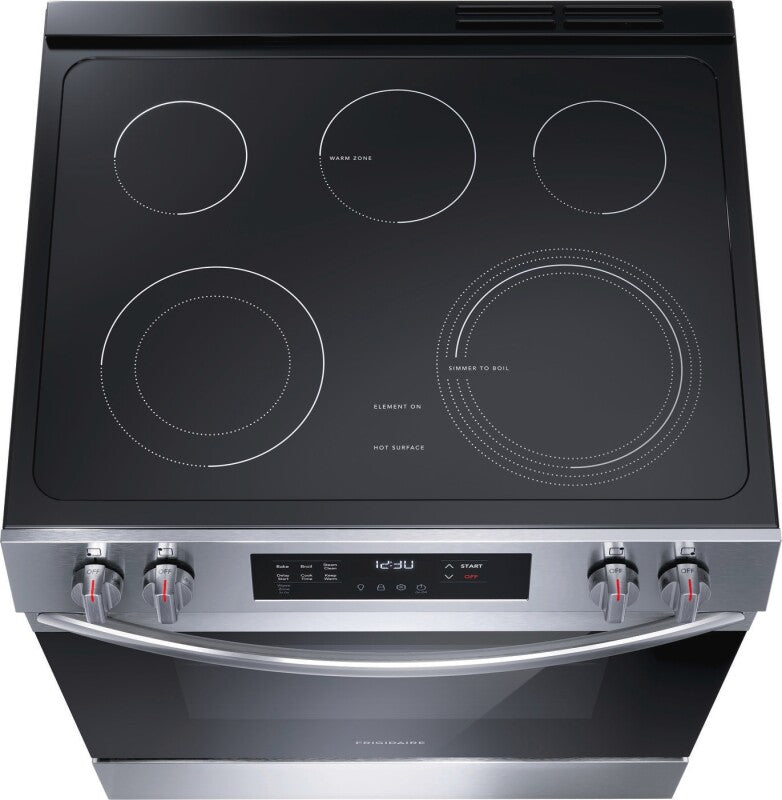

Cooktop | |
Cooking Surface Type | Smooth |
Element On Indicator Light | Yes |
Hot-Surface Indicator Light | Yes |
Dimensions and Volume | |
Minimum Height | 35 5/8" |
Maximum Height | 36 3/8" |
Width | 30" |
Depth | 26" |
Depth With Door 90° Open | 47 5/16" |
Depth With Handle | 28 1/2" |
Oven Interior Height | 18 1/8" |
Oven Interior Width | 25 3/16" |
Oven Interior Depth | 19 7/8" |
Oven Capacity | 5.3 Cu. Ft. |
Safety Certifications and Approvals | |
UL Listed | Yes |
cUL Listed | Yes |

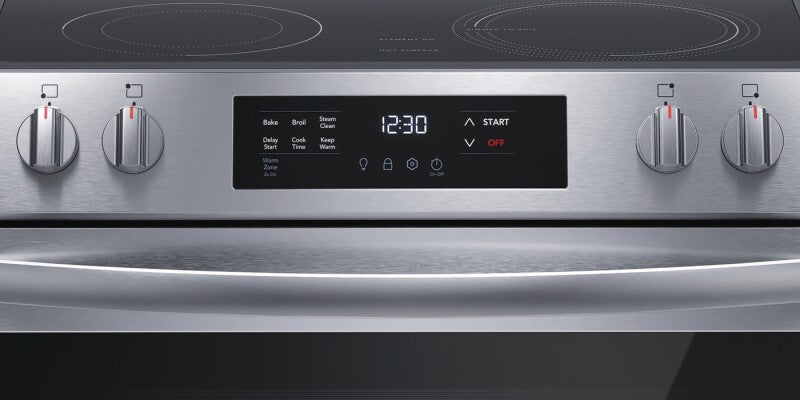

Controls | |
Control Lock | No |
Sabbath Mode | No |
Cooktop Performance | |
Right Front Element Burner Size | 9" |
Right Rear Element Burner Size | 6" |
Left Front Element Burner Size (Small) | 6" |
Left Front Element Burner Size (Large) | 9" |
Left Rear Element Burner Size | 6" |
Right Front Element Burner | 3,200 Watts |
Right Rear Element Burner | 1,200 Watts |
Left Front Element Burner (Small) | 1,400 Watts |
Left Front Element Burner (Large) | 3,000 Watts |
Left Rear Element Burner | 1,200 Watts |
Center Rear Element Burner | 100 Watts |
Display | |
Control Location | Front |
Display Interface Color | White |
Display Type | Capacitive Touch |
