SKU: CPF30UGGX | UPC: 8017709269821

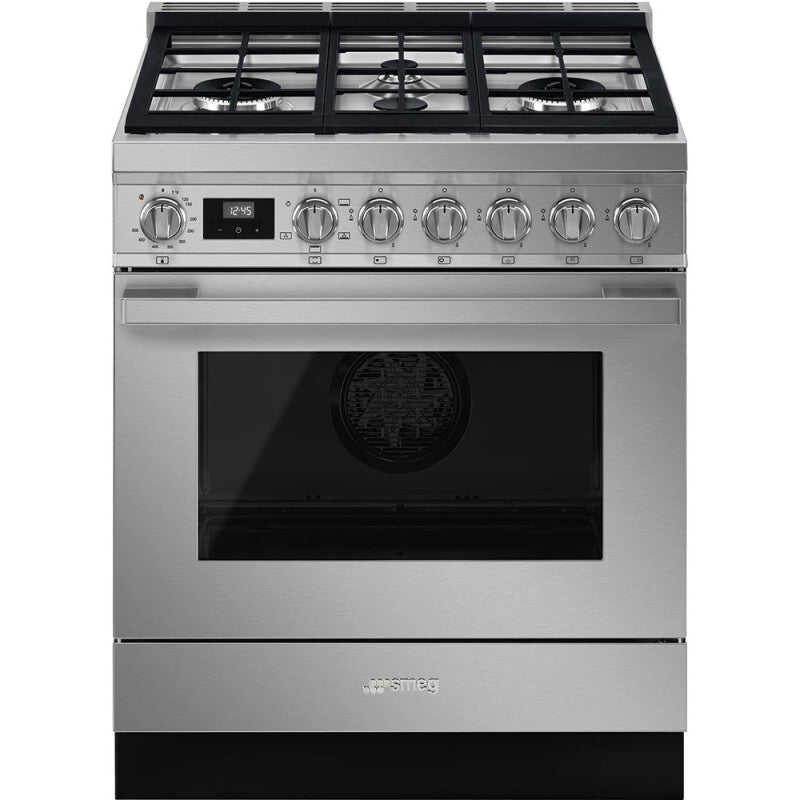

Smeg CPF30UGGX Range Portofino Stainless steel

Range Portofino

Quick Specification More details

  • Width:
    30"
  • Depth:
    25.19"
  • Height:
    35.44"
  • Type:
    Freestanding Ranges
Summer Sale
Clearance

SKU: CPF30UGGX | UPC: 8017709269821

Smeg CPF30UGGX Range Portofino Stainless steel

Active Rebates

Color:

KT Appliance

We’ll confirm fit, specs & delivery before you order.

  •  Chat  • Email  • Call Us

Quick Specification More details

  • Width:
    30"
  • Depth:
    25.19"
  • Height:
    35.44"
  • Type:
    Freestanding Ranges

Related Products

  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Reviews
Contact us for Pricing

Product Details for Smeg CPF30UGGX

Technical Details

Aesthetic
Color Stainless steel
Design Flush mounted
Finishing Satin
Aesthetics Portofino
Control panel finish Fingerprint-proof stainless steel
Material Painted metal
Upstand Yes
Cooktop color Stainless steel
Grates Cast Iron
Control setting type Control knobs
Control knobs Portofino
Controls color Stainless steel
No. of controls 7
Display Touch
Door With frame
Door glass type Gray
Handle Portofino
Handle color Brushed stainless steel
Storage compartment Storage drawer
Feet Stainless steel
Plinth Black

Type
Product family Range
Range size 30"
Cooker configuration Full gas
Range fuel Gas
Main oven Gas with grill
EAN code 8017709269821
Installation positioning of the appliance Free-standing, Class 1, Built-in, Class 2-1 norm UNI EN 30-1-1

Main oven options
Timer Yes
End-of-cooking alarm Yes
Minimum Temperature 120 °F
Maximum temperature 500 °F

Cooktop technical features
Cooking zones 4
Zone 1 - Type Gas - Dual ultra-rapid
Zone 2 - Type Gas - Semi-rapid
Zone 3 - Type AUX
Zone 4 - Type Gas - Ultra-rapid
Zone 1 - Power 20000 BTU
Zone 2 - Power 8000 BTU
Zone 3 - Power 4500 BTU
Zone 4 - Power 20000 BTU
Burners type Standard
Burner caps Enameled matte black
Automatic gas ignition Yes
Gas safety valves Yes

Main oven technical features
Volume 0.13 cu. ft.
Cavity material EverClean enamel
No. of shelves 4
Shelves type Metal racks
No. of lights 2
Light type Halogen
Light Power 40 W
Fan number 1
Time setting Start and end
Door opening Drop-down
Light on when door is open Yes
Removable door Yes
Full-glass inner door Yes
Removable inner door Yes
Total no. of door glasses 3
No.of thermo-reflective door glasses 2
Safety thermostat Yes
Cooling system Tangential
Grill type Gas
Soft Close system Yes
Temperature control Electro-mechanical

Secondary oven - technical specifications
Soft Close Yes

Electrical connection
Plug (B) NEMA 5-15P
Electrical connection rating 200 W
Current 2 A
Circuit breaker 15 A
Voltage 120 V
Frequency 60 Hz
Power cord length 55 1/8 "
Type of electric cable installed Yes, Single phase

Gas connection
Gas Type G20/G25 - 20/25 mbar

Dimensions & weight
Width 29.94 in.
Height 35.44 in.
Length 25.19 in.
Weight 235 lbs.
Gross weight 262 lbs
Net weight 235 lbs
Packaged width 34 1/4 "
Packaged depth 29 1/2 "
Packaged height 39 3/4 "

Number of boxes, shipping dimensions, & shipping weight
Shipping Width 34.25 in.
Shipping Height 39.75 in.
Shipping Length 29.5 in.
Source Calculation

Other
Packaged dimensions 1010X870X750 mm
Maximum stackability 4
Packaging Cardboard box
Packaging composition - Paper 9 lbs
Packaging composition - Polystyrene 11 lbs
Packaging composition - Wood 5 lbs
Packaging composition - Plastics 1 lbs

Description

The brand Smeg CPF30UGGX Compact Gas Cooker delivers professional-grade cooking performance in a compact, stylish package. This 30-inch freestanding range features a high-performance gas oven with convection fan for even heat distribution and a five-burner gas hob with sealed burners for safe, efficient cooking. The central dual-ring burner provides rapid heat for tasks like boiling or wok cooking. The 4.4 cu. ft. oven capacity accommodates multiple dishes, while the soft-close oven door and enamel-coated interior enhance safety and ease of maintenance. With its stainless steel finish, robust metal knobs, and continuous grates, the CPF30UGGX is a striking and reliable addition to any modern kitchen.
