Name: HOTPOINT AH11 HEATPUMP W ELECTRIC RESISTANCE HEAT 230208V 15K BTU 230 208V 30 AMP
Brand: HOTPOINT
SKU: AH11H15D5B-KT
Availability: InStock

HOTPOINT AH11 HEATPUMP W ELECTRIC RESISTANCE HEAT 230208V 15K BTU 230 208V 30 AMP

Key Specs

Type: Space heaters
Width: 0.0 Inch
Depth: 0.0 Inch
Height: 0.0 Inch

More details

Translation missing: en.products.product.product_variants

Contact us for Pricing

Check Delivery Options

More on the way

Quantity:

Extended Protection

3 Year Major Appliance True Extended under $500.00
$75.99
5 Year Major Appliance True Extended under $500.00
$139.99
Decline Protection

Product Information
Technical Details
Manuals & Guides
Features
Reviews

General
Model: AH11H15D5B
Brand: Hotpoint
Color: White
Height: 0.0
Width: 0.0
Length: 0.0
Advanced Features
Smart Features: No
Wi-Fi Connectivity: No
Heating capacity (BTU): 0

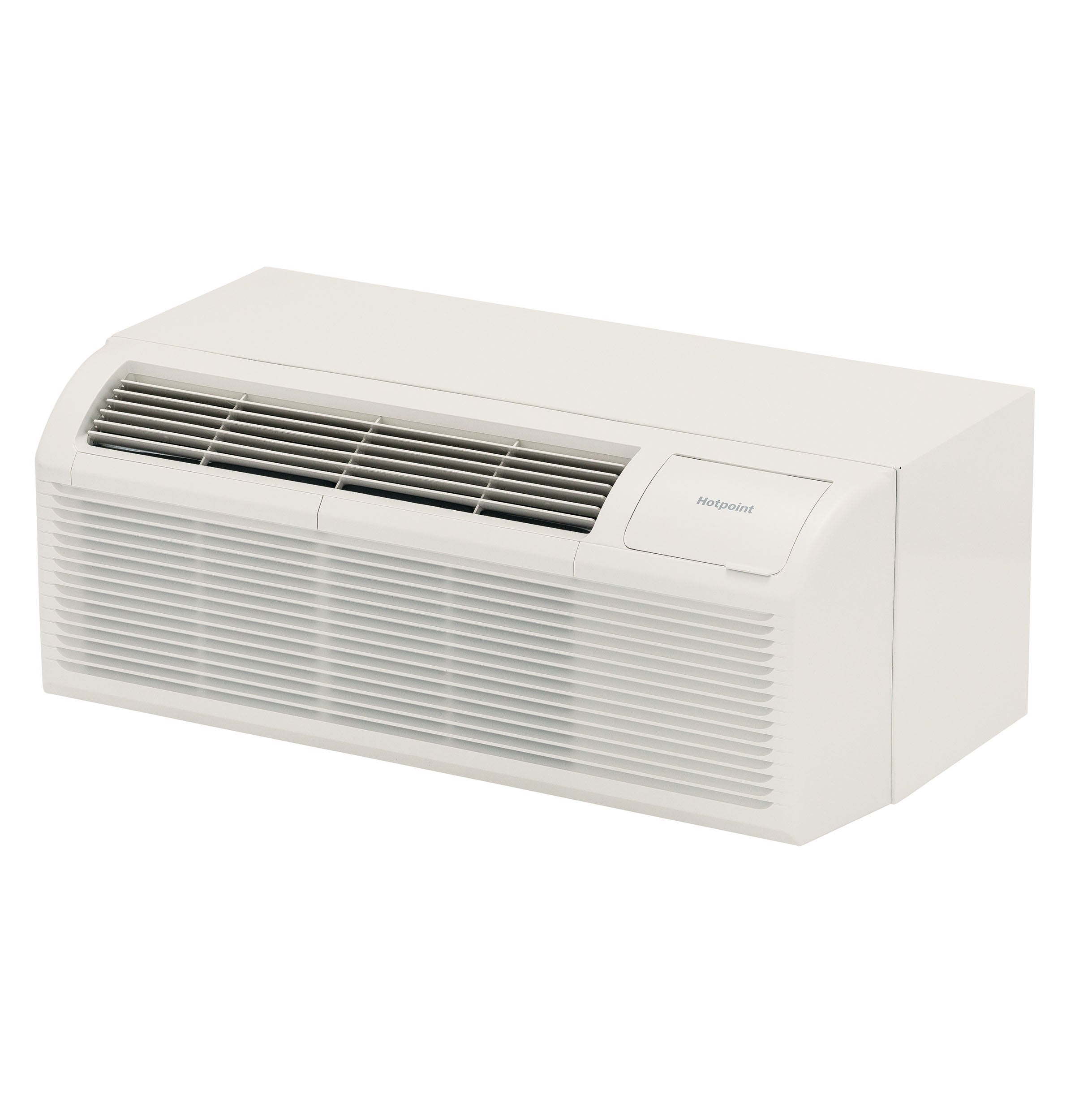

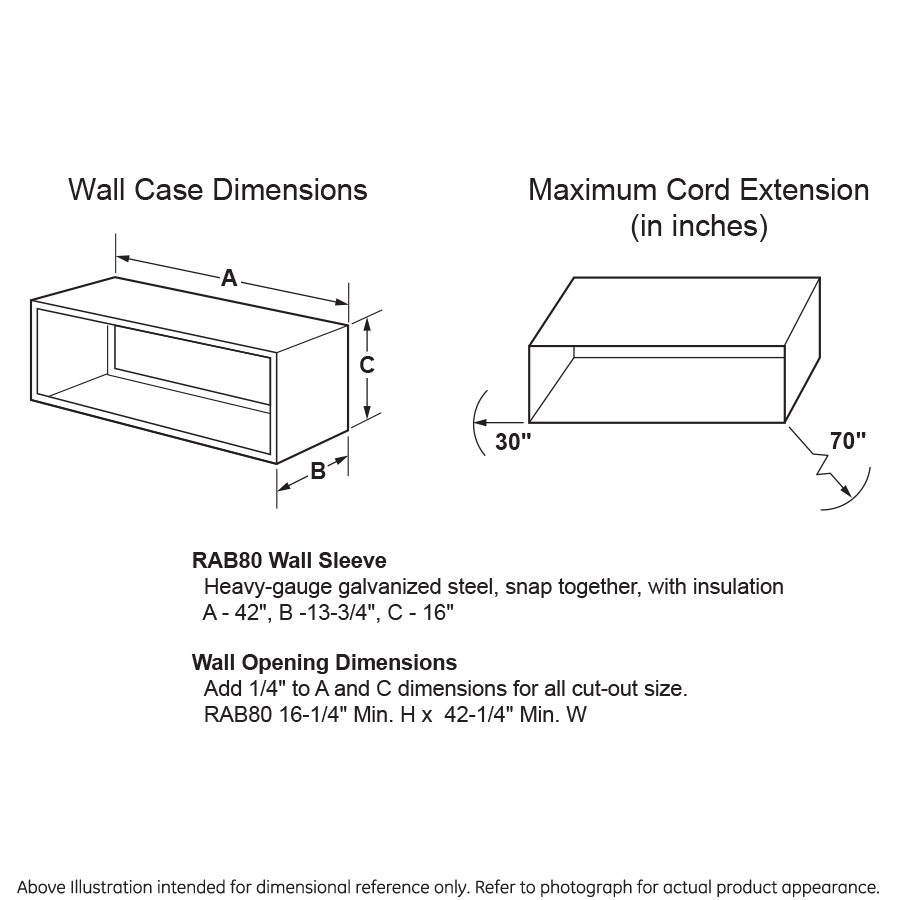

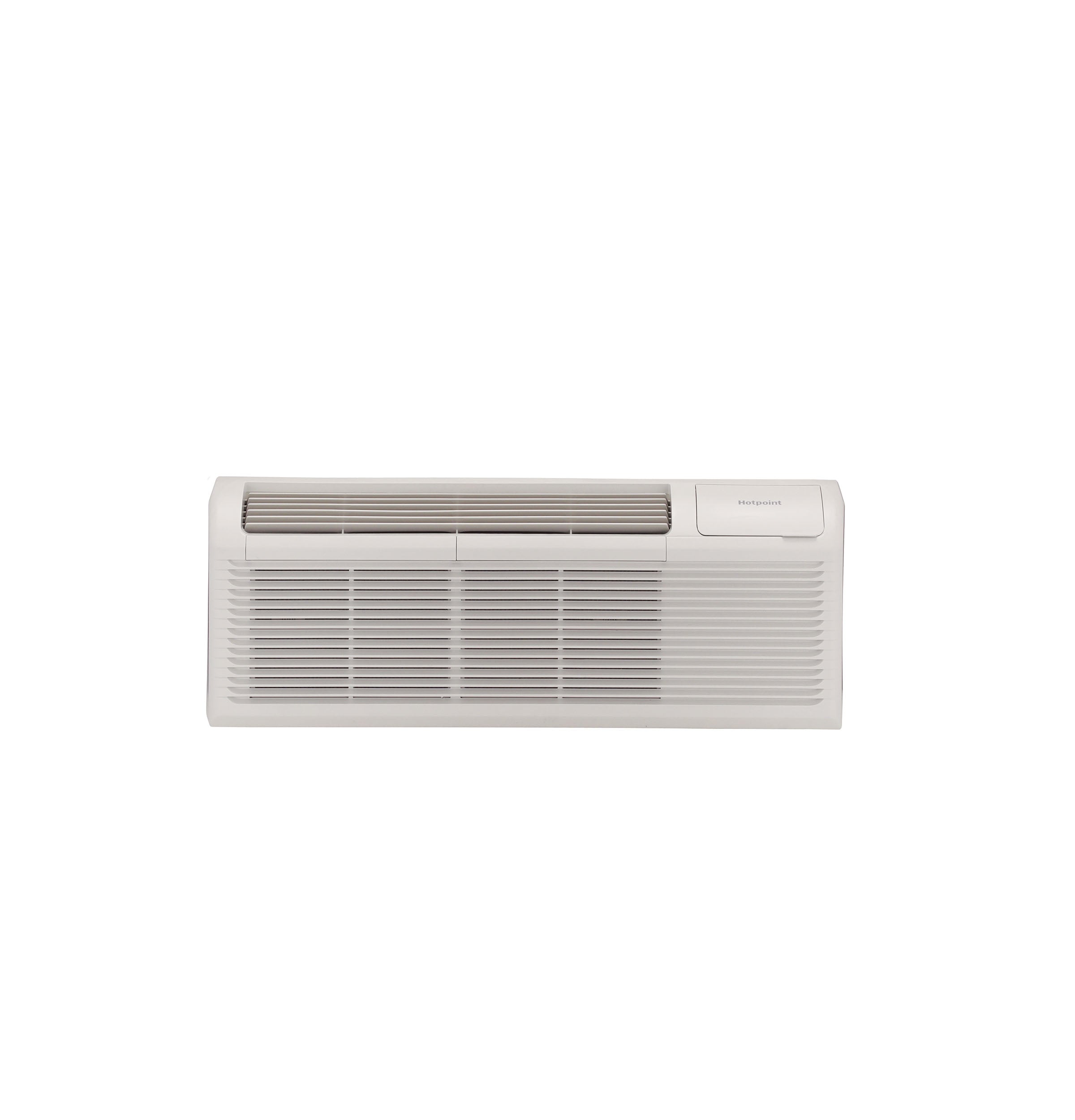

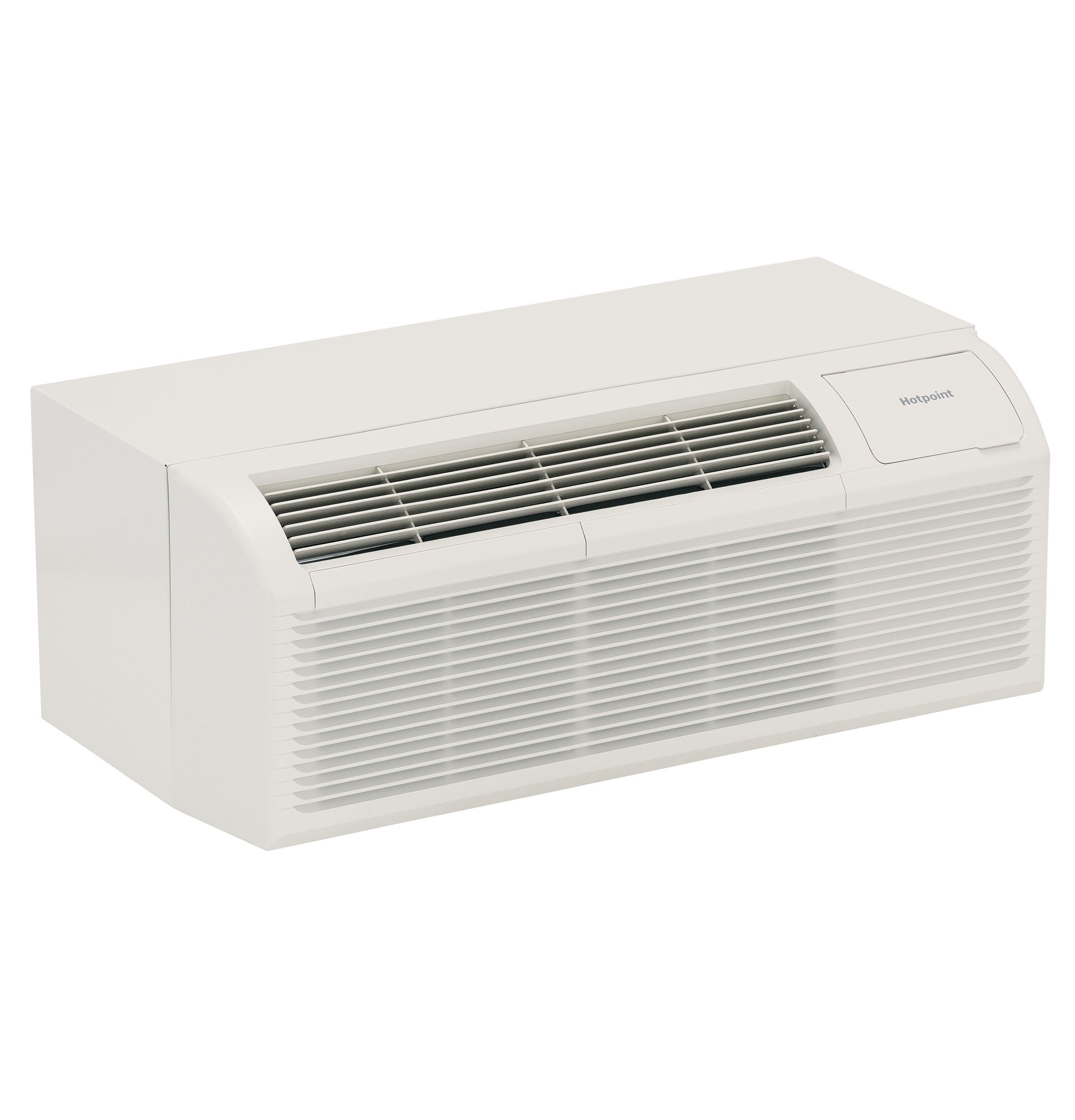

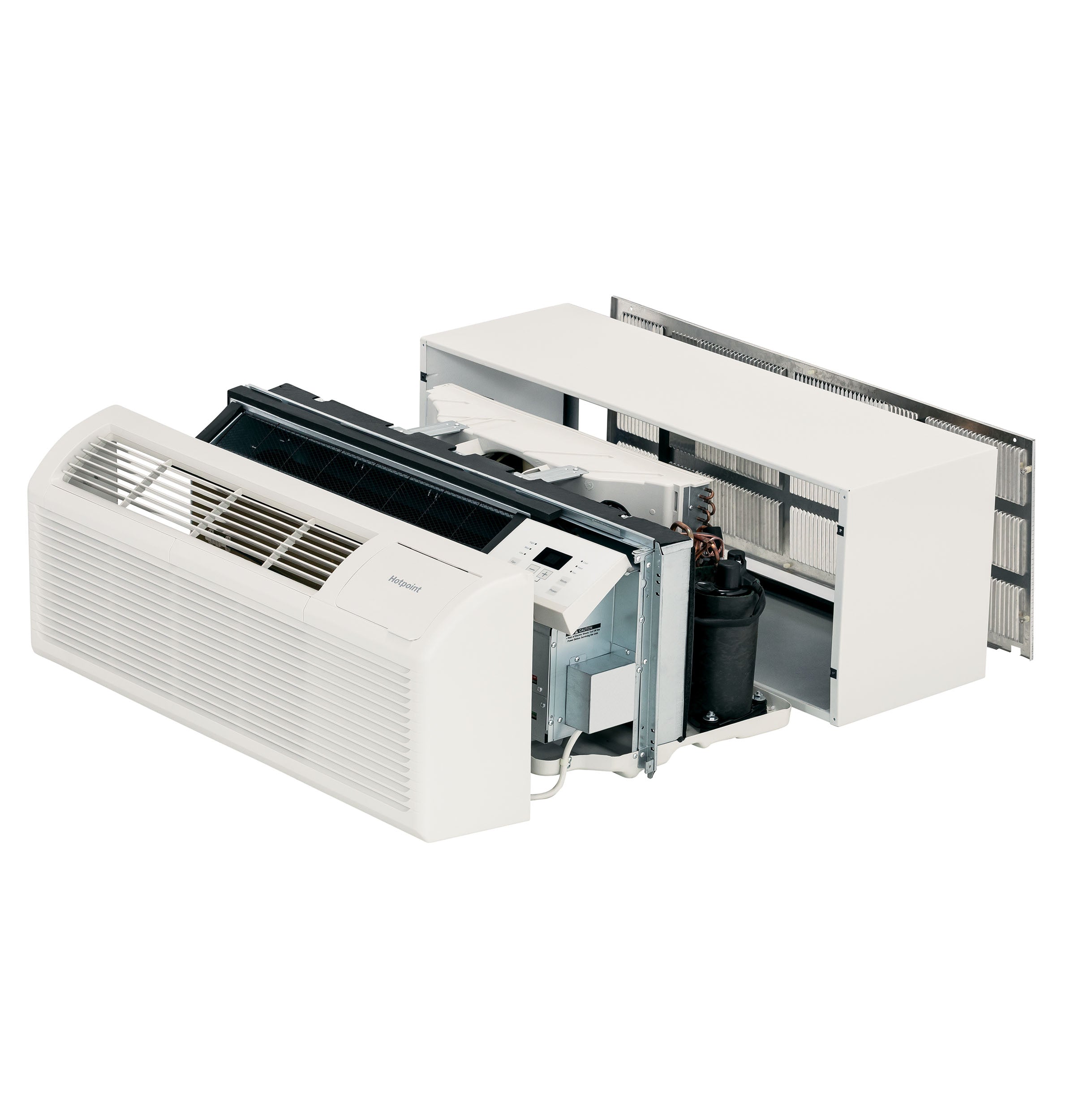

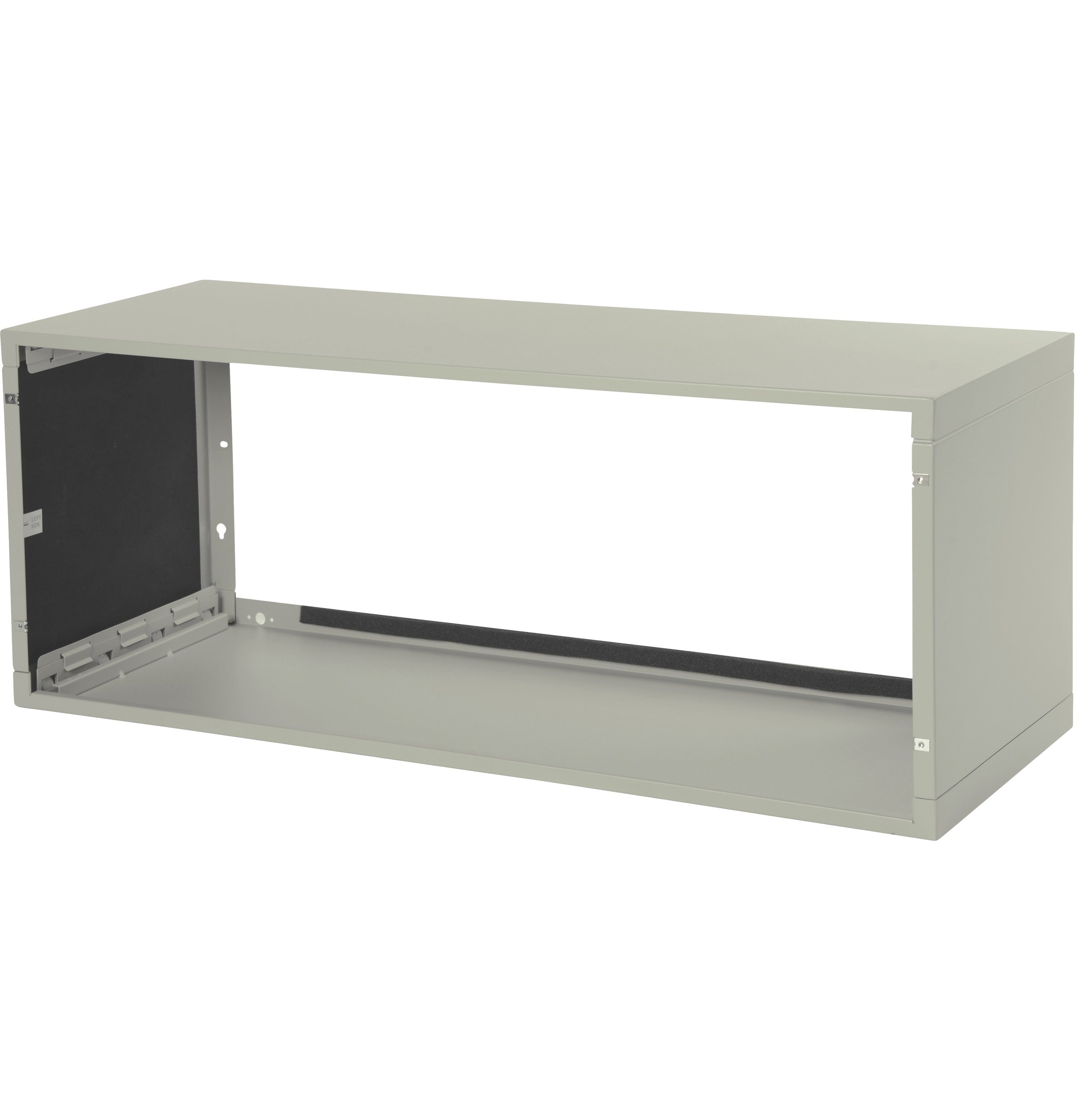

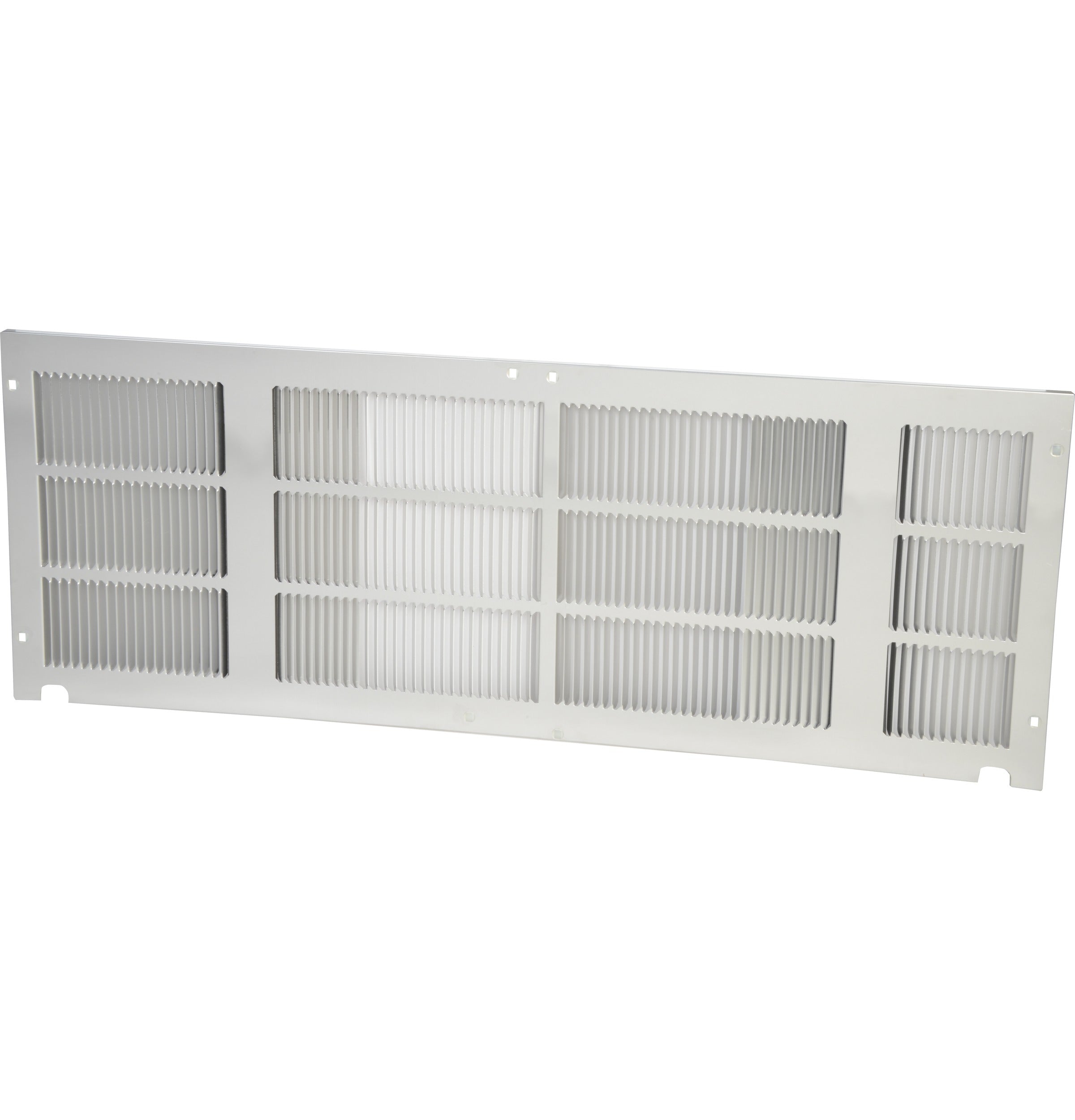

The AH11H15D5B Hotpoint PTAC comes with a 30 amp, 208/230 volt power cord included and new installations require a grille and wall sleeve. However, if you are replacing a PTAC unit, your current grille and sleeve may be fine. The AH11H15D5B is a cooling unit with reverse cycle heat pump and electric back-up heat. It has a cooling capacity of 14,700 BTUs, 13,500 BTUs heat pump and features and 9.7 EER rating and 3.0 COP. The 30 amp power cord will deliver 5.0 kW of electric back-up heat. Hotpoint has a long history as an industry leader in the appliance and comfort control industries.

CAPACITY
Cooling EER (BTUH / Watt)	9.7
CFM Indoor Fan Medium	344
Cooling BTUH (MIN)	14500.0
Heating - Reverse Cycle - BTUH	13500/13200
CFM Indoor Fan High	373
CFM Indoor Fan Low	311
Cooling BTUH (MAX)	14700.0
APPEARANCE
Installation	Through-the-Wall
Color Appearance	White
POWER / RATINGS
Heating - Reverse Cycle - Watts	1315/1285
Cooling - Watts	1515/1490
Voltage (MIN)	208.0
Cooling - Amperes	6.03/6.58
Heating - Electric - Heater Watts	5035/4125
Heating - Reverse Cycle - Amps	5.38/5.82
Voltage (MAX)	230.0
Heating - Reverse Cycle - COP	3.0
Heating - Electric - Heater Amps	22.0/19.7
WARRANTY
Warranty Notes	See written warranty for full details
Parts Warranty	Limited 1-year entire appliance Limited 5-year sealed refrigerating system
Labor Warranty	Limited 1-year entire appliance Limited 5-year sealed refrigerating system
WEIGHTS & DIMENSIONS
Net Weight	118.0
Overall Depth	21.0
Overall Width	42.0
Overall Height	16.0
Approximate Shipping Weight	127.0
FEATURES
Refrigerant Type	R410A
Discharge Grille	2-position
Heat Pump	Yes

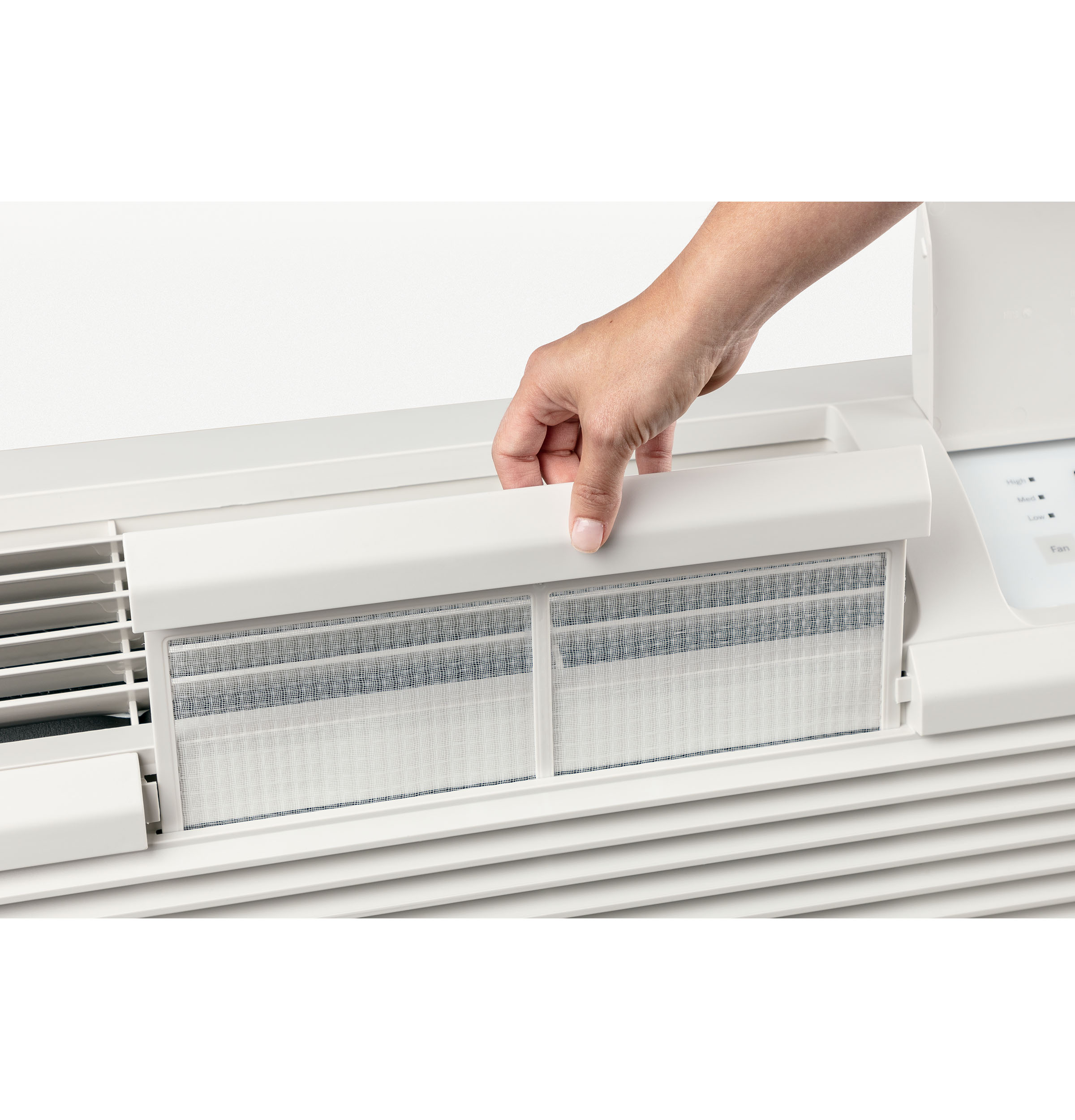

Venting Features	Concealed Manual Vent Control Vent Air Filter
Heating System	Heat Pump with Resistance Backup

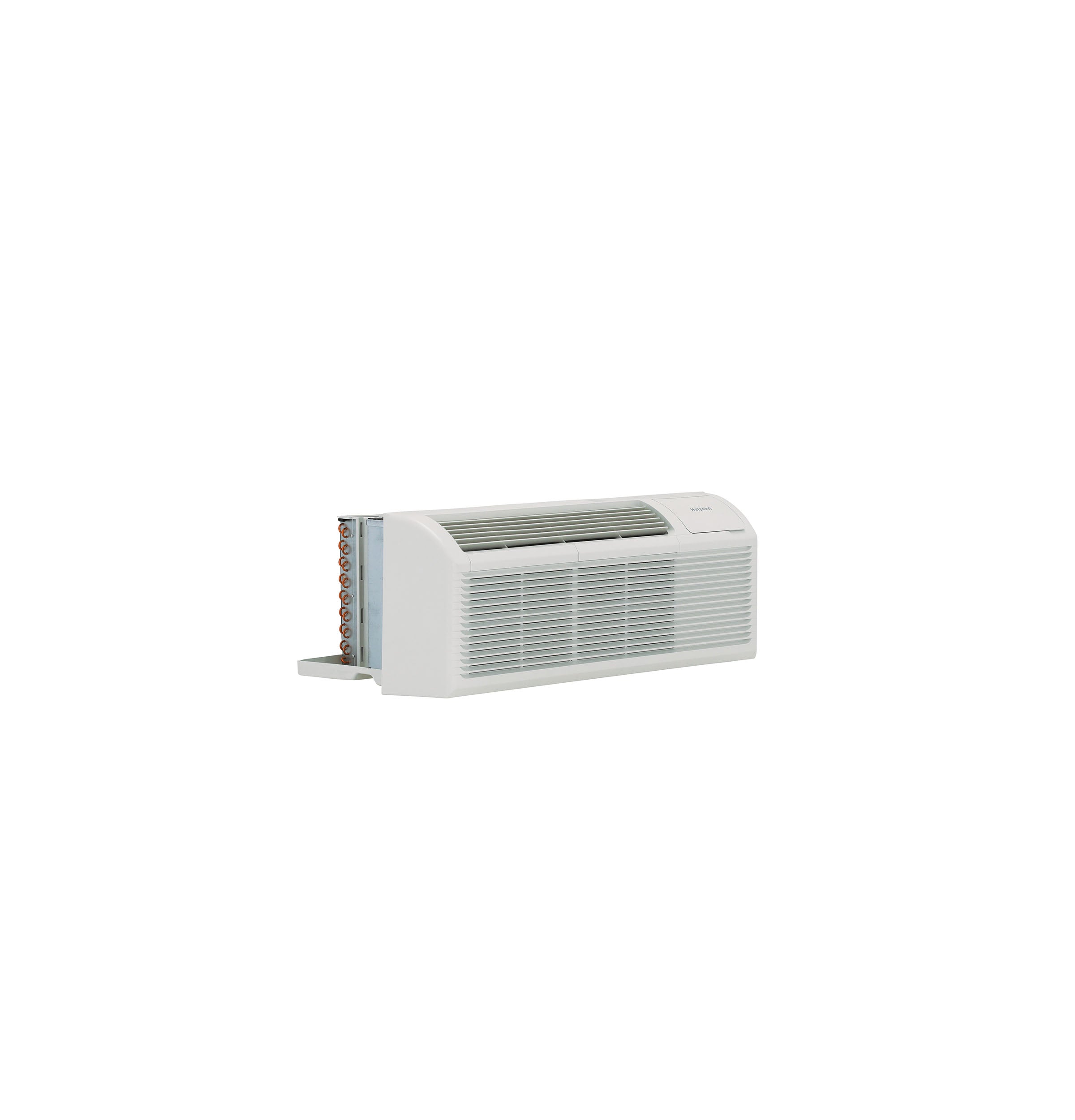

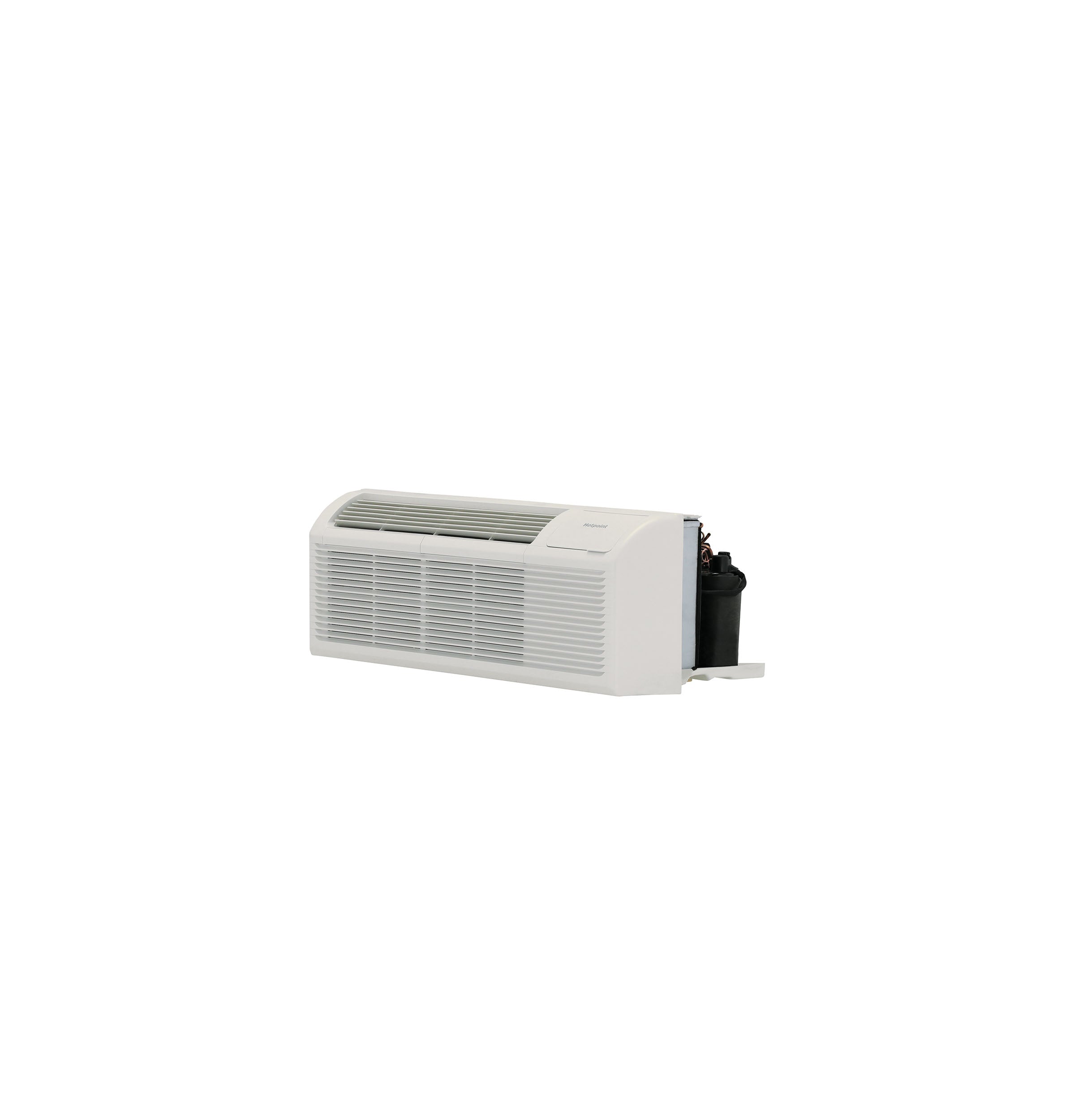

Chassis Type	Slide-In
Rotary Compressor	Yes
Auto Power Recovery	Yes
Fan Speed Selections	3 Cooling 3 Fan Only 3 Heating
Heat - Cool	Yes
Control Type	Electronic
Unit Features	Auto Power Recovery Automatic Emergency Heat Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Heat Pump with Resistance Heat Backup Power Cord (LCDI) included Remote Thermostat Compatibility
Manual Vent Control	Hidden
Outdoor Vent / Exhaust	Yes
Product Type	Packaged Terminal Air Conditioners (PTAC)
"SmartFan" Fan Cycle	Yes
Fan Motor	2
Temperature Range	62 - 86 F

3-speed fan
Power cord (LCDI) included
4-temperature limiting options
Freeze and frost protection
Auto power recovery
Self diagnostics
Automatic emergency heat
Backed by an industry leader
Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty

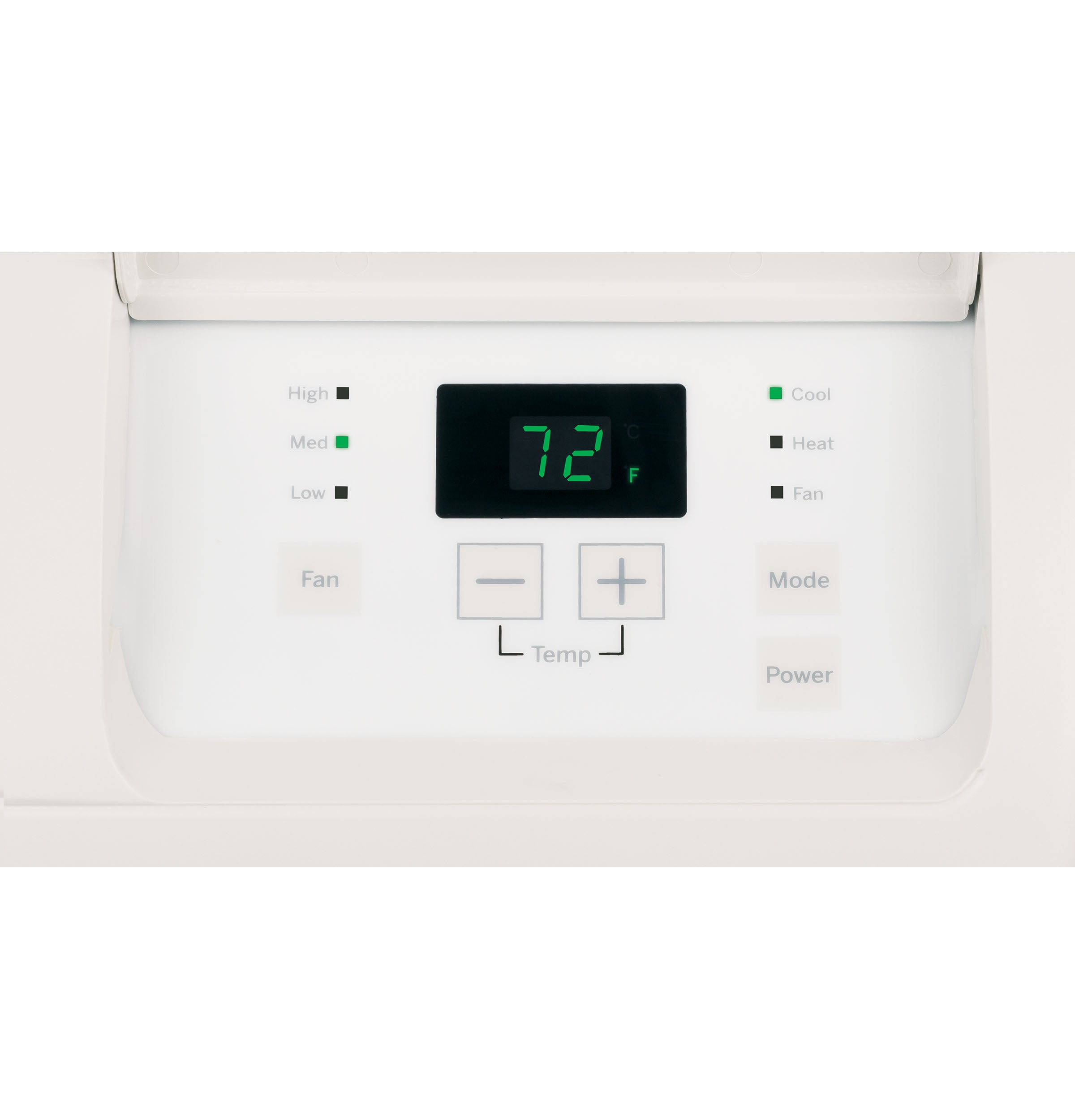

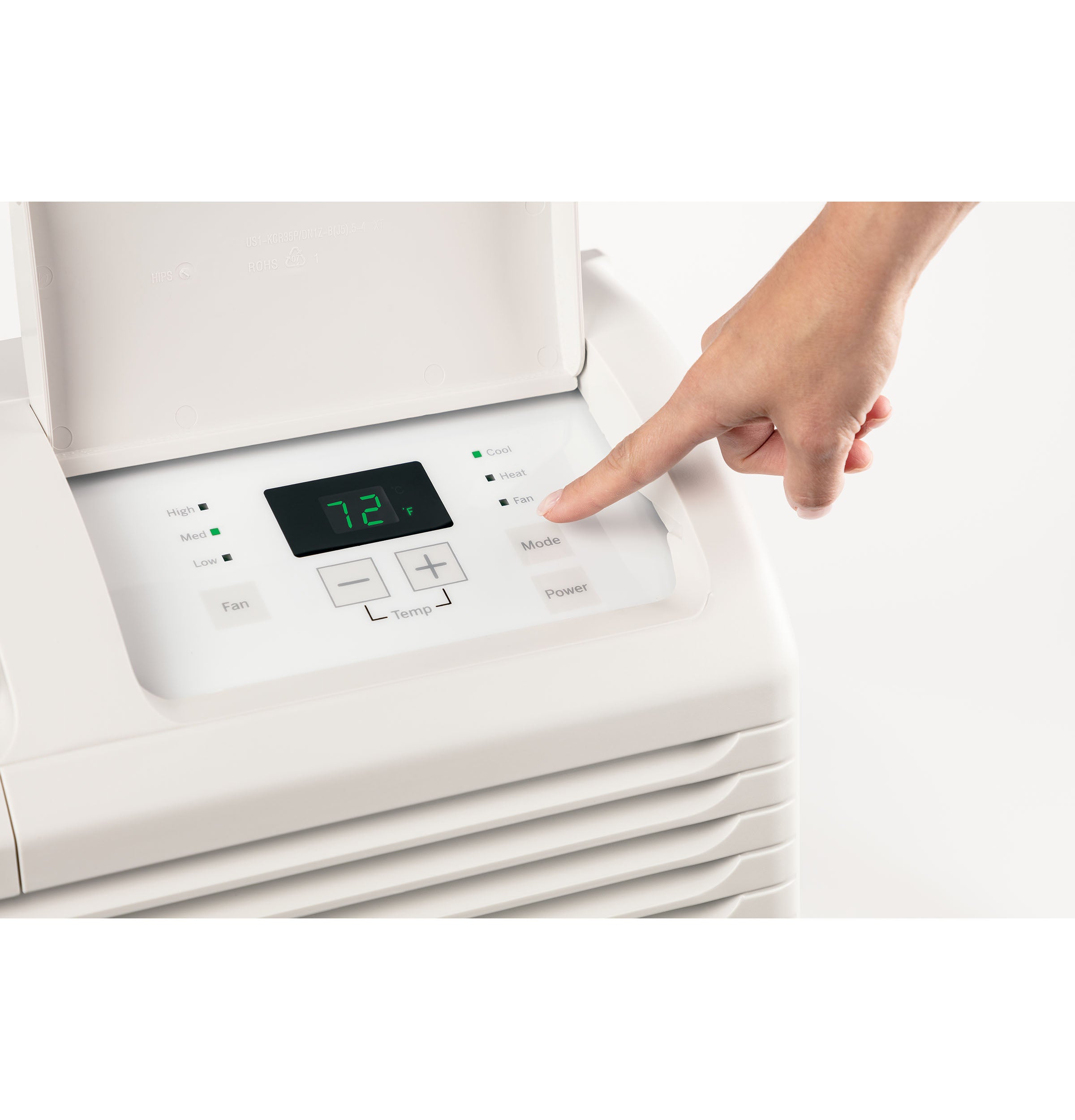

Intuitive display
