Product Details for Friedrich PZE09K3SB

Technical Details

Performance data

Cooling BTU 9600/9400
Cooling Watts 815/800
EER 11.8/11.8
Heater Size (kW) 3.6
Moisture Removal (Pints/hr) 1.2
Sensible Heat Ratio 0.82

Electrical data

Voltage (1 PHASE, 60 Hz) 230/208
Volt Range 253-187
Current (Amps) 3.5/3.8
Power Factor 0.99
Compressor LRA 20.0
Compressor RLA 3.3
Outdoor Fan Motor (HP) 0.07

Airflow data

Indoor CFM, HIGH 400
Indoor CFM, LOW 250
Vent CFM 75

Physical data

Sleeve Dimensions (HxWxD) 16" x 42" x 13 3/4"
Dimensions with Front (HxWxD) 16"x 42"x 21 1/2"
Cut Out Dimensions (HxW) 16 1/4" x 42 1/4"
R-410A Charge (Oz.) 32.1

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 47 in.
Shipping Height 21 in.
Shipping Length 26.5 in.
Source Calculation

Dimensions & weight

Width 42 in.
Height 16 in.
Depth 21.5 in.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 8.36 ft³
Dimensional Weight 103.94 lbs.
Total of Cubes 8.36 ft³
Total of Dimensional Weight 103.94 lbs.

Description

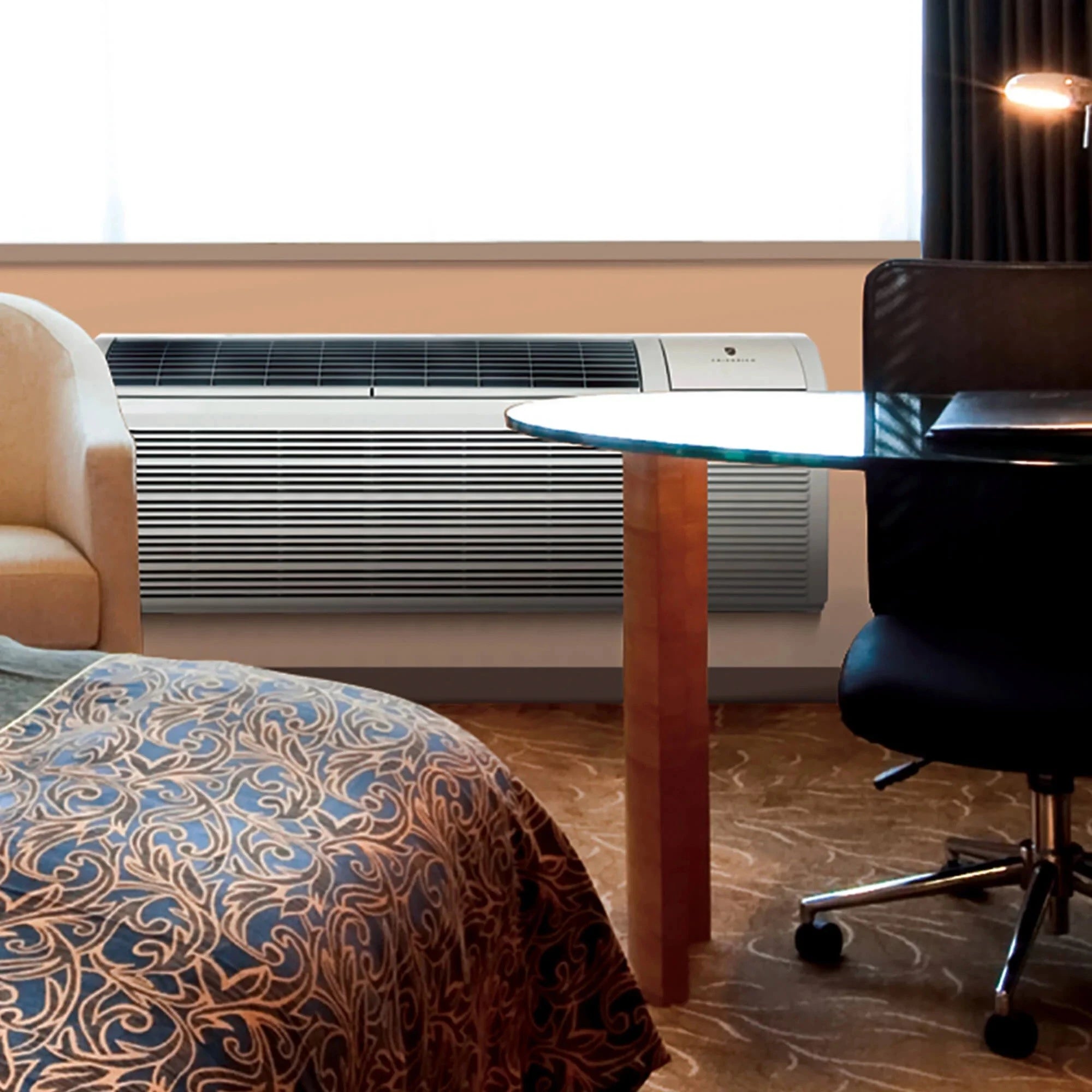

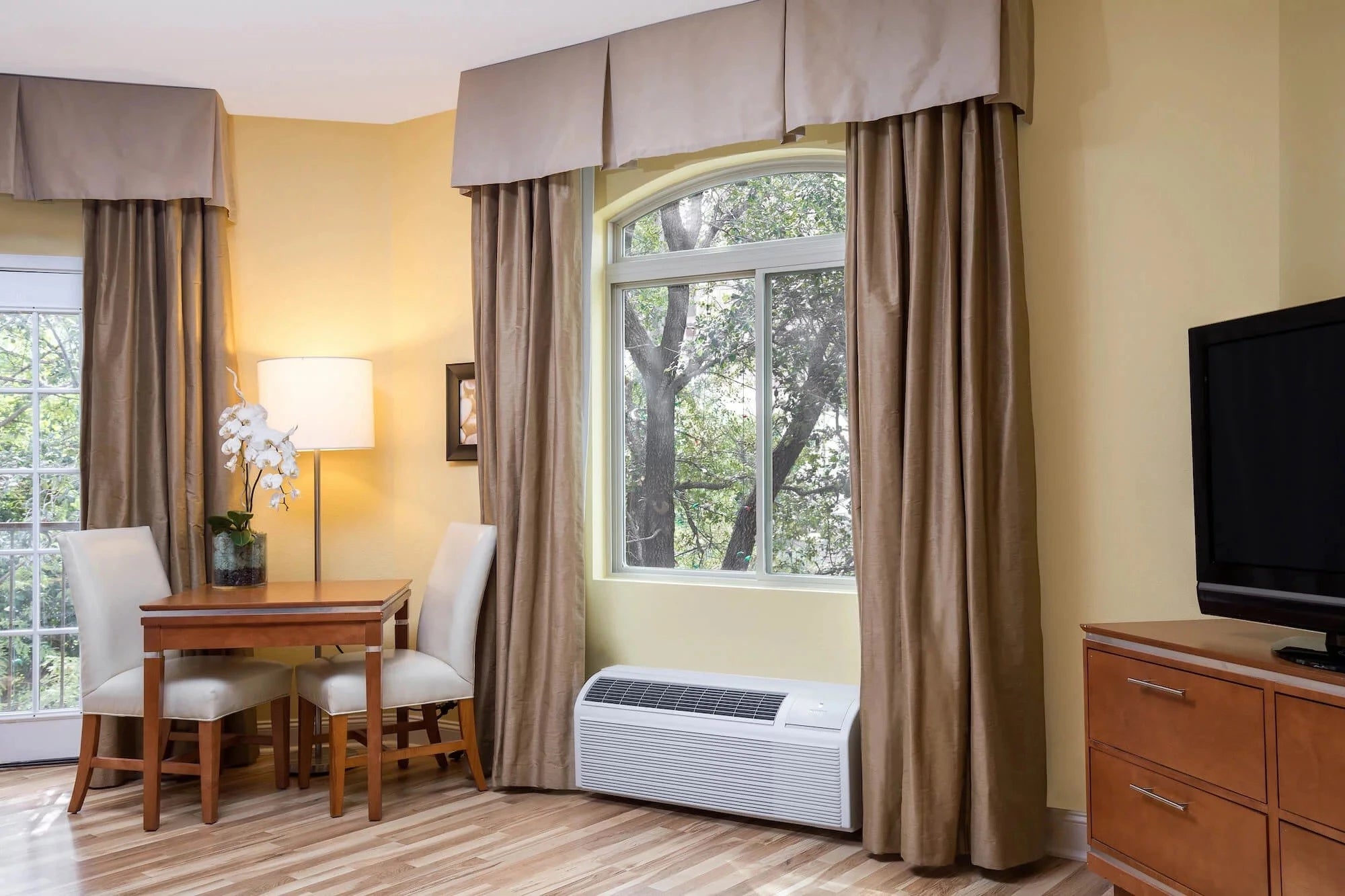

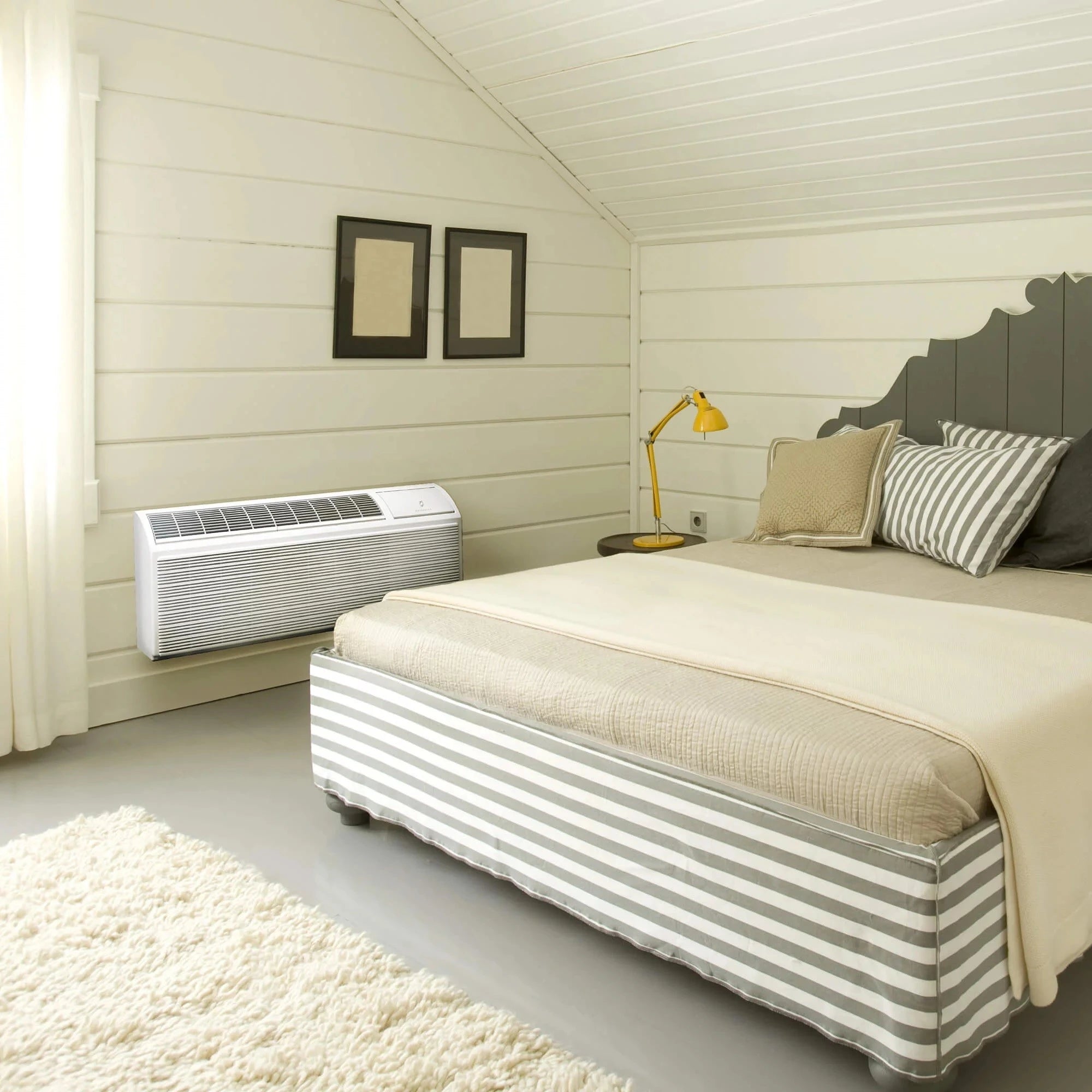

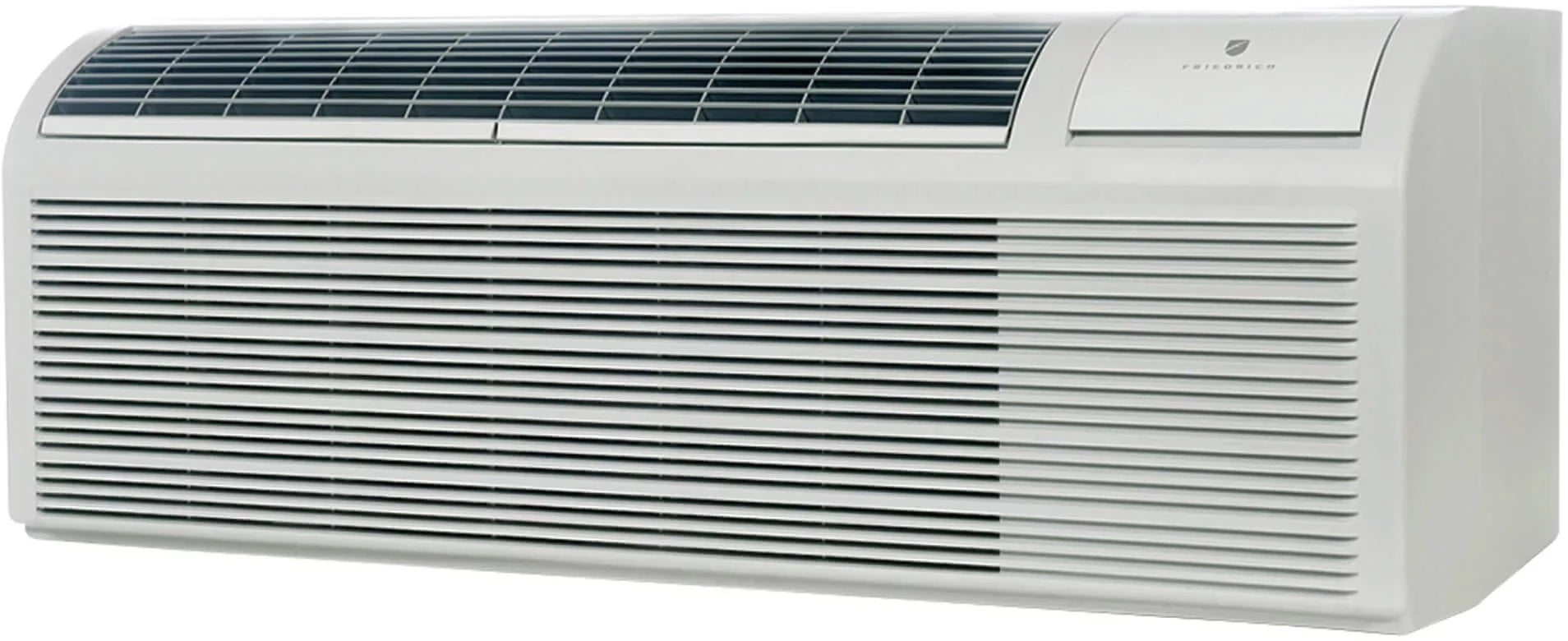

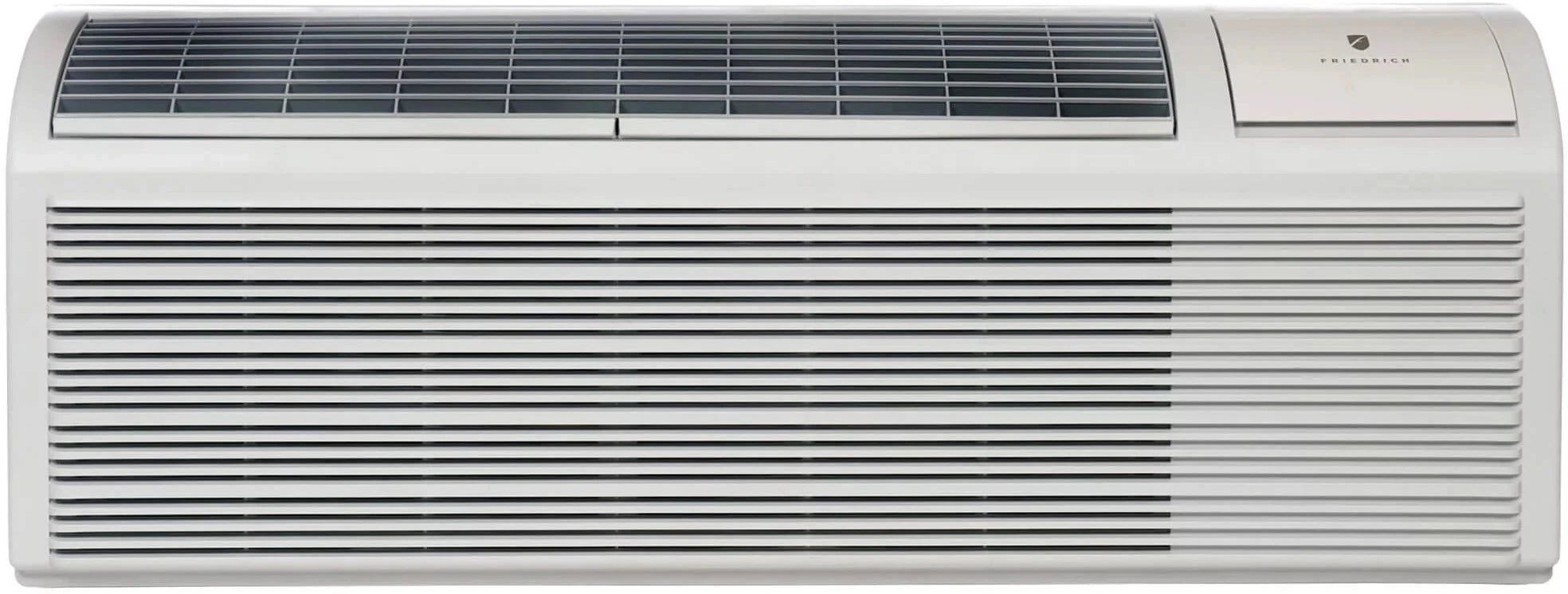

Packed Terminal Air Conditioner with Diamonblue Advanced Corrosion Protection® Friedrich brings reliable cooling and heating with low operational sounds with the Packed Terminal Air Conditioner with Diamonblue Advanced Corrosion Protection®. Built with durable materials and the highest quality of components, this PTAC is made with Diamonblue Advanced Corrosion Protection® to ensure longevity even in the harshest environments. Its modular design makes maintenance ans service fast and effortless as it lets you access key components easily. You can additionally choose to control the temperature both through wired or wireless thermostats for added convenience. Keep your air clean with its anti-bacterial air filters.


Product Features

  • Protects the outdoor coil against deterioration and extends the life of the unit especially in harsh coastal environments.
  • Securely attaches the front each time.

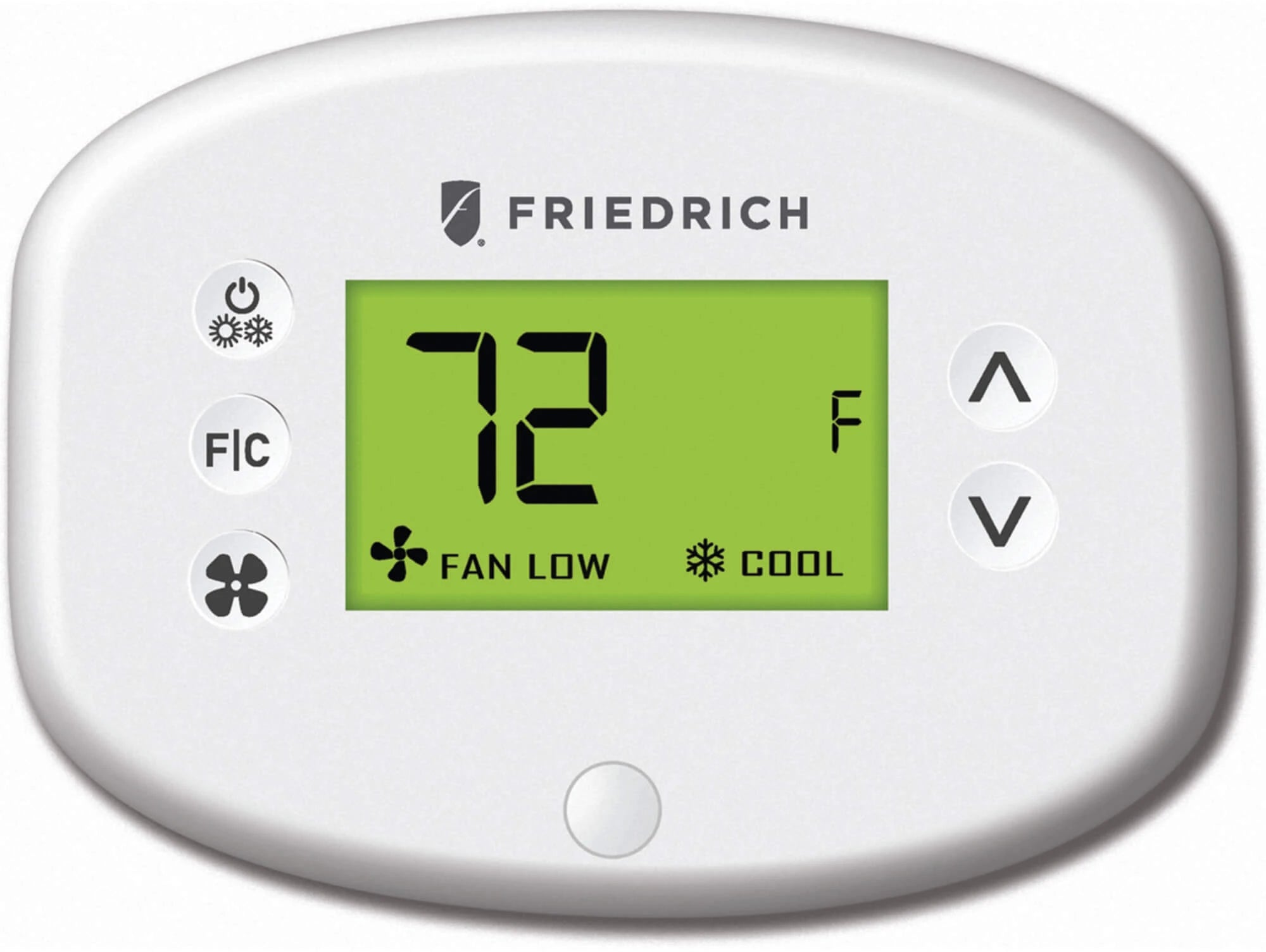

  • Comes with integrated occupancy sensor, five distinct energy presets and comprehensive remote management capability. Sold separately.
  • Proven to prevent mold and bacterial growth in laboratory testing. Washable, reusable and easily accessed from the top of the unit without the removal of the front cover.
  • Anodized stamped aluminum grille withstands chalking and oxidation.
  • Removes up to 3.0 pints/hour of moisture in cool mode to improve comfort and reduce the chance of mold and mildew growth.
  • Can alert maintenance to component failures or operating problems. Fourteen numeric service error codes stored in memory facilitate rapid unit diagnostics.
  • Slinger ring technology in condensate removal system cools the
  • Mounted with vibration isolators to keep the compressor running smoothly and quietly.
  • Creates a wide path air flow that reaches the furthest corner of the guest room more quietly than conventional fans.
