Product Details for Friedrich PZH15K5SB

Technical Details

Features

PTAC Yes
Type Wall
Chassis Type Thru the Wall
Wall Sleeve Included No
Maximum Cooling Amps 6.7 Amps
Maximum Cooling Watts 1,420 Watts
Maximum Heating Amps 5.5 Amps
Maximum Heating Watts 1,180 Watts
Heat Heat Pump
Energy Efficiency Rating 10.2

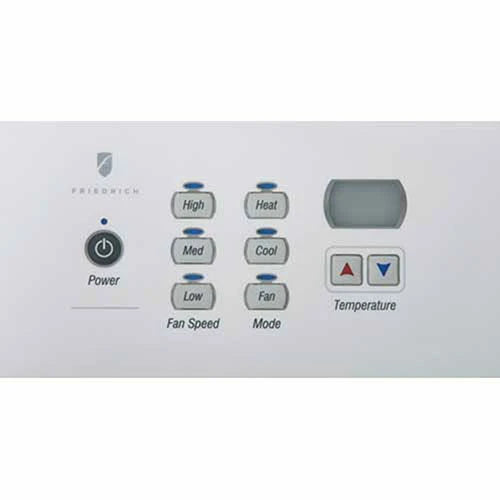

Control Type Digital
Remote Control Included No
Indoor CFM, High 470 CFM
Indoor CFM, Low 360 CFM
Vent CFM 75 CFM

Specifications

Fan Speeds 3 Fan Speeds
Cooling Capacity 14500 BTU
Heating Capacity 13600 BTU
Volts Rated 230/208 Volts
Cooling Amps 6.7 Amps
Cooling Watts 1420 Watts
Heating Amps 5.5 Amps
Heating Watts 1180 Watts
Energy Efficiency Ratio (ERR) 10.20
Moisture Removal 3 Pints/Hr.
Indoor CFM High 470
Indoor CFM Low 360
Vent CFM 75

Circuit rating/breaker

Voltage 230/208V
Plug Face (NEMA#) 6-30P
Power Cord Length 5 ft

Dimensions and weights

Overall Width 42"
Overall Depth 21 1/2"
Overall Height 16"
Cut Out Dimensions Width 42 1/4"
Cut Out Dimensions Height 16 1/4"

Product information

Brand Friedrich
Series ZoneAire Series
Model PZH15K5SB

Capacity

Cooling Capacity (BTU) 14,500 BTU
Heating Capacity (BTU) 13,600 BTU
CFM Room Circulation 470 CFM

Smart

WiFi No
Alexa No
Google Home No
Remote Control No
Remote Monitoring No
Remote Diagnostics No
Dash Replenishment No
Smart Accessory Required No

Technical details

Energy Star Rated No
ADA Compliant No
Plug Type 6-30P
Voltage 230/208 Volts

Gtin

EAN 0724587435825

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 47 in.
Shipping Height 21 in.
Shipping Length 26.5 in.
Shipping Weight 136 lbs.
Total of Shipping Weight 136 lbs.
Source Calculation

Dimensions & weight

Width 42 in.
Height 16 in.
Depth 21.5 in.
Weight 113 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 8.36 ft³
Dimensional Weight 103.94 lbs.
Total of Cubes 8.36 ft³
Total of Dimensional Weight 103.94 lbs.

Description

Friedrich 14,500 BTU Energy Smart Thru-the-Wall Packaged Terminal Air Conditioner with FriedrichLink Energy Management Thermostats Friedrich Packaged Terminal Air Conditioners (PTACs) are known for being feature-rich, excellent energy efficiency, reliable performance and backed by an outstanding warranty. With a fresh design for outstanding energy efficiency, the Zoneaire Select Series advance coil design maximizes the inner surface area to deliver higher EER efficiencies of up to 12 and COP up to 3.55. Offering 14,500 BTU cooling capacity and 13,600 BTU heating capacity, this Energy Smart Packaged Terminal Air Conditioner has 10.2 EER, 3 Moisture Removal (pints / hr.), 52 dB, R410A Refrigerant, and 208-230 Volts. Friedrich Packaged Terminal Air Conditioners are built to offer years of reliable results and designed for maximum comfort while being nicely integrated into space and installed where they are least obtrusive-and most efficient in silently and gently directing treated air to every corner of the room. Durable Construction & Sound Reduction Features Friedrich Packaged Terminal Air Conditioners are designed to reduce sound levels and improve overall guest satisfaction with superior materials and components such as Aluminum Endplates, Galvanized Zinc Coated Steel Wall Sleeve, and Steel Base Pan for exceptional durability. It is also designed to operate in a quiet yet powerful way. The two-motor design enables the indoor motor to run at slower speeds, which significantly decreases indoor noise levels and the two fan motors are also continuously lubricated for quieter operation and enhanced durability, while High-density insulation and steel inner wall to block outdoor noise Comfort, Health & Convenience Friedrich Packaged Terminal Air Conditioners has a 3-speed fan (cooling and heating modes) almost five times the surface area of a typical PTAC fan, enabling for more uniform airflow over a wider route, Fresh Air Damper, Intuitive Unit Controls, Instant Heat Pump Mode, Automatic Periodic Sampling of room temperature every nine minutes, Reversible Indoor Air Louvers and Antimicrobial Air Filters that are readily accessible and washable for the complete convenience of guests/residents. Ease of Maintenance & Installation Friedrich Packaged Terminal Air Conditioners are designed for simple installation and maintenance with a Surehold Front Cover System that securely attaches the front each time, Remote thermostat pop-out wiring module and Modular product design that guarantees easy access to important parts for cleaning and repairing, including washable, lift-out air filters as well as possibly installed flush with the floor. Warranty and Service 2-year full warranty on parts and labor and 5-year limited warranty. Nationwide service network and U.S.-based Friedrich expert technical team ensure you get fast, knowledgeable service.


Product Features

  • Energy Efficient & Energy Smart
    Super-efficient refrigeration design with EERs up to 12.0 and COP up to 3.55. Exceptional FriedrichLink® energy management thermostats available (wired & wireless) with an integrated occupancy sensor, five distinct energy presets and comprehensive remote
  • Comfort, Health & IAQ
    Dehumidification removes up to 3.0 pints/hour of moisture in cool mode to improve comfort and reduce the chance of mold and mildew growth.
  • Durable Construction
    Superior materials and design reduce sound levels and improve overall guest satisfaction
  • Ease of Maintenance & Installation

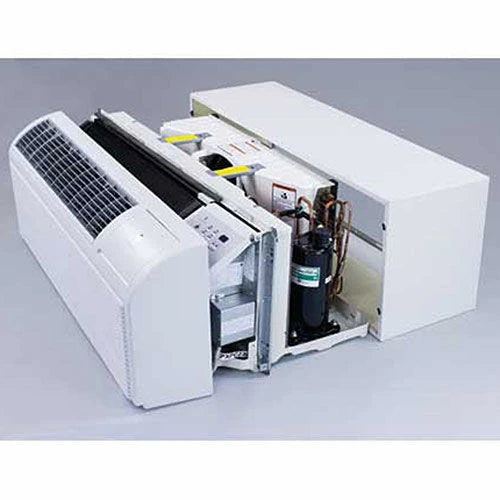

    Modular product design ensures easy access to key components for cleaning and repairs, including washable, lift-out air filters.
  • Sound Reduction Features
    Two permanently lubricated fan motors for added durability and reduced sound levels indoors.
  • Warranty and Service
    2-year full warranty on parts and labor and 5-year limited warranty. Nationwide service network and U.S.-based Friedrich expert technical team ensure you get fast, knowledgeable service.
