Product Details for Friedrich PZE12K3SB

Technical Details

Features

PTAC Yes
Type Wall
Chassis Type Thru the Wall
Wall Sleeve Included No
Maximum Cooling Amps 5 Amps
Maximum Cooling Watts 1,050 Watts
Heat Electric Heat
Energy Efficiency Rating 11.4
Remote Control Included No
Window Type Standard
Indoor CFM, High 470 CFM
Indoor CFM, Low 360 CFM
Vent CFM 75 CFM

Performance data

Cooling BTU 12000/11800
Cooling Watts 1050/1035
EER 11.4/11.4
Heater Size (kW) 3.6
Moisture Removal (Pints/hr) 2.1
Sensible Heat Ratio 0.77

Electrical data

Voltage (1 PHASE, 60 Hz) 230/208
Volt Range 253-187
Current (Amps) 4.5/5.0
Power Factor 0.96
Compressor LRA 28.5
Compressor RLA 5.3
Outdoor Fan Motor (HP) 0.07

Airflow data

Indoor CFM, HIGH 470
Indoor CFM, LOW 360
Vent CFM 75

Physical data

Sleeve Dimensions (HxWxD) 16" x 42" x 13 3/4"
Dimensions with Front (HxWxD) 16"x 42"x 21 1/2"
Cut Out Dimensions (HxW) 16 1/4" x 42 1/4"
R-410A Charge (Oz.) 30.7

Product information

Brand Friedrich
Series ZoneAire Series
Model PZE12K3SB

Capacity

Cooling Capacity (BTU) 12,000 BTU
Heating Capacity (BTU) 11,000 BTU

Smart

WiFi No
Remote Control No
Remote Monitoring No

Technical details

Energy Star Rated No
ADA Compliant No
Plug Type 6-20P
Voltage 230/208 Volts

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 47 in.
Shipping Height 21 in.
Shipping Length 26.5 in.
Source Calculation

Dimensions & weight

Width 42 in.
Height 16 in.
Depth 21.5 in.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 8.36 ft³
Dimensional Weight 103.94 lbs.
Total of Cubes 8.36 ft³
Total of Dimensional Weight 103.94 lbs.

Description

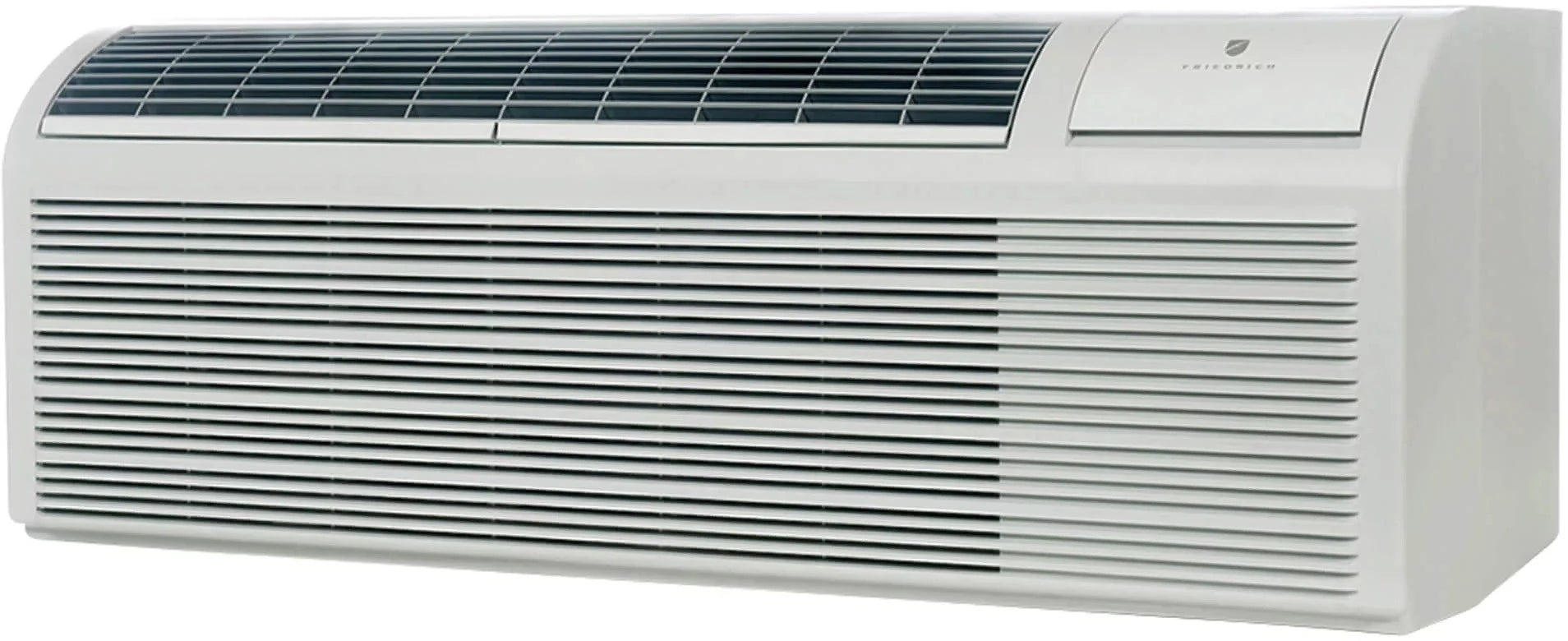

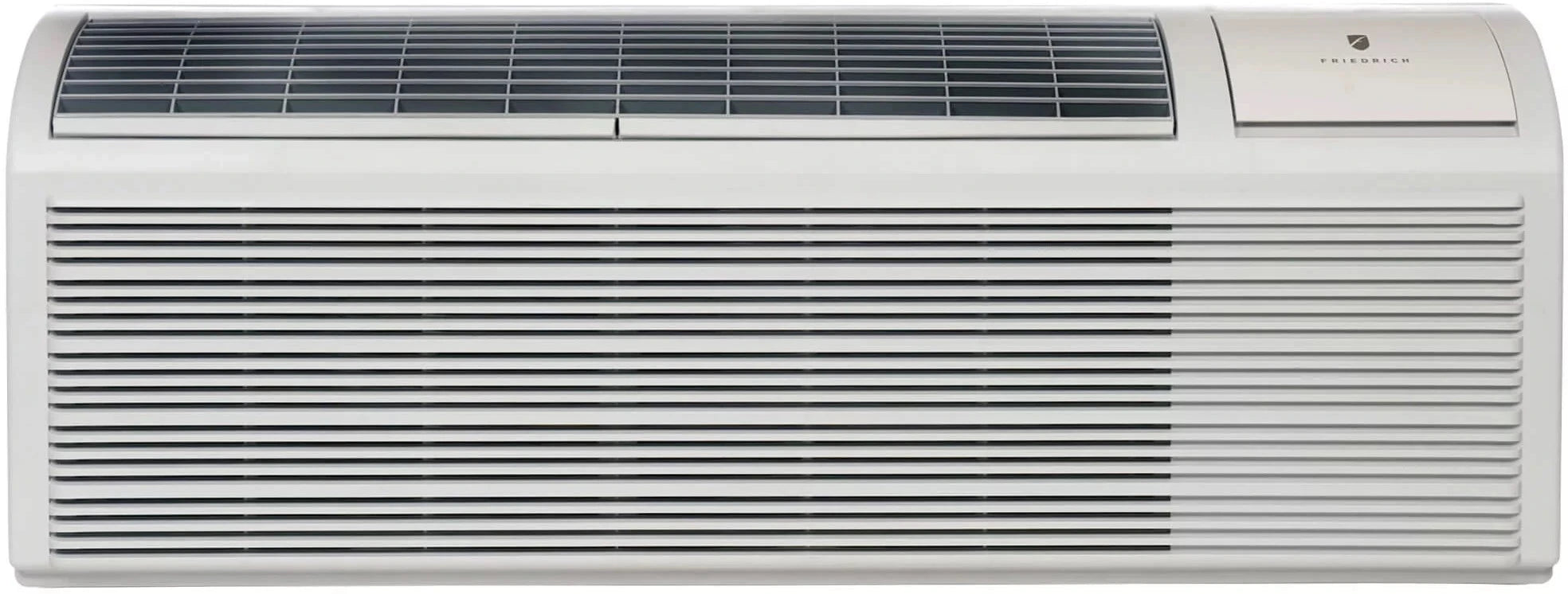

Packed Terminal Air Conditioner with Diamonblue Advanced Corrosion Protection® Friedrich brings reliable cooling and heating with low operational sounds with the Packed Terminal Air Conditioner with Diamonblue Advanced Corrosion Protection®. Built with durable materials and the highest quality of components, this PTAC is made with Diamonblue Advanced Corrosion Protection® to ensure longevity even in the harshest environments. Its modular design makes maintenance ans service fast and effortless as it lets you access key components easily. You can additionally choose to control the temperature both through wired or wireless thermostats for added convenience. Keep your air clean with its anti-bacterial air filters.


Product Features

  • Diamonblue Advanced Corrosion Protection®
    Protects the outdoor coil against deterioration and extends the life of the unit especially in harsh coastal environments.
  • Surehold Front Cover System®
    Securely attaches the front each time.

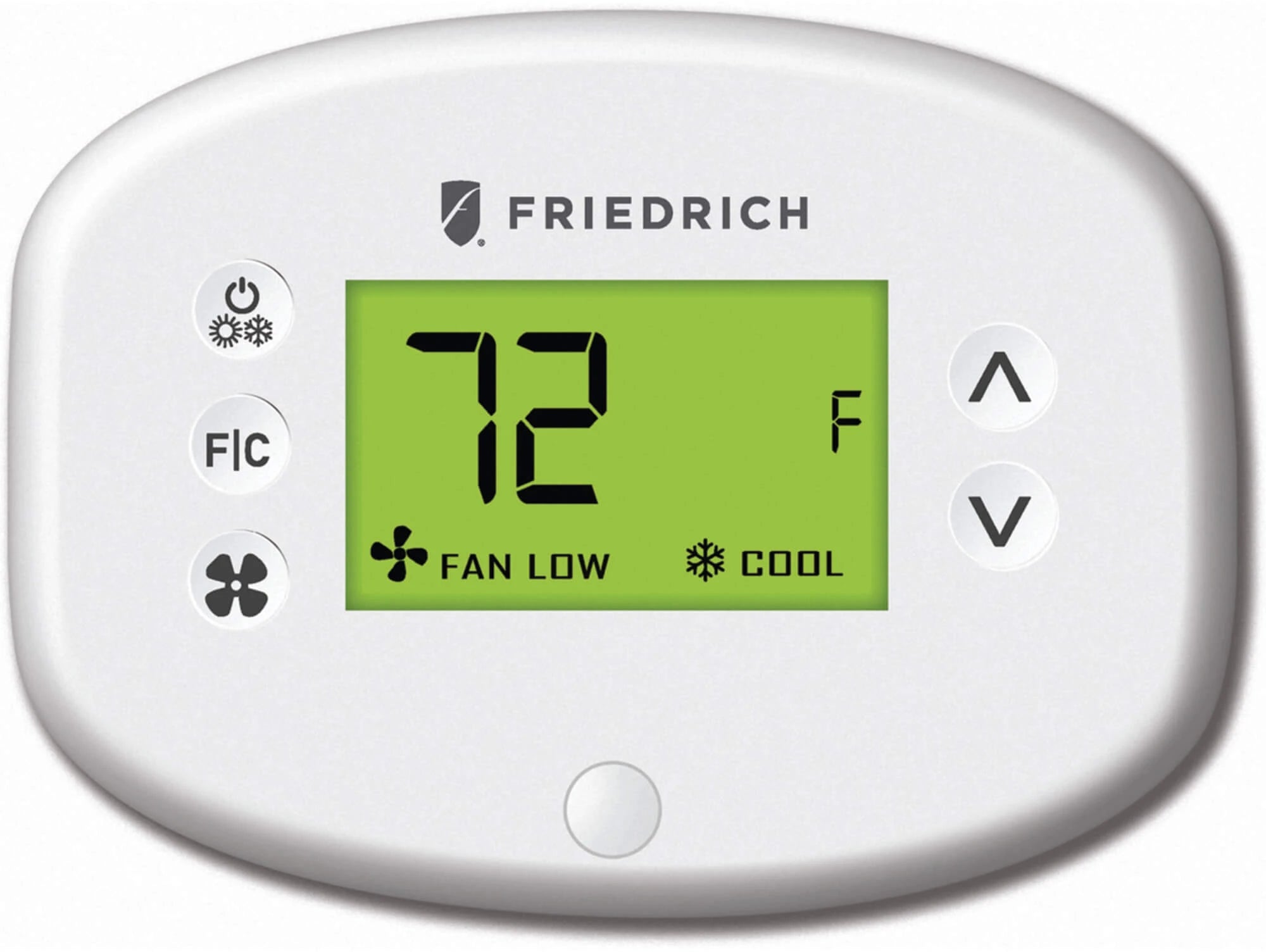

  • Optional FriedrichLink® Thermostat
    Comes with integrated occupancy sensor, five distinct energy presets and comprehensive remote management capability. Sold separately.
  • Antimicrobial Air Filters
    Proven to prevent mold and bacterial growth in laboratory testing. Washable, reusable and easily accessed from the top of the unit without the removal of the front cover.
  • Tamper-Resistant Aluminum Grille
    Anodized stamped aluminum grille withstands chalking and oxidation.
  • Dehumidification
    Removes up to 3.0 pints/hour of moisture in cool mode to improve comfort and reduce the chance of mold and mildew growth.
  • Internal Diagnostic Program
    Can alert maintenance to component failures or operating problems. Fourteen numeric service error codes stored in memory facilitate rapid unit diagnostics.
  • Slinger Ring Technology
    Slinger ring technology in condensate removal system cools the
  • Quiet, Efficient Rotary Compressor
    Mounted with vibration isolators to keep the compressor running smoothly and quietly.
  • Tangential blower wheel
    Creates a wide path air flow that reaches the furthest corner of the guest room more quietly than conventional fans.
  • Fresh air damper
  • Two permanently lubricated fan motors
  • Reversible indoor air louvers
  • Aluminum endplates
  • Galvanized zinc coated steel wall sleeve and steel base pan
  • Room freeze protection
  • Random compressor restart
  • Break-proof control door design
  • Indoor coil frost sensor
  • Electronic defrost control
  • Automatic periodic sampling of room temperature
  • May be installed flush with the floor
