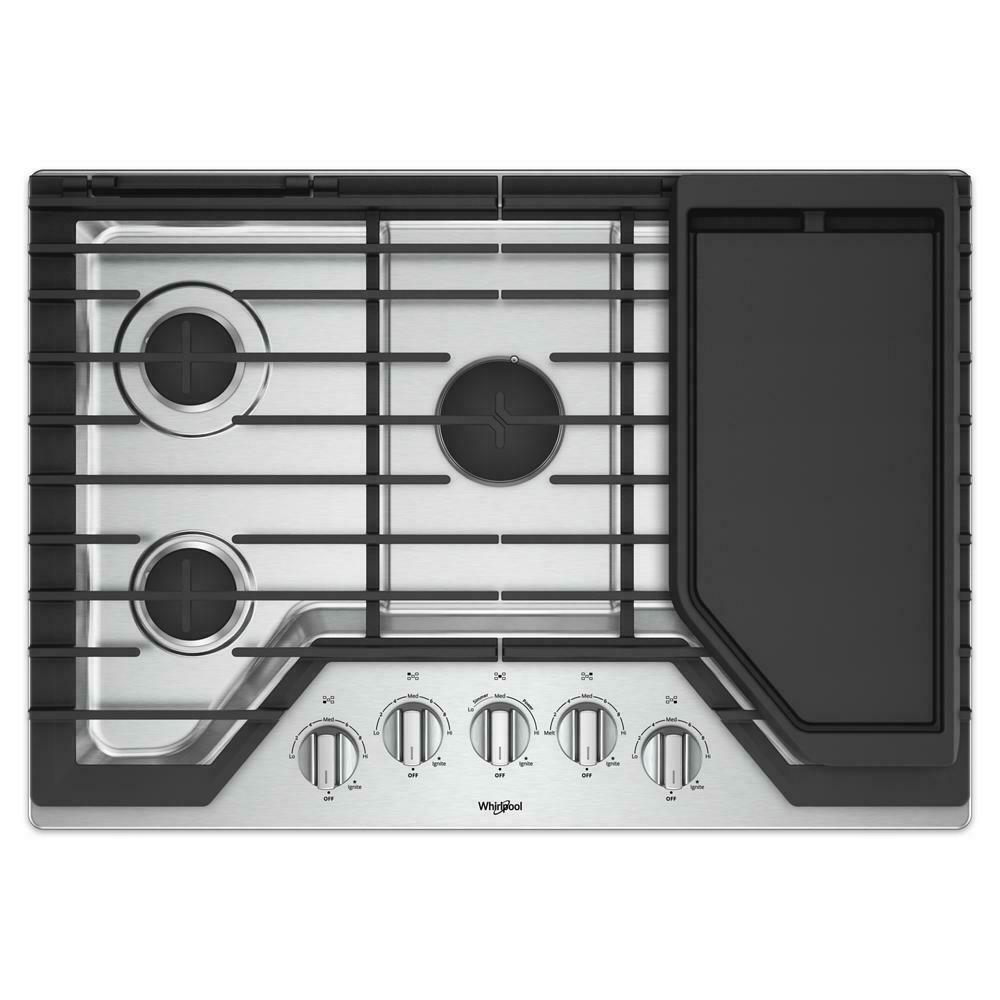

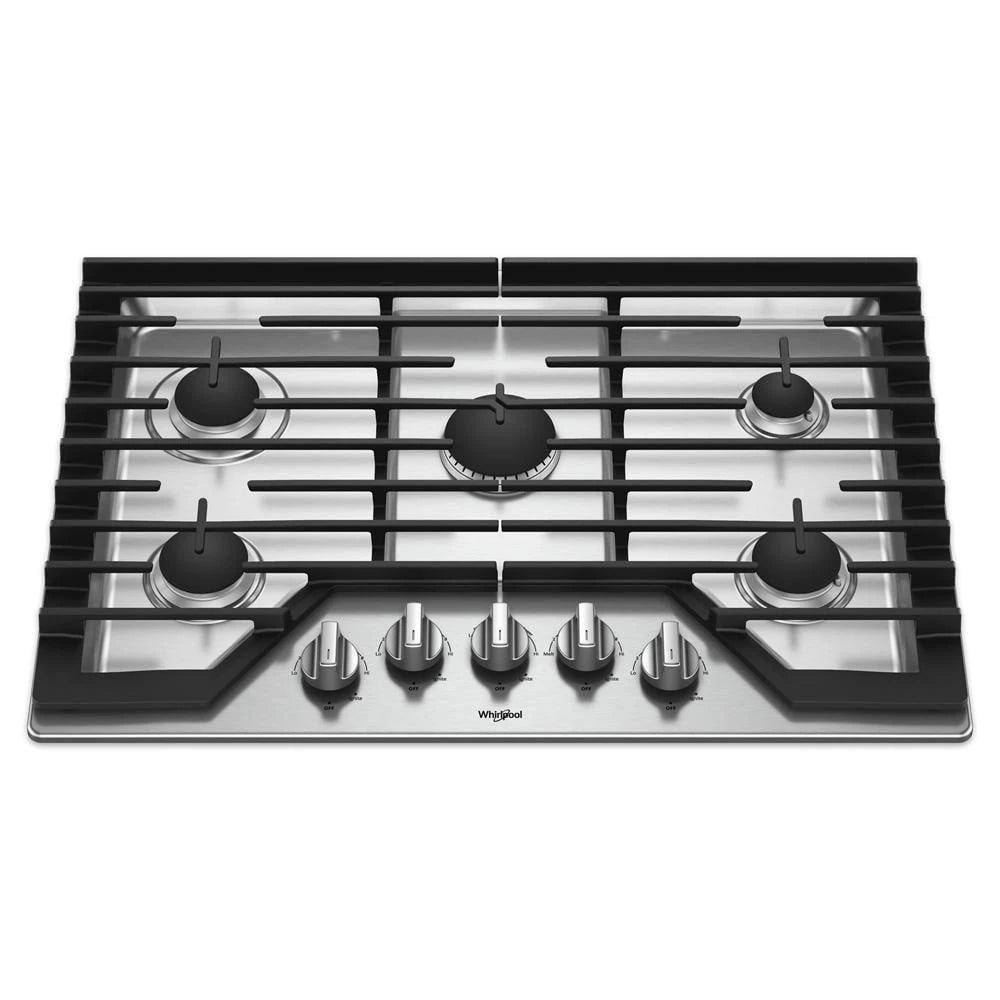

Product Details for Whirlpool WCG97US0HS

Technical Details

Controls

Control Location Front
Control Type Knobs
Infinite Heat Controls Yes

Cooktop details

Ignition Type Direct Spark Ignition
Number of Open Bays N/A
Cooktop Surface Material Stainless Steel
Digital Display No
Griddle Included Yes, Kit Included
Heating Element On Indicator Light No
Hot Surface Indicator Light No

Certifications

ADA Compliant ADA Height and Side Reach Compliant
UL Yes
prop65 Standard

Electrical

Power Cord Included Yes

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 1.5 ft³
Dimensional Weight 18.7 lbs.
Total of Cubes 1.5 ft³
Total of Dimensional Weight 18.7 lbs.

Details

Automatic Pan Detection No
Cooktop Selections AccuSimmer Plus
Fuel Type Gas
Installs Over Built-In Oven Yes
LP Convertible Yes - Kit Included
Power Outage Compatible Yes

Dimensions

Cutout Depth 19.5
Cutout Depth Max 20
Cutout Depth Min 19
Cutout Width 28.875
Cutout Width Max 29.313
Cutout Width Min 28.5
carton depth 34.5
carton height 12.5
carton width 25
gross weight 59
net weight 54

Element/burner details

Center Front Element-Burner Power 17, 000 BTU
Center Front Element-Burner Type FlexHeat
Cooktop Element Style Sealed Burner
Cooktop Type Standard
Left Front Element-Burner Power 10000 BTU
Left Front Element-Burner Type SpeedHeat™
Left Rear Element-Burner Power 10, 000 BTU
Left Rear Element-Burner Type SpeedHeat™
Number of Cooking Element-Burners 5
Power Boost No
Right Front Element-Burner Power 10, 000 BTU
Right Front Element-Burner Type SpeedHeat™
Right Rear Element-Burner Power 5, 000 BTU
Right Rear Element-Burner Type Simmer

Grate details

Grate Details Cast Iron Grates; Continuous with Hinge; Dishwasher Safe; Matte Finish
Number of Grates 2

Ventilation details

Downdraft Vent No

Product details

Combination Match with Oven WOS11EM4; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS51ES4; WOS52EM4; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0

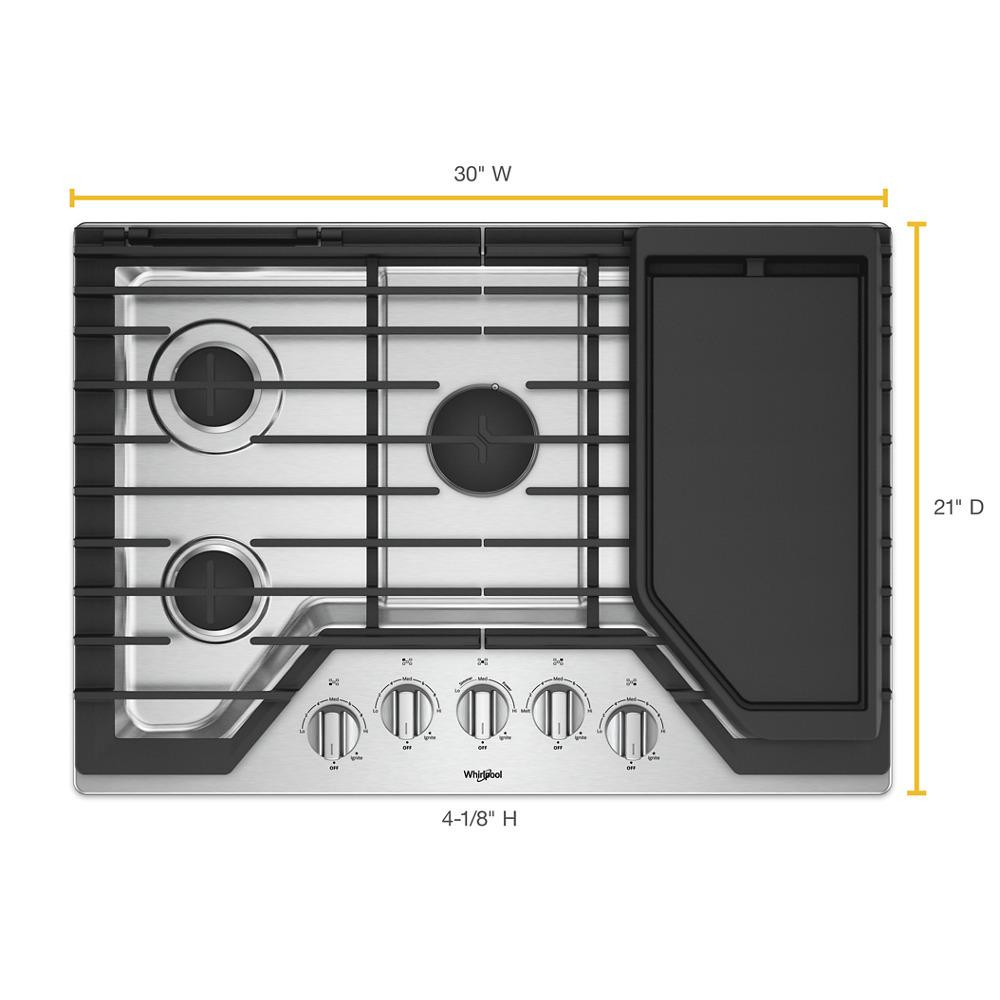

Dimensions & weight

Width 30 in.
Height 4.13 in.
Length 21 in.
Weight 59 lbs.
Carton Depth 34 1/2
Carton Height 12 1/2
Carton Width 25
Cutout Depth (in) 19 1/2
Cutout Width (in) 28 7/8
Gross Weight 59
Maximum Height 4 1/8
Minimum Height 3 3/8
Net Weight 54.0
Cutout Depth Max(IN,inches) 20.0000
Cutout Depth Min(IN,inches) 19.0000
Cutout Depth(IN,inches) 19.5000
Cutout Width Max(IN,inches) 29.3125
Cutout Width Min(IN,inches) 28.5000
Cutout Width(IN,inches) 28.8750
Maximum Height(IN,inches) 4.1250
Minimum Height(IN,inches) 3.3750
Net Weight(LB,pounds) 54
Carton Depth(IN,inches) 34.5000
Carton Height(IN,inches) 12.5000
Carton Width(IN,inches) 25.0000
Gross Weight(LB,pounds) 59
Cutout Depth 19-1/2 in
Cutout Depth Max 20 in
Cutout Width 28-7/8 in
Gross Weight 59 lbs
Net Weight 54 lbs

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 25 in.
Shipping Height 12.5 in.
Shipping Length 26 in.
Shipping Weight 99 lbs.
Total of Shipping Weight 99 lbs.
Source Calculation


Product Features

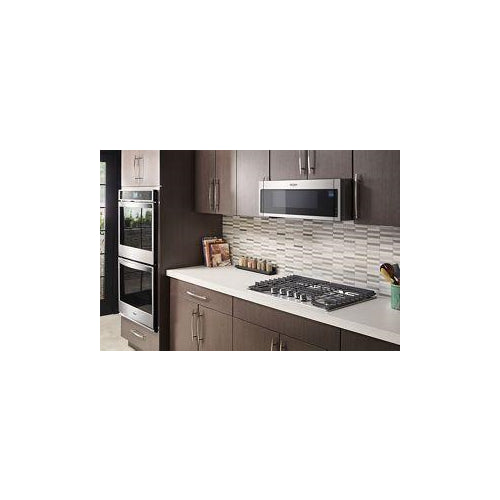

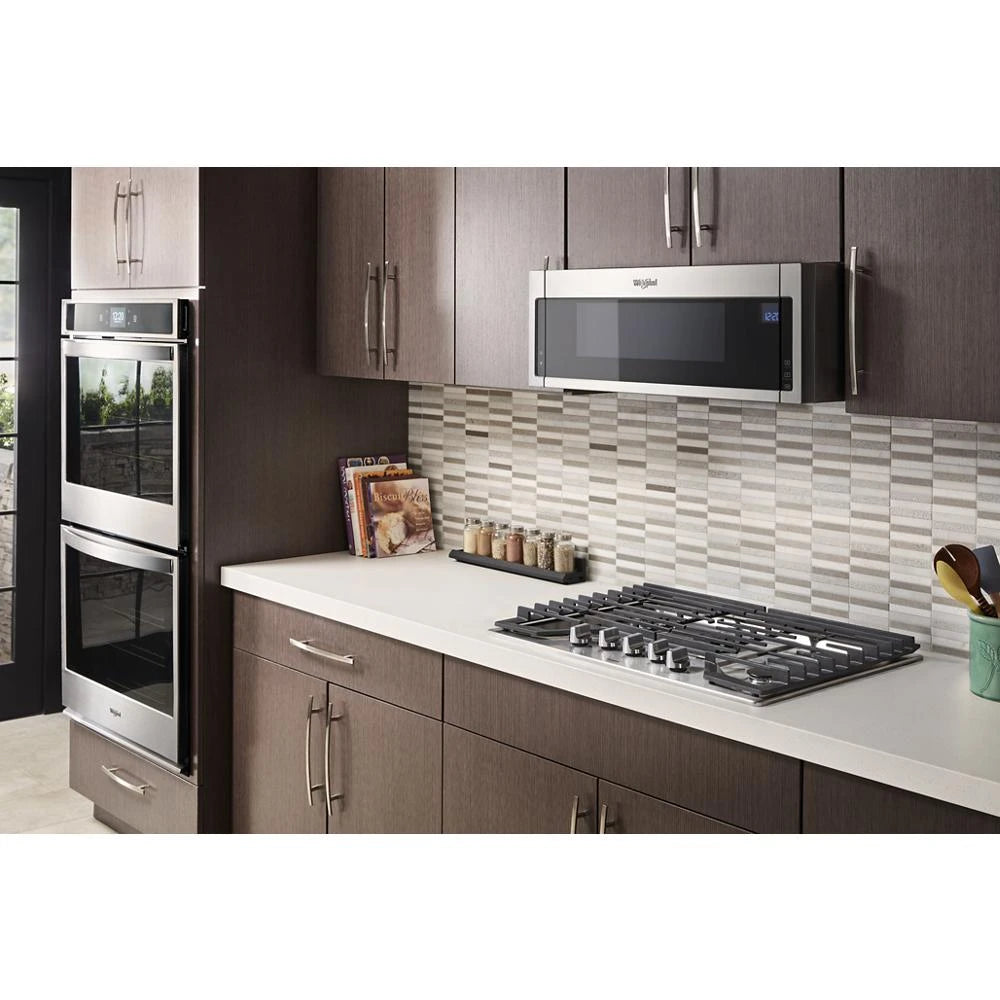

  • Wall Oven Compatible
    Install this cooktop to work with a wall oven or on its own for more flexibility.

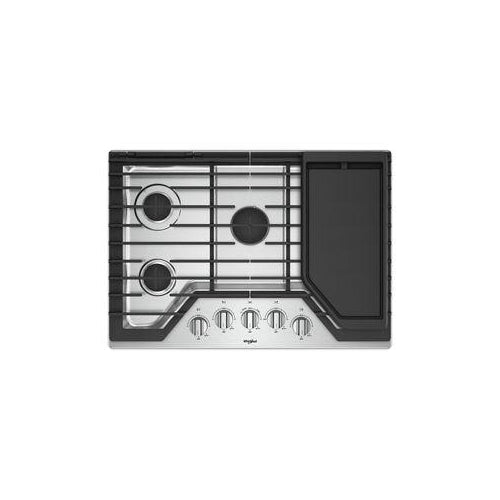

  • Griddle
    Make pancakes, grill vegetables or sear steaks with the included griddle that lets you cook breakfast, lunch and dinner right on the cooktop.

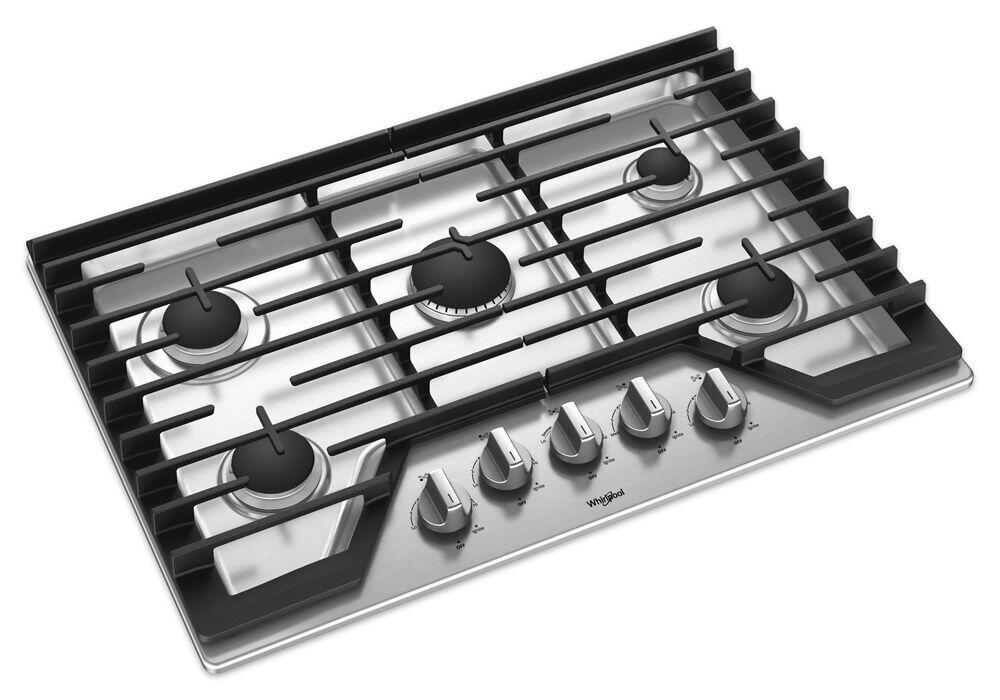

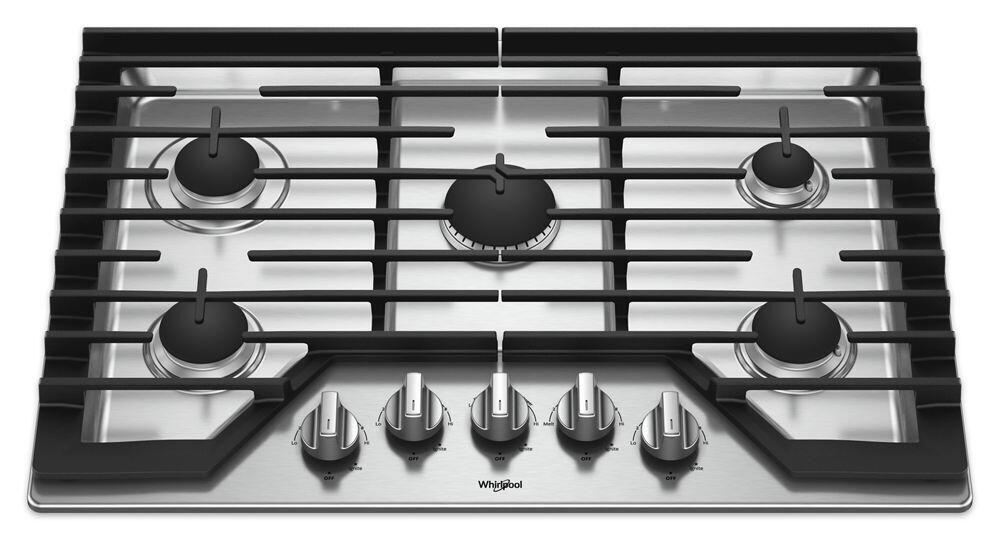

  • Fifth Burner
    Make sure everyone gets their favorite with an extra, Fifth Burner that gives you more room to choose the right one for the dish.

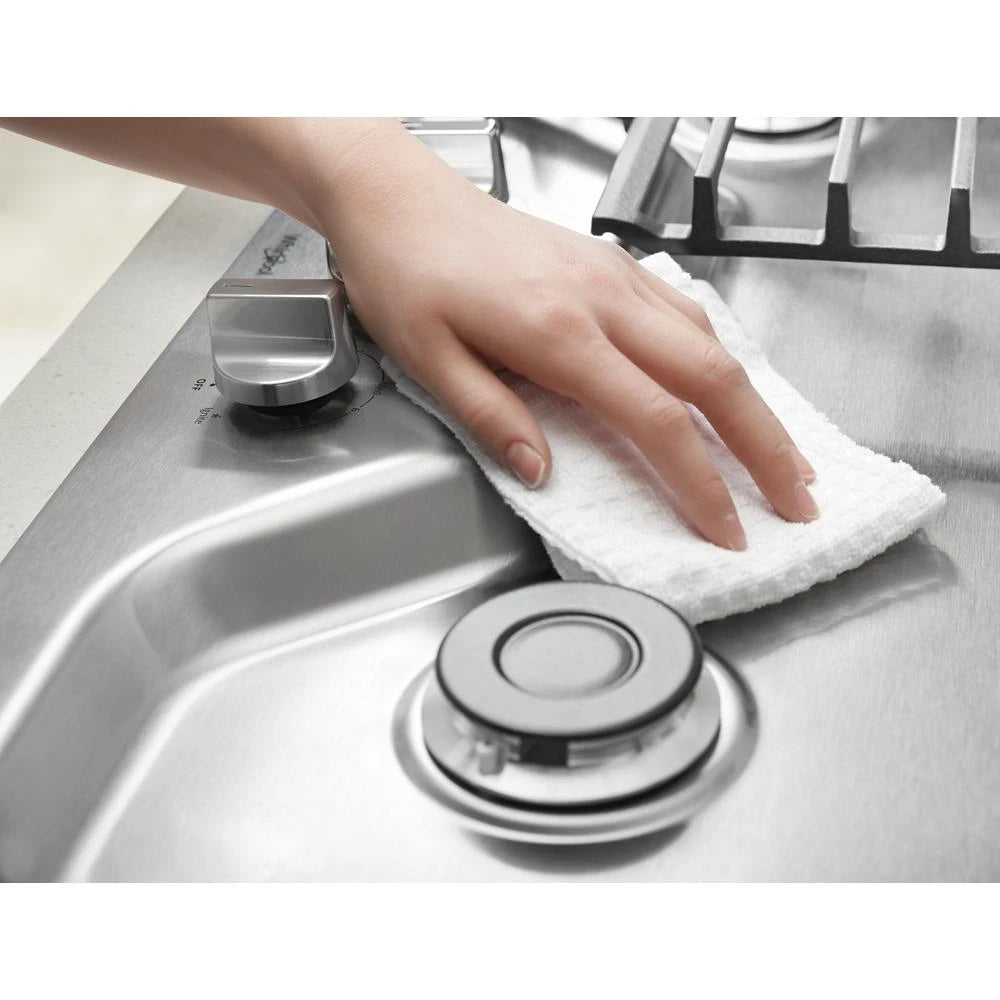

  • Sealed Burners
    Cut down on cleanup with burners that are sealed to prevent food from falling into them.

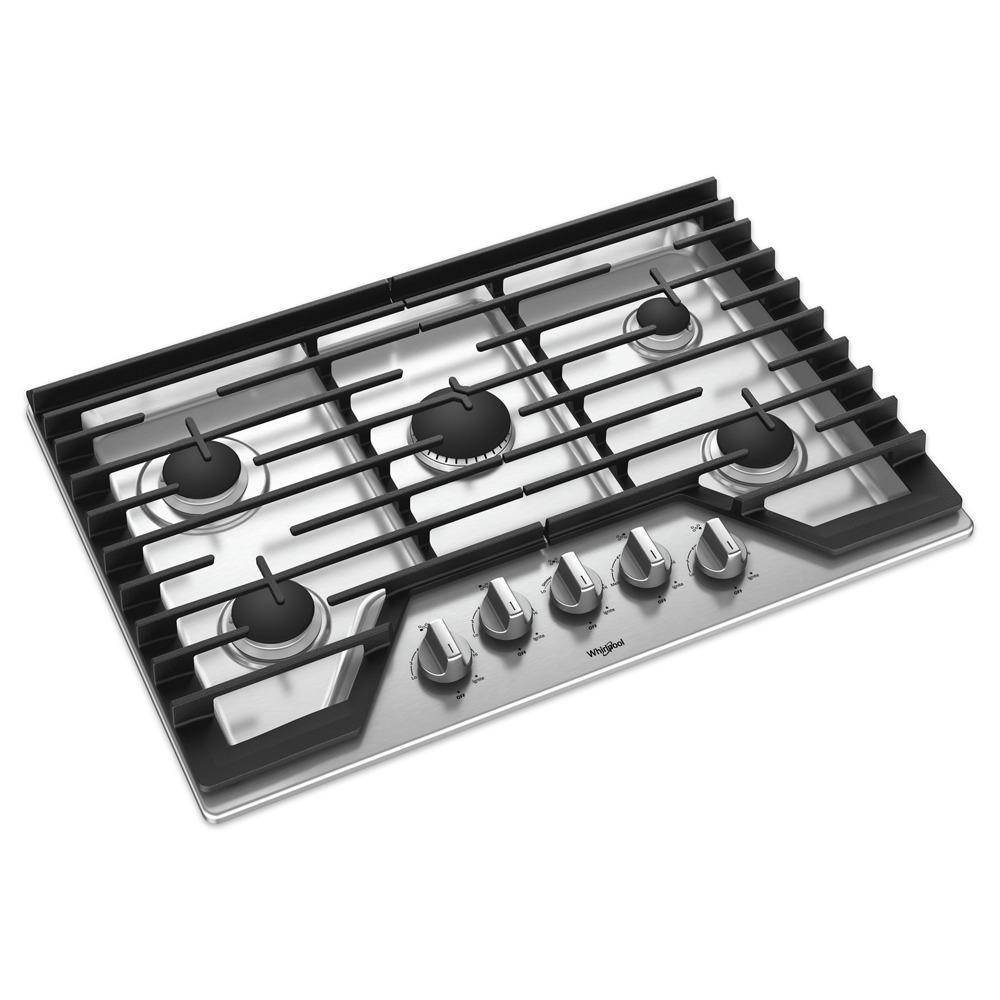

  • Full Width Grates
    Maximize space with cast-iron grates that extend across the entire cooktop, giving you the flexibility to place pots and pans anywhere.

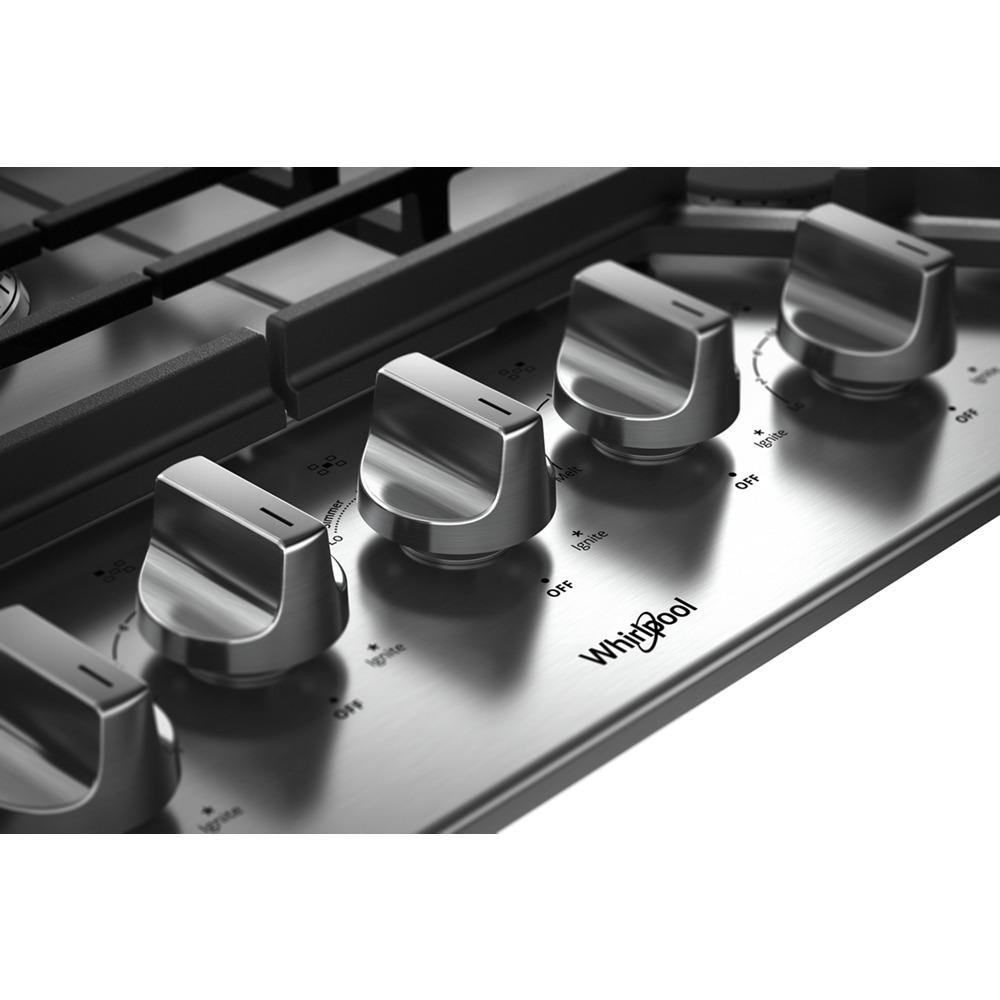

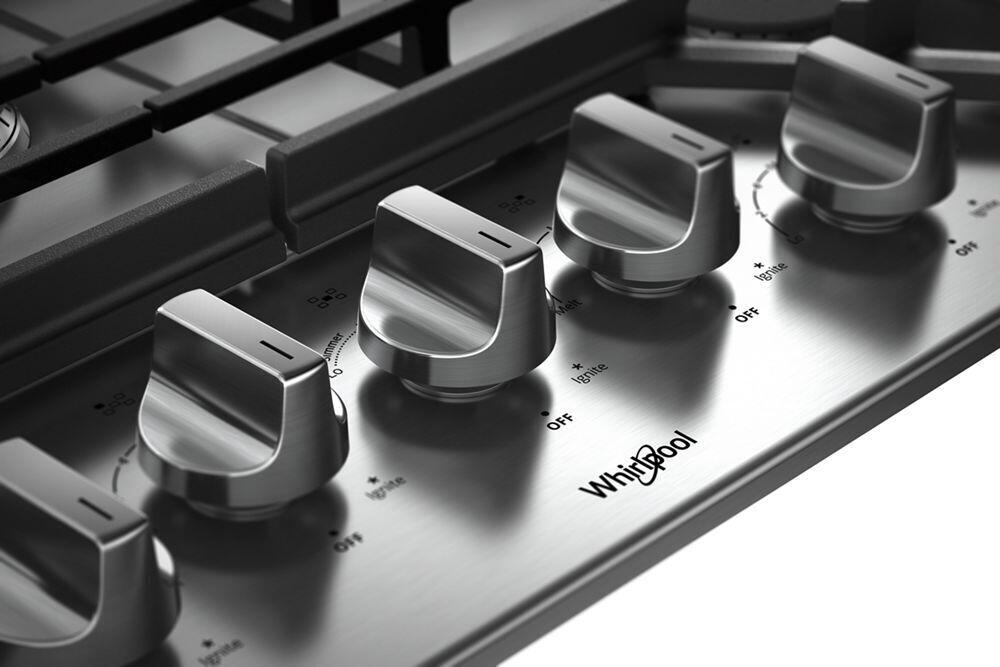

  • Dishwasher-Safe Knobs
    Make cleanup easy by washing knobs right in the dishwasher.
  • AccuSimmer® Burner
    Easily maintain low, even heat when cooking sauces and soups with the AccuSimmer® Burner, which reduces power for better control at lower temperatures.

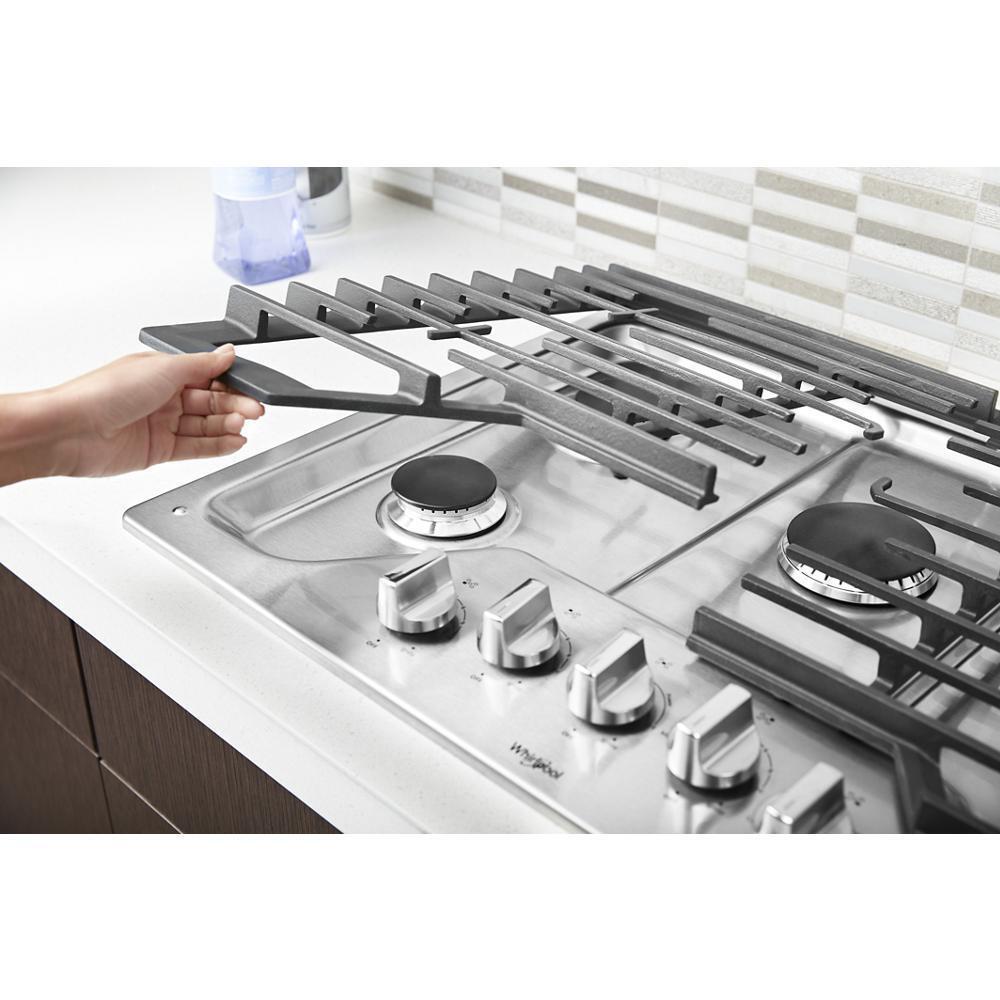

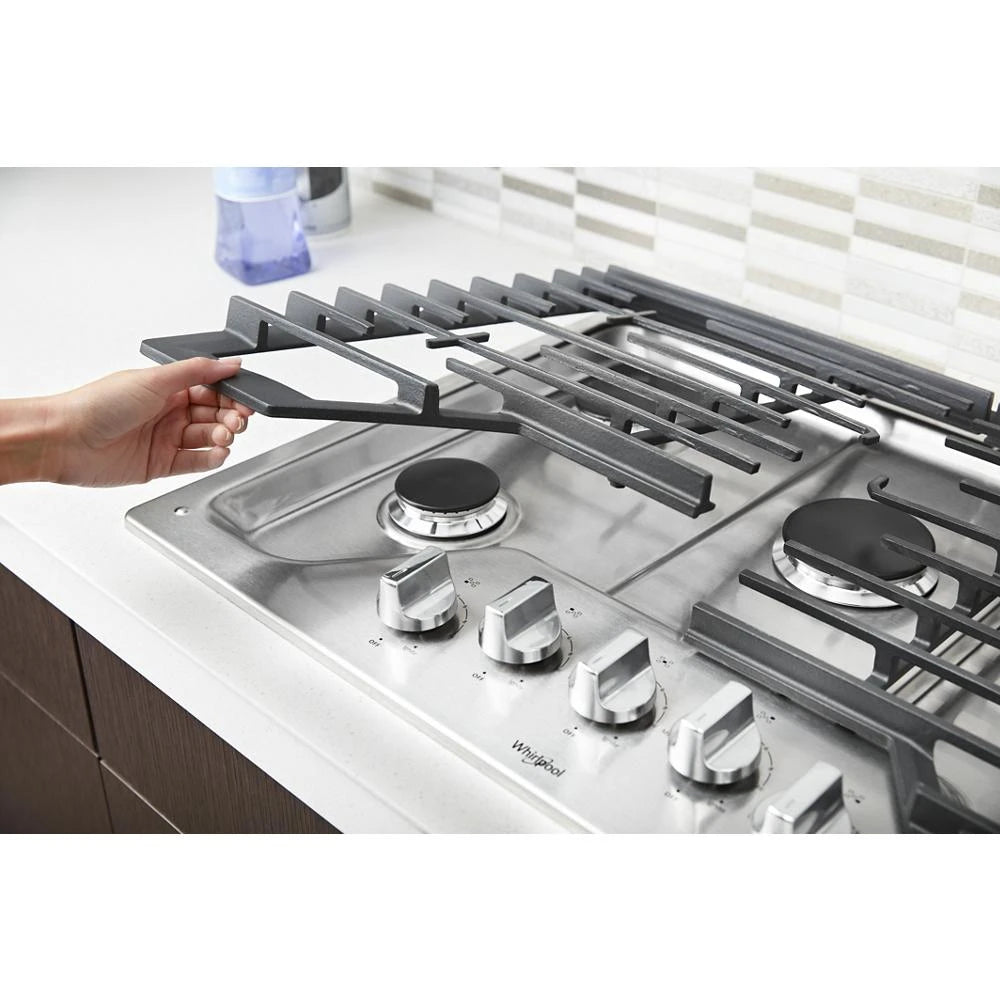

  • EZ-2-Lift™ Hinged Cast-Iron Grates
    Get quick access to spills on the cooktop with our industry-first EZ-2-Lift™ Hinged Cast-Iron Grates. The hinged design lets you wipe up underneath without removing them. For a more thorough clean, the grates are also dishwasher safe.

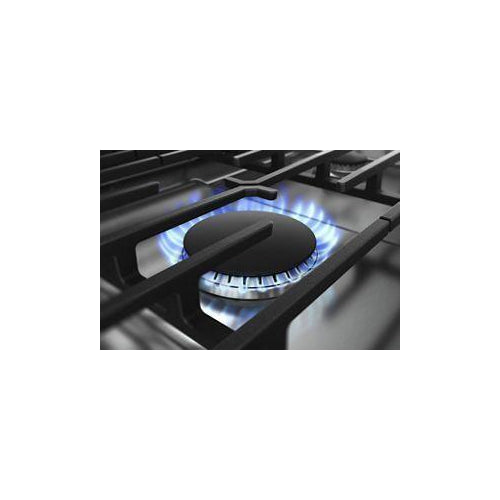

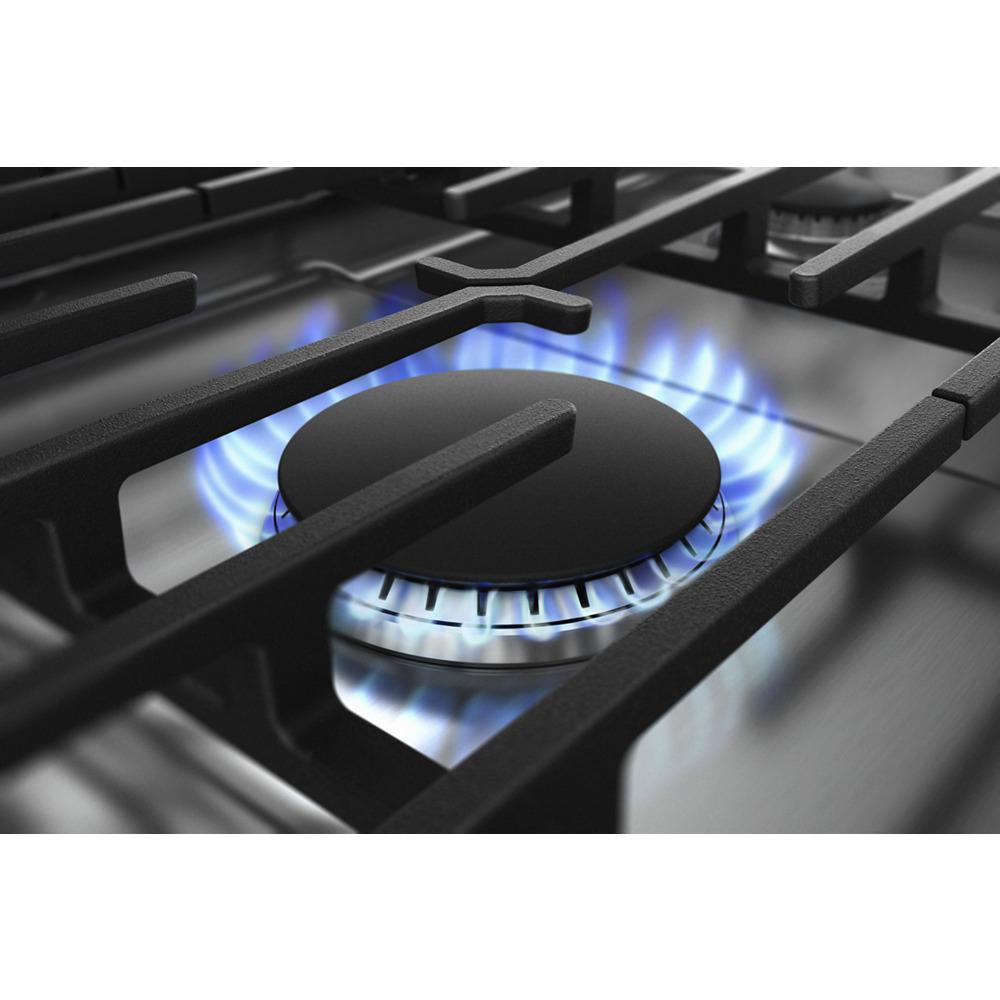

  • FlexHeat™ Burner
    Two rows of flames give you the evenly distributed high heat you need for rapid boiling and searing or the lower temperatures necessary for more delicate dishes.
