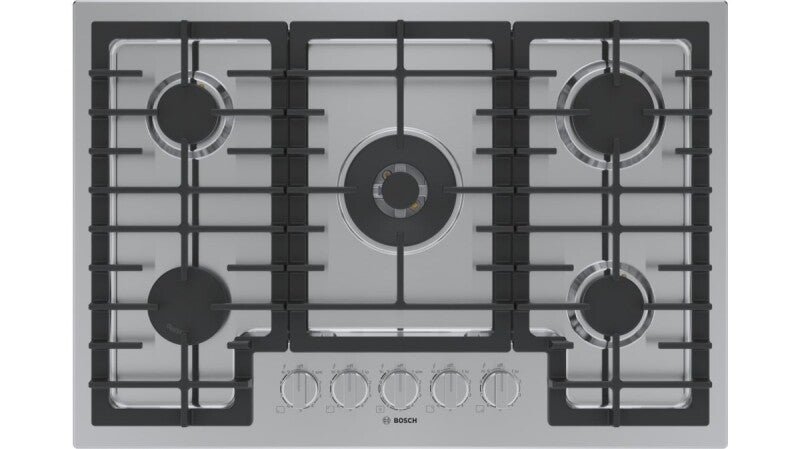

Bosch NGM8059UC 800 Series Gas Cooktop 30'' Stainless Steel

Quick Specification More details

Width:
31"
Depth:
21.25"
Height:
3.81"
Type:
Gas Cooktops

About this product

Sleek Knobs with LED Indicators
Boil water quickly with a Dual-Flame Power Burner
Easy to clean, low-profile design
Dishwasher-safe grates

Quickship

On Sale

Summer Sale

Father's Day Sale

SKU: NGM8059UC | UPC: 825225972617

Bosch NGM8059UC 800 Series Gas Cooktop 30'' Stainless Steel

$1,699.00 ~~$1,898.97~~ Save $199.97 / 10% OFF

Quantity:

Quickship

Active Rebates

Extended Protection

1-Year Extended Protection
$49.99
2-Year Extended Protection
$83.99
3-Year Extended Protection
$131.99
5-Year Extended Protection
$195.99
Manufacturer Warranty Only

Cooktop Install Kit
$40.00
Standard Cooktop Install - Direct Replacement, No Modifications
$180.00
Old Appliance Removal (Unit Must be Disconnected by Owner if Installation was Not Added)
$49.99

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
31"
Depth:
21.25"
Height:
3.81"
Type:
Gas Cooktops

About this product

Sleek Knobs with LED Indicators
Boil water quickly with a Dual-Flame Power Burner
Easy to clean, low-profile design
Dishwasher-safe grates

Bundle & Save on Matching Kitchen Packages

Bosch 2-Piece Package NGM8059UC 30 Inch Built-In Gas Cooktop and HBL8454UC 30 Inch Single Convection Smart Electric Wall Oven

Bosch 2-Piece Package NGM8059UC 30 Inch Built-In Gas Cooktop and HBL5651UC 30 Inch Double Convection Electric Wall Oven

Product Details for BOSCH NGM8059UC

Technical Details

Accessories

Included Accessories

1 x nozzle set for liquid gas, 1 x cast iron pan support

General

Total NG BTUs	42700 Btu
Total LP BTUs	42700 Btu

Installation

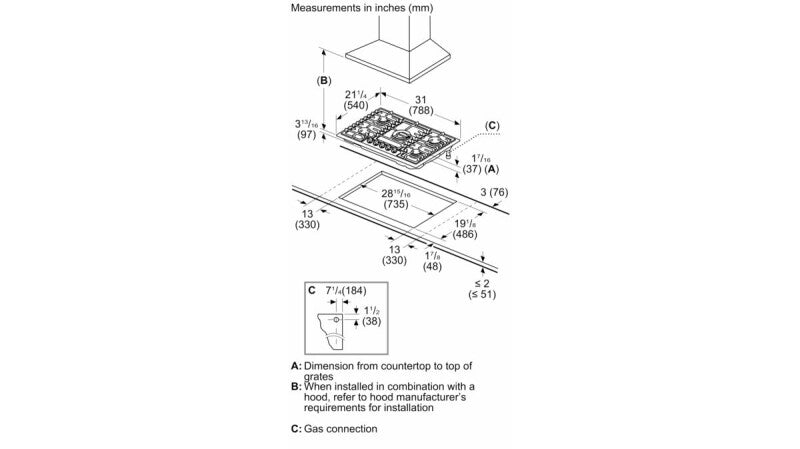

Overall Appliance Dimensions (HxWxD) (in)	3 13/16'' x 31'' x 21 1/4''

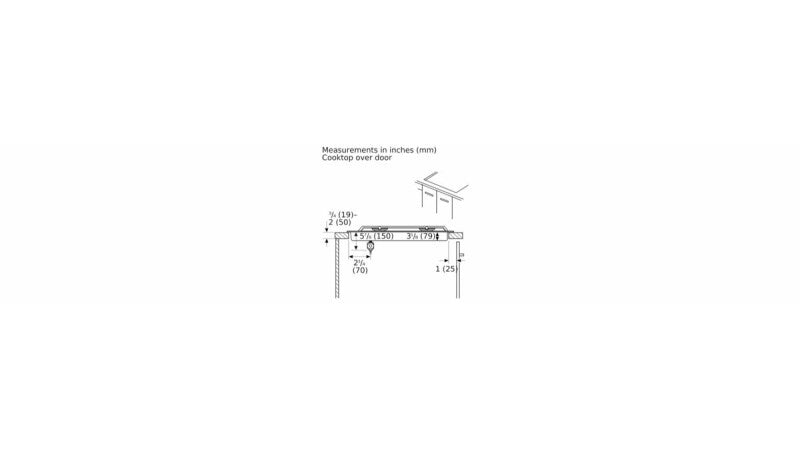

Required Cutout Size (HxWxD) (in)	3 13/16'' x 28 15/16'' x 19 1/8''
Alternative Gas Type (Nozzle Set Included)	Liquid gas 27,5 mbar (USA)
Plug Type	120V-3 prong
Power Cord Length	40''
Fuse protection	15 A
Volts	120 V
Product Packaging Dimensions (HxWxD)	8 3/8'' x 37 1/8'' x 24 3/4''
Gas type preset	Natural gas 15 mbar (USA)

Design

Surface Materials	Stainless Steel
Grate Materials	Cast Iron with Rubber Feet
Location of Control Panel	Front

Comfort and convenience

Number of Gas Burners	5
Sealed Burners	yes
Griddle	no
ADA Compliant (When Installed to ADA requirements)	no
OptiSim® Burner	no
Special Features	Simmer Cap

Dimensions & weight

Width	31 in.
Height	3.81 in.
Length	21.25 in.
Weight	27 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	36 in.
Shipping Height	8.81 in.
Shipping Length	26.25 in.
Shipping Weight	67 lbs.
Total of Shipping Weight	67 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	1.45 ft³
Dimensional Weight	18.07 lbs.
Total of Cubes	1.45 ft³
Total of Dimensional Weight	18.07 lbs.

Safety

Flame failure safety device for each burner,

Description

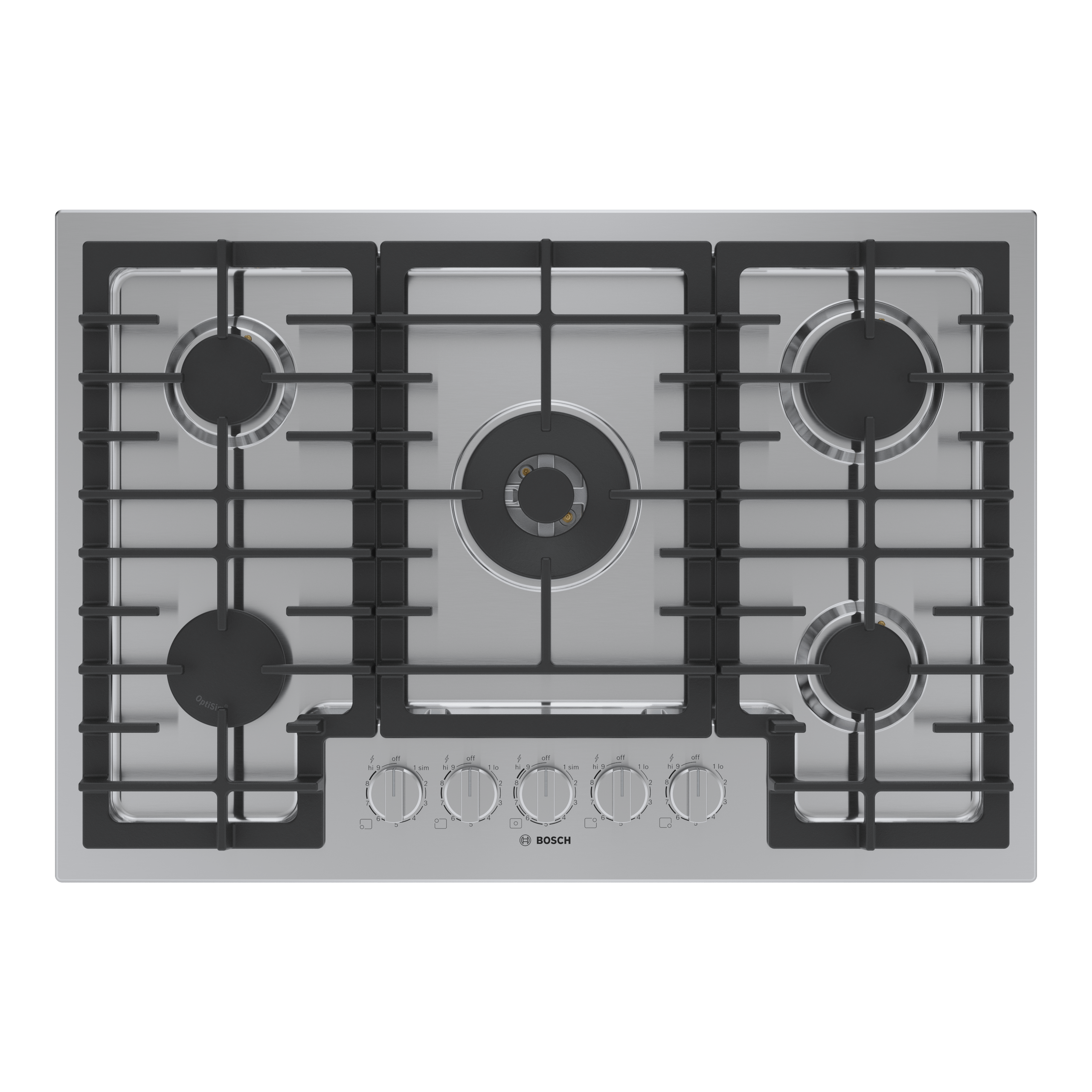

30" Bosch 5 Burners 800 Series Gas Cooktop - NGM8059UC

Product Features

Easy to clean, low-profile design
The low-profile cooking surface provides a timeless, streamlined look while keeping spills contained and makes clean-up easier than ever.
Eliminate the guesswork of cooking with FlameSelect®
Introducing FlameSelect® on Bosch cooktops, an entirely new and better way to cook with gas. 9 preset power levels let you easily adjust flame level for more precise, controlled heating. Whether you’re rapidly bringing water to an intense boil or delicately melting chocolate, the numbered flame levels deliver the exact temperature every time. There’s no more hot or cold spots, just precision heating for perfect results.

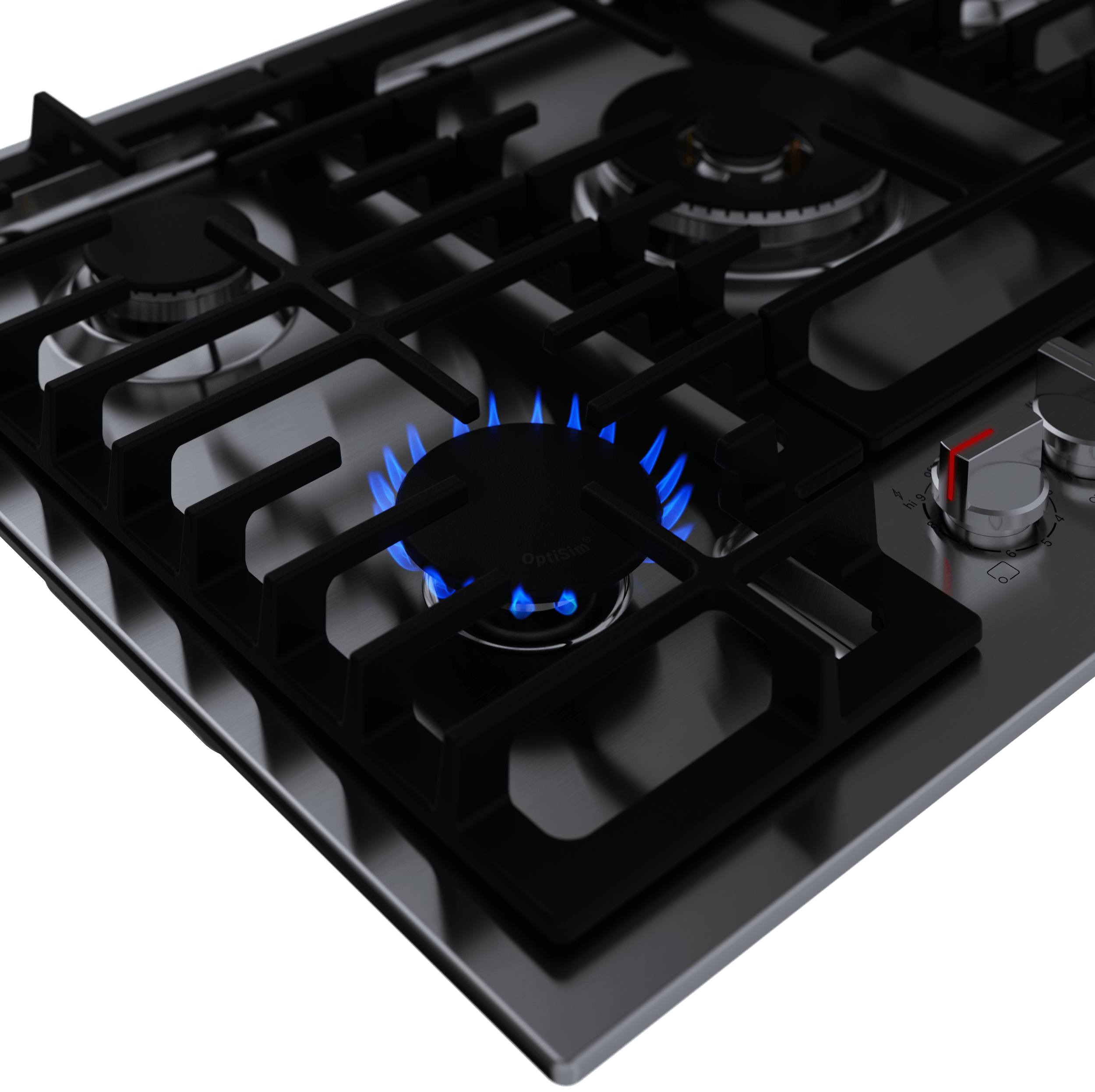

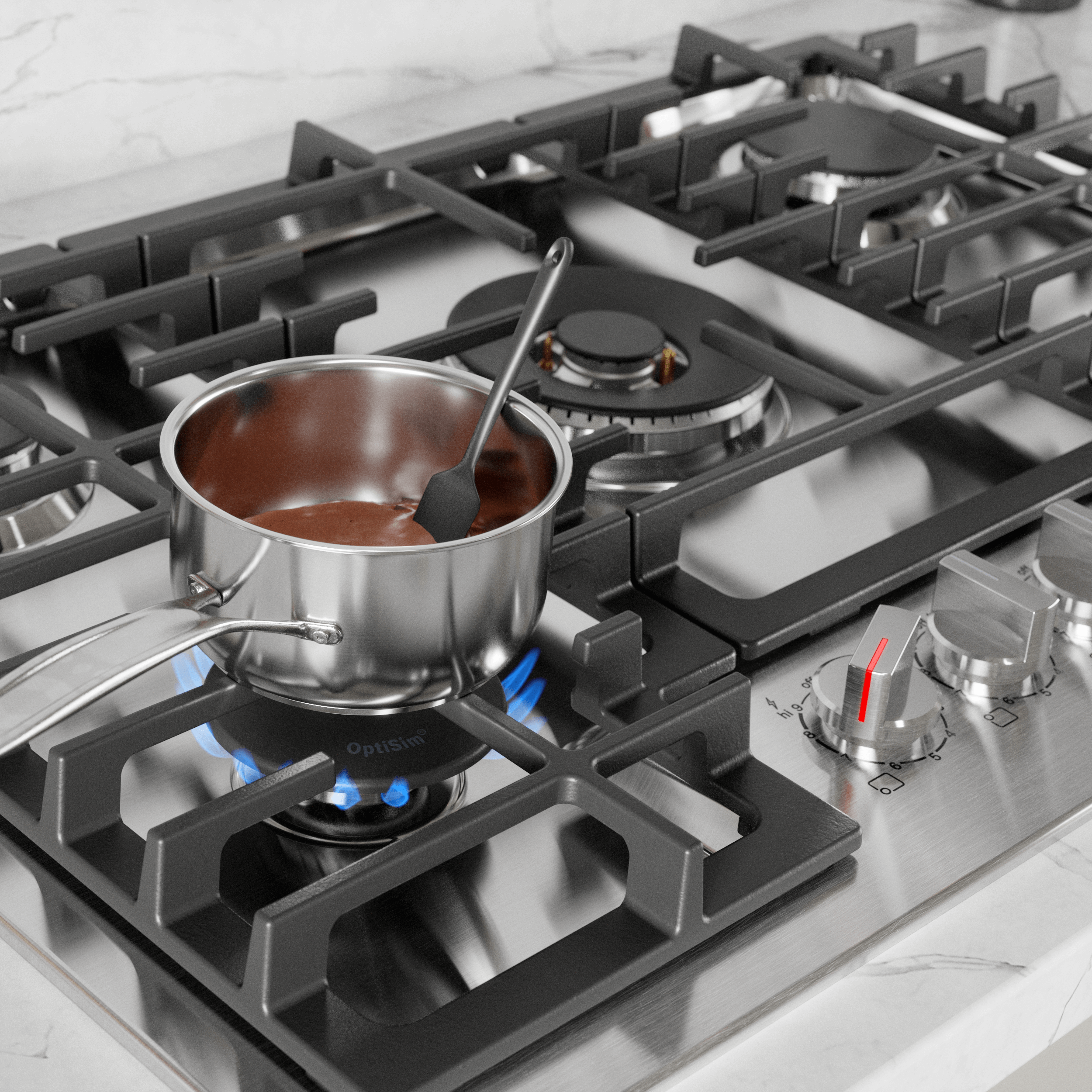

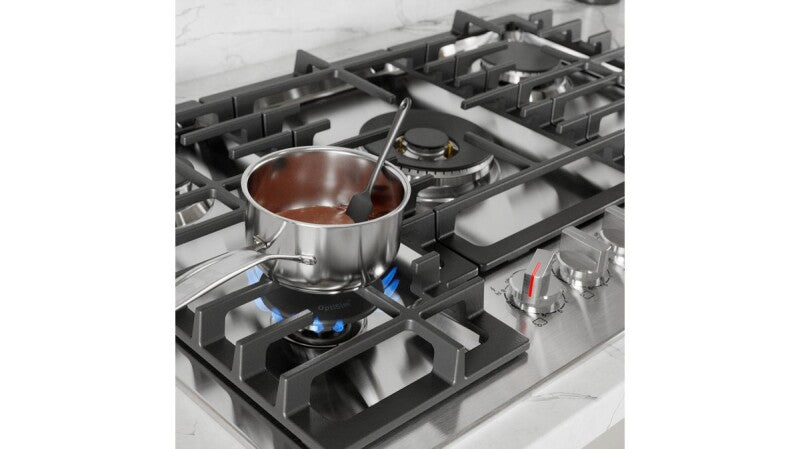

Simmer delicate sauces with the OptiSim® Burner
The OptiSim burner design is wider and thicker which diffuses heat evenly for better flame control when simmering delicate sauces.

Manuals & Guides

Key Features

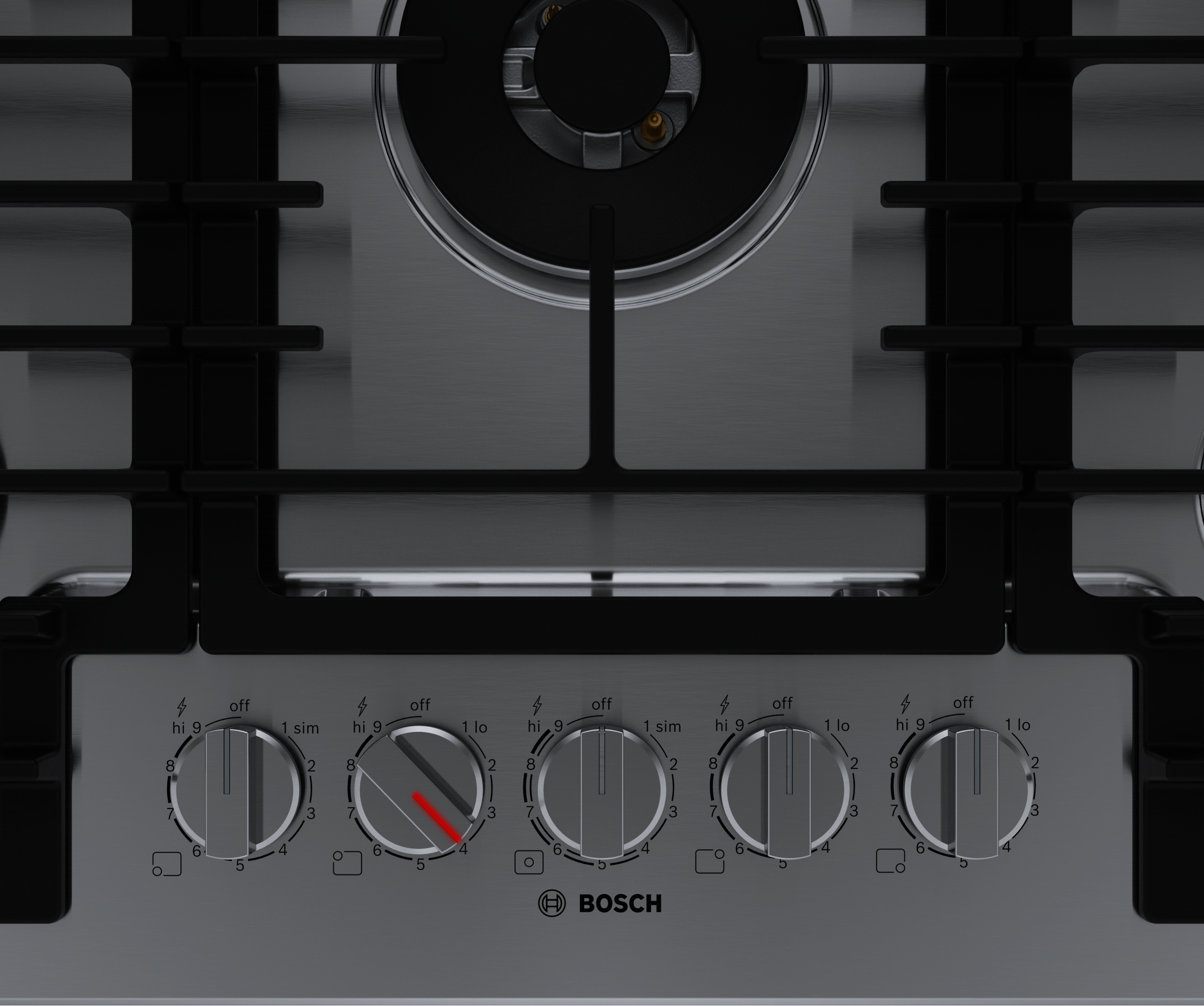

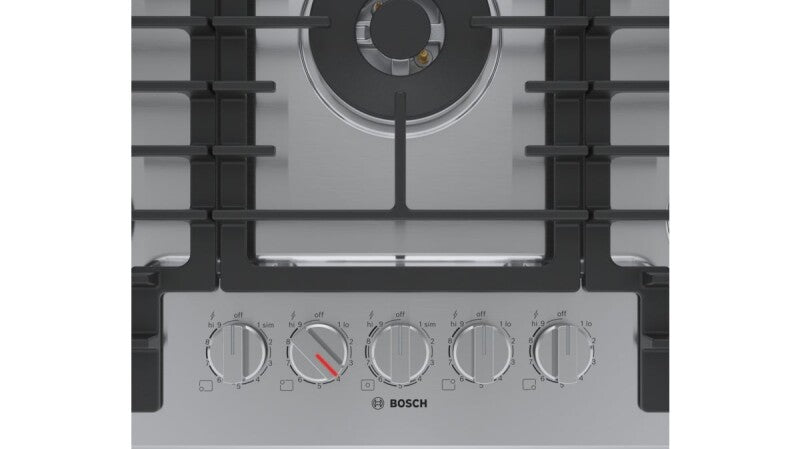

Sleek Knobs with LED Indicators

Control knobs with an embedded red LED light line indicate if the burner is on or if there is residual heat.

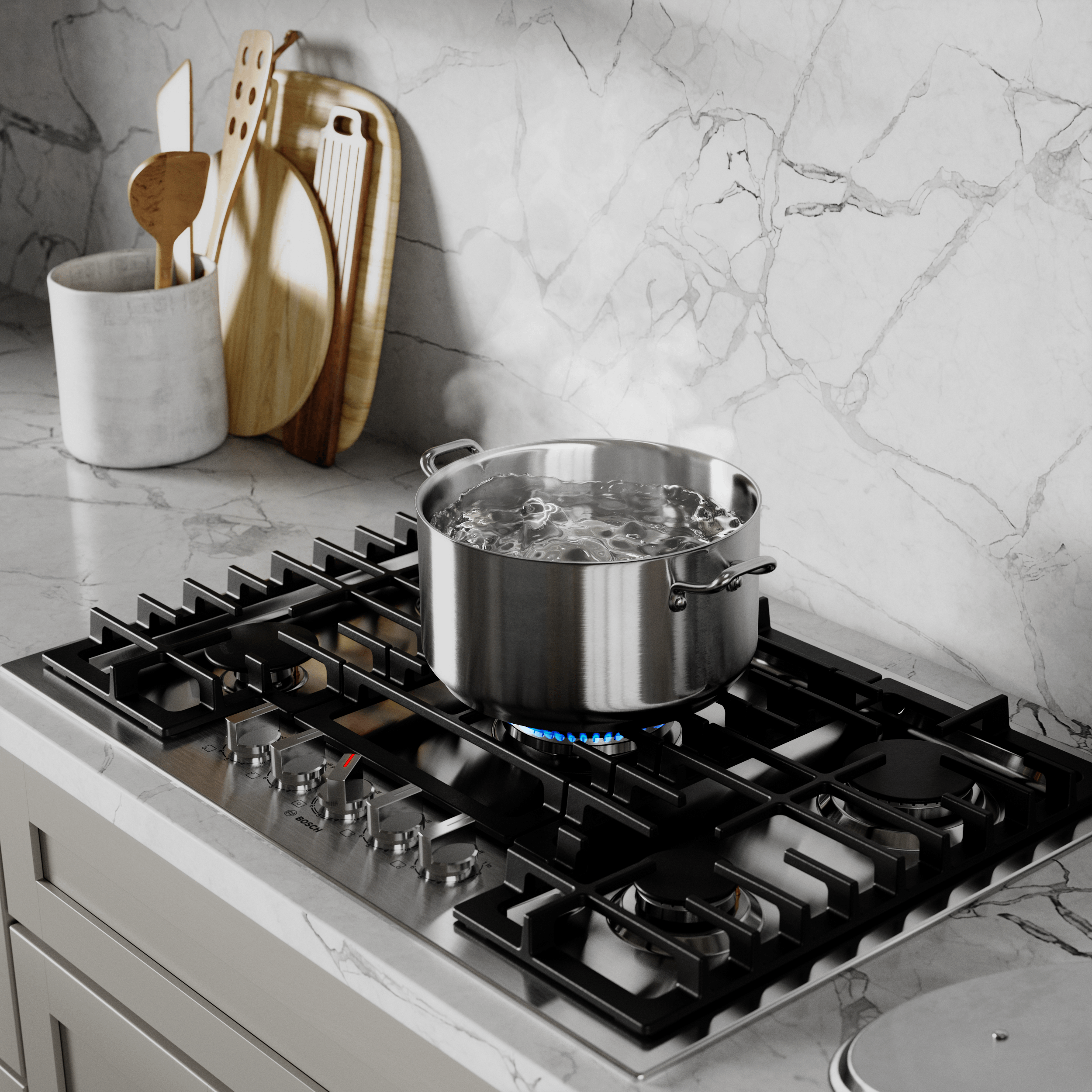

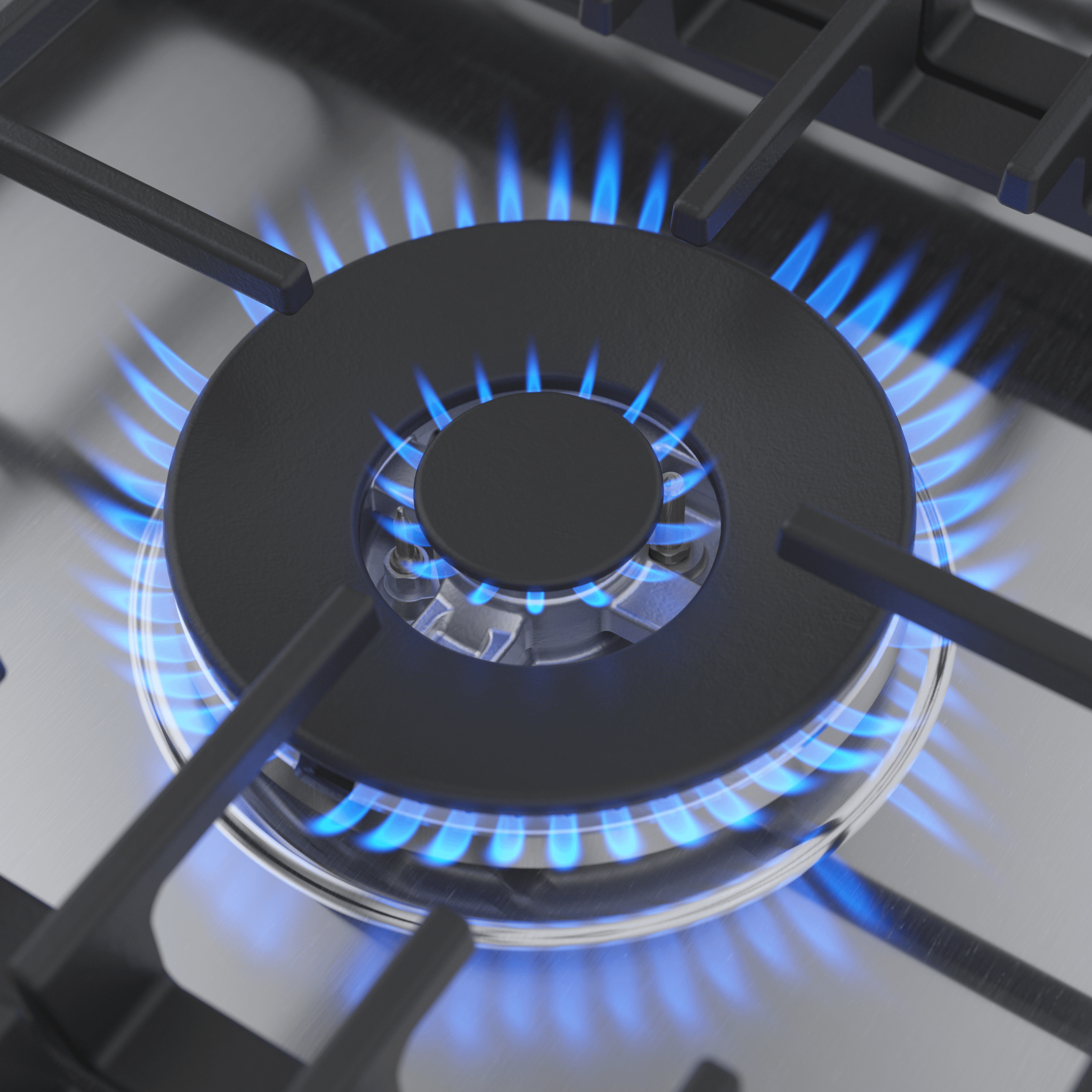

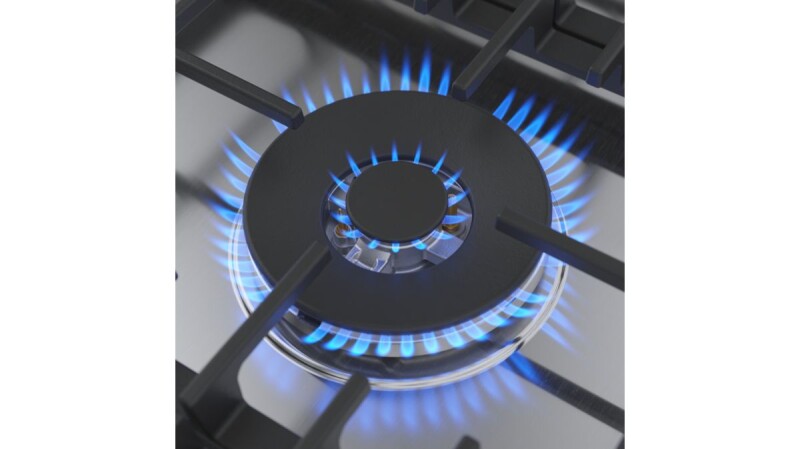

Boil water quickly with a Dual-Flame Power Burner

The dual flame ring power burner has two rings for low and high flame settings so you can go from simmer to sear with ease. Heat level 1-3 uses the inner ring, and 4-9 uses both rings for maximum heat.
