| Parts | 1 Year |
| Labor | 1 Year |
| Overall Height | 5.5 in |
| Cabinet Width | 36 in |
| Overall Width | 36 in |
| Overall Depth | 21 in |
| Approximate Shipping Weight | 57 lb |
| Net Weight | 51 lb |
| Cutout Width (in) | 33.875 |
| Cutout Height (in) | 3.6875 |
| Cutout Depth (in) | 19.125 |
| Cooktop Burner Type | 5 Sealed |
| Valves (Degree of Turn) | 270 |
| Burner - Right Rear | 5,000 BTU |
| Burner - Right Front | 15,000 BTU Power Boil |
| Fuel Type | Natural Gas |
| Power Boil Burner | Yes |
| Control Location | Front Center |
| Cooktop Type | Continuous Grates |
| Ignition System | Electronic |
| Burner - Center | 18,000 BTU Power Boil |
| Cooktop Surface | Deep Stainless Steel |
| Burner - Left Rear | 9,500 BTU |
| Control Type | Knob |
| Cooktop Burner Grate Material | Heavy Cast |
| Griddle | Optional |
| Cooktop Burner Grate Features | Edge-to-Edge Grates |
| Burner - Left Front | 9,500 BTU |
| Product Type | Cooktop |
| Cooktop Burner Grate Features | Continuous Grates |
| Cooktop Burner Grate Features | Dishwasher Safe |
| Griddle | JXGRIDL236 |
| Griddle | Cast Iron |
| Burner BTU Ratings (000's/BTU) - LP Gas | (1) 18.0; (1) 15.0; (2) 9.5; (1) 5.0 |
| Burner BTU Ratings (000's/BTU) - Natural Gas | (1) 18.0; (1) 15.0; (2) 9.5; (1) 5.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| Hertz | 60 |
| Electrical Requirements | 120V |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
| Color Appearance | Stainless Steel |
| Cooktop Burner Grate Color | Matte Black |
| Control Knobs | White LED Backlit |
| Control Knobs | Stainless Steel Appearance |
| Control Knobs | Dishwasher Safe |
| Stainless Steel Cleaner | Included |
| Width | 36 in. |
| Height | 5.5 in. |
| Length | 21 in. |
| Weight | 51 lbs. |
| Number of Boxes | 1 |
| Shipping Width | 41 in. |
| Shipping Height | 10.5 in. |
| Shipping Length | 26 in. |
| Shipping Weight | 91 lbs. |
| Total of Shipping Weight | 91 lbs. |
| Source | Calculation |
| Cubic Feet Measurement | 2.41 ft³ |
| Dimensional Weight | 29.91 lbs. |
| Total of Cubes | 2.41 ft³ |
| Total of Dimensional Weight | 29.91 lbs. |

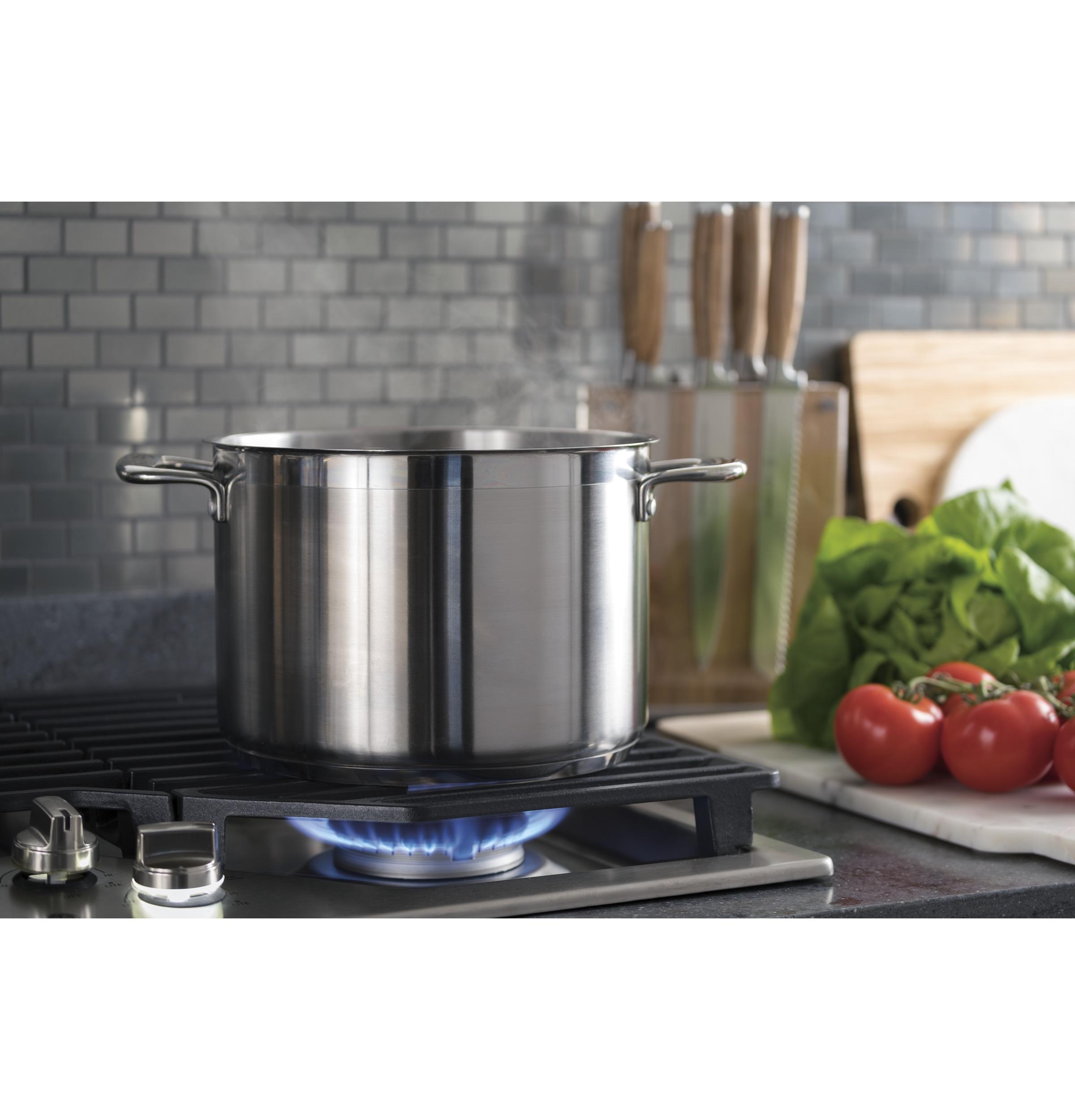

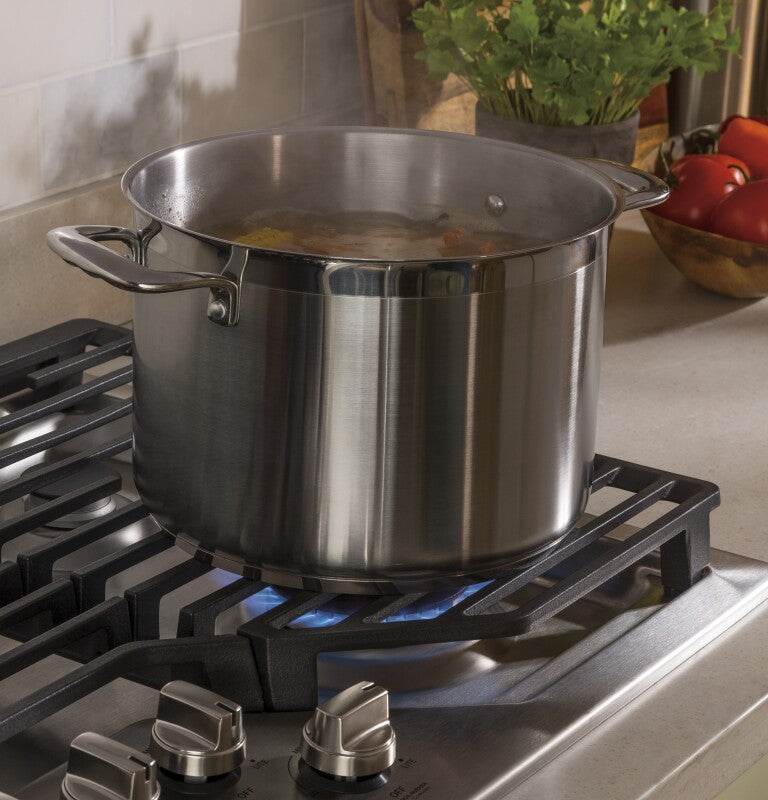

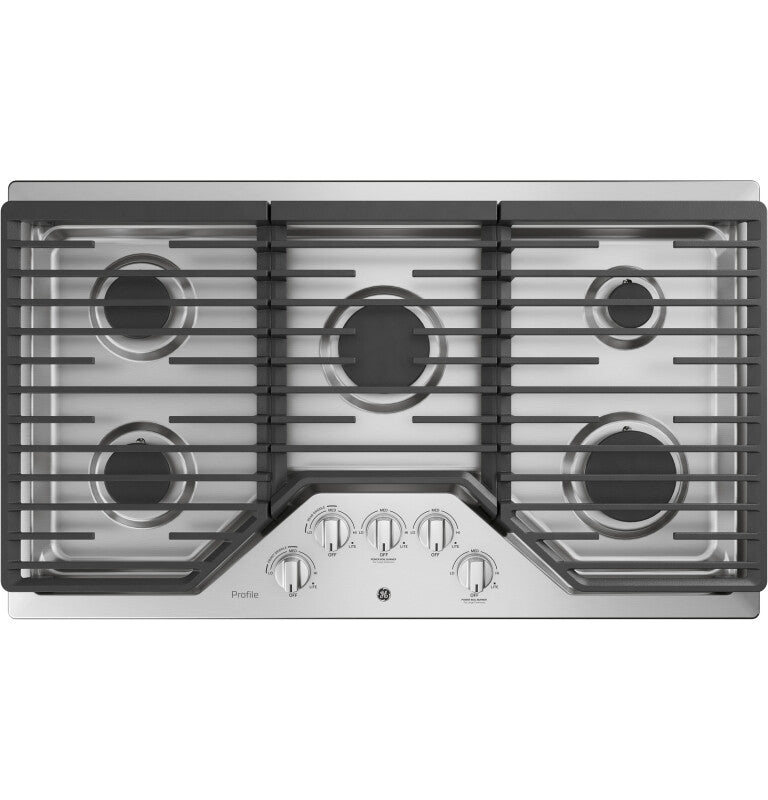

18,000 BTU Power Boil burner delivers intense heat for faster boiling

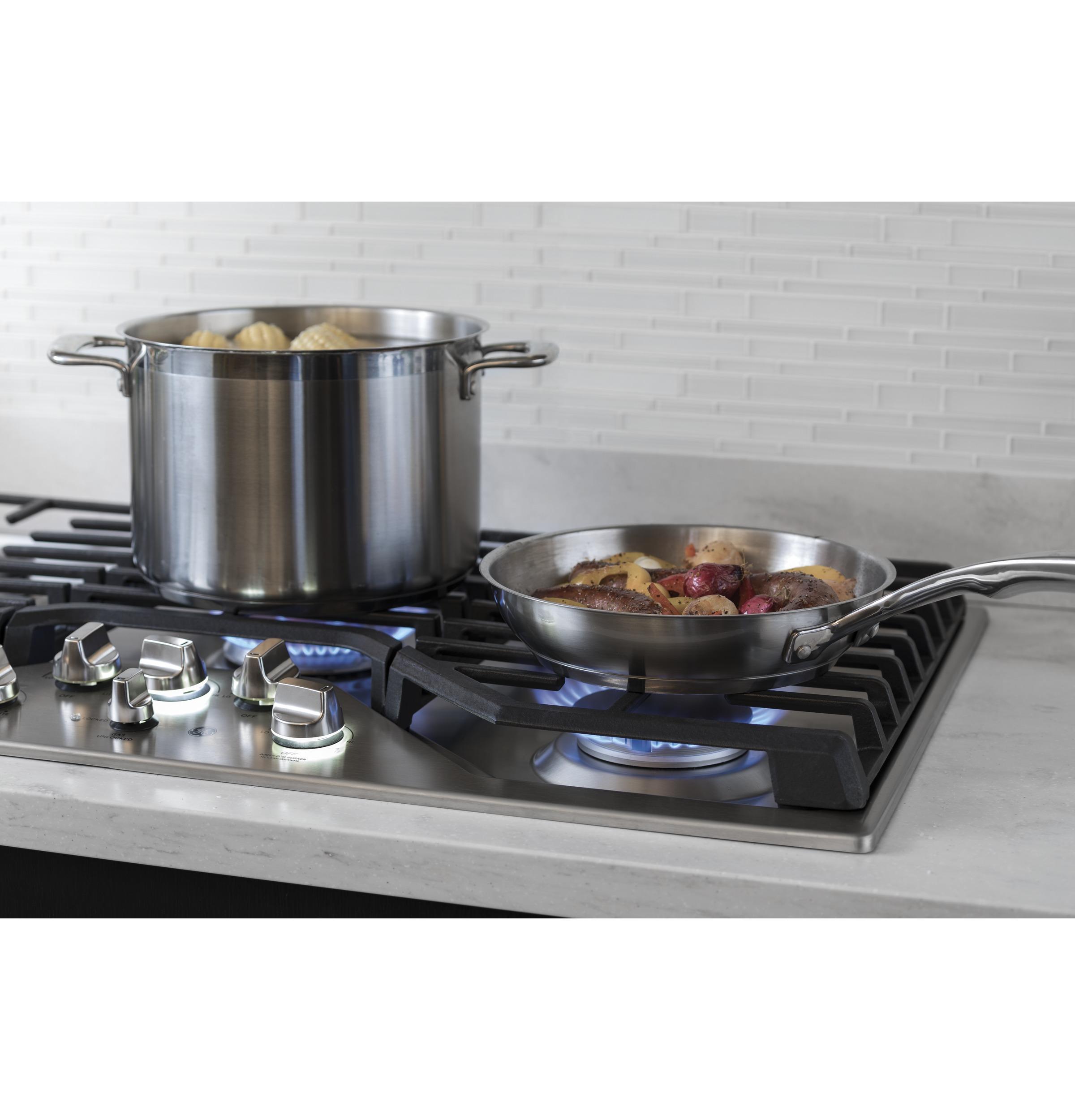

Continuous cast iron grates provide more room for large cookware

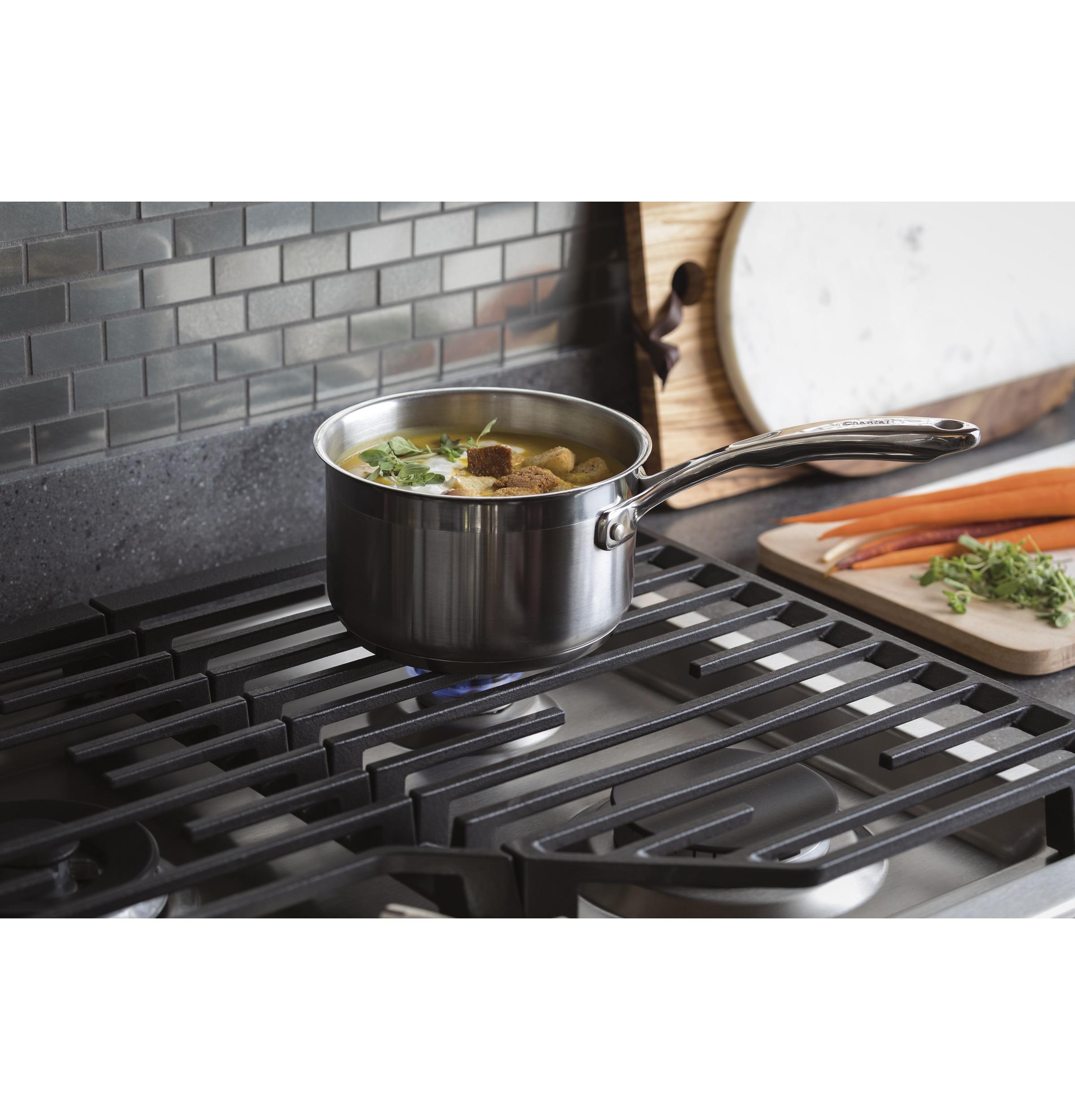

Protect delicate foods with low, even heating

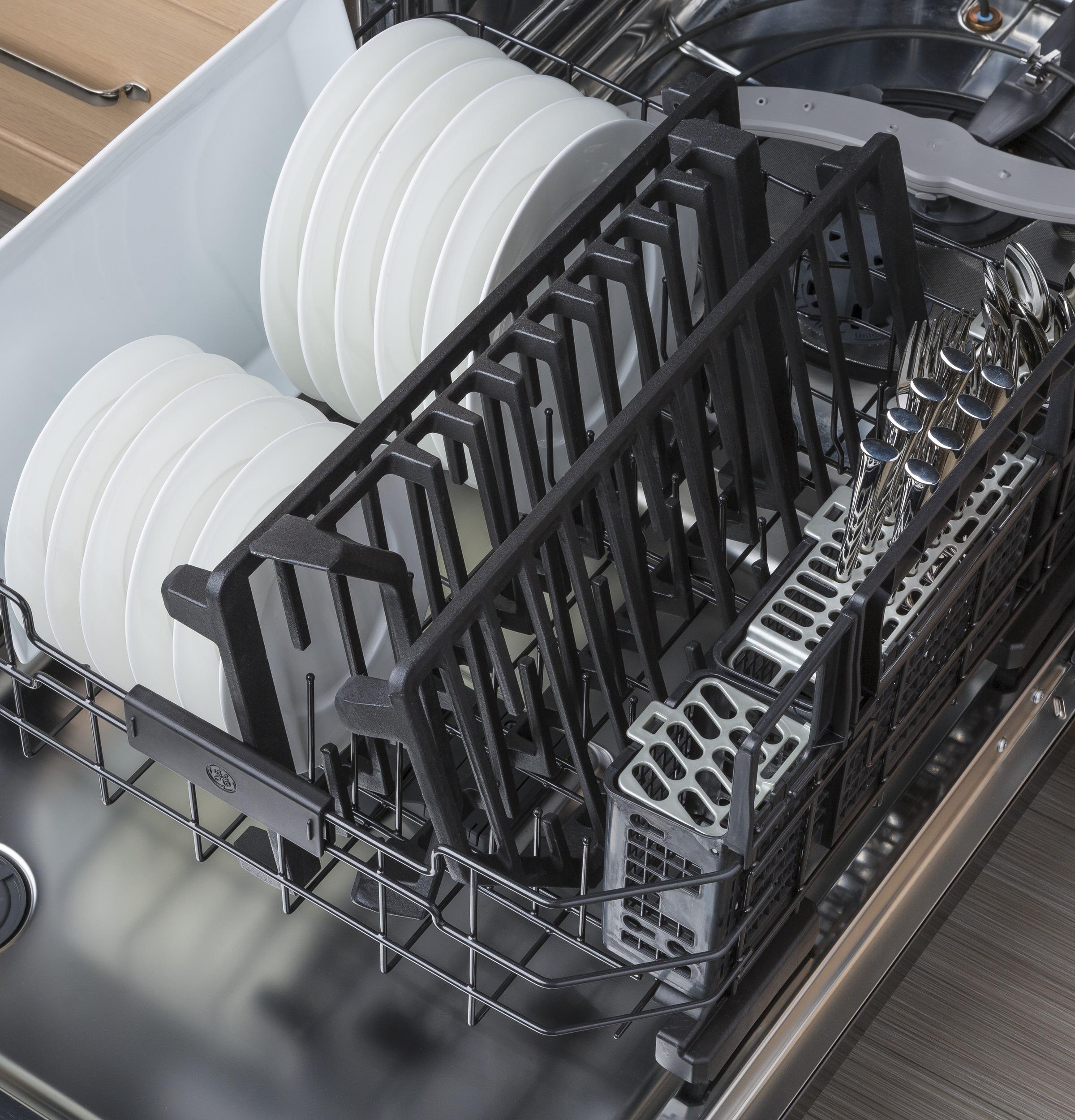

Heavy-duty grates are easy to clean in the dishwasher

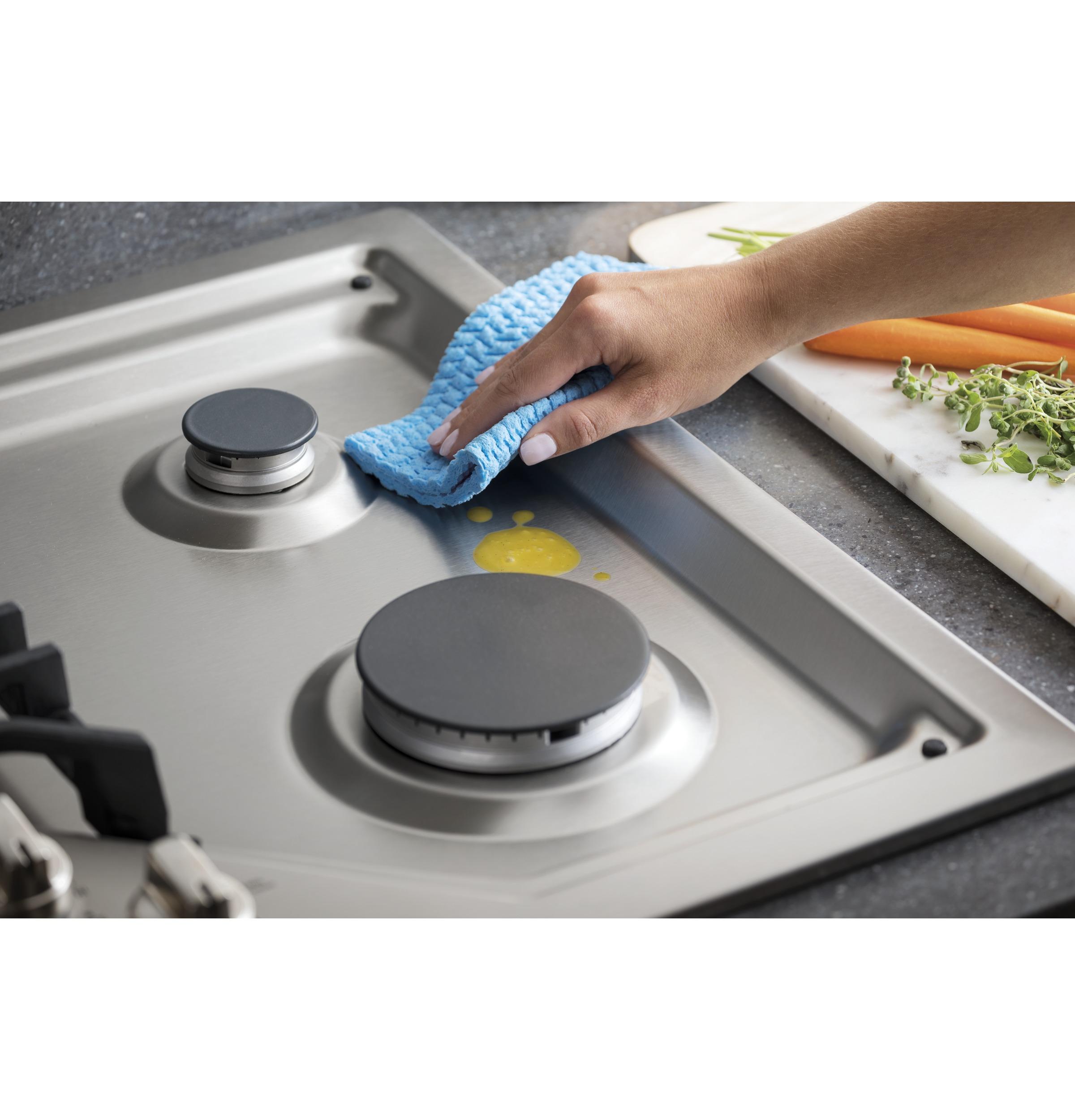

Sealed cooktop burners contain spills and make cleaning quick and easy

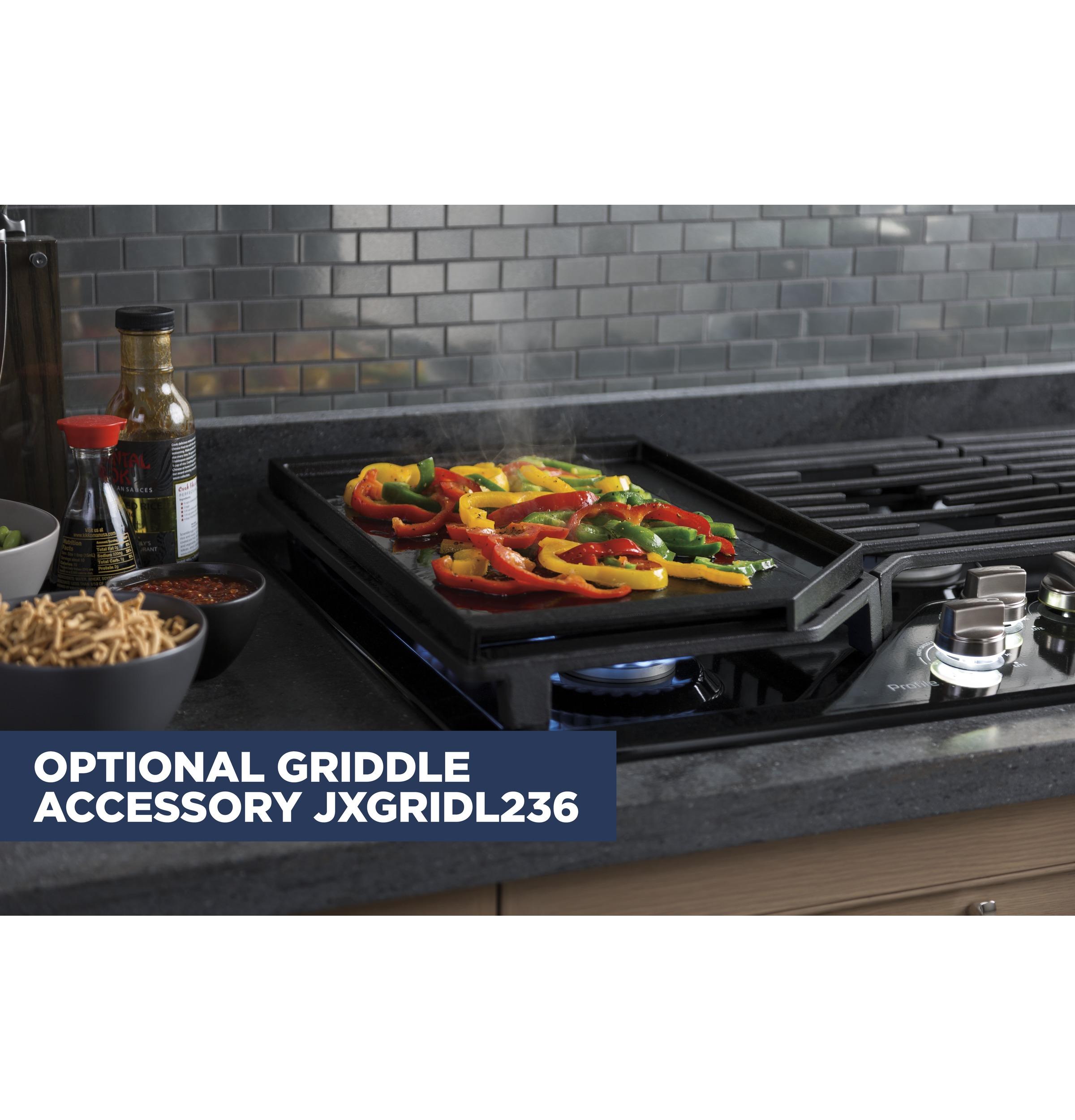

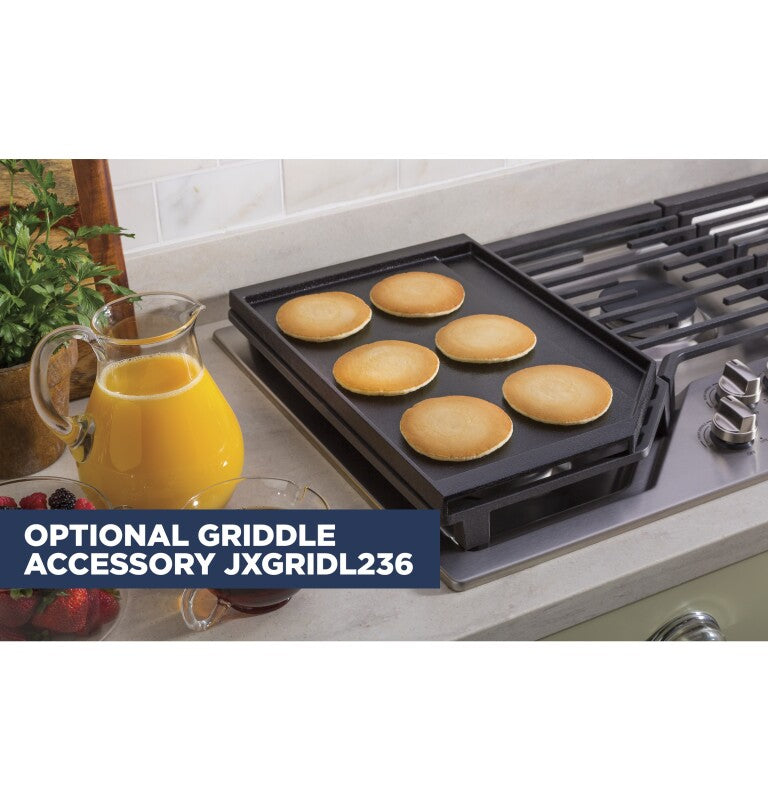

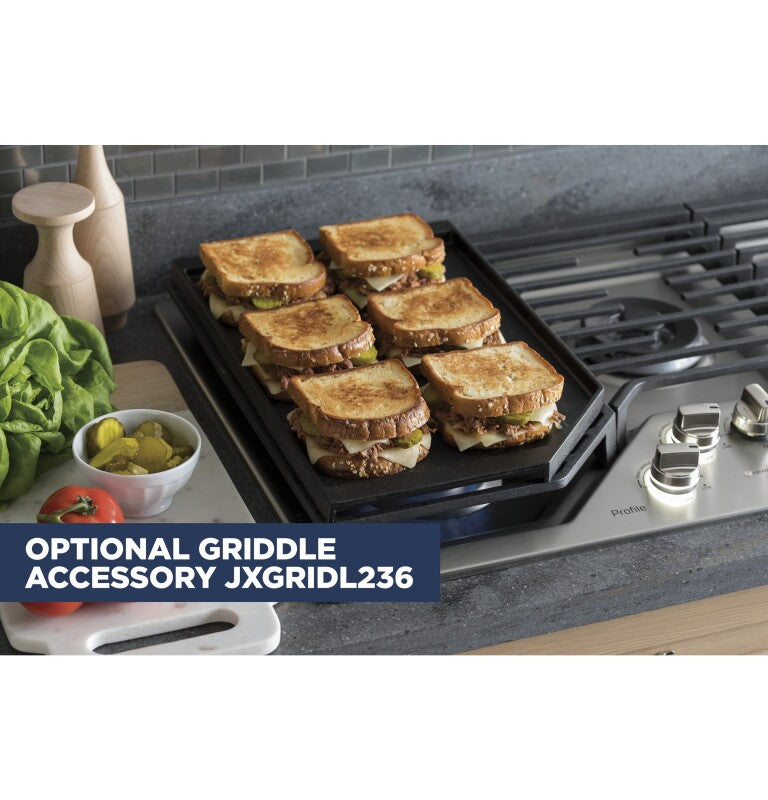

Eliminate the need for extra cookware with an optional integrated griddle perfect for pancakes, grilled cheeses and other favorites

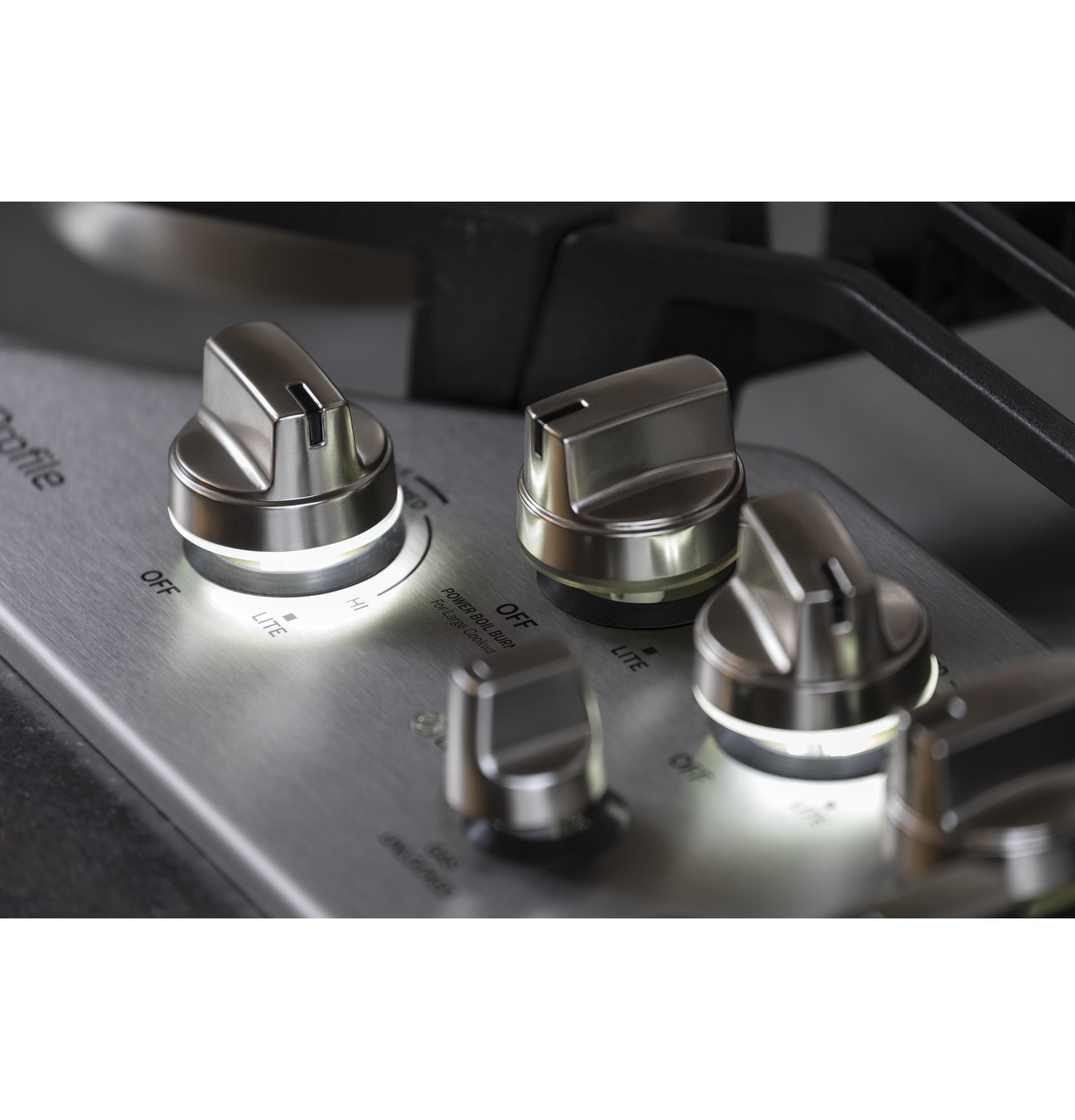

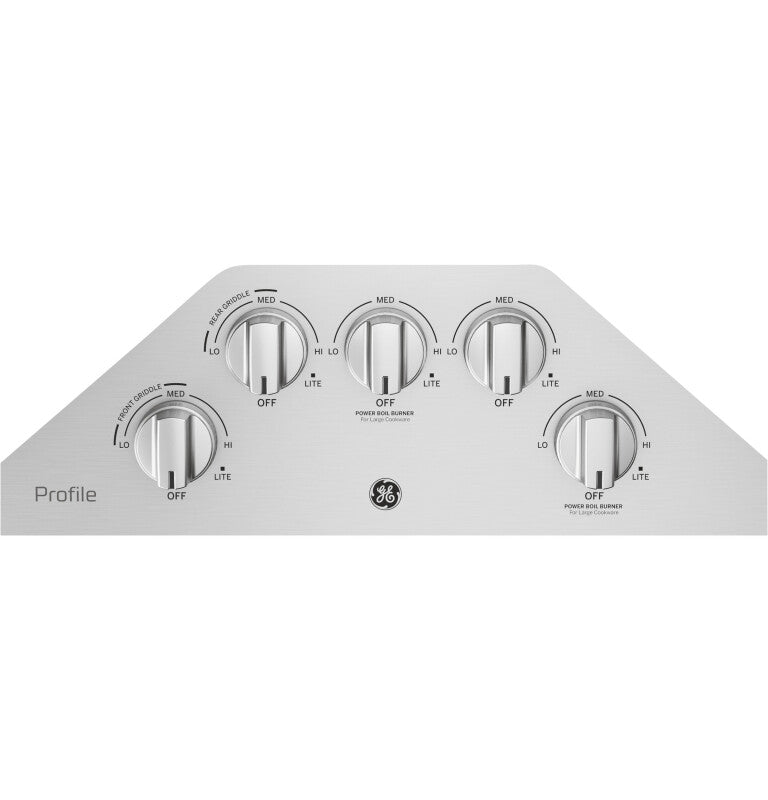

Durable knobs are back-lit for a sleek appearance when burners are on
Delivers the same maximum BTU power to propane and natural gas cooktops

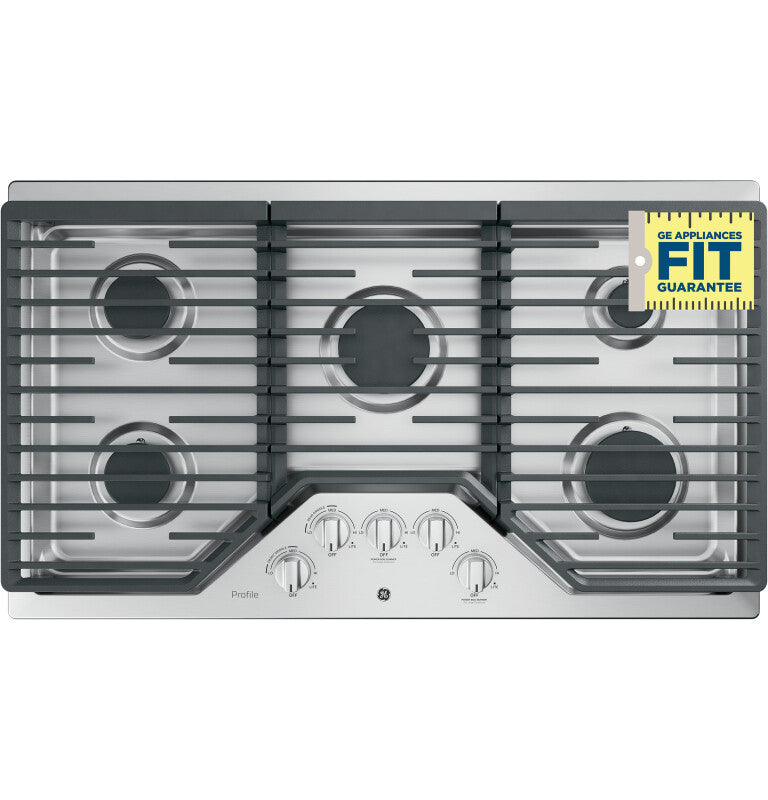

Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
