SKU: SGSXP305TS | UPC: 825225932819

Thermador SGSXP305TS Masterpiece® Gas Cooktop 30'' Stainless Steel

Name: Thermador SGSXP305TS Masterpiece® Gas Cooktop 30'' Stainless Steel
Brand: THERMADOR
SKU: SGSXP305TS
Price: 2799.00 USD
Availability: InStock

Quick Specification More details

Width:
31"
Depth:
21.25"
Height:
3.81"
Type:
Gas Cooktops

About this product

Illuminate knobs with a ring of light when in use
30-inch cooktop with functionality of a 36-inch cooktop
Continuous Grates make it easy to move pans
Electronic Re-ignition keeps your flame ignited

Quickship

On Sale

SKU: SGSXP305TS | UPC: 825225932819

Thermador SGSXP305TS Masterpiece® Gas Cooktop 30'' Stainless Steel

$2,799.00 ~~$3,316.97~~ Save $517.97 / 15% OFF

Quantity:

Quickship

Active Rebates

Extended Protection

1-Year Extended Protection
$57.99
2-Year Extended Protection
$91.99
3-Year Extended Protection
$151.99
5-Year Extended Protection
$239.95
Manufacturer Warranty Only

Cooktop Install Kit
$40.00
Standard Cooktop Install - Direct Replacement, No Modifications
$180.00
Old Appliance Removal (Unit Must be Disconnected by Owner if Installation was Not Added)
$49.99

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Related Accessories

Thermador SNPKITPEDW Nozzle Set Other

Quickship

On Sale

Quick Specification More details

Width:
31"
Depth:
21.25"
Height:
3.81"
Type:
Gas Cooktops

About this product

Illuminate knobs with a ring of light when in use
30-inch cooktop with functionality of a 36-inch cooktop
Continuous Grates make it easy to move pans
Electronic Re-ignition keeps your flame ignited

Product Details for THERMADOR SGSXP305TS

Technical Details

Warranty

Parts	2 Year
Labor	2 Year

Installation

Alternative Gas Type (Nozzle Set Included)	Liquid gas 27,5 mbar (USA)
Plug Type	120V-3 prong
Overall Appliance Dimensions (HxWxD) (in)	3 13/16'' x 31'' x 21 1/4''

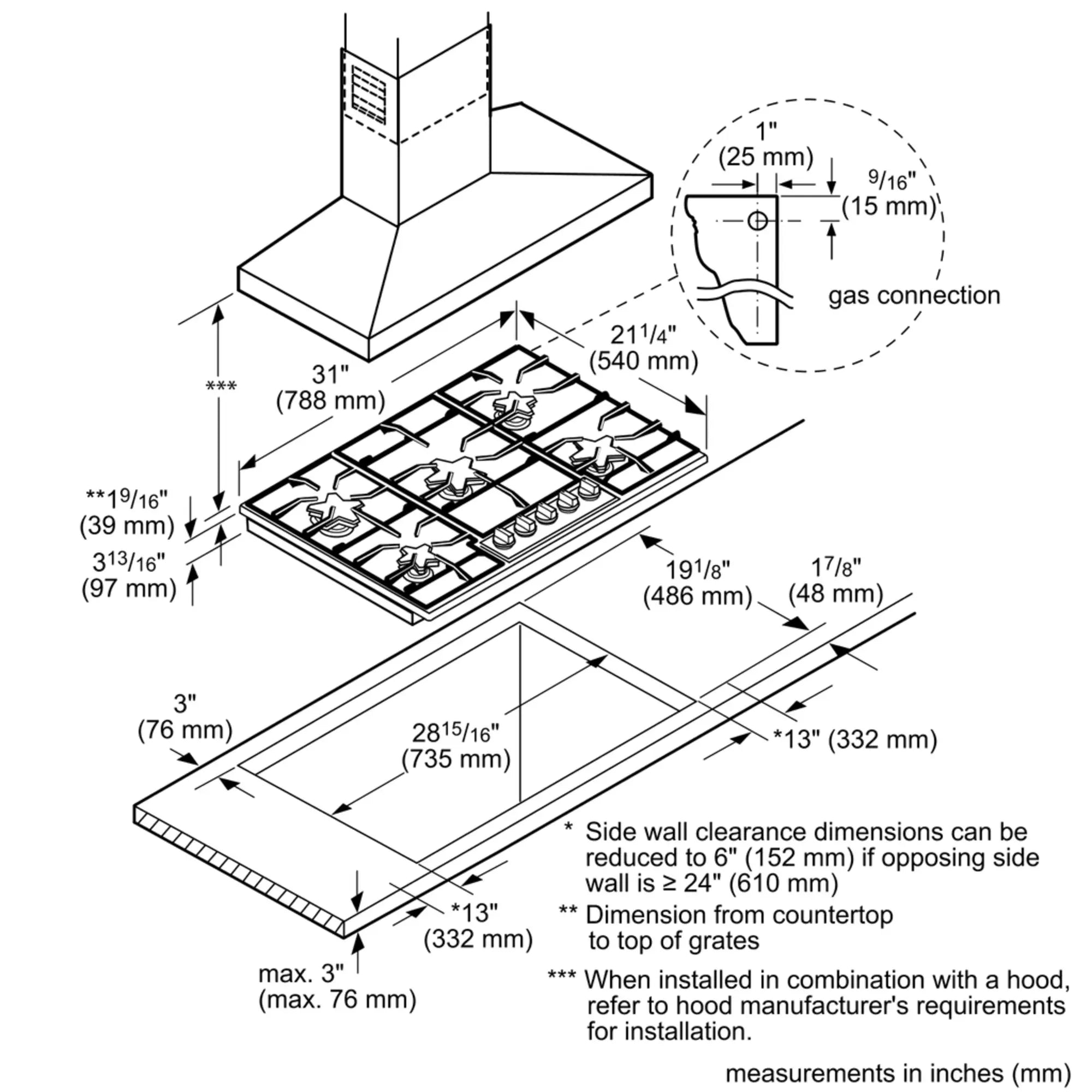

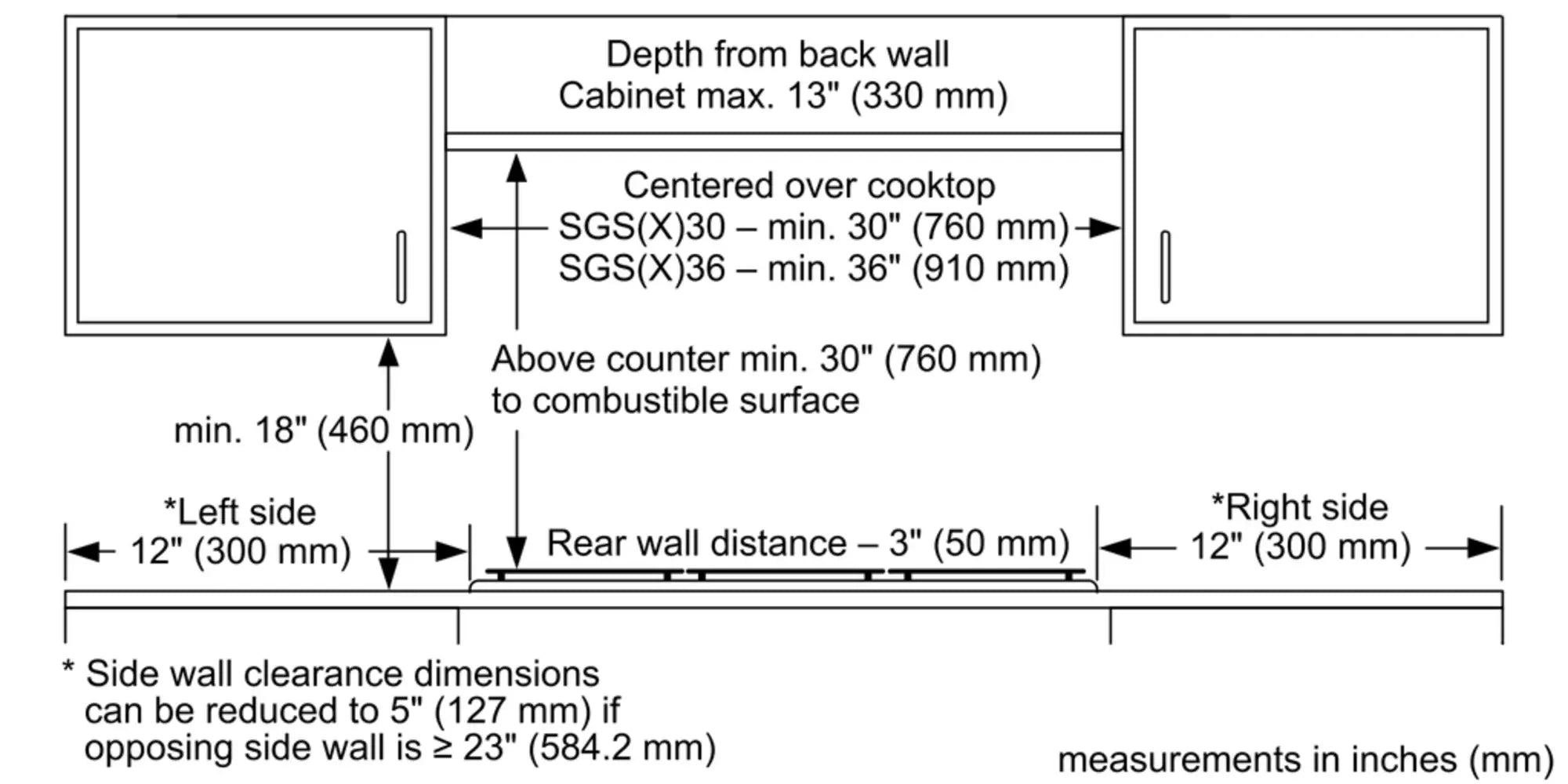

Required Cutout Size (HxWxD) (in)	3 13/16'' x 28 15/16'' x 19 1/8''
Amps	15 A
Volts	120 V
Product Packaging Dimensions (HxWxD)	8 3/8'' x 37 1/8'' x 24 3/4''
Gas type preset	Natural gas 15 mbar (USA)
Power Cord Length	60''

Connectivity

Home Connect® WiFi-enabled

Accessories

Included Accessories

3 x cast iron pan support

General

Total NG BTUs	54000 Btu
Total LP BTUs	45200 Btu
ExtraLow® Burners	yes

Design

Surface Materials	Stainless Steel
Grate Materials	Cast Iron with Rubber Feet
Location of Control Panel	Front

Comfort and convenience

Number of Gas Burners	5
ExtraLow® Burners	yes
Griddle	no
ADA Compliant (When Installed to ADA requirements)	no
Special Features	Reignition, Extra low power setting
Pedestal Star® Burners	yes
Sealed Burners	no

Dimensions & weight

Width	31 in.
Height	3.81 in.
Length	21.25 in.
Type of appliance width	76 cm
Power cord length	60''
Product Packaging Dimensions (HxWxD)	8 3/8'' x 37 1/8'' x 24 3/4''

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	36 in.
Shipping Height	8.81 in.
Shipping Length	26.25 in.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	1.45 ft³
Dimensional Weight	18.07 lbs.
Total of Cubes	1.45 ft³
Total of Dimensional Weight	18.07 lbs.

Safety

Flame failure safety device for each burner,

Description

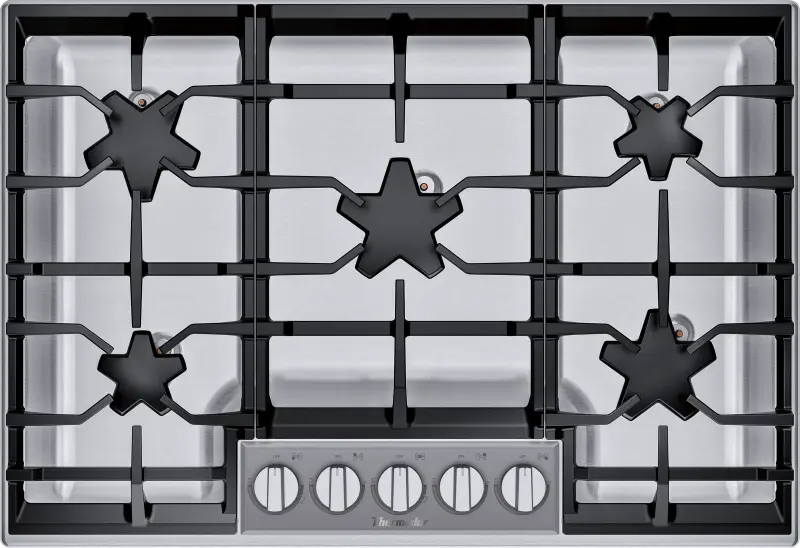

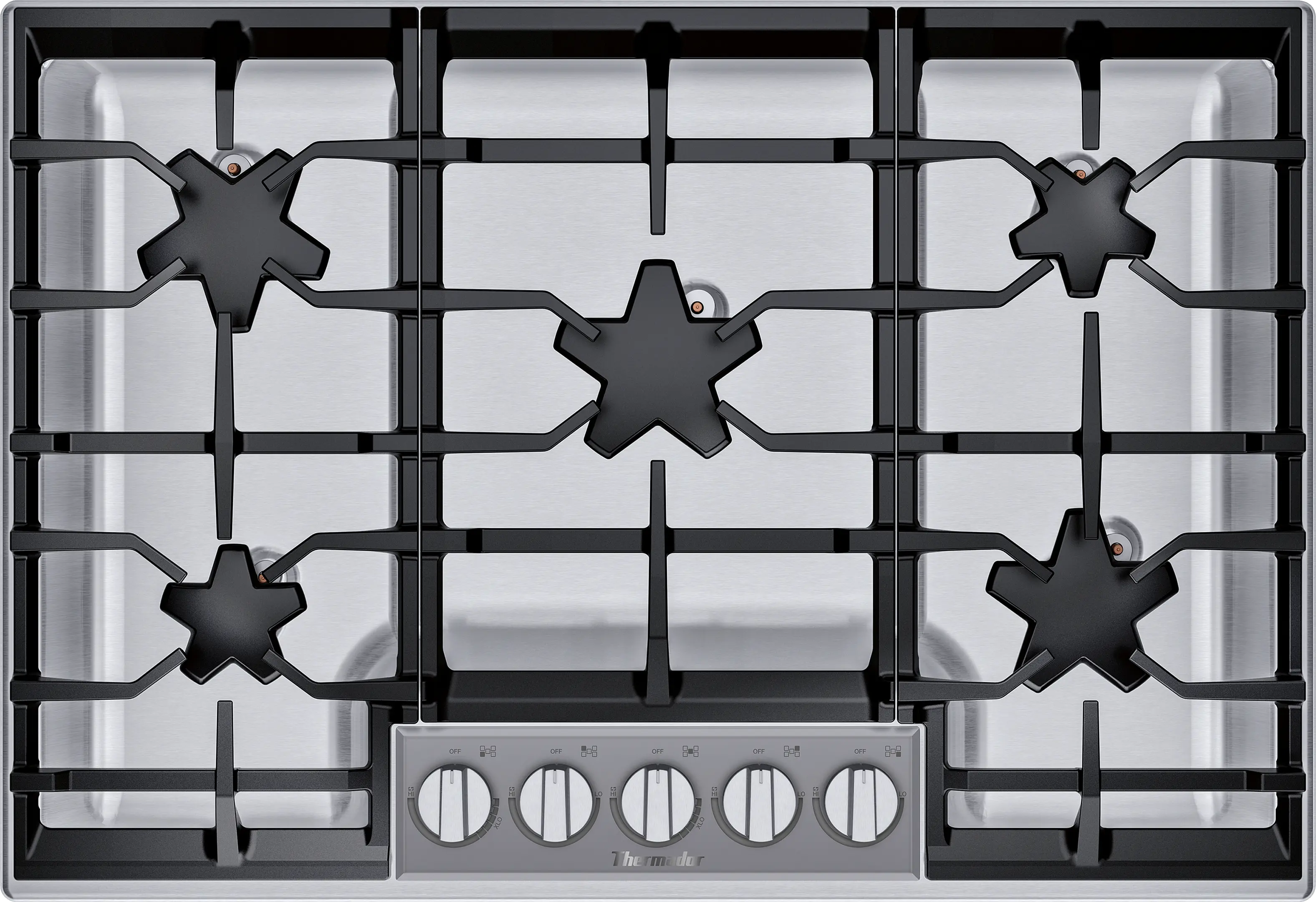

Thermador 30" Gas Cooktop with 5 Patented Star® Burners and QuickClean Base®

Product Features

18,000 BTU Center Burner
This extra high heat burner is the optimal choice for rapid boiling and high heat searing.
ExtraLow® for slowly simmering delicate recipes
Our ExtraLow® feature provides a wide range of temperature control. It cycles the burners on and off to maintain a very low temperature. Perfect for simmering delicate sauces or keeping food warm without scorching or stirring.

Manuals & Guides

Key Features

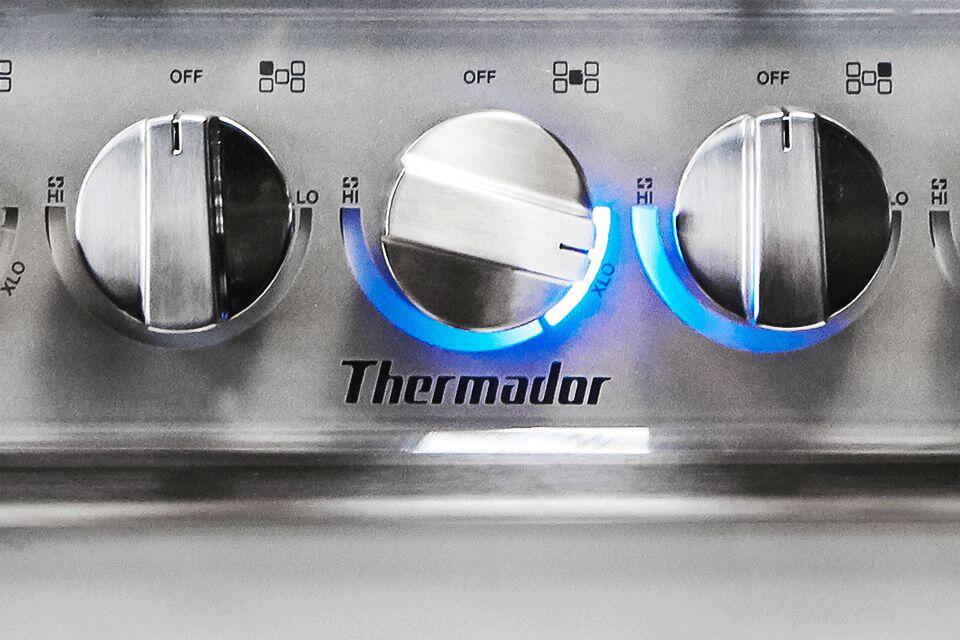

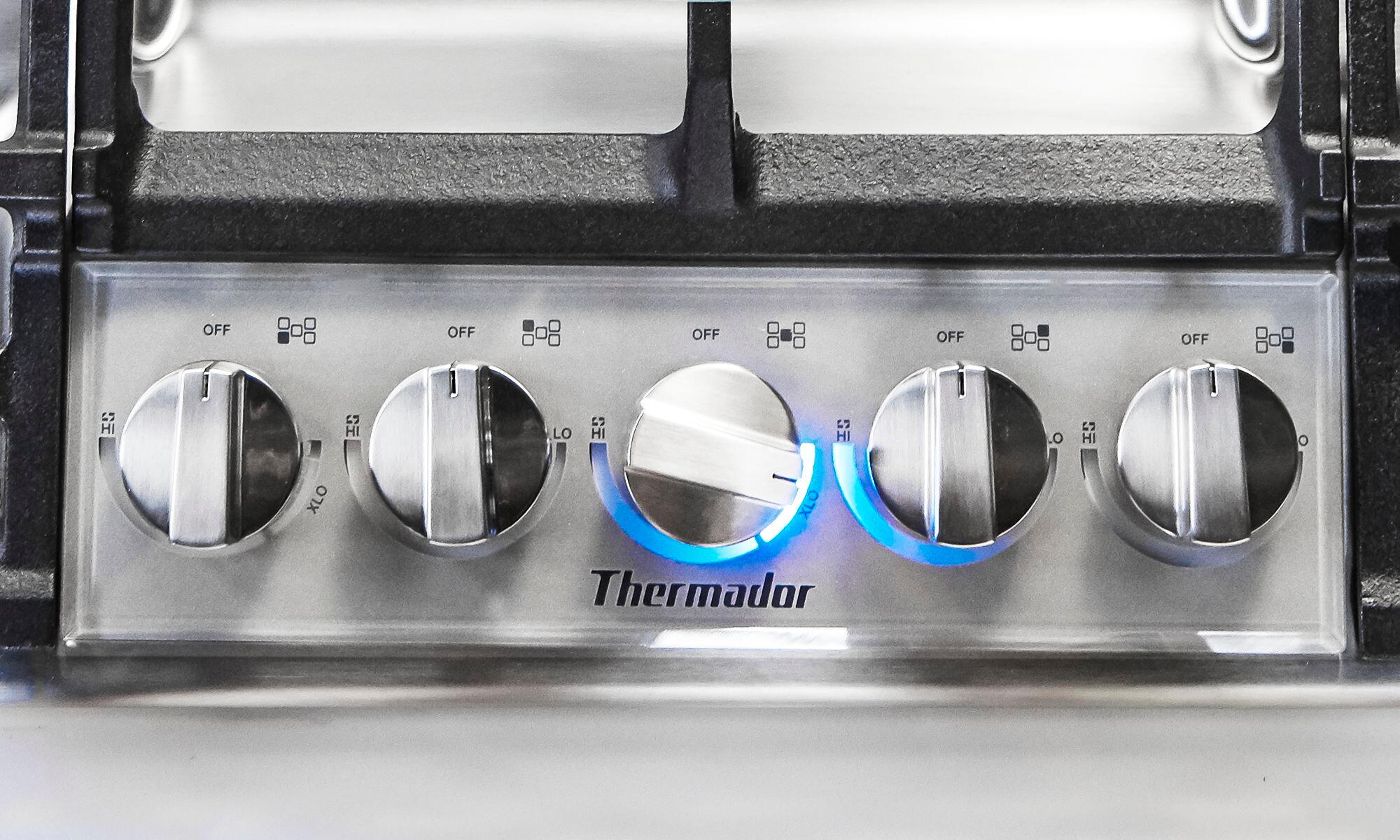

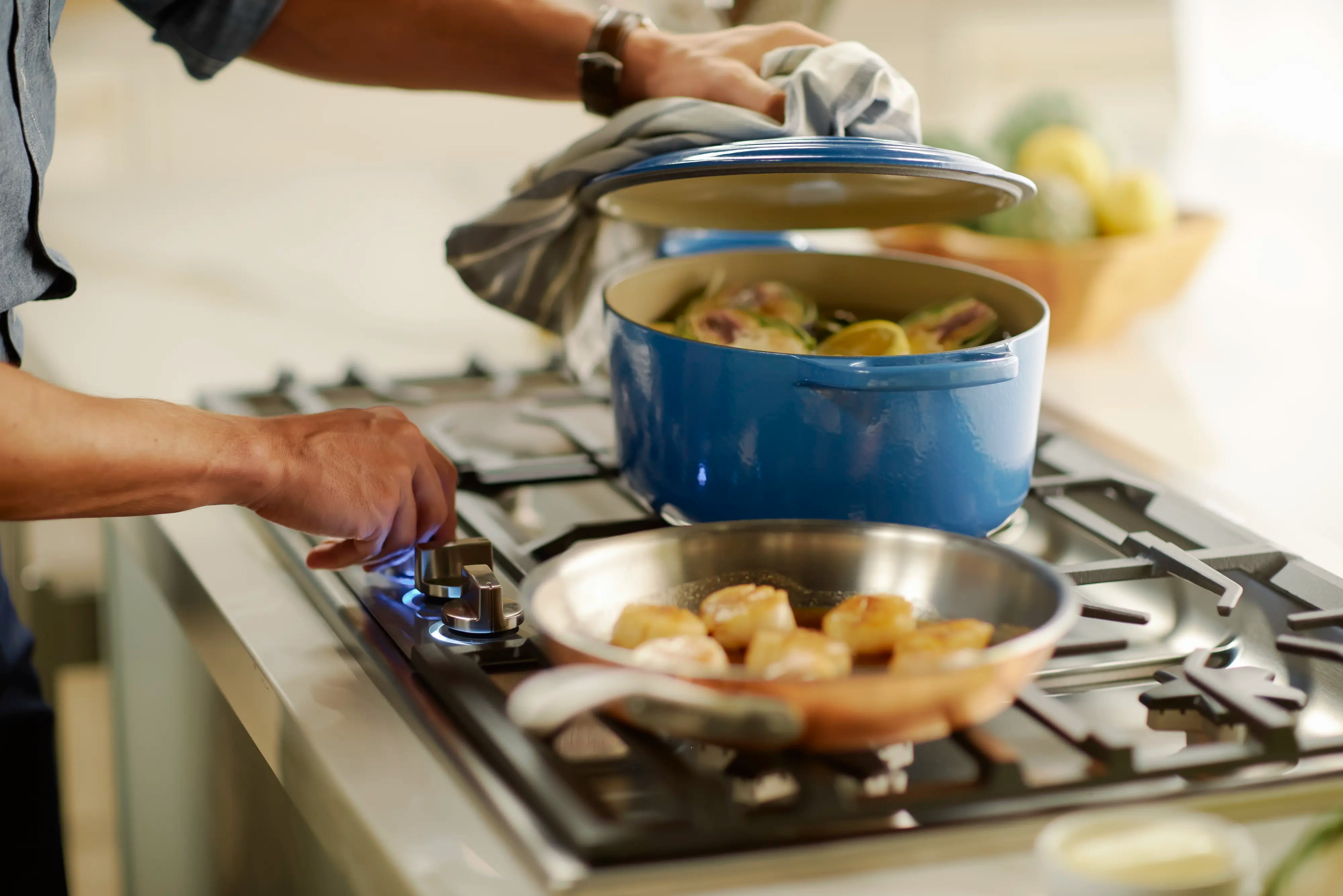

Illuminate knobs with a ring of light when in use

A ring of light encircles knobs when in use, artfully illuminating the controls.

30-inch cooktop with functionality of a 36-inch cooktop

30-inch 5 burner gas cooktop provides functionality of a 36" cooktop in a compact kitchen environment.

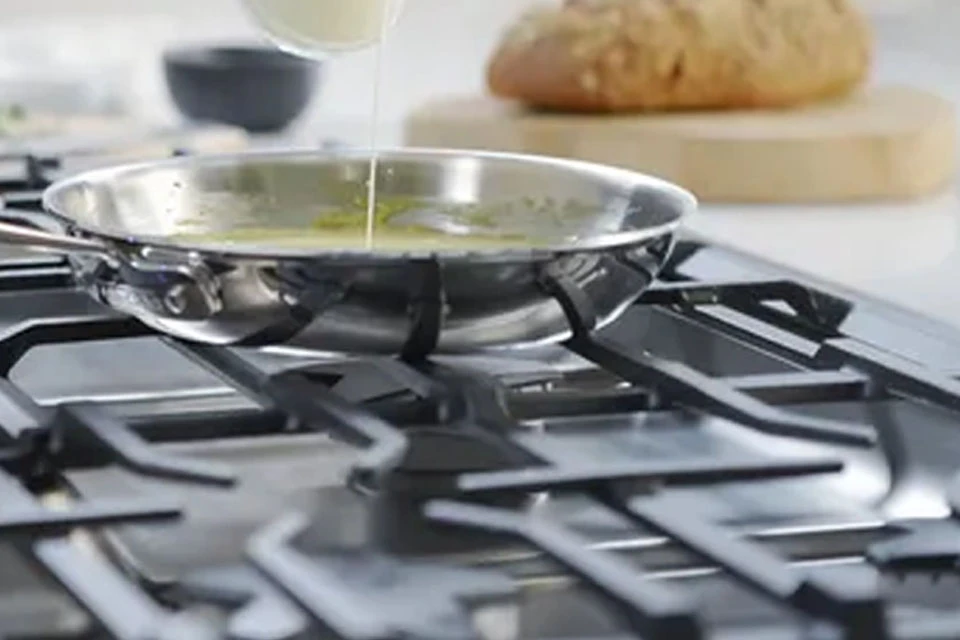

Continuous Grates make it easy to move pans

The connected gridwork allows for moving pots and pans effortlessly across the cooktop.

Electronic Re-ignition keeps your flame ignited

Your burners will automatically re-ignite in case the flame goes out.

Star-K Sabbath Compliant

This cooktop is Star-K certified and may be used as Sabbath Compliant appliances, making it possible to use it on the Sabbath or the holidays.

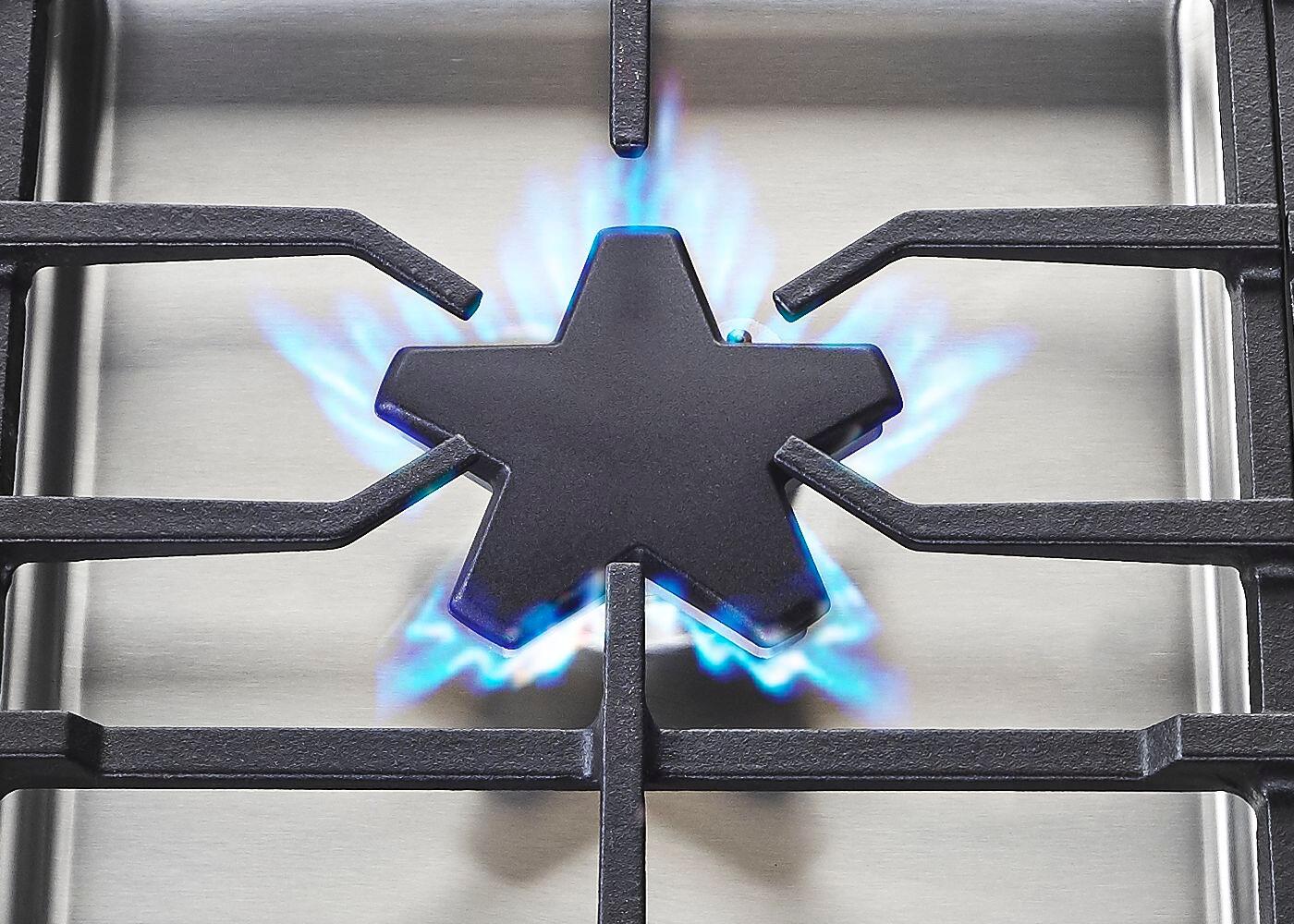

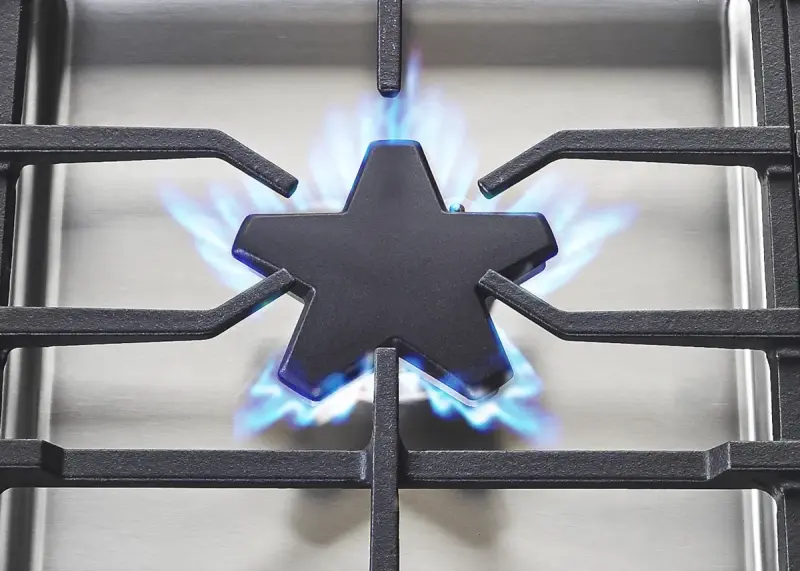

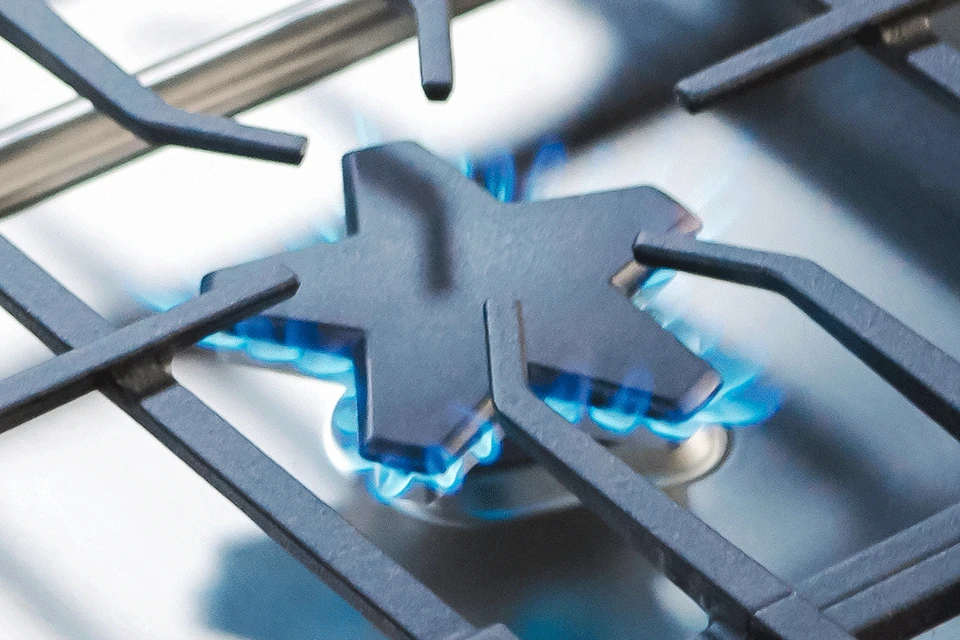

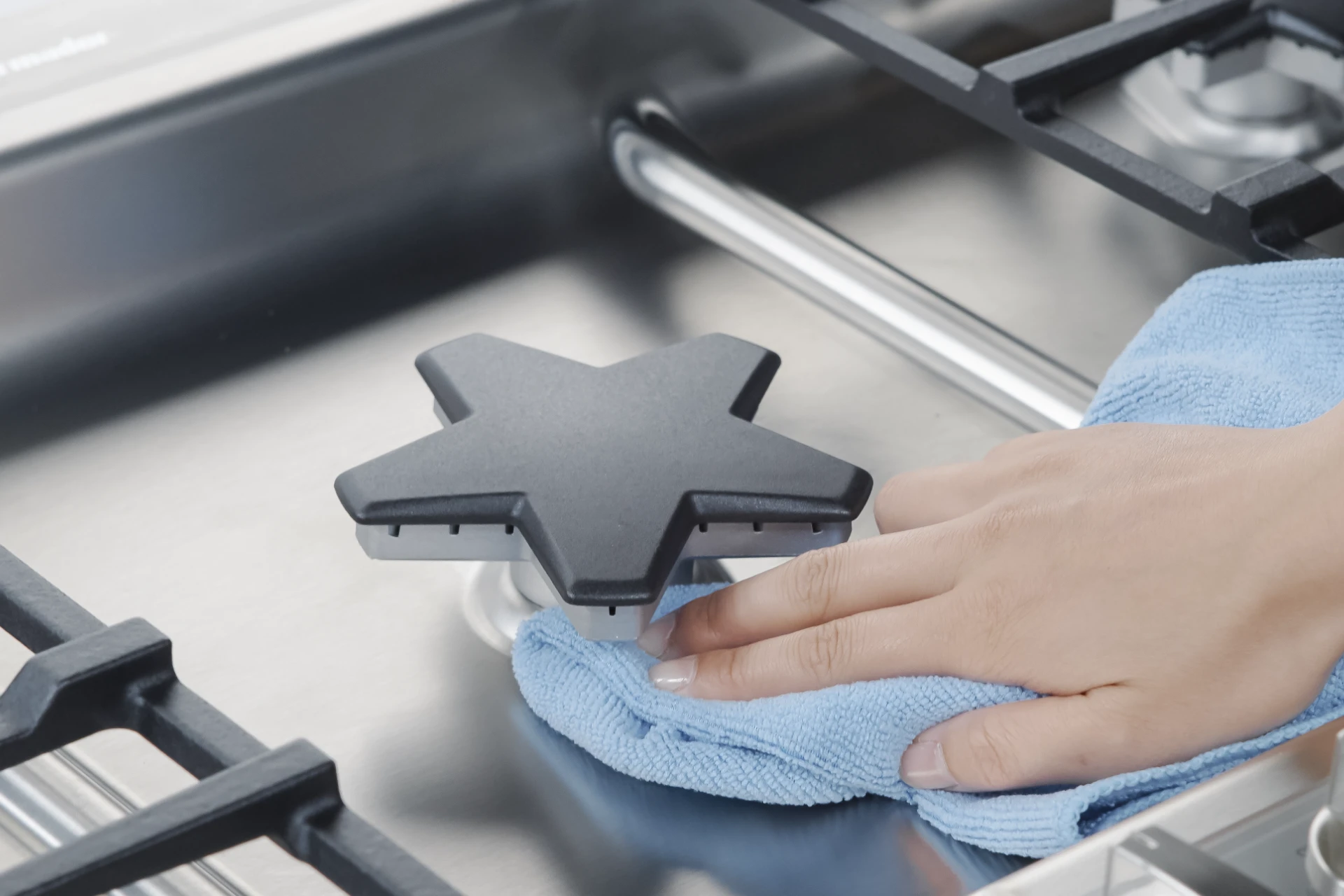

Our Star® Burner provides equal flame distribution

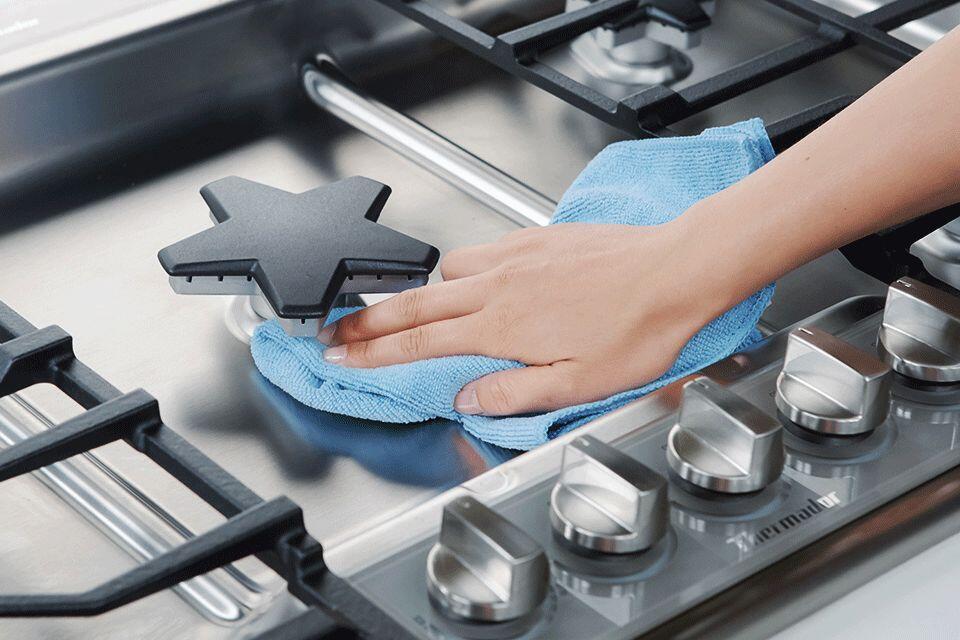

Star® Burners are 56% longer than a round burner of the same size, which allows for more flame ports. The result is a burner that delivers a superior flame spread and reduced cold spots for faster and more even heating. Features a QuickClean Base® for easy cleaning.
