Product Details for SUMMIT VT65MLBIMED2ADA

Technical Details

Freezer

Door Swing RHD
Reversible Factory Reversible
Interior Height 24.25" (62 cm)
Interior Width 17.75" (45 cm)
Interior Depth 16.5" (42 cm)
Thermostat Type Digital
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 2.76 oz.
High Side PSI 235.0
Low Side PSI 88.0
Level Legs 4
Interior Drawers Yes
Drawers Qty 3
Compressor Step Height 6.0" (15 cm)
Compressor Step Width 17.75" (45 cm)
Compressor Step Depth 6.0" (15 cm)
Temperature Range -12ºC to -25ºC

Dimensions & weight

Width 23.63 in.
Height 32 in.
Length 23.63 in.
Weight 105 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 10.34 ft³
Dimensional Weight 128.55 lbs.
Total of Cubes 10.34 ft³
Total of Dimensional Weight 128.55 lbs.

Other

Number of Boxes 1
Source Calculation
Capacity 3.2 cu.ft. (91 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
UPC 761101056548

Description

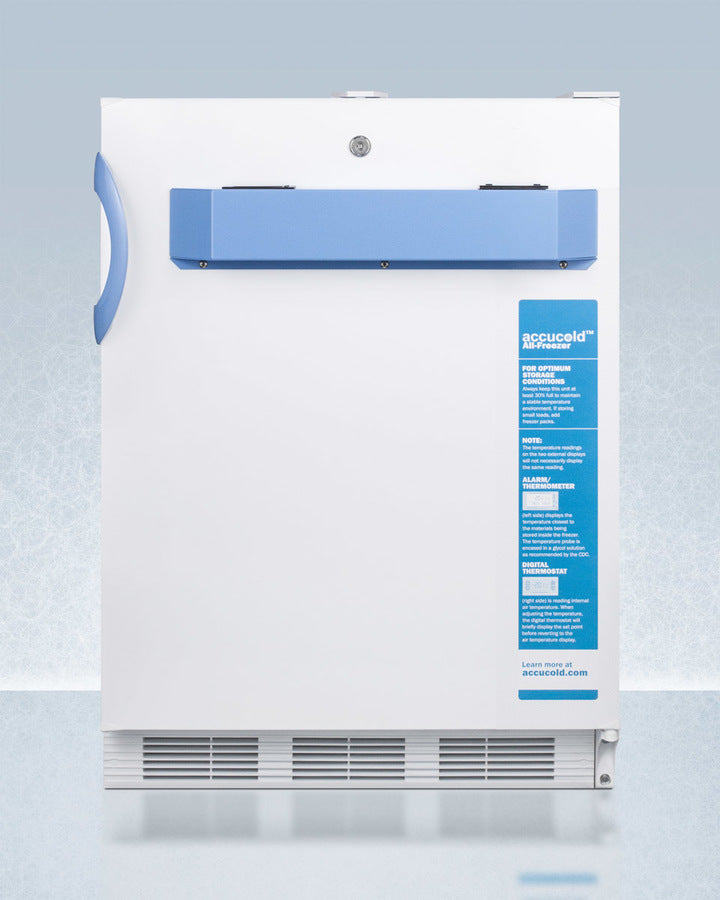

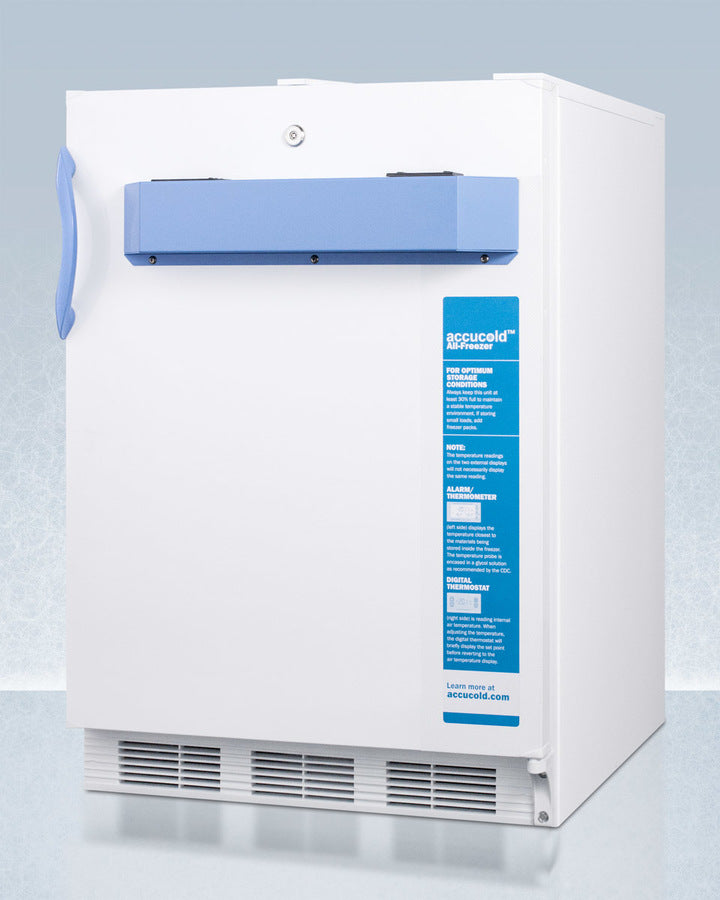

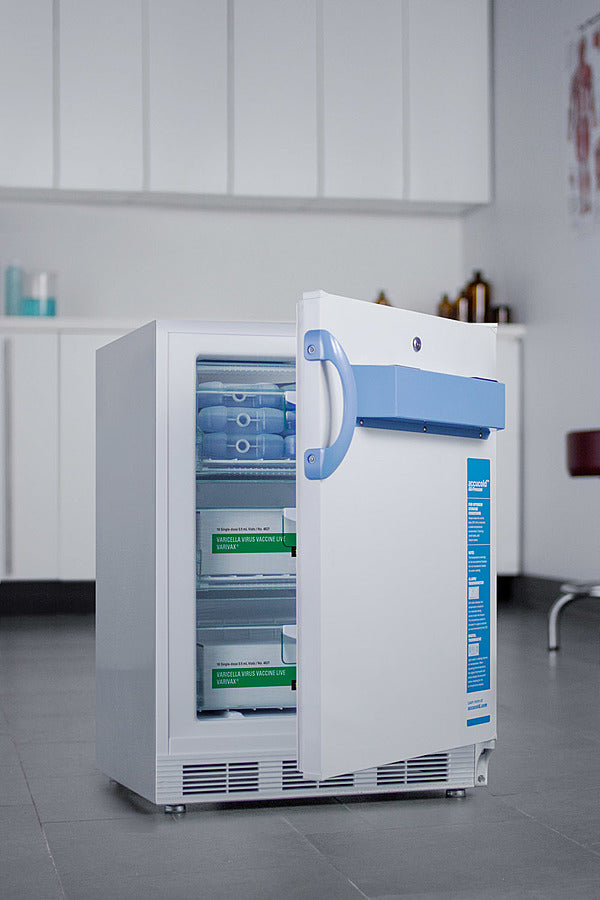

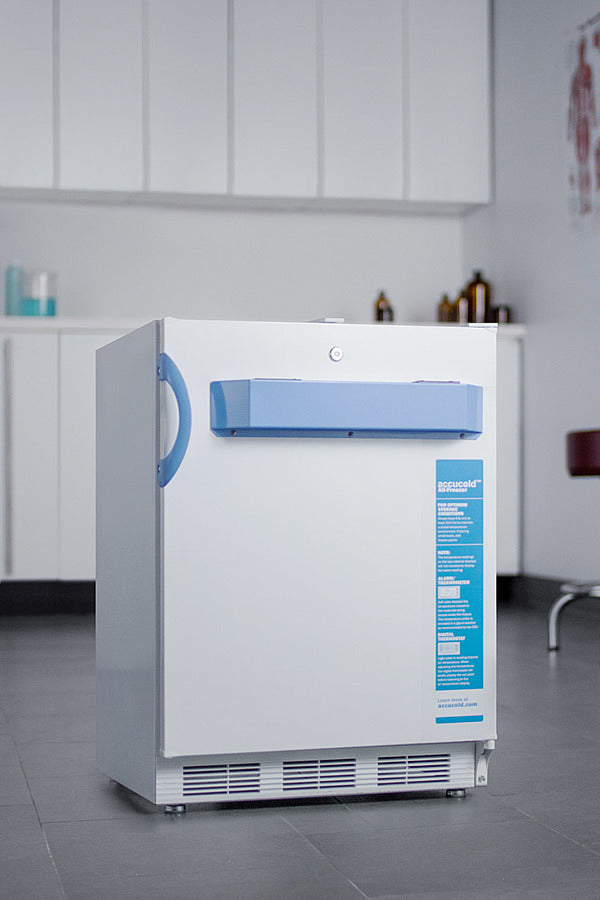

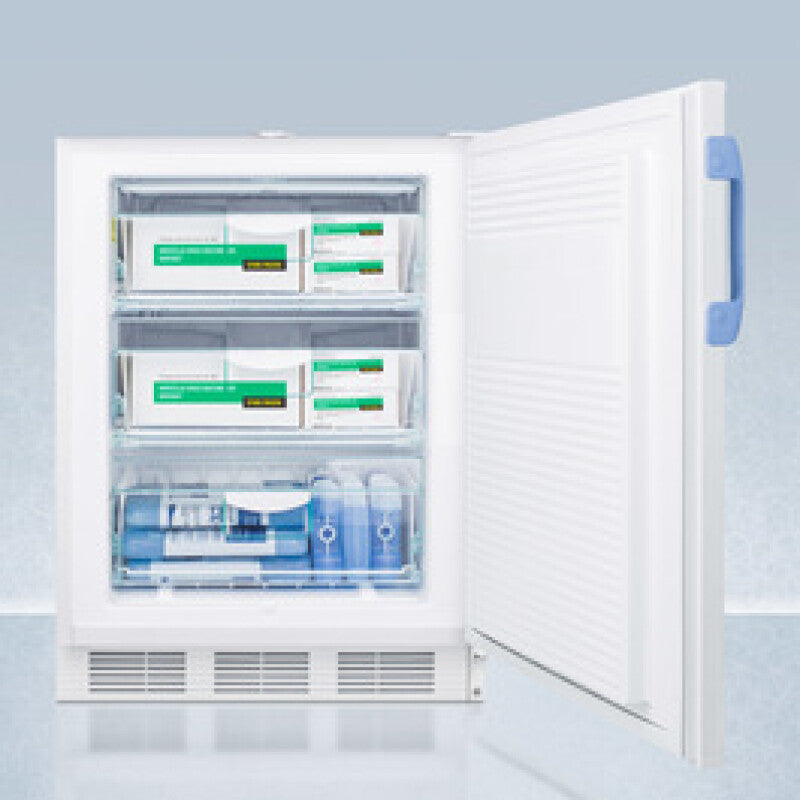

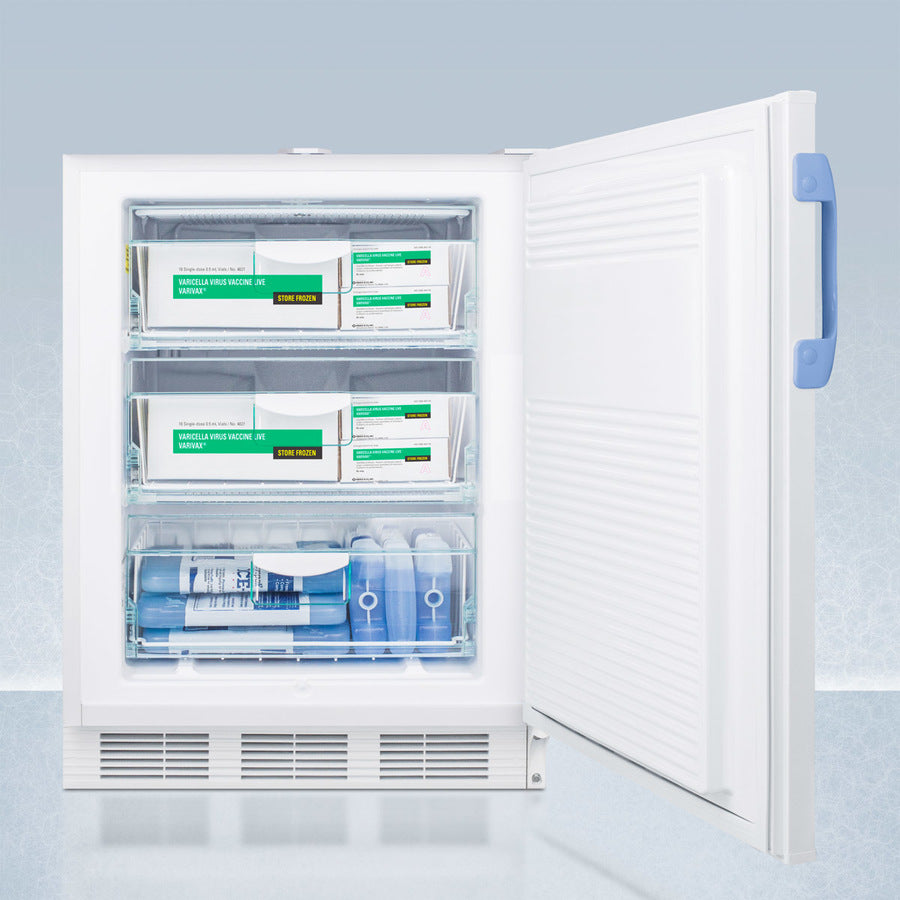

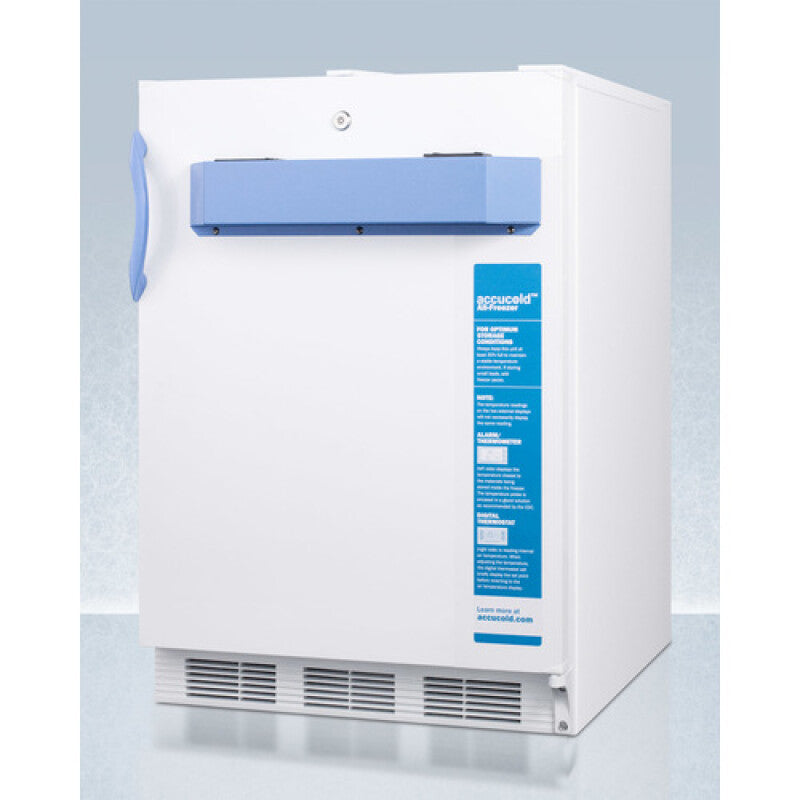

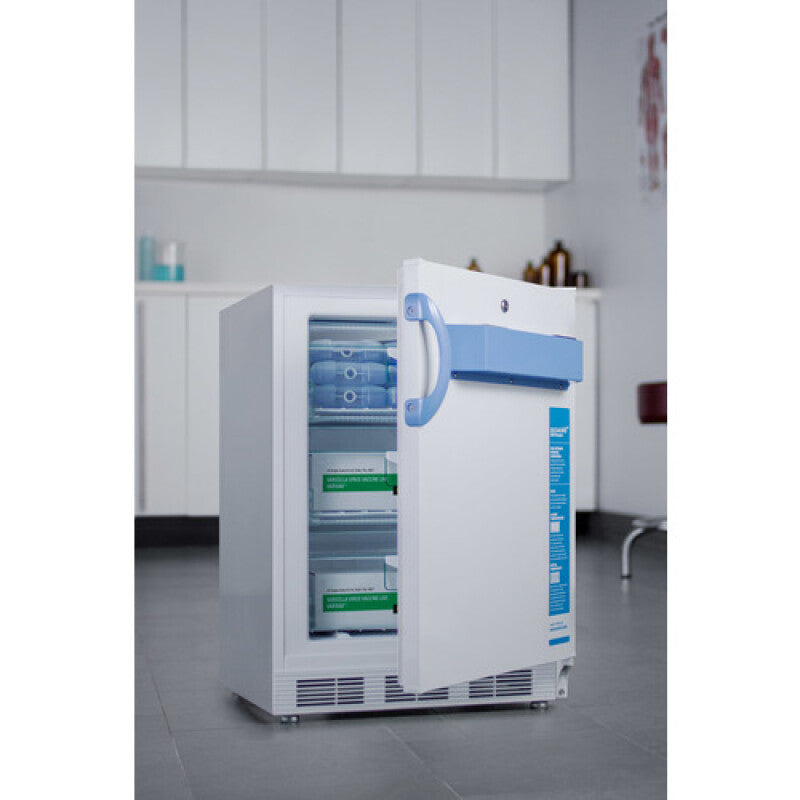

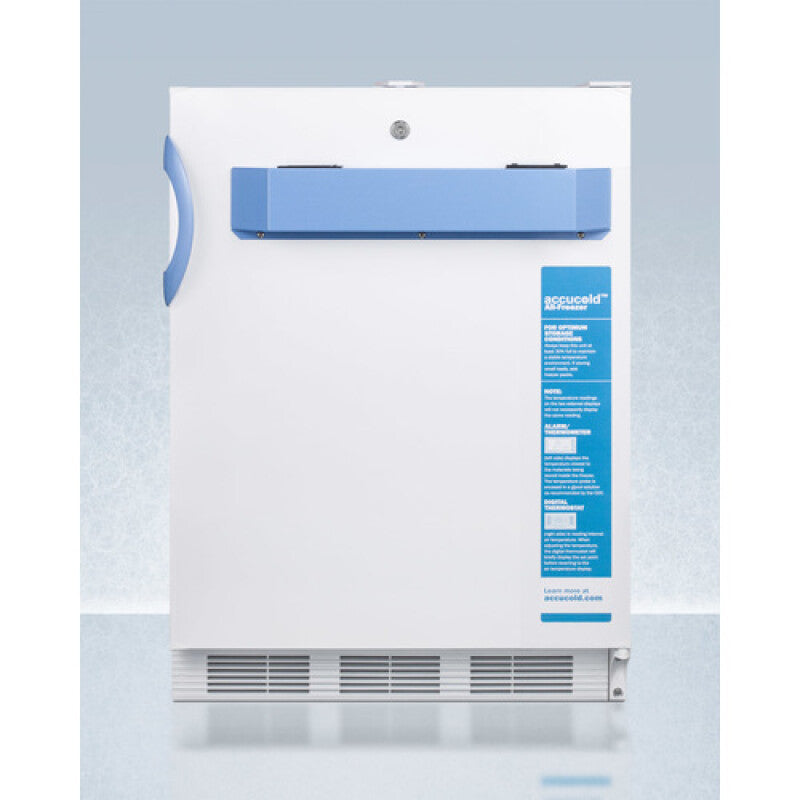

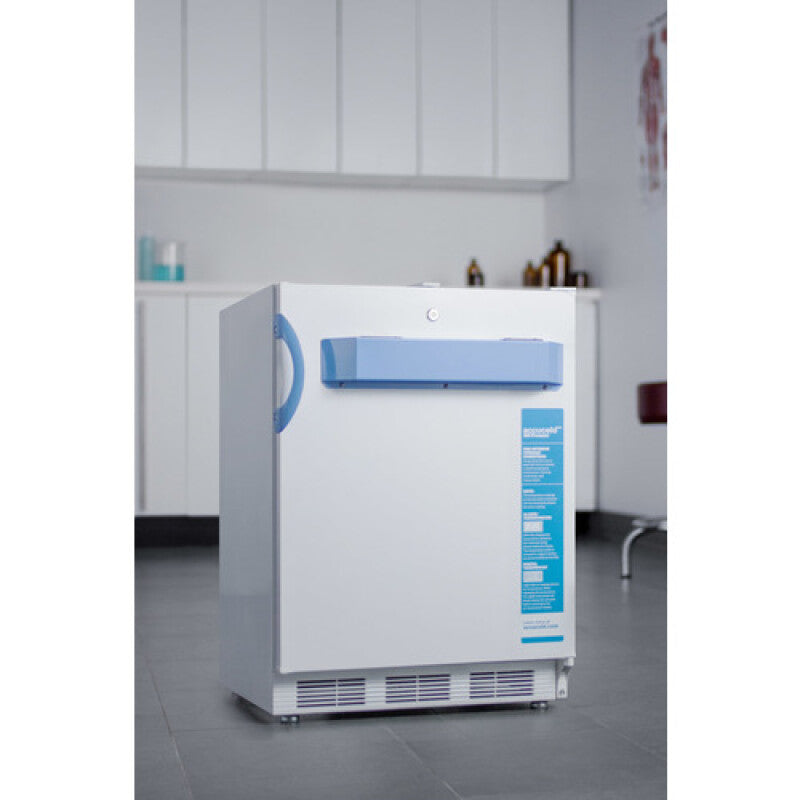

Accucold's MED2 series puts the most commonly requested features into a quality line of all-refrigerators and freezers specially designed to store vaccines and other sensitive materials in medical, scientific, pharmaceutical, and laboratory institutions. The VT65MLBIMED2ADA is an all-freezer sized in a convenient 24" footprint and 32" height. The front breathing design allows built-in installation under lower ADA compliant counters, while the fully finished cabinet in white also enables freestanding use. This unit is designed with an external front control panel that allows users to adjust and monitor the temperature without opening the door or bending down to the floor. The front keyed lock is located towards the top of the door for added convenience. A hospital grade 'green dot' cord offers added safety in high traffic environments. As recommended by the CDC, VFC and VFA programs, the VT65MLBIMED2ADA is equipped with a NIST calibrated thermometer that displays the current, minimum, and maximum temperatures to the nearest tenth of a degree with a readout viewable in Celsius or Fahrenheit. Each VT65MLBIMED2ADA ships with a certificate of calibration for your records. The thermometer includes an audible alarm to warn users if the interior has gone out of the programmed temperature range. The buffered temperature probe is encased in a glycol-filled bottle to best simulate the temperature of other stored contents, resulting in the utmost accuracy for temperature reporting. We include a pre-installed 3/8" probe hole for users who wish to install additional monitoring equipment. The VT65MLBIMED2ADA features a 3.2 cu.ft. interior capacity and extra thick walls for reliable insulation. Slide-out baskets with clear plastic fronts allow users to view stored contents without exposing them to room temperature every time the door is opened. This low temperature freezer is designed to operate between -12 C to -25 C, an ideal temperature for certain vaccines, samples, and other sensitive medical materials. It has a flat door liner as recommended by the CDC. All MED2 series units are assembled in the USA from domestic and imported components. The VT65MLBIMED2ADA can be paired with a matching all-refrigerator (FF7LBIMED2ADA). This unit can also be customized with additional features, including a self-closing door or USB temperature logger with a digital display. Contact our product specialists to learn more. Products in the MED2 series come with a two year warranty on parts and labor and a five year warranty on the compressor. *NOTE: This unit's thermostat is pre-set for Celsius. If you prefer Fahrenheit, add complimentary option DTMEDF or let your sales representative know upon order. NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory. Select Accucold products have been tested and certified to the new NSF 456 standard, and are now available for purchase. For additional information, contact our products specialists.



Product Features

  • Reliable temperature stability
    Designed and engineered to store vaccines and other sensitive materials under stable temperature conditions
  • ADA compliant design
    32" height allows installation under lower ADA compliant counters
  • Built-in capable
    Front-breathing design allows built-in installation under counters
  • -25º C/-13º F capable
    Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials
  • Digital thermostat

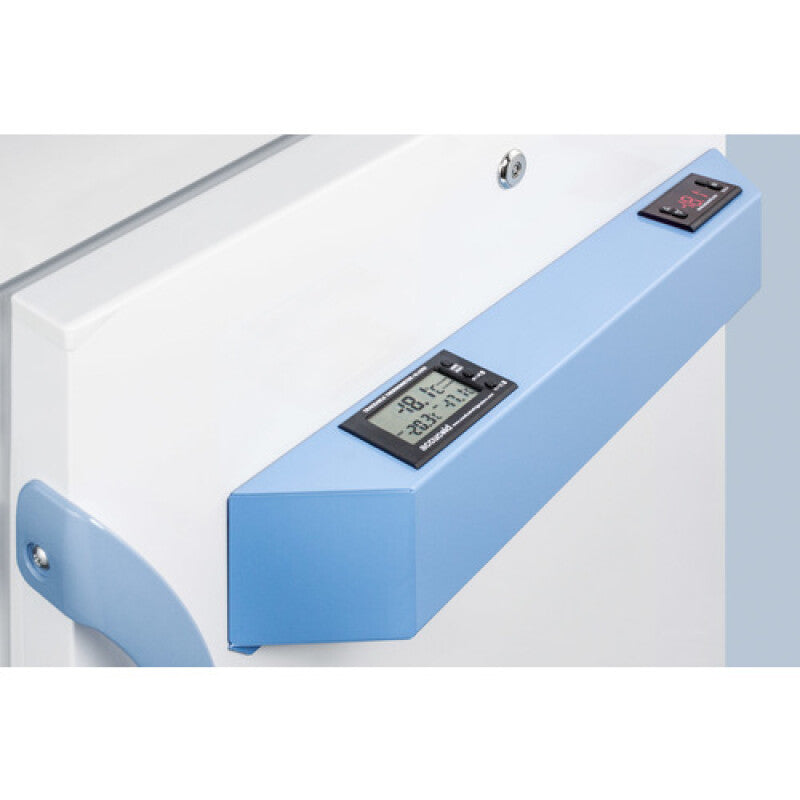

    Electronic controls for more precise temperature management, with temperature readout and controls externally located for added convenience

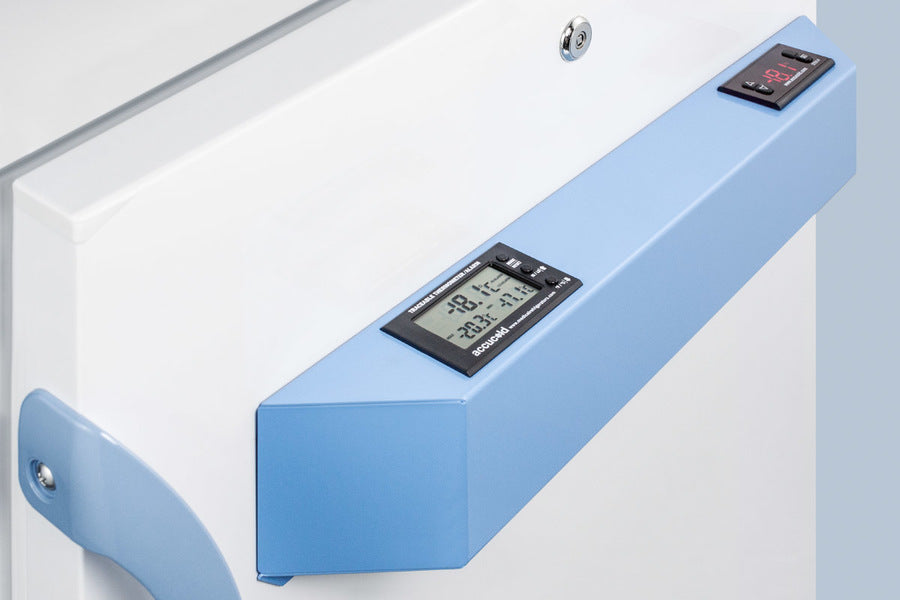

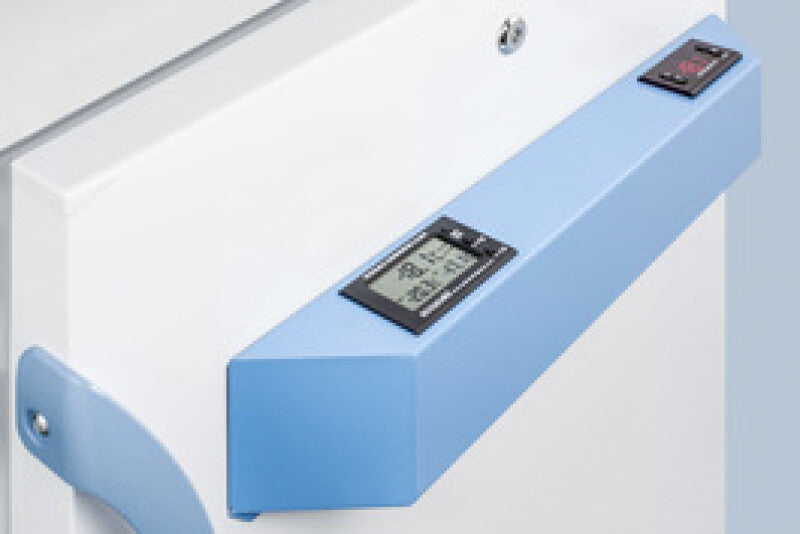

  • NIST calibrated temperature display
    Alarm includes continuous NIST calibrated display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button
  • Buffered temperature probe
    Thermometer probe is encased in a glycol-filled bottle to maintain temperature readings closest to stored contents, as recommended by the CDC and VFC's guidelines
  • High/low temperature alarm
    Audible alarm sounds if the interior temperature rises or falls out of set range
  • Factory installed lock
    Keyed lock conveniently located towards the top of the door for added security (2 keys included)
  • Manual defrost
    Static cooling system for reduced temperature fluctuations
  • Hospital grade cord and plug
    Secure three-pronged cord for added unit safety
  • 3/8" access port
    Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

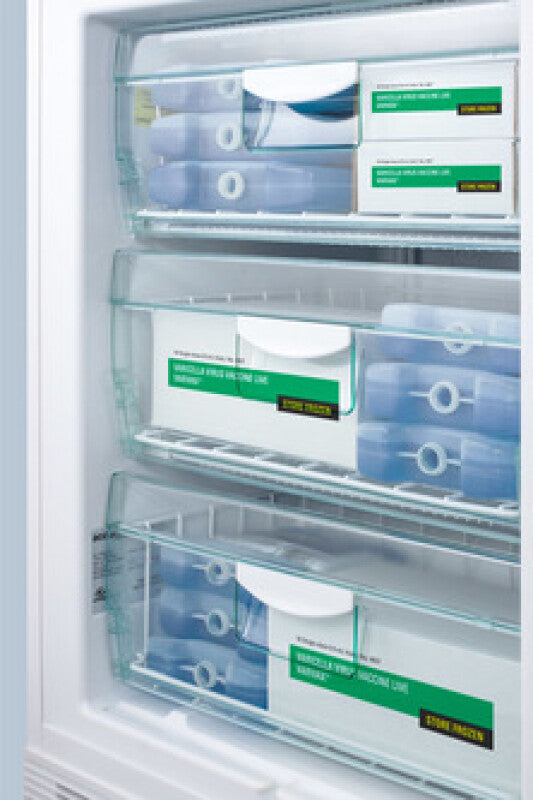

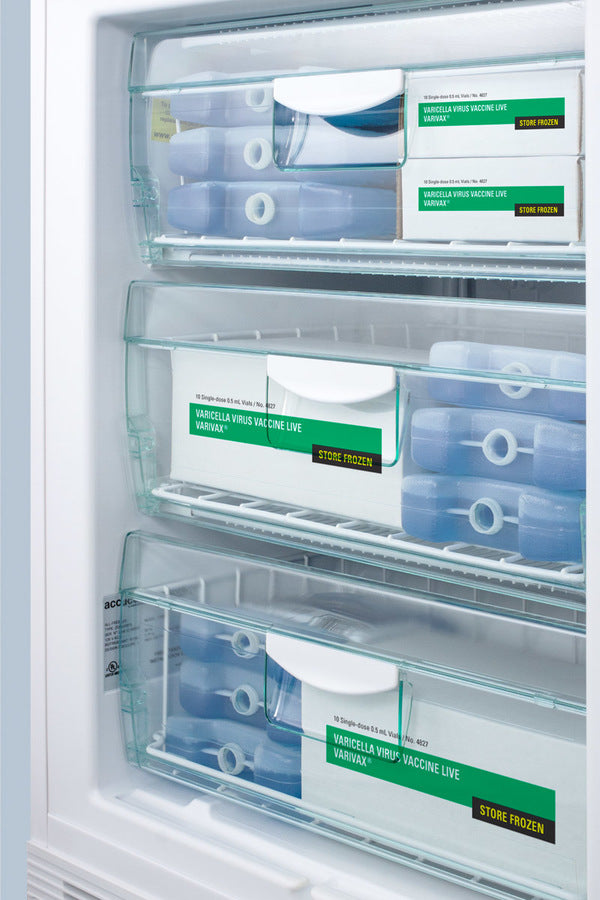

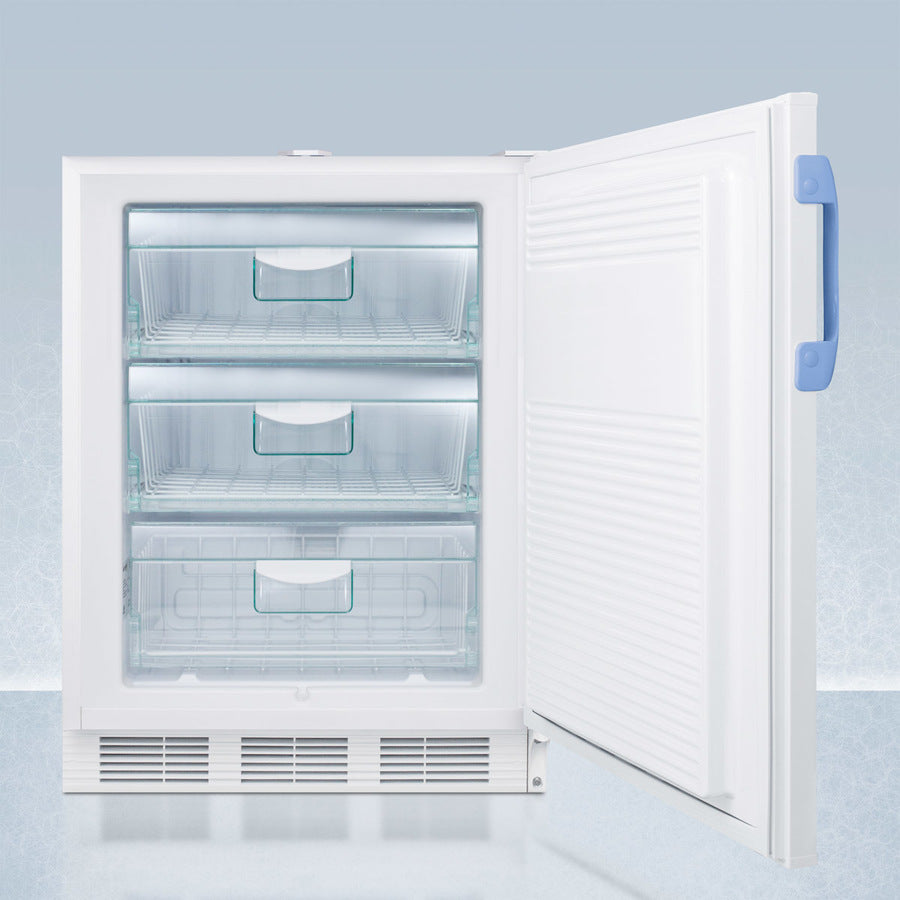

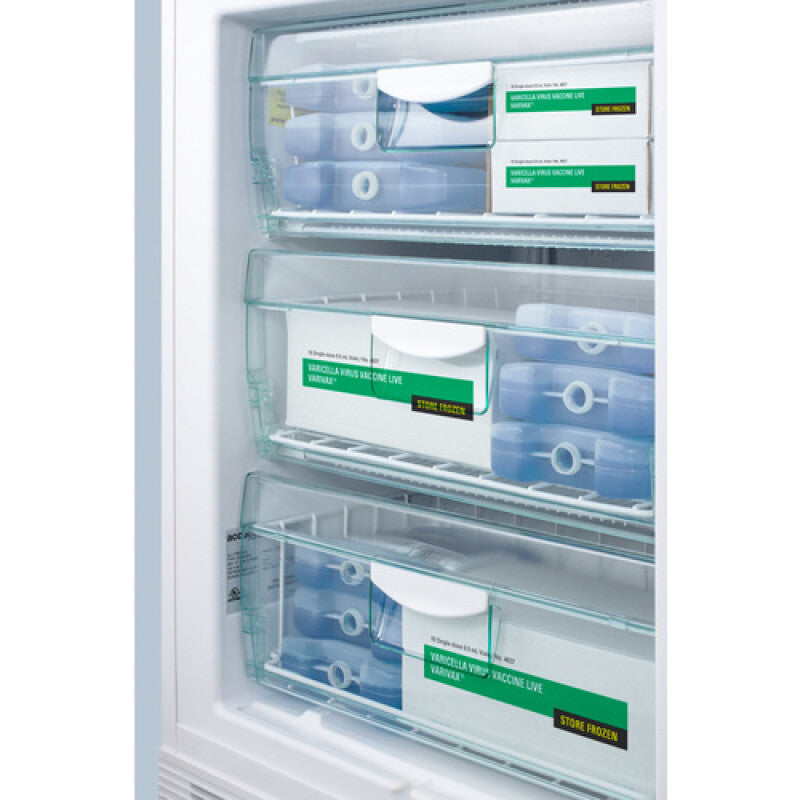

  • Three slide-out drawers
    Slide-out wire baskets with plastic fronts offer convenient storage solutions while protecting stored items when the door is open
  • Flat door liner
    Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
  • Fully finished white cabinet
    Allows the unit to be used freestanding
  • Foamed-in-place cabinet
    Quality design ensures efficiently insulated interior
  • Magnetic door gasket
    Quality door gaskets ensure a tight seal for energy savings and improved performance
  • Matching refrigerator available
    Pair with the FF7LBIMED2 to create a complete set
  • Factory reversible door
    Standard unit ships with a right hand door swing. For a left hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)
  • Extended warranty
    This unit comes with a two-year limited warranty on parts & labor and five-year warranty on the compressor
  • Approved for use in the USA and Canada
    ETL and ETL-C listed for North American sales
  • 100% CFC free
    Environmentally friendly design without ozone-damaging chemicals
