SKU: SCF505SSTBADA | UPC: 761101086149

Accucold SCF505SSTBADA 20" Wide Built-In Commercial All-Freezer, ADA Compliant White

Quick Specification More details

Width:
19.75" (50 cm)
Depth:
22.5" (57 cm)
Type:
Upright Freezers

About this product

Commercially listed
ADA compliant design
Built-in capable
Professional towel bar handle

SKU: SCF505SSTBADA | UPC: 761101086149

Accucold SCF505SSTBADA 20" Wide Built-In Commercial All-Freezer, ADA Compliant White

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
19.75" (50 cm)
Depth:
22.5" (57 cm)
Type:
Upright Freezers

About this product

Commercially listed
ADA compliant design
Built-in capable
Professional towel bar handle

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Product Details for SUMMIT SCF505SSTBADA

Technical Details

Overview freezer

Nominal Height	32.0" (81 cm)
Height of Cabinet	31.75" (81 cm)
Height to Hinge Cap	32.0" (81 cm)
Nominal Width	20.0" (51 cm)
Width	19.75" (50 cm)
Width with Door Open	20.25" (51 cm)
Nominal Depth	23.0" (58 cm)
Depth	22.5" (57 cm)
Depth with Handle	25.0" (64 cm)
Depth with door at 90°	40.25" (102 cm)
Capacity	2.47 cu.ft. (70 L)
Defrost Type	Manual
Door	Stainless Steel
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.1
Voltage/Frequency	115 V AC/60 Hz
Weight	75.0 lbs. (34 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101086149
Door Swing	RHD
Reversible	Yes
Interior Height	23.75" (60 cm)
Interior Width	14.5" (37 cm)
Interior Depth	17.0" (43 cm)
Shelf Type	Drawers
Shelf Qty	3
Thermostat Type	Digital
Fan Type	Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.34 oz.
High Side PSI	180.0
Low Side PSI	80.0
Level Legs	2
Interior Drawers	Yes
Drawers Qty	3
Compressor Step Height	5.75" (15 cm)
Compressor Step Width	14.5" (37 cm)
Compressor Step Depth	6.0" (15 cm)
Temperature Range	-25° to -15°C

Description

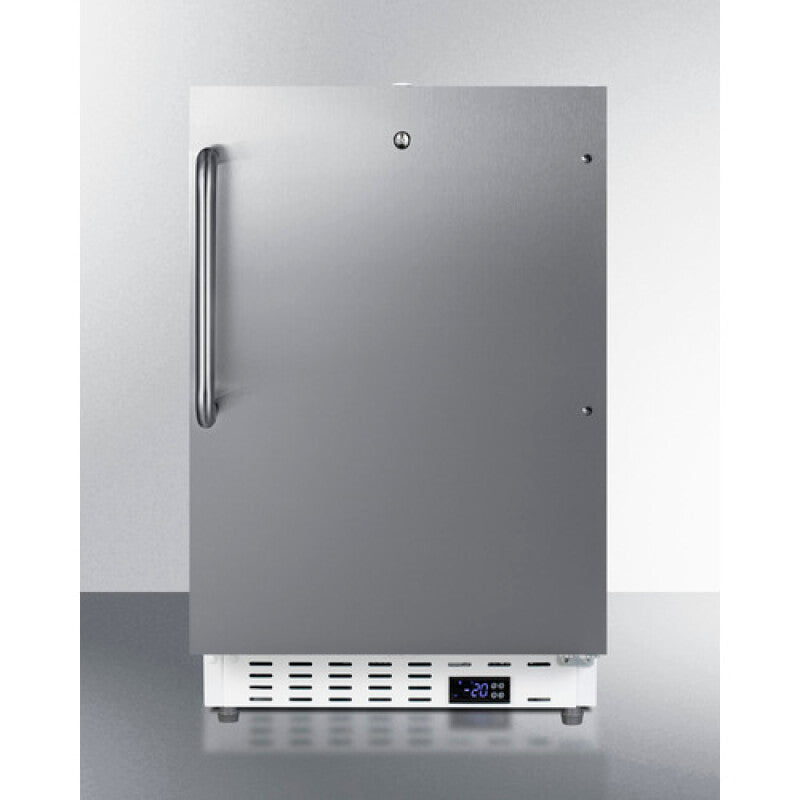

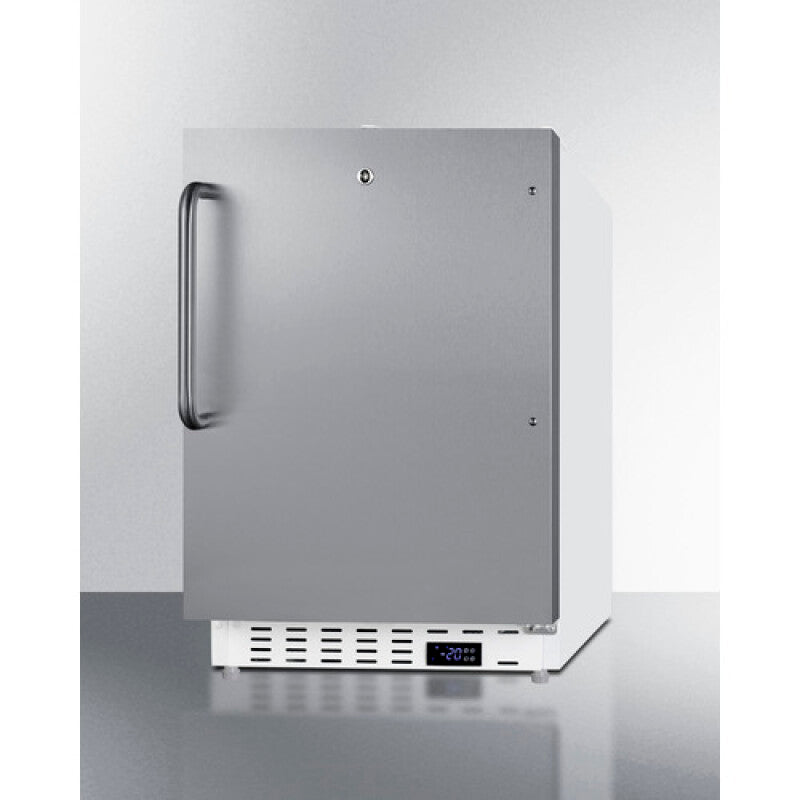

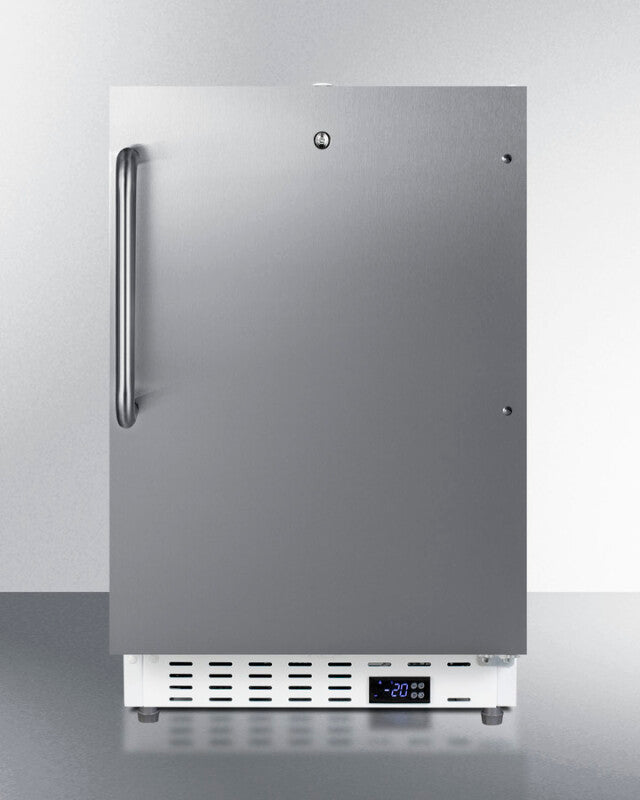

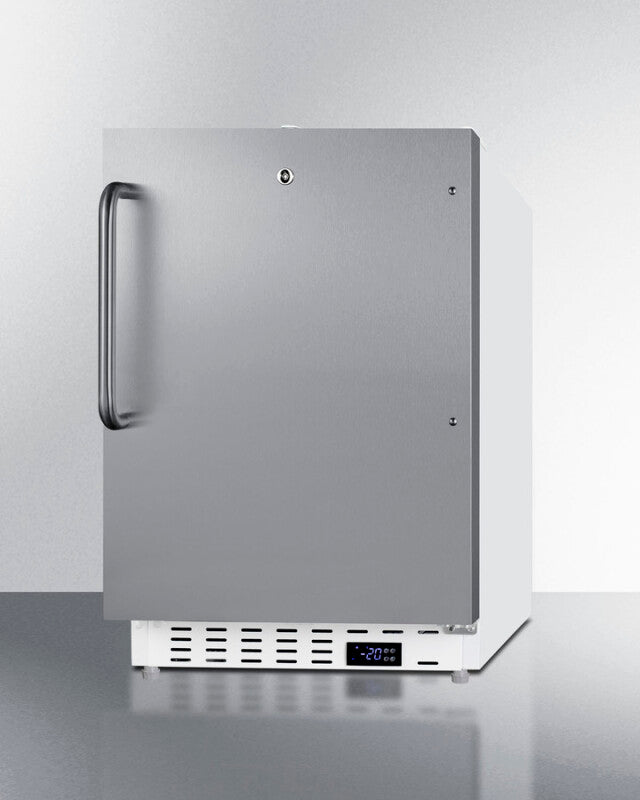

Summit Commercial manufactures a variety of refrigerator and freezer choices for smaller foodservice spaces, with slim-fitting options for undercounter use. Model SCF505SSTBADA is a commercial all-freezer sized at just under 20" wide and 32" high for installation under lower ADA compliant counters. Its front-breathing design and fully finished cabinet allow built-in or freestanding use for versatile placement. This model has a textured white cabinet and 304 grade stainless steel wrapped reversible door with a pro style towel bar handle. A factory-installed lock is located towards the top of the door, ensuring more comfortable access behind the bar. Easy digital controls are located in the kickplate. The temperature can be managed in Fahrenheit or Celsius and is designed to operate between -25° and -15°C. Inside, this freezer includes removable pull-out drawers on fixed wire shelving, with plastic fronts that help to protect contents from warmer ambient temperatures when the door is opened. This unit utilizes static manual defrost cooling for improved temperature stability. Audible open door and high/low temperature alarms help ensure stored contents are properly cooled. These alarms can also be disabled if preferred. The SCF505SSTBADA is ETL-S listed to NSF-7 commercial standards and features hydrocarbon refrigerant for a greener cooling system that meets CARB regulations. To create a matching set, pair with the SCR504SSTBADA all-refrigerator. Additional commercial refrigeration choices are available in more sizes and sizes. Browse the full Summit lineup for shallow depth back bar coolers, commercial wine cellars, clear icemakers, reach-in refrigeration, and much more.

Product Features

Commercially listed
ETL-S listed to ANSI-NSF Standard 7 for commercial use
ADA compliant design
32" height allows easy installation under lower ADA compliant counters
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter

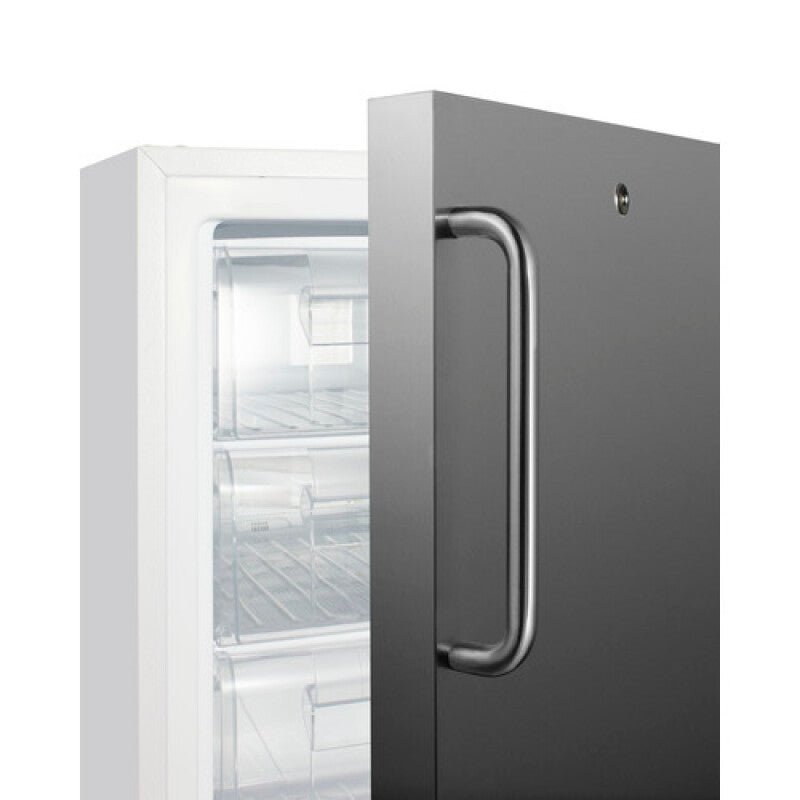

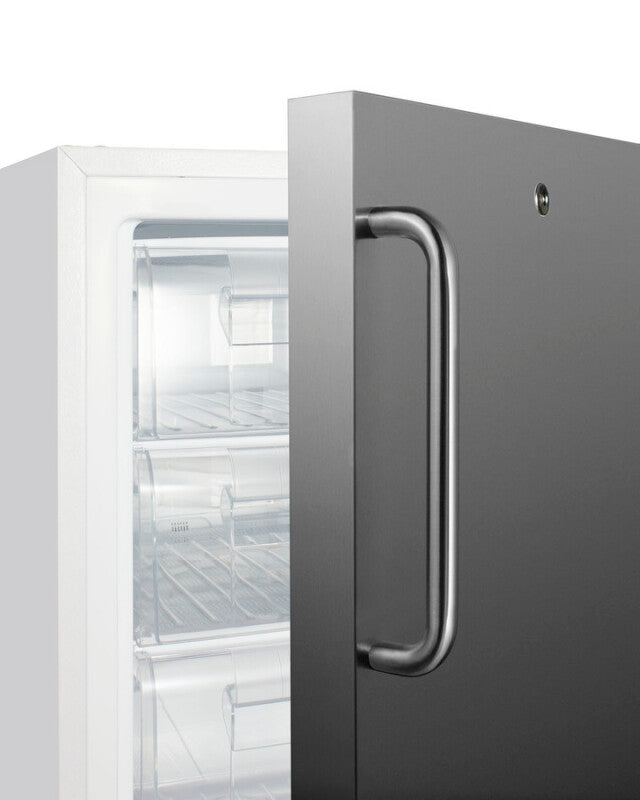

Professional towel bar handle
Curved handle in brushed stainless steel offer an easier grip and attractive style
Factory-installed lock
Located towards the top of the door for easy access and to provide added security of unit (2 keys included)

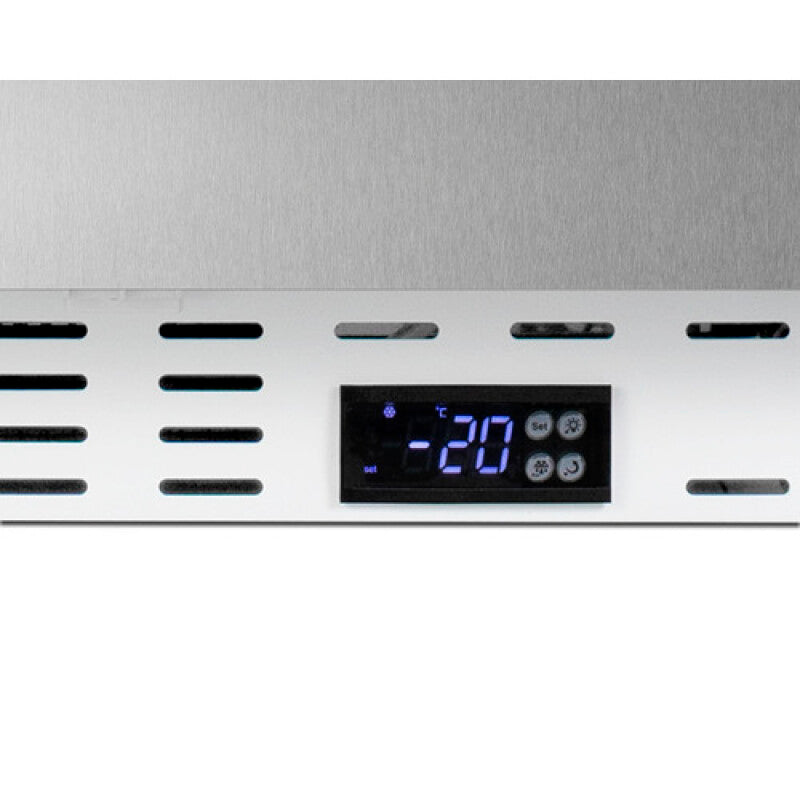

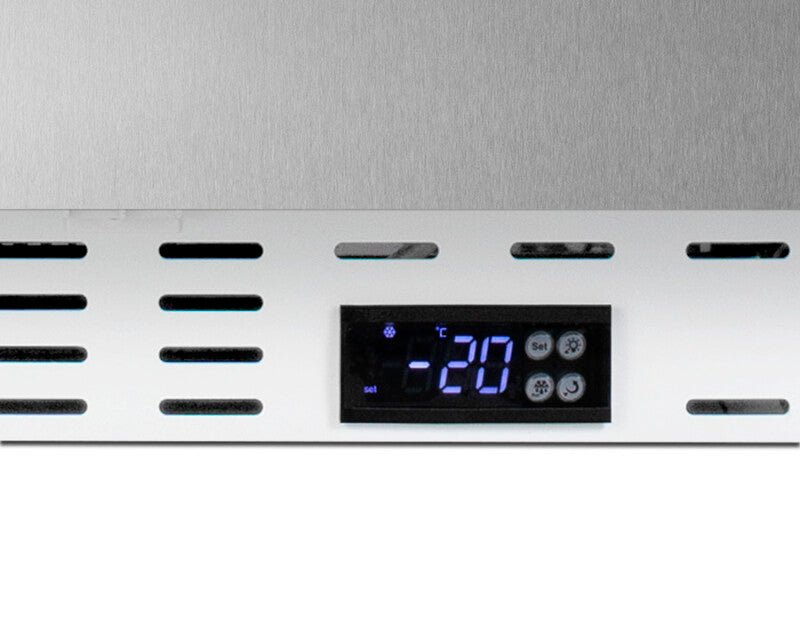

Adjustable digital thermostat
Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius

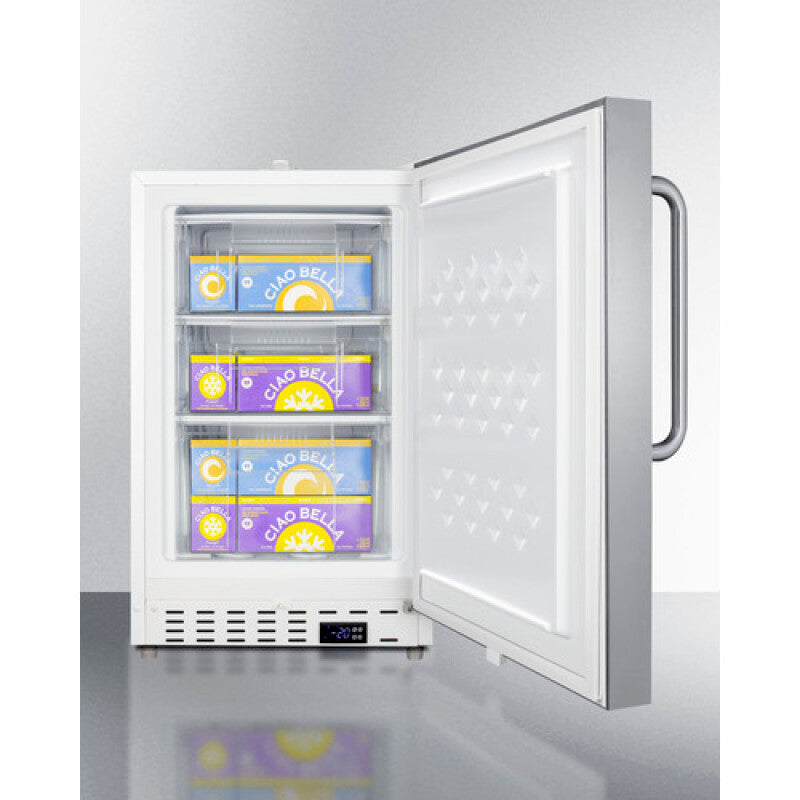

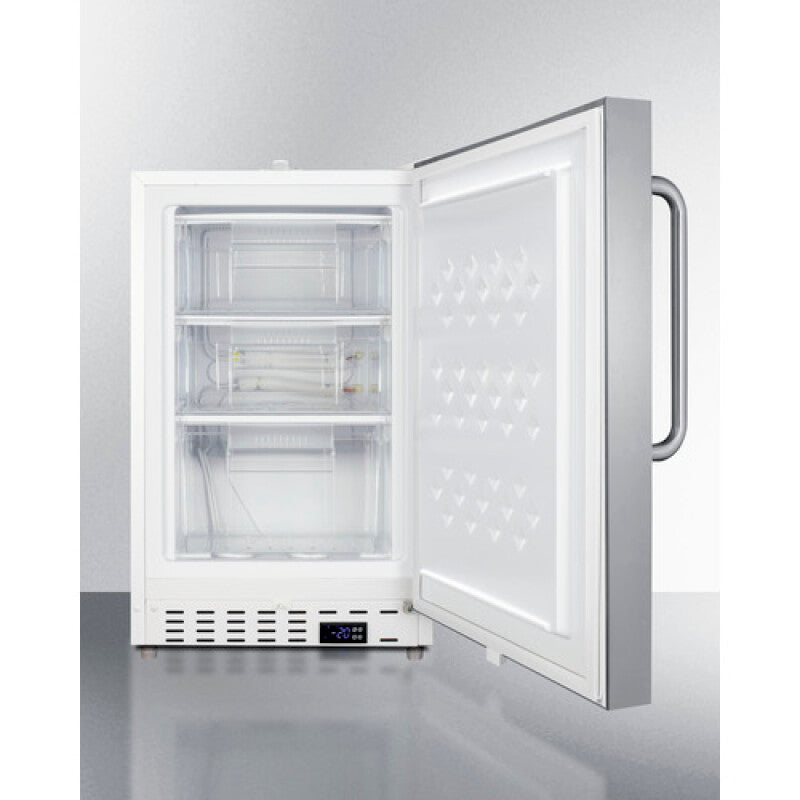

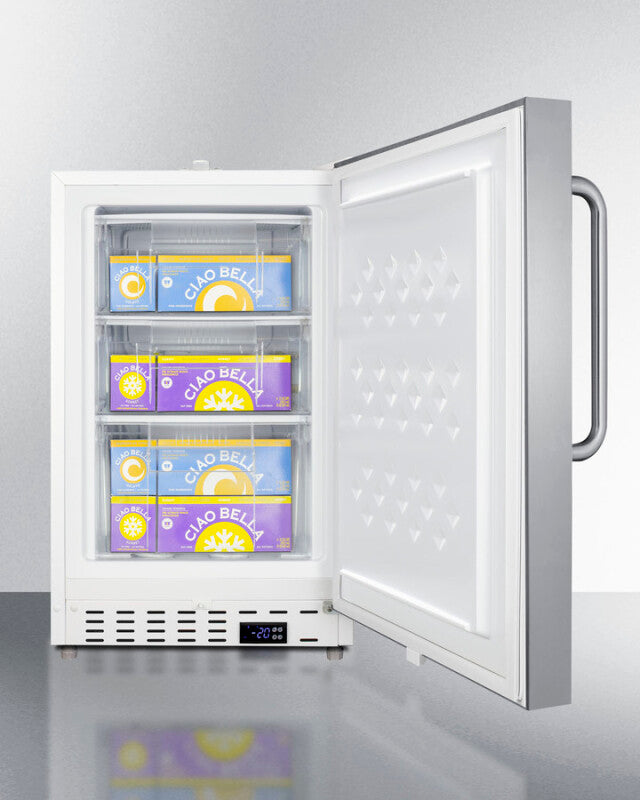

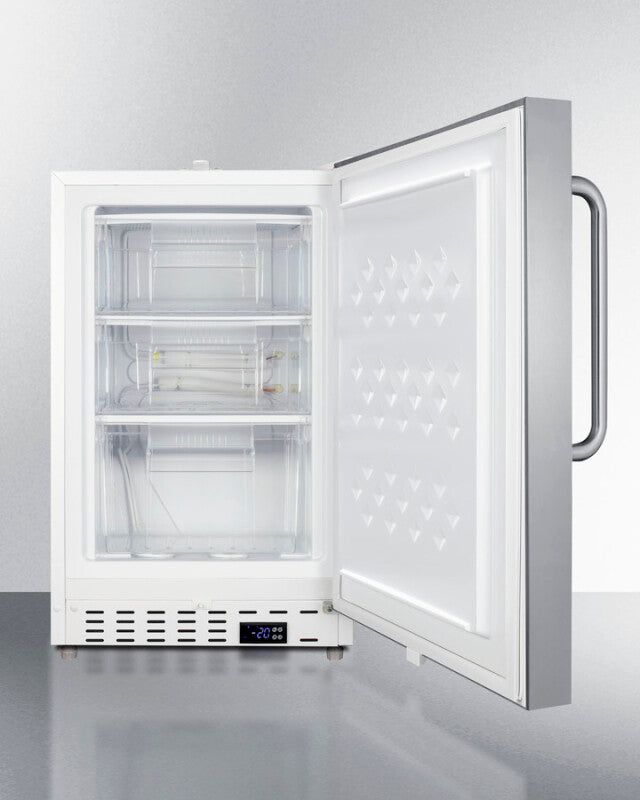

Basket shelves
Three slide-out baskets offer convenient storage, with plastic fronts to help protect contents from warmer air when the door is opened
3" thick door
Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space
Temperature alarms
User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
Open door alarm
Audible alarm will sound if the door is left ajar for over a minute
Hospital grade cord with 'green dot' plug
Secure three-pronged cord offers a tighter fit in wall sockets
Manual defrost
More temperature stability with an energy efficient manual defrost system
No internal fans
Temperature remains more stable with a static cooling system
Reversible stainless steel door
User-reversible stainless steel door for added flexibility to best accommodate your setting
Sealed back
Space-saving design that offers easier cleanability
Magnetic door gasket
Quality door gaskets ensure a tight seal for energy savings and improved performance
Matching all-refrigerator
This unit can be paired with the SCR504SSTBADA all-refrigerator for a complete set
Fully finished white cabinet
Allows the unit to be freestanding
Access port
Unit comes with a factory installed probe hole for users to connect their own monitoring equipment
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
