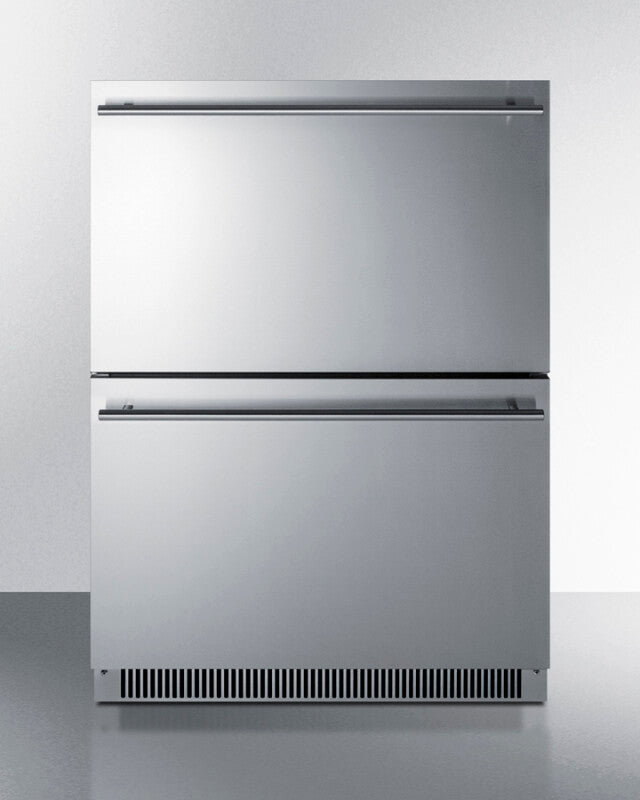

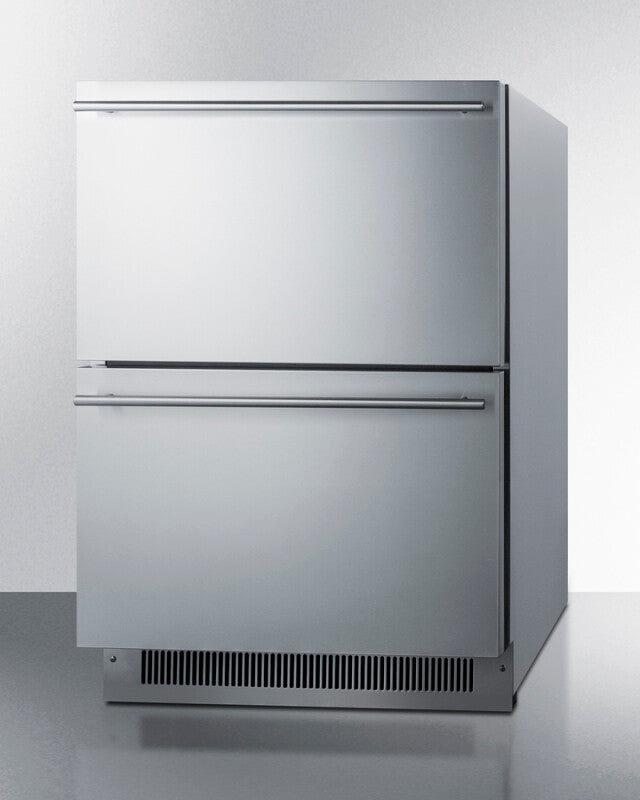

Summit ADFD2D24 24" Wide 2-Drawer All-Freezer, ADA Compliant Stainless Steel
Sale price
$2,220.51
Regular price
$2,754.97
Save
$534.46
/ 19% OFF
Out of stock
Active Rebates
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Sale price
$2,220.51
Regular price
$2,754.97
Save
$534.46
/ 19% OFF
Product Details for Summit ADFD2D24
Technical Details

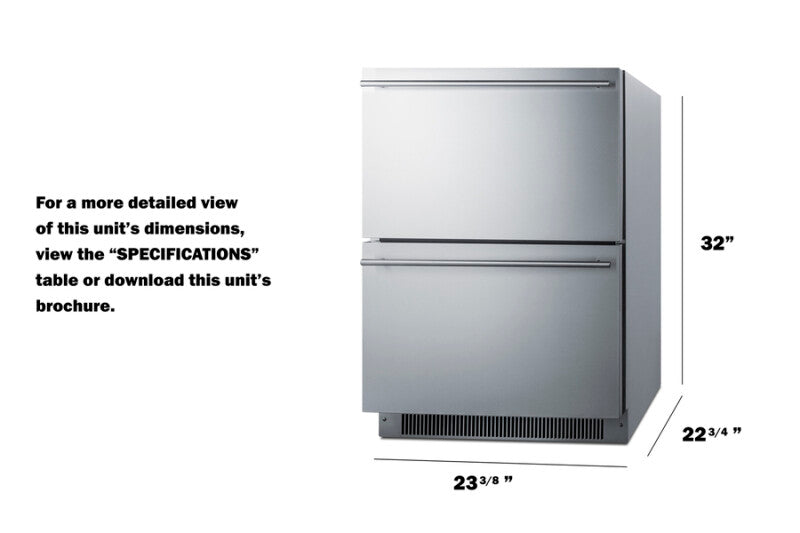

Dimensions & weight
| Width | 23.38 in. |
| Height | 32 in. |
| Length | 22.75 in. |
| Weight | 95 lbs. |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 9.85 ft³ |
| Dimensional Weight | 122.45 lbs. |
| Total of Cubes | 9.85 ft³ |
| Total of Dimensional Weight | 122.45 lbs. |
Overview freezer
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.75" (58 cm) |
| Depth with Handle | 24.63" (63 cm) |
| Depth with door at 90° | 37.88" (96 cm) |
| Capacity | 3.54 cu.ft. (100 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel/Panel-Ready |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 355.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 95.0 lbs. (43 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101085920 |
| Door Swing | Drawer |
| Height Adjustable | Yes |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.79 oz. |
| High Side PSI | 320.0 |
| Low Side PSI | 120.0 |
| Level Legs | 4 |
| Interior Height - Drawer 1 | 8.0" (20 cm) |
| Interior Width - Drawer 1 | 15.75" (40 cm) |
| Interior Depth - Drawer 1 | 14.0" (36 cm) |
| Interior Height - Drawer 2 | 8.25" (21 cm) |
| Interior Width - Drawer 2 | 15.75" (40 cm) |
| Interior Depth - Drawer 2 | 14.0" (36 cm) |
| Compressor Step Height | 4.5" (11 cm) |
| Compressor Step Width | 15.75" (40 cm) |
| Compressor Step Depth | 4.13" (10 cm) |
| Temperature Range | -11°F to +10°F(-24°C to -12°C) |
Description
Summit offers unmatched versatility and elegance to meet your indoor and outdoor refrigeration needs. The ADFD2D24 is a two-drawer all-freezer sized at 32 inches high for installation under ADA compliant counters. We include an extra stainless steel kickplate and leveling legs to raise the height to 34 1/2 inches to suit more standard applications. The front-breathing design and finished cabinet allow for built-in or freestanding use. Complete 304 stainless steel construction inside and out offers durability in a professional look. Soft close glides deliver added safety by preventing the drawers from slamming. The drawers can be customized with overlay panels to match or accent existing cabinetry design, while the stainless steel kickplate and stylish handles complete the look (recommended panel dimensions: 23.34" W x 13.93" D at 3/4" thick). Frost-free operation ensures minimum user maintenance inside the 3.5 cu ft. interior. Two adjustable dividers allow for flexibility in storage, while the removable basket provides additional storage options. Additionally, removable drawers provide versatility and easy cleaning of the unit’s interior. The LED light makes it easy to view stored contents when loading or unloading each drawer. Additional features ensure efficiency and ease of use. These include temperature and open drawer alarms. The digital thermostat and display make it easy to manage the temperature. A temperature memory function helps to recover temperature settings in the event of a power loss, while Sabbath Mode disables certain electrical features for up to 96 hours during periods of religious observance. The ADFD2D24 is perfect for use in home or commercial settings. This unit is ETL-S listed to NSF-7 standards, and its ENERGY STAR certification assures efficient and environmentally friendly operation. For a matching refrigerator, see model ADRD24.
Product Features
-
2-Drawer All-Freezer
24" wide 3.5 cu.ft. undercounter frost-free freezer with two gliding drawers -
ENERGY STAR certified
Ensures unit runs efficiently with an environmentally friendly performance -
ADA compliant
32” height allows for installation within ADA-compliant spaces -
Adjustable height
Unit can be raised to 34.5", with a taller kickplate included for a seamless look -
Commercially approved
ETL-S listed to NSF-7 standards for commercial use -
Indoor/Outdoor compatible
Durable, weatherproof construction designed to hold up to the elements -

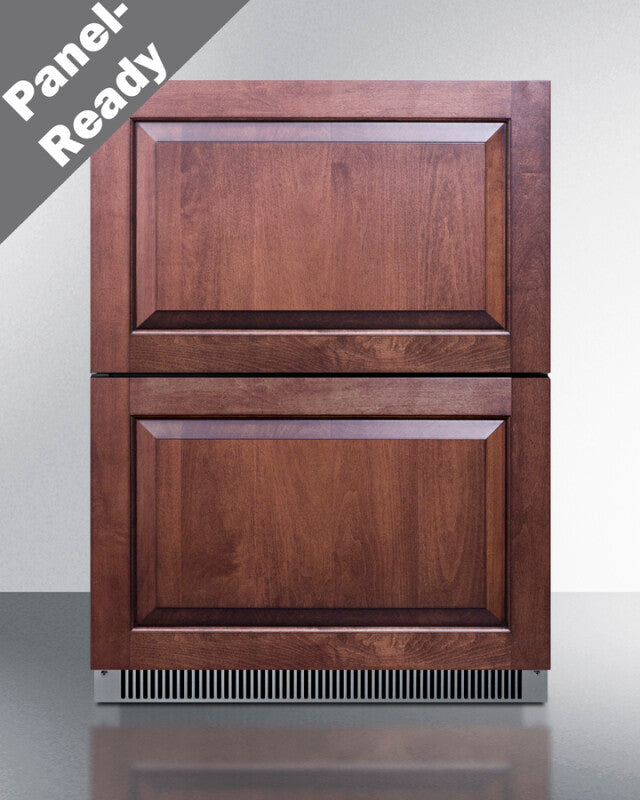

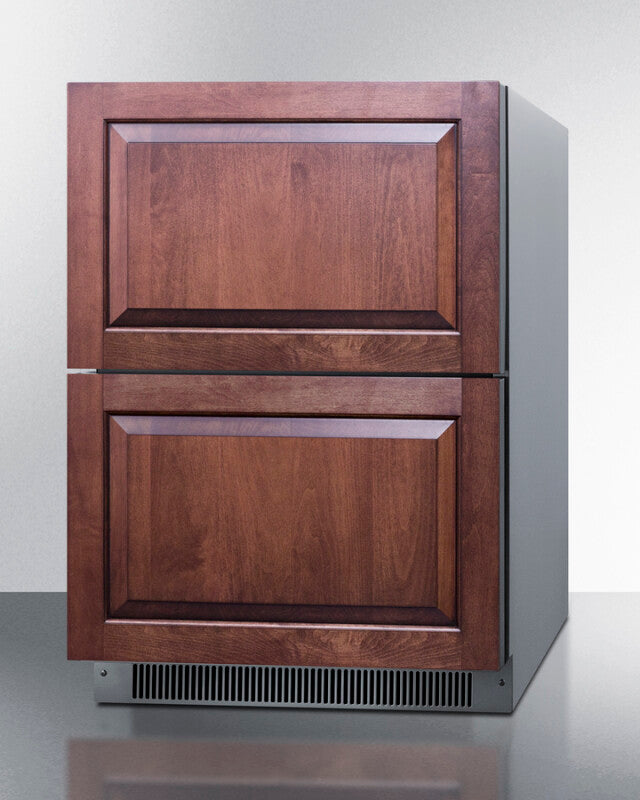

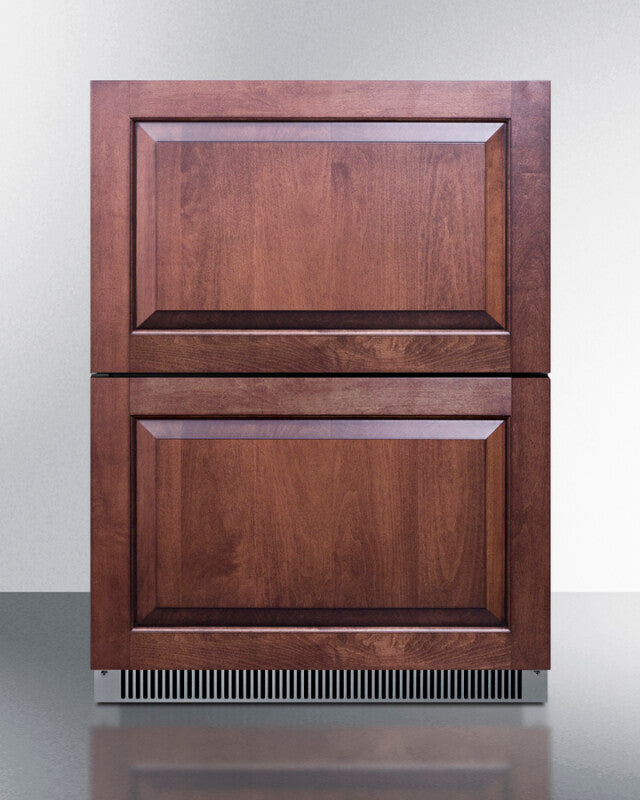

Panel-ready drawer fronts
Drawers can be customized with overlay panels to match or accent existing cabinetry (panel dimensions: 23.34" W x 13.93" D at 3/4" thick) -

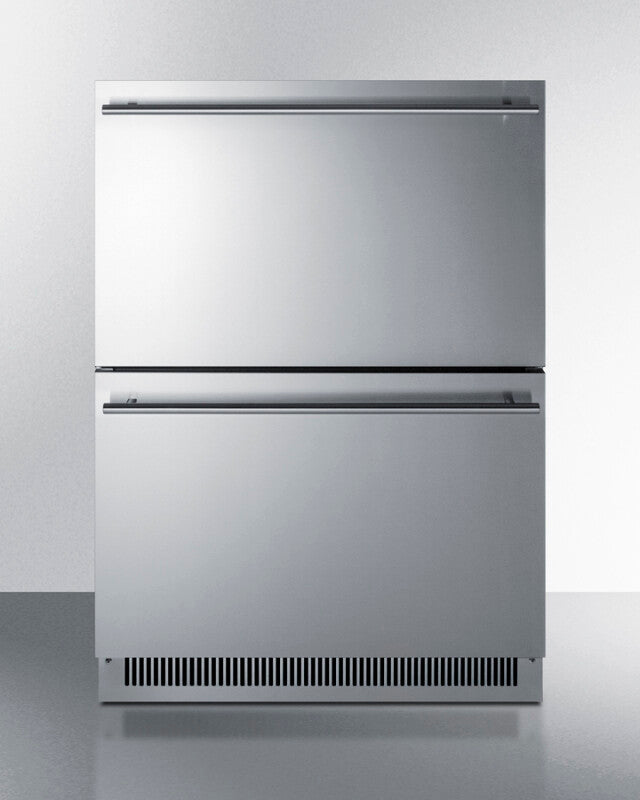

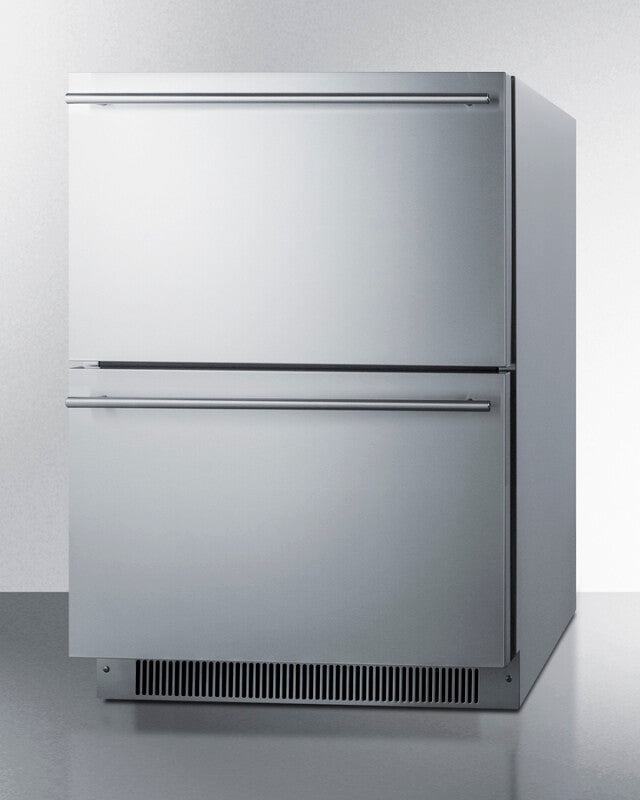

Stainless steel construction
Complete 304 grade stainless steel construction provides durability while maintaining an elegant look -
Frost-free
No-frost operation for minimal user maintenance -
Interior lighting
Soft LED lighting makes for easy viewing of each drawer’s contents -
Digital thermostat
Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit -
Digital display
Large display allows for easy readability and unit control -

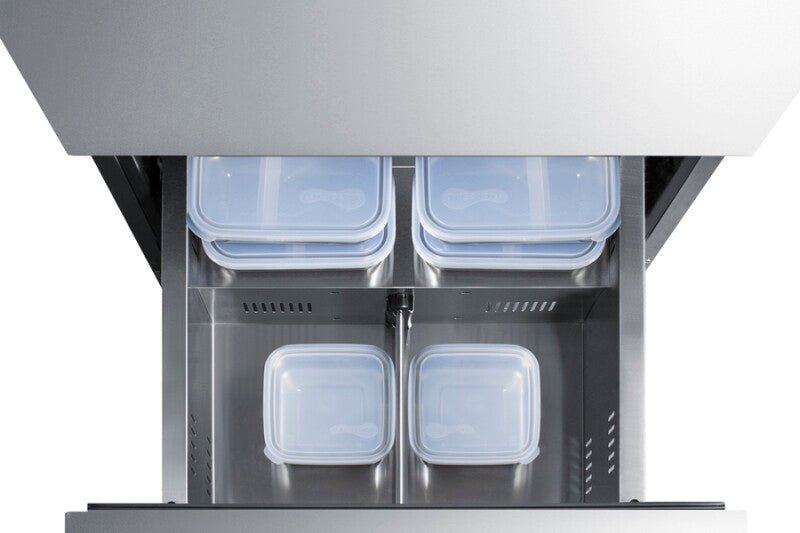

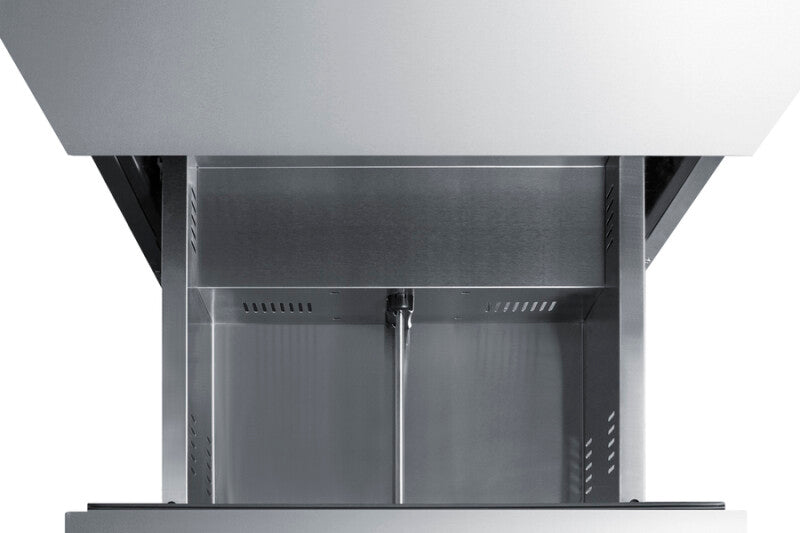

Drawer dividers
Two adjustable dividers provide flexibility when organizing the interior -
Removable drawers
Allows for easy cleaning and organization within the interior of the unit -
Temperature alarm
Alarm alerts you if the unit’s temperature goes beyond recommended high and low temperature ranges -
Door alarm
Audible alarm sounds if the drawers are left open for more than five minutes -
Sabbath mode
Optional feature disables alarms, interior light, and displays for up to 96 hours -
Right-angle plug
Flat plug allows unit to sit flush against the wall -
Sealed back
Space-saving design with no exposed coils for easier cleanability -
Fan-forced cooling
Provides for efficient, even cooling of the entire unit -
Temperature memory
Unit will retain temperature settings after losing power -
Anti-slam drawers
Soft-close glides prevent drawers from slamming shut for additional durability and safety -
Anti-tip bracket
Bracket (included) helps prevent tipping for added safety -
Fully finished cabinet
Allows the unit to be used freestanding -
Matching refrigerator
Pair with the ADRD24 to create the perfect drawer refrigeration set -
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations -
Built-in capable
Front-breathing design allows the unit to be built-in under counters -
Professional handles
Stainless steel handles add style to any setting -

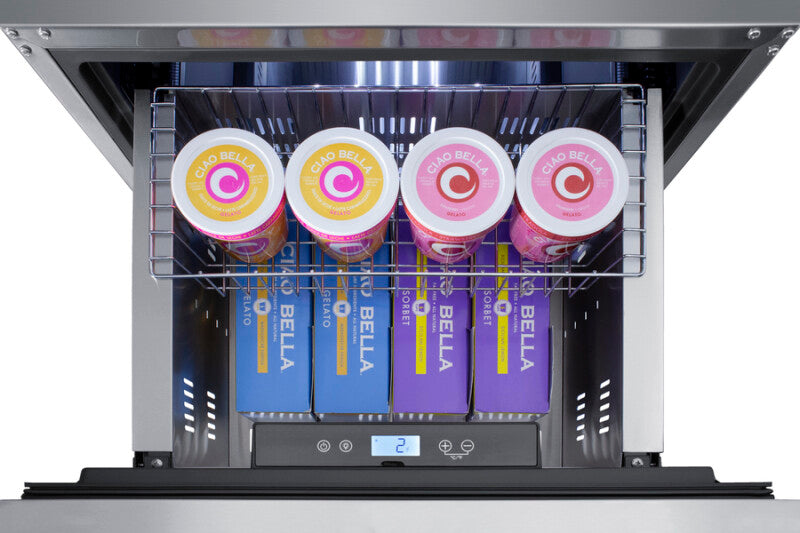

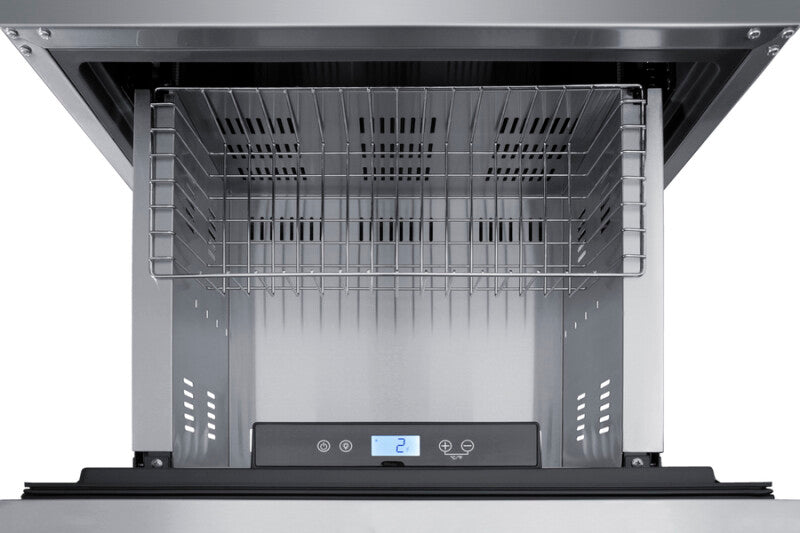

Sliding basket
Removable basket included for additional storage convenience -
100% CFC free
Environmentally friendly design with no ozone-damaging chemicals
