Product Details for SUMMIT SCFF53BXKSHHIM

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Dimensions & weight

Width 23.63 in.
Height 34 in.
Length 23.5 in.
Weight 108 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 10.93 ft³
Dimensional Weight 135.83 lbs.
Total of Cubes 10.93 ft³
Total of Dimensional Weight 135.83 lbs.

Overview freezer

Nominal Height 34.0" (86 cm)
Height of Cabinet 34.0" (86 cm)
Nominal Width 24.0" (61 cm)
Width 23.63" (60 cm)
Nominal Depth 24.0" (61 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.35" (64 cm)
Depth with door at 90° 45.63" (116 cm)
Capacity 4.72 cu.ft. (134 L)
Defrost Type Frost-Free
Door Black Stainless Steel
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 390.0kWh/year
Amps 2.0
Voltage/Frequency 115 V AC/60 Hz
Weight 108.0 lbs. (49 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101060125
Door Swing RHD
Reversible Yes
Interior Height 25.75" (65 cm)
Interior Width 19.0" (48 cm)
Interior Depth 17.25" (44 cm)
Shelf Type Chrome
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R134a
Refrigerant Amount 2.8 oz.
High Side PSI 270.0
Low Side PSI 106.0
Sabbath Mode Yes

Description

SUMMIT's SCFF53B Series brings quality and convenience under the counter with a fully featured lineup of built-in frost-free all-freezers. Sized with a convenient 24" footprint, the SCFF53BXKSHHIM freezer utilizes a front-breathing design for built-in installation under counters, with a fully finished black cabinet that also allows freestanding use. This model's reversible door comes in our new black stainless steel finish from our exclusive basalt collection. The wrapped door is made from 304 grade stainless steel with a high gloss finish in a neutral hue to perfectly accent or complement your kitchen design. The door is strongly resistant to most fingerprints and can easily be wiped clean with a dry cloth. Our signature thin handle in brushed stainless steel is mounted horizontally to complete the modern look. Inside, the SCFF53BXKSHHIM utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable chrome shelves for flexible storage and a factory installed icemaker. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. With its deluxe style and user-friendly features, the SCFF53BXKSHHIM is the perfect choice for home or commercial kitchens. For a matching frost-free all-refrigerator, see the FF64BXKSHH. NOTE: Black stainless steel may vary slightly in appearance from the image displayed, as it has a reflective quality that can be affected by surrounding colors and textures. Summit's black stainless steel comes with a high gloss finish and is not designed as a direct match to other brands.


Product Features

  • Frost-free operation
    No-frost convenience eliminates the need to manually defrost the unit
  • Undercounter freezer
    Frost-free all-freezer in a 24" footprint for built-in or freestanding use
  • Built-in capable
    Make the best use of space by installing your freezer under the counter and flush with other cabinets
  • Digital thermostat
    Electronic controls offer easy and intuitive temperature management
  • Adjustable shelves
    Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up
  • Black stainless steel wrapped door
    304 grade stainless steel in a high gloss neutral finish from our basalt collection; note: due to the reflective quality of our door finish, this color may appear different under different lighting and surrounding conditions
  • Fingerprint resistant
    Door wipes clean with a dry cloth, while the dark basalt finish hides most smudges

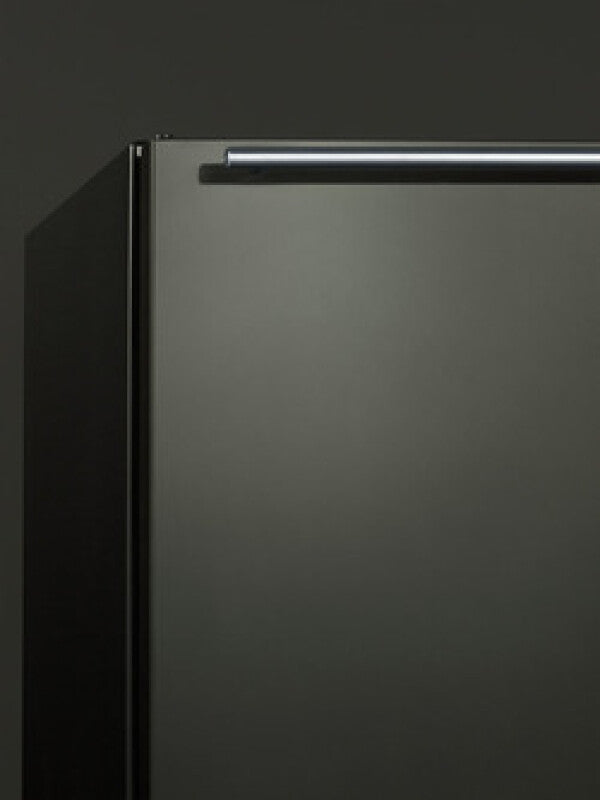

  • Professional horizontal handle
    Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the door for a sleek look
  • Sabbath mode setting
    Optional setting lets you disable the lighting and alarm for up to 48 hours
  • Recessed LED light
    Elegant and efficient interior lighting automatically illuminates when the door is opened
  • Reversible door
    User reversible door swing for added placement flexibility
  • High temperature alarm
    High temperature alarm sounds if the unit's temperature goes out of the recommended range
  • Temperature Memory Function
    Unit will retain its last settings when power is restored in the event of a power loss
  • Right angle plug
    Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
  • Fully finished cabinet
    Allows the freezer to be used as a freestanding model
  • Matching refrigerator available
    Pair with the FF64BXKSHH for a matching side-by-side or stackable set
  • CARB Compliant
    ec
  • 100% CFC free
    Environmentally friendly design without ozone-damaging chemicals
  • Lead-free certified
    Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
