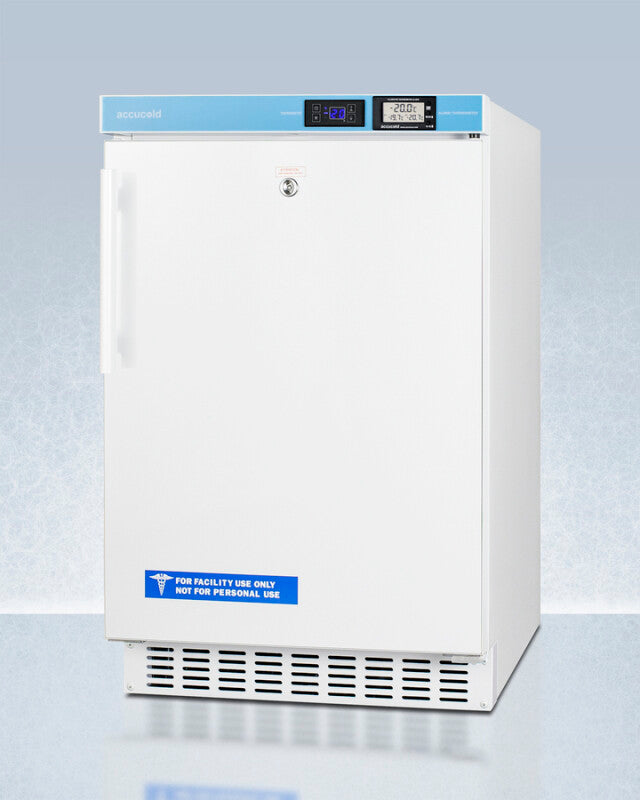

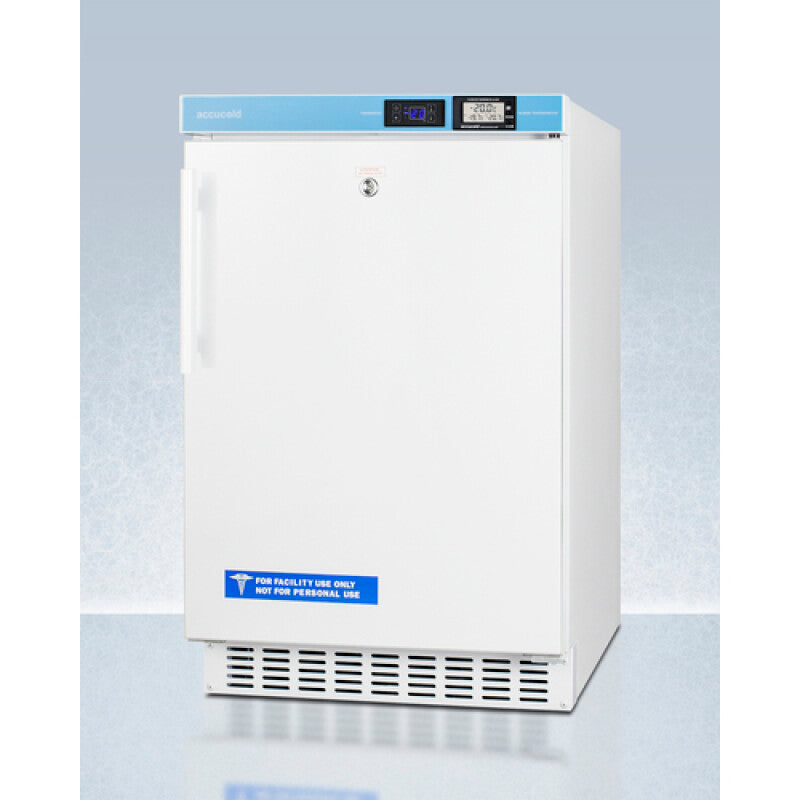

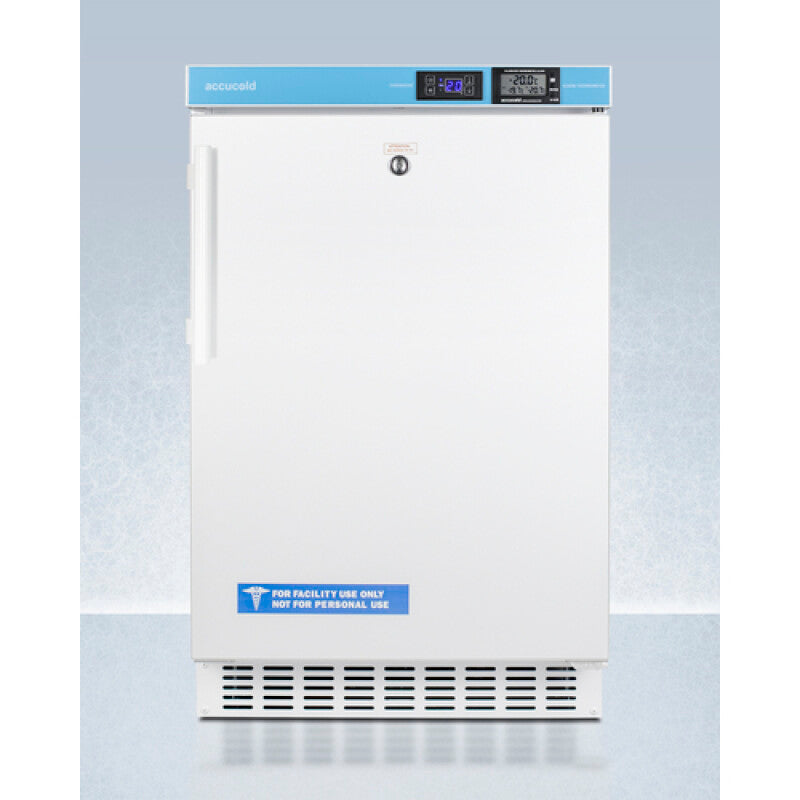

Summit ACF33LCAL 20" Wide Built-In Pharmacy All-Freezer, ADA Compliant White

Quick Specification More details

Width:
19.5"
Depth:
22.75"
Height:
31.38"
Type:
Upright Freezers

About this product

Vaccine freezer
Built-in capable
Slim 20" width
External temperature readout

Summer Sale

Clearance

SKU: ACF33LCAL | UPC: 761101089249

Summit ACF33LCAL 20" Wide Built-In Pharmacy All-Freezer, ADA Compliant White

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
19.5"
Depth:
22.75"
Height:
31.38"
Type:
Upright Freezers

About this product

Vaccine freezer
Built-in capable
Slim 20" width
External temperature readout

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Product Details for Summit ACF33LCAL

Technical Details

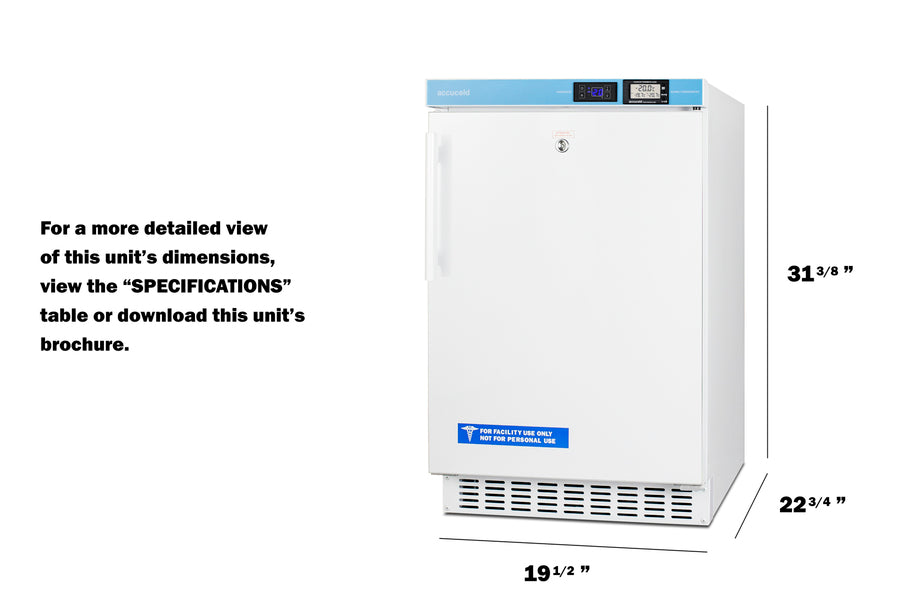

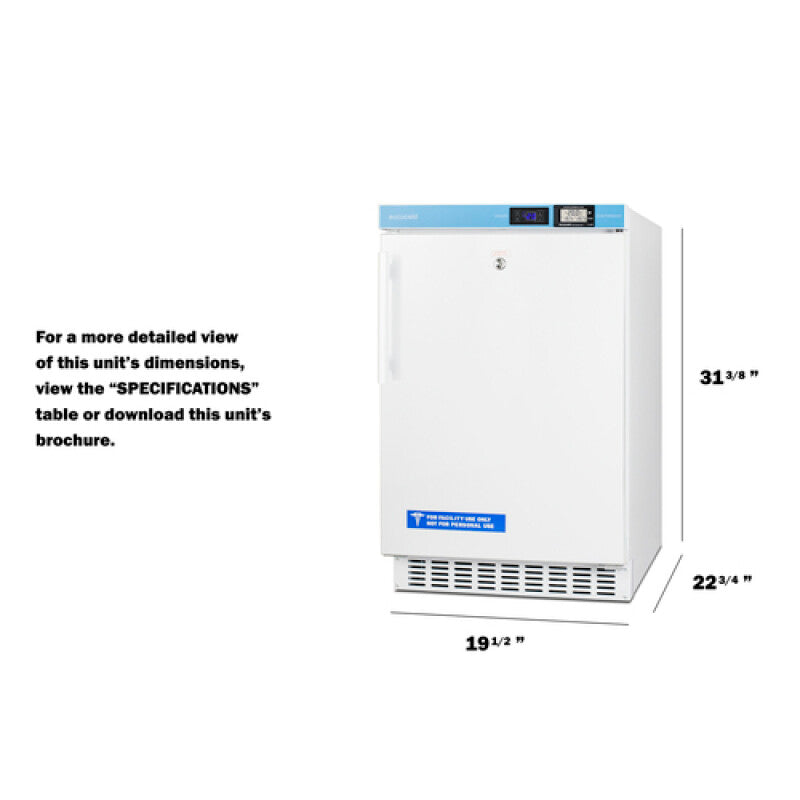

Dimensions & weight

Width	19.5 in.
Height	31.38 in.
Length	22.75 in.
Weight	81 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	8.06 ft³
Dimensional Weight	100.15 lbs.
Total of Cubes	8.06 ft³
Total of Dimensional Weight	100.15 lbs.

Overview freezer

Nominal Height	32.0" (81 cm)
Height of Cabinet	31.38" (80 cm)
Nominal Width	20.0" (51 cm)
Width	19.5" (50 cm)
Nominal Depth	23.0" (58 cm)
Depth	22.75" (58 cm)
Depth with Handle	23.63" (60 cm)
Depth with door at 90°	41.0" (104 cm)
Capacity	2.65 cu.ft. (75 L)
Defrost Type	Frost-Free
Door	White
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	2.0
Voltage/Frequency	115 V AC/60 Hz
Weight	81.0 lbs. (37 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101089249
Door Swing	RHD
Reversible	Yes
Interior Height	21.25" (54 cm)
Interior Width	15.0" (38 cm)
Interior Depth	16.0" (41 cm)
Shelf Type	Wire
Shelf Qty	3
Adjustable Shelves	Yes
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.23 oz.
High Side PSI	270.0
Low Side PSI	105.0
Compressor Step Height	3.5" (9 cm)
Compressor Step Width	15.0" (38 cm)
Compressor Step Depth	4.75" (12 cm)
Temperature Range	-30 to -11.6ºC /-22 to +11ºF
Sound Level	38.1 dB

Description

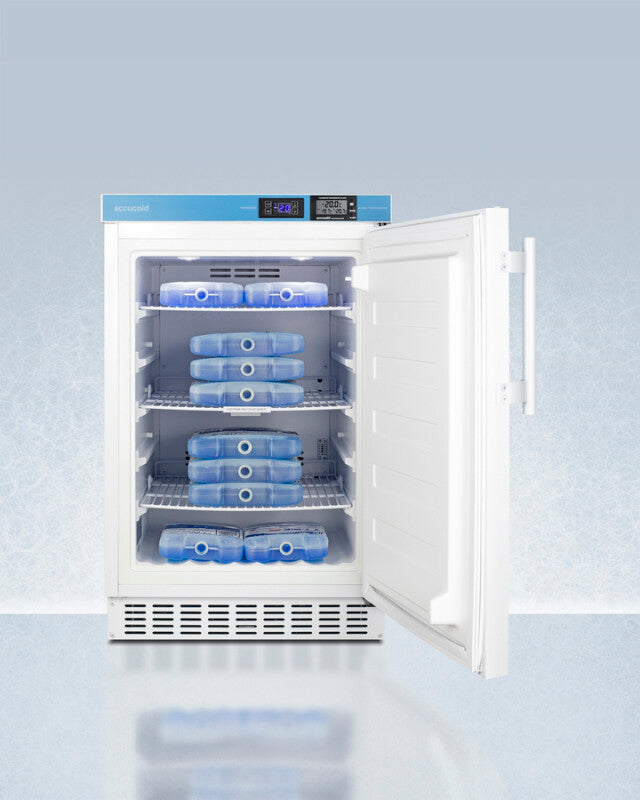

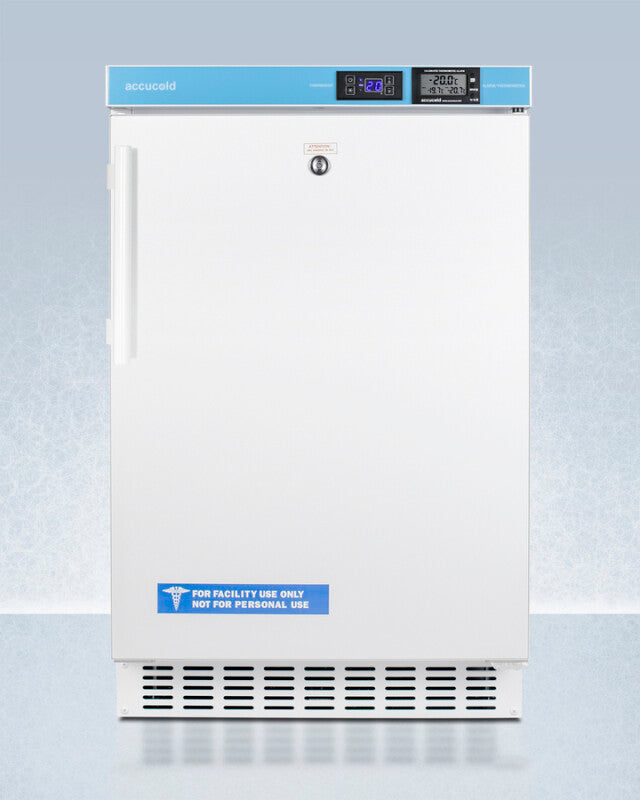

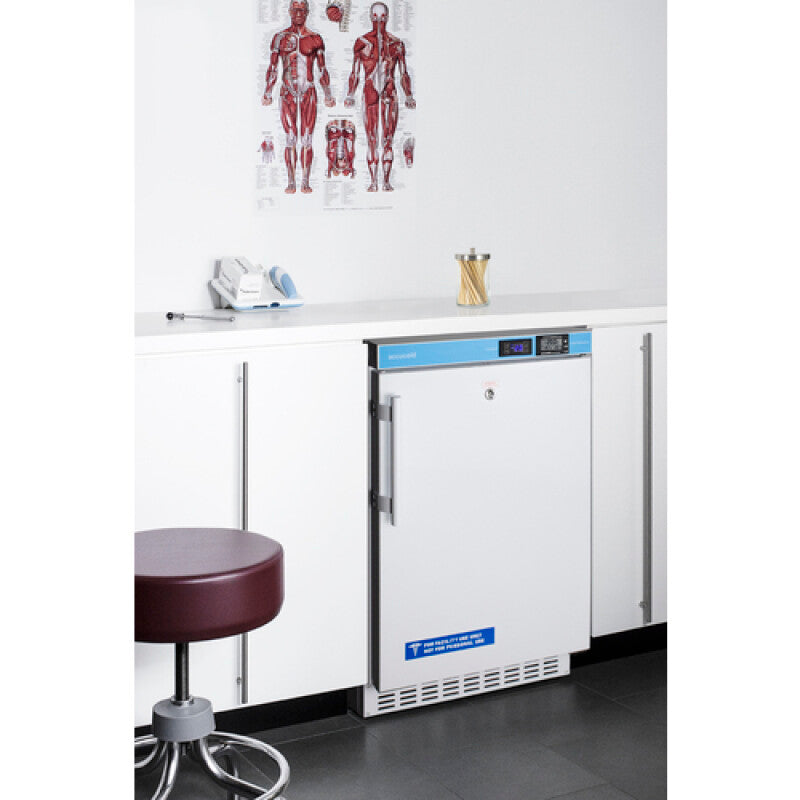

Accucold’s Pharmaceutical Series features refrigeration specially designed to meet current CDC, VFC and VFA guidelines for vaccine storage, with built-in choices sized to fit under ADA compliant counters. The ACF33LCAL all-freezer is sized at just under 32" high, with a front-breathing design for built-in installation under lower ADA compliant counters and fully finished cabinet that also allows freestanding use. Its sealed back allows for a better fit and easier cleanability. A hospital grade cord with a 'green dot' plug provides added safety in high traffic areas and a factory-installed keyed lock is located towards the top of the unit for convenient security. The user-reversible door includes a side-mounted handle for added convenience, with a self-closing mechanism to ensure items aren't accidentally exposed to warm air. Four adjustable leveling legs allow you to raise the height for a better fit under standard countertops. For optimum temperature management, the ACF33LCAL features an external control panel, allowing users to adjust and monitor the temperature without opening the door. Additionally, it is equipped with a thermometer that displays the current, minimum, and maximum temperatures to the nearest tenth of a degree with a readout viewable in Celsius or Fahrenheit (as recommended by the CDC, VFC and VFA). The thermometer includes an audible alarm to warn users if the interior has gone out of the programmed temperature range. The buffered temperature probe is encased in a bottle filled with glass beads and secured inside the center shelf to best simulate the temperature of other stored contents, resulting in the utmost accuracy for temperature reporting. We include a pre-installed 3/8" probe hole for users who wish to install additional monitoring equipment as needed. (Note: for this unit with a NIST calibrated thermometer, see the ACF33LCAL.) Inside, the 2.65 cu.ft. interior includes two adjustable wire shelves for optimum circulation, with one center fixed shelf to keep the temperature probe in place. The foamed-in-place cabinet and door liner affords added insulation of the interior for improved temperature stability, while an internal fan helps to evenly cool the interior from top to bottom. This model utilizes frost-free operation to minimize user maintenance. LED lighting helps to provide a clean, energy efficient view. At just under 20" wide, the ACF33LCAL is the perfect storage solution for doctors' offices, veterinary clinics, pharmacies, and similar healthcare environments. For a matching refrigerator, see the ACR45LCAL (solid door) or ACR46GLCAL (glass door). Additional purpose-built choices for vaccine storage are available in a variety of sizes. Browse the Accucold website to explore the full product line. NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory. Select Accucold products have been tested and certified to the new NSF 456 standard, and are now available for purchase. For additional information, contact our products specialists.

Product Features

Vaccine freezer
Purpose-built to meet the recommendations of the CDC, VFC and VFA for reliable vaccine storage

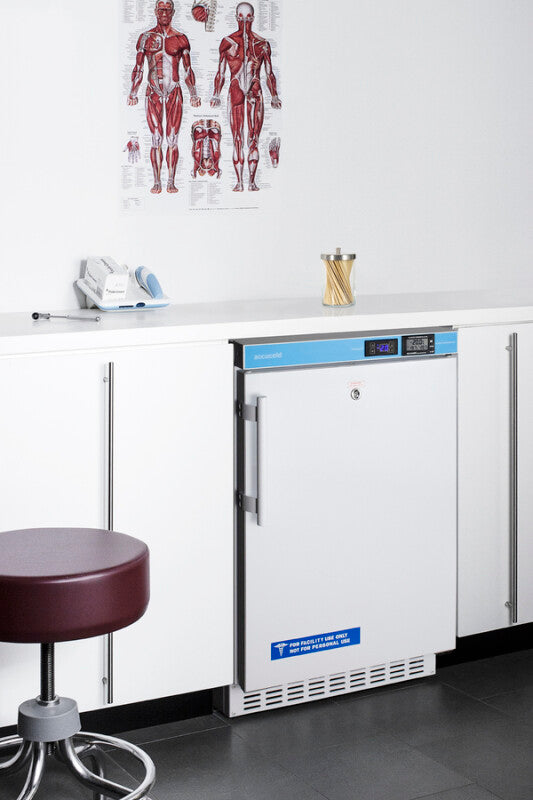

Built-in capable
Front-breathing system allows the unit to be installed under cabinets with minimum clearance
Slim 20" width
Full 2.65 cu.ft. capacity inside conveniently slim footprint

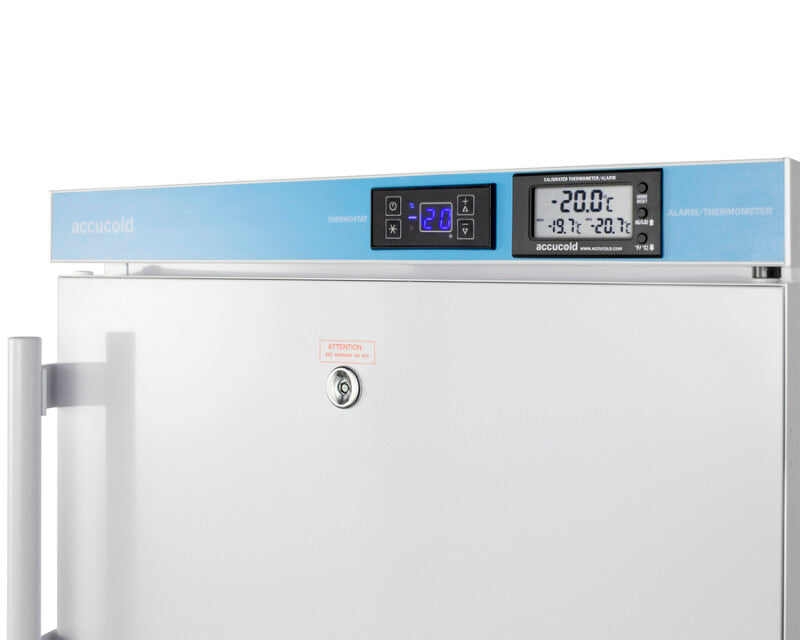

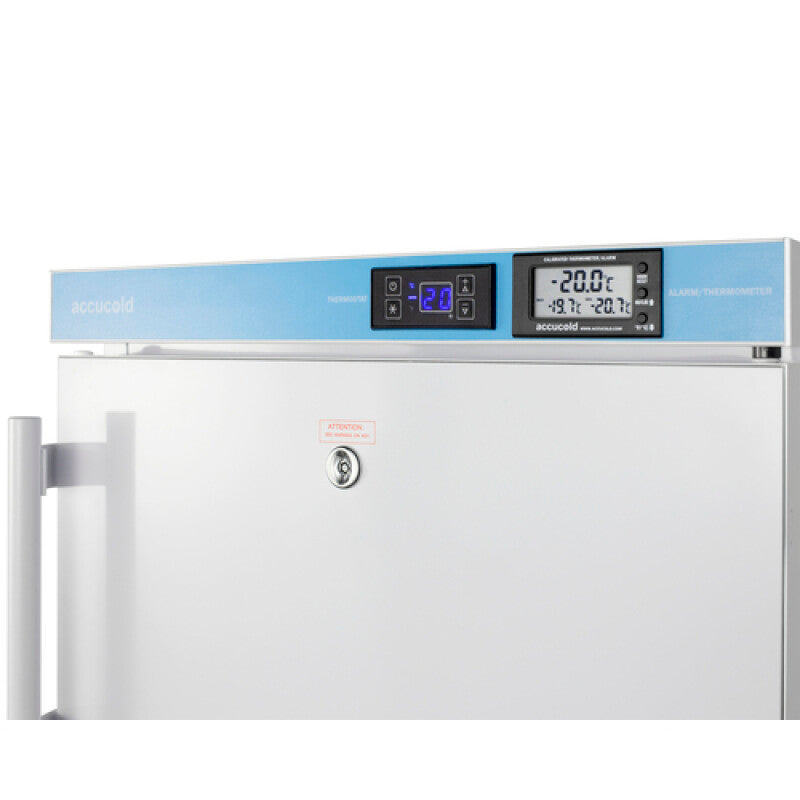

External temperature readout
Includes continuous display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button
Digital thermostat
Digital microprocessor for easy and precise temperature management, with all controls externally located for added convenience
High/low temperature alarm
Audible alarm sounds if the interior temperature rises or falls out of set range

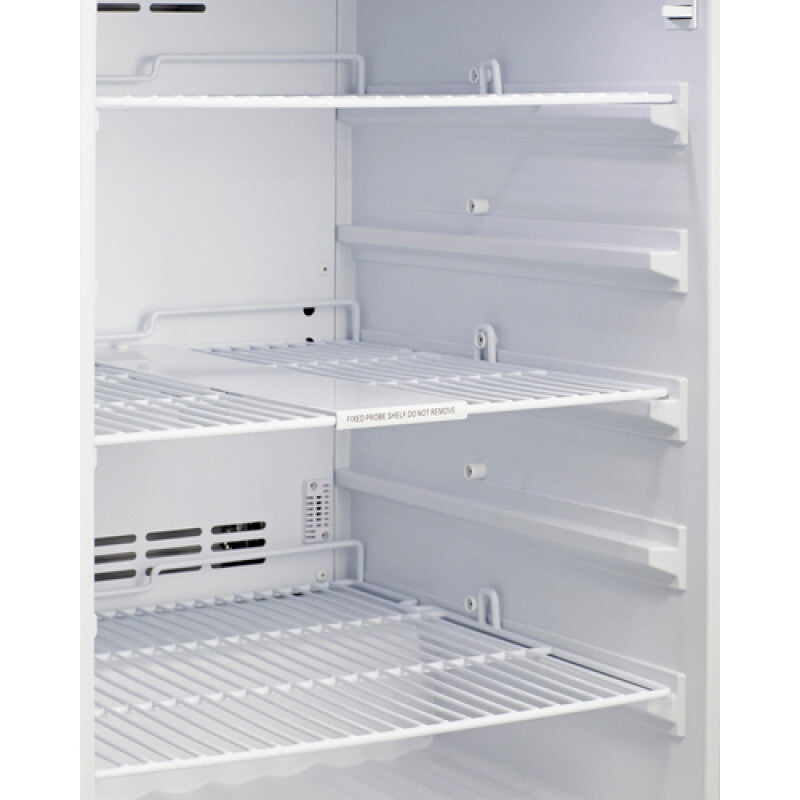

Buffered temperature probe
Thermometer probe is encased in a glass bead-filled bottle and stored in a fixed box on the center shelf. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC, VFC and VFA's guidelines
Factory installed lock
Keyed lock conveniently located towards the top of the door for added security (2 keys included)
Frost-free
No-frost operation for minimum user maintenance
Internal fan
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Hospital grade cord with 'green dot' plug
Secure three-pronged cord for added unit safety in high traffic areas

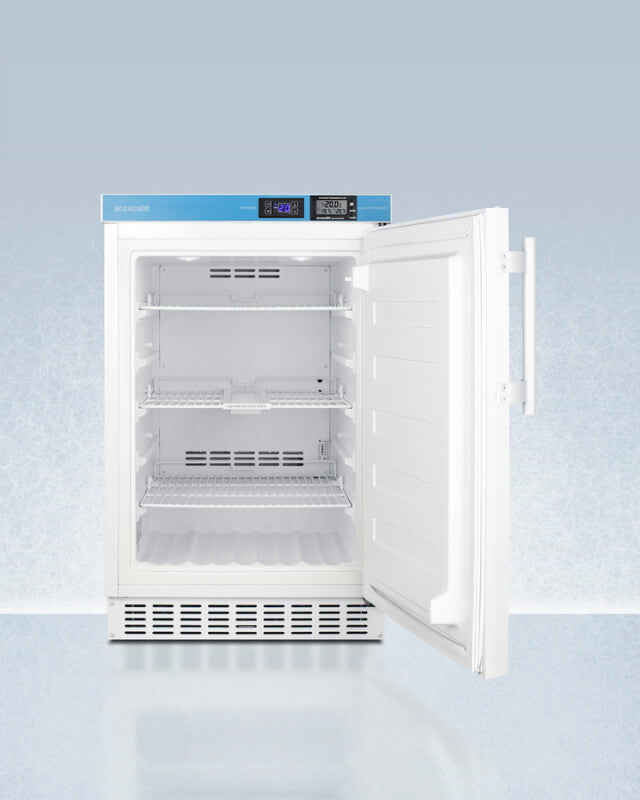

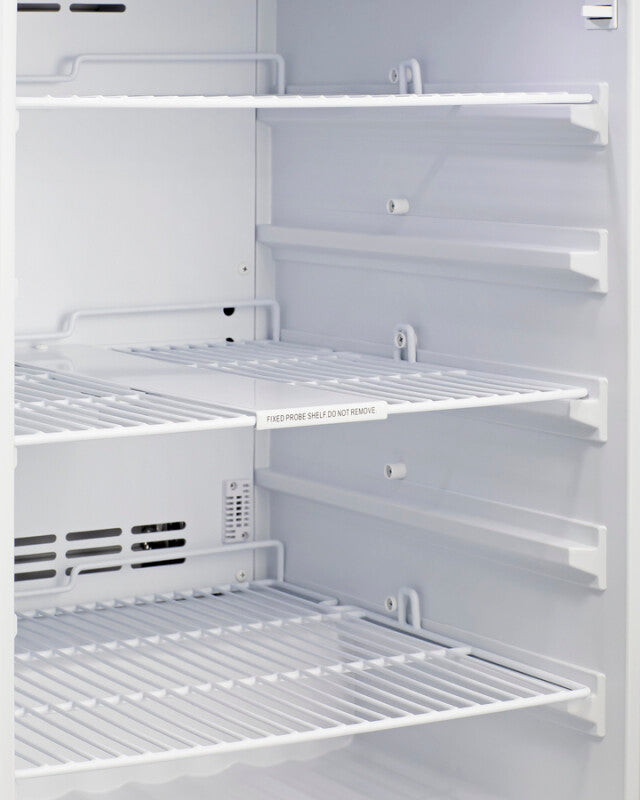

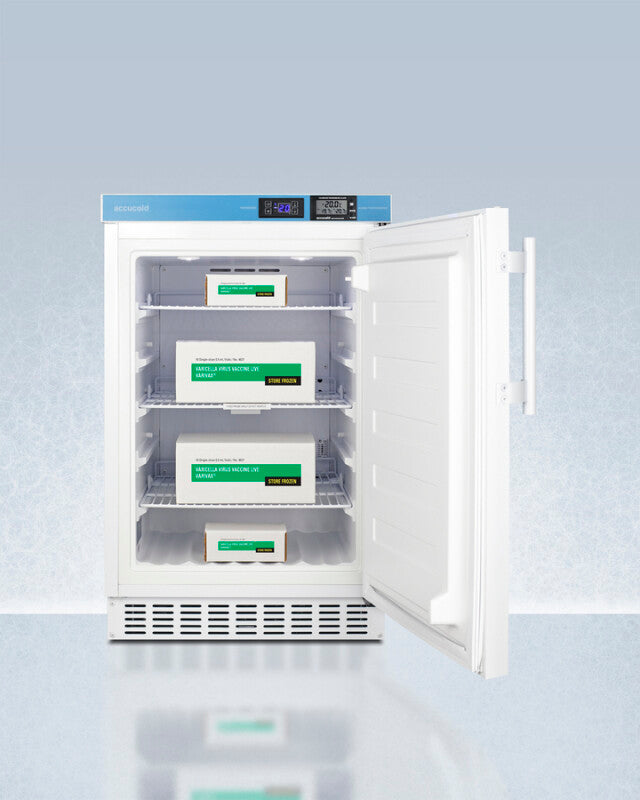

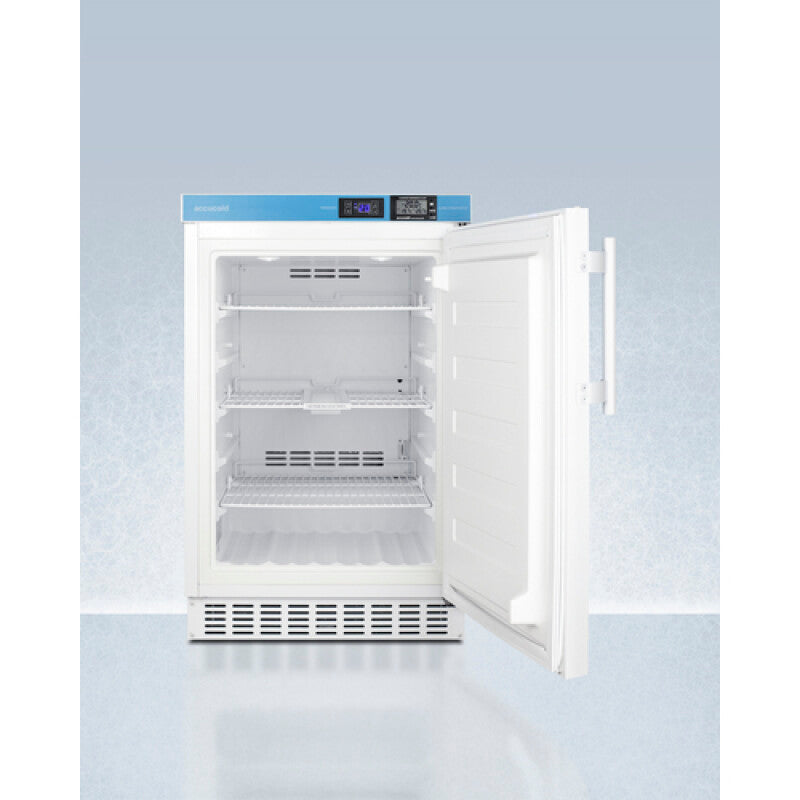

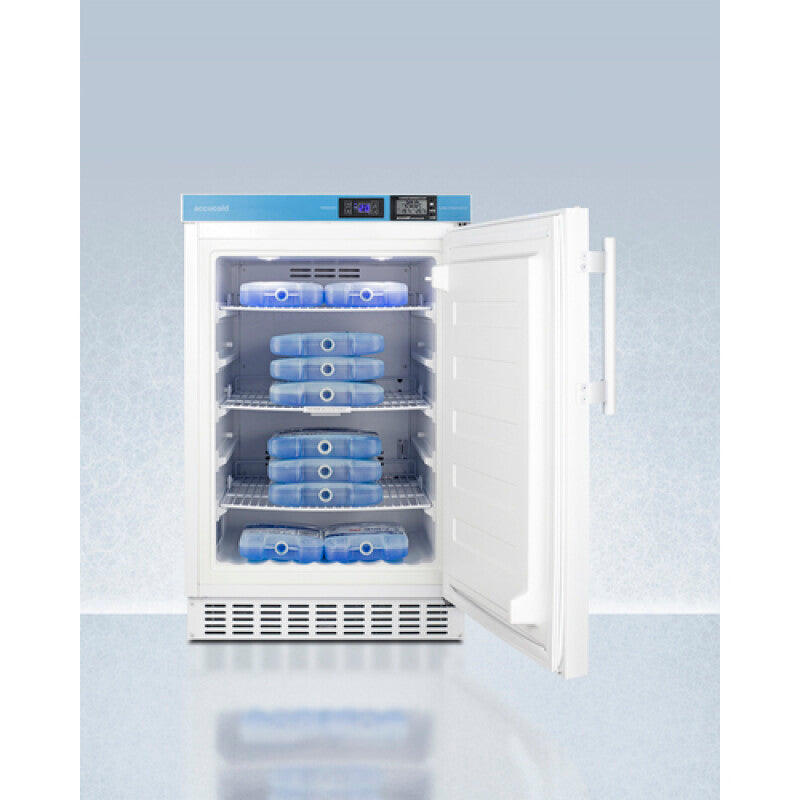

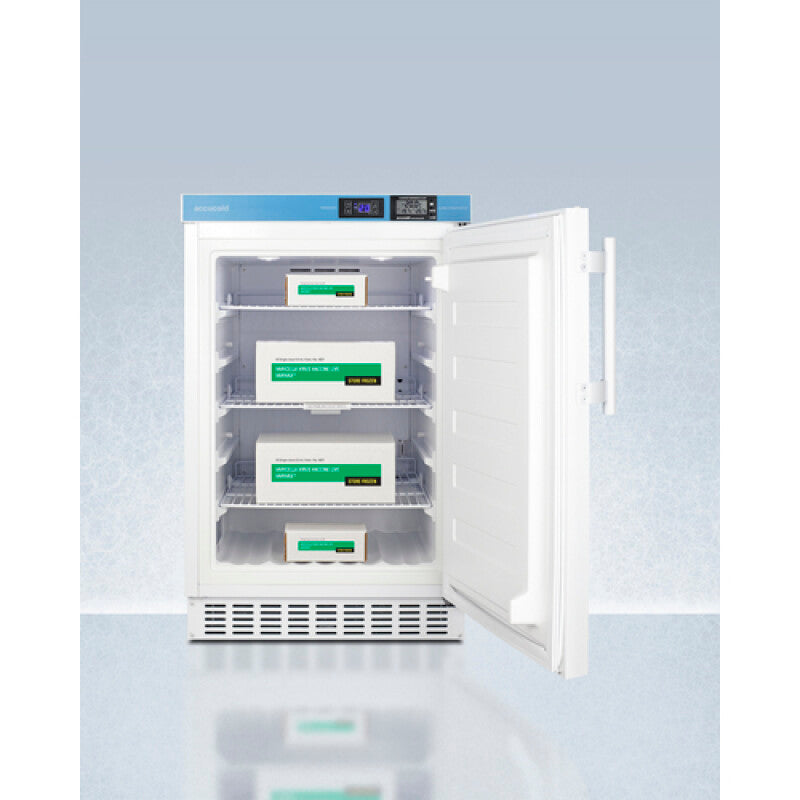

Adjustable wire shelves
Rearrange freezer space to accommodate all sizes or remove shelves for simple cleanup
Flat door liner
Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
LED lighting
Attractively illuminates the interior in a gentle white hue for easy viewing
3/8" access port
Unit comes with a factory installed probe hole for users to connect their own monitoring equipment
Reversible door
User-reversible door swing makes it easy to adjust to your setting as needed
Foamed-in-place cabinet
Quality design ensures efficiently insulated interior

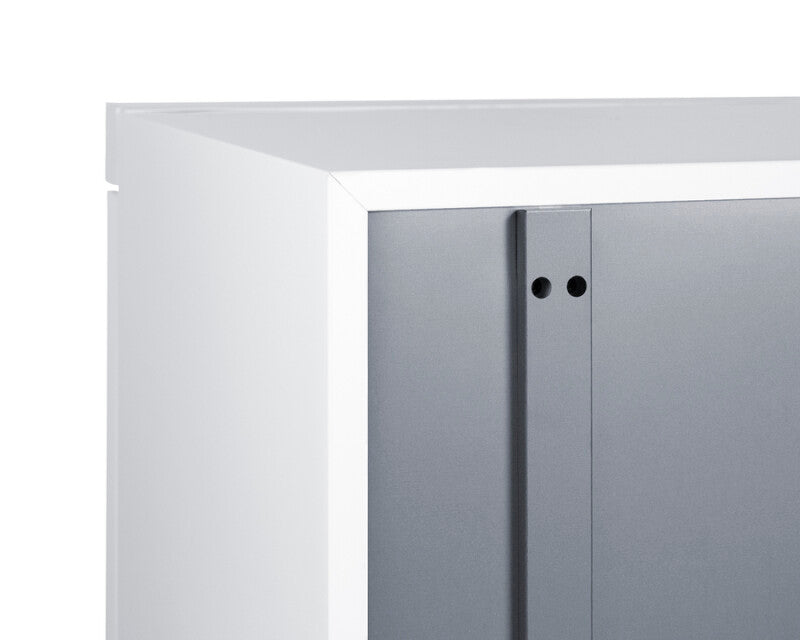

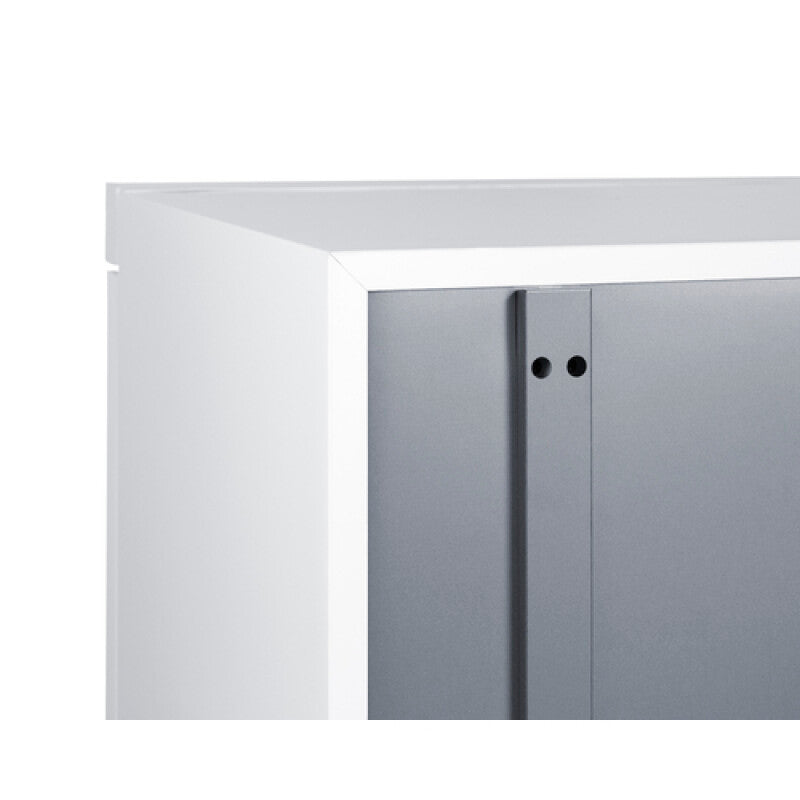

Sealed back
Space-saving design with no exposed coils for easier cleanability
Temperature memory function
Unit will retain its last settings when power is restored in the event of power loss
Self-closing door
Door will automatically close when left ajar, preventing items from accidentally being left exposed to ambient temperatures
Magnetic door gasket
Quality door gaskets ensure a tight seal for energy savings and improved performance
Handle included
Side-mounted handle for user convenience (not required to operate the unit)
Fully finished white cabinet
Allows the unit to be used freestanding
Matching refrigerator
Pair with Accucold ACR45L (solid door) or ACR46GL (glass door) all-refrigerators to create a matching side-by-side or stackable set
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
ADA compliant
Sized just under 32" high to allow installation under lower ADA compliant counters
NIST calibrated external temperature display
Alarm includes continuous NIST calibrated display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button
Certificate of calibration included
Calibrated to NIST standards in our ISO/IEC 17025:2017 accredited laboratory, with a certificate included for your records
