Product Details for Summit SCFF53BIFIMLHD

Technical Details

Overview freezer

Nominal Height 34.0" (86 cm)
Height of Cabinet 33.75" (86 cm)
Nominal Width 24.0" (61 cm)
Width 23.38" (59 cm)
Nominal Depth 24.0" (61 cm)
Depth 23.75" (60 cm)
Depth with Panel 24.5" (62 cm)
Depth with door at 90° 47.75" (121 cm)
Capacity 4.72 cu.ft. (134 L)
Defrost Type Frost-Free
Door Panel-Ready
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 390.0kWh/year
Amps 0.9
Plug Type NEMA 5-15P (Right Angle)
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101099934
Door Swing LHD
Reversible No
Interior Height 25.75" (65 cm)
Interior Width 19.0" (48 cm)
Interior Depth 17.25" (44 cm)
Shelf Type Chrome
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.24 oz.
High Side PSI 270.0
Low Side PSI 106.0
Compressor Step Height 3.5" (9 cm)
Compressor Step Width 19.0" (48 cm)
Compressor Step Depth 4.5" (11 cm)
Star-K Certified Yes
Sabbath Mode Yes

Description

SUMMIT's SCFF53B Series brings quality and convenience under the counter with a fully featured lineup of built-in frost-free all-freezers. Sized with a convenient 24" footprint, the SCFF53BIFIM freezer can be used built-in or freestanding. It has a black cabinet with a sealed back for easy cleaning. The door comes with a European style fully articulating hinge, making it easy to install an overlay panel to create a custom look that blends into your cabinetry. Inside, the SCFF53BIFIM utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable chrome shelves for flexible storage and a factory installed icemaker. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. With its deluxe style and user-friendly features, the SCFF53BIFIM is the perfect choice for home or commercial kitchens. For a matching frost-free all-refrigerator, see the FF64BIF.


Product Features

  • 24" Wide Undercounter Freezer With Icemaker
    Frost-free all-freezer in a 24" footprint for built-in or freestanding use
  • Frost-free operation
    No-frost convenience eliminates the need to manually defrost the unit

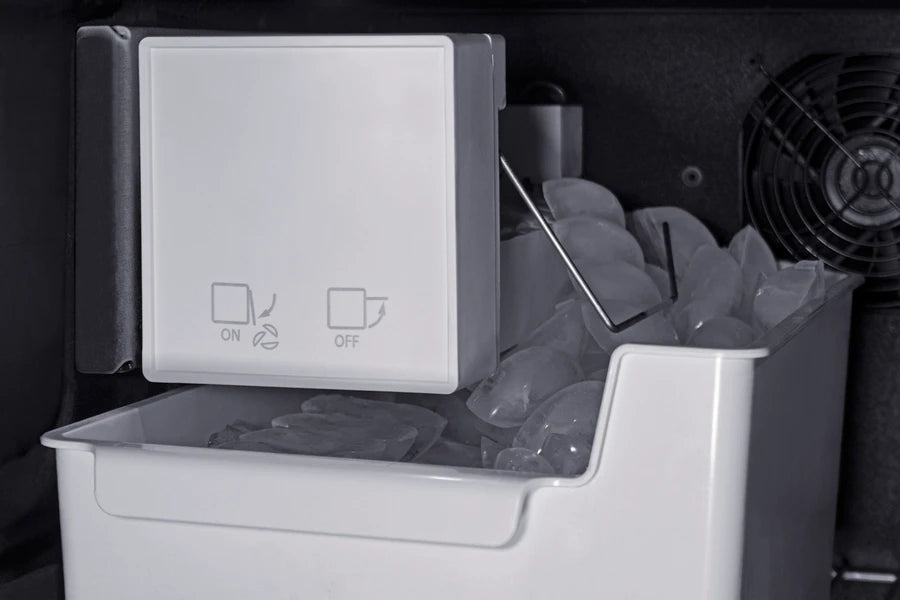

  • Factory-installed icemaker
    Keep a steady supply of ice cubes on hand in the lower drawer's automatic icemaker

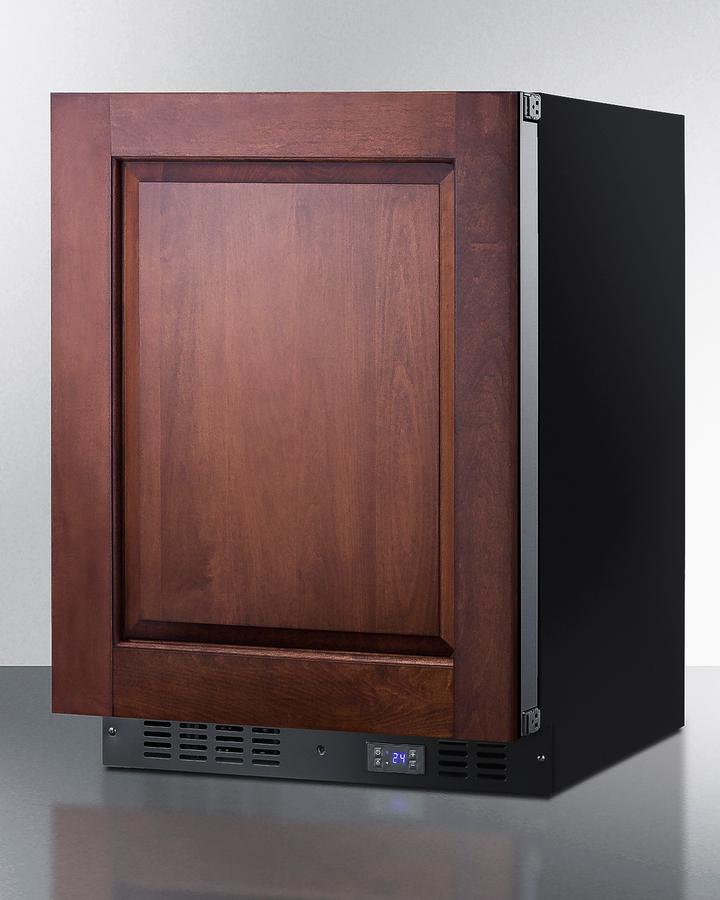

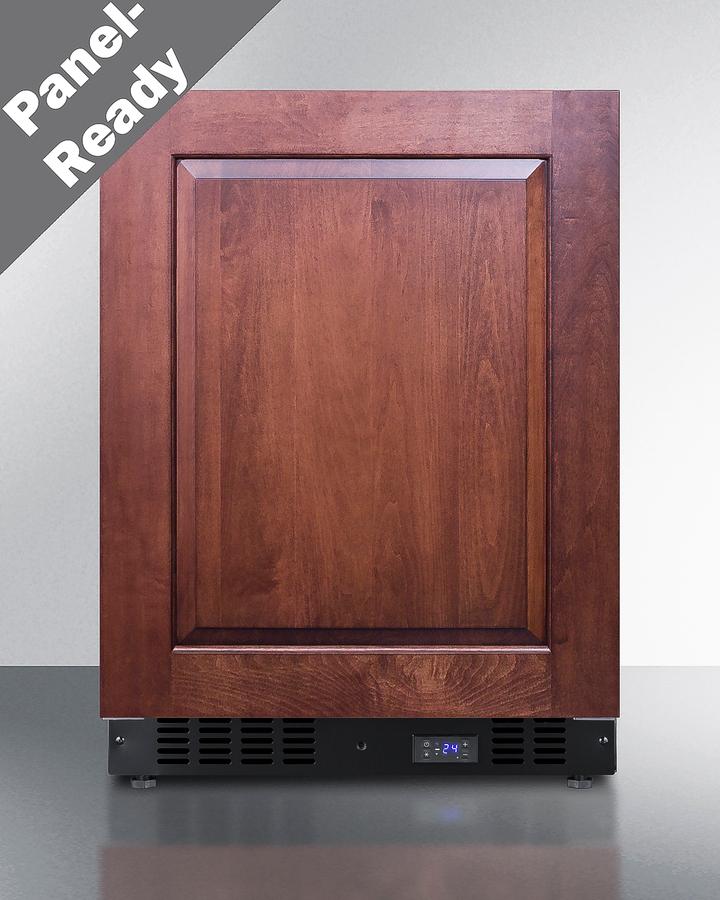

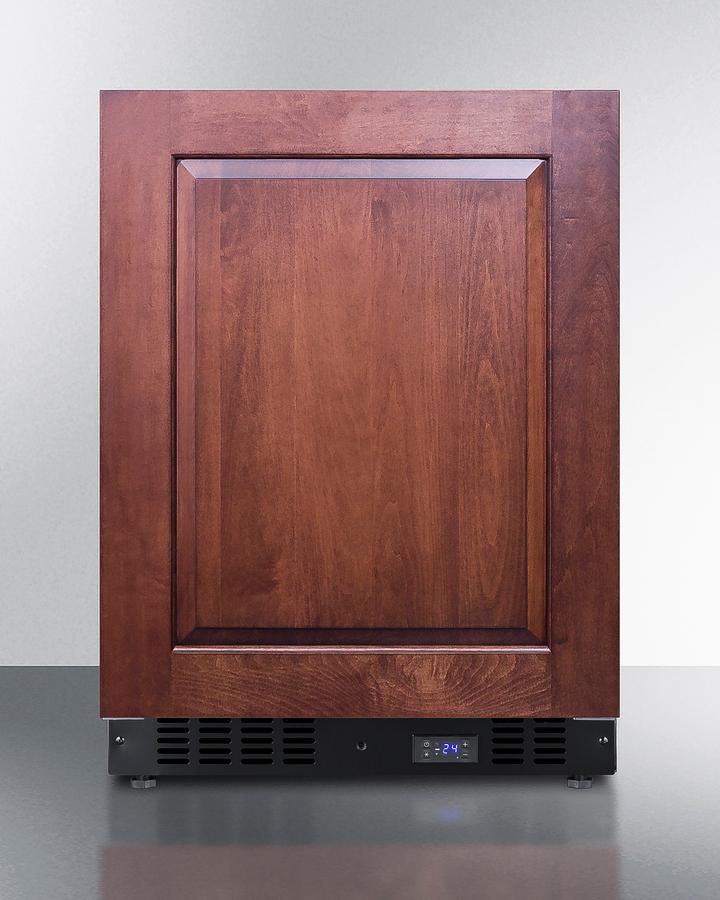

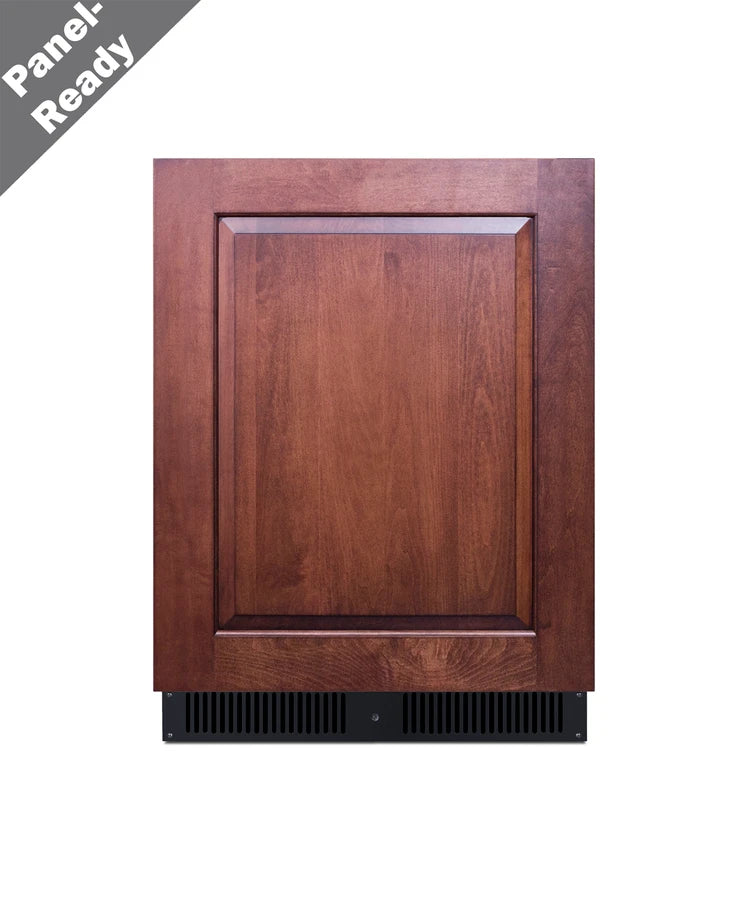

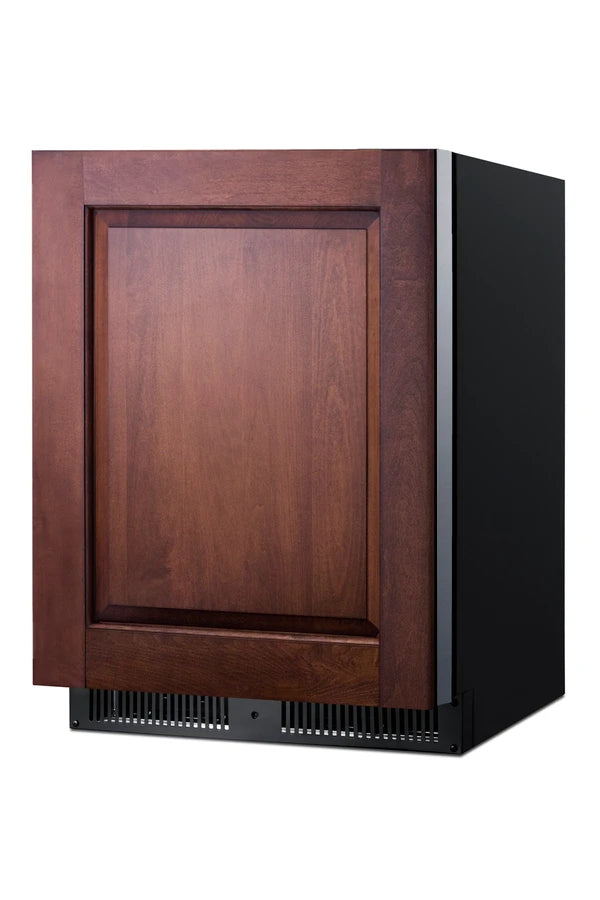

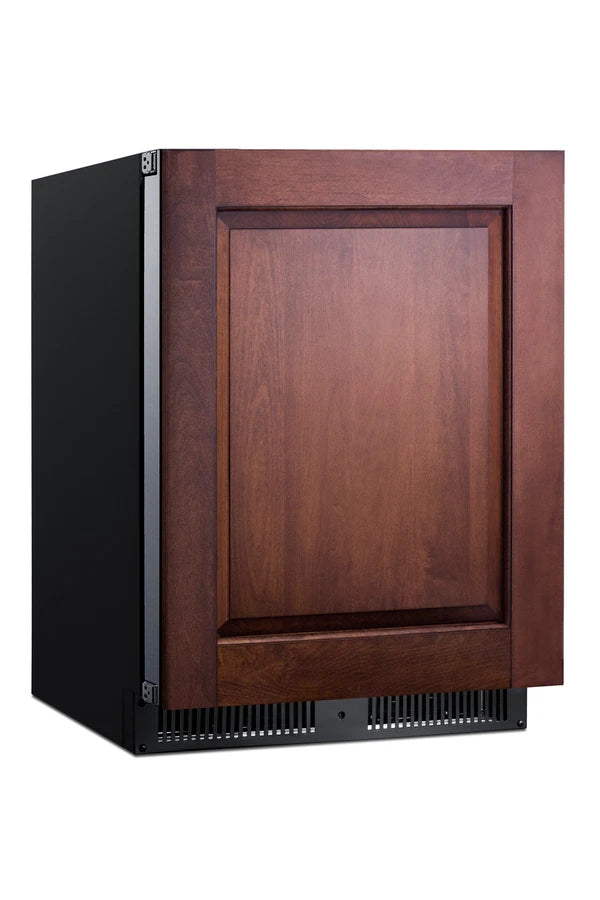

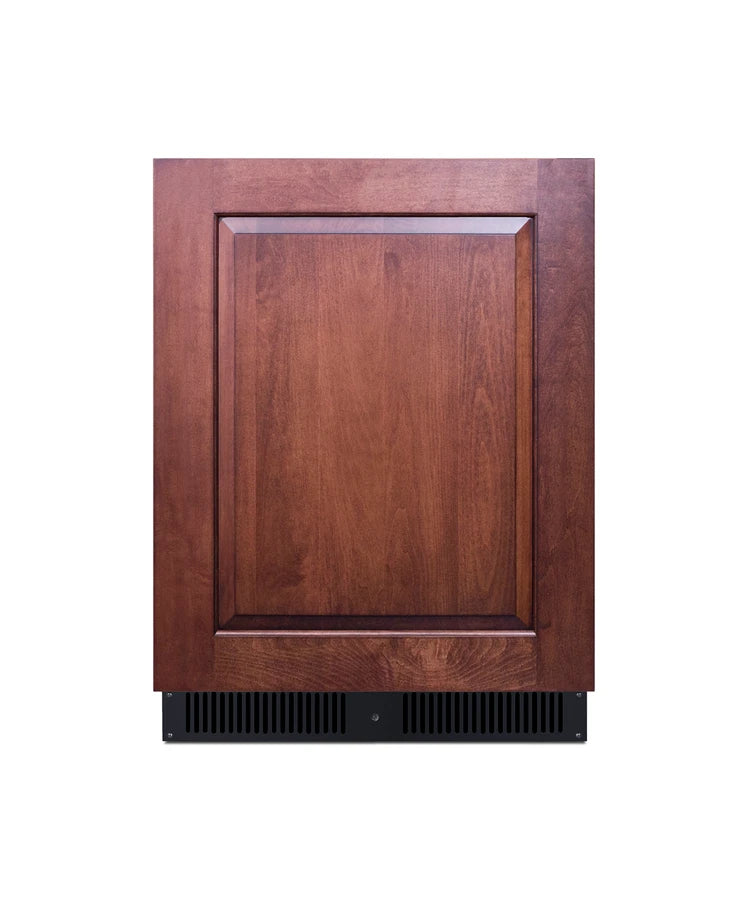

  • Panel-ready door
    Customize this unit using the included 2-piece bracket system (panel size: 23.25" W x 30" H at 3/4" thickness and 10 lbs. maximum)
  • Easy panel installation with included 2-piece bracket kit
    Enhanced panel execution allows the unit to be flush with cabinets

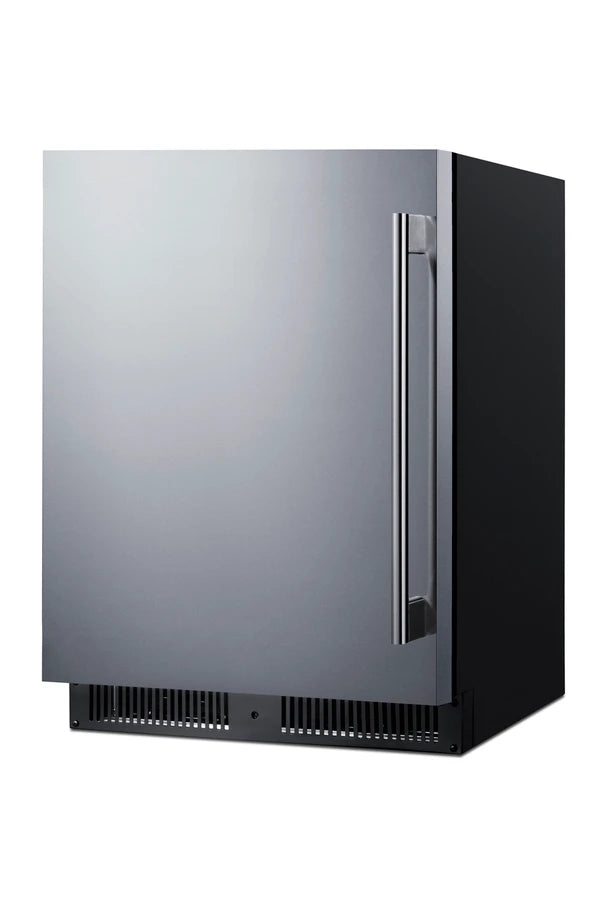

  • Stainless steel door
    Fully finished door also allows you to choose a traditional stainless steel front if not installing an overlay panel

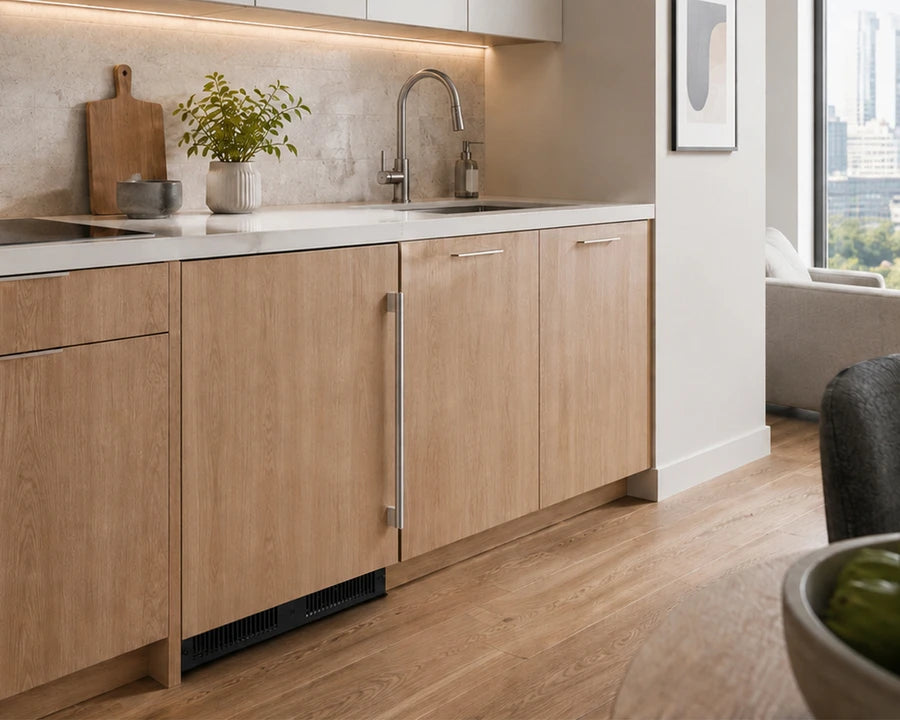

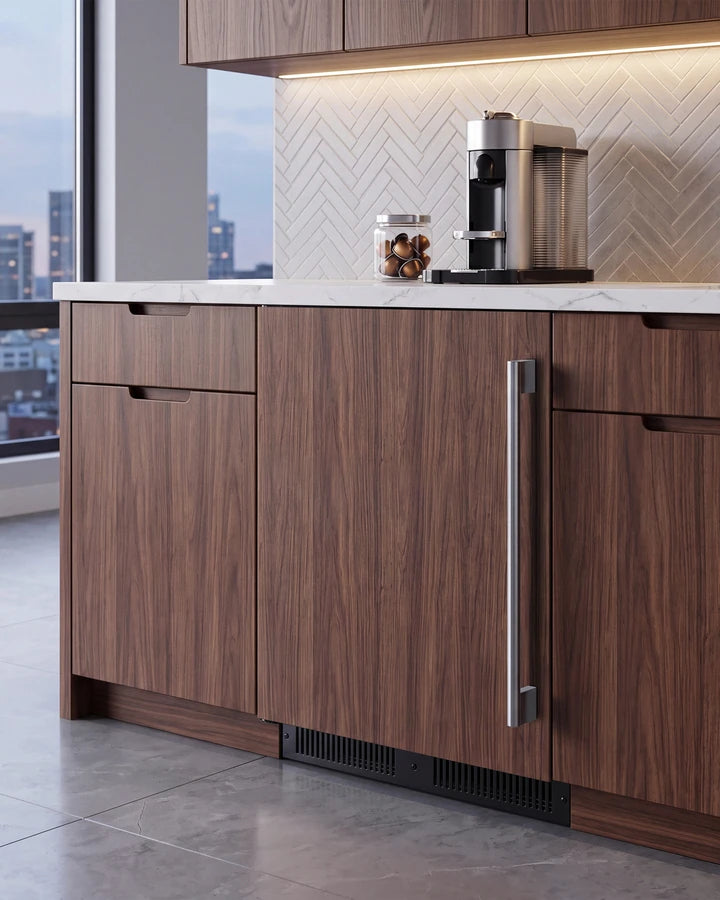

  • Built-in capable
    Front-breathing design lets you make the best use of space by installing your appliance under the counter
  • Digital thermostat
    Electronic controls offer easy and intuitive temperature management
  • Recessed LED light
    Elegant and efficient interior lighting automatically illuminates when the door is opened

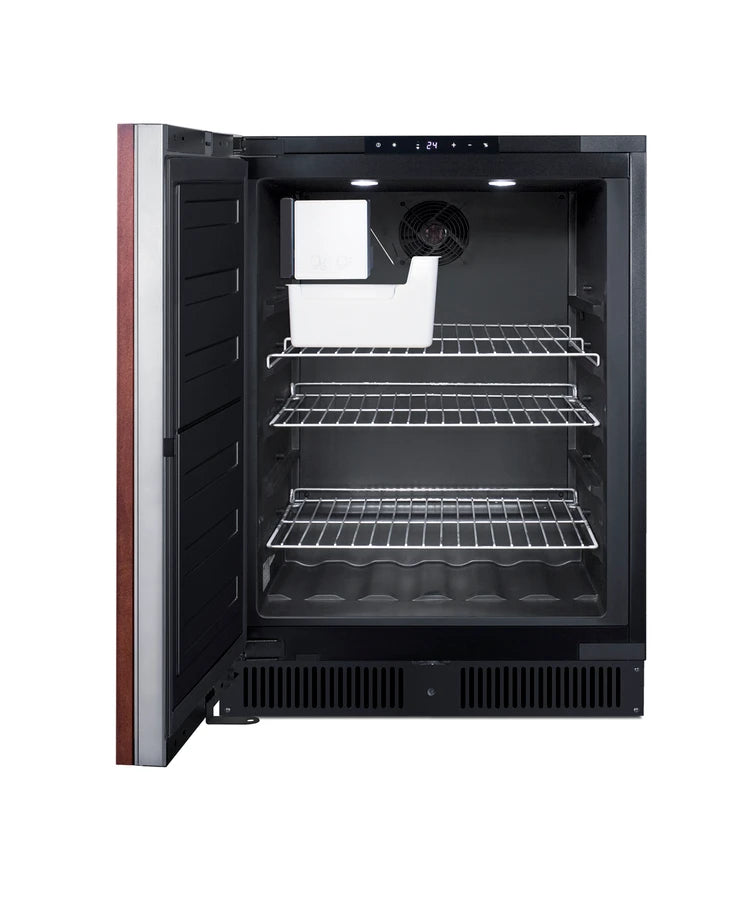

  • Adjustable shelves
    Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up
  • Open door alarm
    Audible alarm will sound if the door is left open longer than one minute
  • Temperature Memory Function
    Unit will retain its last settings when power is restored in the event of a power loss
  • High temperature alarm
    High temperature alarm sounds if the unit's temperature goes out of the recommended range
  • Sabbath mode setting
    Optional setting lets you disable the lighting and alarm for up to 96 hours
  • Right angle plug
    Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
  • Matching refrigerator available
    Pair with the FF64BIF for a matching side-by-side or stackable set
  • Fully finished cabinet
    Allows the freezer to be used as a freestanding model
  • 100% CFC free
    Environmentally friendly design without ozone-damaging chemicals
  • CARB Compliant
    Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
  • Lead-free certified
    Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
  • STAR-K Certified
    Complies with kosher requirements for use during the Sabbath and Jewish holidays
