Sale price $1,680.70 Regular price $2,149.99 Save $469.29 / 21% OFF

Product Details for SUMMIT ALFZ53IF

Technical Details

Overview

Nominal Height 12.6
Height of Cabinet 12.6
Nominal Width 9.45
Width 9.3
Nominal Depth 9.06
Depth 8.91
Depth with Handle 9.7
Depth with door at 90(degree) 17.72
Capacity 3.7
Defrost Type Frost-Free
Door Panel-Ready
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 345.0
Amps 1.5
Voltage/Frequency 115
Weight 90.0
Parts & Labor Warranty 1
Compressor Warranty 5
UPC 761101088037

Freezer

Door Swing RHD
Interior Height 9.25
Interior Width 7.38
Interior Depth 6.1
Shelf Type Chrome
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.31
High Side PSI 270.0
Low Side PSI 105.0
Level Legs 4
Compressor Step Height 1.48
Compressor Step Width 7.38
Compressor Step Depth 1.77
Temperature Range -11
Sabbath Mode Yes
Sound Level 33.7
Reversible Yes

Features

  • This item has recently been upgraded with a fully articulating hinge. The lock has been moved from the door front to kickplate. Images shown on website may not reflect product details
  • 24" wide frost-free freezer sized to fit under lower ADA compliant counters
  • 32" height allows easy installation under lower ADA compliant counters

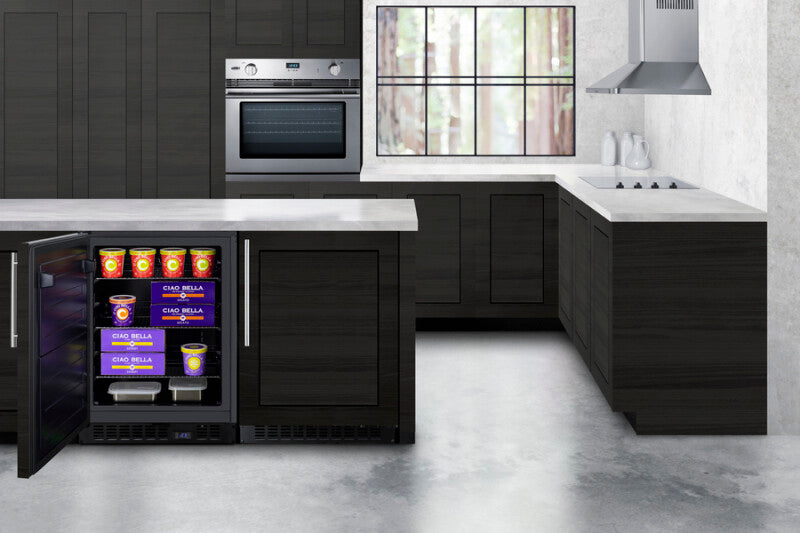

  • Make the best use of space by installing your freezer under the counter and flush with other cabinets

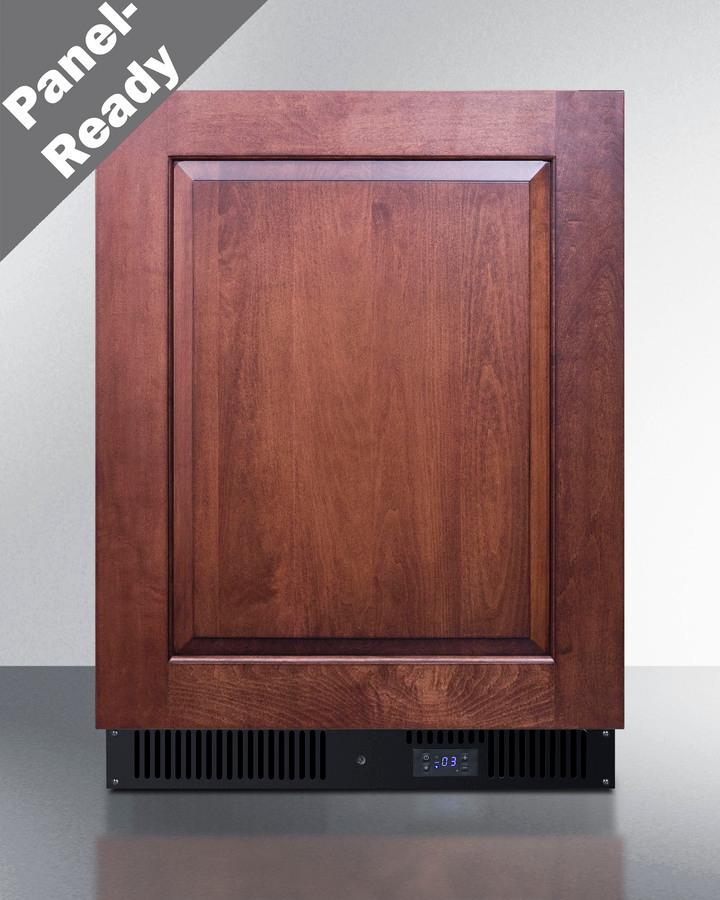

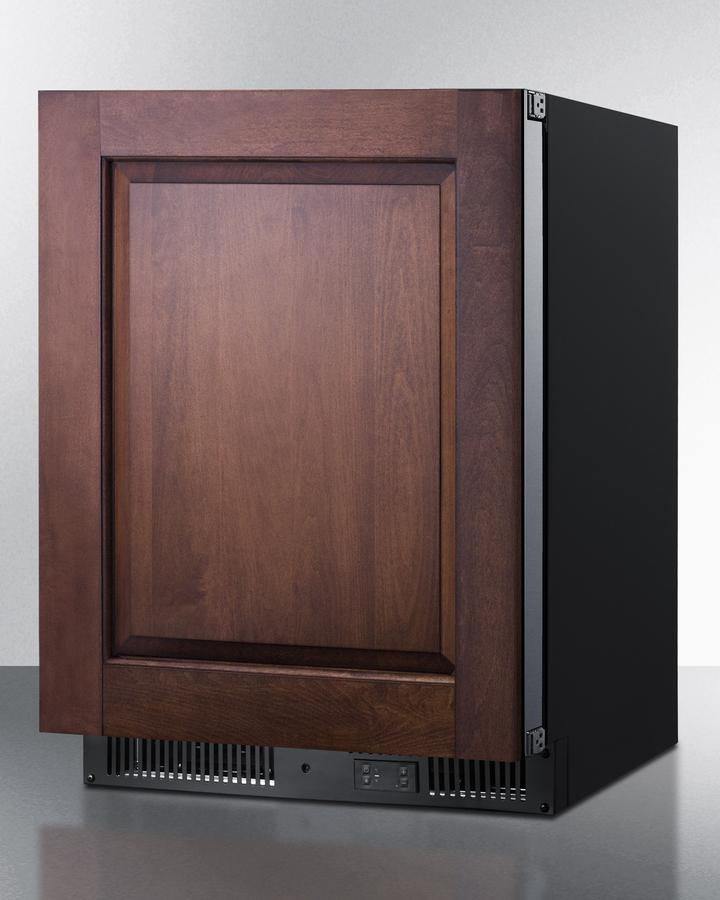

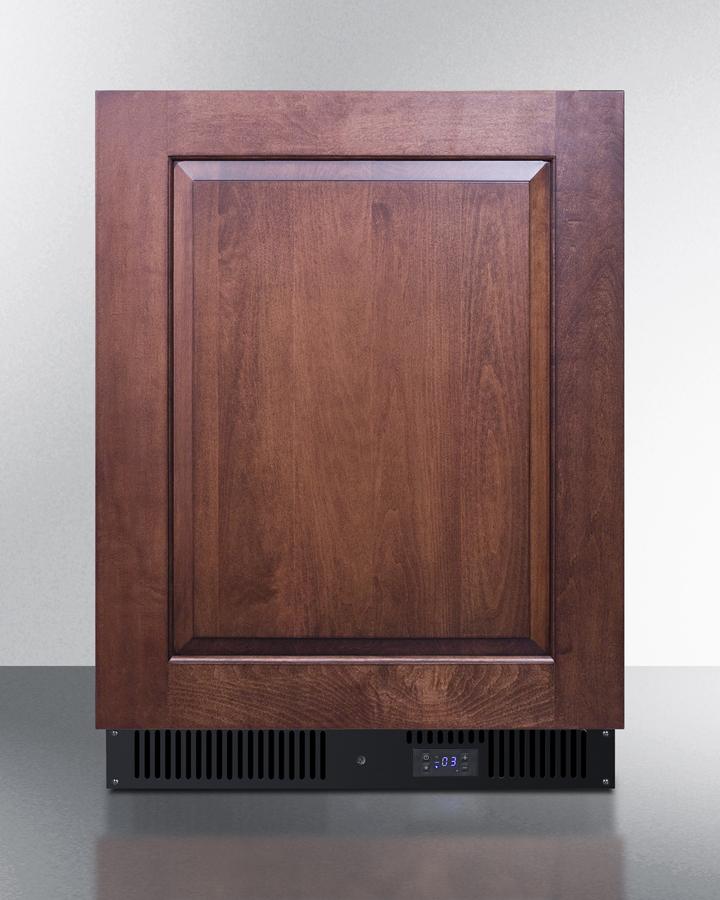

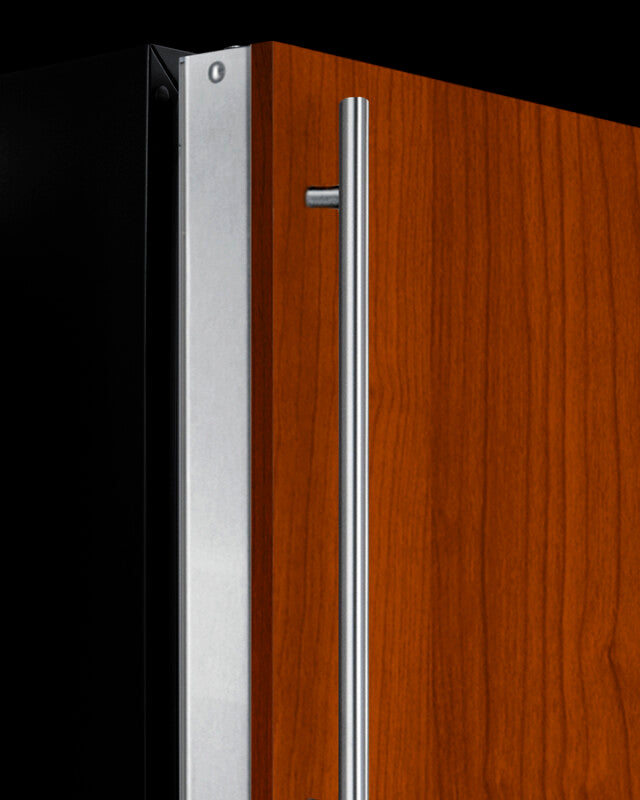

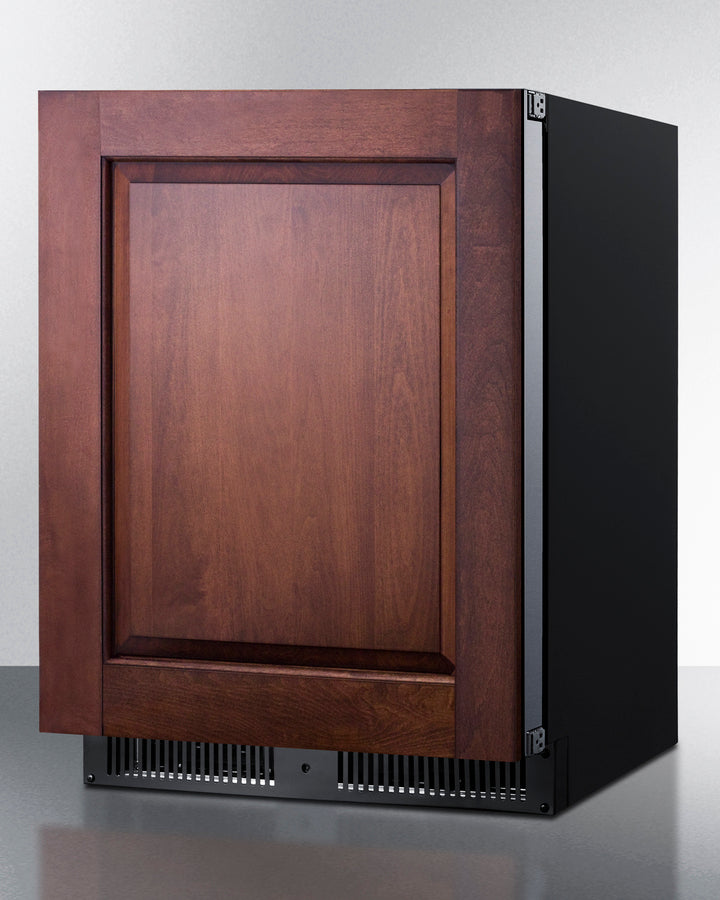

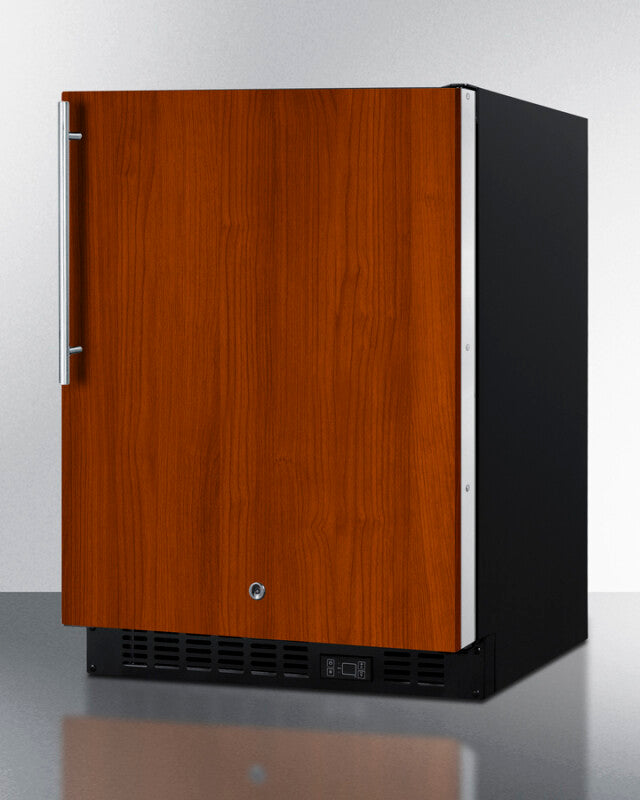

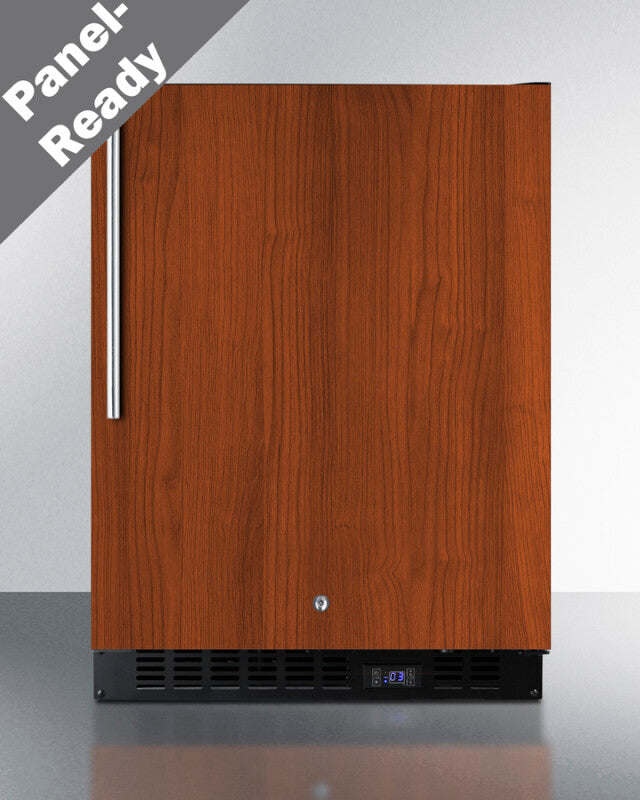

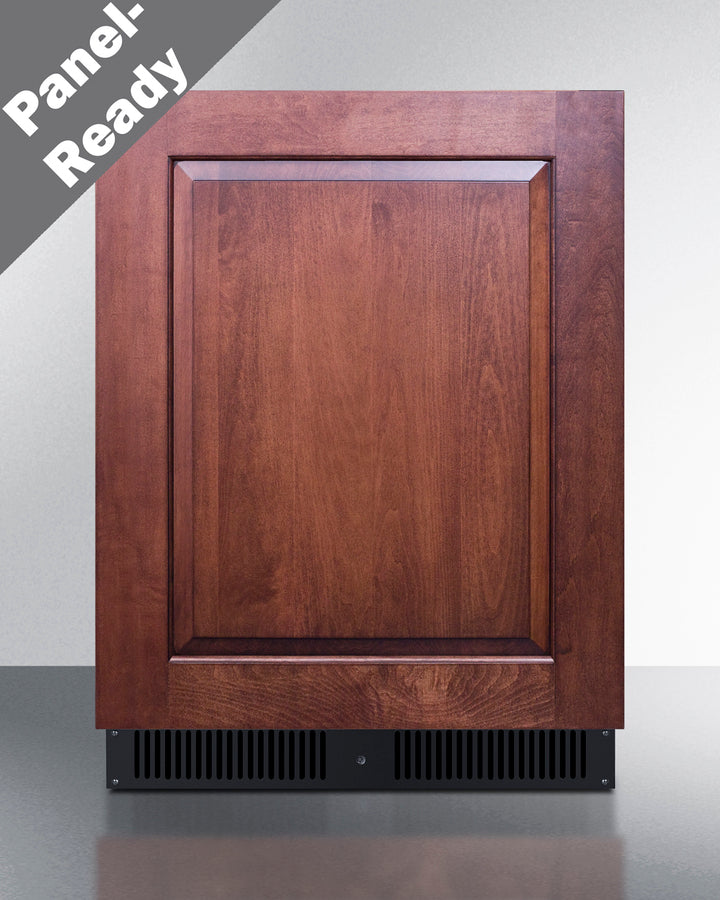

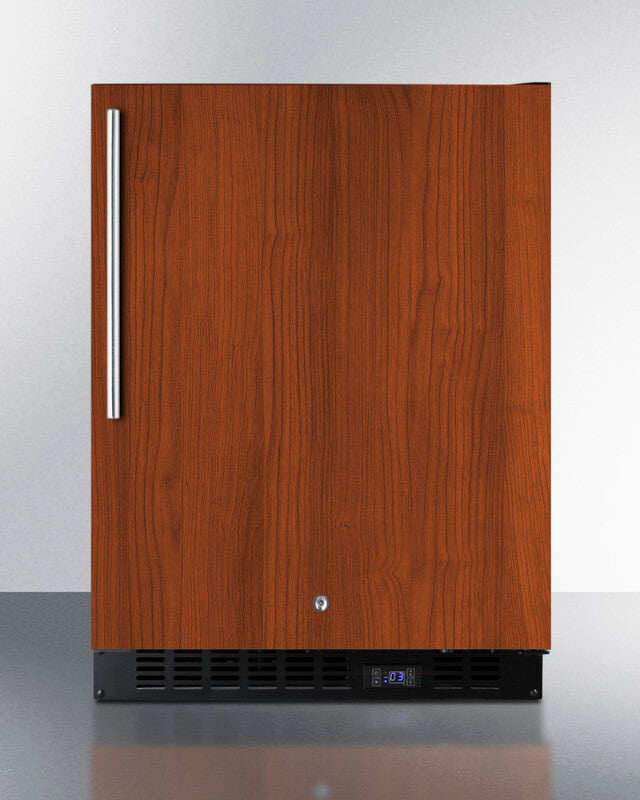

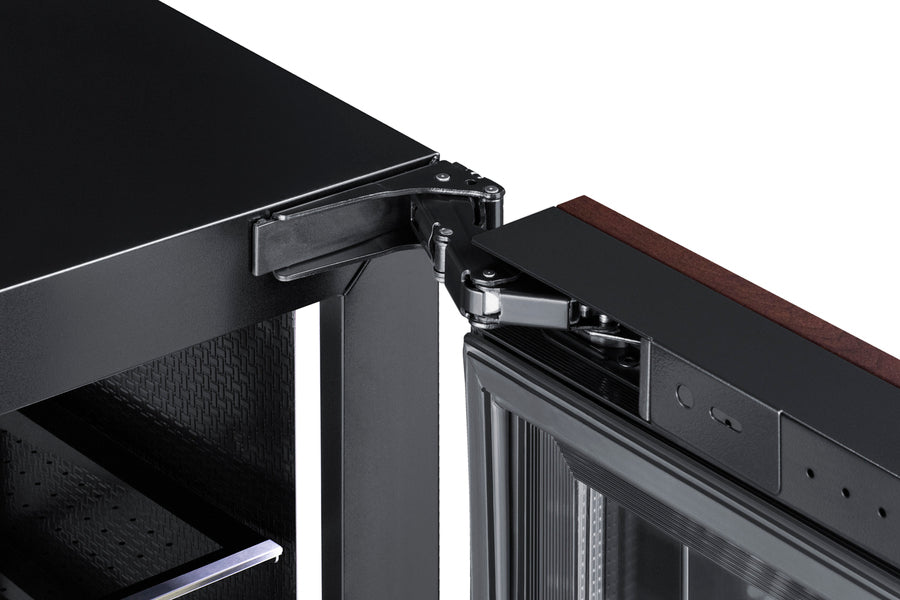

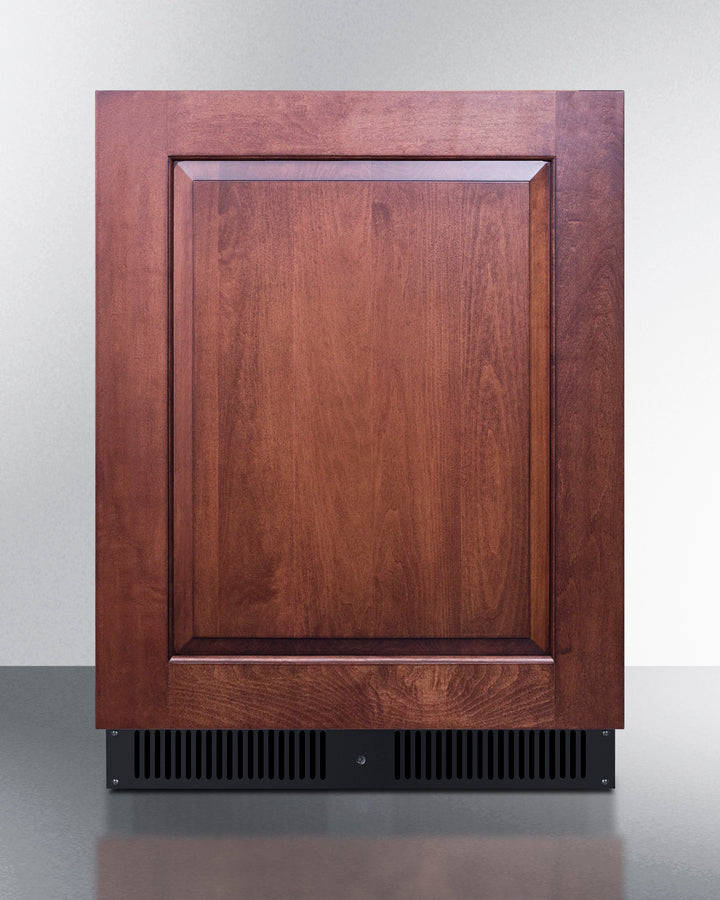

  • European style articulating door hinge allows the installation of overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; (panel size: 23.4" W x 28.38" H at 3/4" thick and 10 lbs. maximum)
  • No-frost convenience eliminates the need to manually defrost the unit
  • Electronic controls offer easy and intuitive temperature management

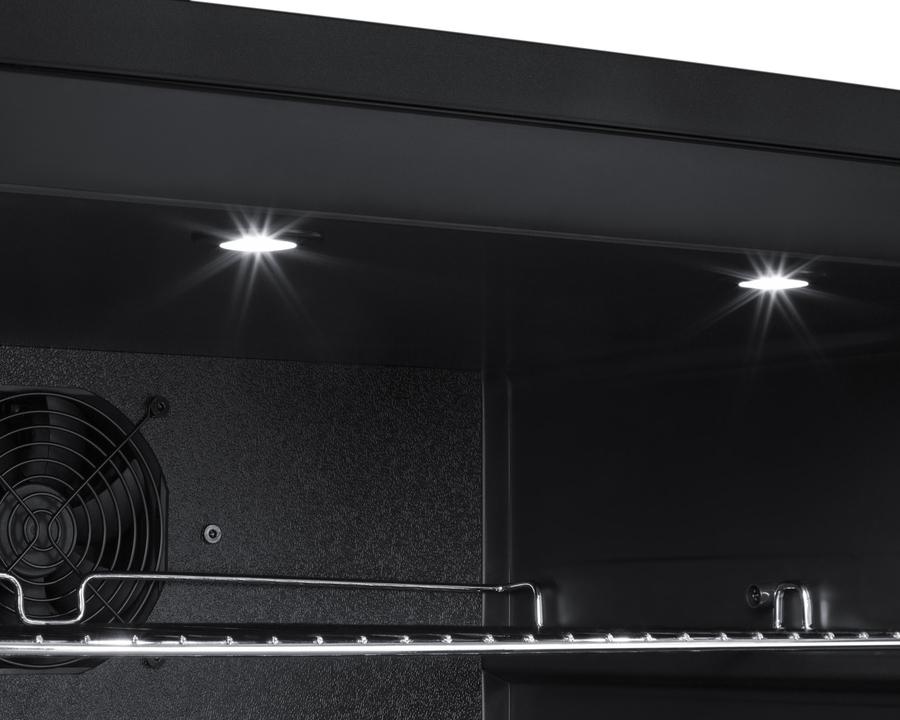

  • Elegant lighting with an on/off switch located on the control panel
  • Right hand door swing by default; if you require the door to open from the other direction, add upgrade "LHD" upon order

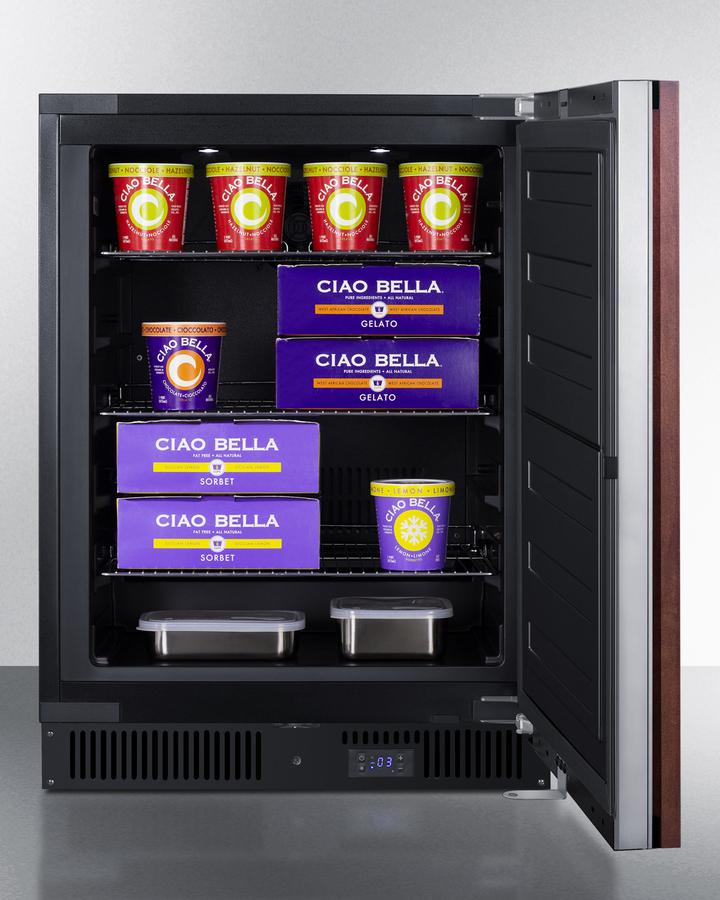

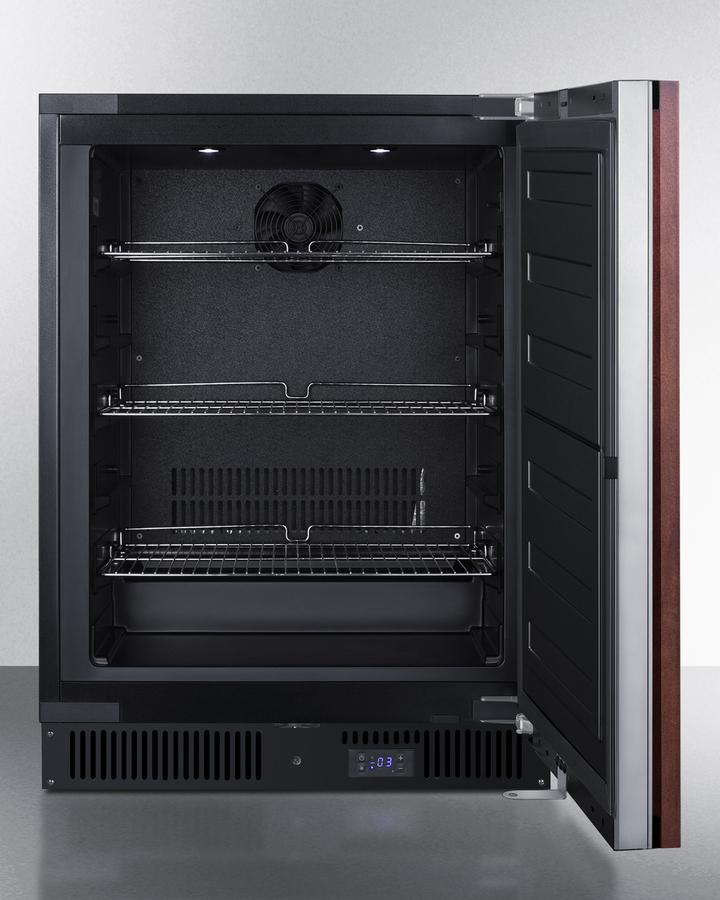

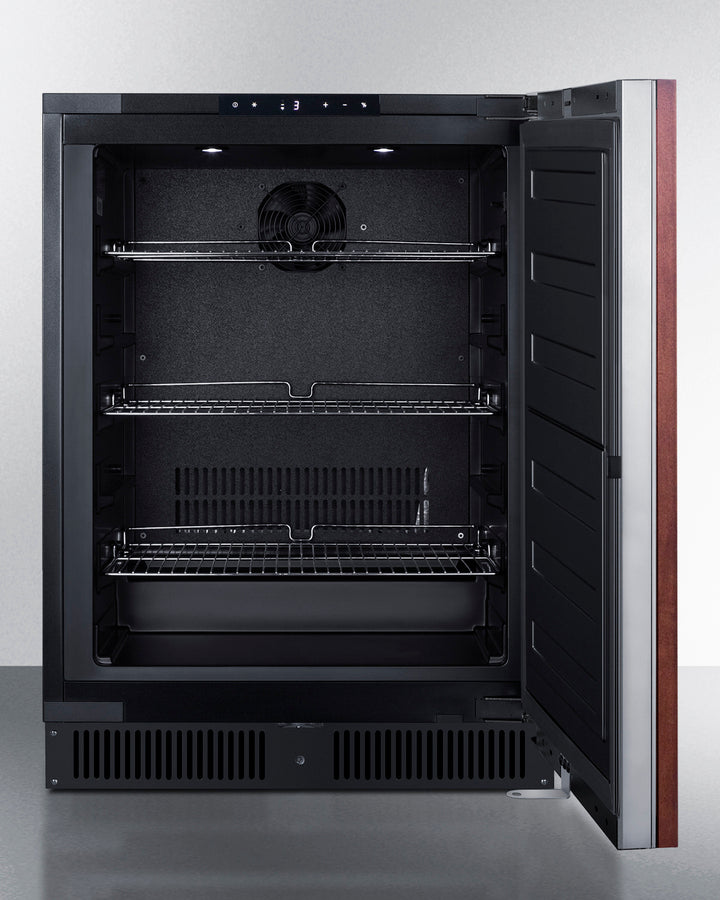

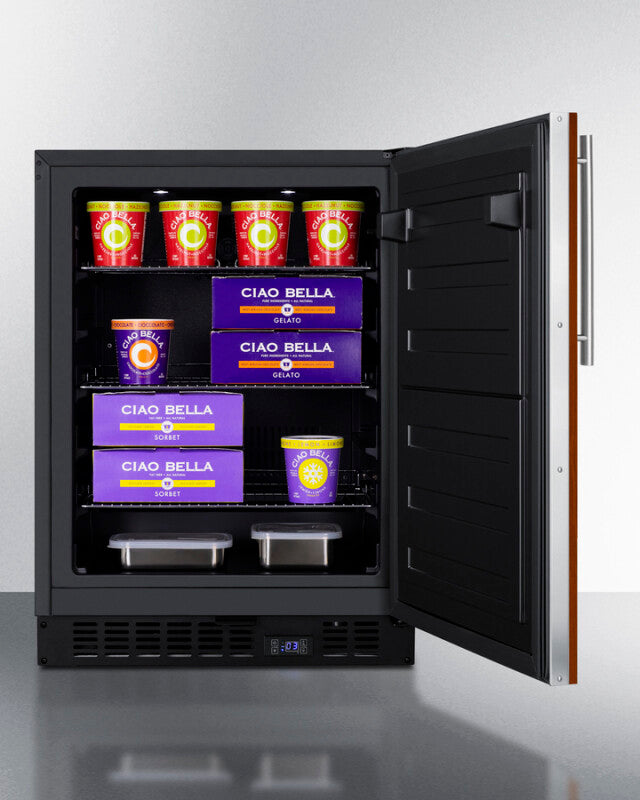

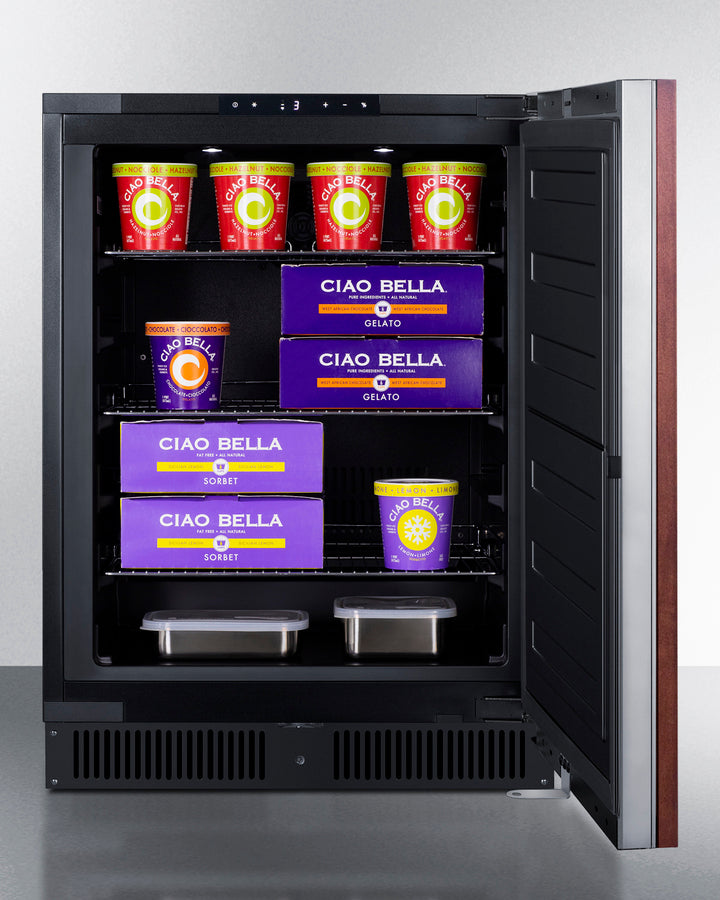

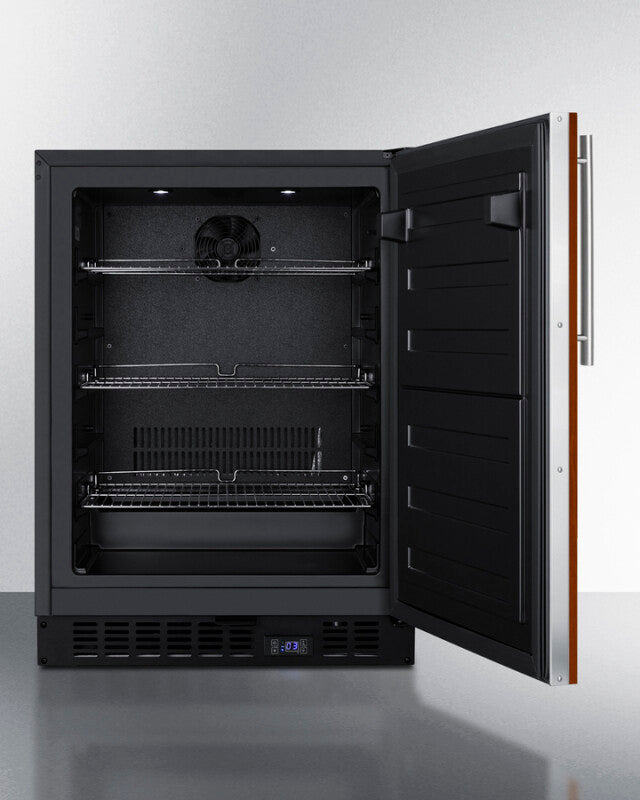

  • Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up
  • Audible alarm will sound if the door is left open longer than one minute
  • Optional setting lets you disable the lighting and alarm for up to 48 hours
  • High temperature alarm sounds if the unit's interior goes out of the recommended range
  • Unit will retain its last settings when power is restored in the event of power loss
  • Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
  • Space-saving design with no exposed coils for easier cleanability
  • Pair with the AL54IF for a matching side-by-side set under lower ADA compliant counters
  • ETL-S listed to NSF-7 commercial standards
  • Allows the freezer to be used as a freestanding model
  • Environmentally friendly design without ozone-damaging chemicals
  • Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations



Description

Summit manufactures the industry's largest selection of built-in appliances sized for use under lower ADA compliant counters, including frost-free freezers specially designed to match our popular ADA compliant refrigerators. Model ALFZ53IF is a 24" wide all-freezer that can be paired with our AL54PNR all-refrigerator. Sized at just 32" high, it can easily be installed under an ADA compliant counter. The fully finished black cabinet allows freestanding use, while the front-breathing system also allows this unit to be built-in with minimum clearance. The reversible stainless steel door features a European-style fully articulating hinge for zero clearance opening. We include a 2-piece bracket kit that allows easy installation of overlay panels to create a custom look that can seamlessly blend into your existing cabinetry design (panel size: 28.38" H x 23.4" W; maximum weight: 10 lbs.). This unit has a flush back for easy cleaning and a right angle plug for a better fit. A factory-installed lock is located in the kickplate. Inside, the ALFZ53IF utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look inside the black interior. Three adjustable chrome shelves can be set at five different positions to best accommodate your storage needs. Additional user-friendly features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. This unit features intuitive digital controls for easy temperature management. With its deluxe style and user-friendly features, this unit is the perfect choice for ADA compliant kitchens. It's a perfect match for our AL54PNR all-refrigerator, both panel-ready to create a truly custom refrigerator/freezer set under ADA compliant counters. Additional door finishes are available, including stainless and black stainless steel, and our new vibrant colors. Browse the full selection to explore your options.
