Summit ALFZ51 24" Wide Built-In All-Freezer, ADA Compliant Stainless Steel/Black

Quick Specification More details

Width:
23.38"
Depth:
23.38"
Height:
31.63"
Type:
Upright Freezers

About this product

Stainless steel door
White interior
Brake shelving system
Internal fan

Summer Sale

Clearance

SKU: ALFZ51 | UPC: 761101085043

Summit ALFZ51 24" Wide Built-In All-Freezer, ADA Compliant Stainless Steel/Black

$1,521.79 ~~$1,969.97~~ Save $448.18 / 22% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
23.38"
Depth:
23.38"
Height:
31.63"
Type:
Upright Freezers

About this product

Stainless steel door
White interior
Brake shelving system
Internal fan

Product Details
Manuals & Guides
From The Manufacturer
Reviews

$1,521.79 ~~$1,969.97~~ Save $448.18 / 22% OFF

Product Details for Summit ALFZ51

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

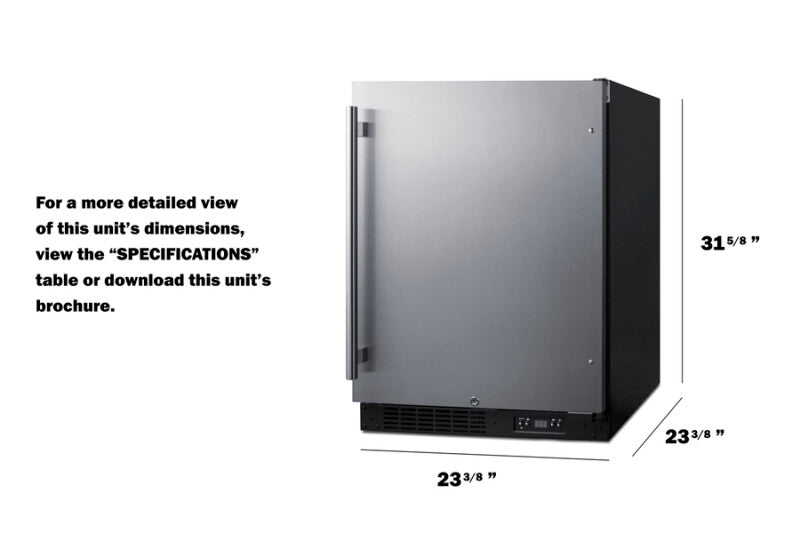

Dimensions & weight

Width	23.38 in.
Height	31.63 in.
Length	23.38 in.
Weight	95 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	10.01 ft³
Dimensional Weight	124.39 lbs.
Total of Cubes	10.01 ft³
Total of Dimensional Weight	124.39 lbs.

Overview freezer

Nominal Height	32.0" (81 cm)
Height of Cabinet	31.63" (80 cm)
Nominal Width	24.0" (61 cm)
Width	23.38" (59 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.38" (59 cm)
Depth with Handle	25.38" (64 cm)
Depth with door at 90°	45.75" (116 cm)
Capacity	4.0 cu.ft. (113 L)
Defrost Type	Frost-Free
Door	Stainless Steel
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	380.0kWh/year
Amps	1.3
Voltage/Frequency	115 V AC/60 Hz
Weight	95.0 lbs. (43 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101085043
Door Swing	RHD
Reversible	Yes
Interior Height	23.75" (60 cm)
Interior Width	18.5" (47 cm)
Interior Depth	16.75" (43 cm)
Shelf Type	Glass
Shelf Qty	3
Adjustable Shelves	Yes
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.06 oz.
High Side PSI	150.0
Low Side PSI	50.0
Level Legs	4
Compressor Step Height	5.0" (13 cm)
Compressor Step Width	18.5" (47 cm)
Compressor Step Depth	5.0" (13 cm)
Temperature Range	-11°F to 11°F
Sabbath Mode	Yes
Sound Level	40.1 dB

Description

Summit manufactures the industry's largest selection of built-in appliances sized for use under lower ADA compliant counters, including frost-free freezers specially designed to match our popular ADA compliant refrigerators. The ALFZ51 is a 24 inch wide all-freezer designed and approved for residential or commercial use. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. Sized just under 32 inches high and 24 inches wide, this unit makes an ideal fit under lower ADA compliant counters. The user-reversible door comes in a stainless steel finish and a pro style handle provides a professional, elegant look for any setting. A temperature alarm offers added security should the temperature go beyond the setpoint, and the optional Sabbath Mode can be used to disable certain electrical features during periods of religious observance for up to 96 hours. The frost-free cooling system keeps the unit running efficiently with little user maintenance, and the internal fan ensures the unit is evenly cooled. Digital controls ensure easy temperature management. Inside, three easy-glide glass shelves that extend 50% provide flexible storage, and the shelving brake system keeps unit contents safe when loading and unloading. Two door racks are ideal for keeping commonly accessed items in easy reach. With its advanced user features and versatile design, the ALFZ51 is an excellent addition to any ADA compliant setting looking for a frost-free freezer with a modern, elegant look. To create a matching set, pair with the AL55 refrigerator.

Product Features

Stainless steel door
Durable construction with an stylish look
White interior
Classic interior allows for easy cleaning and viewing of products
Brake shelving system
Provides added safety when loading and unloading the unit's 3 shelves
Internal fan
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Integrated hinge
Flat stainless steel hinge ensures no added height is needed when installing under a counter
Matching refrigerator
Pair with Summit AL55 to create a matching ADA height set
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
ADA compliant
32” height allows for installation within ADA compliant spaces
Commercially approved
ETL-S listed to NSF-7 commercial standards
Built-in capable
Front-breathing design allows the unit to be built-in under counters
Digital control panel
Makes for easy temperature reading/management with electronic controls inside
Factory installed lock
Keyed lock for secure interior, with two keys included
Adjustable shelving
Three easy-glide shelves that extend 50% give space and flexibility when organizing the interior’s contents
Automatic defrost
Reduced maintenance with auto defrost system

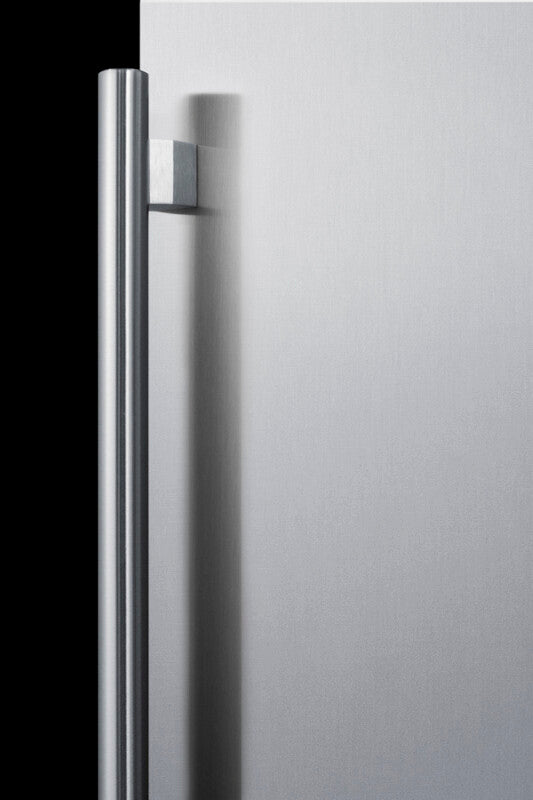

Professional handle
Stainless steel handle adds style to any setting
Temperature alarm
Alarm sounds if temperature goes out of recommended range after 2 hours
Sabbath mode
Optional feature disables alarms, interior light, and displays for up to 96 hours
Reversible door
User-reversible door swing makes it easy to best accommodate your setting
Fully finished black cabinet
Allows unit to be used freestanding
100% CFC free
Environmentally friendly design with no ozone-damaging chemicals
