Product Details for Summit ALFZ37BCSS

Technical Details

Overview

Nominal Height 12.6
Height of Cabinet 12.5
Height to Hinge Cap 12.6
Nominal Width 8.27
Width 8.22
Nominal Depth 9.06
Depth 8.86
Depth with Handle 9.84
Depth with door at 90(degree) 15.85
Capacity 2.68
Defrost Type Manual
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 266.0
Amps 0.6
Voltage/Frequency 115
Weight 105.0
Parts & Labor Warranty 1
Compressor Warranty 5
UPC 761101076591

Freezer

Door Swing RHD
Reversible Yes
Interior Height 9.35
Interior Width 5.71
Interior Depth 6.69
Shelf Type Wire
Shelf Qty 3
Full Door Shelves 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Exterior
Refrigerant Type R600a
Refrigerant Amount 1.83
High Side PSI 180.0
Low Side PSI 80.0
Level Legs 2
Wheels 2
Compressor Step Height 2.26
Compressor Step Width 5.71
Compressor Step Depth 2.36
Temperature Range -13
Sound Level 33.1

Features

  • 32" height allows easy installation under lower ADA compliant counters
  • Front-breathing design lets you make the best use of space by installing your appliance under the counter
  • Digital thermostat offers easy temperature management with a readout in Fahrenheit or Celsius

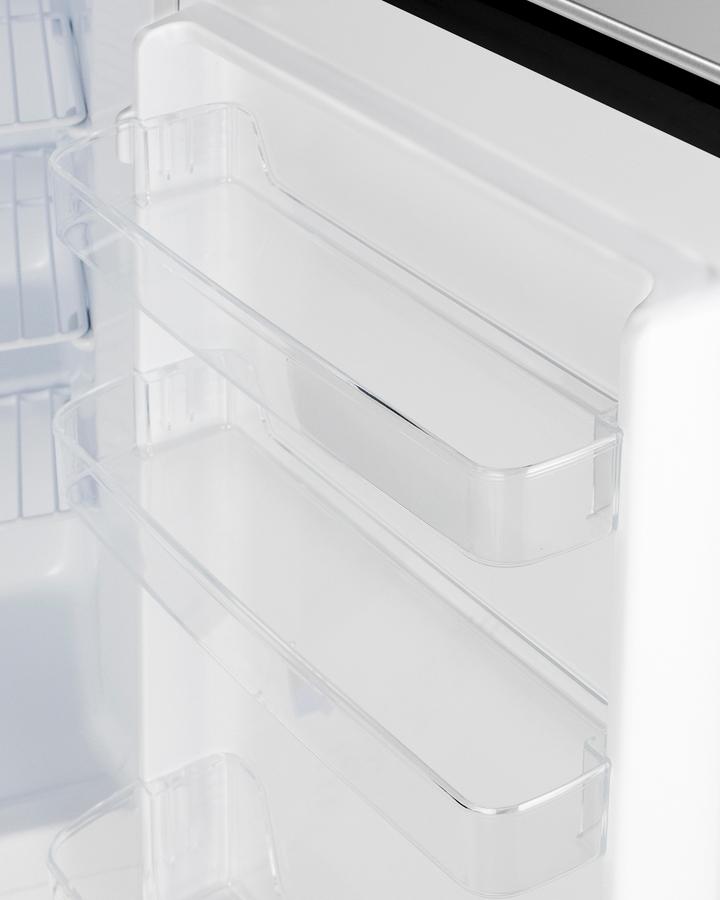

  • Three removable door racks for additional storage of larger items

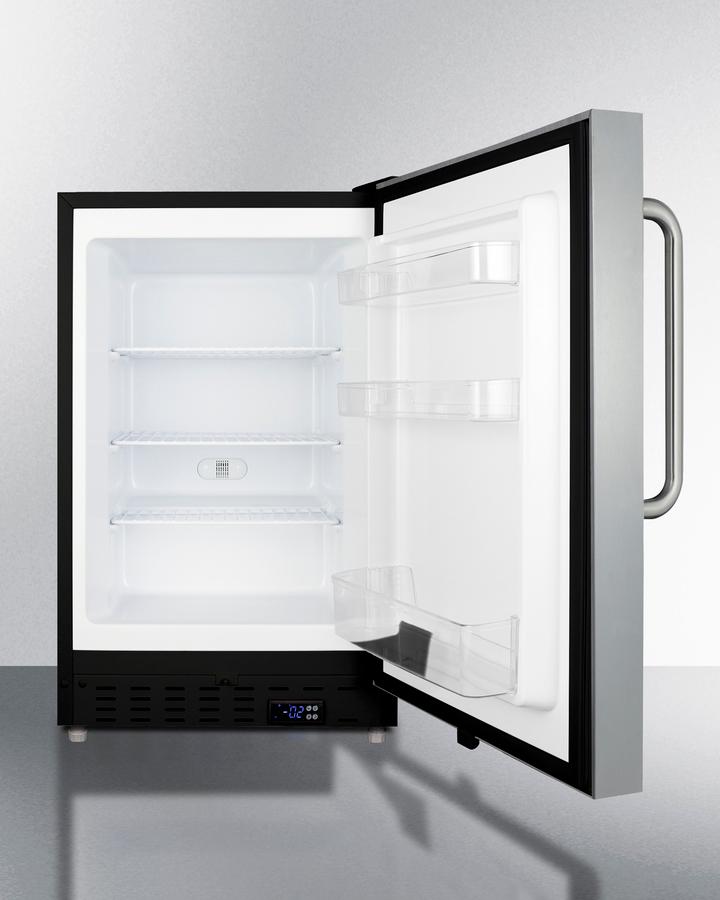

  • Three adjustable wire shelves for optimal storage in 2.68 cu. ft. interior
  • Stainless steel, user-reversible door for added flexibility to best accommodate your setting
  • Curved handle in brushed stainless steel offers a sturdy grip with professional elegance
  • Improved insulation for an efficient performance
  • User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
  • Audible alarm will sound if the door is left ajar for over a minute
  • Space-saving design that offers easier cleanability
  • Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
  • More temperature stability with an energy efficient manual defrost system

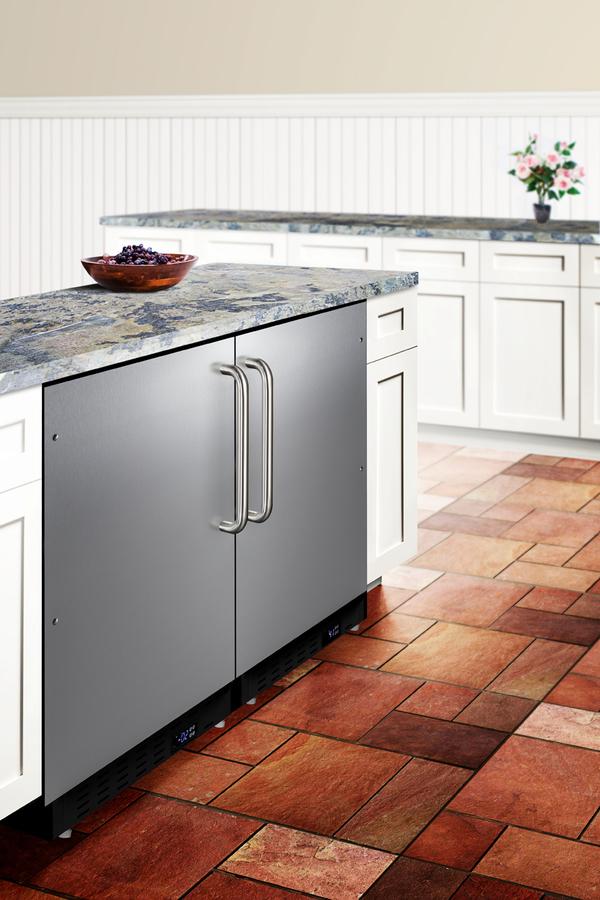

  • This unit can be paired with the ALR47BCSS all-refrigerator for a complete set
  • Allows the unit to be used freestanding
  • Environmentally friendly design without ozone-damaging chemicals
  • Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations



Description

Summit Appliance offers a quality selection of 21" wide built-in undercounter all-freezers designed for installation under lower ADA compliant counters, with advanced features for user convenience. The ALFZ37BCSS is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished stainless steel cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The stainless steel user-reversible door is 3" thick for efficient insulation, with a curved towel bar handle included for added convenience. This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius. Inside, the ALFZ37BCSS features an all-white interior for easy cleaning and viewing of contents. Static manual defrost operation provides efficient cooling inside the 2.68 cu.ft. interior. Three adjustable wire shelves offer optimal storage options for large and small items, while three removable door racks accommodate additional storage as needed. The user-set high and low temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar over one minute for added peace-of-mind. These alarms can be disabled depending on your needs. Sized at just 21" wide, the ALFZ37BCSS is the perfect addition for space-challenged spaces seeking dependable freezer options in a durable design. For a complete set, pair this unit with the matching ALR47BCSS all-refrigerator. Additional choices are available with a black cabinet and panel-ready exterior finishes.
