Summit ADFD2D24PNR 24" Wide 2-Drawer All-Freezer, ADA Compliant Panel-Ready
Sale price
$2,276.97
Regular price
$2,754.97
Save
$478.00
/ 17% OFF
Quickship
Active Rebates
Extended Protection
?
Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.
Enjoy added peace of mind long after the original warranty expires.
This Protection Plan includes:
- Full parts and labor coverage during the whole period of the extension plan.
- Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty
- Food loss protection
- 24/7 toll-free number for support
-
$49.99
-
$83.99
-
$131.99
-
$195.99
-
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Sale price
$2,276.97
Regular price
$2,754.97
Save
$478.00
/ 17% OFF
Product Details for Summit ADFD2D24PNR
Technical Details
Overview freezer

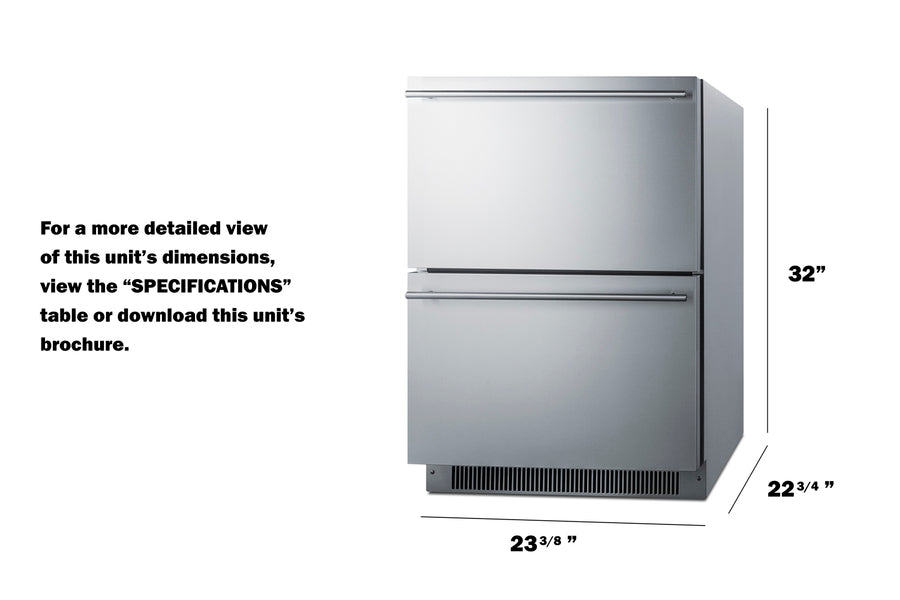

| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.75" (58 cm) |
| Depth with Handle | 24.63" (63 cm) |
| Depth with door at 90° | 37.88" (96 cm) |
| Capacity | 3.5 cu.ft. (99 L) |
| Defrost Type | Frost-Free |
| Door | Panel-Ready |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 355.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 95.0 lbs. (43 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101089027 |
| Door Swing | Drawer |
| Height Adjustable | Yes |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.79 oz. |
| High Side PSI | 320.0 |
| Low Side PSI | 120.0 |
| Level Legs | 4 |
| Interior Height - Drawer 1 | 8.0" (20 cm) |
| Interior Width - Drawer 1 | 15.75" (40 cm) |
| Interior Depth - Drawer 1 | 14.0" (36 cm) |
| Interior Height - Drawer 2 | 8.25" (21 cm) |
| Interior Width - Drawer 2 | 15.75" (40 cm) |
| Interior Depth - Drawer 2 | 14.0" (36 cm) |
| Compressor Step Height | 4.5" (11 cm) |
| Compressor Step Width | 15.75" (40 cm) |
| Compressor Step Depth | 4.13" (10 cm) |
| Temperature Range | -11°F to +10°F(-24°C to -12°C) |
Description
Summit manufactures an extensive selection of drawer refrigeration for versatile installation indoor or outdoor kitchen spaces, with customizable designs that allow easy integration into any cabinet style. The ADFD2D24PNR is a two-drawer all-freezer sized at 32 inches high for installation under ADA compliant counters. We include an extra stainless steel kickplate and leveling legs to raise the height to 34 1/2 inches to suit more standard applications. The front-breathing design and finished cabinet allow for built-in or freestanding use. The drawers can be customized with overlay panels to match or accent existing cabinetry design, while the stainless steel kickplate and stylish handles complete the look (recommended panel dimensions: 23.34" W x 13.93" D at 3/4" thick). Complete 304 stainless steel construction inside and out offers durability in a professional look. Soft close glides deliver added safety by preventing the drawers from slamming. Frost-free operation ensures minimum user maintenance inside the 3.5 cu ft. interior. Two adjustable dividers allow for flexibility in storage, while the removable basket provides additional storage options. Additionally, removable drawers provide versatility and easy cleaning of the unit’s interior. The LED light makes it easy to view stored contents when loading or unloading each drawer. Additional features ensure efficiency and ease of use. These include temperature and open drawer alarms. The digital thermostat and display make it easy to manage the temperature. A temperature memory function helps to recover temperature settings in the event of a power loss, while Sabbath Mode disables certain electrical features for up to 96 hours during periods of religious observance. The ADFD2D24PNR is perfect for use in home or commercial settings. This unit is ETL-S listed to NSF-7 standards, and its ENERGY STAR certification assures efficient and environmentally friendly operation. For a matching refrigerator, see model ADRD24PNR.
Product Features
-
2-Drawer All-Freezer
24" wide 3.5 cu.ft. undercounter frost-free freezer with two gliding drawers -
ENERGY STAR certified
Ensures unit runs efficiently with an environmentally friendly performance -

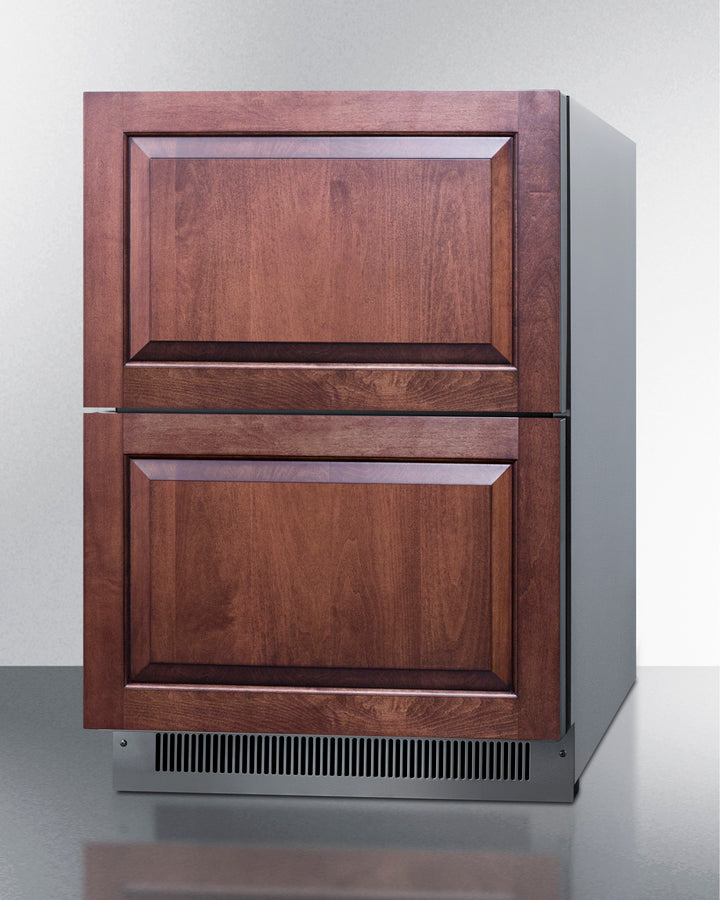

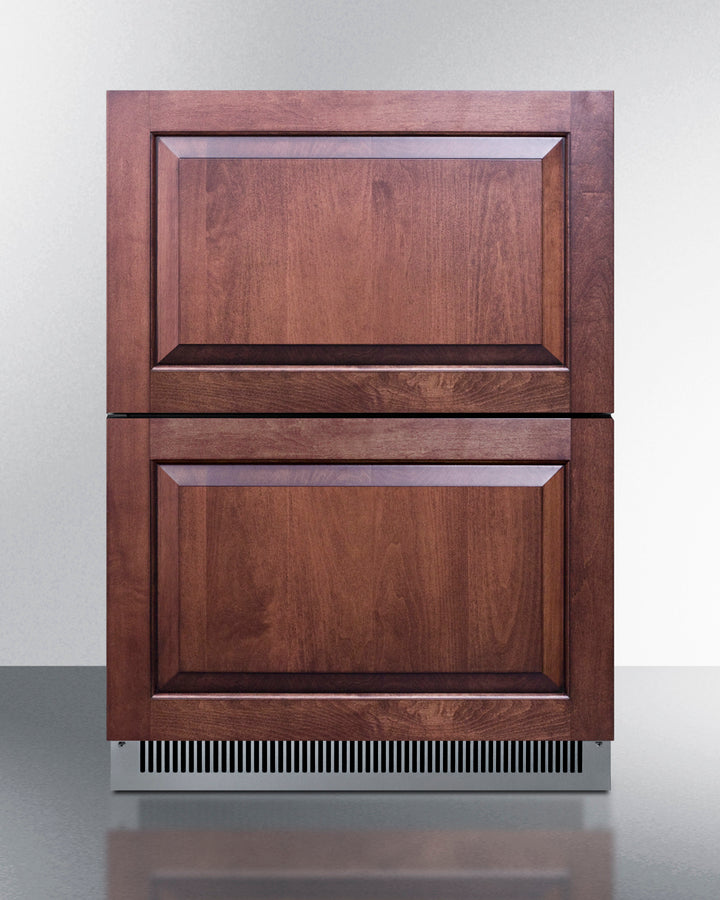

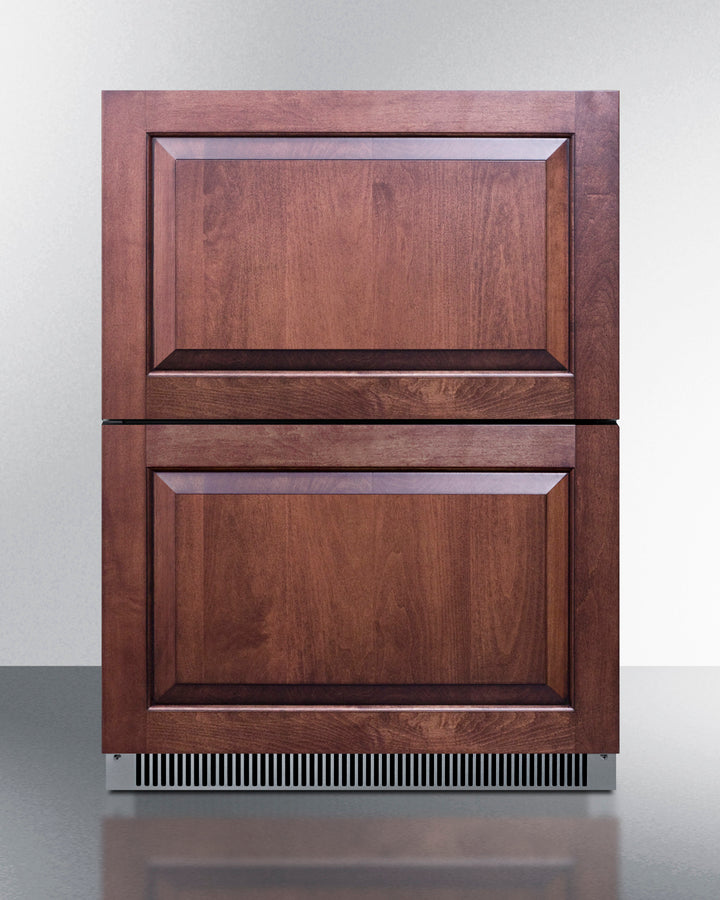

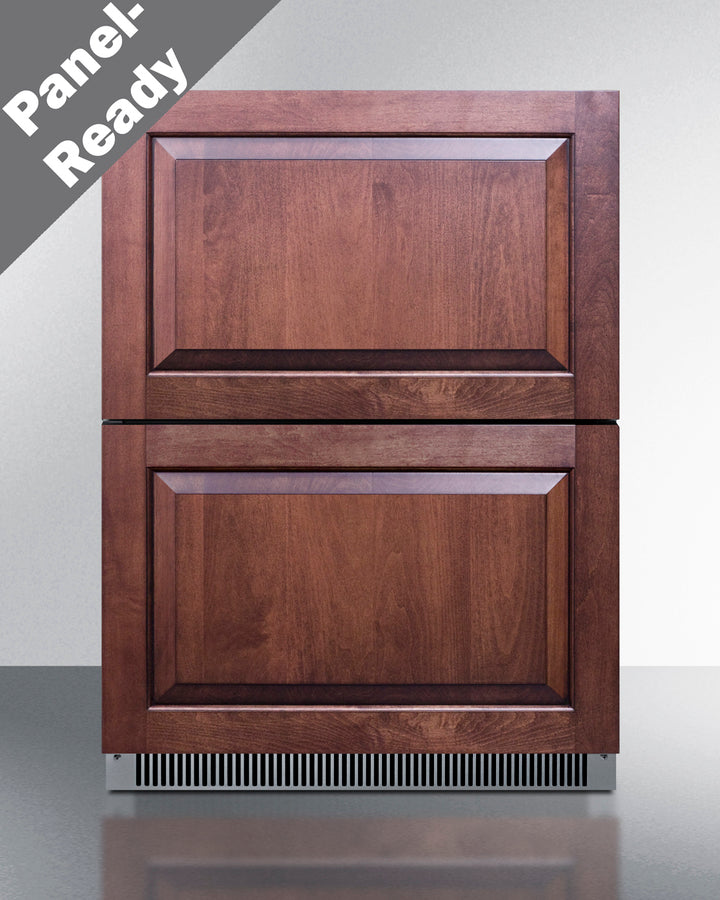

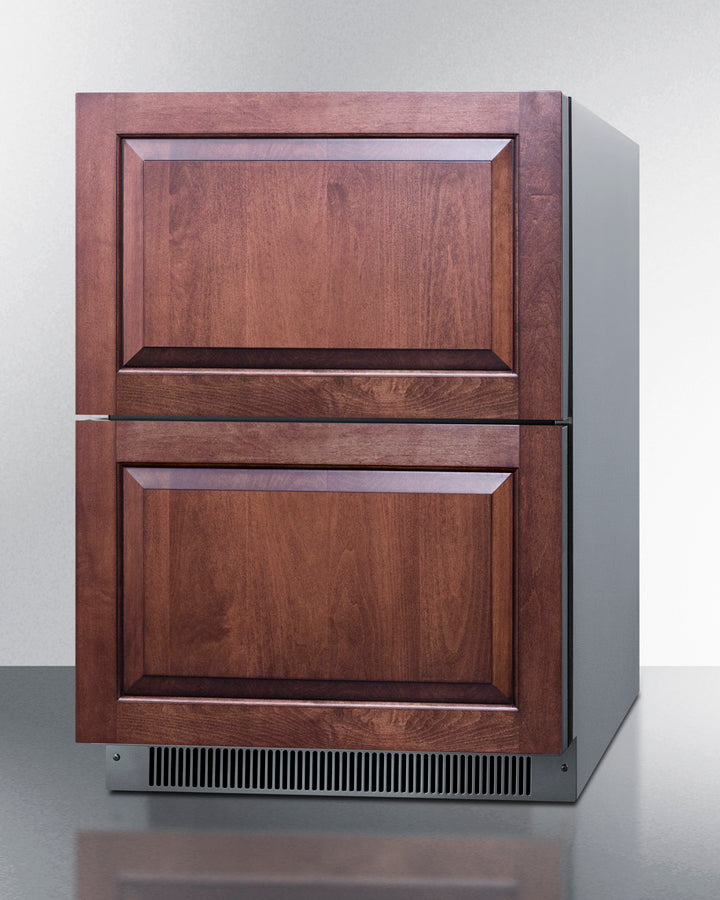

Panel-ready drawer fronts
Drawers can be customized with overlay panels to match or accent existing cabinetry (panel dimensions: 23.34" W x 13.93" D at 3/4" thick) -

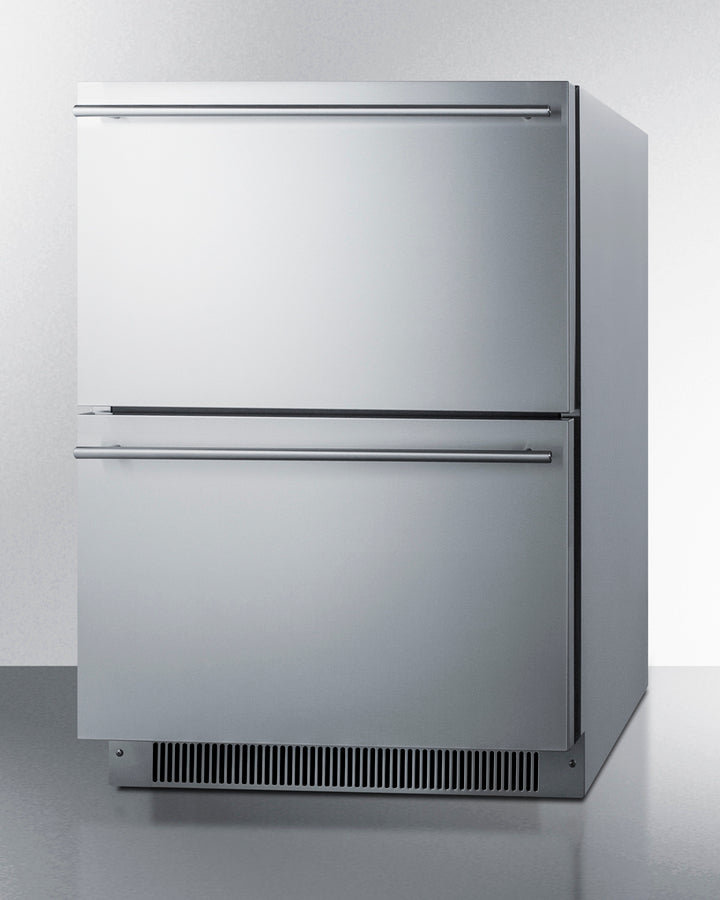

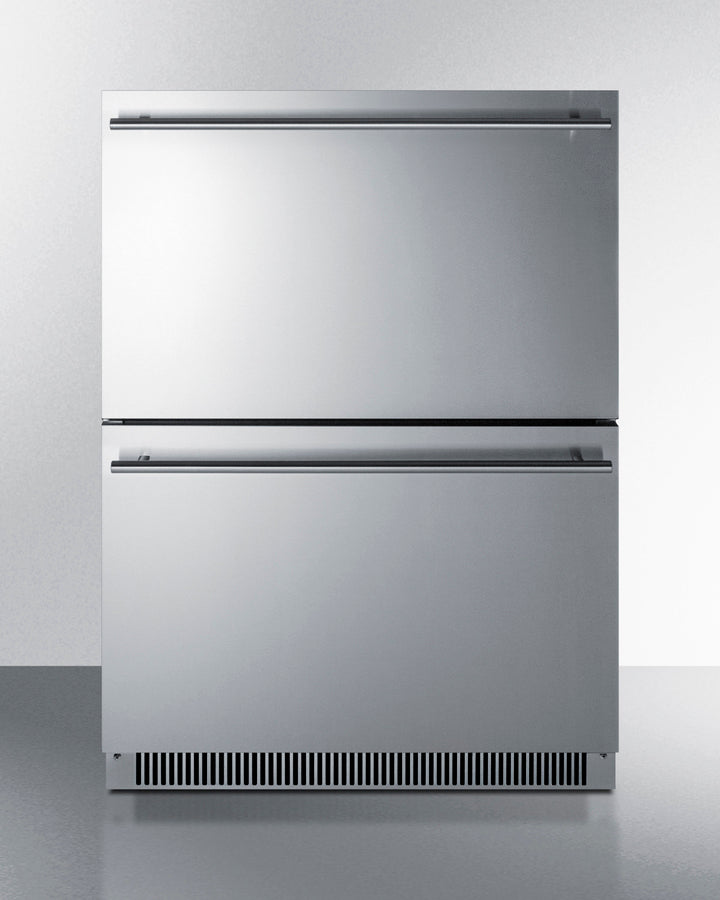

Stainless steel finish
Fully finished drawer fronts also allows you to choose a traditional stainless steel front if not installing overlay panels -
Indoor/Outdoor compatible
Durable, weatherproof construction designed to hold up to the elements -
Commercially approved
ETL-S listed to NSF-7 standards for commercial use -
ADA compliant
32” height allows for installation within ADA-compliant spaces -
Stainless steel construction
Complete 304 grade stainless steel construction provides durability while maintaining an elegant look -
Adjustable height
Unit can be raised to 34.5", with a taller kickplate included for a seamless look -
Built-in capable
Front-breathing design allows the unit to be built-in under counters -
Professional handles
Stainless steel handles add style to any setting -
Frost-free
No-frost operation for minimal user maintenance -
Interior lighting
Soft LED lighting makes for easy viewing of each drawer’s contents -
Digital thermostat
Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit -
Digital display
Large display allows for easy readability and unit control -

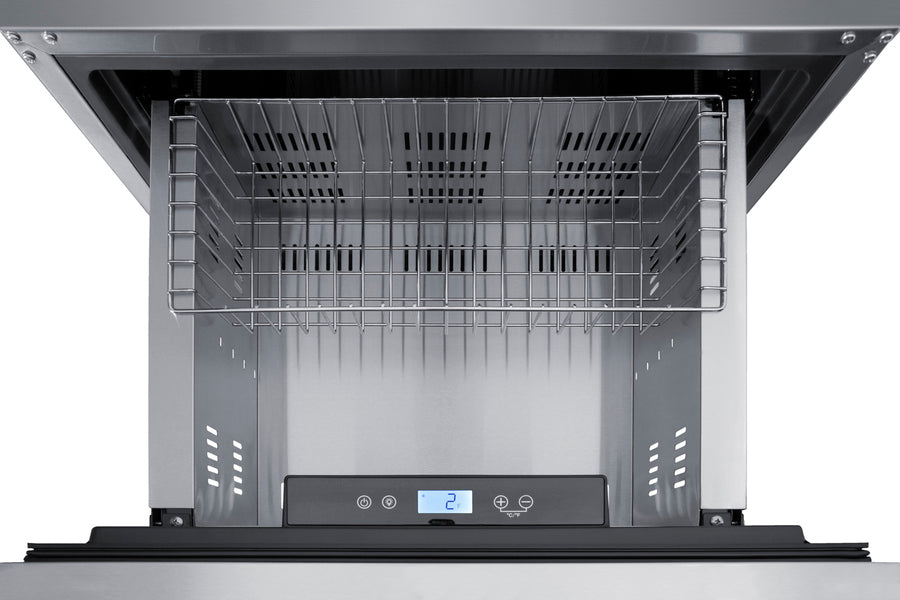

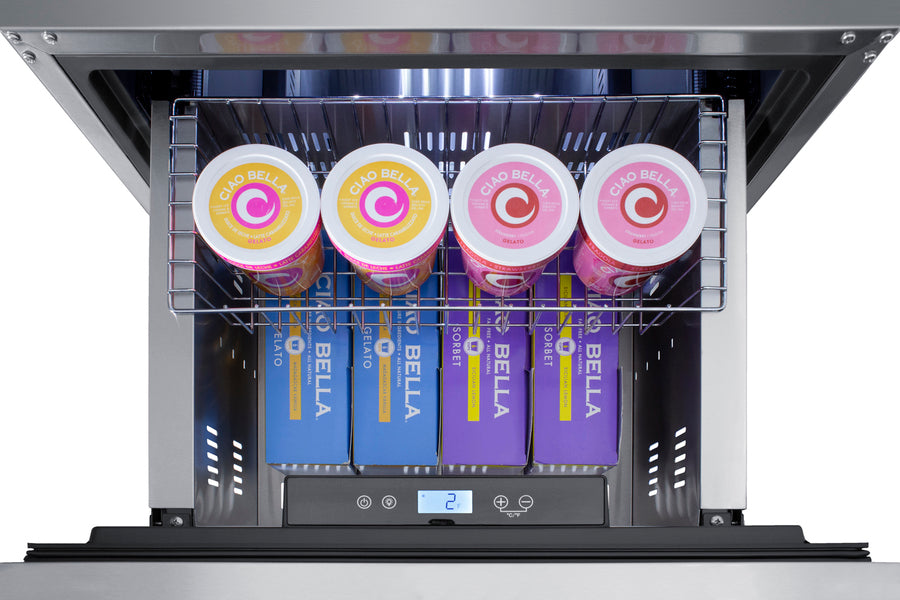

Sliding basket
Removable basket included for additional storage convenience -

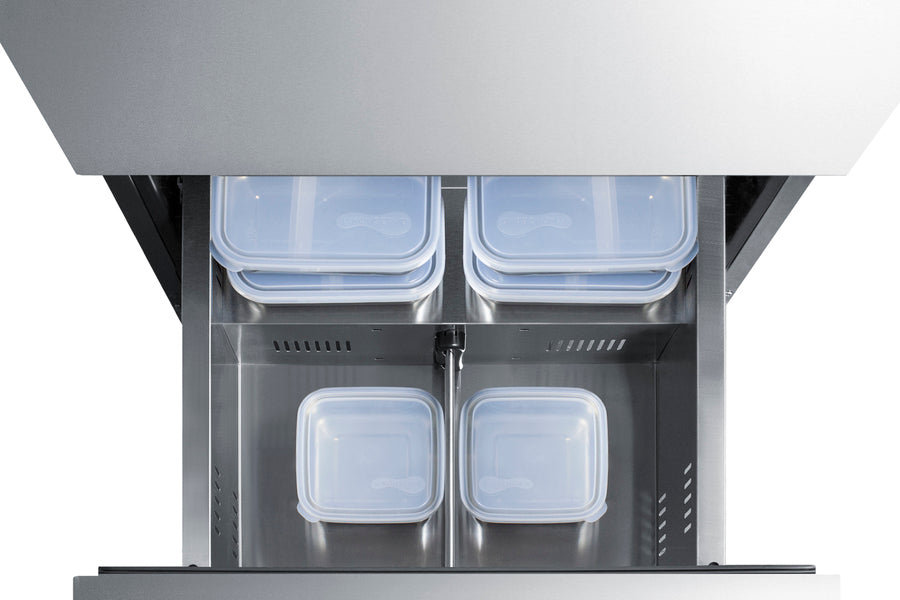

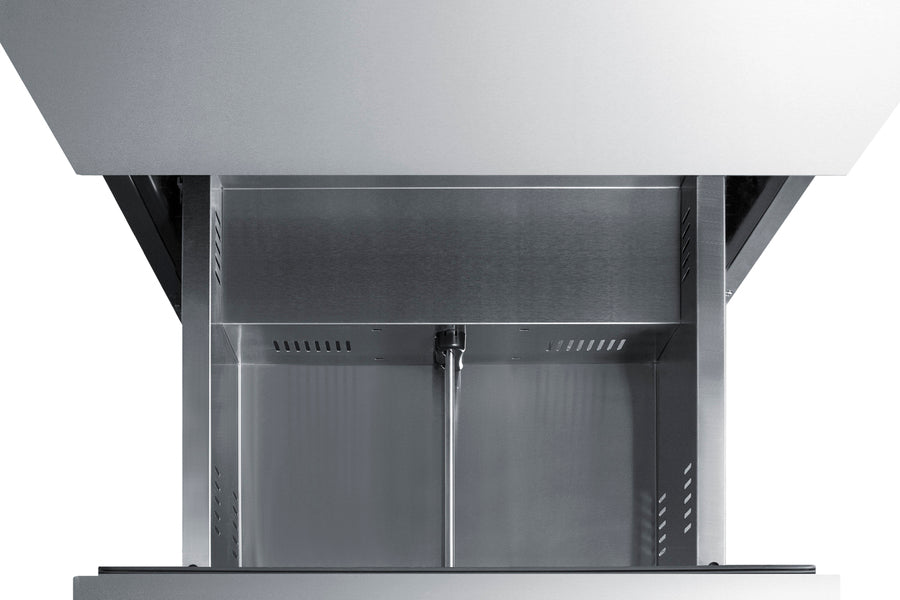

Drawer dividers
Two adjustable dividers provide flexibility when organizing the interior -
Removable drawers
Allows for easy cleaning and organization within the interior of the unit -
Temperature alarm
Alarm alerts you if the unit’s temperature goes beyond recommended high and low temperature ranges -
Door alarm
Audible alarm sounds if the drawers are left open for more than five minutes -
Sabbath mode
Optional feature disables alarms, interior light, and displays for up to 96 hours -
Right-angle plug
Flat plug allows unit to sit flush against the wall -
Sealed back
Space-saving design with no exposed coils for easier cleanability -
Fan-forced cooling
Provides for efficient, even cooling of the entire unit -
Temperature memory
Unit will retain temperature settings after losing power -
Anti-slam drawers
Soft-close glides prevent drawers from slamming shut for additional durability and safety -
Anti-tip bracket
Bracket (included) helps prevent tipping for added safety -
Fully finished cabinet
Allows the unit to be used freestanding -
Matching refrigerator
Pair with Summit's ADRD24PNR to create a side-by-side set -
100% CFC free
Environmentally friendly design with no ozone-damaging chemicals -
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
