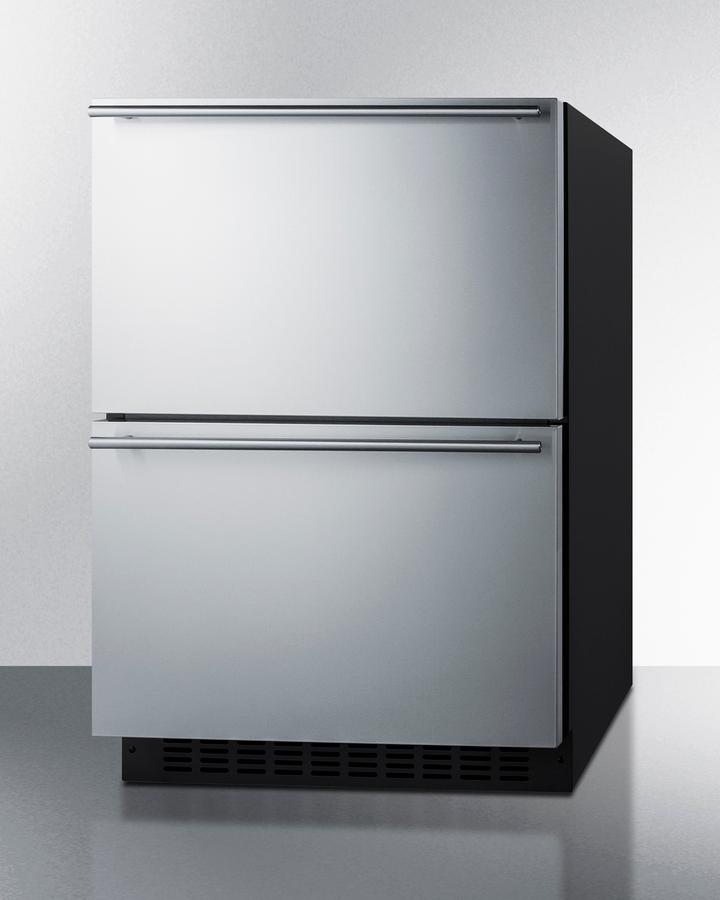

Summit ADFD243PNR 24" Wide 2-Drawer All-Freezer (Panels Not Included) Panel-Ready

24" Wide 2-Drawer All-Freezer (Panels Not Included)
24" Wide 2-Drawer All-Freezer (Panels Not Included)
24" Wide 2-Drawer All-Freezer (Panels Not Included)
24" Wide 2-Drawer All-Freezer (Panels Not Included)
24" Wide 2-Drawer All-Freezer (Panels Not Included)
24" Wide 2-Drawer All-Freezer (Panels Not Included)
24" Wide 2-Drawer All-Freezer (Panels Not Included)
24" Wide 2-Drawer All-Freezer (Panels Not Included)
24" Wide 2-Drawer All-Freezer (Panels Not Included)
24" Wide 2-Drawer All-Freezer (Panels Not Included)
24" Wide 2-Drawer All-Freezer (Panels Not Included)
24" Wide 2-Drawer All-Freezer (Panels Not Included)
24" Wide 2-Drawer All-Freezer (Panels Not Included)
24" Wide 2-Drawer All-Freezer (Panels Not Included)
24" Wide 2-Drawer All-Freezer (Panels Not Included)
24" Wide 2-Drawer All-Freezer (Panels Not Included)
24" Wide 2-Drawer All-Freezer (Panels Not Included)
24" Wide 2-Drawer All-Freezer (Panels Not Included)
24" Wide 2-Drawer All-Freezer (Panels Not Included)
24" Wide 2-Drawer All-Freezer (Panels Not Included)
24" Wide 2-Drawer All-Freezer (Panels Not Included)
24" Wide 2-Drawer All-Freezer (Panels Not Included)
24" Wide 2-Drawer All-Freezer (Panels Not Included)
24" Wide 2-Drawer All-Freezer (Panels Not Included)
24" Wide 2-Drawer All-Freezer (Panels Not Included)
24" Wide 2-Drawer All-Freezer (Panels Not Included)

Quick Specification More details

  • Width:
    23.38" (59 cm)
  • Depth:
    22.5" (57 cm)
  • Type:
    Upright Freezers

About this product

  • 2-Drawer All-Freezer
  • Panel-ready drawer fronts
  • ADA compliant design
  • Stainless steel finish
Summer Sale
Clearance

SKU: ADFD243PNR | UPC: 761101088204

Summit ADFD243PNR 24" Wide 2-Drawer All-Freezer (Panels Not Included) Panel-Ready

$2,273.11 $2,754.97 Save $481.86 / 17% OFF

Out of stock

Active Rebates

KT Appliance

We’ll confirm fit, specs & delivery before you order.

  •  Chat  • Email  • Call Us

Quick Specification More details

  • Width:
    23.38" (59 cm)
  • Depth:
    22.5" (57 cm)
  • Type:
    Upright Freezers

About this product

  • 2-Drawer All-Freezer
  • Panel-ready drawer fronts
  • ADA compliant design
  • Stainless steel finish
  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Reviews
$2,273.11 $2,754.97 Save $481.86 / 17% OFF

Product Details for Summit ADFD243PNR

Technical Details

Overview freezer
Nominal Height 32.0" (81 cm)
Height of Cabinet 31.88" (81 cm)
Nominal Width 24.0" (61 cm)
Width 23.38" (59 cm)
Nominal Depth 23.0" (58 cm)
Depth 22.5" (57 cm)
Depth with Handle 23.88" (61 cm)
Depth with door at 90° 34.25" (87 cm)
Capacity 3.7 cu.ft. (105 L)
Defrost Type Frost-Free
Door Panel-Ready
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 395.0kWh/year
Amps 1.5
Voltage/Frequency 115 V AC/60 Hz
Weight 106.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101088204
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.31 oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs 4
Interior Drawers Yes
Drawers Qty 2
Interior Height - Drawer 1 8.0" (20 cm)
Interior Width - Drawer 1 17.0" (43 cm)
Interior Depth - Drawer 1 14.5" (37 cm)
Interior Height - Drawer 2 8.0" (20 cm)
Interior Width - Drawer 2 17.0" (43 cm)
Interior Depth - Drawer 2 14.5" (37 cm)
Compressor Step Height 4.0" (10 cm)
Compressor Step Width 17.0" (43 cm)
Compressor Step Depth 3.5" (9 cm)
Temperature Range -11°F to 11°F
Sabbath Mode Yes
Sound Level 33.8 dB

Description

Summit manufactures an extensive selection of drawer refrigeration for versatile installation indoor or outdoor kitchen spaces, with customizable designs that allow easy integration into any cabinet style. Sized at just under 24" wide and 32" high, model ADFD243PNR is a 2-drawer all-freezer perfectly designed for built-in or freestanding installation in ADA compliant settings with lower counter height. The drawer front are specially designed to accept user-provided overlay panels, allowing you to create a custom look that blends into existing cabinetry (panel dimensions: 23.43" W x 14.1" H at 3/4" thick). The drawers are fully finished in stainless steel. We include two sleek handles for optional use. This unit comes with a jet black cabinet and sealed back to protect all components from the elements. It can be used in indoor or outdoor spaces. Inside, the ADFD243PNR has a generous 3.7 cu.ft. capacity to accommodate your storage needs. Frost-free operation ensures minimal user maintenance, with fan-forced cooling to evenly distribute the temperature. A digital thermostat, located atop the upper drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two adjustable, removable dividers allow you to separate the drawer compartments into two or four zones to easily accommodate a variety of sizes. A full-width sliding removable chrome basket offers added storage convenience, while white LED lighting makes it easy to view stored contents. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, a temporary memory function to recover all settings in the event of power loss, and sabbath mode to disable certain electrical features during periods of religious observance. The ADFD243PNR is ETL-S listed to NSF-7 commercial settings and also meets all residential standards for home use. We also offer a matching refrigerator drawer (model ADRD241PNR) and this same unit as a 2-zone refrigerator-freezer drawer (model ADRF244PNR). Browse the full Summit line to explore our extensive series of 15", 18", and 24" wide refrigerator drawers.


Product Features

  • 2-Drawer All-Freezer
    24" wide 3.7 cu.ft. freezer with two gliding drawers

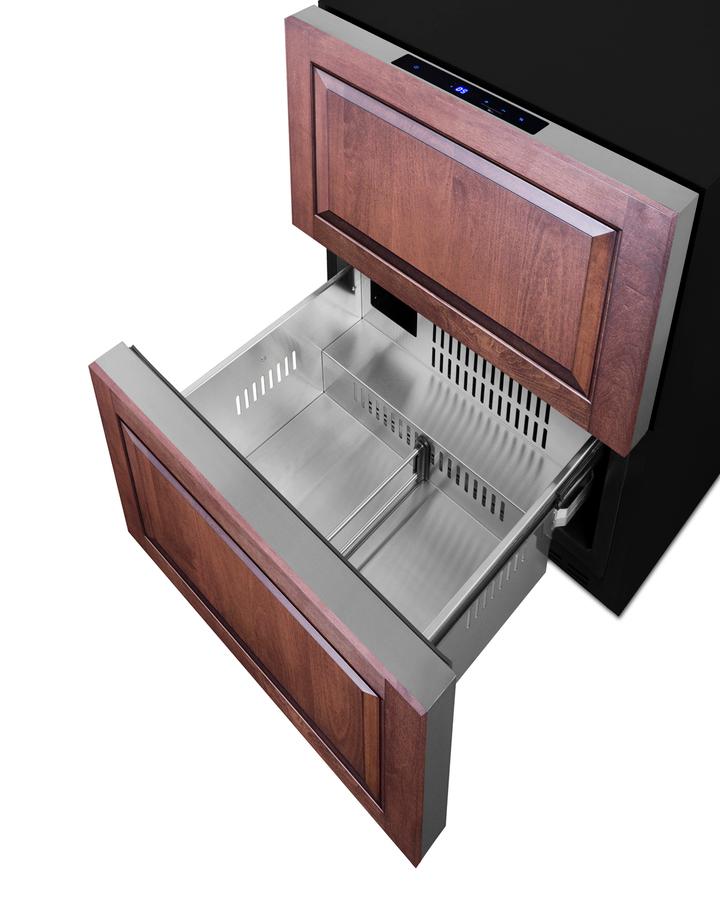

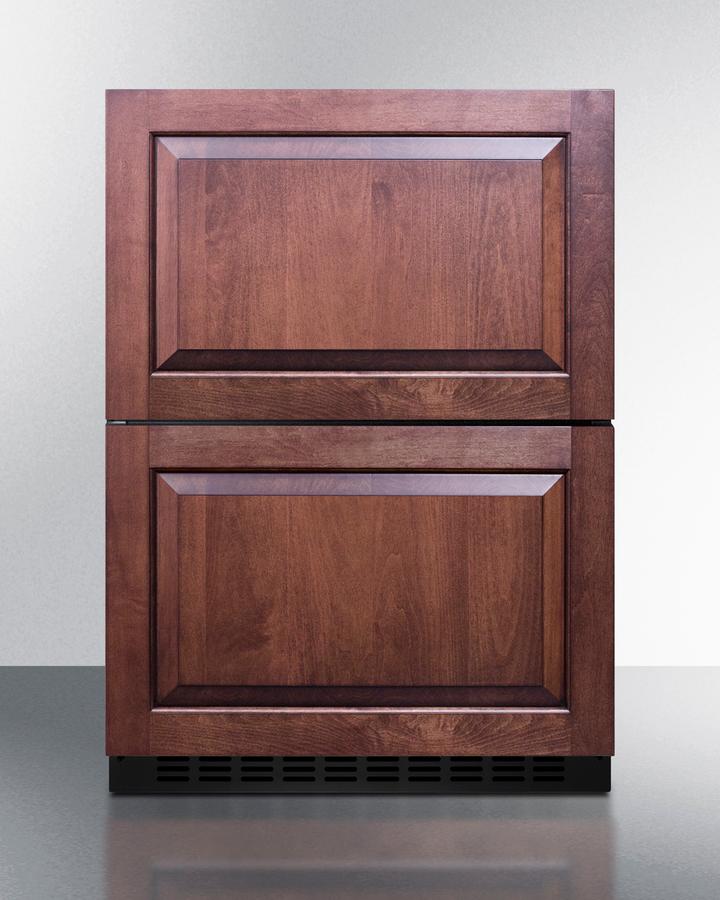

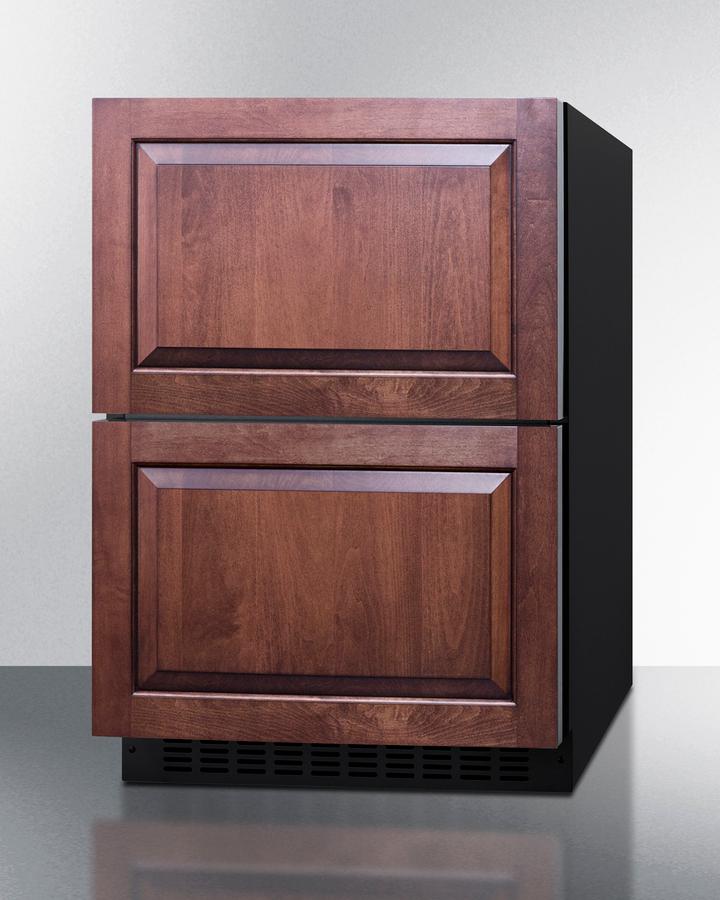

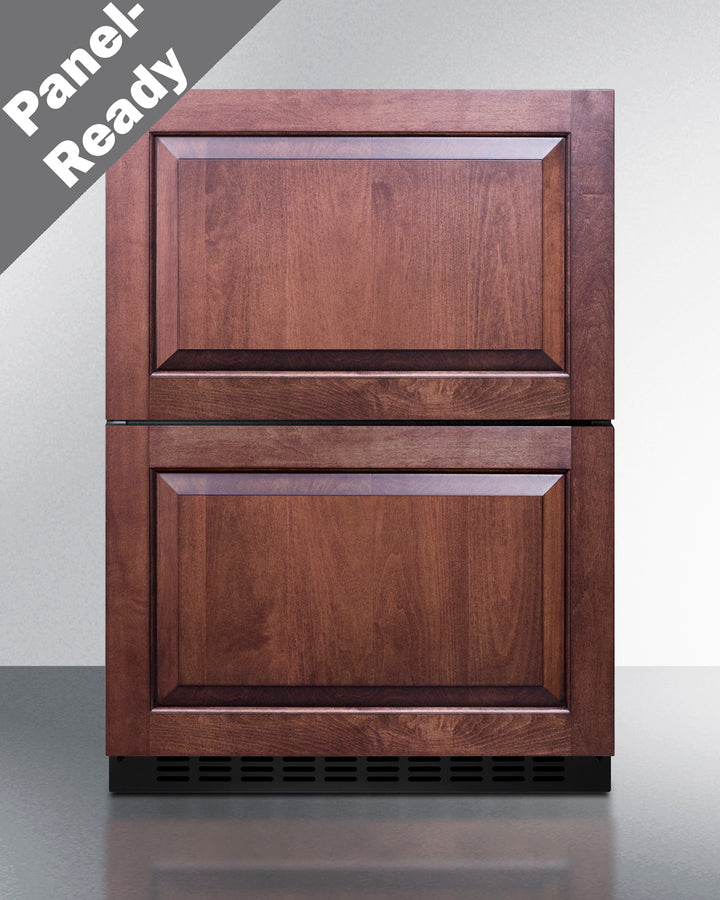

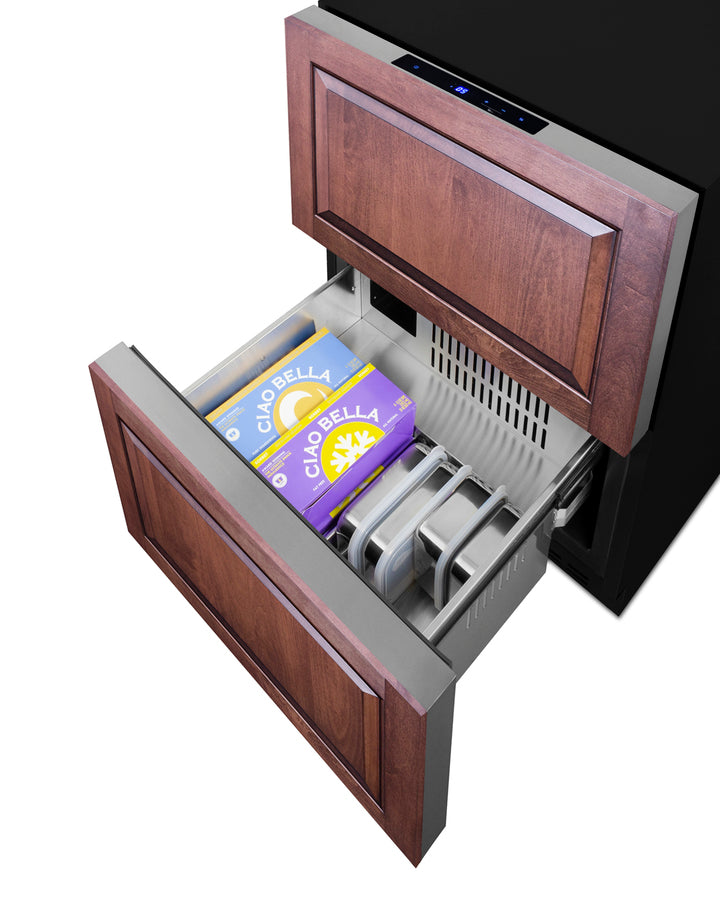

  • Panel-ready drawer fronts
    Drawers accept overlay panels (size: 23.43" x 14.1" at 3/4" thick) to let you seamlessly blend the refrigerator into cabinetry design
  • ADA compliant design
    Sized just under 32" high to allow installation under lower ADA compliant counters

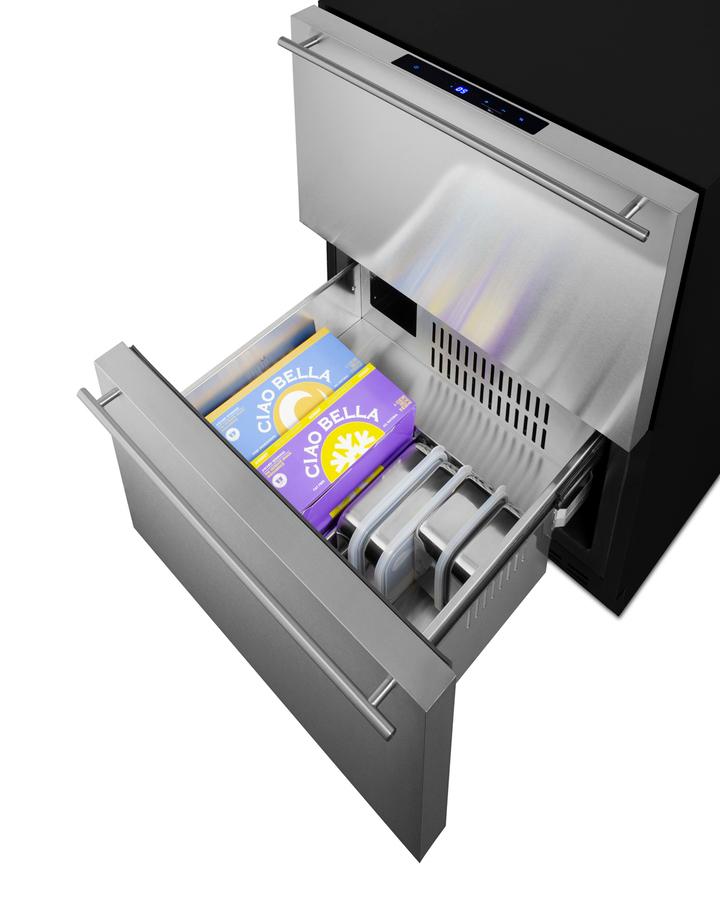

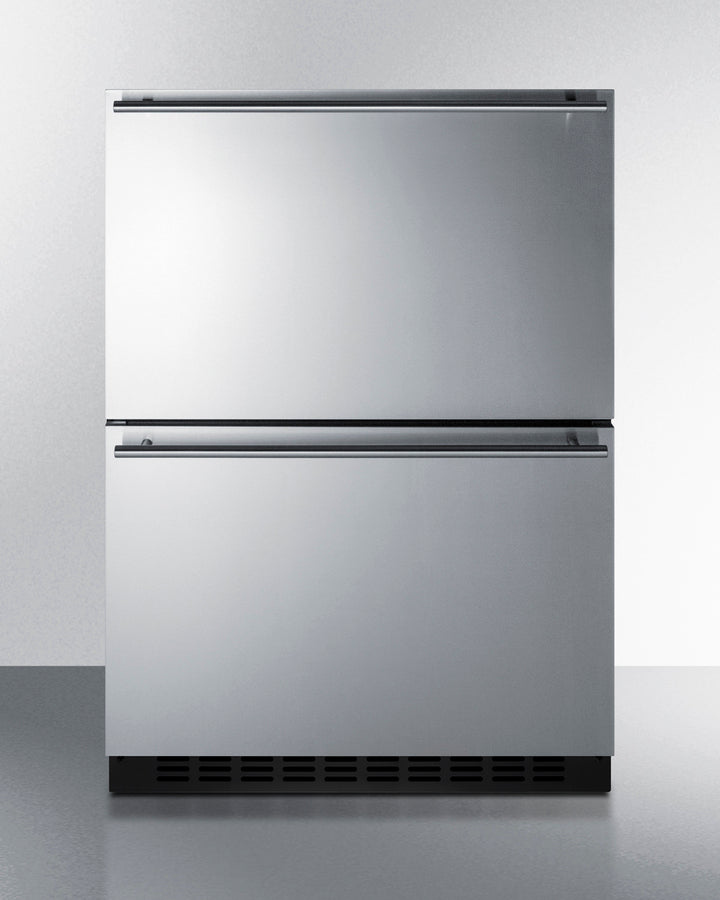

  • Stainless steel finish
    Fully finished drawer fronts also allows you to choose a traditional stainless steel front if not installing overlay panels
  • Built-in capable
    Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 24" wide openings
  • Indoor/Outdoor compatible
    Constructed and approved for outdoor installation (as well as use indoors) with a fully sealed cooling system and weatherproof exterior
  • Stainless steel drawers
    Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for weatherproof durability and elegant style
  • Professional handles
    Sleek stainless steel handles add an elegant touch to any setting
  • Frost-free operation
    No-frost operation for minimum user maintenance

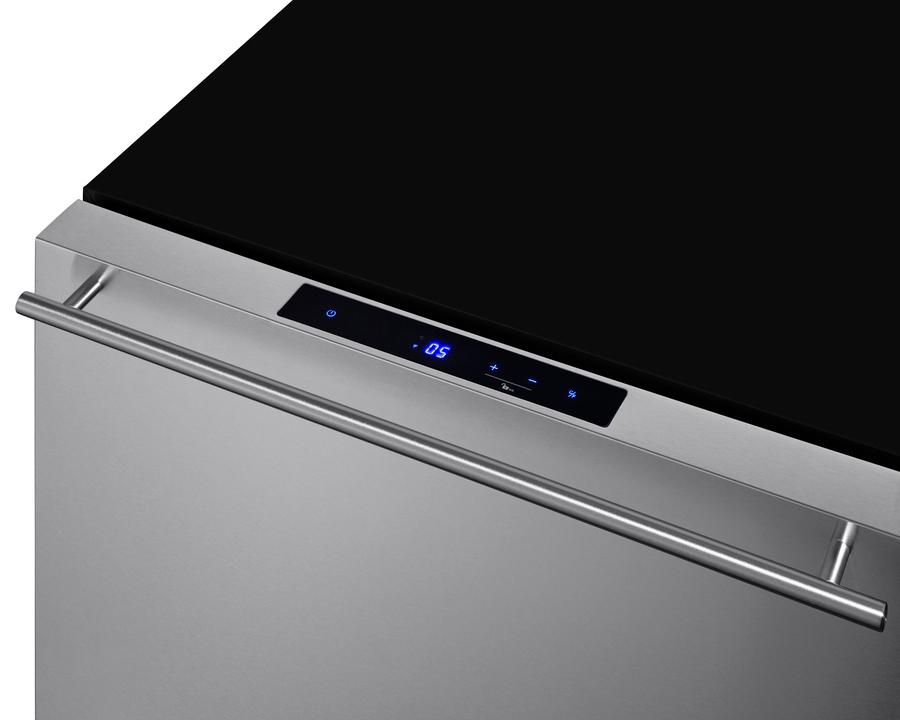

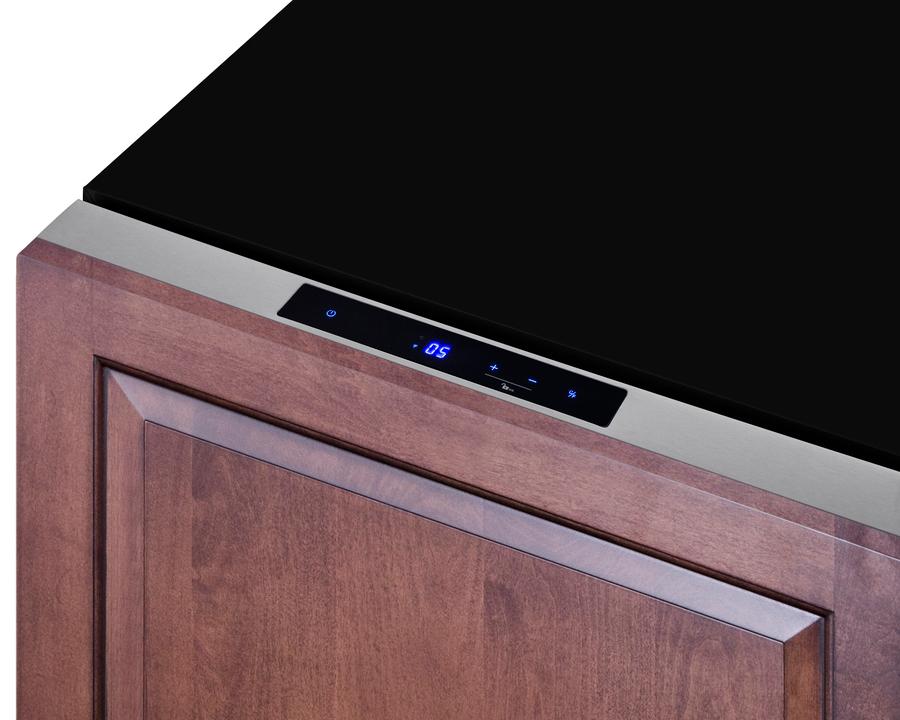

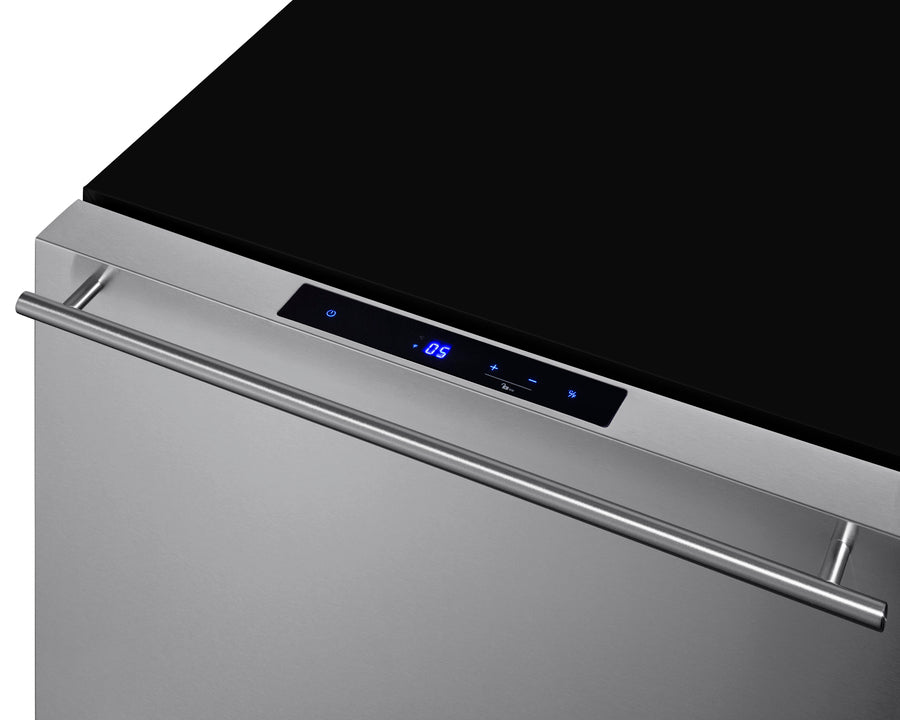

  • Digital thermostat
    Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button
  • LED lighting
    Elegant LED lighting in a gentle white hue illuminates the top drawer for an easy view of the interior
  • Internal fan
    Fan-forced cooling ensures even temperature distribution from top to bottom

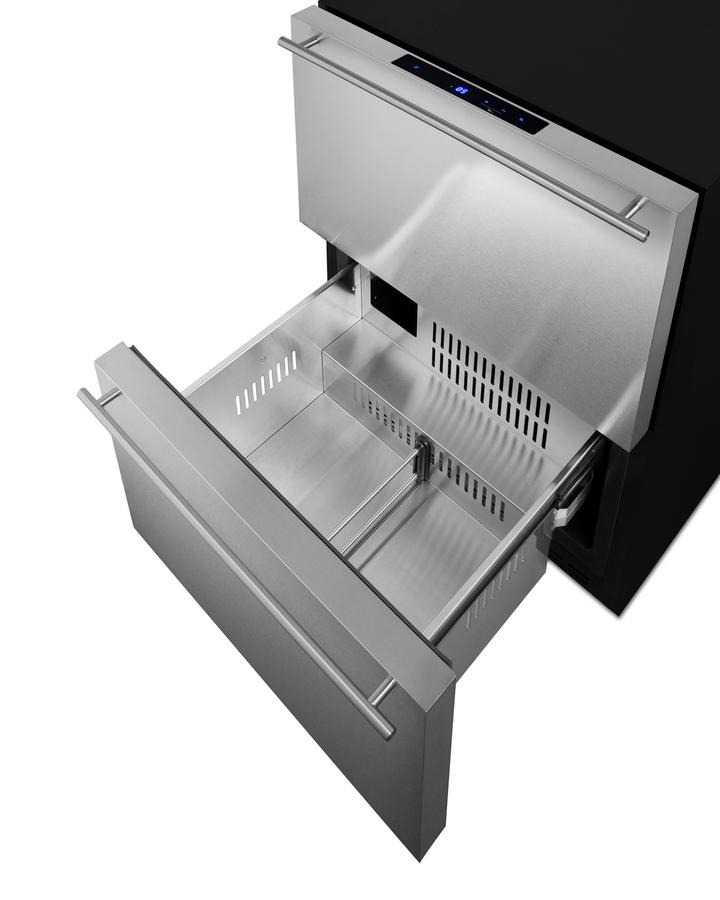

  • Drawer dividers
    Two adjustable dividers make it easier to organize the drawer interiors

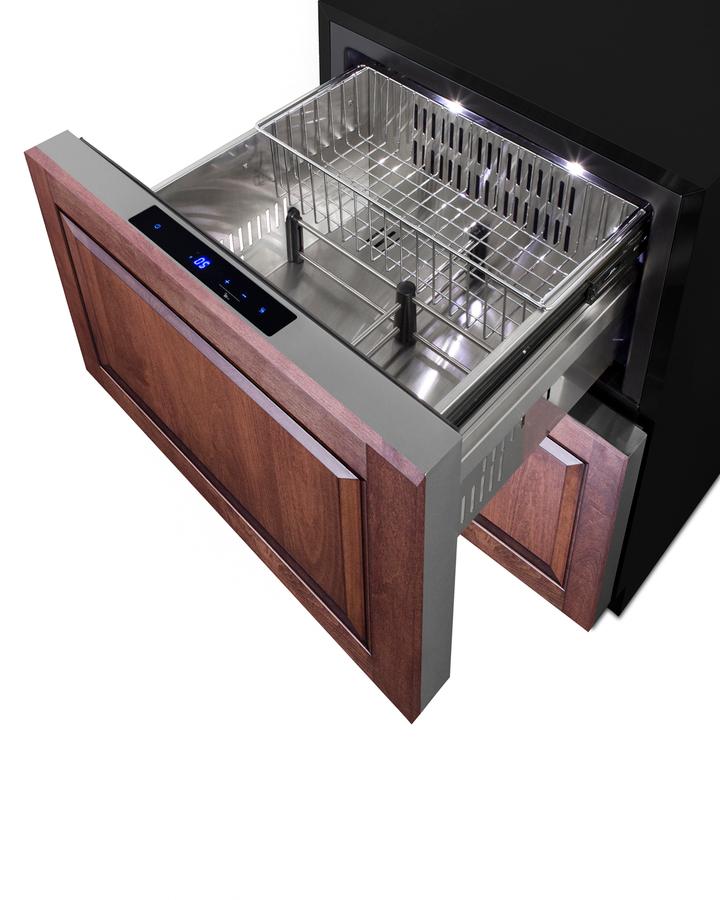

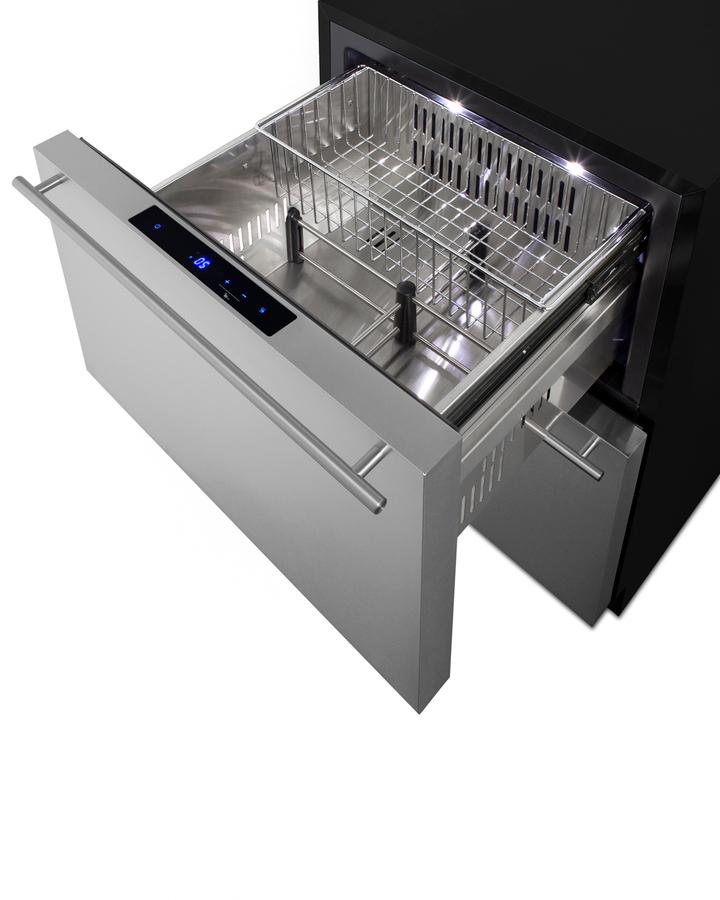

  • Sliding basket
    Removable chrome basket included for added storage convenience
  • Temperature alarm
    High temperature alarm sounds if the unit's interior goes out of the recommended range
  • Open drawer alarm
    Audible alarm will sound if either drawer is left open longer than one minute
  • Sabbath Mode
    Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
  • SuperFreezer function
    Allows you to lower the temperature and continuously run the compressor for short periods of time, ideal for recently loaded groceries
  • Child lock
    Disables digital controls after two minutes of activity for added safety
  • Temperature Memory Function
    Unit will restore the most recent temperature settings after losing power
  • Right angle plug
    Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
  • Sealed back
    Space-saving design with no exposed coils for easier cleanability and added protection from the elements
  • Fully finished black exterior cabinet
    Allows the freezer to be used as a freestanding model
  • Anti-tip bracket
    Included and recommended for user-installation to reduce the risk of tipping
  • Commercially approved
    ETL-S listed to NSF-7 standards to allow use in commercial establishments
  • Matching refrigerator
    Pair with the ADRD241 refrigerator to create a complete 2-drawer undercounter set
  • 100% CFC free
    Environmentally friendly design without ozone-damaging chemicals
  • CARB Compliant
    Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
