SKU: ACF48WADA | UPC: 761101051727

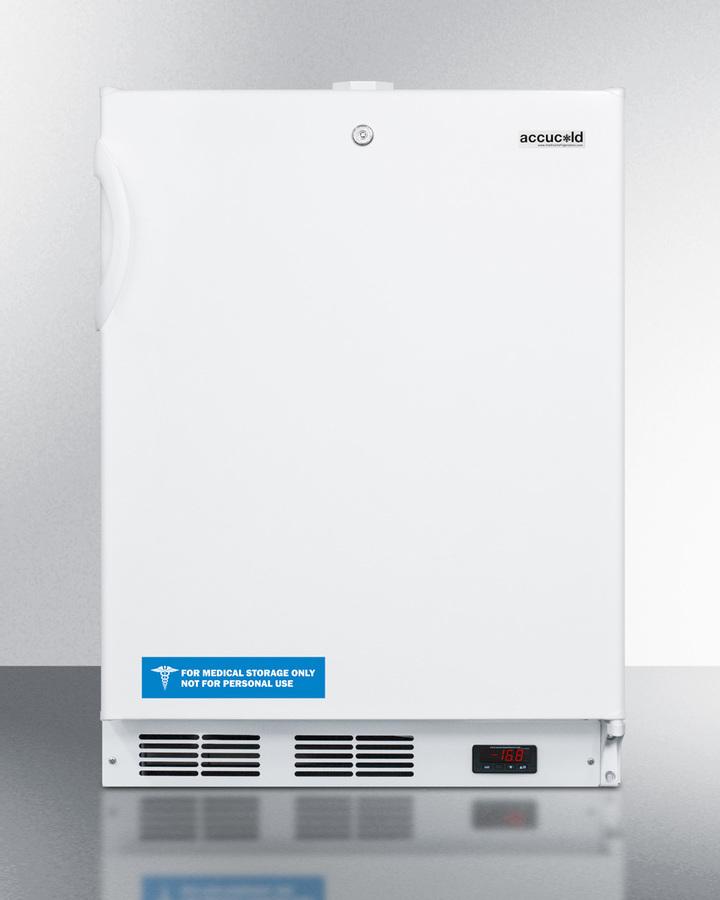

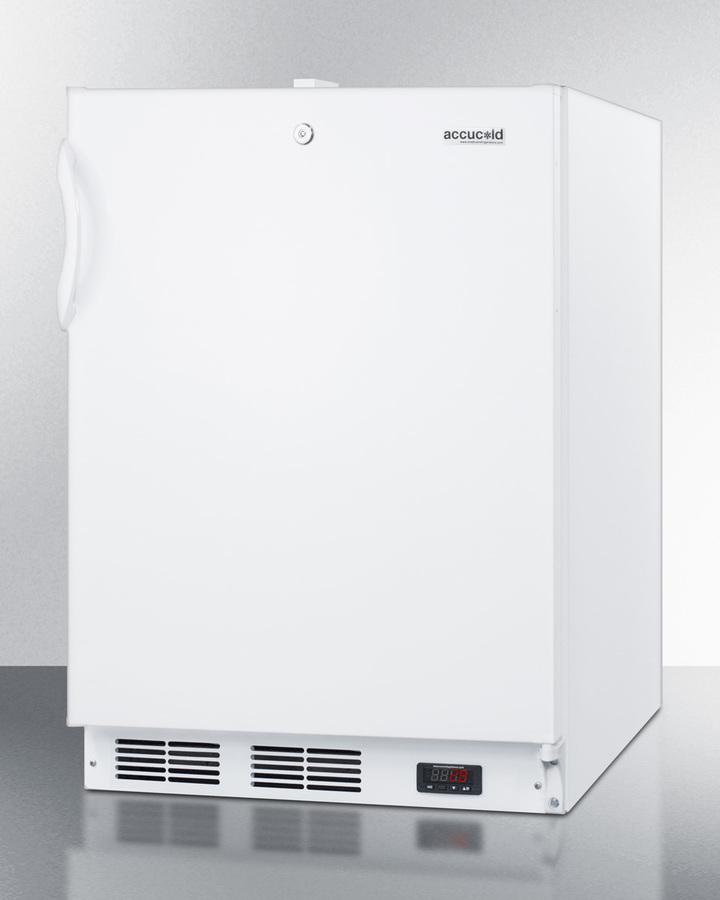

Summit ACF48WADA 24" Wide Built-In All-Freezer, ADA Compliant White

Quick Specification More details

Width:
23.63"
Depth:
22" - 25"
Height:
32"
Type:
Upright Freezers

About this product

Frost-free operation
Slim undercounter dimensions
Built-in capable
Digital temperature control

Summer Sale

Clearance

SKU: ACF48WADA | UPC: 761101051727

Summit ACF48WADA 24" Wide Built-In All-Freezer, ADA Compliant White

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
23.63"
Depth:
22" - 25"
Height:
32"
Type:
Upright Freezers

About this product

Frost-free operation
Slim undercounter dimensions
Built-in capable
Digital temperature control

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Product Details for Summit ACF48WADA

Technical Details

Dimensions & weight

Width	23.63 in.
Height	32 in.
Length	23.5 in.
Weight	100 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	10.28 ft³
Dimensional Weight	127.84 lbs.
Total of Cubes	10.28 ft³
Total of Dimensional Weight	127.84 lbs.

Overview freezer

Nominal Height	32.0" (81 cm)
Height of Cabinet	32.0" (81 cm)
Height to Hinge Cap	32.25" (82 cm)
Nominal Width	24.0" (61 cm)
Width	23.63" (60 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.5" (60 cm)
Depth with Handle	24.25" (62 cm)
Depth with door at 90°	45.13" (115 cm)
Capacity	3.1 cu.ft. (88 L)
Defrost Type	Frost-Free
Door	White
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.5
Voltage/Frequency	115 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101051727
Door Swing	RHD
Reversible	Yes
Shelf Type	Steel
Shelf Qty	2
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R134a
Refrigerant Amount	4.2 oz.
High Side PSI	285.0
Low Side PSI	70.0
Level Legs	4
Temperature Range	-5 to 10ºF/-20 to -12ºC

Description

Accucold by Summit Appliance carries a range of general purpose and medical all-freezers designed for reliable, frost-free storage under the counter. At 24" wide and 32" high, the ACF48WADA is ideally sized for various institutional settings following ADA guidelines for lower counter height. The front-breathing design allows built-in installation, while the fully finished cabinet also allows freestanding use. The user-reversible door includes a factory installed keyed lock for added security. This model comes in a white finish and includes a hospital grade cord with a 'green dot' plug for added security in high traffic areas. Full frost-free operation eliminates the need to defrost the interior, with an internal fan to keep the interior evenly cooled from top to bottom. A digital thermostat is located in the front kickplate, letting users manage the temperature without having to open the door. The interior includes two removable steel shelves. Made in the USA, the ACF48WADA offers quality freezer storage in a conveniently sized and featured unit. It is ETL-S listed to NSF-7 commercial standards and meets UL-471. Additional door finishes are available. This model can also be paired with the matching FF7LWBIADA all-refrigerator.

Product Features

Frost-free operation
Low maintenance design ensures no frost buildup inside the unit
Slim undercounter dimensions
Sized at less than 24" wide and deep for an easy fit in space-challenged institutions
Built-in capable
Make the best use of space by installing your appliance under the counter and flush with other cabinetry
Digital temperature control
Electronic controls located in the exterior kickplate for precise temperature management
ADA Compliant
32 inch height is designed to fit under ADA compliant counters
Factory installed lock
Keyed lock for added security, located towards the top of the door to ensure convenient access
Matching refrigerator available
Pair with the FF7LBIADA to create a matching set
Internal fan
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Flat door liner
Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

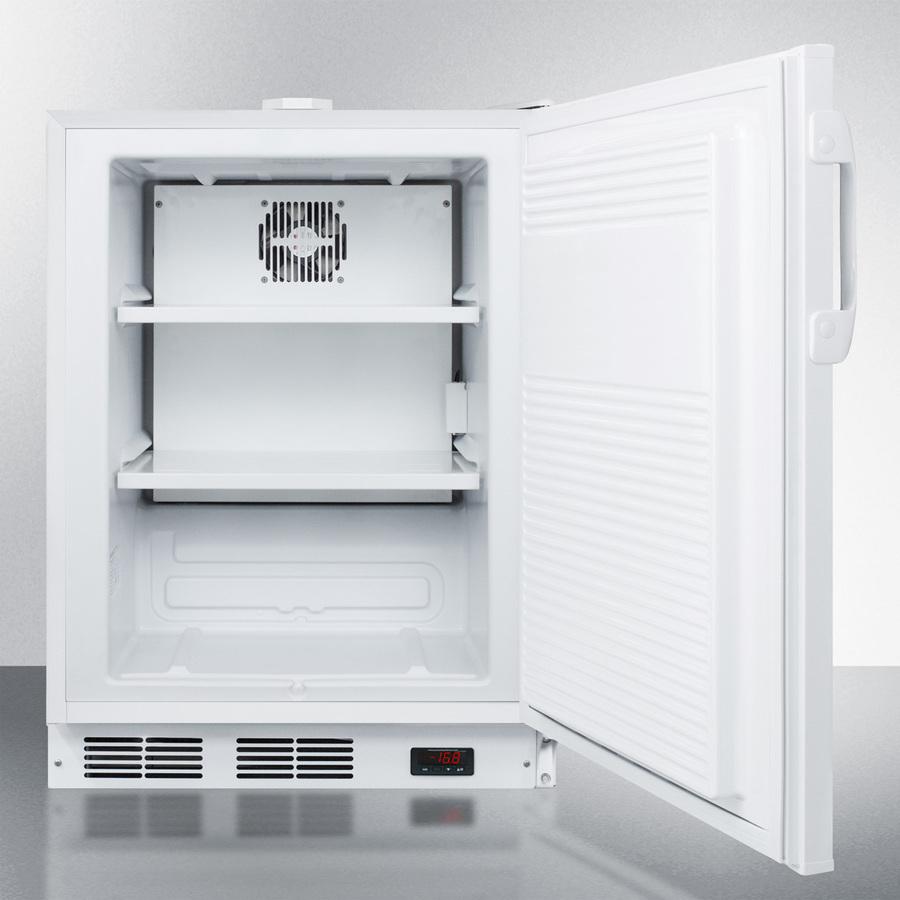

Removable shelves
Includes two slide-out shelves made from durable steel
Hospital grade cord
Secure three-pronged cord for added unit safety
Foamed-in-place cabinet
Quality design ensures efficiently insulated interior
Fully finished white cabinet
Allows the unit to be used freestanding
Reversible door
User-reversible door swing for added flexibility
100% CFC free
Environmentally friendly design does not contain ozone-damaging chemicals
Commercially approved
Design meets UL-471 and is ETL-S listed to NSF-7 commercial standards
