Sale price $1,311.97 Regular price $1,535.97 Save $224.00 / 14% OFF

Product Details for Maytag MGC9536DS

Technical Details

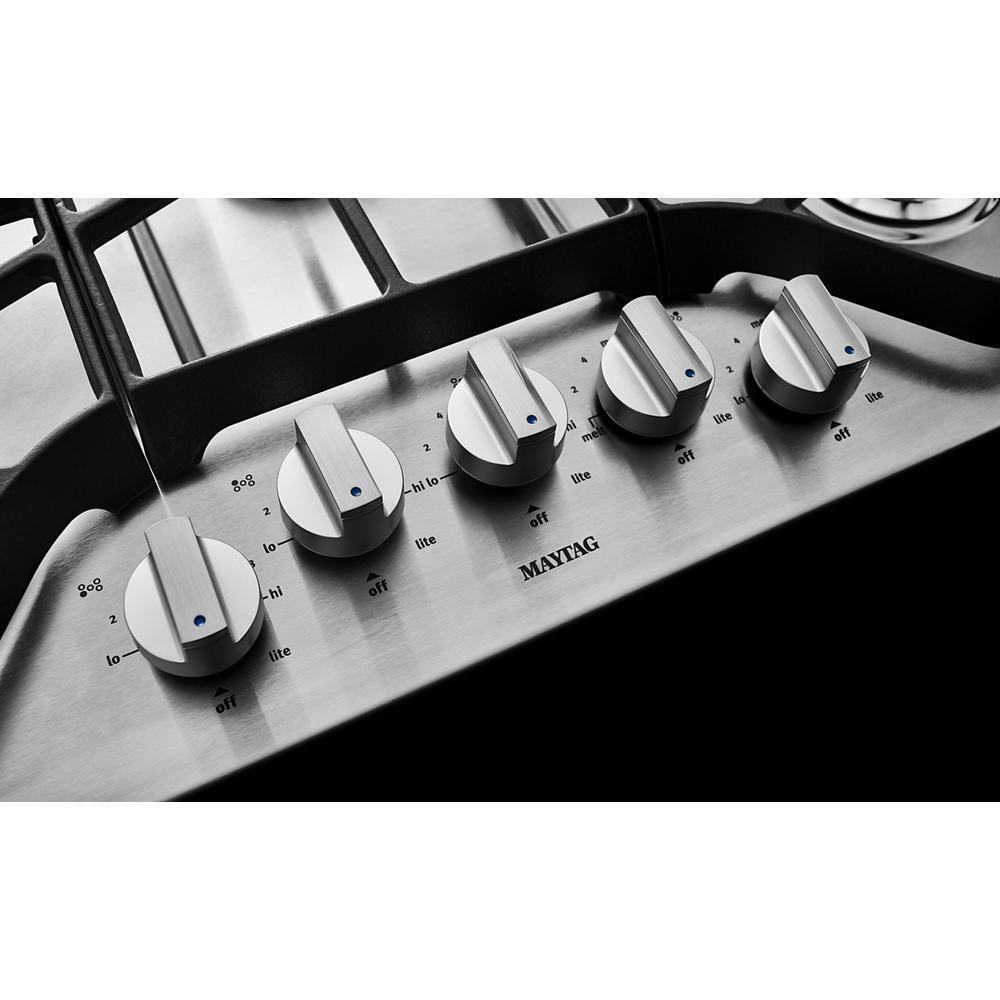

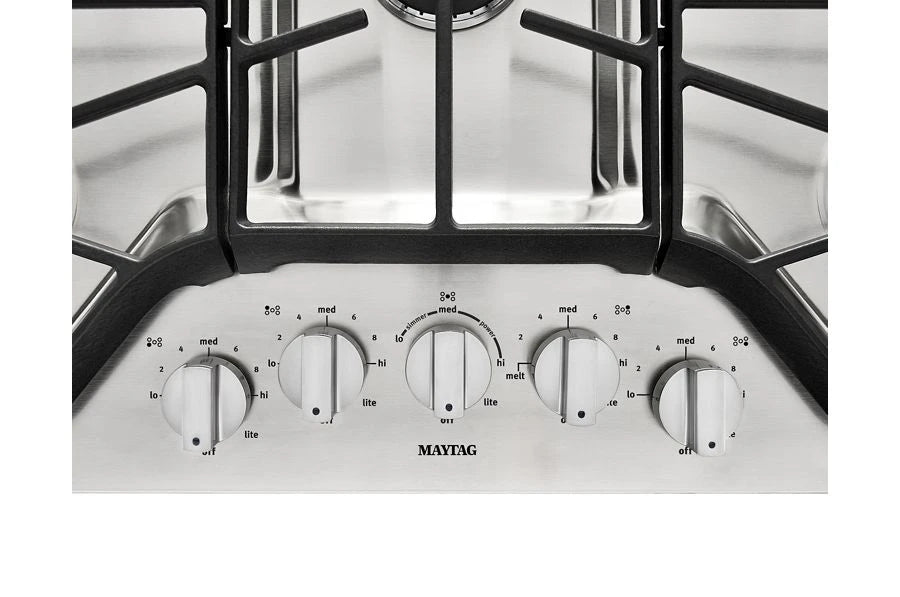

Controls

Control Location Front
Control Type Knobs

Cooktop details

Cooktop Surface Color Color Coordinated
Ignition Type Direct Spark Ignition
Cooktop Surface Material Stainless/Porcelain Coated Steel
Digital Display No
Griddle Included N/A
Heating Element On Indicator Light No
Hot Surface Indicator Light No

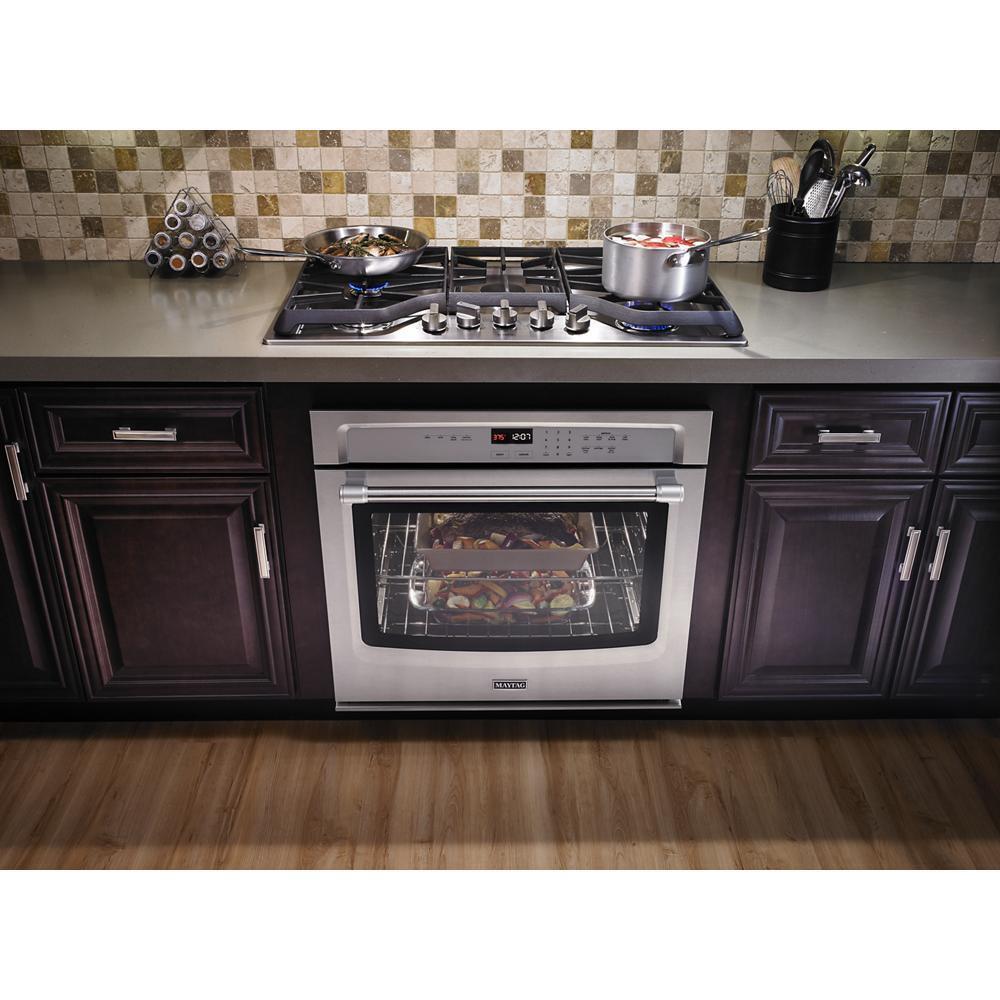

Combination Match with Oven MEW9527, MEW9530
Installs Over Built-In Oven Yes

Certifications

ADA Compliant ADA Height and Side Reach Compliant
Prop 65 Standard
UL Yes

Electrical

Amps 15
Hz 60

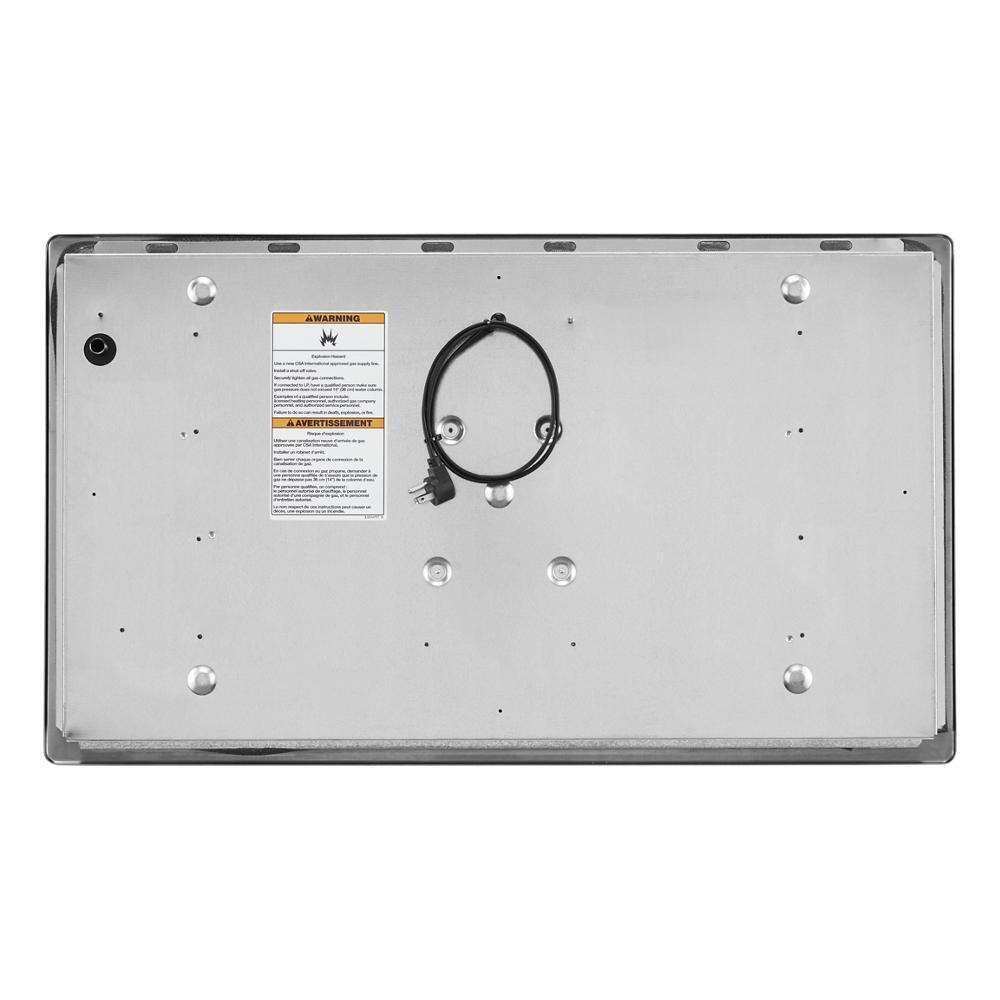

Power Cord Included Yes
Volts 120

Dimensions & weight

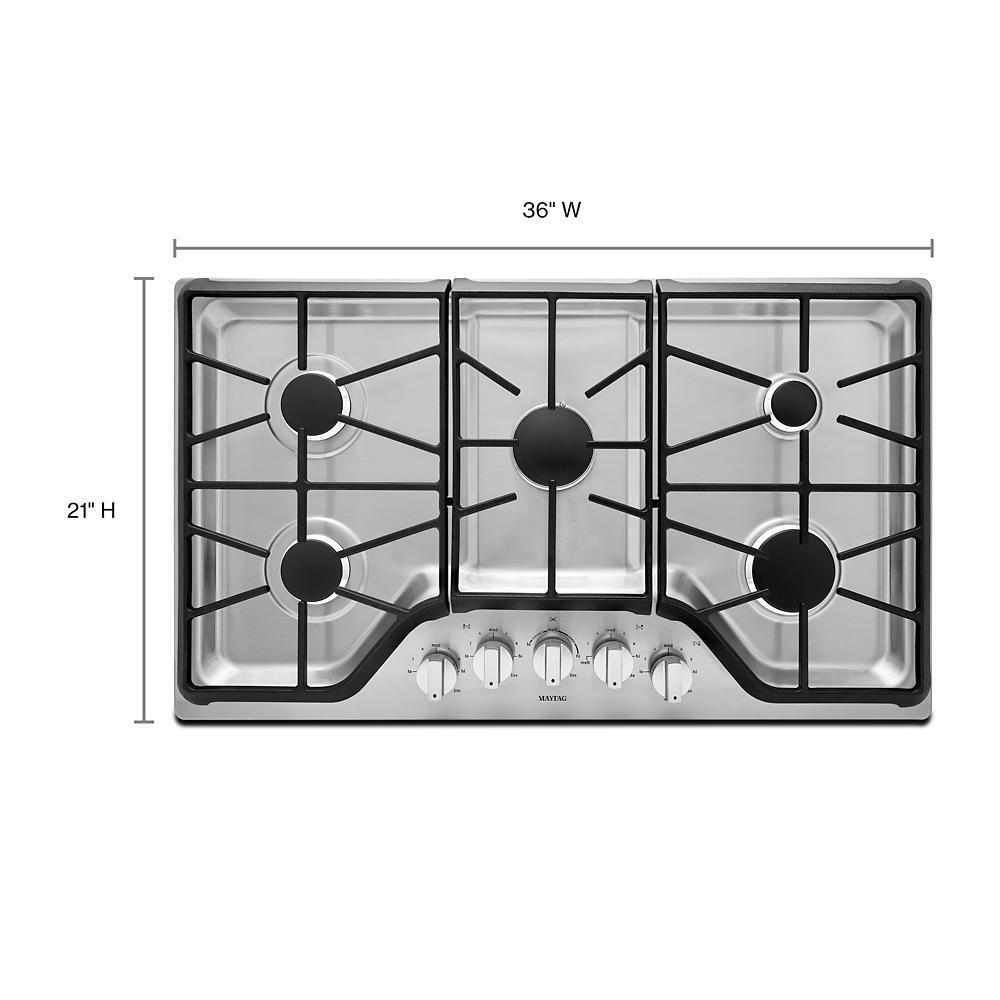

Width 36 in.
Height 3.69 in.
Length 21 in.
Weight 70 lbs.
Carton Depth 25
Carton Height 12 1/16
Carton Width 44 7/16
Cutout Depth (in) 19 15/16
Cutout Height (in) 5 1/4
Cutout Width (in) 34 1/2
Gross Weight 70
Maximum Height 4
Net Weight 61.6
Cutout Depth Max(IN,inches) 20.0000
Cutout Depth Min(IN,inches) 19.0000
Cutout Depth(IN,inches) 19.9375
Cutout Height(IN,inches) 5.2500
Cutout Width Max(IN,inches) 35.2500
Cutout Width Min(IN,inches) 33.8750
Cutout Width(IN,inches) 34.5000
Depth(IN,inches) 21.0000
Maximum Height(IN,inches) 4.0000
Net Weight(LB,pounds) 62
Carton Depth(IN,inches) 25.0000
Carton Height(IN,inches) 12.0625
Carton Width(IN,inches) 44.4375
Cutout Height Min(IN,inches) 5.2500
Gross Weight(LB,pounds) 70

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 41 in.
Shipping Height 8.69 in.
Shipping Length 26 in.
Shipping Weight 110 lbs.
Total of Shipping Weight 110 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 1.61 ft³
Dimensional Weight 20.07 lbs.
Total of Cubes 1.61 ft³
Total of Dimensional Weight 20.07 lbs.

Details

Fuel Type Gas
Installs Over Built-In Oven Yes
LP Convertible Yes - Kit Included
Power Outage Compatible Yes
Digital Display No

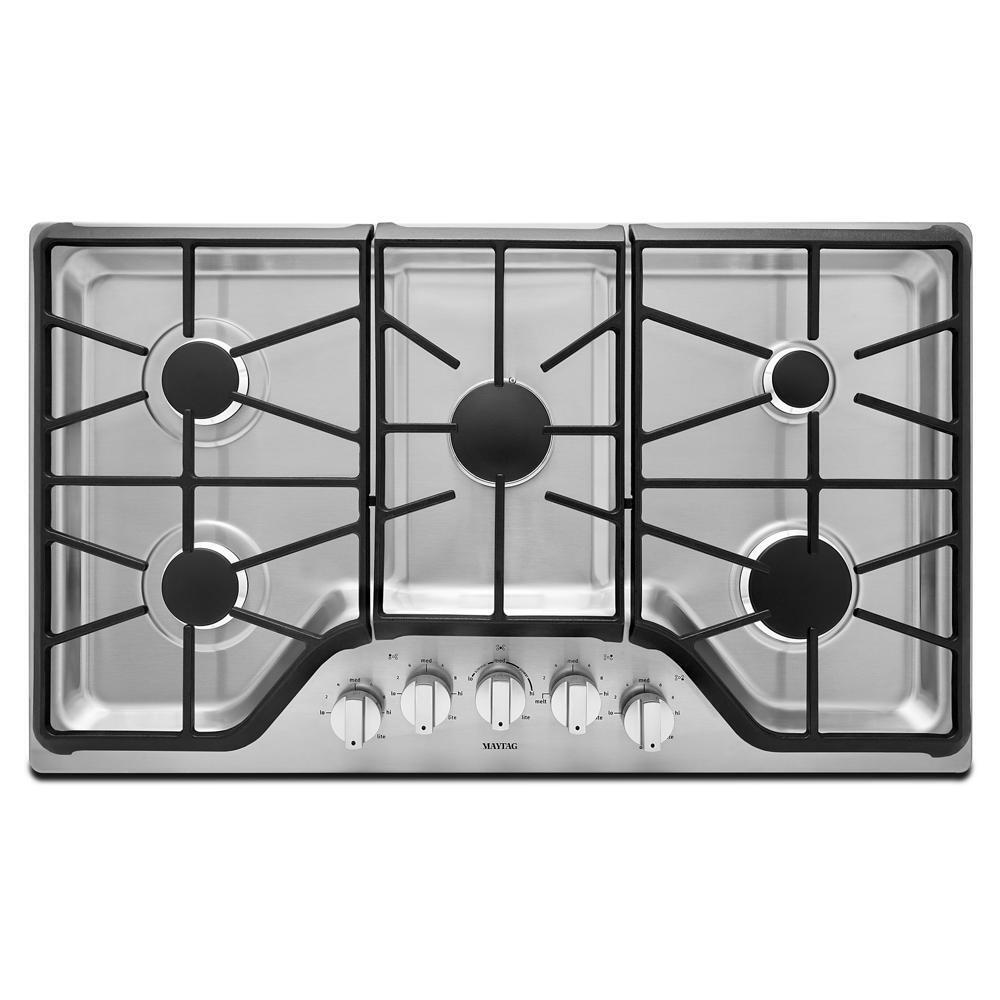

Element/burner details

Center Rear Element-Burner Type Dual
Cooktop Element Style Sealed Burner
Cooktop Type Standard
Left Front Element-Burner Type Sealed Burner
Left Rear Element-Burner Type Sealed Burner
Number of Cooking Element-Burners 5
Power Boost No
Right Front Element-Burner Type Sealed Burner
Right Rear Element-Burner Type Simmer
Automatic Pan Detection No
Center Rear Element-Burner Power 18,000 BTU
Left Front Element-Burner Power 9,100 BTU
Left Rear Element-Burner Power 9,100 BTU
Number of Grates 3
Right Front Element-Burner Power 12,000 BTU
Right Rear Element-Burner Power 5,000 BTU

Grate details

Number of Grates 3
Grate Details Cast Iron Grates, Continuous, Dishwasher Safe, Matte Finish

Ventilation details

Downdraft Vent No

Exterior details

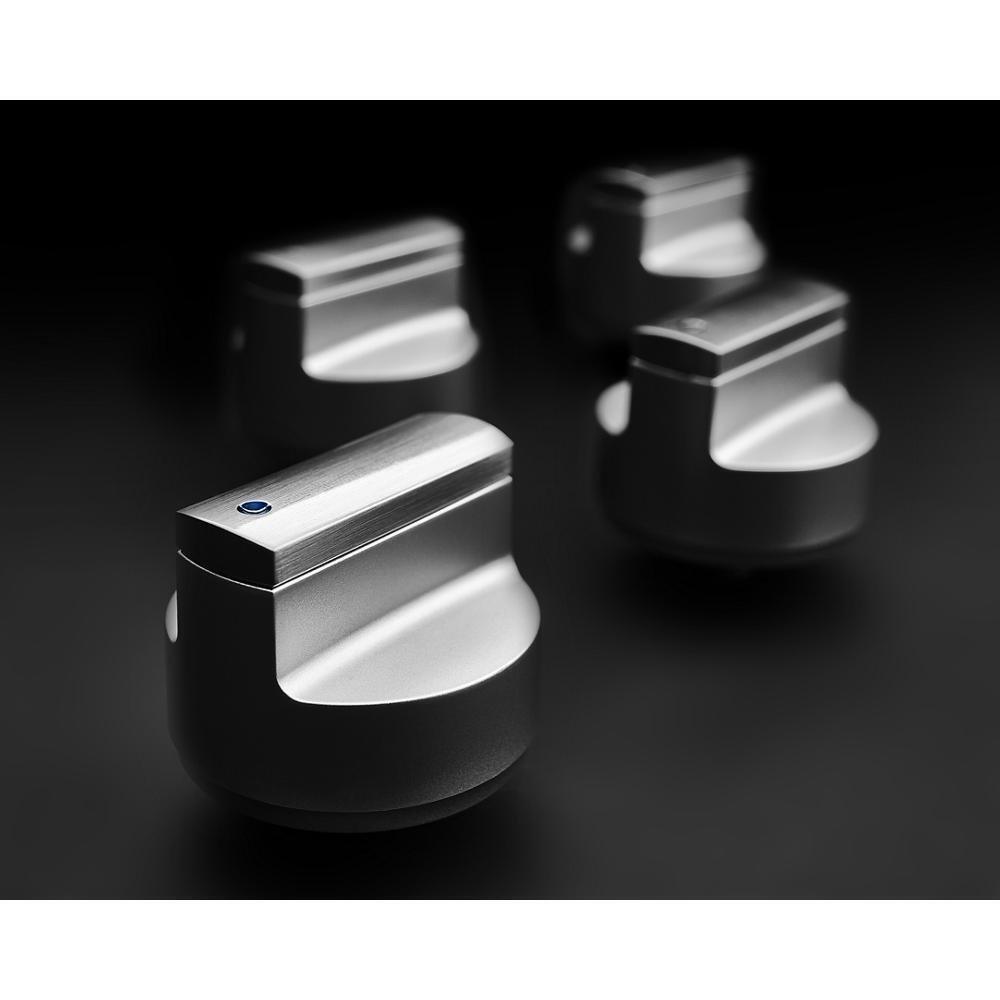

Knob Color Stainless Steel
Knob Type Metal

Dimensions

Common Size 36 in
Cutout Depth 19-469/500 in
Cutout Depth Max 20 in
Cutout Depth Min 19 in
Cutout Height 5-1/4 in
Cutout Width 34-1/2 in
Cutout Width Max 35-1/4 in
Depth 21 in
Gross Weight 69-3/5 lbs
Height 3-11/16 in
Maximum Height 4 in
Net Weight 61-3/5 lbs
Width 36 in

Refinements

Features DuraGuard™ Protective Finish, Power™ Burner, Simmer Burner with Melt Cap, ADA Compliant

Features

Cooktop Features ADA Compliant, DuraGuard™ Protective Finish, Power™ Burner, Simmer Burner with Melt Cap

Description

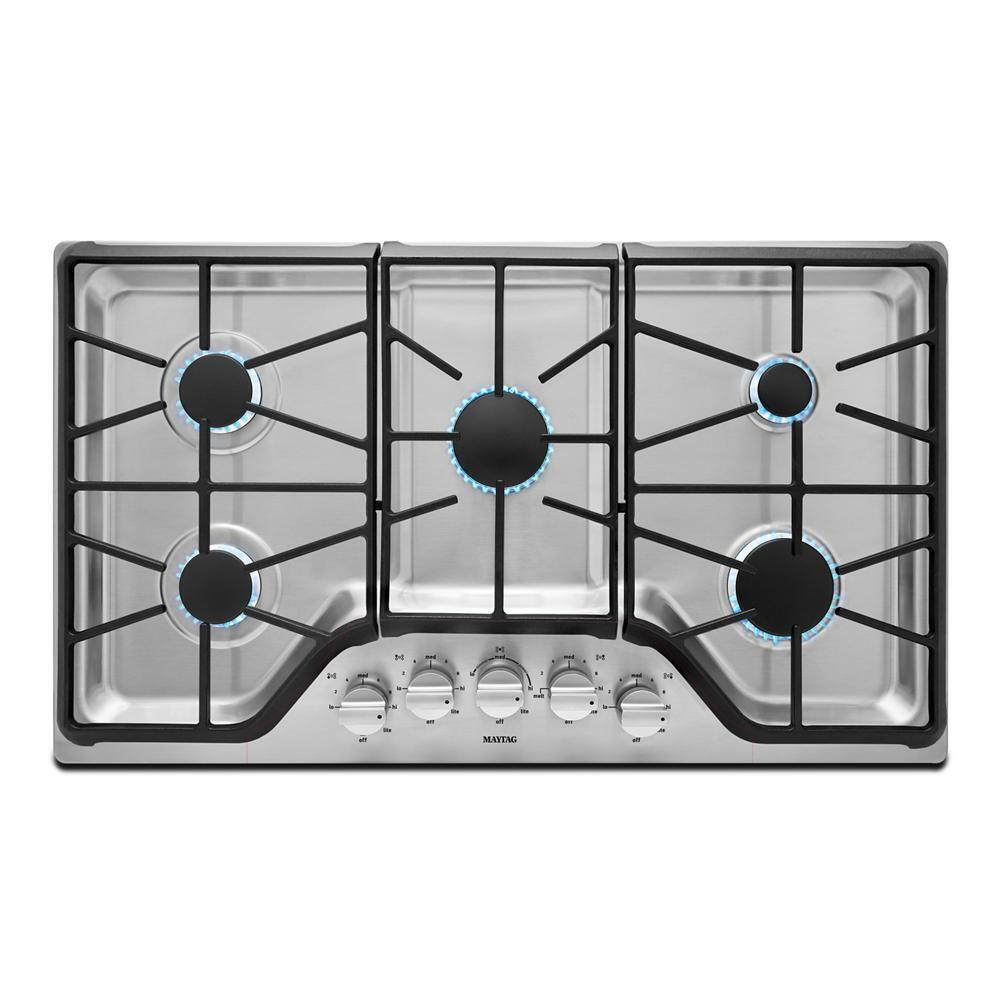

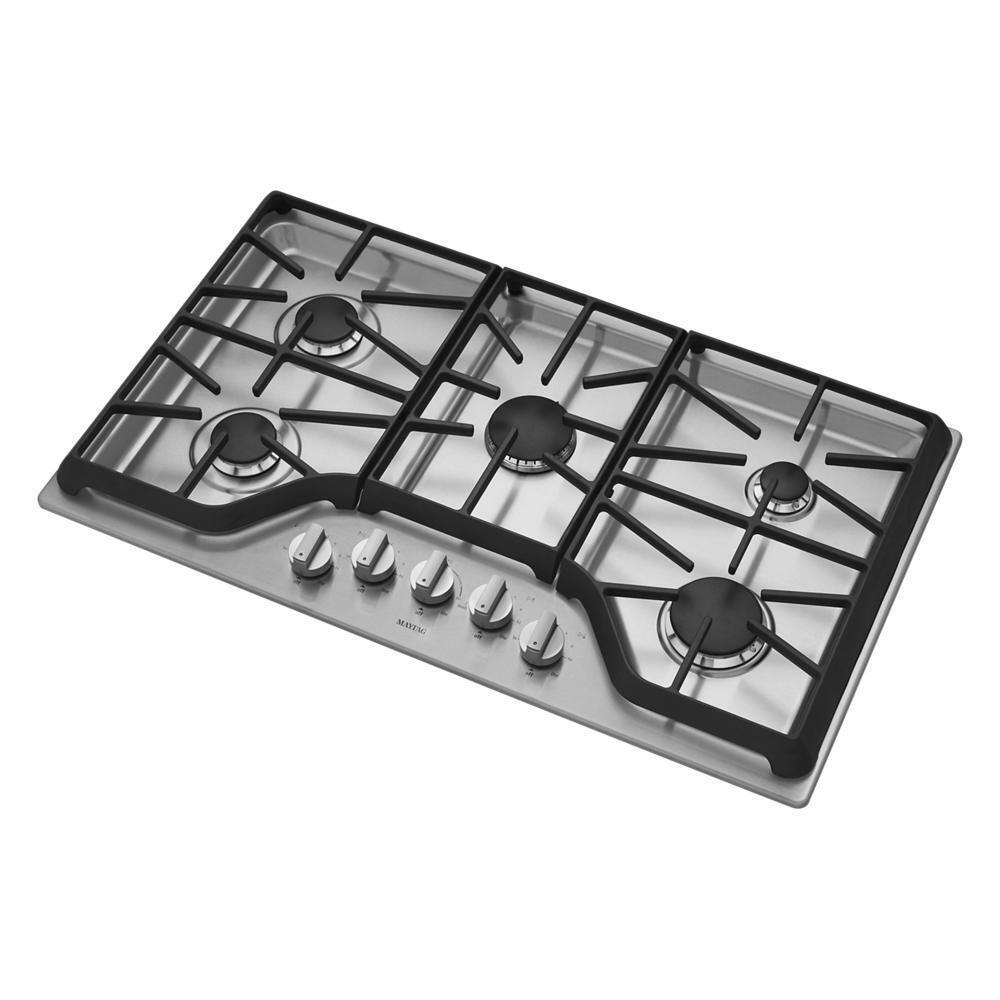

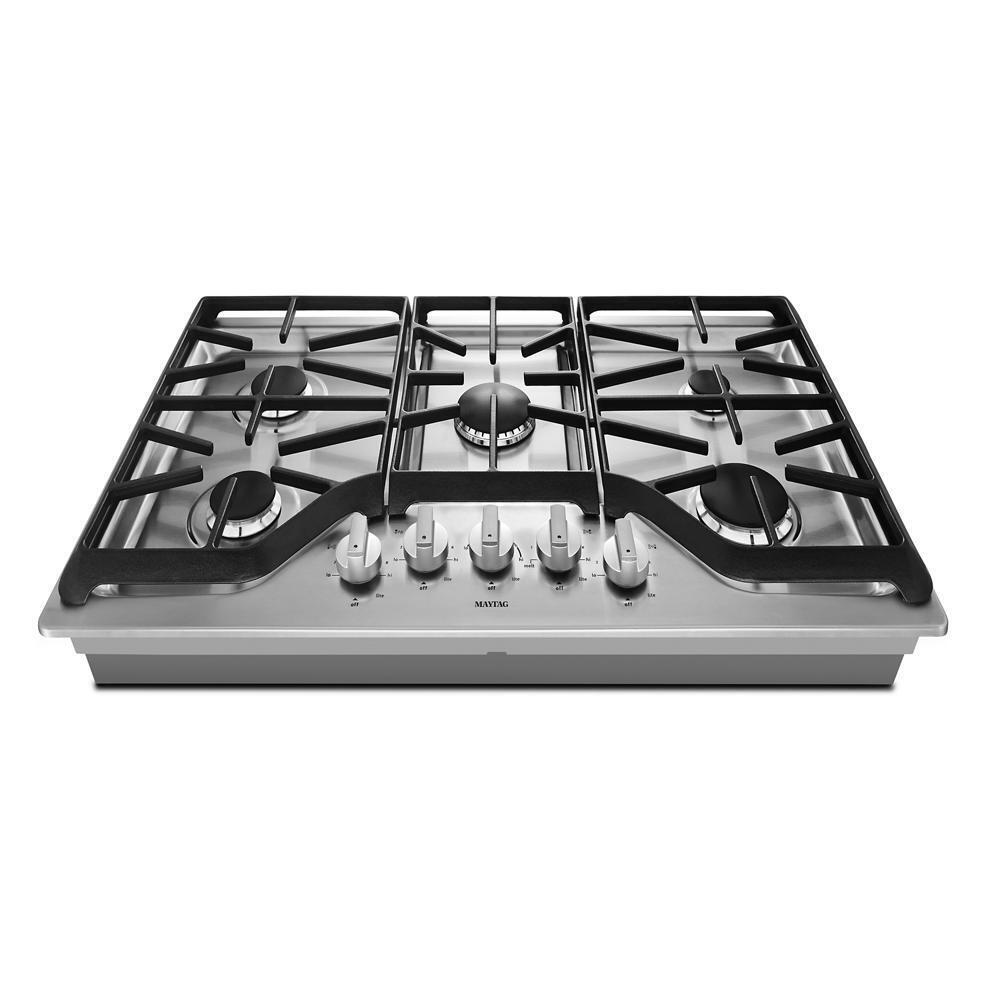

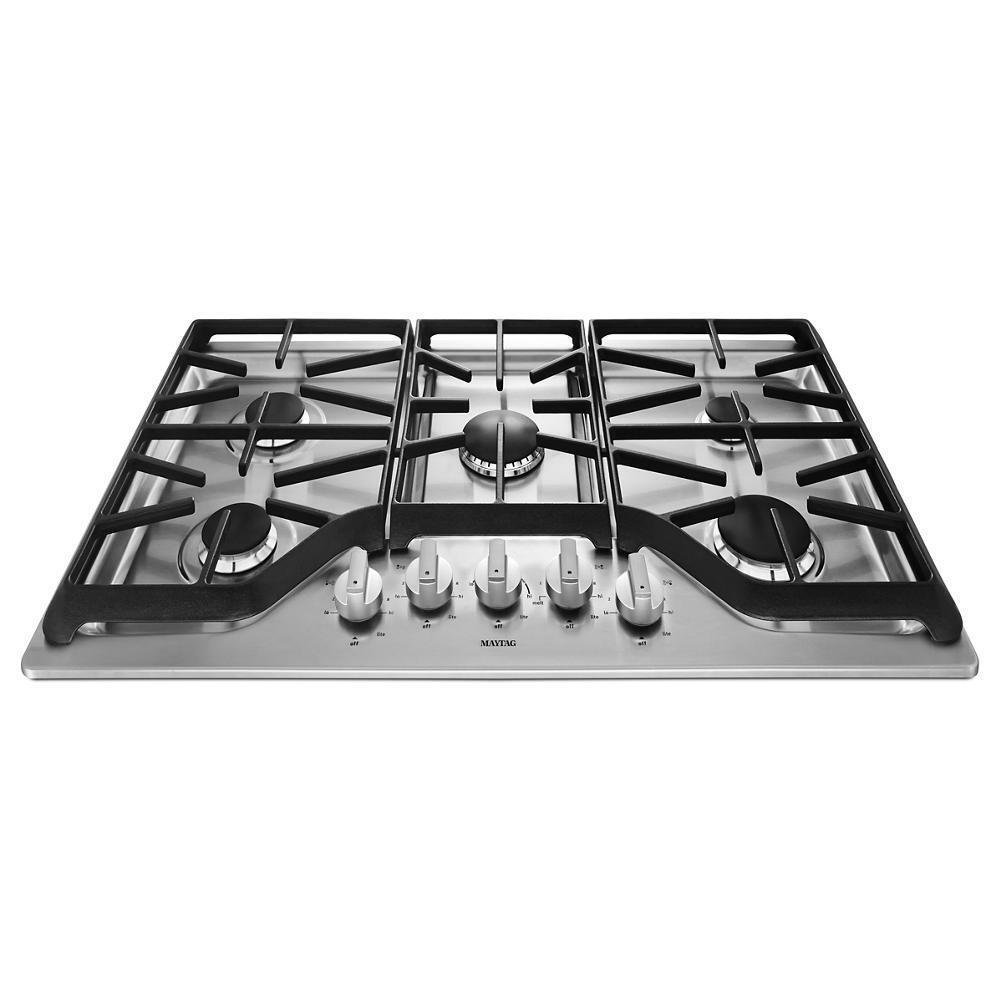

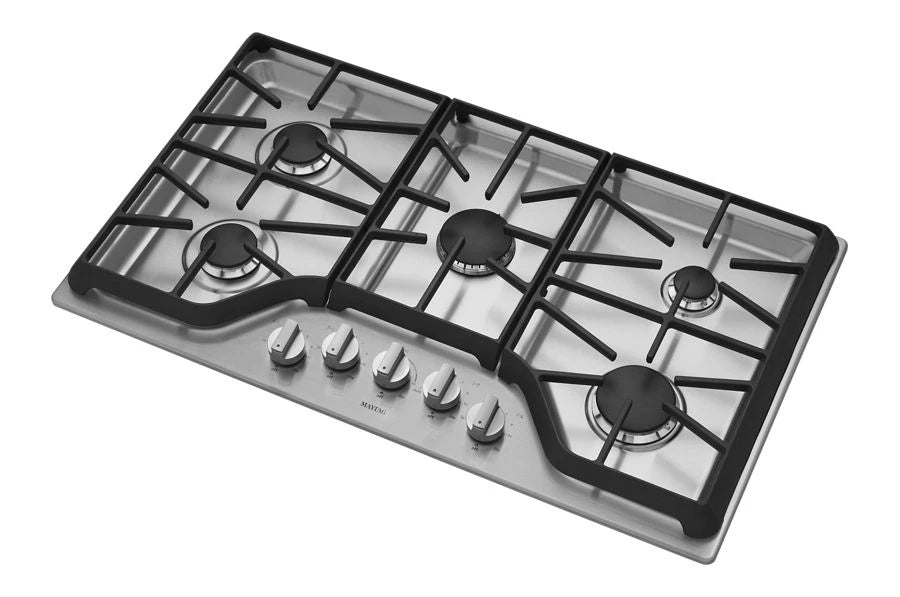

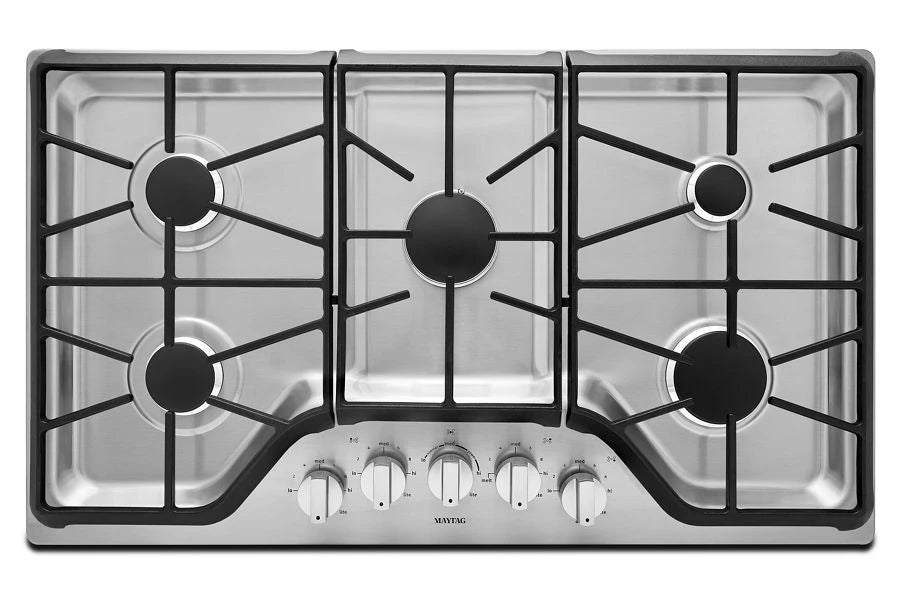

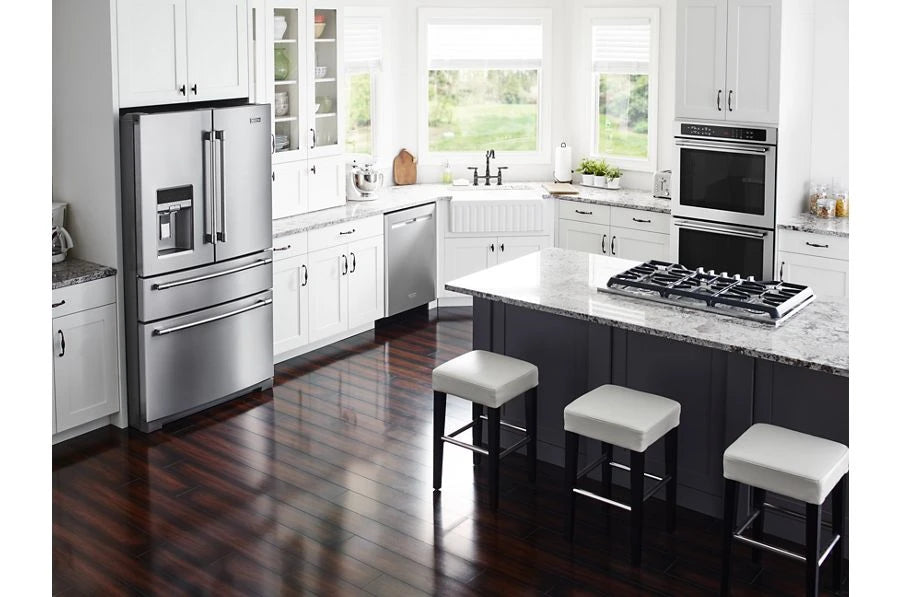

The Maytag MGC9536DS is a 36-inch gas cooktop designed to deliver professional-grade cooking results. It features 5 sealed burners, including a Power Burner that offers high heat for fast boiling and searing. The seamless stainless steel design ensures easy cleaning and complements any modern kitchen. The sealed burners help contain spills for a cleaner cooktop, while the precise flame control allows for versatility in cooking, whether you’re simmering sauces or quickly sautéing vegetables. This cooktop is built for durability, with a sturdy construction that supports heavy cookware. The Maytag MGC9536DS brings both performance and style to your kitchen, making it perfect for those who demand high-quality cooking tools.



Product Features

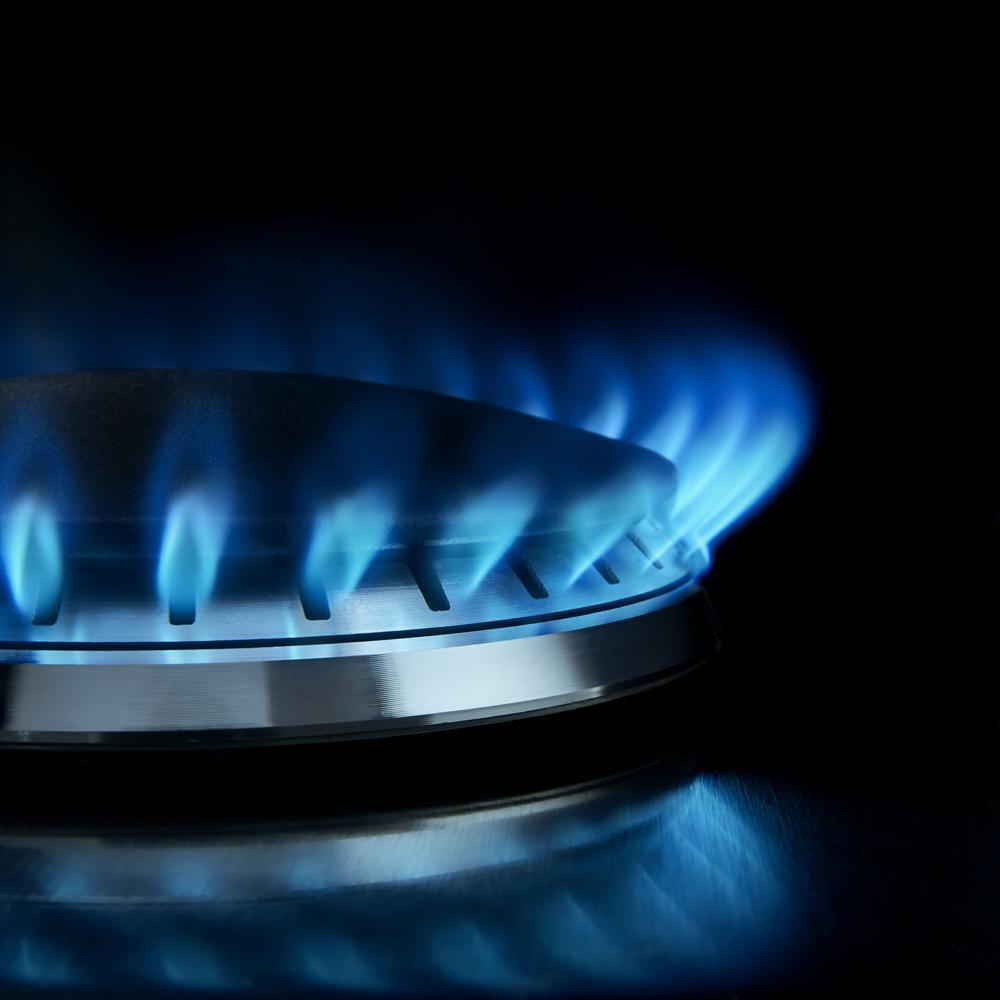

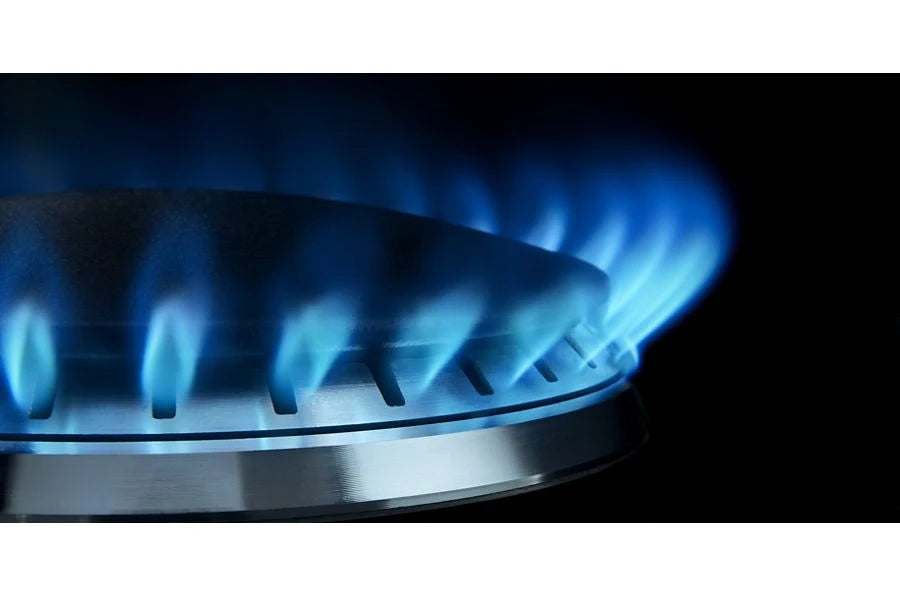

  • Power Simmer Dual Stack Burner
    The Power simmer dual stacked burner gives you precise control over your cooktop, allowing you to boil water rapidly or gently hold low temperatures to simmer sauces - all with one burner.

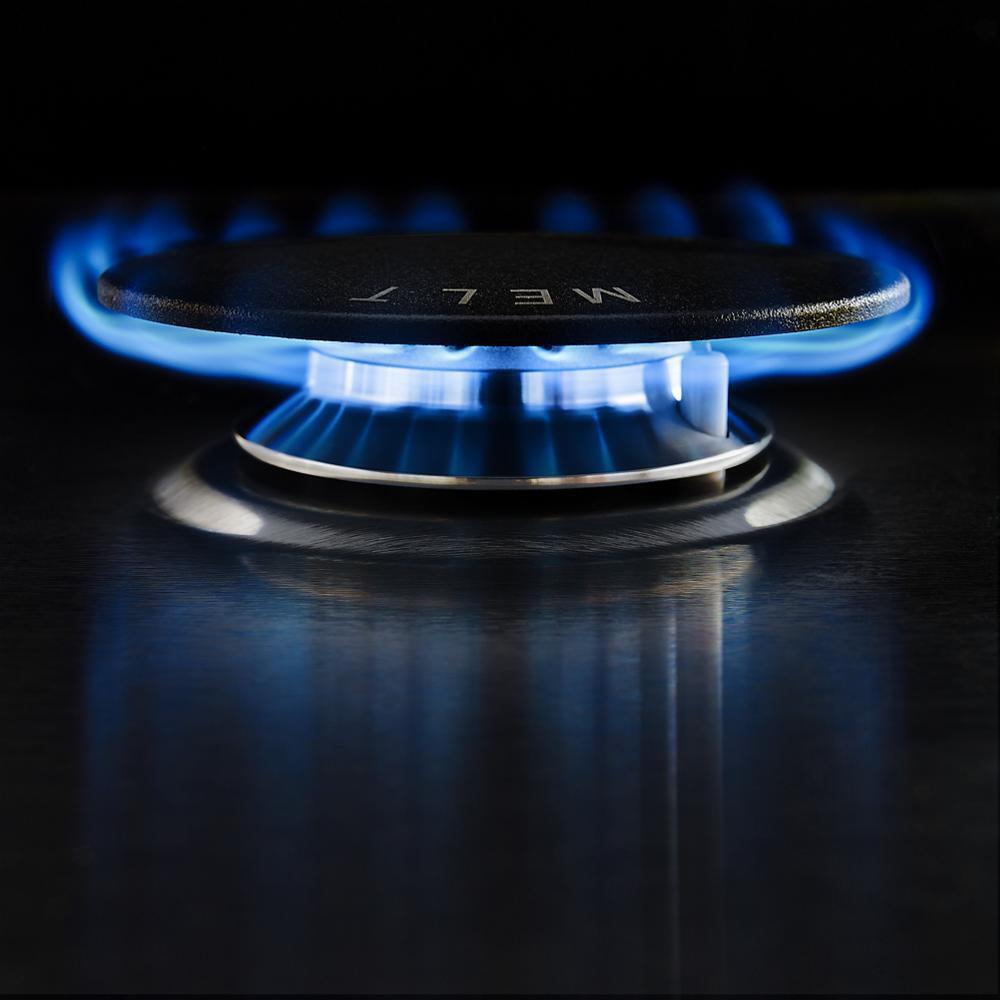

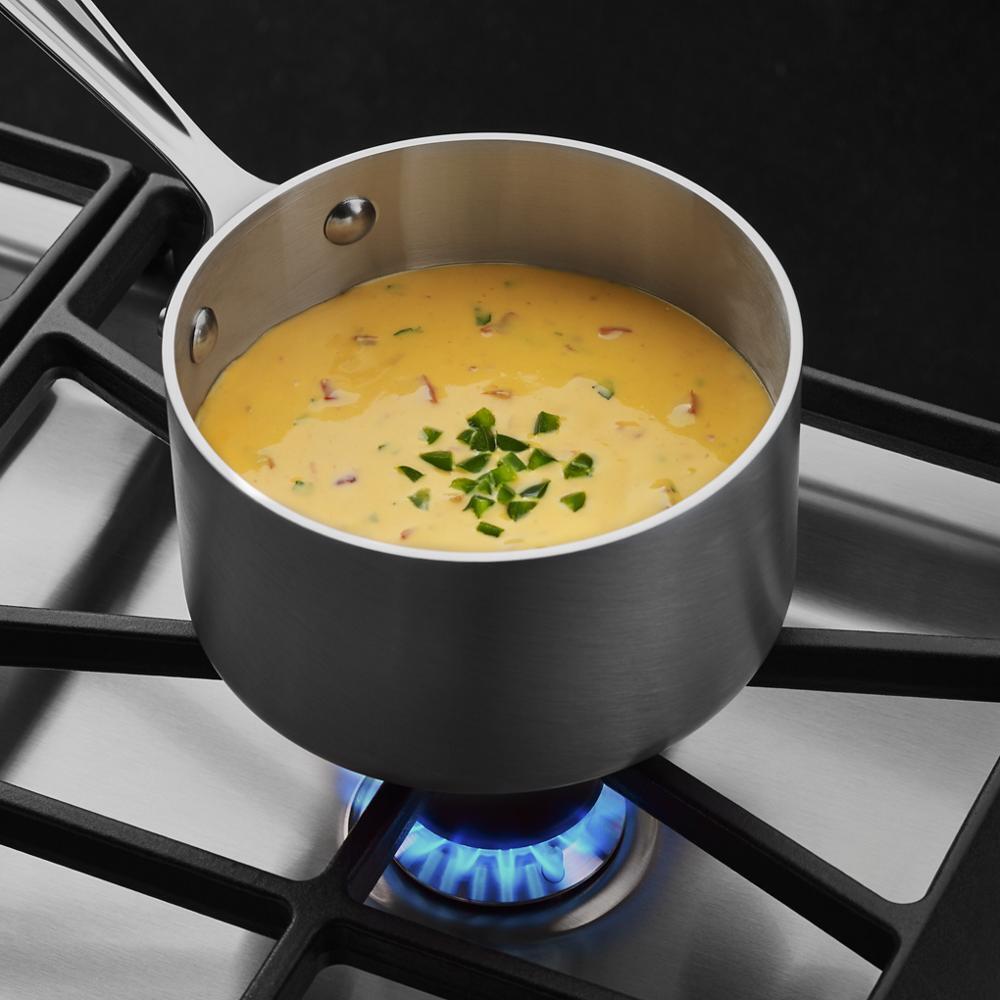

  • Simmer Burner with Melt Cap
    The simmer burner allows for adjustable heat control from 800 to 5,000 BTUs. The addition of a melt cap on the burner diffuses the flame for low-heat melting or warming without the need for constant monitoring.

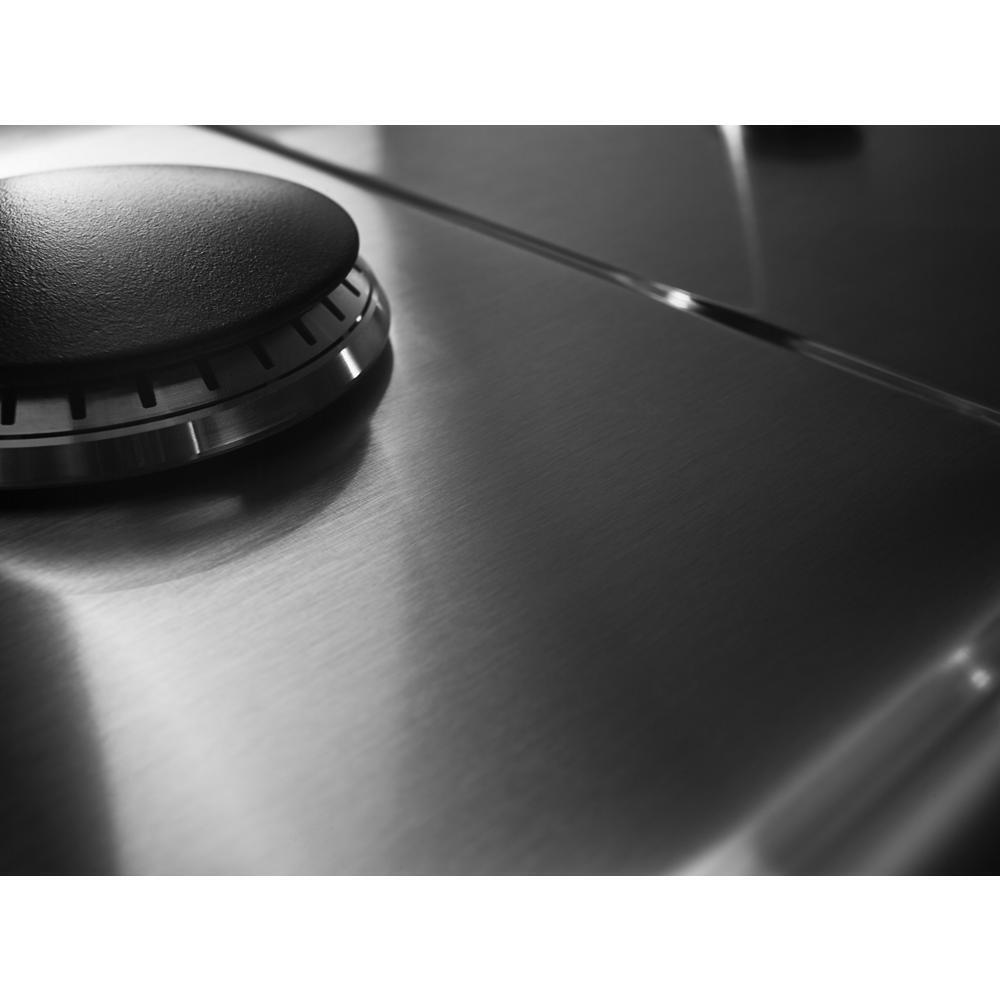

  • Sealed Surface Burners
    These burners are sealed, creating a smooth surface for even heating, easy cleanup and extended grate life. Plus, it helps to keep food from falling below the cooktop.
  • Designed, Engineered, and Assembled in the USA
    From Tennessee to you, these cooktops are designed, engineered and assembled in the U.S.A.
  • 5 Burners
    With an extra burner you have the flexibility to prepare all your meals without juggling pots and pans.
  • 10 Year Limited Parts Warranty
    With a 10-year limited parts warranty on the cooktop burners and cast-iron metal grates, we built these cooktops tough enough to keep cookin' for years.

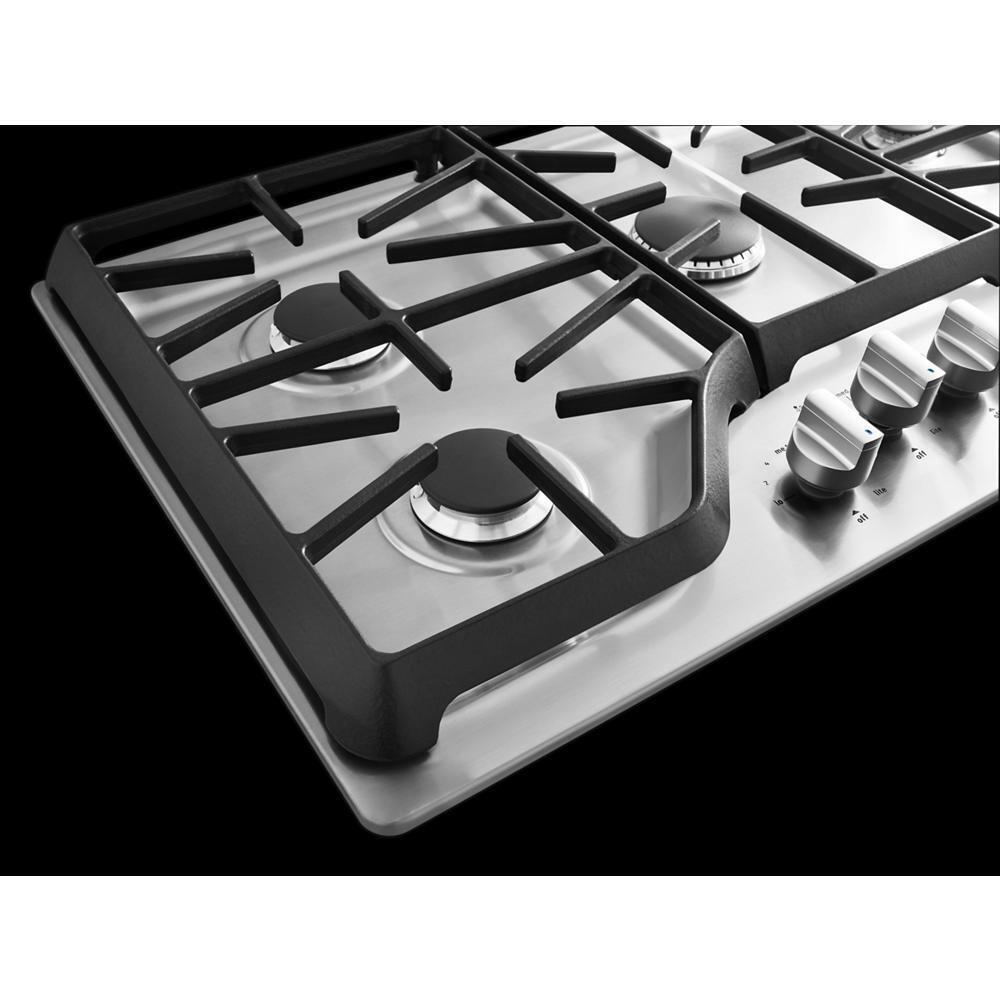

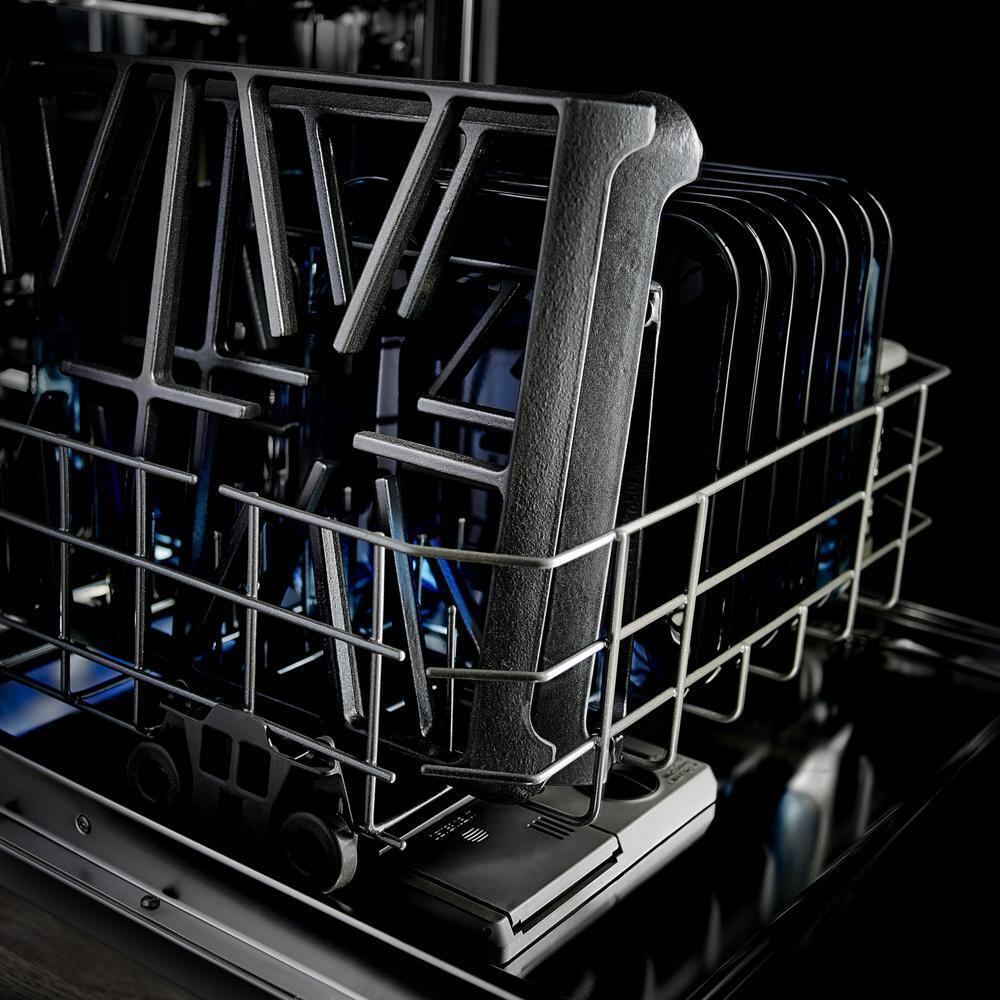

  • DuraClean™ Continuous Cast Iron Grates
    Dishwasher safe DuraClean™ cast-iron grates let pots and pans smoothly slide around the cooktop for fewer spills and easier transitions from burner to burner.
  • DuraGuard™ Protective Finish
    The DuraGuard™ protective finish keeps the cooktop surface lookin' like new and cleans with ease year after year.

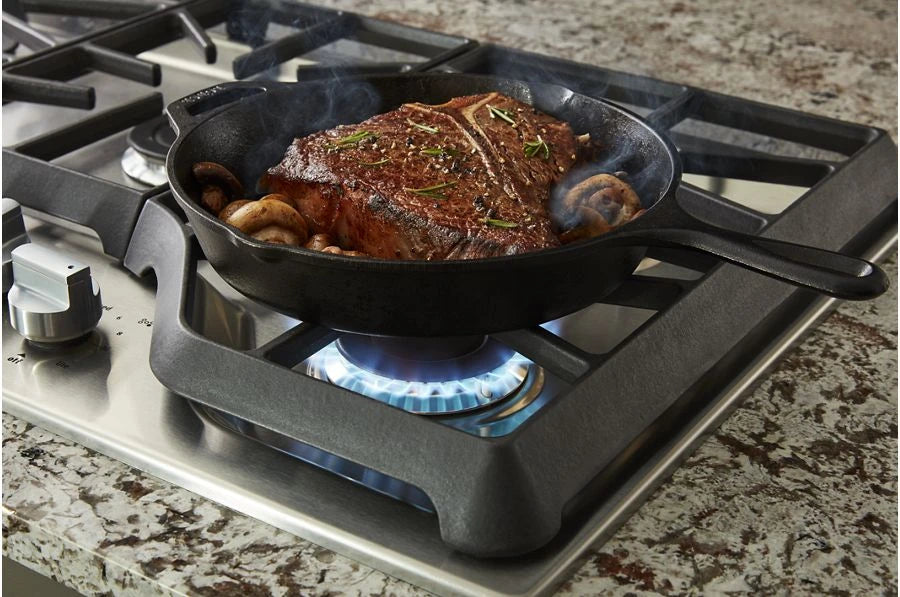

  • Power™ Burner
    The Power™ Burner allows for a slow, even saute and the intense heat for a seared, juicy steak.
