SKU: MGC7536DS | UPC: 883049324791

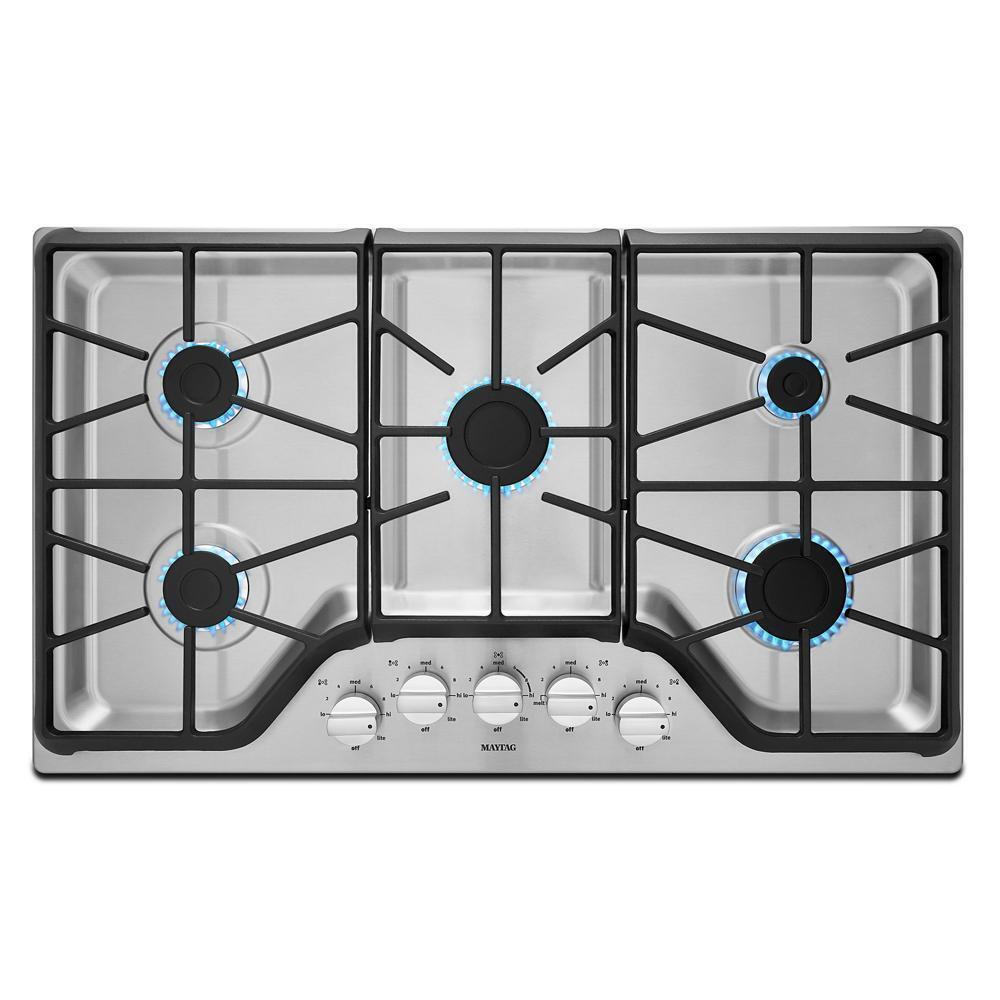

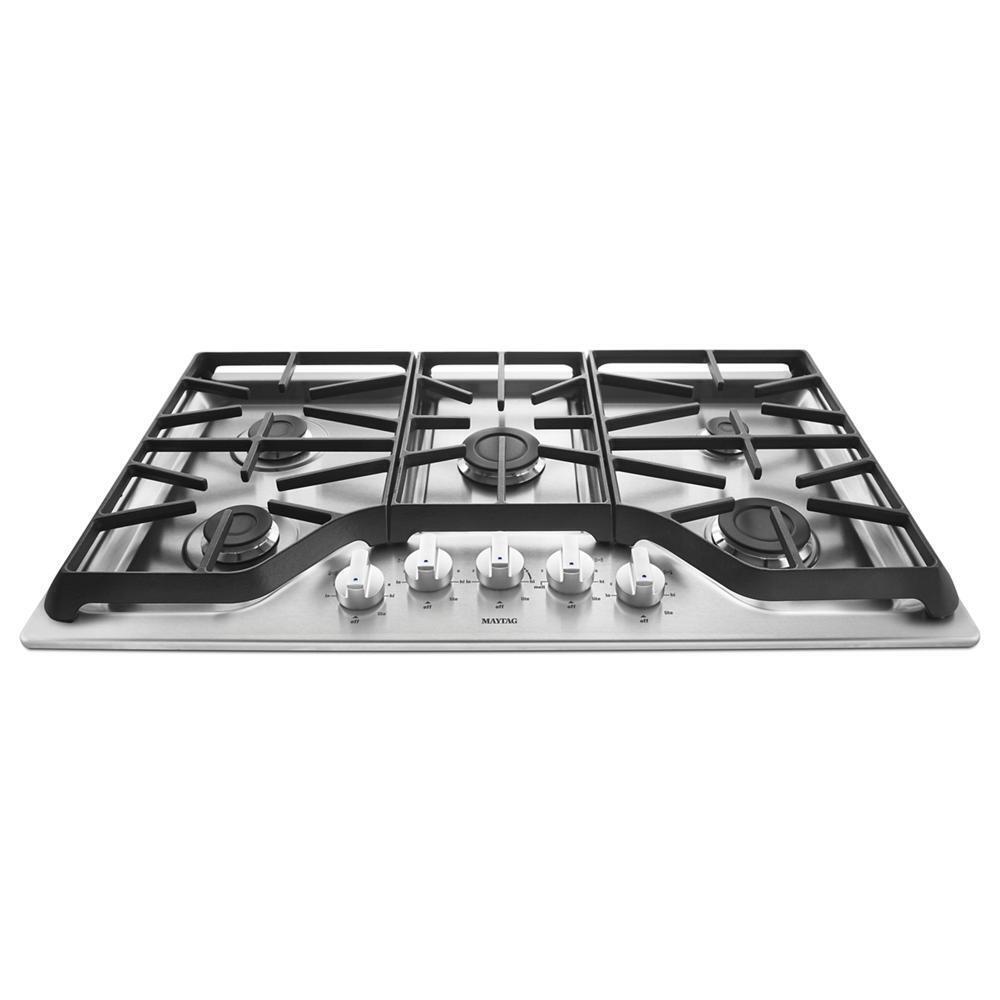

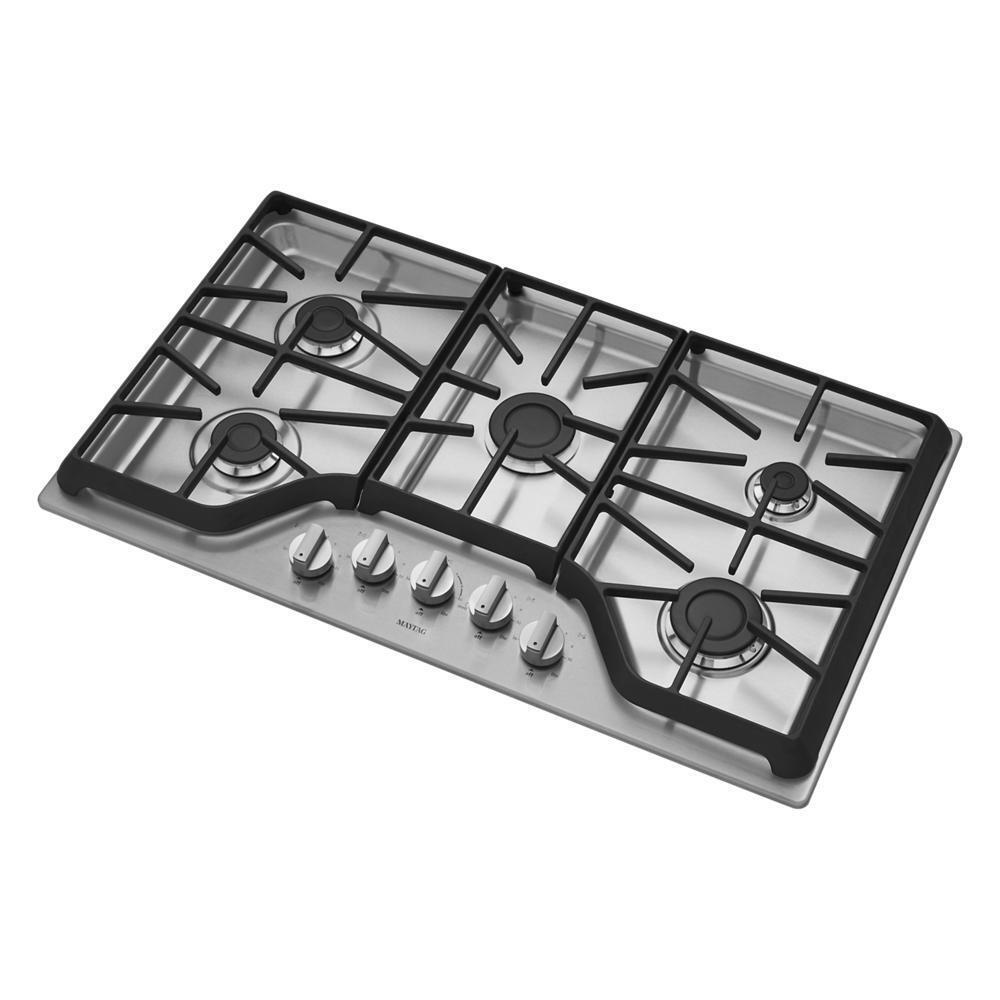

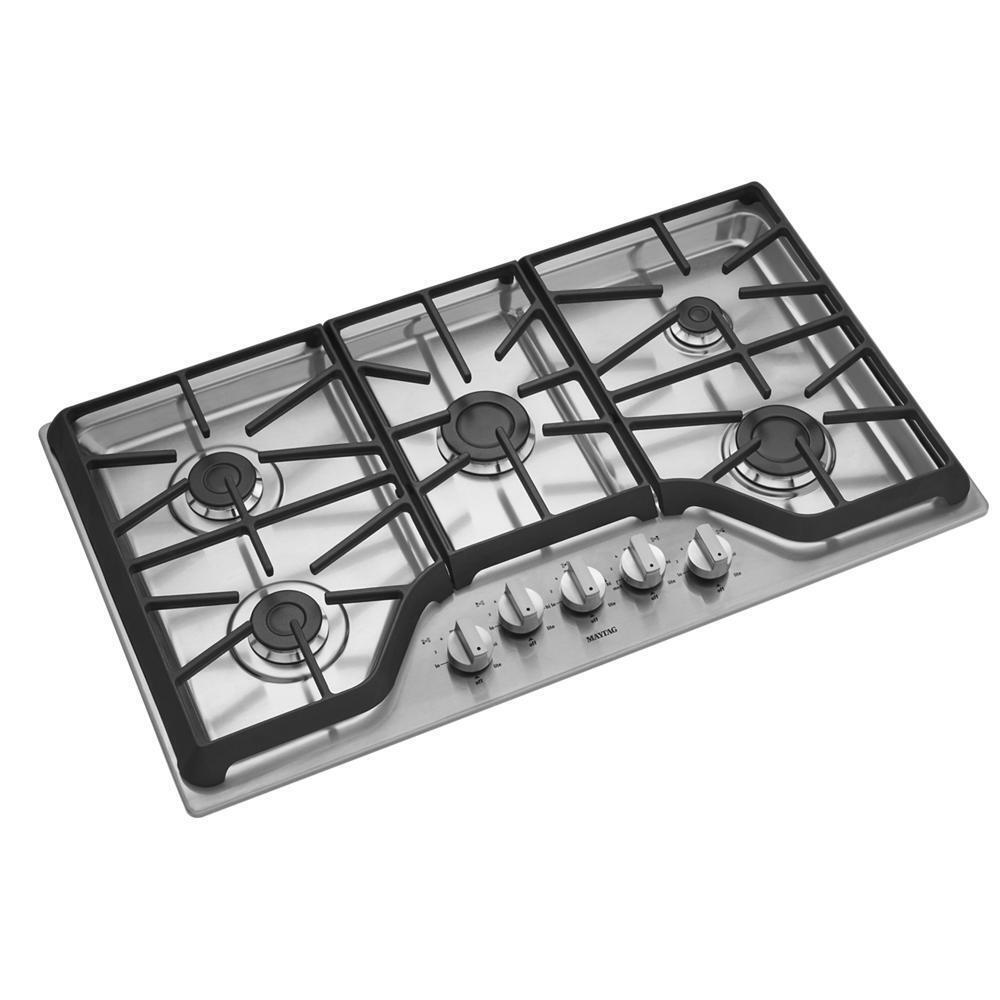

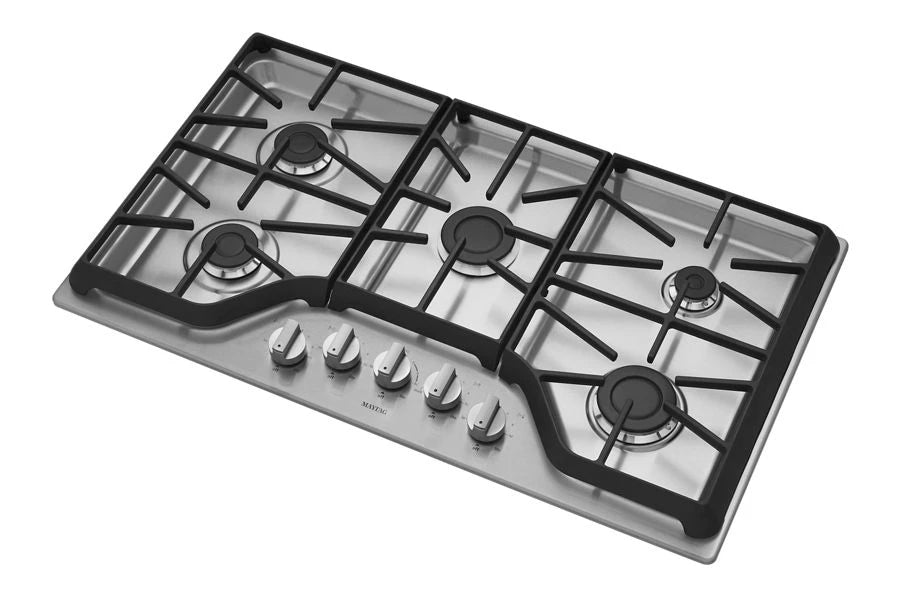

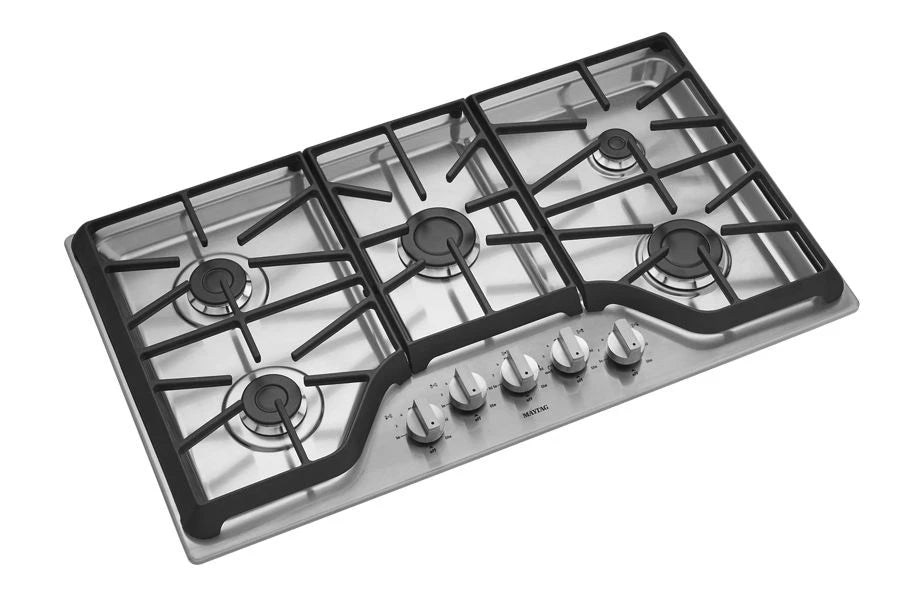

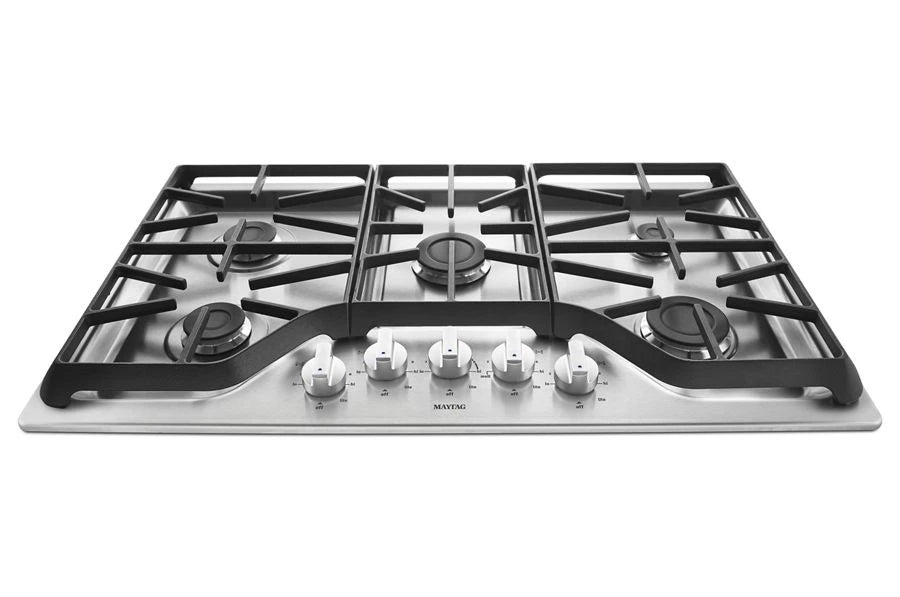

Maytag MGC7536DS 36-inch Wide Gas Cooktop with Power™ Burner Stainless Steel

Quick Specification More details

Width:
36"
Depth:
21"
Height:
3.69"
Type:
Gas Cooktops

About this product

10 Year Limited Parts Warranty
Designed, Engineered, and Assembled in the USA
Simmer Burner
Front Controls

Summer Sale

SKU: MGC7536DS | UPC: 883049324791

Maytag MGC7536DS 36-inch Wide Gas Cooktop with Power™ Burner Stainless Steel

$1,075.70 ~~$1,208.97~~ Save $133.27 / 11% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
36"
Depth:
21"
Height:
3.69"
Type:
Gas Cooktops

About this product

10 Year Limited Parts Warranty
Designed, Engineered, and Assembled in the USA
Simmer Burner
Front Controls

Product Details for Maytag MGC7536DS

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Controls

Control Location	Front
Control Type	Knobs

Cooktop details

Cooktop Surface Color	Color Coordinated
Ignition Type	Direct Spark Ignition
Cooktop Surface Material	Stainless/Porcelain Coated Steel
Digital Display	No
Griddle Included	N/A
Heating Element On Indicator Light	No
Hot Surface Indicator Light	No
Combination Match with Oven	MEW9527, MEW9530
Installs Over Built-In Oven	Yes

Certifications

ADA Compliant	ADA Height and Side Reach Compliant
UL	Yes
Prop 65	Standard - Standard

Electrical

Amps	15
Hz	60

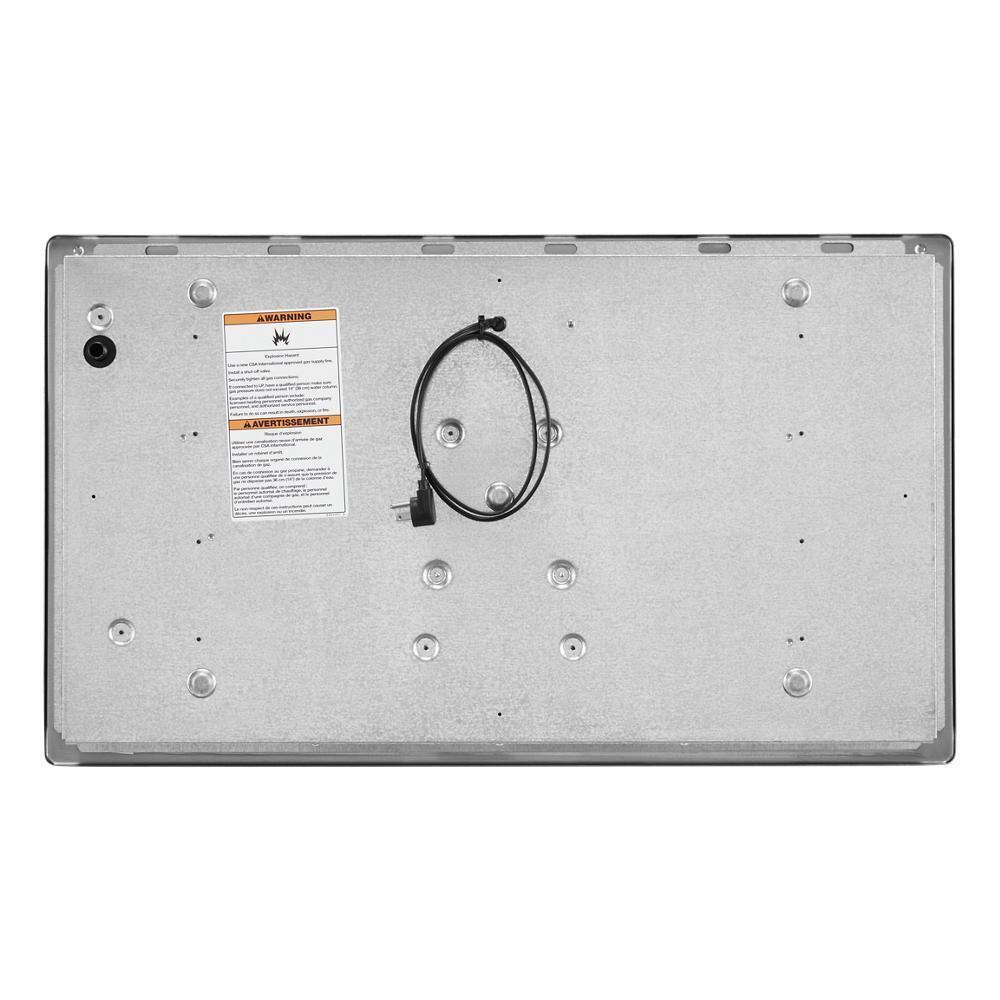

Power Cord Included	Yes
Volts	120

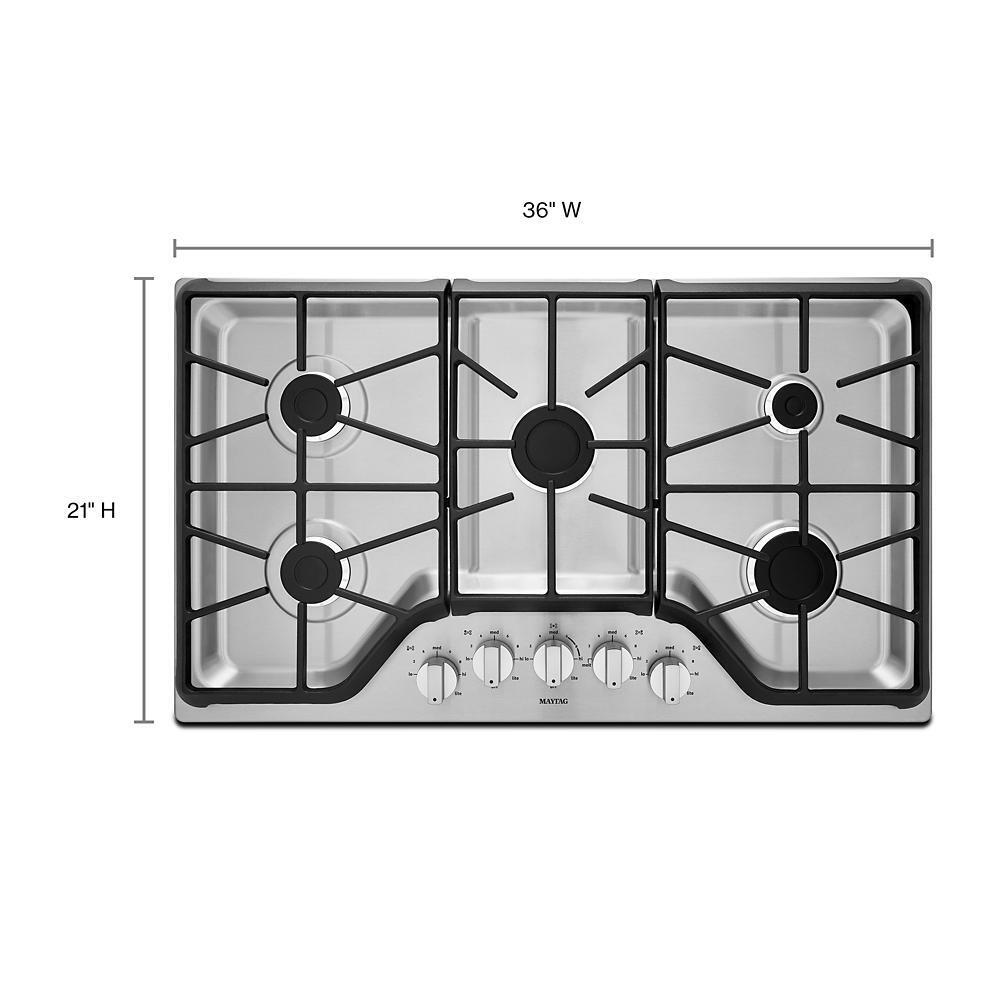

Dimensions & weight

Width	36 in.
Height	3.69 in.
Length	21 in.
Weight	68 lbs.
Carton Depth	25
Carton Height	12 1/16
Carton Width	44 7/16
Cutout Depth (in)	19 1/2
Cutout Height (in)	5 1/4
Cutout Width (in)	34 5/16
Gross Weight	68
Maximum Height	4
Minimum Height	3 3/8
Net Weight	59.6
Cutout Depth Max(IN,inches)	20.0000
Cutout Depth Min(IN,inches)	19.0000
Cutout Depth(IN,inches)	19.5000
Cutout Height(IN,inches)	5.2500
Cutout Width Max(IN,inches)	35.2500
Cutout Width Min(IN,inches)	33.8750
Cutout Width(IN,inches)	34.3125
Depth(IN,inches)	21.0000
Maximum Height(IN,inches)	4.0000
Minimum Height(IN,inches)	3.3750
Net Weight(LB,pounds)	60
Carton Depth(IN,inches)	25.0000
Carton Height(IN,inches)	12.0625
Carton Width(IN,inches)	44.4375
Cutout Height Min(IN,inches)	5.2500
Gross Weight(LB,pounds)	68

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	41 in.
Shipping Height	8.69 in.
Shipping Length	26 in.
Shipping Weight	108 lbs.
Total of Shipping Weight	108 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	1.61 ft³
Dimensional Weight	20.06 lbs.
Total of Cubes	1.61 ft³
Total of Dimensional Weight	20.06 lbs.

Details

Fuel Type	Gas
Installs Over Built-In Oven	Yes
LP Convertible	Yes - Kit Included
Power Outage Compatible	Yes
Digital Display	No

Element/burner details

Center Rear Element-Burner Type	Power™ Burner
Cooktop Element Style	Sealed Burner
Cooktop Type	Standard
Left Front Element-Burner Type	Sealed Burner
Left Rear Element-Burner Type	Sealed Burner
Number of Cooking Element-Burners	5
Power Boost	No
Right Front Element-Burner Type	Sealed Burner
Right Rear Element-Burner Type	Simmer
Automatic Pan Detection	No
Center Rear Element-Burner Power	15,000 BTU
Left Front Element-Burner Power	9,100 BTU
Left Rear Element-Burner Power	9,100 BTU
Number of Grates	3
Right Front Element-Burner Power	12,000 BTU
Right Rear Element-Burner Power	5,000 BTU

Grate details

Number of Grates	3
Grate Details	Cast Iron Grates, Continuous, Dishwasher Safe, Matte Finish

Ventilation details

Downdraft Vent

Exterior details

Knob Color	Stainless Steel
Knob Type	Dishwasher-Safe Plastic

Dimensions

Common Size	36 in
Cutout Depth Max	20 in
Cutout Depth Min	19 in
Cutout Height	5-1/4 in
Cutout Width Max	35-1/4 in
Depth	21 in
Gross Weight	67-3/5 lbs
Height	3-11/16 in
Maximum Height	4 in
Minimum Height	3-3/8 in
Net Weight	59-3/5 lbs
Width	36 in

Refinements

Features

Flex-Choice™ Simmer Burner, Power™ Burner, ADA Compliant

Features

Cooktop Features

Flex-Choice™ Simmer Burner, Power™ Burner

Description

The Maytag MGC7536DS is a bold and dependable 36-inch gas cooktop engineered for powerful cooking performance. With 5 sealed gas burners, including a high-performance 15,000 BTU Power™ Burner for fast boiling and searing, it delivers flexibility and strength for all your culinary needs. The 5,000 BTU simmer burner provides delicate, even heat for sauces and gentle cooking. Continuous cast-iron grates allow you to easily slide pots and pans across burners without lifting, while sealed burners make cleanup easy by containing spills. The Stainless Steel finish resists fingerprints and offers a sleek, professional look. Easy-to-use front controls provide precise temperature adjustment, and the heavy-duty knobs offer tactile, ergonomic feedback. The MGC7536DS is backed by a dependable reputation and built for the long haul.

Product Features

10 Year Limited Parts Warranty
With a 10-year limited parts warranty on the cooktop burners and cast-iron metal grates, we built these cooktops tough enough to keep cookin' for years.
Designed, Engineered, and Assembled in the USA
From Tennessee to you, these cooktops are designed, engineered and assembled in the U.S.A.

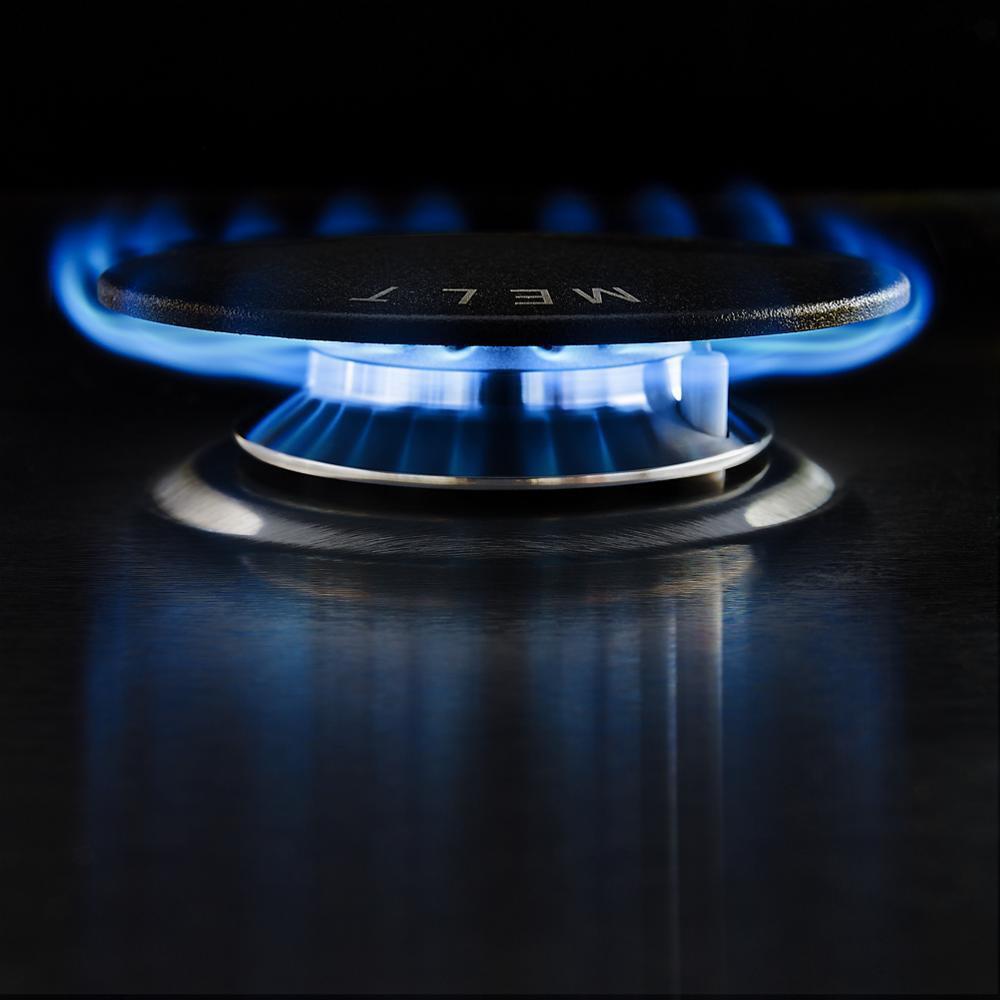

Simmer Burner
The simmer burner provides 800 to 5,000 BTUs of precise, adjustable heat to give your cooktop both a full-power simmer burner and warming setting all in one.

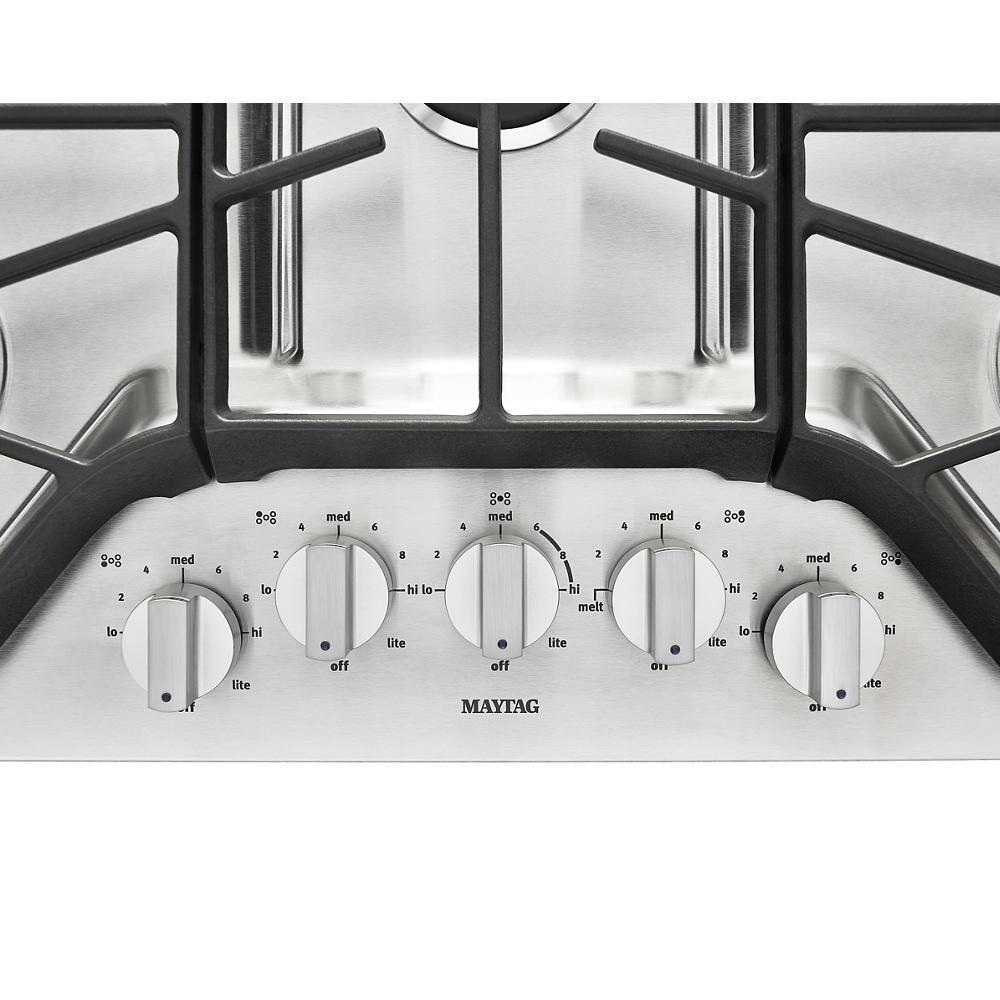

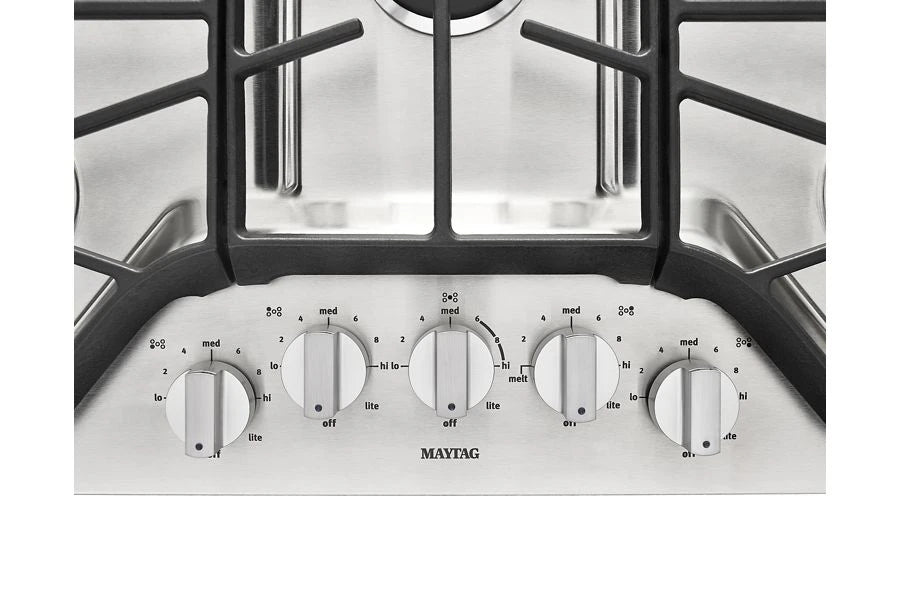

Front Controls
Front controls keep your cooktop knobs close at hand so you can manage your meals without breakin' a sweat.

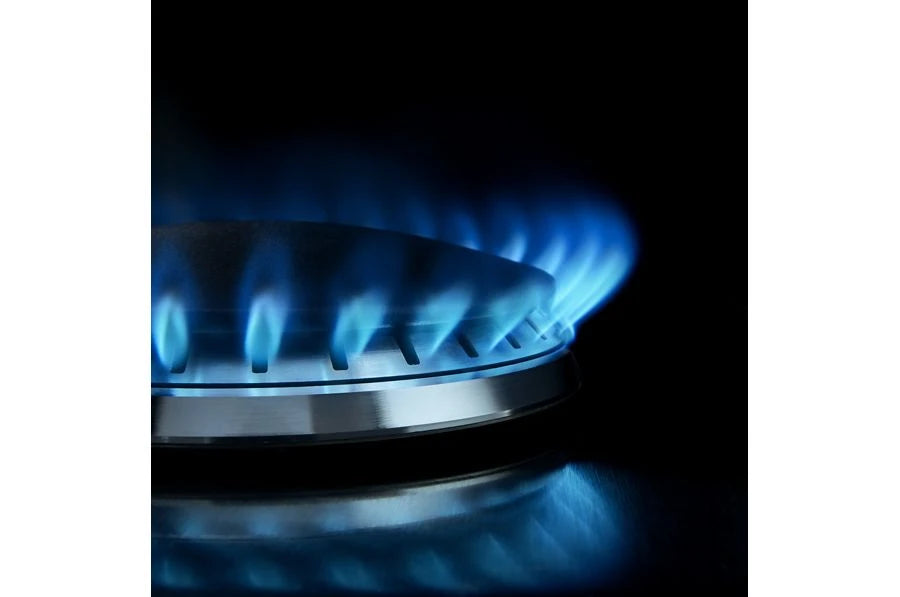

15,000-BTU Power™ Burner
Exclusivo quemador que brinda máxima potencia y rapidez de cocinado, para obtener resultados precisos y consistentes en todo tipo de platillos.
