Product Details for KITCHENAID KCGS950ESS
Technical Details
Certifications
| Ada Compliant | ADA Height and Side Reach Compliant |
| Prop65 | Standard |
| Ul | Yes |
Controls
| Control Location | Front |
| Control Type | Knobs |
| Infinite Heat Controls | Yes |
Cooktop details
| Cooktop Surface Color | Color Coordinated |
| Cooktop Surface Material | Stainless Steel |
| Digital Display | No |
| Griddle Included | Included |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | No |
| Ignition Type | Direct Spark Ignition |
| Number of Open Bays | N/A |
Details
| Automatic Pan Detection | No |
| Cooktop Selections | Automatic Reignition; Simmer |
| Fuel Type | Gas |
| Installs Over Built-in Oven | Yes |
| Lp Convertible | Yes - Kit Included |
| Power Outage Compatible | Yes |

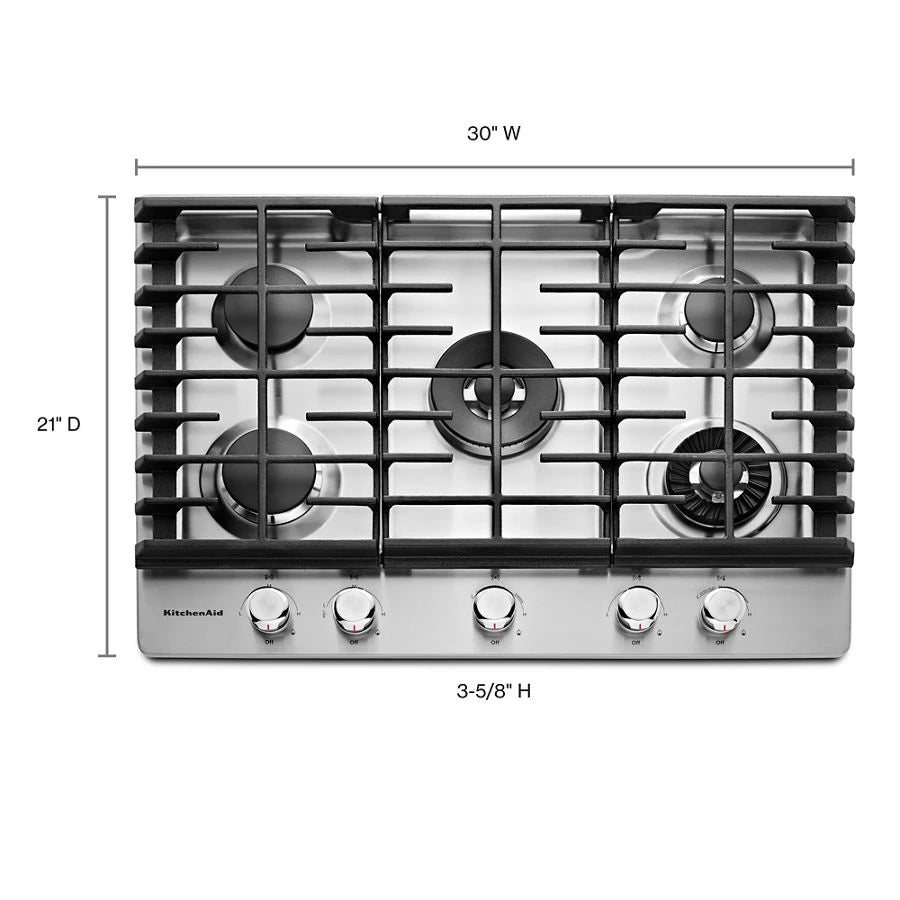

Dimensions
| Product Height | 3.69 |
| Carton Height | 12.04 |
| Gross Weight | 66 |
| Carton Width | 34.76 |
| Product Depth | 21.0 |
| Cutout Depth Max | 20.0 |
| Cutout Width Min | 28.5 |
| Cutout Depth | 19.81 |
| Cutout Height | 5.25 |
| Carton Depth | 25.0 |
| Cutout Width | 28.88 |
| Cutout Depth Min | 19.5 |
| Cutout Width Max | 29.31 |
| Net Weight | 0 |
| Product Width | 30.0 |
Element/burner details
| Center Rear Element-burner Power | 17 |
| Center Rear Element-burner Type | Professional Dual Tier |
| Cooktop Element Style | Sealed Burner |
| Cooktop Type | Standard |
| Left Front Element-burner Power | 12 |
| Left Front Element-burner Type | Burner |
| Left Rear Element-burner Power | 6 |
| Left Rear Element-burner Type | Simmer |
| Number of Cooking Element-burners | 5 |
| Power Boost | No |
| Right Front Element-burner Power | 10 |
| Right Front Element-burner Type | Even-Heat(TM) |
| Right Rear Element-burner Power | 7 |
| Right Rear Element-burner Type | Burner |
Exterior details
| Knob Color | Stainless Steel - Lighted Knobs |
| Knob Type | Metal |
General
| Combination Match With Oven | KOES527P; KOES530P; KOSC104FSS; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107 |
| Cooktop Features | ADA Compliant; Cookshield Finish; Even-Heat Melt Burner; Torch Burner |
Grate details
| Grate Details | Cast Iron Grates; Continuous; Dishwasher Safe; Matte Finish |
| Number of Grates | 3 |
Features
- 10,000 BTU EVEN-HEAT Torch Burner distributes heat aross pan
- 17,000 BTU Professional Dual Ring Burner
Allows you to go from one small flame for precise simmering to a dual flame for powerful boiling, all on the same burner. - 6,000 BTU Even-Heat(TM) Simmer Burner
A diffuser plate allows more control of the flame at the lowest setting, for more precise simmering and melting. - 17,000 BTU Professional Dual Ring Burner for simmering or boiling
- Full-Width Cast-Iron Grates
Enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface. - 6,000 BTU EVEN-HEAT Simmer Burner for simmering and melting
- Multi-Finish Back-Lit Knobs
Deliver a beautiful accent with pleasant LED lights that let you know when the burner is in use. - CookShield Finish protects the cooktop from stains
- Removable Griddle Included

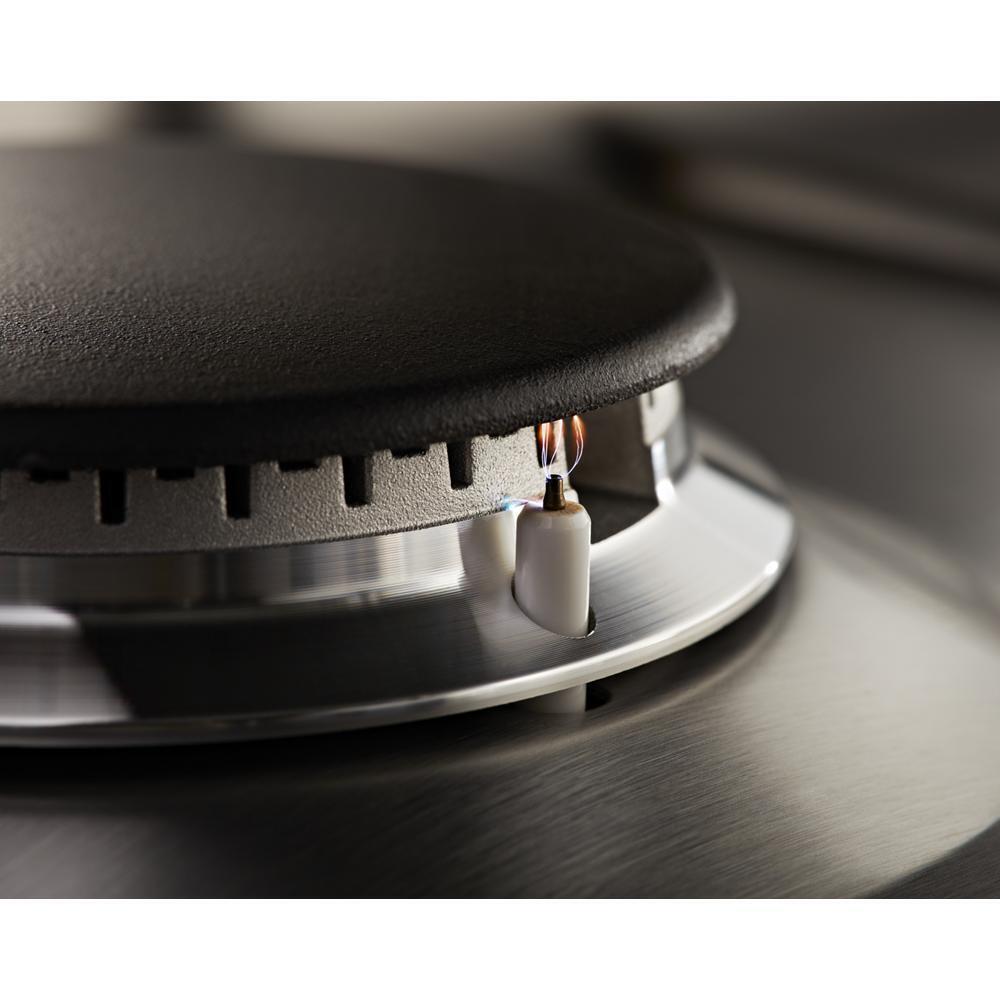

Provides a one-piece flat surface that can be used on the right, left, or center of the cooktop surface, and is ideal for making a range of dishes from crepes to quesadillas. - Lights burners with an electric spark and relights them if flame goes out
- Full-Width Cast-Iron Grates allow easy movement of cookware
- LP Conversion Kit (not included) allows use cooktop with LP gas
- Multi-Finish Back-Lit Knobs let you know when burner is in use
- Removable Griddle (included) is deal for crepes amd quesadillas
Description

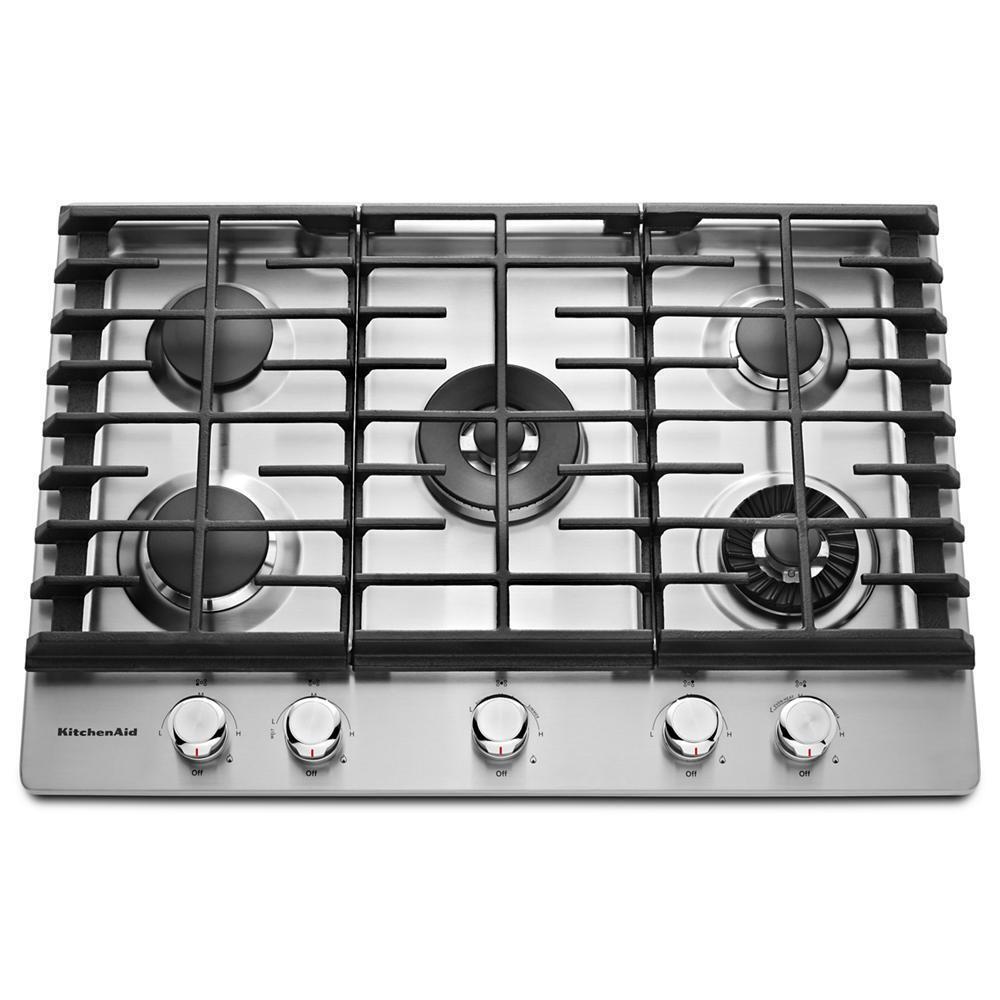

The brand KitchenAid KCGS950ESS redefines culinary convenience in a 30-inch built-in gas cooktop featuring five sealed burners with a powerful 19K BTU Dual Power™ burner, two 9K BTU burners, and simmer settings, plus a dedicated mid‑section cast‑iron griddle plate for pancakes, sandwiches, or breakfast favorites. The continuous cast‑iron grates allow smooth cookware movement and robust support, while electronic ignition ensures fast, reliable starts. The sleek one‑piece stainless steel surface with Grate & Cooktop One‑Piece Design offers effortless cleanup. With clear burner dials and durable burner caps, this cooktop delivers precise heat control and easy maintenance—ideal for everyday cooking, grilling, and entertaining.
Manuals & Guides
Key Features

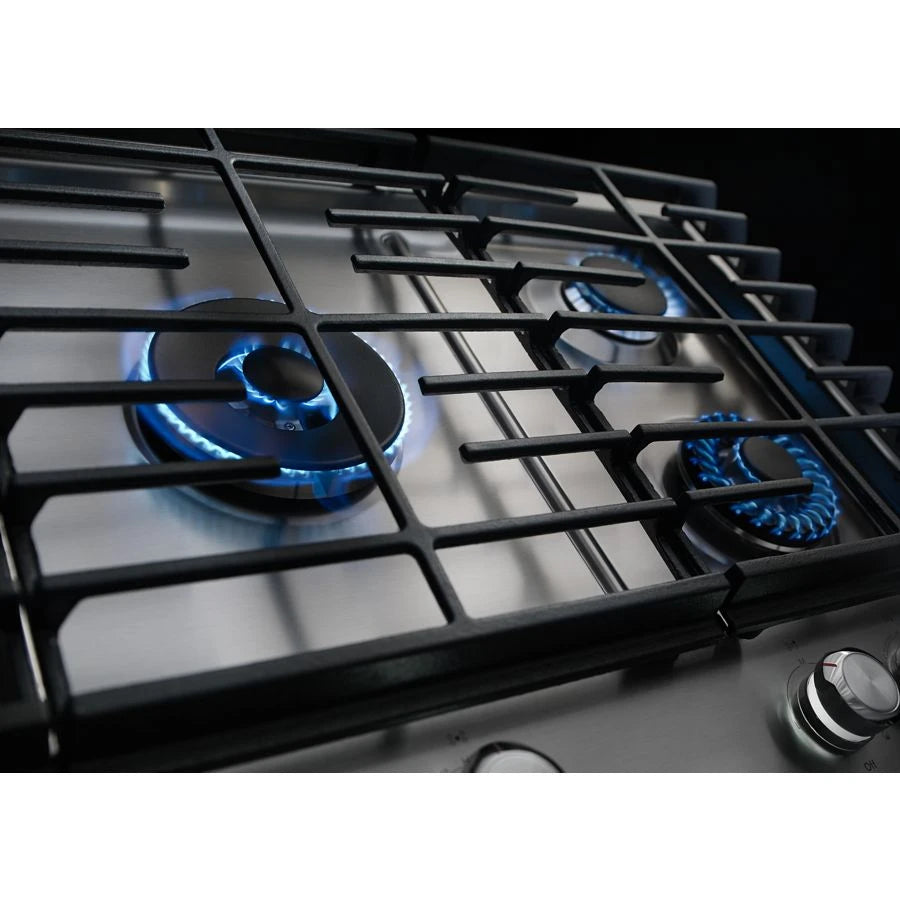

17,000 BTU Professional Dual Ring Burner
Allows you to go from one small flame for precise simmering to a dual flame for powerful boiling, all on the same burner.

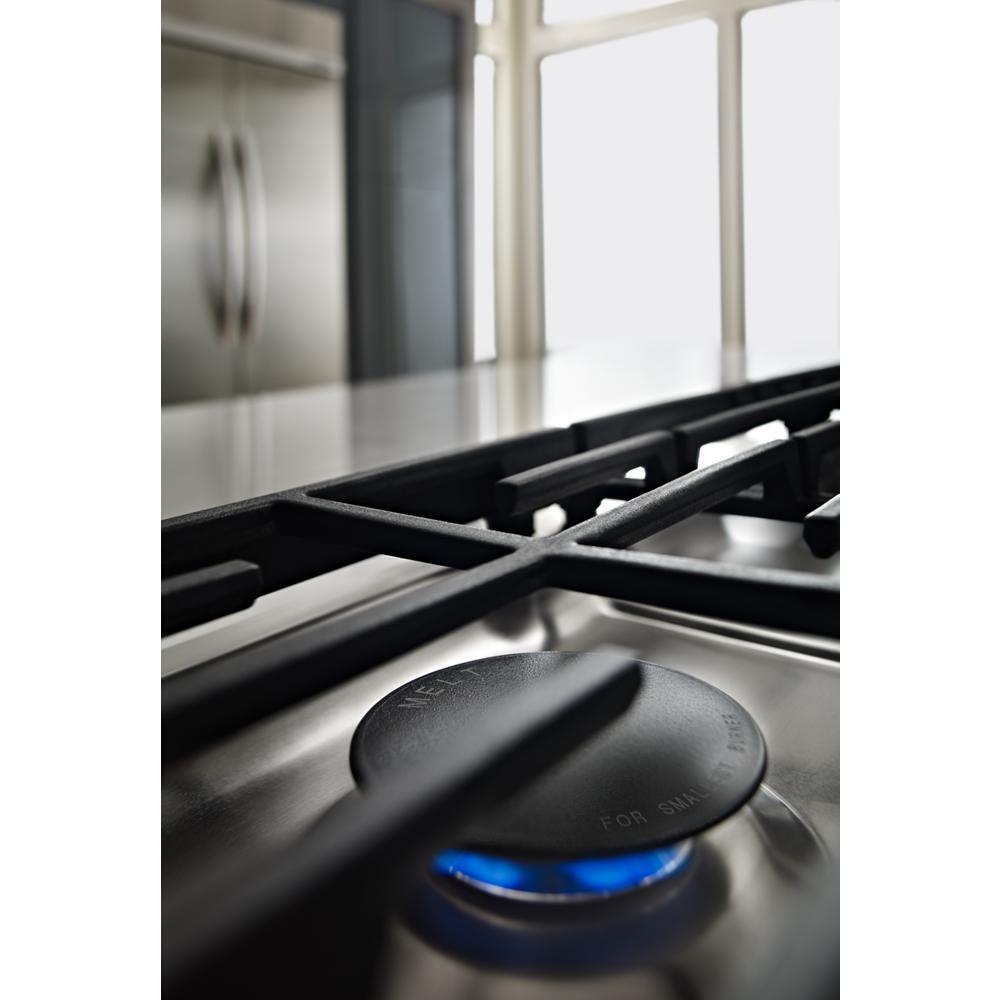

6,000 BTU Even-Heat(TM) Simmer Burner
A diffuser plate allows more control of the flame at the lowest setting, for more precise simmering and melting.
Full-Width Cast-Iron Grates
Enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.
Multi-Finish Back-Lit Knobs
Deliver a beautiful accent with pleasant LED lights that let you know when the burner is in use.

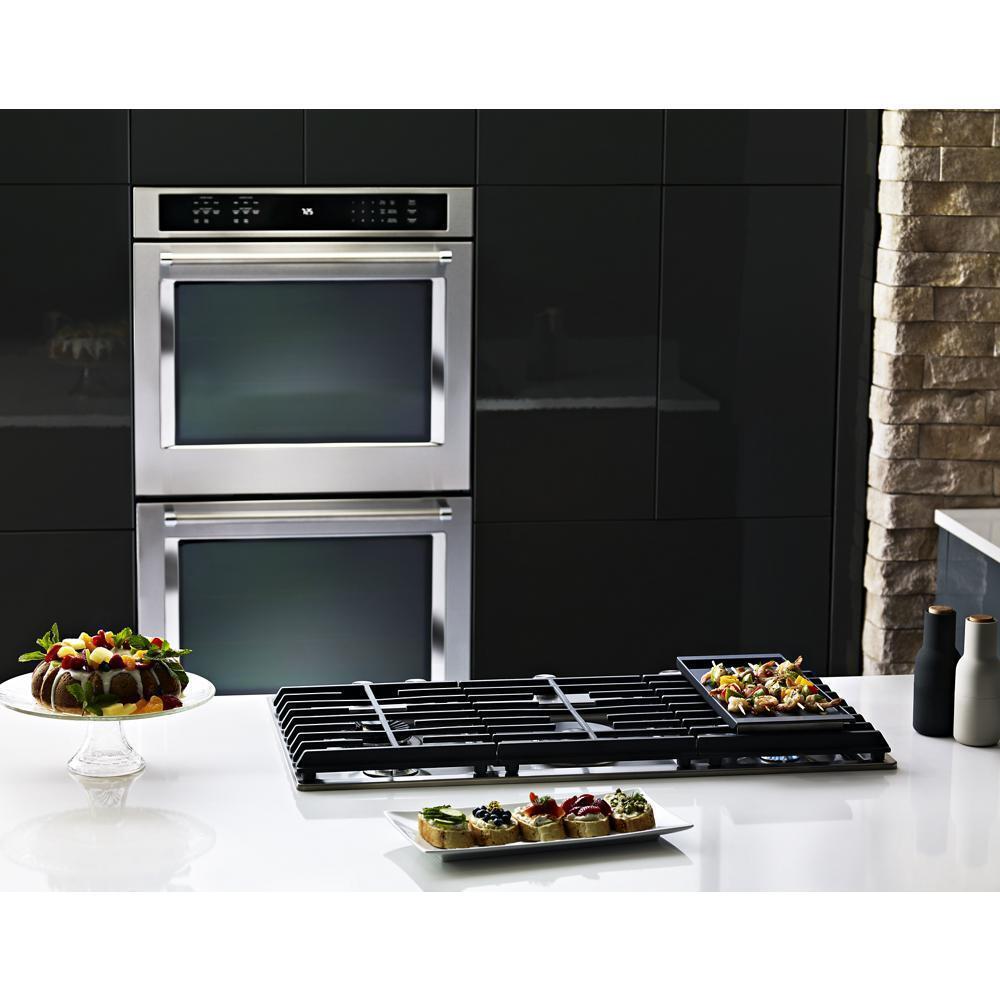

Removable Griddle Included
Provides a one-piece flat surface that can be used on the right, left, or center of the cooktop surface, and is ideal for making a range of dishes from crepes to quesadillas.
