| ADA Compliant | ADA Height and Side Reach Compliant |
| CEC Listed | Yes |
| CUL | Yes |
| Star K Certified | No |
| UL | Yes |
| prop65 | Standard - Standard |
| Control Location | Front |
| Control Type | Knobs |
| Infinite Heat Controls | Yes |
| Auto Re-ignition | Yes |
| Cooktop Surface Material | Stainless/Porcelain Coated Steel |
| Digital Display | No |

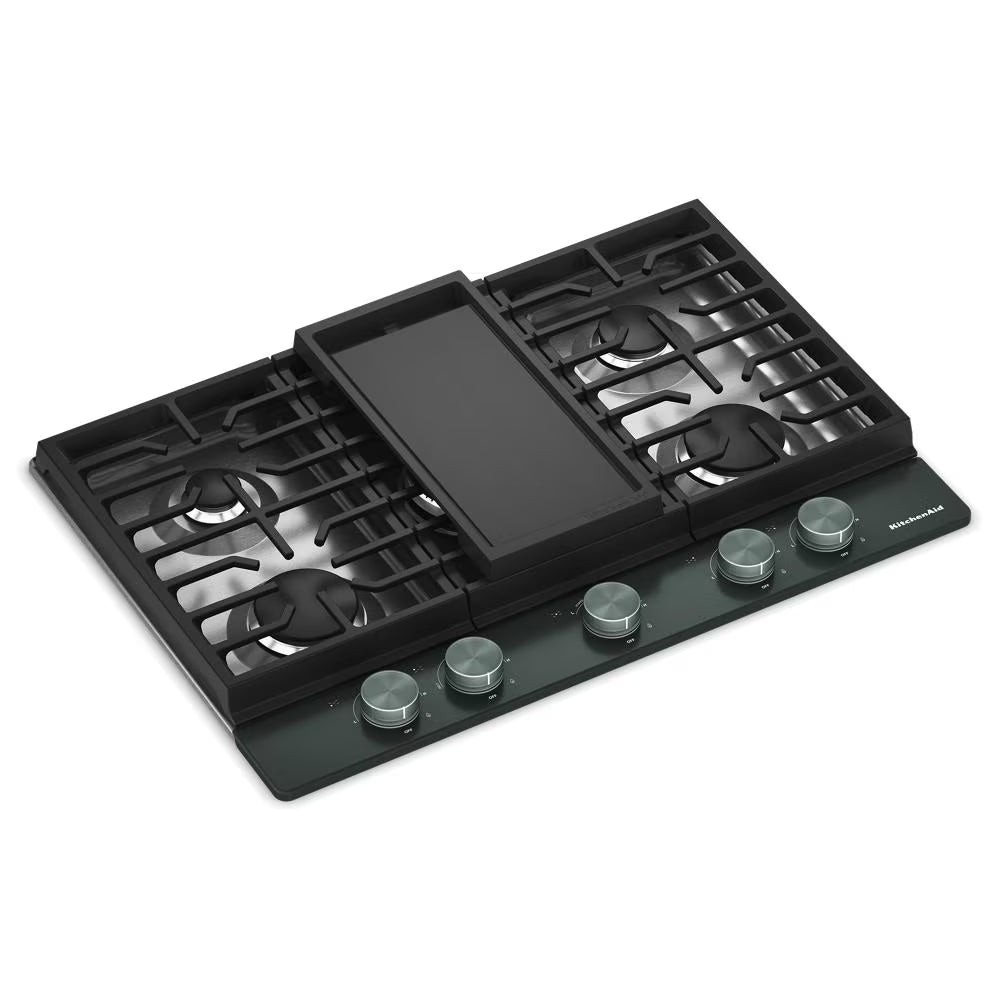

| Griddle Included | Yes |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Ignition Type | Flame-Sensing™ Re-ignition |
| Number of Open Bays | N/A |
| Automatic Pan Detection | No |
| Automatic Pan Size Adjustment | No |
| Cooktop Configuration | All Burners |
| Cooktop Selections | Automatic Reignition; Lighted Knobs |
| Fuel Type | Gas |
| Installation Configuration | Built-In |
| Installs Over Built-In Oven | Yes |
| LP Convertible | Yes - Kit Included |
| Power Outage Compatible | Yes |
| Cutout Depth | 19.813 |
| Cutout Depth Max | 20 |
| Cutout Depth Min | 19.5 |
| Cutout Height | 5 |
| Cutout Width | 28.875 |
| Cutout Width Max | 29.313 |
| Cutout Width Min | 28.5 |
| carton depth | 25 |
| carton height | 13 |
| carton width | 35 |
| gross weight | 71 lbs. |
| net weight | 65 |

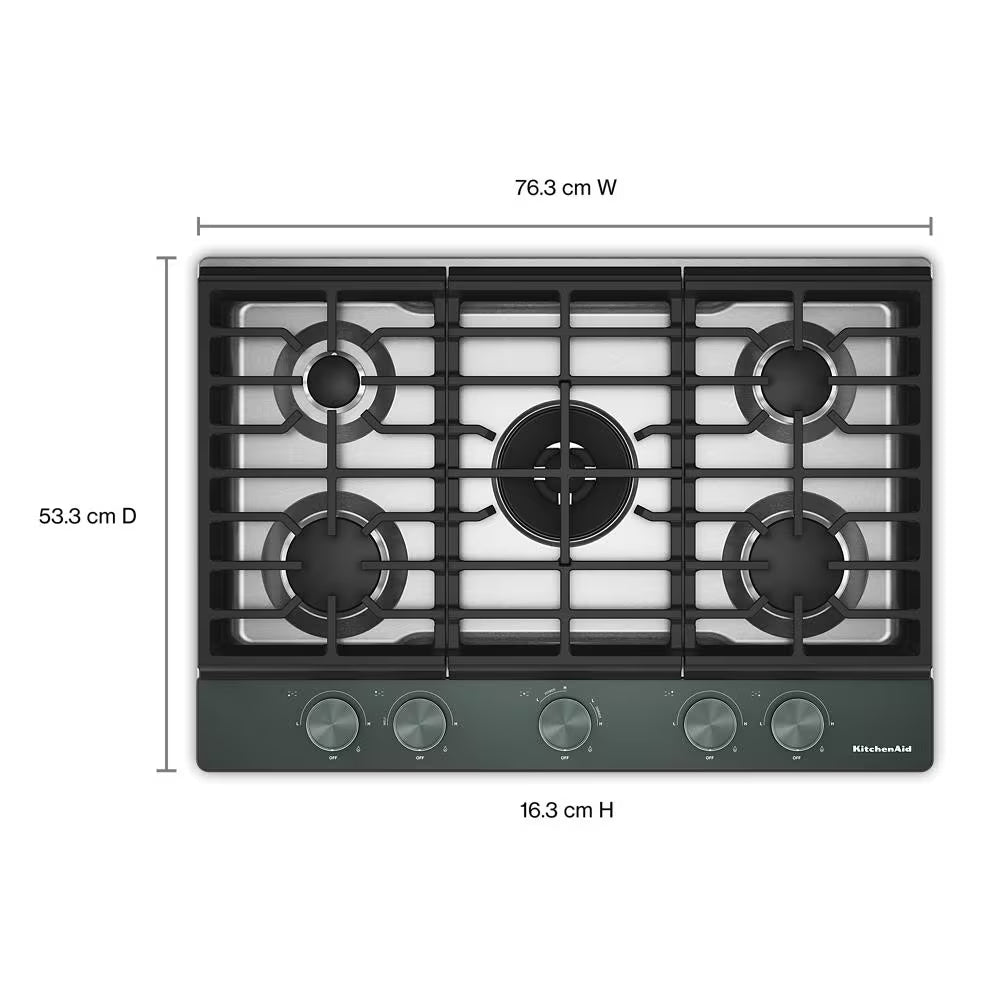

| Height | 13 in. |
| Length | 25 in. |
| Width | 35 in. |
| 208V Compatible | No |
| Power Cord Included | Yes |
| Center Element Burner Power | 17, 000 BTU |
| Center Element Burner Type | Professional Dual Ring |
| Cooktop Element Style | Sealed Burner |
| Cooktop Type | Standard |
| Left Front Element-Burner Power | 10000 BTU |
| Left Front Element-Burner Type | Rapid |
| Left Rear Element-Burner Power | 6, 000 BTU |
| Left Rear Element-Burner Type | Melt / Simmer |
| Number of Cooking Element-Burners | 5 |
| Power Boost | No |
| Right Front Element-Burner Power | 10, 000 BTU |
| Right Front Element-Burner Type | Rapid |
| Right Rear Element-Burner Power | 7, 000 BTU |
| Right Rear Element-Burner Type | Semirapid |
| Grate Details | Cast Iron Grates; Continuous; Dishwasher Safe; Integrated Wok Grate; Matte Finish |
| Number of Grates | 3 |
| Natural Gas Convertible | Yes |
| Connectivity | No |
| Downdraft Vent | No |
| Combination Match with Oven | KOES430R; KOES527P; KOES530P; KOES530S; KOES630S; KOES727S; KOES730P; KOES730S; KOES930S; KOSE500E; KOSE507E; KOSE900; KOSE900H |
| Energy Star® Qualified | No |
| Gas Regulator Inlet Thread Size | .75 |
| Personalized Hardware | Yes |
| Total Maximum BTU Output (cooktop & oven) | 50000 BTU |
| Volume | 6.583 Cu.Ft. |
deliver a beautiful accent with LED lights that let you know when the burner is in use.
enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface. Wash these Cast-Iron Grates right in the dishwasher when they get messy.
