What's included: 5 items

  • 27.7 Cu. Ft. Fingerprint Resistant French-Door Refrigerator with Hands-Free AutoFill

    GE Profile PFE28KYNFS 27.7 Cu. Ft. Fingerprint Resistant French-Door Refrigerator with Hands-Free AutoFill Fingerprint Resistant Stainless Steel

    • SKU SKU: PFE28KYNFS UPC: 84691848769
    • Type French Door Refrigerators
  • 36" Built-In Gas Cooktop with Five Burners

    GE Profile PGP7036SLSS 36" Built-In Gas Cooktop with Five Burners Stainless Steel

    • SKU SKU: PGP7036SLSS UPC: 84691822899
    • Type Gas Cooktops
  • 30" Smart Built-In Convection Double Wall Oven with No Preheat Air Fry and Precision Cooking

    GE Profile PTD7000SNSS 30" Smart Built-In Convection Double Wall Oven with No Preheat Air Fry and Precision Cooking Stainless Steel

    • SKU SKU: PTD7000SNSS UPC: 84691842378
    • Type Double Wall Ovens
  • Ge Profile™ 36" Under The Cabinet Hood

    PVX7360SJSS Ge Profile™ 36" Under The Cabinet Hood Stainless Steel

    • SKU SKU: PVX7360SJSS UPC: 84691816928
    • Type Ductless Hoods

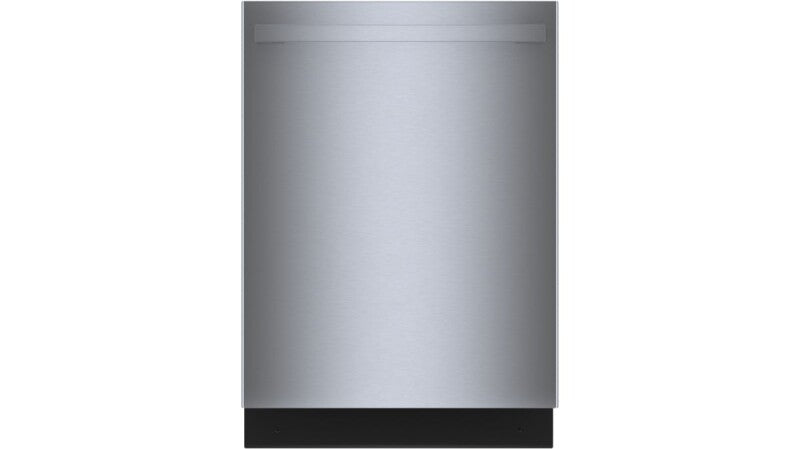

  • 800 Series Dishwasher 24''

    Bosch SHX78CM5N 800 Series Dishwasher 24'' Stainless Steel

    • SKU SKU: SHX78CM5N UPC: 825225965985
    • Type Built-In Dishwashers
  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Videos
  • Rebates
  • Reviews
Sale price $8,569.20 Regular price $12,617.37 Save $4,048.17 / 32% OFF

Product Details for GE APPLIANCES PFE28KYNFS

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Weights & dimensions

Overall Depth 36.25 in
Overall Width 35.75 in
Overall Height 69.875 in
Height to Top of Hinge 69.875 in
Net Weight 370 lb
Back Air Clearances 2 in
Approximate Shipping Weight 390 lb
Depth with Door Open 90° 48.375 in
Width w/Door Open 90 Degrees Incl. Handle 44.625 in
Case Depth Without Door 29.375 in
Top Air Clearances 1 in
Depth Without Handle 34.75 in
Height to Top of Case 69 in
Side Air Clearances 1/8 in
Overall Depth with Handle 36.25 in

Features

Temperature Management Features Turbo Cool setting
Dispenser Features Water Filter Indicator Light
Control Type External Electronic Digital Temperature Display
Icemaker Space Saving Ice
Number of Doors 3
WiFi Connect Optional (Requires part no. PBX23W00Y1)
Performance Features Easily Removable Door Gaskets
Sabbath Mode Optional
Filter Location Left wall
Door Alarm Yes
Freezer Storage Baskets 2 Full-Width
Temperature Management System TwinChill™ Evaporators
Freezer Door Bins 1 Total
Defrost Type Frost Guard
Fresh Food Door Features Drop Down Tray
Leveling System 2 Front Leveling Legs
Fresh Food Cabinet Shelves 5 Total - Glass with Silver Trim
Fresh Food Door Bins 6 Total
Freezer Features Interior Lighting - LED (2)
Exterior Style Standard Depth
Temperature Display External Digital
Fresh Food Features Showcase LED Lighting 7
Configuration French Door
Refrigerant Type R600a
Dispenser Large Color-Matched
Water Filtration Removes Pharmaceuticals
Fresh Food Cabinet Drawers Electronic Temperature Control w/ LED Lighting
Product Type French-Door Refrigerator
OU Certified OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately
Dispenser Cubes, Crushed Ice and Water
Dispenser Features Hands-Free AutoFill
Dispenser Features Door Alarm
Dispenser Features LED Dispenser Light
Fresh Food Cabinet Drawers 3 Total
Fresh Food Cabinet Drawers 2 Adjustable Humidity
Fresh Food Cabinet Drawers 1 Full-Width, Adjustable Temperature Drawer
Fresh Food Cabinet Shelves 4 Split Adjustable; 1 Full-Width
Fresh Food Cabinet Shelves 3 Spill Proof
Fresh Food Cabinet Shelves 1 Quick Space Shelf
Fresh Food Door Bins 3 with Gallon Storage
Fresh Food Door Bins 2 Adjustable
Fresh Food Door Features Dairy Compartment
Icemaker Optional 2nd Icemaker (IM5D) in Freezer
Product Type Bottom Freezer Refrigerator
Water Filtration Advanced Filtration System
Water Filtration Find your filter here
Exterior Style Free-Standing

Appearance

Adjustable Rollers 2
Dispenser Color Stainless Steel
Case Color Gray
Exterior Design Contoured Doors
Handle Color Stainless Steel
Door Stops Yes
Textured Steel Case Case Only - Dark Gray
Handle Design Designer Style
Door Swing French Door
Color Appearance Fingerprint Resistant Stainless
Handle Handle with Chrome accents
Hidden Door Hinge(s) Yes

Power / ratings

Energy Consumption (kWh/year) 725
Volts/Hertz/Amps 120v; 60Hz; 15A
Electrical Requirements 120V
Hertz 60

Warranty

Warranty Notes See written warranty for full details
Labor Warranty Limited 1-year entire appliance
Parts Warranty Limited 1-year entire appliance

Capacity

Freezer Capacity 9.17 cu ft
Fresh Food Capacity 18.50 cu ft
Total Capacity (cubic feet) 27.70 cu ft

Other

Back Air Clearances 2 in
Top Air Clearances 1 in
Side Air Clearances 0.125 in

Dimensions & weight

Width 35.75 in.
Height 69.88 in.
Length 36.25 in.
Weight 370 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 40.75 in.
Shipping Height 74.88 in.
Shipping Length 41.25 in.
Shipping Weight 410 lbs.
Total of Shipping Weight 410 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 52.4 ft³
Dimensional Weight 651.46 lbs.
Total of Cubes 52.4 ft³
Total of Dimensional Weight 651.46 lbs.

Description

Lets you walk away while the dispenser automatically fills any container with filtered water.3 accurate settings deliver the optimal temperature for your favorite foods.69 7/8 H x 35 3/4 W x 36 1/4 D

Key Features

Fingerprint Resistant Stainless

Easily wipe away smudges and fingerprints for a look that's always sparkling clean

Full-width electronic temperature-controlled drawer with LED lights

3 accurate settings deliver the optimal temperature for your favorite foods

Enhanced Shabbos Mode

The Shabbos Keeper connects to your refrigerator to automatically enable Shabbos compatible modes each week and before every holiday (Shabbos Keeper sold separately, visit www.zmantechnologies.com for details)

Turbo Cool setting

Drops interior temperature to maintain freshness after frequent openings

Hands-free Autofill

Lets you walk away while the dispenser automatically fills any container with filtered water

Second icemaker option

Always have extra ice on hand with an optional second icemaker in the freezer (IM5D kit sold separately)

TwinChill evaporators

Separate climates in the fresh food and freezer sections help keep foods fresh

Advanced Water Filtration

The included refrigerator water filter reduces 50+ impurities including lead, chlorine, microplastics, and PFOA/PFOS; providing clean, safe drinking water and ice (replacement water filters sold separately - check refrigerator filter compartment for compatible model)

Showcase LED lighting

Positioned throughout the interior and under fresh food doors to spotlight foods inside the refrigerator and in the freezer

Quick Space shelf

Functions as a normal full-sized shelf when needed and easily slides down for instant storage flexibility

Drop-down tray

Allows for extra door storage when you need it and tucks away when you don’t

Refrigerator Bin Liners

Included with your fridge are bin liners that make cleanup easy.

TwinChill™ evaporators

Separate climates in the fresh food and freezer sections help keep foods fresh

From The Manufacturer

Videos

Rebates

GE Innovation Rebate 2026 – Upgrade to Smarter Appliances & Save

RECEIVE UP TO A $2,000* REBATE WITH THE PURCHASE OF SELECT GE PROFILE APPLIANCE SUITE COMBINATIONS WHEN PURCHASED FROM AN AUTHORIZED GE APPLIANCES RESELLER IN THE 50 U.S. STATES OR D.C.
Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Videos
  • Rebates
  • Reviews
Sale price $8,569.20 Regular price $12,617.37 Save $4,048.17 / 32% OFF

Product Details for GE APPLIANCES PGP7036SLSS

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Weights & dimensions

Overall Height 5.5 in
Cabinet Width 36 in
Overall Width 36 in
Overall Depth 21 in
Approximate Shipping Weight 57 lb
Net Weight 51 lb
Cutout Width (in) 33.875
Cutout Height (in) 3.6875
Cutout Depth (in) 19.125

Features

Cooktop Burner Type 5 Sealed
Valves (Degree of Turn) 270
Burner - Right Rear 5,000 BTU
Burner - Right Front 15,000 BTU Power Boil
Fuel Type Natural Gas
Power Boil Burner Yes
Control Location Front Center
Cooktop Type Continuous Grates
Ignition System Electronic
Burner - Center 18,000 BTU Power Boil
Cooktop Surface Deep Stainless Steel
Burner - Left Rear 9,500 BTU
Control Type Knob
Cooktop Burner Grate Material Heavy Cast
Griddle Optional
Cooktop Burner Grate Features Edge-to-Edge Grates
Burner - Left Front 9,500 BTU
Product Type Cooktop
Cooktop Burner Grate Features Continuous Grates
Cooktop Burner Grate Features Dishwasher Safe
Griddle JXGRIDL236
Griddle Cast Iron

Power / ratings

Burner BTU Ratings (000's/BTU) - LP Gas (1) 18.0; (1) 15.0; (2) 9.5; (1) 5.0
Burner BTU Ratings (000's/BTU) - Natural Gas (1) 18.0; (1) 15.0; (2) 9.5; (1) 5.0
Volts/Hertz/Amps 120V; 60Hz; 5A
Hertz 60
Electrical Requirements 120V

Warranty

Parts Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details
Labor Warranty Limited 1-year entire appliance

Appearance

Color Appearance Stainless Steel
Cooktop Burner Grate Color Matte Black
Control Knobs White LED Backlit
Control Knobs Stainless Steel Appearance
Control Knobs Dishwasher Safe

Accessories

Stainless Steel Cleaner Included

Dimensions & weight

Width 36 in.
Height 5.5 in.
Length 21 in.
Weight 51 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 41 in.
Shipping Height 10.5 in.
Shipping Length 26 in.
Shipping Weight 91 lbs.
Total of Shipping Weight 91 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 2.41 ft³
Dimensional Weight 29.91 lbs.
Total of Cubes 2.41 ft³
Total of Dimensional Weight 29.91 lbs.

Description

Continuous cast iron grates provide more room for large cookware.Eliminate the need for extra cookware with an optional integrated griddle perfect for pancakes, grilled cheeses and other favorites.5 1/2 H x 36 W x 21 D

Key Features

Start Cooking Faster with Power Boil

18,000 BTU Power Boil burner delivers intense heat for faster boiling

Maximize Your Cooking Space

Continuous cast iron grates provide more room for large cookware

Precise Simmer Burner

Protect delicate foods with low, even heating

Dishwasher-Safe Grates

Heavy-duty grates are easy to clean in the dishwasher

Spend Less Time Cleaning Up

Sealed cooktop burners contain spills and make cleaning quick and easy

More Cooking, Less Cookware

Eliminate the need for extra cookware with an optional integrated griddle perfect for pancakes, grilled cheeses and other favorites

White LED Backlit Heavy-Duty Knobs

Durable knobs are back-lit for a sleek appearance when burners are on

MAX Burner System

Delivers the same maximum BTU power to propane and natural gas cooktops

Fit Guarantee

Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details

From The Manufacturer

Videos

Rebates

GE Appliance Fit Guarantee Rebate 2026 – Perfect Fit or We Make It Right

Offer valid regardless of previously purchased brand.
Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

GE Innovation Rebate 2026 – Upgrade to Smarter Appliances & Save

RECEIVE UP TO A $2,000* REBATE WITH THE PURCHASE OF SELECT GE PROFILE APPLIANCE SUITE COMBINATIONS WHEN PURCHASED FROM AN AUTHORIZED GE APPLIANCES RESELLER IN THE 50 U.S. STATES OR D.C.
Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Videos
  • Rebates
  • Reviews
Sale price $8,569.20 Regular price $12,617.37 Save $4,048.17 / 32% OFF

Product Details for GE APPLIANCES PTD7000SNSS

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Weights & dimensions

Overall Depth 26.75 in
Cabinet Width 30 in
Overall Width 29.75 in
Overall Height 53 in
Net Weight 284 lb
Oven Interior Dimensions (upper) 25 x 17-3/8 x 20-1/4
Cutout Dimensions (w x h x d) (in.) 28-1/2 x 51-13/16 x 23-1/2
Oven Interior Dimensions (lower) 25 x 17-3/8 x 20-1/4
Approximate Shipping Weight 308 lb
Cutout Depth (in) 23.5
Depth with Door Open 48.75 in
Cutout Height (in) 51.8125
Cutout Width (in) 28.5

Features

WiFi Connect Built-In
Oven Cooking Modes Thermal Broil Hi/Lo
Fuel Type Electric
Product Type Double Oven
Oven Interior Hidden Bake
Cooking Technology Convection
Oven Features Closed Door Broiling
Cleaning Time Variable with Delay Clean Option
Configuration Double Oven
Oven Rack Positions (Single or Upper/Lower) 6 / 6
Oven Control Features Warm Mode
Sabbath Mode Yes
Oven Rack Features Embossed Rack Positions (Both Ovens)
Self-Clean Oven Door Lock Automatic
Cooking System True European Convection with Direct Air (Upper)
Control Type 7" Full-Color Touch LCD Screen
Connected Capabilities The Google Assistant
OU Certified No
Oven Cleaning Type Self-Clean with Steam Clean Option
Connected Capabilities Amazon Alexa
Connected Capabilities IFTTT
Connected Capabilities Fresco
Connected Capabilities Innit
Connected Capabilities Sonos
Cooking System True European Convection (Lower)
Oven Control Features 12-Hour Shut-Off Capability
Oven Control Features Audible Preheat Signal
Oven Control Features Auto Recipe Conversion (Upper)
Oven Control Features C° or F° Programmable
Oven Control Features Sabbath Mode
Oven Control Features Control Lock Capability
Oven Control Features Cook Time
Oven Control Features Delay Time
Oven Control Features Electronic Clock & Kitchen Timer
Oven Control Features Mis-Wire Detection
Oven Control Features Proof Mode
Oven Control Features Remote Enabled
Oven Control Features Temperature Probe
Oven Cooking Modes Convection Bake
Oven Cooking Modes Convection Bake Multi-Rack
Oven Cooking Modes Convection Roast
Oven Cooking Modes Convection Broil Hi/Lo
Oven Cooking Modes Precision Cooking Modes
Oven Cooking Modes Thermal Bake
Oven Cooking Modes No Preheat Air Fry
Oven Features 10-Pass Bake Element
Oven Features 10-Pass Dual Broil Element
Oven Interior 2 Halogen Interior Oven Lights (Both Ovens)
Oven Interior Black Gloss Finish
Connected Capabilities Google Home
Oven Rack Features 2 Heavy-Duty Roller Racks
Oven Rack Features 2 Heavy-Duty Flat Oven Racks
Oven Control Features Certified Oven Kosher Separation

Power / ratings

Bake Wattage 2850W
Convection Wattage 2400W
Electrical Requirements 208/240V ; 60Hz ; 40A
Amp Rating at 208V 40
KW Rating at 240V 9
Broiler Wattage 4300W
Amp Rating at 240V 40
KW Rating at 208V 6.8
Hertz 60

Appearance

Oven Door Features Big View Oven Window
Handle Color Brushed Stainless
Color Appearance Stainless Steel
Installation Side-by-Side
Handle Designer Style
Installation Above Warming Drawer

Warranty

Labor Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details
Parts Warranty Limited 1-year entire appliance

Accessories

Air Fry Basket Optional- JXAFTRAY1VSS
Optional Accessories UXWORXR30 - 30" Never Scrub Roller Rack

Capacity

Capacity (Cu. Ft.) 5.0 Upper / 5.0 Lower
Total Capacity (cubic feet) 10.00 cu ft

Other

Oven Interior Dimensions (upper) 25 x 17-3/8 x 20-1/4
Cutout Dimensions (w x h x d) (in.) 28-1/2 x 51-13/16 x 23-1/2

Dimensions & weight

Width 29.75 in.
Height 53 in.
Length 26.75 in.
Weight 284 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 34.75 in.
Shipping Height 58 in.
Shipping Length 31.75 in.
Shipping Weight 324 lbs.
Total of Shipping Weight 324 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 24.41 ft³
Dimensional Weight 303.44 lbs.
Total of Cubes 24.41 ft³
Total of Dimensional Weight 303.44 lbs.

Description

Ensure your oven always has the latest features, like new Air Fry modes, with downloadable software upgrades.Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn’t require preheating, a basket or a special tray.53 H x 29 3/4 W x 26 3/4 D

Key Features

Remote Temperature Probe

Know exactly when your dish has reached the perfect internal temperature with temperature readings that you can view using the SmartHQ App

Self-clean oven with optional Steam Clean

Let your oven do the cleaning for you with two ways to eliminate baked on messes

10-pass hidden bake element

Even baking is assured with heat that covers more surface area

10-pass dual-broil element

Large and small dishes brown evenly with two, full-coverage elements

Double oven convection

Cook more dishes at once and achieve perfectly even results with convection technology in both ovens

GE Profile Connect +

Ensure your oven always has the latest features, like new Air Fry modes, with downloadable software upgrades

Built-In WiFi, Powered by SmartHQ App

Connect, control and manage your oven from anywhere with your smartphone or tablet (Select features require WiFi Connection) See details

No Preheat Air Fry

Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn’t require preheating, a basket or a special tray

Precision cooking modes

Simplify the cooking process with precision cooking modes that automatically track progress, and make time and temperature adjustments

True European Convection with Direct Air

Faster more even results for roasts, chicken, turkey and other special-occasion favorites, with the only cooking system that delivers true top-down convection

Brilliant Touch 7" Display

A bright, interactive touch screen is easy to use and includes custom screen backgrounds, weather updates and a pop of intrigue with fun food facts

No preheat options

Save time with a variety of precision cooking modes that eliminate the need for preheating

Fit Guarantee

Replacing a similar wall oven from GE Appliances or another brand? GE wall ovens are guaranteed for an exact fit or GE Appliances will pay up to $300 toward modifications. See offer criteria and details

Brilliant Touch 7” Display

A bright, interactive touch screen is easy to use and includes custom screen backgrounds, weather updates and a pop of intrigue with fun food facts

Heavy-duty smooth glide roller racks

Easily remove even the heaviest dishes with a roller rack that’s engineered to glide seamlessly out of the oven

From The Manufacturer

Videos

Rebates

GE Appliance Fit Guarantee Rebate 2026 – Perfect Fit or We Make It Right

Offer valid regardless of previously purchased brand.
Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

GE Innovation Rebate 2026 – Upgrade to Smarter Appliances & Save

RECEIVE UP TO A $2,000* REBATE WITH THE PURCHASE OF SELECT GE PROFILE APPLIANCE SUITE COMBINATIONS WHEN PURCHASED FROM AN AUTHORIZED GE APPLIANCES RESELLER IN THE 50 U.S. STATES OR D.C.
Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Videos
  • Reviews
Sale price $8,569.20 Regular price $12,617.37 Save $4,048.17 / 32% OFF

Product Details for GE APPLIANCES PVX7360SJSS

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Weights & dimensions

Cabinet Width 36 in
Overall Depth 20 in
Overall Height 5.5 in
Overall Width 35.875 in
Net Weight 23 lb
Approximate Shipping Weight 30 lb

Features

Fan Speed Control 4-Speed
Cooktop Lighting LED
Max CFM 390
Ducting Vertical or Horizontal; 7" Round
Light Controls On/Off/Night-Light
Filter Cleaning Dishwasher Safe
CFM/ Sones Rating 70/1.5 (Low Speed)
Exhaust Options Vented to Outside
Product Type Under Cabinet Hood
Control Features Chef Connect
Control Type Glass Touch
Control Location Front
Removable Grease Filter(s) Yes
Remote Control Optional (UXRC70)
Blower Type Internal
CFM/ Sones Rating 310/6.0 (High Speed)
CFM/ Sones Rating 390/8.0 (Boost Speed)
CFM/ Sones Rating 210/4.0 (Medium Speed)
Exhaust Options Recirculating
Cooktop Lighting 2

Power / ratings

Electrical Requirements 120V ; 60Hz ; 2.5A
Amp Rating at 120V 2.5
Watts 255
Hertz 60

Accessories

Optional Accessories UXRC70 - Remote Control
Optional Accessories JXHC1 - Power Cord Kit
Optional Accessories JXCF55 - Charcoal Filter
Optional Accessories JXS56SS - 15" Cabinet Spacer for 36" Hoods
Optional Accessories JXDA22 - GE Optional Damper Accessory

Appearance

Material Metal
Color Appearance Stainless Steel

Warranty

Labor Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details
Parts Warranty Limited 1-year entire appliance

Economical / quiet

Venting Type Convertible

Dimensions & weight

Width 35.88 in.
Height 5.5 in.
Length 20 in.
Weight 23 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 40.88 in.
Shipping Height 10.5 in.
Shipping Length 25 in.
Shipping Weight 63 lbs.
Total of Shipping Weight 63 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 2.28 ft³
Dimensional Weight 28.39 lbs.
Total of Cubes 2.28 ft³
Total of Dimensional Weight 28.39 lbs.

Description

Easy installation
10 minutes or less by one person

Four-speed with boost, 390-CFM venting system
Removes smoke, grease, odors and moisture

Glass touch controls
Set functions quickly and clean with little effort

Dual LED lighting with nightlight
Choose bright light while cooking or low light at night - bulbs included

Chef Connect
Sync your hood with your range using Bluetooth to automatically control your hood's lights and fan

Auto-off
Set the vent hood to automatically shut off after 15 minutes

Convertible venting options
Select recirculating or external venting

Appearance (Fully enclosed bottom)
Enjoy a sleek appearance from every angle

Optional remote control
Control your ventilation lighting and fan speed from anywhere in the kitchen

Key Features

Four-speed with boost, 390-CFM venting system

Removes smoke, grease, odors and moisture

Glass touch controls

Set functions quickly and clean with little effort

Dual LED lighting with nightlight

Choose bright light while cooking or low light at night - bulbs included

Chef Connect

Sync your hood with your range using Bluetooth to automatically control your hood's lights and fan

Auto-off

Set the vent hood to automatically shut off after 15 minutes

Convertible venting options

Select recirculating or external venting

Appearance (Fully enclosed bottom)

Enjoy a sleek appearance from every angle

Optional remote control

Control your ventilation lighting and fan speed from anywhere in the kitchen

Easy installation

10 minutes or less by one person

From The Manufacturer

Videos

Reviews

  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Videos
  • Rebates
  • Reviews
Sale price $8,569.20 Regular price $12,617.37 Save $4,048.17 / 32% OFF

Product Details for Bosch SHX78CM5N

Technical Details

General

Number of Place Settings 16
List of Programs Heavy, Auto, Normal, Speed 60, Favorite
Installation Type Built-under
Silence Level 42 dB(A) re 1pW
Design Built-in
Panel Ready Not Possible
Options Remote Start, Sanitize, Crystal Dry, ZoneControl™ Front, ZoneControl™ Back, ZoneControl™ Custom
Handle Design Bar Handle
Toe Kick Color Black
Tub Material Stainless Steel
Programs & Options Exclusive to Home Connect Hand Wash, Energy Save, Half Load, Machine Care, Rinse
Color Not Applicable

Connectivity

Home Connect Features Remote Monitoring and Control

Safety

ChildLock No
AquaStop no

Warranty

Parts 1 Year
Labor 1 Year

Size and weight

Required Cutout Size (HxWxD) (in) 33 7/8'' x 24'' x 24''
Adjustable Feet Yes, All Adjustable from Front
Length Outlet Hose (in) 78 3/4''
Power Cord Length 67''
Overall Appliance Dimensions (HxWxD) (in) 33 7/8'' x 23 9/16'' x 23 3/4''
Net Weight 92.000 lbs

Comfort and convenience

Status Indicator End of program audible

Cleaning technology

Drying System CrystalDry®, PureDry®
Eco silence drive yes
Aquasensor yes
Water management system no
Detergent detection no
Water Softener no
Washing System PrecisionWash®, PowerControl™ Spray Arm

Dimensions & weight

Width 23.56 in.
Height 33.88 in.
Length 23.75 in.
Weight 92 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 28.56 in.
Shipping Height 38.88 in.
Shipping Length 28.75 in.
Shipping Weight 132 lbs.
Total of Shipping Weight 132 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 10.97 ft³
Dimensional Weight 136.38 lbs.
Total of Cubes 10.97 ft³
Total of Dimensional Weight 136.38 lbs.

Energy and water

Total Annual Energy Consumption 240 kWh
Total Annual Water Consumption 688 gal
ENERGY STAR® certified yes

Description

PowerControl™ spray arm targets your dirtiest dishes with a deeper clean, no matter where you load them on the bottom rack.


Product Features

  • 42 dBA -- the quietest dishwasher brand in the U.S.*
    A range of technologies makes Bosch the quietest dishwasher brand in the U.S.* with impressively low decibel levels. For you, that means never having to wait until going to bed to run the dishwasher. *Based on an average of sound ratings of 24"" Full Size Stainless Steel Tub dishwashers contained in major brands websites. Major brands defined as TraQline Top 5 Market Share December 2021.
  • Enhance your cleaning experience with Wi-Fi enabled Home Connect®
    Smart Cycle takes the guesswork out of cycle selection by quickly helping you identify and save the best program combination for your needs. Now you can clean smarter, not harder – only with Home Connect®
  • Know when your dishwasher is running with InfoLight®
    Based on our legendary sound reduction technology, our dishwashers are so quiet, we provide an InfoLight® that projects a red light onto the floor (or a white light in the pocket handle on select models) to signal that a cycle is running. It turns off once the dishes are done.
  • This Bosch Dishwasher is ENERGY STAR® certified and energy efficient
    This Bosch dishwasher is ENERGY STAR® certified and meets or exceeds federal guidelines, for year-round energy savings
  • EasyGlide™ Racks
    provide a smooth glide on all three racks.
  • The ultimate dry with CrystalDry™
    At Bosch, we believe dishes should receive a powerful clean and then be thoroughly dry. Patented CrystalDry™ technology transforms moisture into heat up to 176˚F to get dishes 60% drier,* so you can put away your plastic dishes immediately into the cupboard when the dishwasher is finished. *Based on aggregate average drying performance of Bosch Dishwashers with CrystalDry™ on combined household load including plastics, glass, steel, and porcelain as compared to Bosch Dishwashers with PureDry®. Drying performance may vary by dish type.
  • The deepest clean from PrecisionWash® with PowerControl™
    PowerControl™ spray arm enhances PrecisionWash® performance to target your dirtiest dishes with a deeper clean, no matter where you load them on the bottom rack. No more scrubbing, pre-rinsing, or hand washing.
  • Fit in tall items with RackMatic®
    RackMatic® easily adjusts to three different heights and up to nine separate rack positions, allowing taller items like stemware to fit in the middle rack while leaving room for pots and pans below.
  • Prevent leaks with AquaStop®
    An advanced leak prevention and containment system, AquaStop® features sensors that automatically close the water inlet and activate the drain pump if a possible leak is detected—even if you’re not at home.

Key Features

10-Year Rust-Through Warranty.

We take much care of the quality of our dishwashers. The production processes and material used for the interior of our dishwashers allow to provide a special 10-year warranty against the rusting-through of the cavity from the inside (conditions apply).

The Flexible 3rd Rack provides a versatile space for utensils

The Flexible 3rd Rack has expandable wings that easily lower to accommodate more of your deeper items. Meanwhile adjustable tines let you customize the rack’s loading space to fit awkward or bulky utensils.

From The Manufacturer

Videos

Rebates

Buy More, Save More!

The Bosch Kitchen Sales Event - Upgrade your kitchen and receive up to $4000 mail-in rebate.

Valid: 01/01/2026 - 07/08/2026
Download Rebate formView all rebate products

Up To $100 Mail In Rebate On Select Bosch Dishwashers

Buy any eligible Bosch Dishwasher and receive up to $100 on a Bosch Mastercard® Prepaid card in the applicable rebate amount listed on model list. Full list of eligible models can be found on page 3 of rebate form.
Valid: 02/05/2026 - 02/25/2026
Download Rebate formView all rebate products

Reviews

Compare with similar products

Recommendations

Previously viewed products
