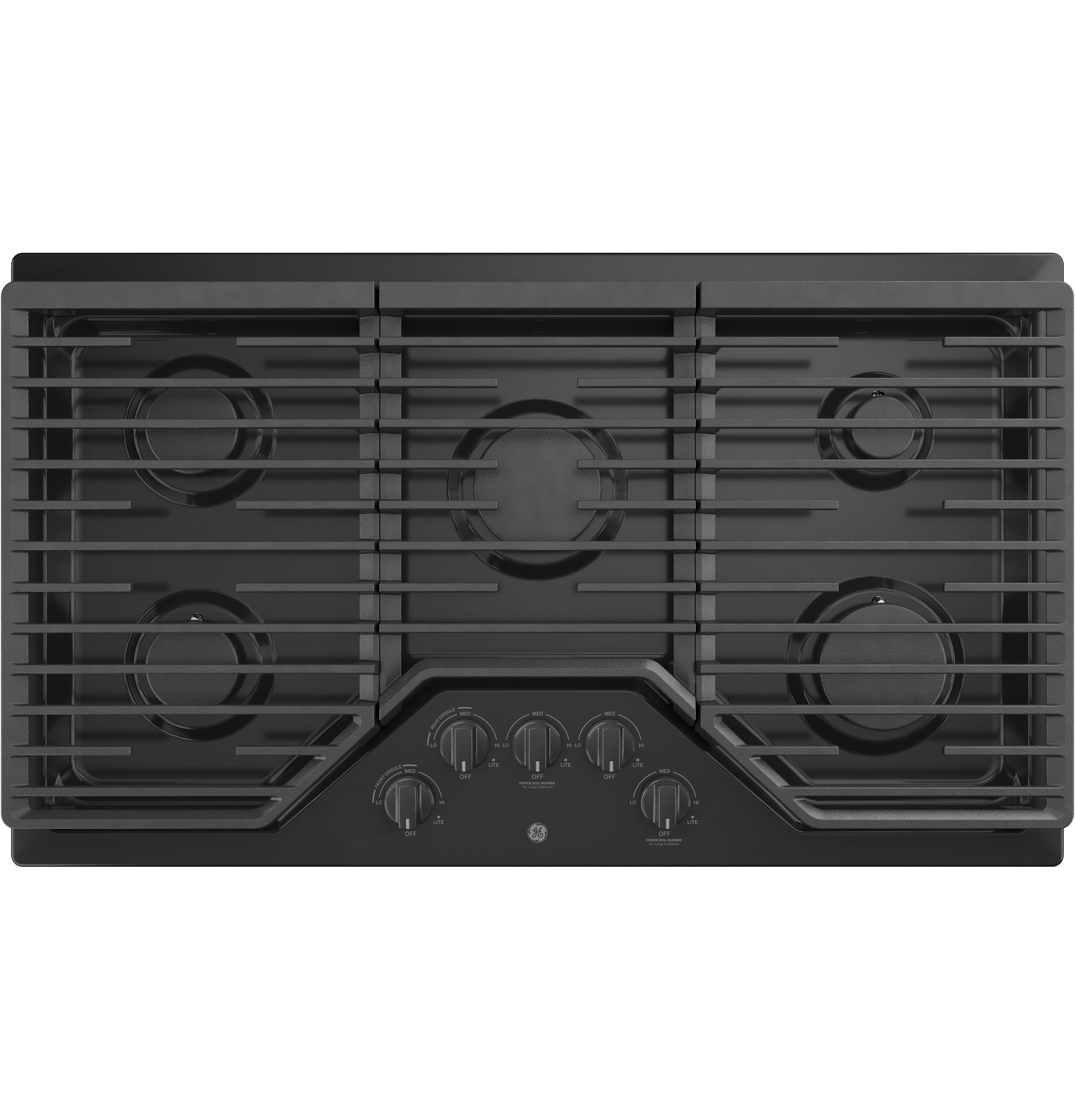

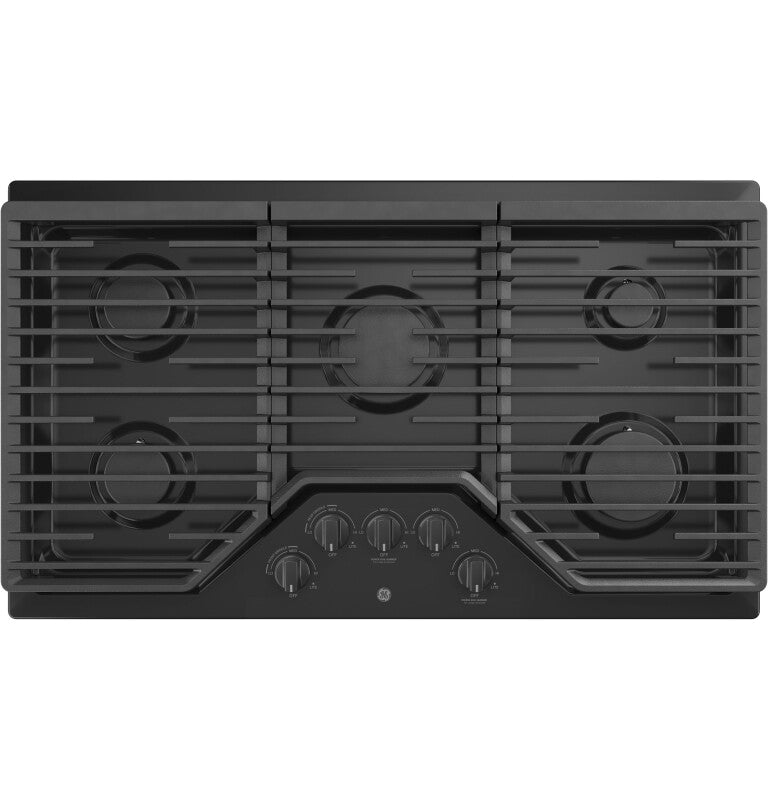

GE JGP5036DLBB 36" Built-In Gas Cooktop with 5 Burners and Dishwasher Safe Grates Black
Sale price
$979.20
Regular price
$1,698.97
Save
$719.77
/ 42% OFF
Quickship
Active Rebates
GE Appliance Fit Guarantee Rebate 2026 – Perfect Fit or We Make It Right Expires on 06/30/2026
Extended Protection
?
Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.
Enjoy added peace of mind long after the original warranty expires.
This Protection Plan includes:
- Full parts and labor coverage during the whole period of the extension plan.
- Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty
- Food loss protection
- 24/7 toll-free number for support
-
$43.49
-
$75.99
-
$115.99
-
$163.99
-
Delivery services
?
Delivery Services:
We offer a range of delivery services to meet your needs. Please note that these services are not available in certain locations.
For more details, please visit our Delivery and Installation Services page.
-
$40.00
-
$180.00
-
$49.99
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Related Accessories
Related Products
Sale price
$142.60
Regular price
$161.97
Save
$19.37
/ 11% OFF
Sale price
$979.20
Regular price
$1,698.97
Save
$719.77
/ 42% OFF
Product Details for GE APPLIANCES JGP5036DLBB
Technical Details
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Weights & dimensions
| Overall Height | 5.5 in |
| Overall Width | 36 in |
| Overall Depth | 21 in |
| Cabinet Width | 36 in |
| Approximate Shipping Weight | 46 lb |
| Net Weight | 40 lb |
| Cutout Width (in) | 33.875 |
| Cutout Height (in) | 3.6875 |
| Cutout Depth (in) | 19.125 |
Dimensions & weight
| Width | 36 in. |
| Height | 5.5 in. |
| Length | 21 in. |
| Weight | 40 lbs. |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Width | 41 in. |
| Shipping Height | 10.5 in. |
| Shipping Length | 26 in. |
| Shipping Weight | 80 lbs. |
| Total of Shipping Weight | 80 lbs. |
| Source | Calculation |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 2.41 ft³ |
| Dimensional Weight | 29.91 lbs. |
| Total of Cubes | 2.41 ft³ |
| Total of Dimensional Weight | 29.91 lbs. |
Features
| Cooktop Burner Type | 5 Sealed |
| Valves (Degree of Turn) | 270 |
| Burner - Right Rear | 5,000 BTU |
| Burner - Right Front | 15,000 BTU Power Boil |
| Fuel Type | Natural Gas |
| Power Boil Burner | Yes |
| Control Location | Front Center |
| Cooktop Type | Continuous Grates |
| Ignition System | Electronic |
| Burner - Center | 15,000 BTU Power Boil |
| Cooktop Surface | Deep Porcelain-Enamel |
| Burner - Left Rear | 9,500 BTU |

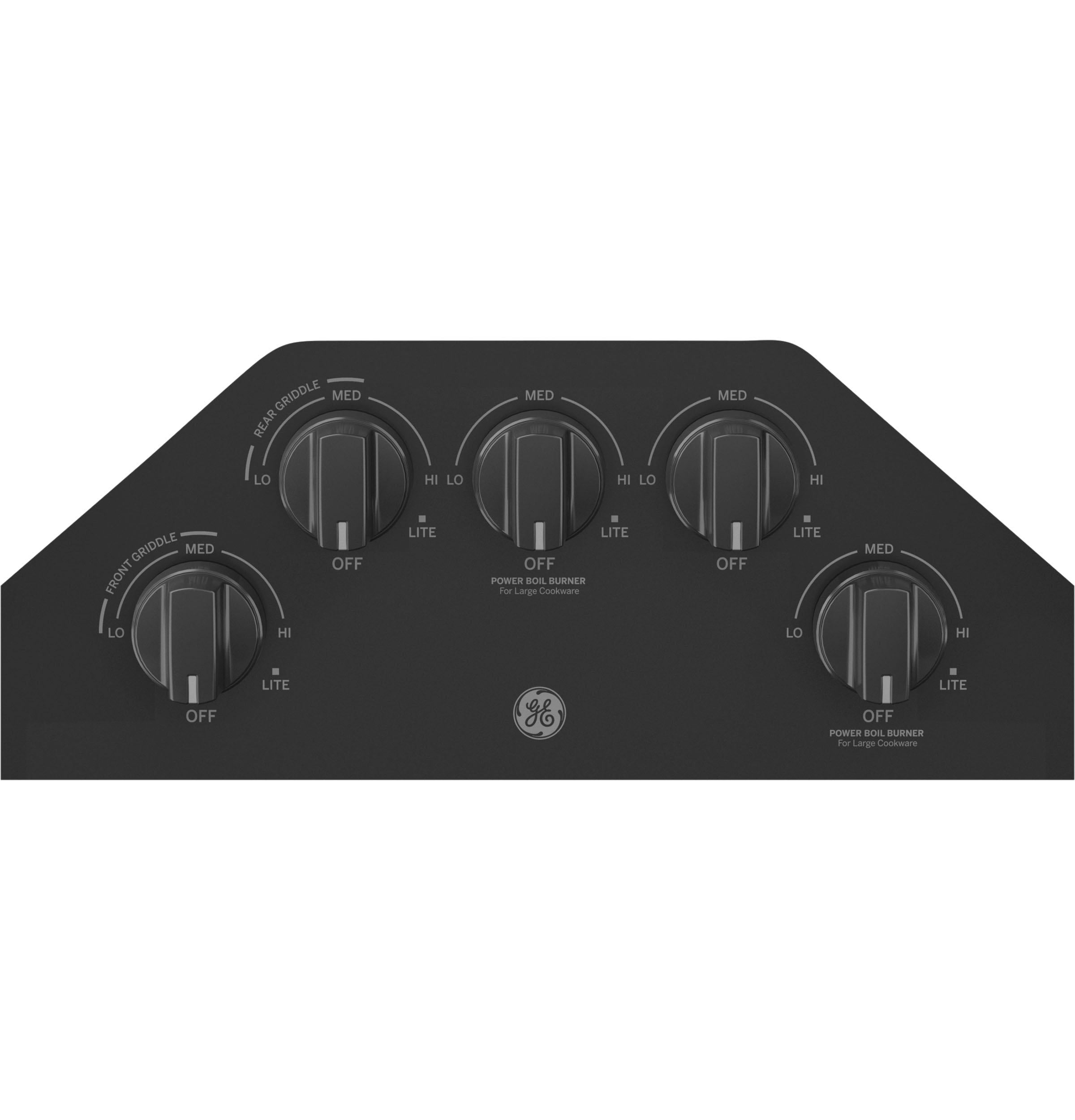

| Control Type | Knob |
| Cooktop Burner Grate Material | Heavy Cast |
| Burner - Left Front | 9,500 BTU |
| Product Type | Cooktop |
| Cooktop Burner Grate Features | Dishwasher Safe |
| Griddle | JXGRIDL236 |
| Cooktop Burner Grate Features | Edge-to-Edge Grates |
| Griddle | Optional |
| Cooktop Burner Grate Features | Continuous Grates |
| Cooktop Surface | Black |
| Griddle | Cast Iron |
Power / ratings
| Burner BTU Ratings (000's/BTU) - LP Gas | (2) 15.0; (2) 9.5; (1) 5.0 |
| Hertz | 60 |
| Burner BTU Ratings (000's/BTU) - Natural Gas | (2) 15.0; (2) 9.5; (1) 5.0 |
| Electrical Requirements | 120V |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
Warranty
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
Appearance
| Color Appearance | Black |
| Cooktop Burner Grate Color | Matte Black |
| Control Knobs | Gloss Black |
| Control Knobs | Dishwasher Safe |
Description
Continuous cast iron grates provide more room for large cookware.Eliminate the need for extra cookware with an optional integrated griddle perfect for pancakes, grilled cheeses and other favorites.5 1/2 H x 36 W x 21 D
Manuals & Guides
Key Features

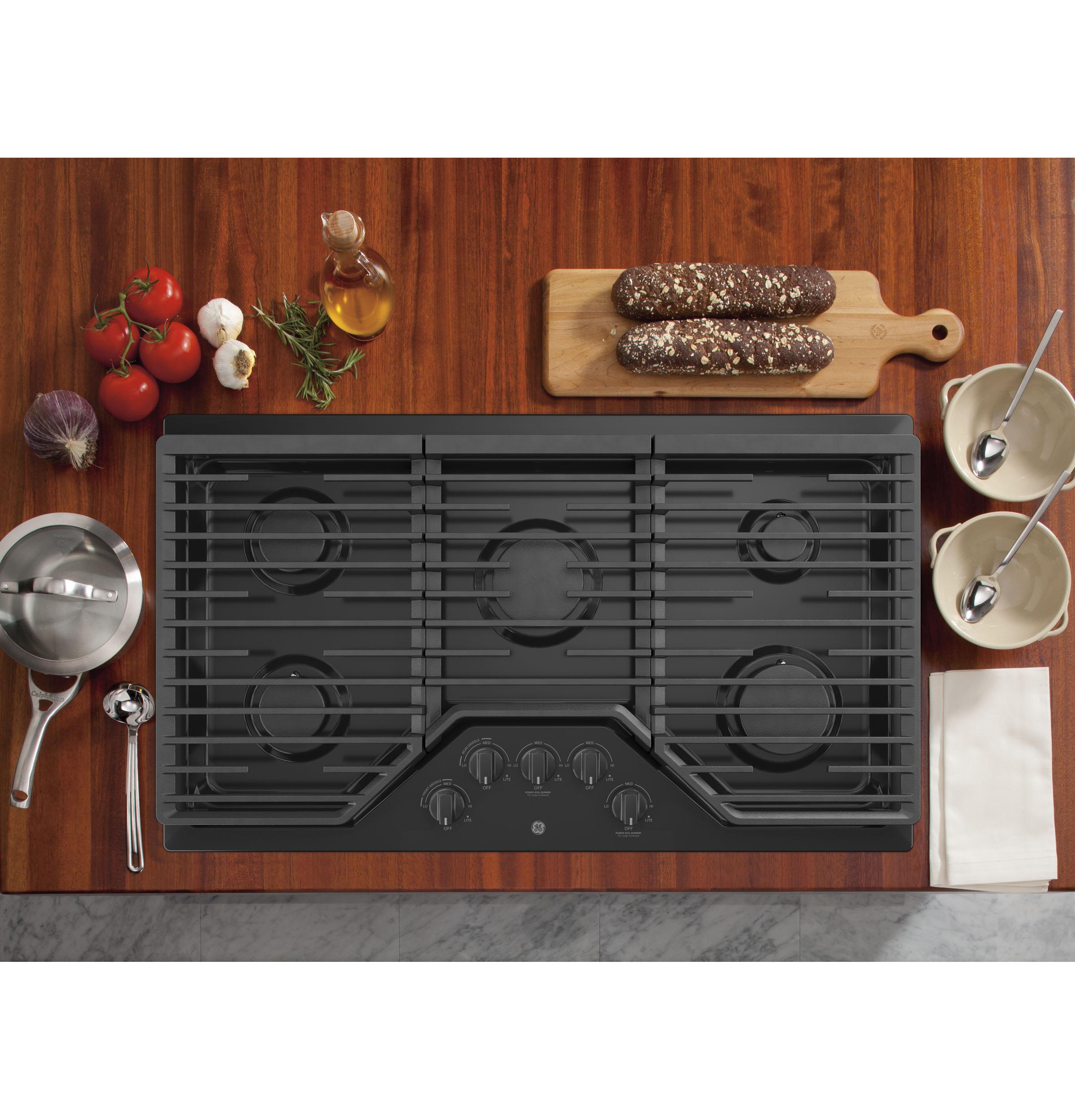

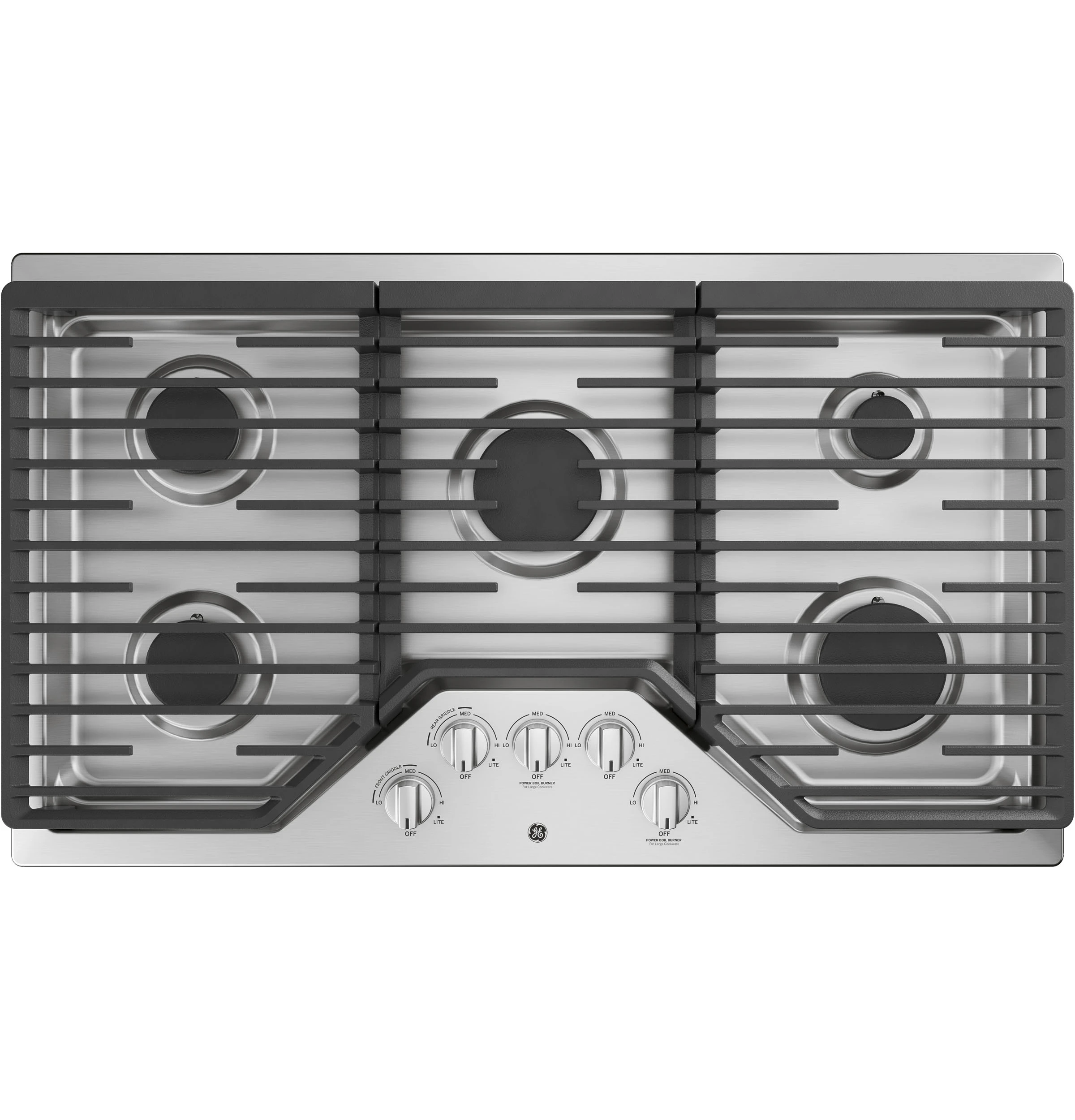

36" Cooktop with 5 Burners
Enjoy ultimate cooktop flexibility and more cooking space with 5 sealed burners

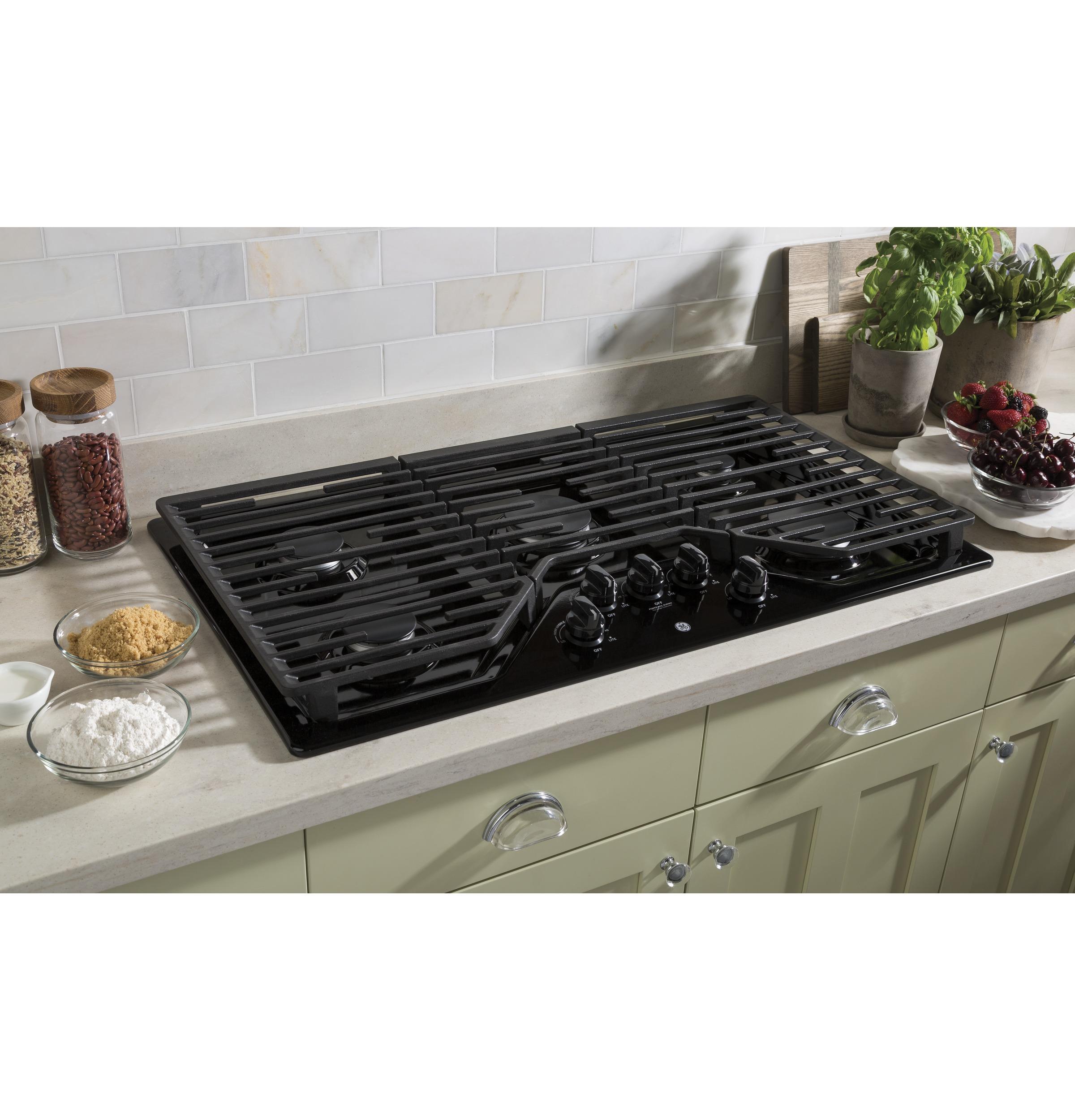

Maximize Your Cooking Space
Continuous cast iron grates provide more room for large cookware

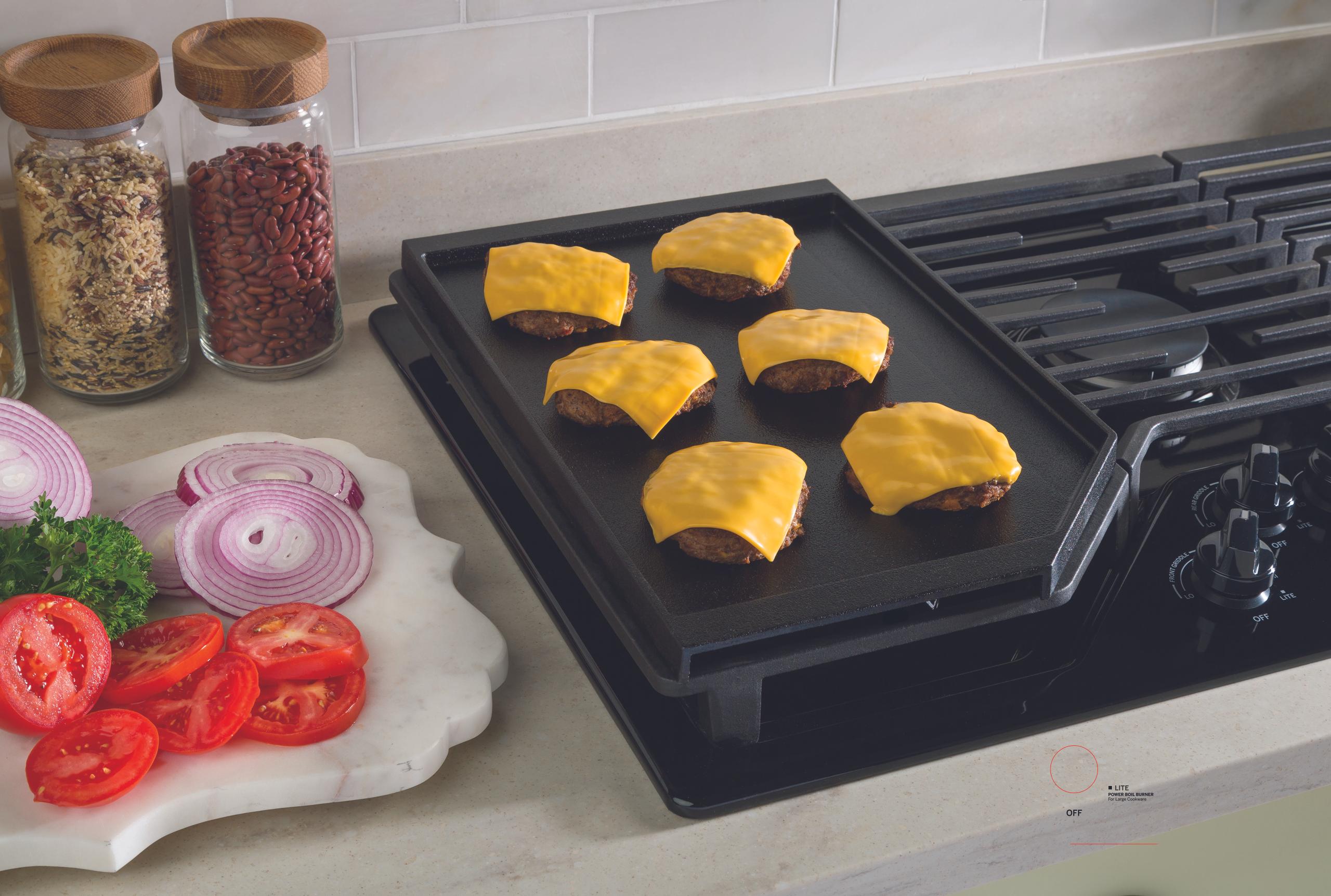

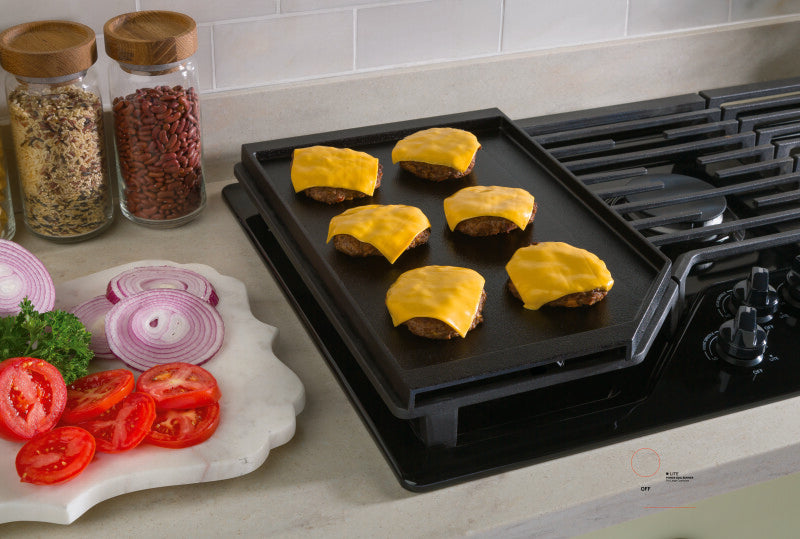

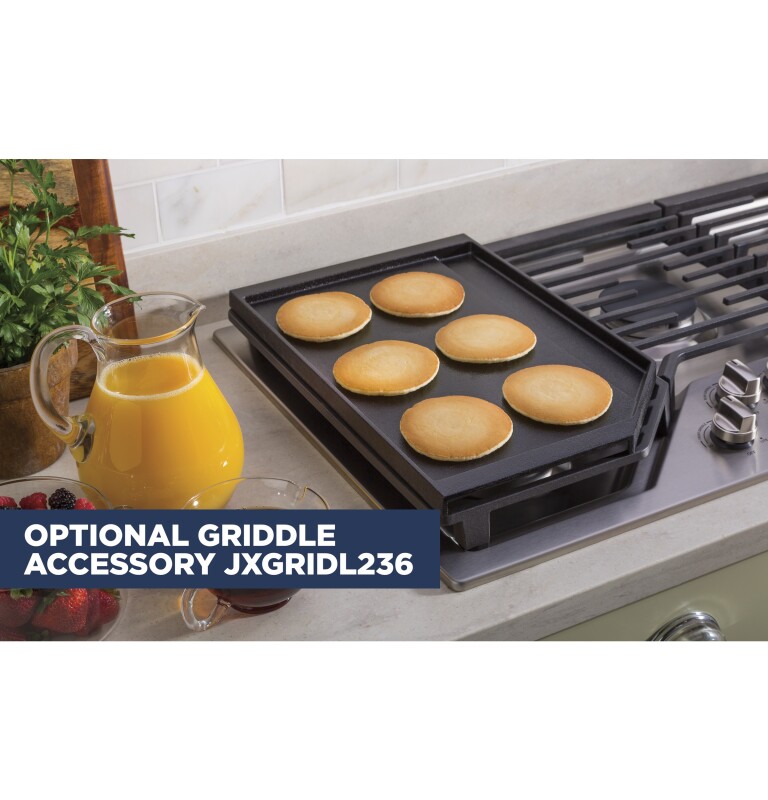

More Cooking, Less Cookware
Eliminate the need for extra cookware with an optional integrated griddle perfect for pancakes, grilled cheeses and other favorites

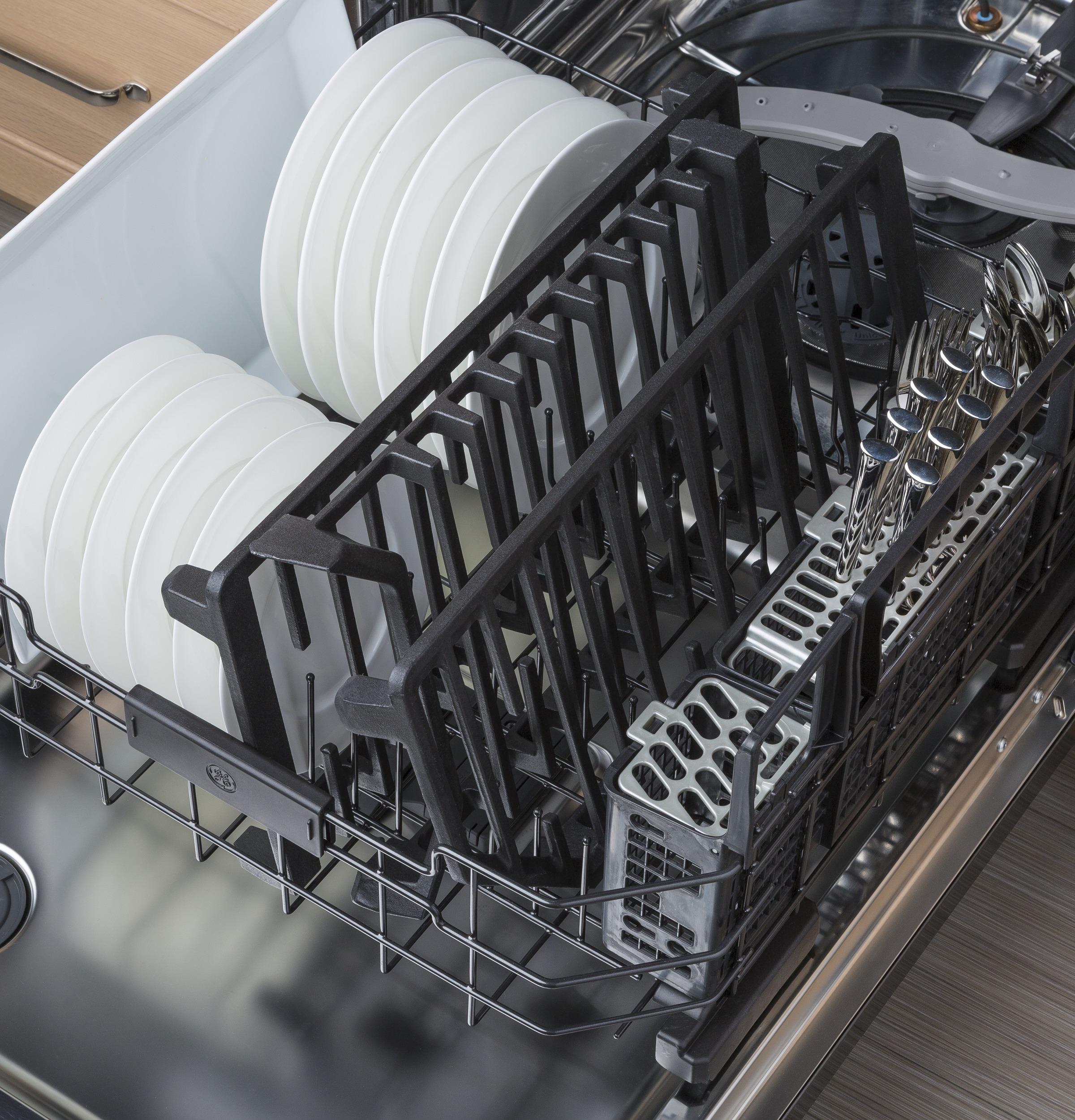

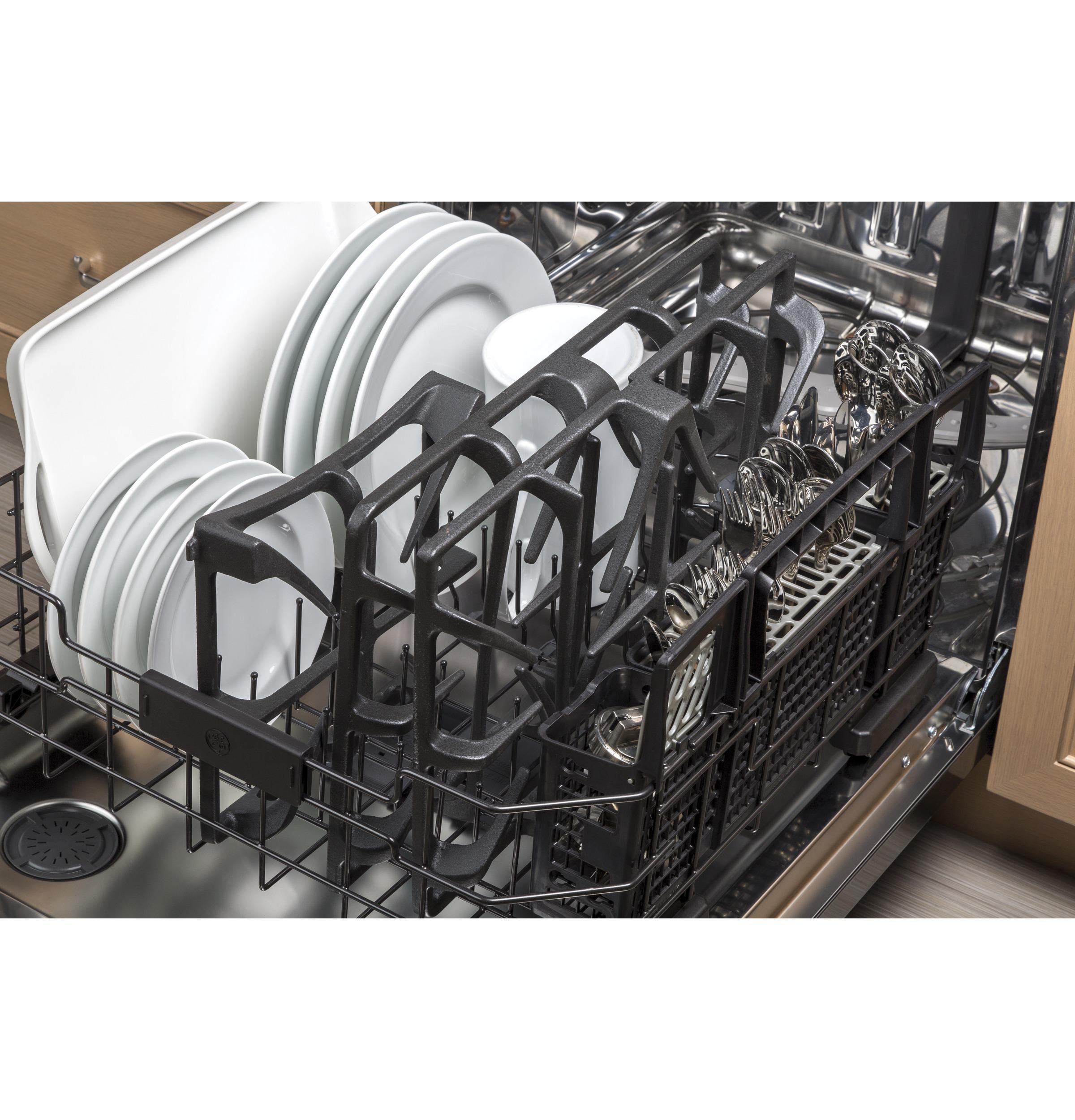

Dishwasher-Safe Grates
Heavy-duty grates are easy to clean in the dishwasher

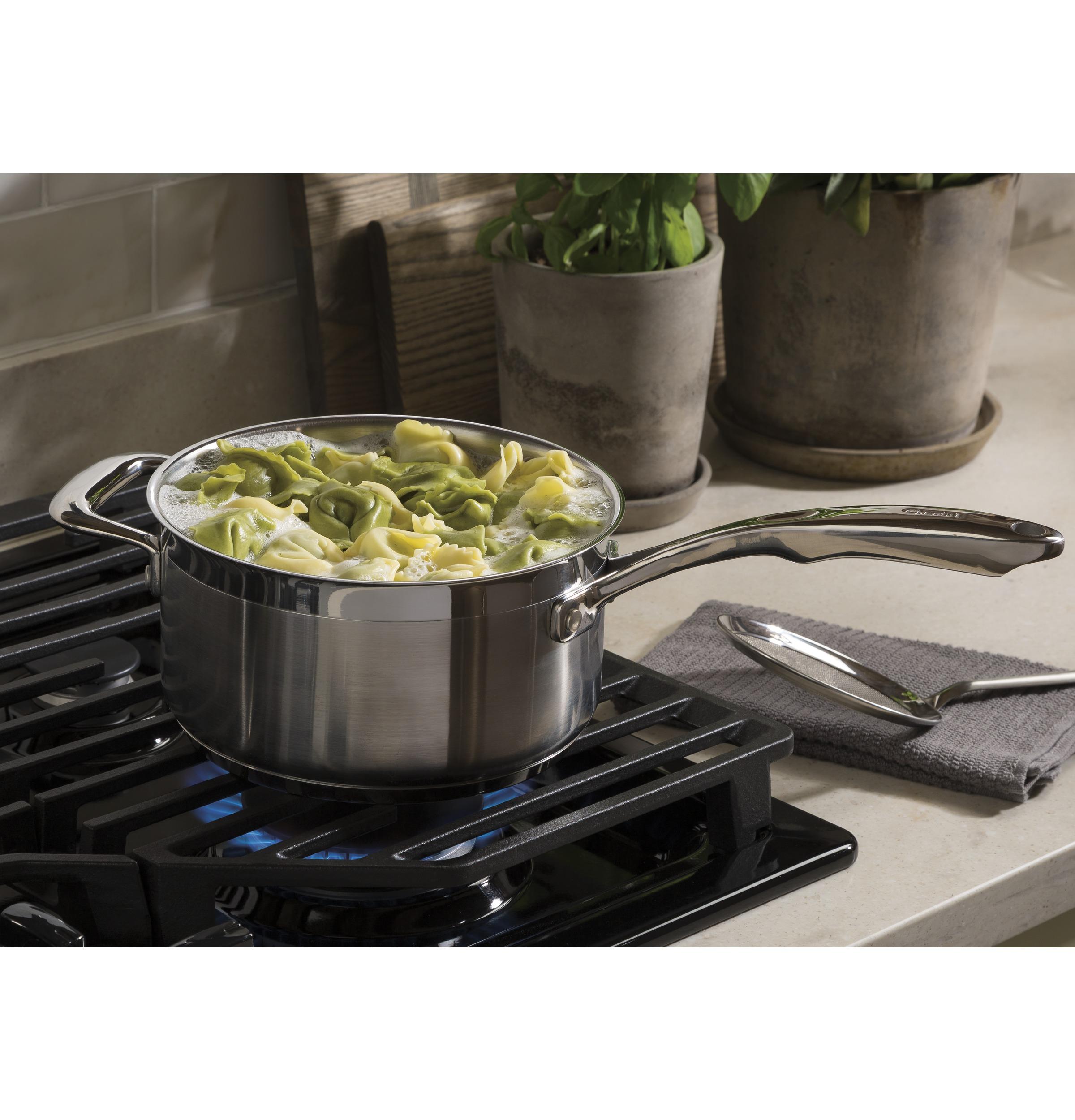

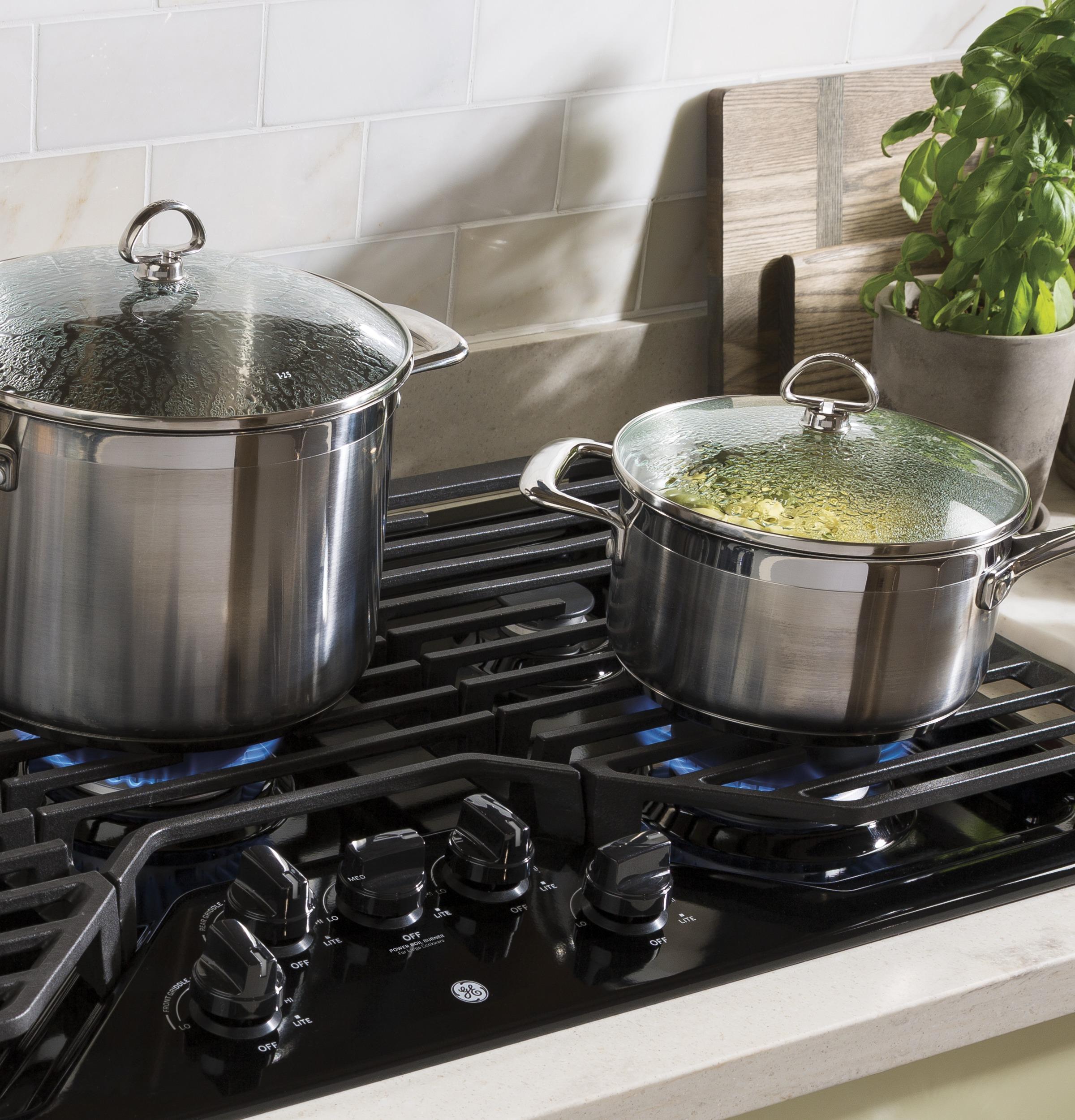

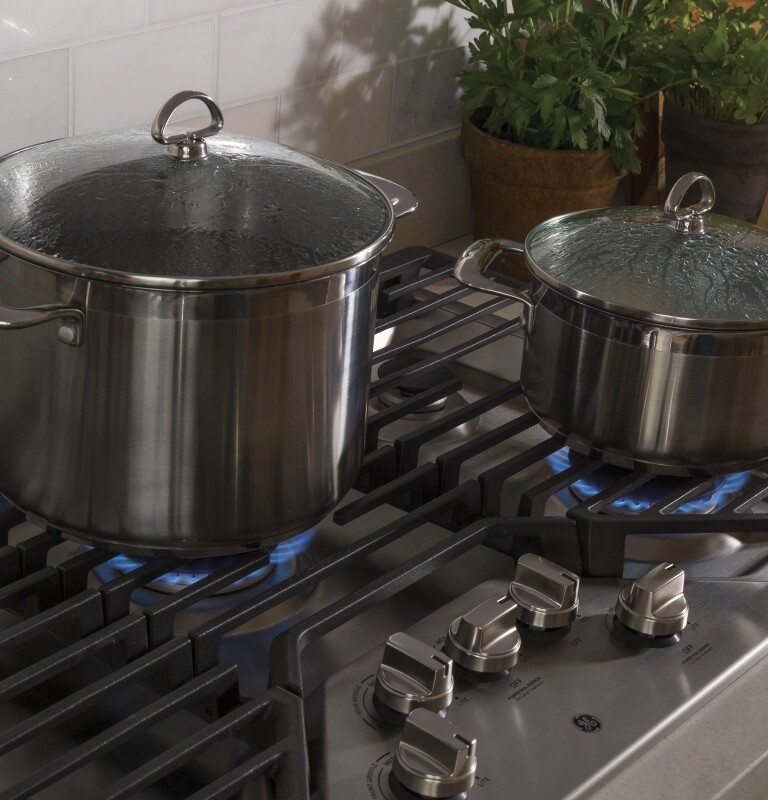

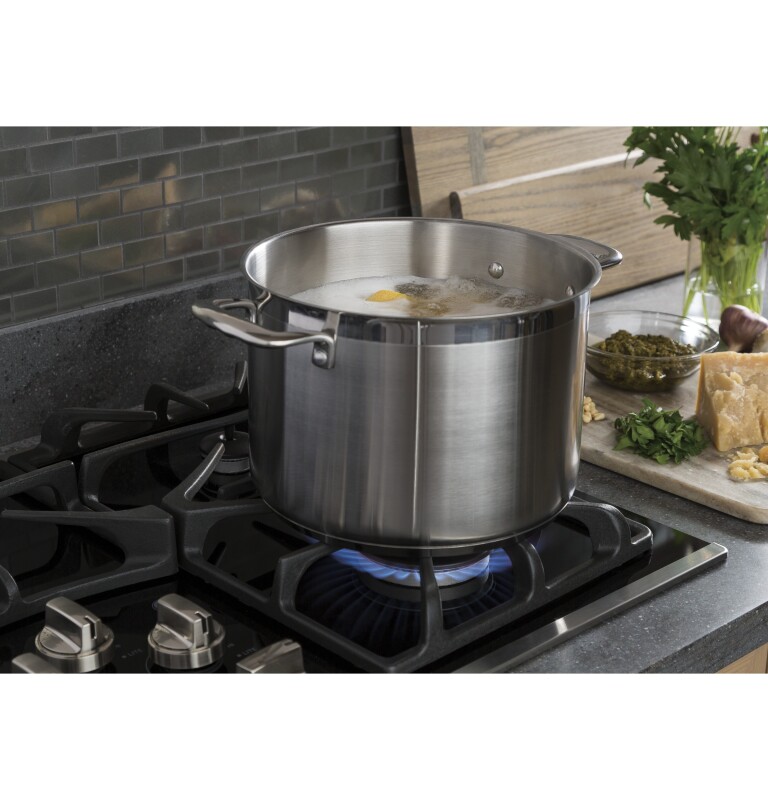

Start Cooking Faster with Power Boil
15,000 BTU Power Boil burner delivers intense heat for faster boiling

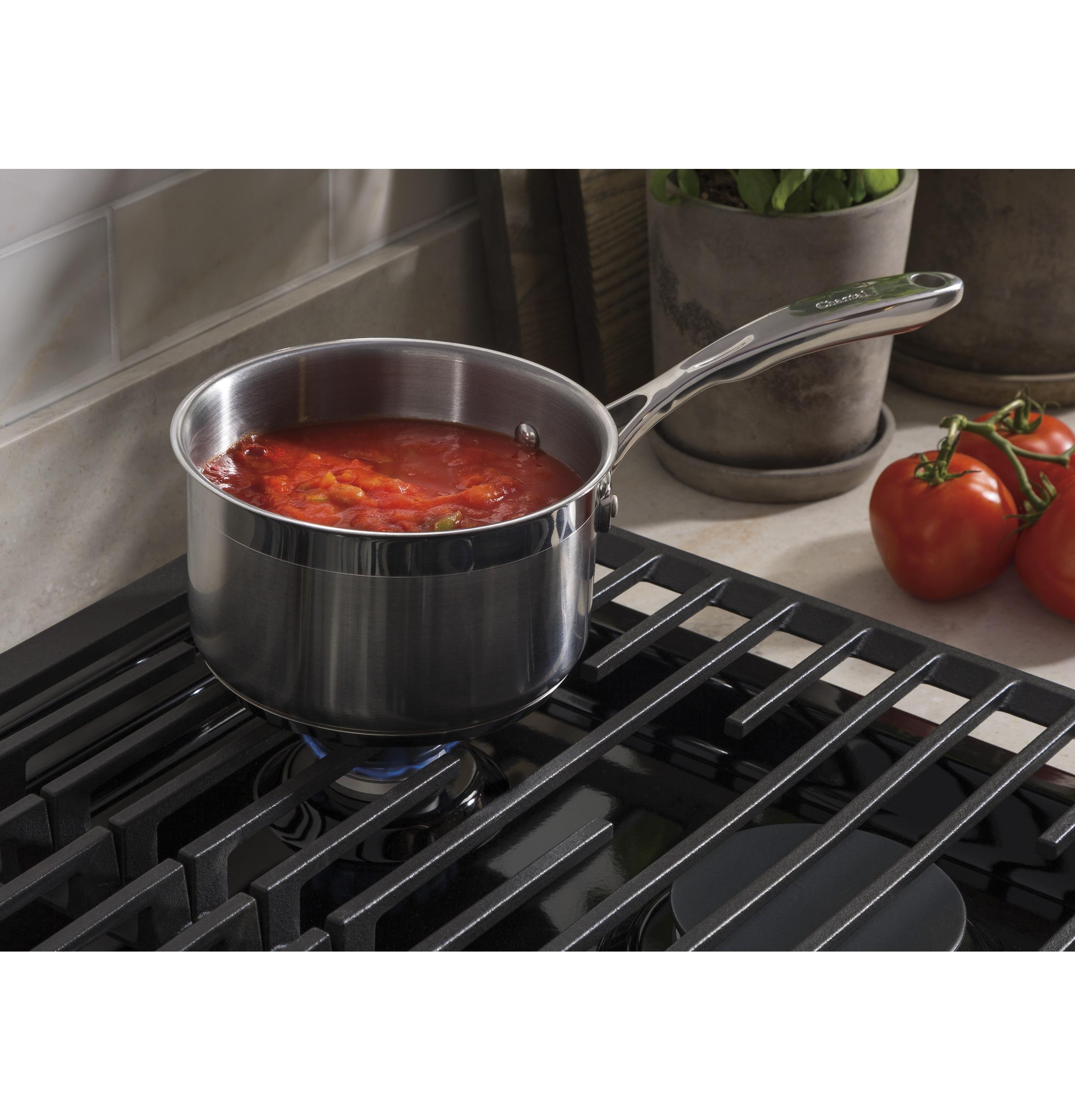

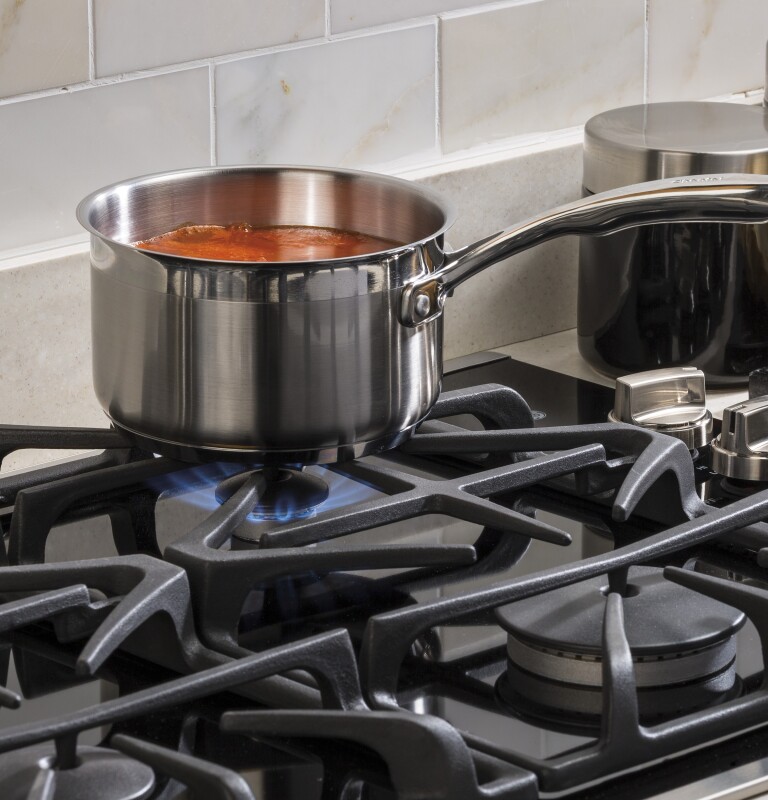

Precise Simmer Burner
Protect delicate foods with low, even heating

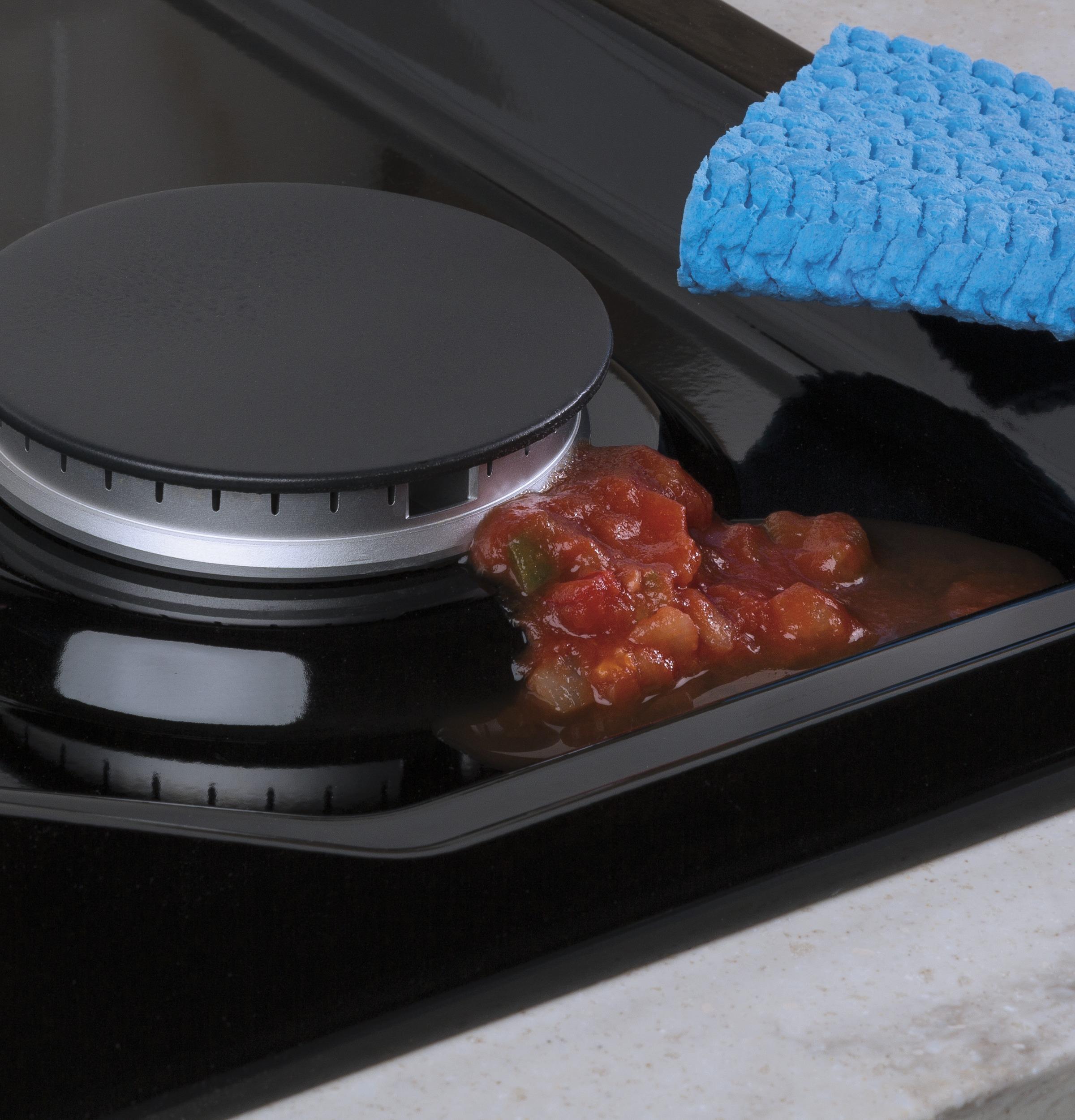

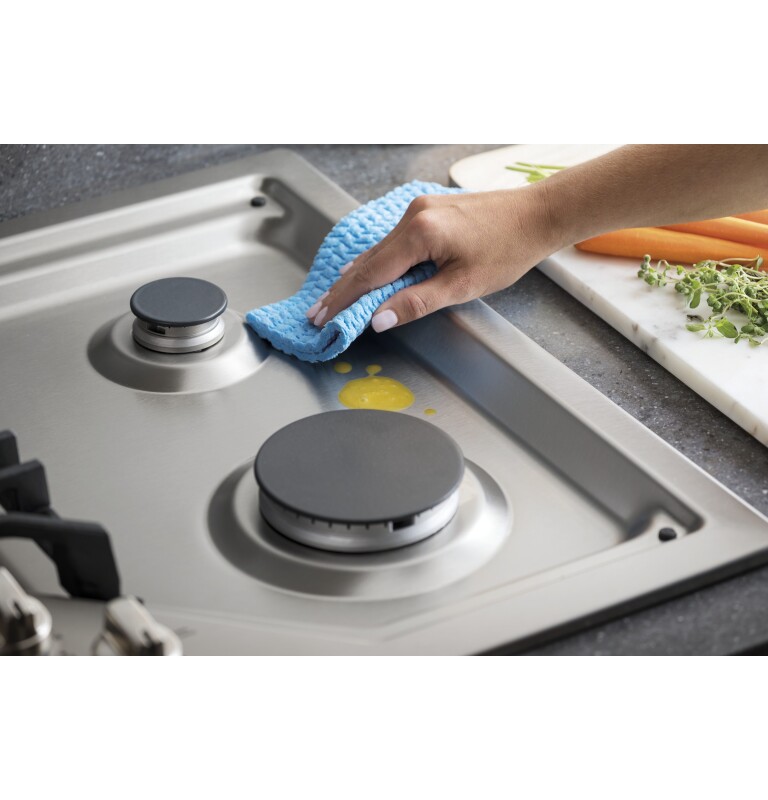

Spend Less Time Cleaning Up
Sealed cooktop burners contain spills and make cleaning quick and easy
MAX Burner System
Delivers the same maximum BTU power to propane and natural gas cooktops

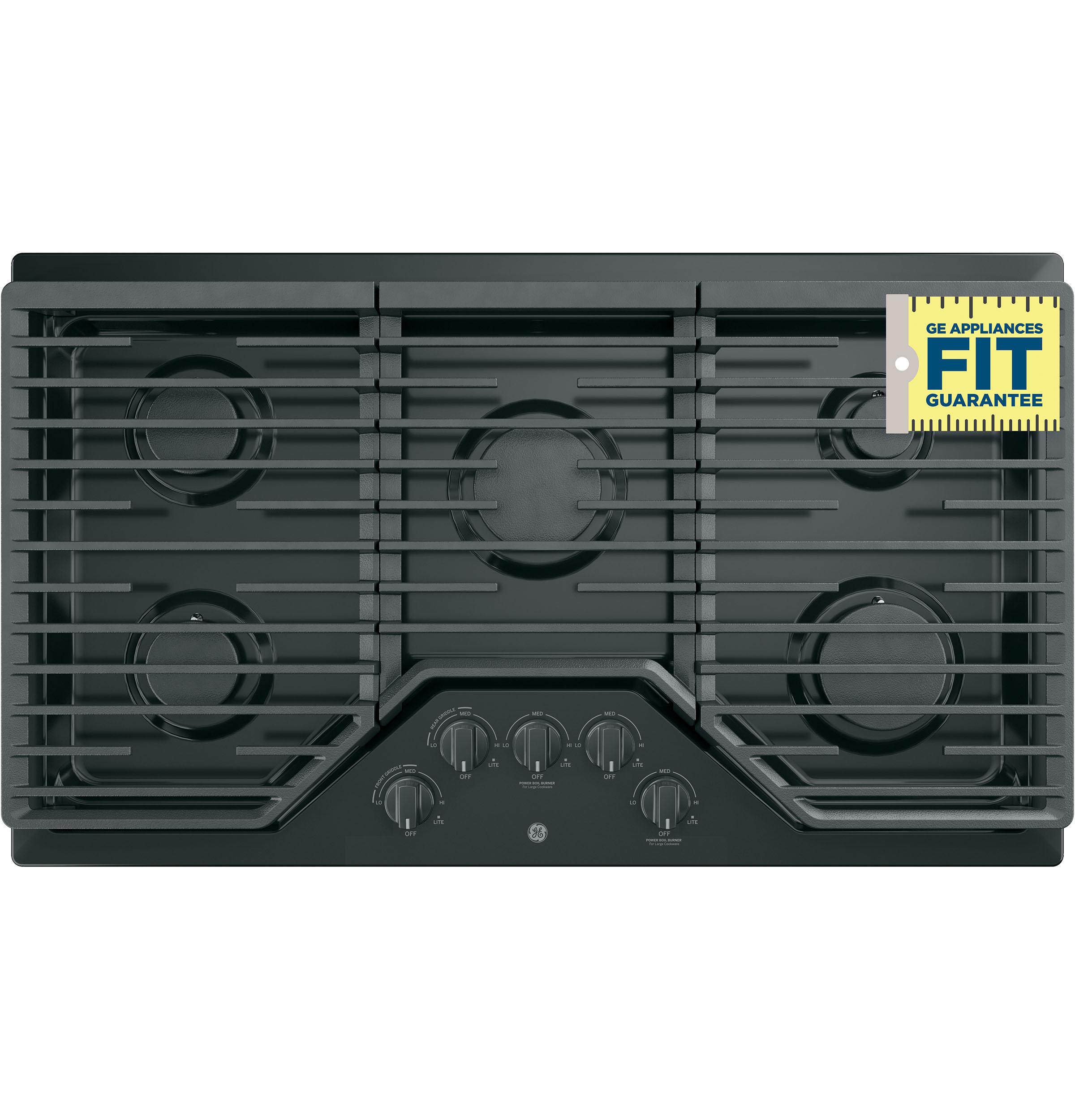

Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
