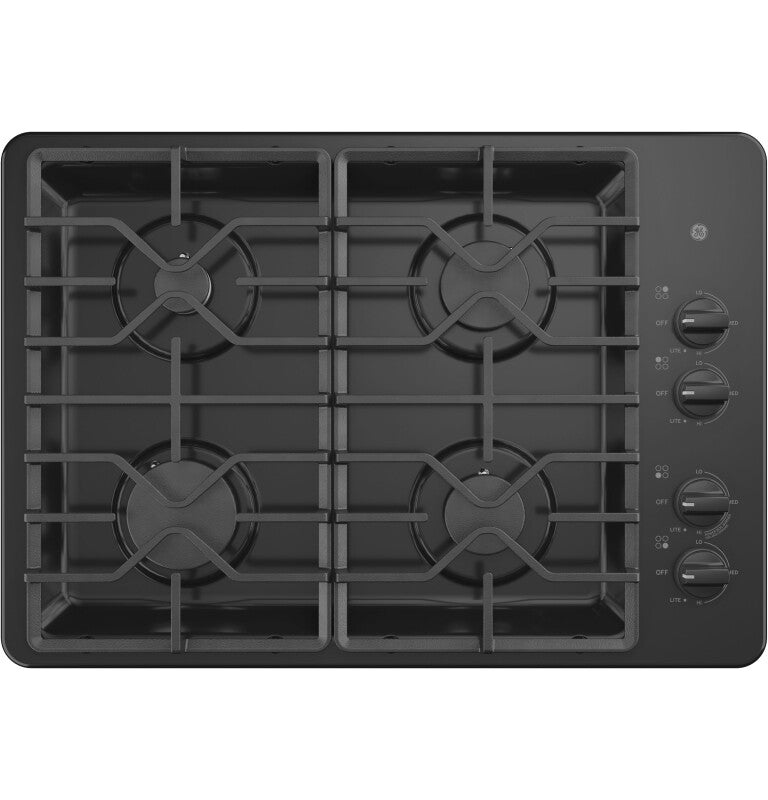

GE JGP3030DLBB 30" Built-In Gas Cooktop with Dishwasher-Safe Grates Bl

Product Details for GE APPLIANCES JGP3030DLBB

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Weights & dimensions

Overall Height	4.75 in
Overall Width	30 in
Overall Depth	21 in
Cabinet Width	30 in
Approximate Shipping Weight	40 lb
Net Weight	34 lb

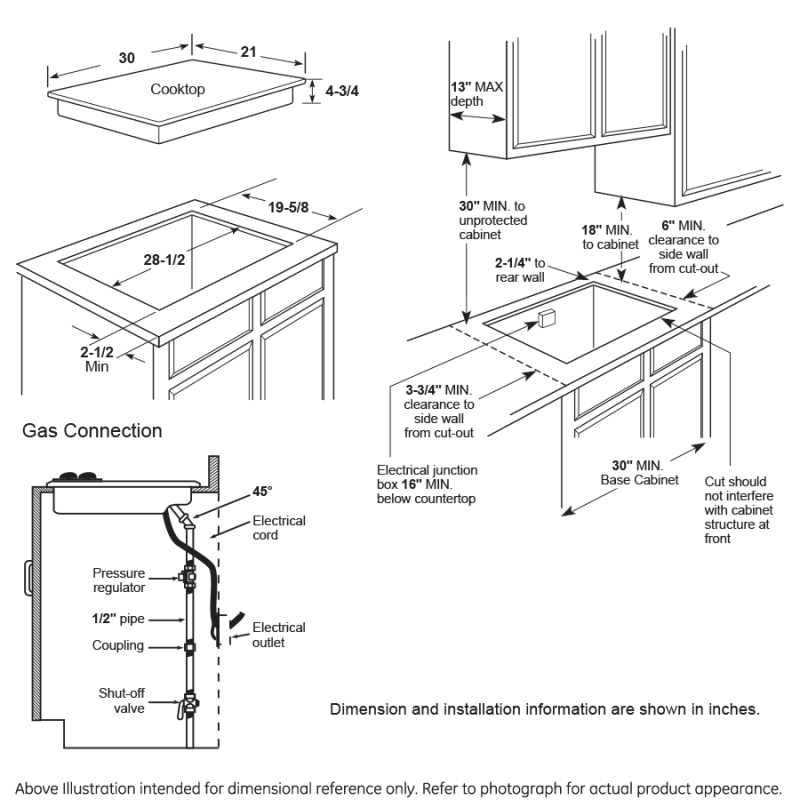

Cutout Width (in)	28.5
Cutout Height (in)	3.6875
Cutout Depth (in)	19.625

Dimensions & weight

Width	30 in.
Height	4.75 in.
Length	21 in.
Weight	34 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	35 in.
Shipping Height	9.75 in.
Shipping Length	26 in.
Shipping Weight	74 lbs.
Total of Shipping Weight	74 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	1.73 ft³
Dimensional Weight	21.53 lbs.
Total of Cubes	1.73 ft³
Total of Dimensional Weight	21.53 lbs.

Features

Cooktop Burner Type	4 Sealed
Valves (Degree of Turn)	270
Burner - Right Rear	12,000 BTU
Burner - Right Front	9,500 BTU
Fuel Type	Natural Gas
Power Boil Burner	Yes
Control Location	Right Side
Cooktop Type	Continuous Grates
Ignition System	Electronic
Cooktop Surface	Deep Porcelain-Enamel
Burner - Left Rear	5,000 BTU

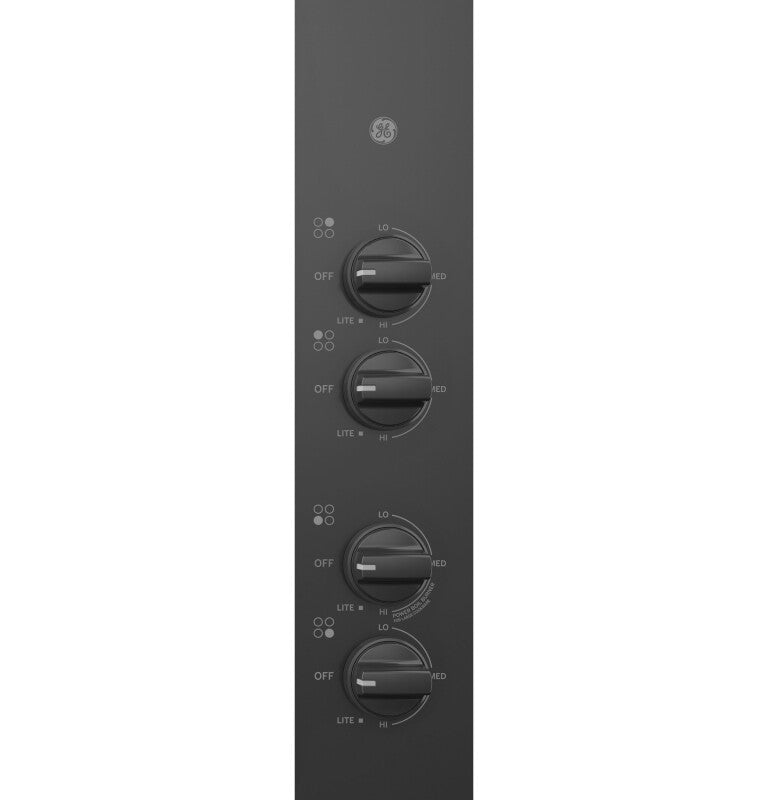

Control Type	Knob
Cooktop Burner Grate Material	Standard Cast
Cooktop Burner Grate Features	Dishwasher Safe
Burner - Left Front	15,000 BTU Power Boil
Product Type	Cooktop
Cooktop Burner Grate Features	Continuous Grates
Cooktop Surface	Black

Power / ratings

Burner BTU Ratings (000's/BTU) - LP Gas	(1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0
Hertz	60
Burner BTU Ratings (000's/BTU) - Natural Gas	(1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0
Electrical Requirements	120V
Volts/Hertz/Amps	120V; 60Hz; 5A

Warranty

Parts Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
Labor Warranty	Limited 1-year entire appliance

Appearance

Color Appearance	Black
Cooktop Burner Grate Color	Matte Black
Control Knobs	Gloss Black
Control Knobs	Dishwasher Safe

Description

Sealed cooktop burners contain spills and make cleaning quick and easy.Recessed surface helps contain spills and make cleaning easy.4 3/4 H x 30 W x 21 D

Key Features

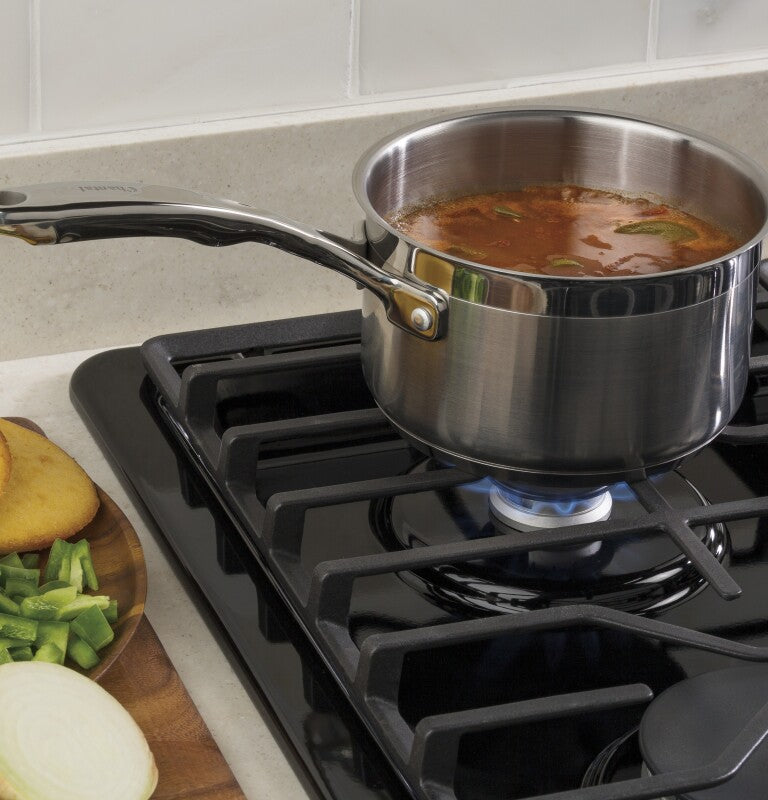

Dishwasher-Safe Grates

Heavy-duty grates are easy to clean in the dishwasher

Spend Less Time Cleaning Up

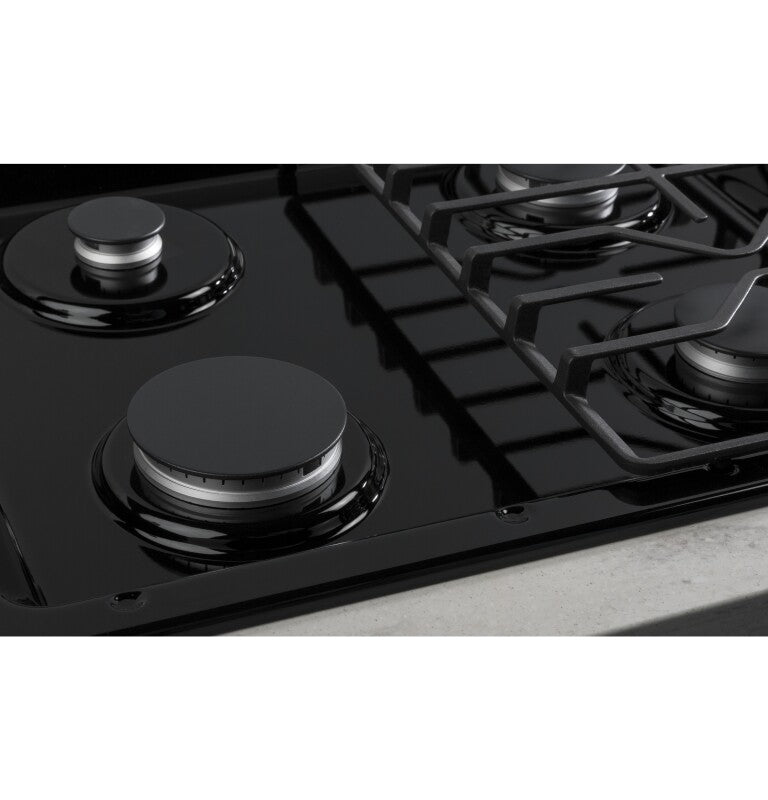

Sealed cooktop burners contain spills and make cleaning quick and easy

Designed for Easy Cleaning

Recessed surface helps contain spills and make cleaning easy

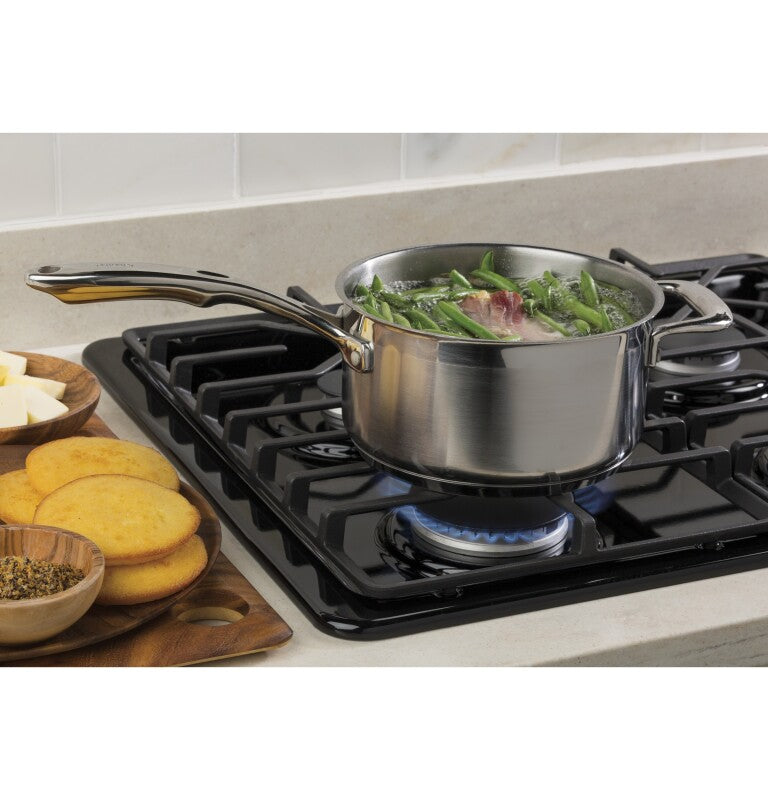

15,000 BTU Power Boil Burner

Delivers high heat for fast boiling

Precise Simmer Burner

Protect delicate foods with low, even heating

MAX Burner System

Delivers the same maximum BTU power to propane and natural gas cooktops

Fit Guarantee

Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
