Product Details for FRIGIDAIRE GCCG3048AB
Technical Details
Other
| Frigidaire Fit Promise | Yes |
| Warranty - Labor | 1 Year |
Dimensions & weight
| Width | 30 in. |
| Height | 2 in. |
| Length | 21 in. |
| Weight | 43 lbs. |
| Cutout Height | 7 1/2" |
| Minimum Cutout Width | 27 1/4" |
| Minimum Cutout Depth | 19" |
| Maximum Cutout Width | 29 5/16" |
| Maximum Cutout Depth | 20" |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 7 in. |
| Shipping Length | 26 in. |
| Shipping Weight | 83 lbs. |
| Total of Shipping Weight | 83 lbs. |
| Source | Calculation |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 0.73 ft³ |
| Dimensional Weight | 7.59 lbs. |
| Total of Cubes | 0.73 ft³ |
| Total of Dimensional Weight | 7.59 lbs. |

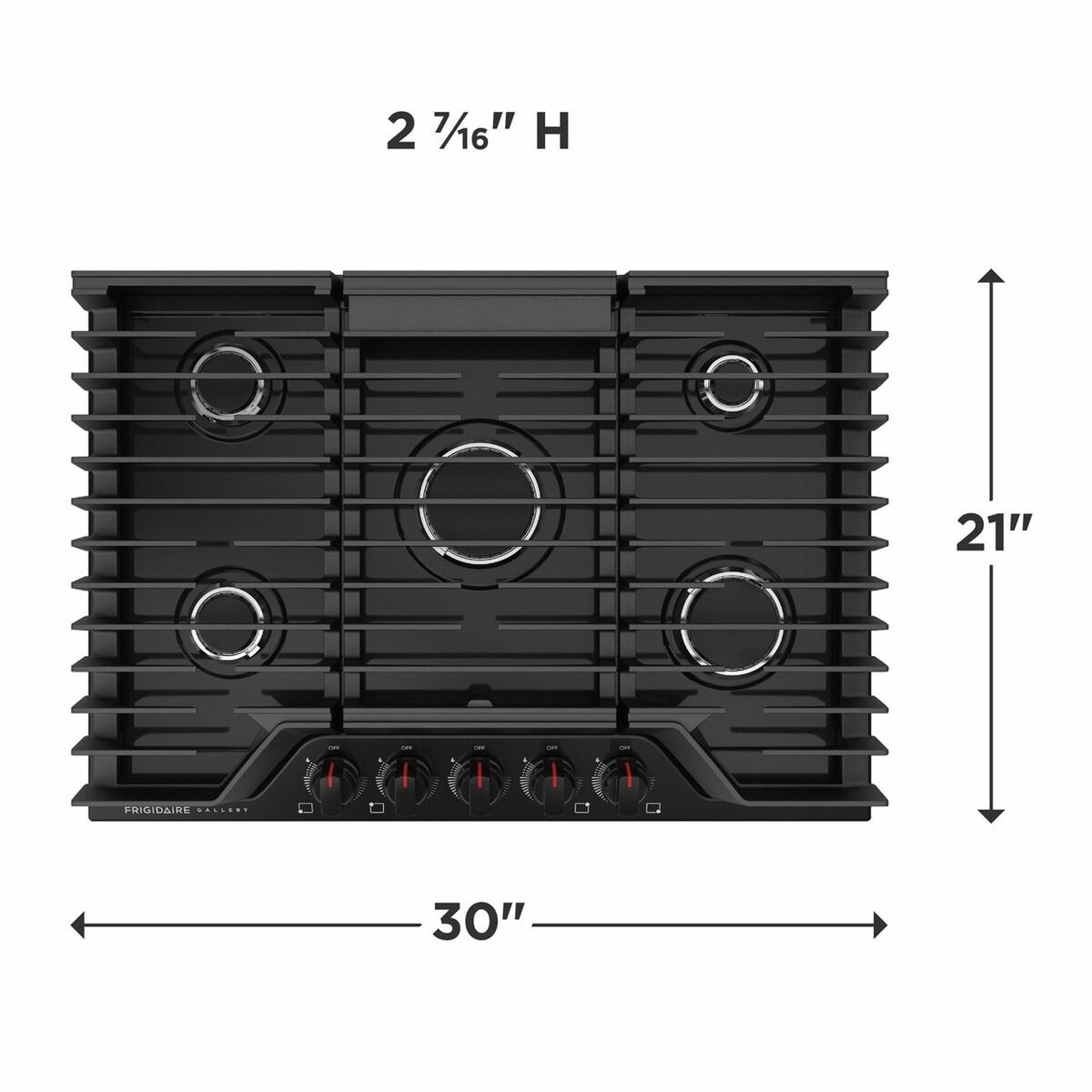

Product details
| Height | 2 7/16" |
| Width | 30" |
| Depth | 21" |
| Minimum Cutout Width | 27 1/4" |
| Minimum Cutout Depth | 19" |
| Maximum Cutout Width | 29 5/16" |
| Maximum Cutout Depth | 20" |
| ADA Compliant | Yes |
| CSA Listed | Yes |
| UL Listed | Yes |
| Cooking Surface Type | Gas |
| Grate Material | Cast Iron |
| Grate Quantity | 3 |
| Grate Style | Continuous |
| Total Number of Burners | 5 |
| Right Front Element Burner | 12000 BTU |
| Right Rear Element Burner | 5000 BTU |
| Left Front Element Burner | 9500 BTU |
| Left Rear Element Burner | 7500 BTU |
| Center Front Element Burner | 18000 BTU |
| Standard Width | 30" |
| Cutout Height | 7 1/2" |
| Minimum Circuit Required | 5 Amps |
| Voltage Rating | 120 V |
| Gas Supply Connection Location | Top Right |
| Installed Over a Wall Oven | Yes |
| LP Conversion Kit Included | Yes |
| Power Cord Included | Yes |
| Power Supply Connection Location | Top Right |
| Backlit Knobs | Yes |
| Frigidaire Fit Promise | Yes |
| Product Weight | 43 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
Description

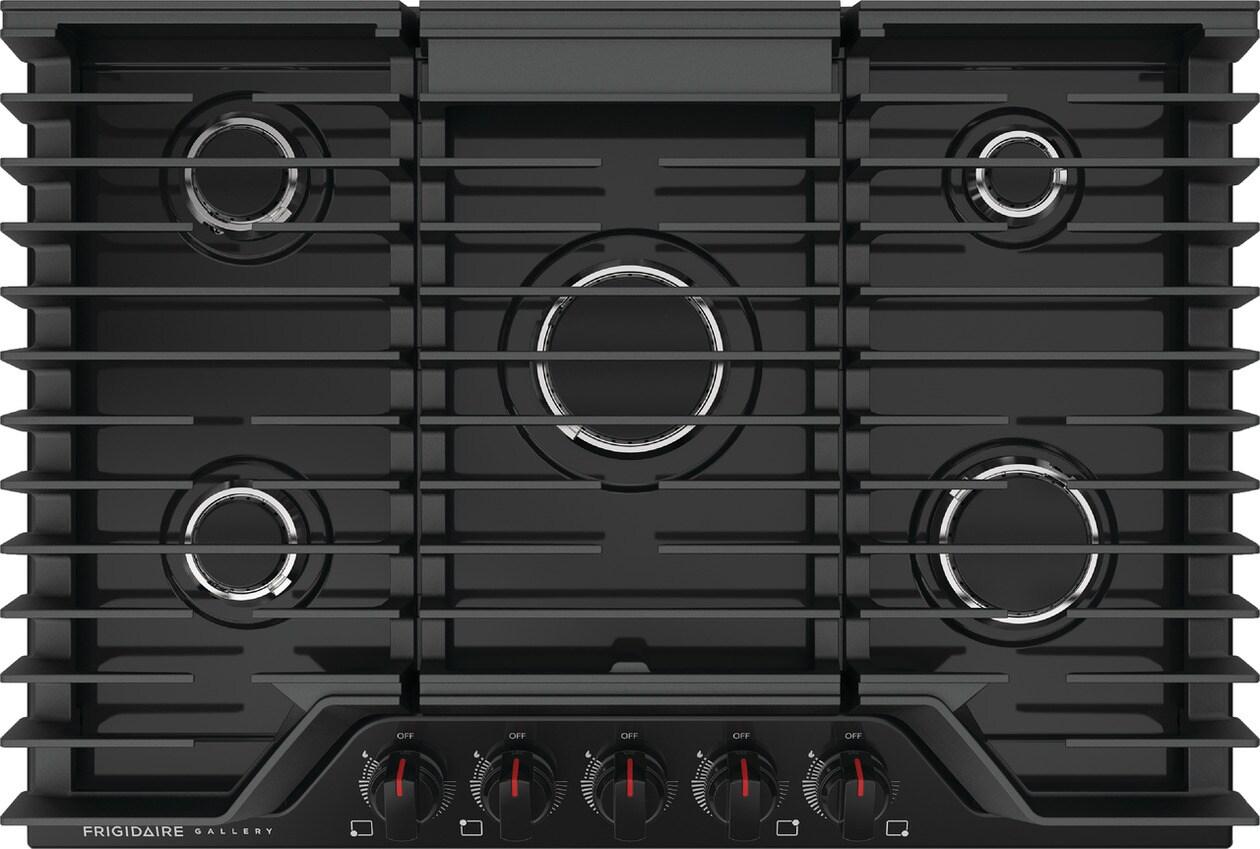

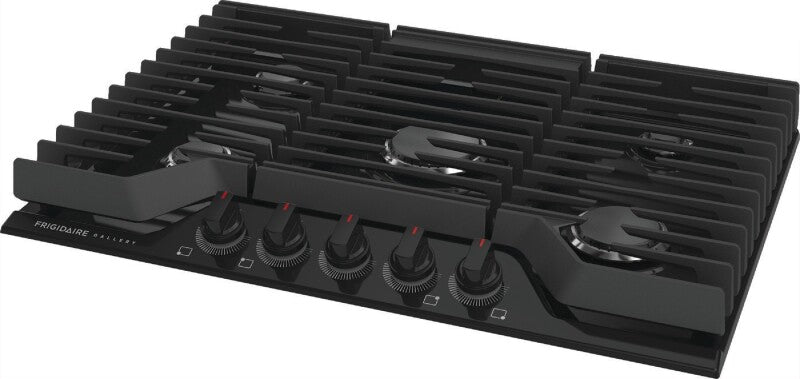

The brand Frigidaire GCCG3048AB delivers professional-grade cooking performance in this stylish 30" Gas Cooktop. Equipped with five sealed burners, including a powerful 18,000 BTU Quick Boil burner for fast boiling and a precise 5,000 BTU Simmer burner for gentle heating, it offers flexibility for any cooking task. The continuous cast-iron grates make it easy to move heavy pots and pans across the cooktop without lifting. Featuring bright backlit LED control knobs for clear visibility during operation, dishwasher-safe burner caps for easy cleanup, and a recessed Spill-Safe® cooktop design that contains messes, this unit also comes with the Frigidaire Fit Promise for hassle-free installation. Approved for use over Frigidaire wall ovens, the GCCG3048AB combines convenience, style, and efficiency in modern kitchens.
Product Features
-
Spill Safe® Cooktop
Clean-up is less of a hassle with the recessed cooktop that contains spills and common cooking messes. -
Frigidaire® Fit Promise
We promise that your new 30" Frigidaire Gallery gas cooktop will fit your existing cut-out, or we will reimburse up to one hundred dollars for professionally modifying the countertop.1 -
Installation over Wall Oven Approved
Cooktops are approved for installation above any of our Frigidaire or Frigidaire Gallery Single Electric Wall Ovens.
Manuals & Guides
Key Features
Quick Boil
Experience faster boil times and more powerful cooking with the 18,000 BTU burner.

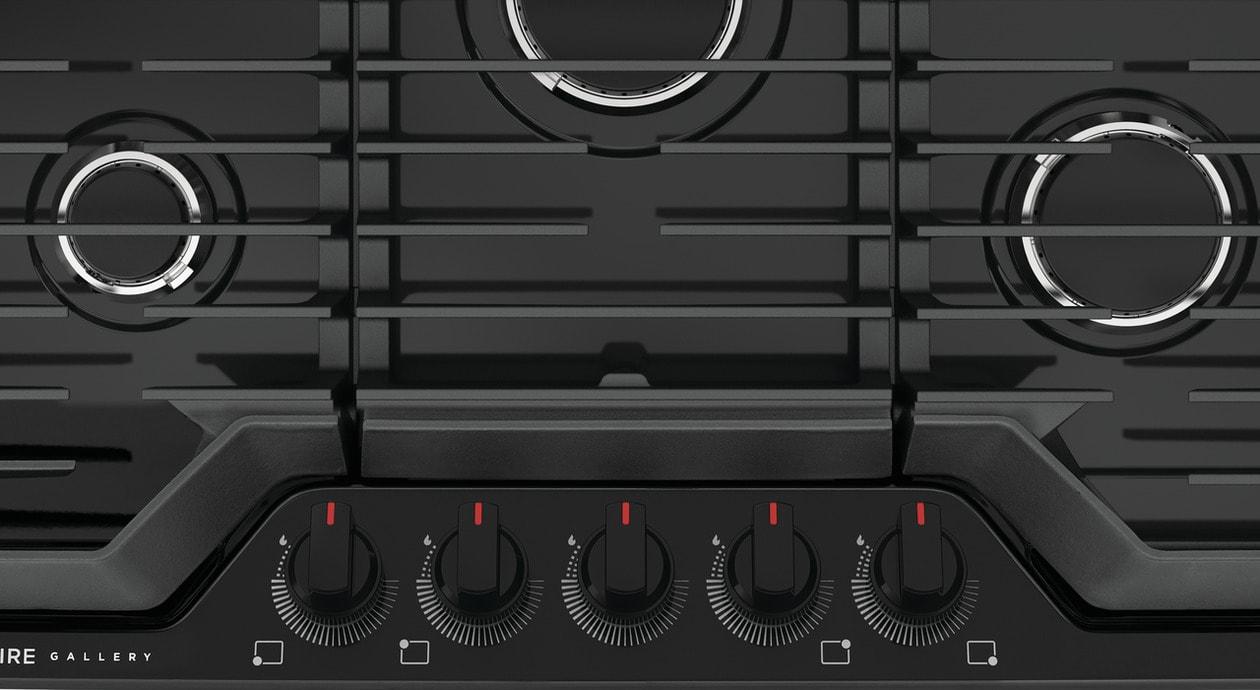

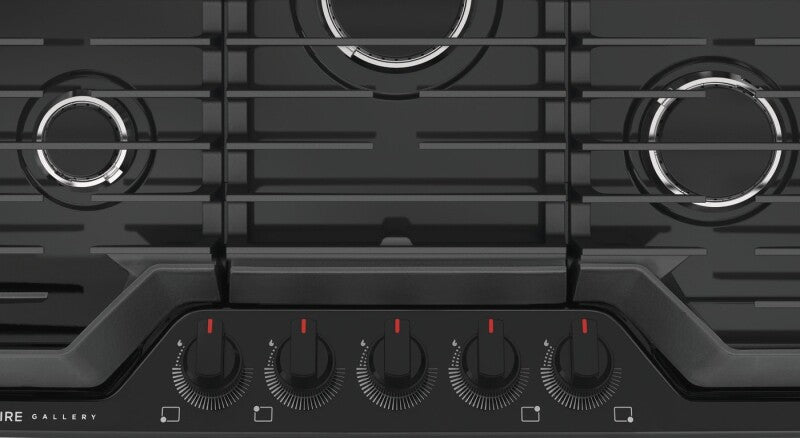

Backlit LED Knobs
Lights up when the cooktop is turned on.

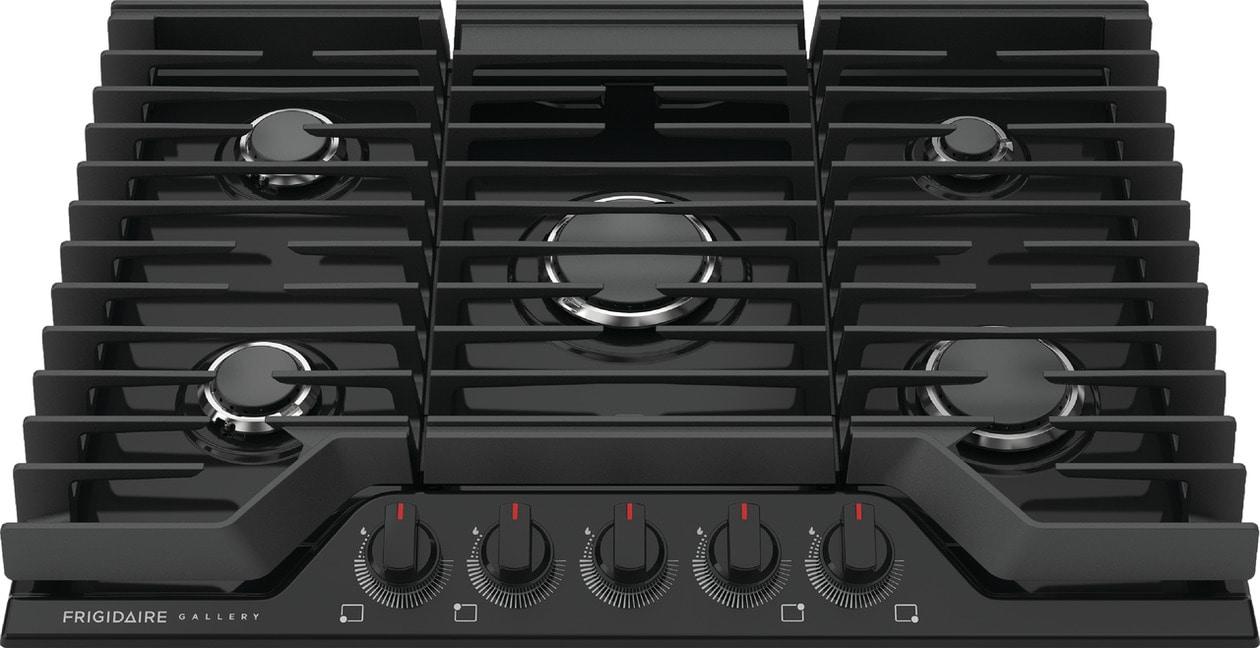

Five Burner Cooktop
This cooktop features five burners including a 5,000-BTU simmer burner and a 18,000-BTU Quick Boil Burner that gets meals on the table, faster.
Low Simmer Burner
Low simmer burner delivers low, gentle heat allowing you to prepare delicate foods or sauces without burning or scorching the bottom.
Dishwasher Safe Burner Caps
Cleaning your cooktop is easier with removable, dishwasher safe burner caps.

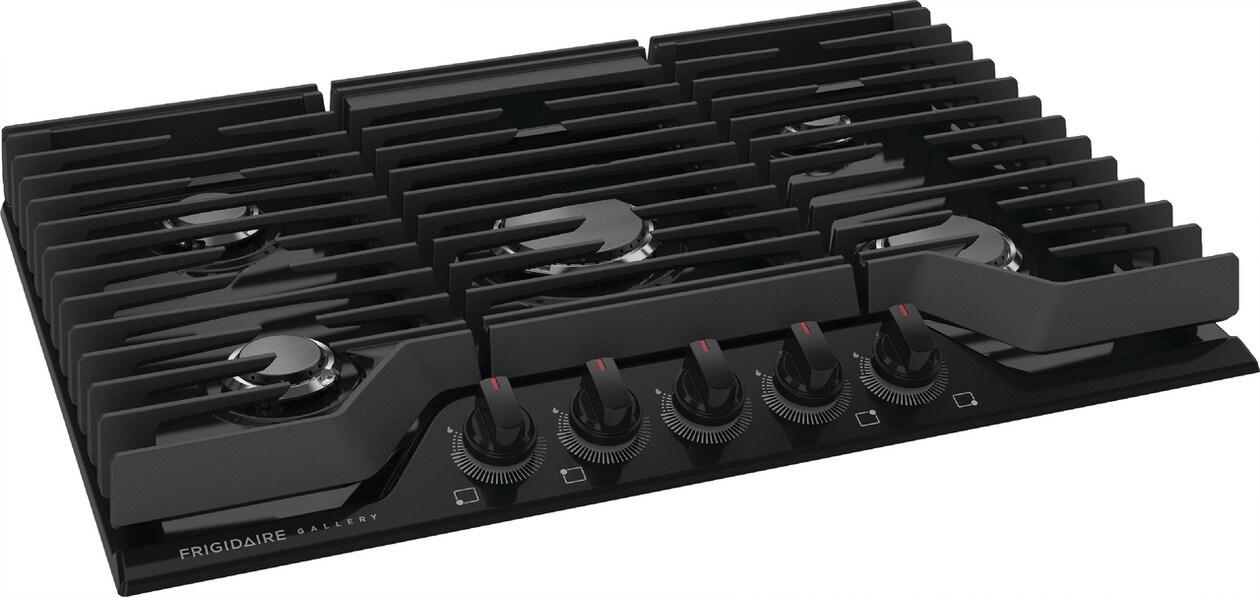

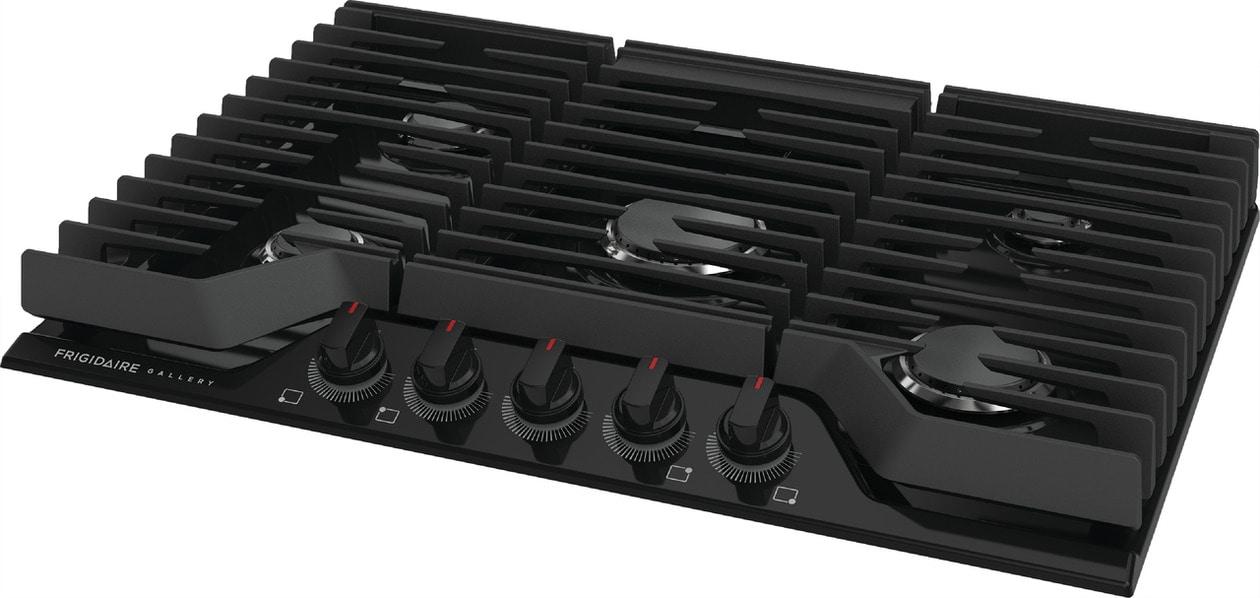

Continuous Edge-to-Edge Grates
Moving heavy pots and pans across the cooktop is easier with continuous edge-to-edge grates.
