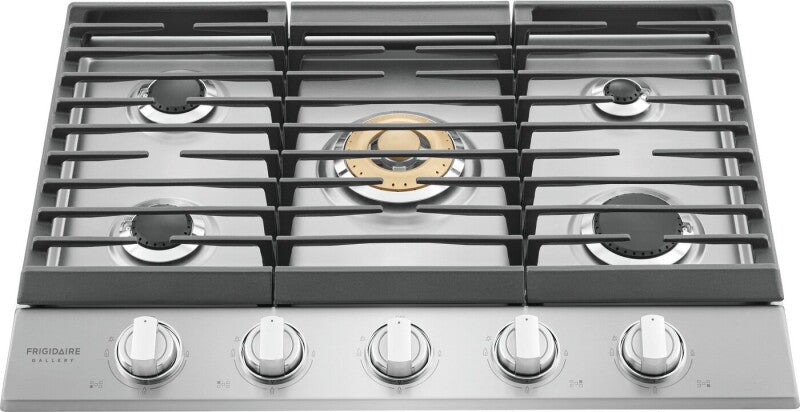

Product Details for Frigidaire Gallery GCCG3047AS

Technical Details

Certifications and approvals

ADA Compliant Yes
CSA Listed Yes
RoHS Yes

Cooktop

Cooking Surface Type Gas
Grate Material Cast Iron
Grate Quantity 3
Grate Style Continuous
Griddle Included Yes
Sealed Burners Yes

Cooktop performance

Right Front Element Burner 12000 BTU
Right Rear Element Burner 5000 BTU
Left Front Element Burner 9500 BTU
Left Rear Element Burner 9500 BTU
Center Element Burner 20000 BTU

Dimensions and volume

Height 2 219/500"
Width 30"
Depth 21"
Cutout Height 7 1/2"
Minimum Cutout Width 27 1/4"
Minimum Cutout Depth 19"
Maximum Cutout Width 29 313/1000"
Maximum Cutout Depth 20"

Electrical specifications

Voltage Rating 120 V

Installation

Gas Supply Connection Location Right Center
LP Conversion Kit Included Yes

General specifications

Product Weight 55 lbs
Prop 65 Label Yes
Warranty - Labor 1 Year
Warranty - Parts 1 Year

Exterior

Backlit Knobs Yes

Description

Achieve accurate and efficient temperature control - whether you need a light simmer or a powerful boil - with a flexible brass power burner that evenly covers the bottom of the pan



Product Features

  • ADA Compliant
    0
  • Flexible Brass Power Burner
    Achieve accurate and efficient temperature control - whether you need a light simmer or a powerful boil - with a flexible brass power burner that evenly covers the bottom of the pan
  • Continuous Grates
    Easily slide even your heaviest cookware from burner to burner with our continuous grates that also lend to the sleek look of the cooktop
  • LED Backlit Knobs
    Get a premium look with sturdy, LED backlit knobs that turn on once the burner is lit
  • Sleek Design
    Full-framed linear grates, edge-to-edge front controls with sturdy LED backlit knobs and a premium brass burner accent lend to the sleek design that make this cooktop a focal point of your kitchen
  • Included Griddle
    Create specialty foods like crepes and paninis right on your cooktop with an included griddle that allows for multiple cooking techniques
  • Melt Cap Accessory
    Easily melt chocolate and other delicate ingredients with the gentle heat provided by the melt cap accessory
  • Five Burners
    Cook for a crowd with ease with five burners that allow you to cook multiple dishes at once
