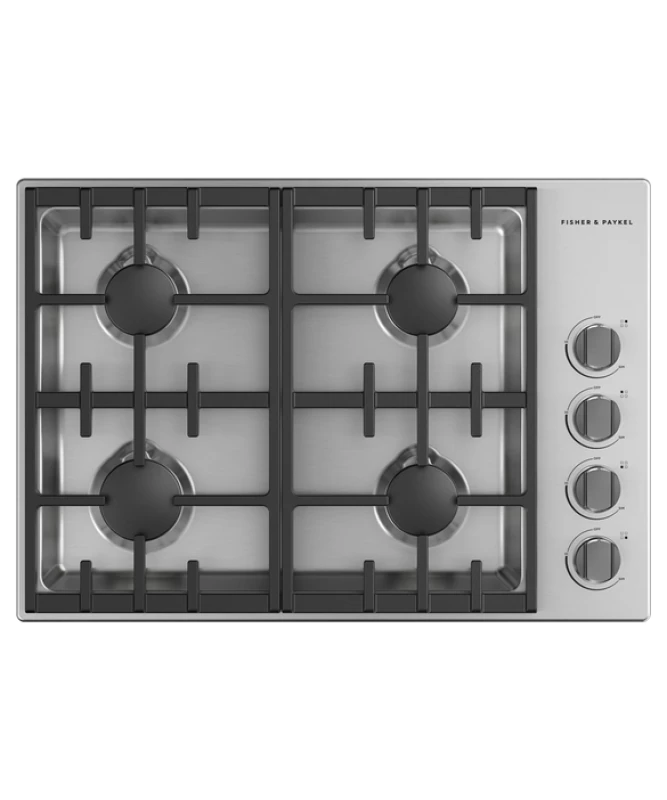

FISHER & PAYKEL CDV3304N Gas Cooktop, 30"
- SKU: CDV3304N
- Height:5.5 Inch
- Length:21 Inch
- Width: 30 Inch
More on the way
Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.
Enjoy added peace of mind long after the original warranty expires.
This Protection Plan includes:
Burner ratings | |
Max burner power | Yes |
Power back left | 15,000 BTU |
Power back right | 15,000 BTU |
Power front left | 20,000 BTU |
Power front right | 15,000 BTU |
Total cooktop power | 65,000 BTU |
Controls | |
Gas Requirements | |
Fitting and pipe | 1/2 NPT, min. 5/8 " flex line |
Supply Pressure (natural gas) | 6 " to 9" W.C |
Performance | |
Sealed Dual Flow Burners™ | 4 |
Simmer on all burners | 140°F |
Power requirements | |
Amperage | 15A |
Supply frequency | 60Hz |
Supply voltage | 120V |
Product dimensions | |
Depth | 21 " |
Height | 5 1 / 2 " |
Width | 30 " |
Recommended Back Guards Ventilation | |
Downdraft | HD30 |
Minimum CFM | 600 BTU |
Pro hood | HCB30-6 N |
Traditional hood | ES30 |
Safety | |
Warranty | |
Parts and labor | 2 years |
FISHER & PAYKEL CDV3304N Gas Cooktop, 30"
