| Included Accessories | 1 x nozzle set for liquid gas, 1 x cast iron pan support |
| Required Cutout Size (HxWxD) (in) | 3 13/16'' x 28 15/16'' x 19 1/8'' |
| Overall Appliance Dimensions (HxWxD) (in) | 3 13/16'' x 31'' x 21 1/4'' |
| Alternative Gas Type (Nozzle Set Included) | Liquid gas 27,5 mbar (USA) |
| Plug Type | 120V-3 prong |
| Power Cord Length | 40'' |
| Fuse protection | 15 A |
| Volts | 120 V |
| Product Packaging Dimensions (HxWxD) | 8 3/8'' x 37 1/8'' x 24 3/4'' |
| Gas type preset | Natural gas 15 mbar (USA) |
| Total LP BTUs | 41700 Btu |
| Total NG BTUs | 41700 Btu |
| Surface Materials | Porcelain, Steel |
| Grate Materials | Cast Iron with Rubber Feet |
| Location of Control Panel | Front |

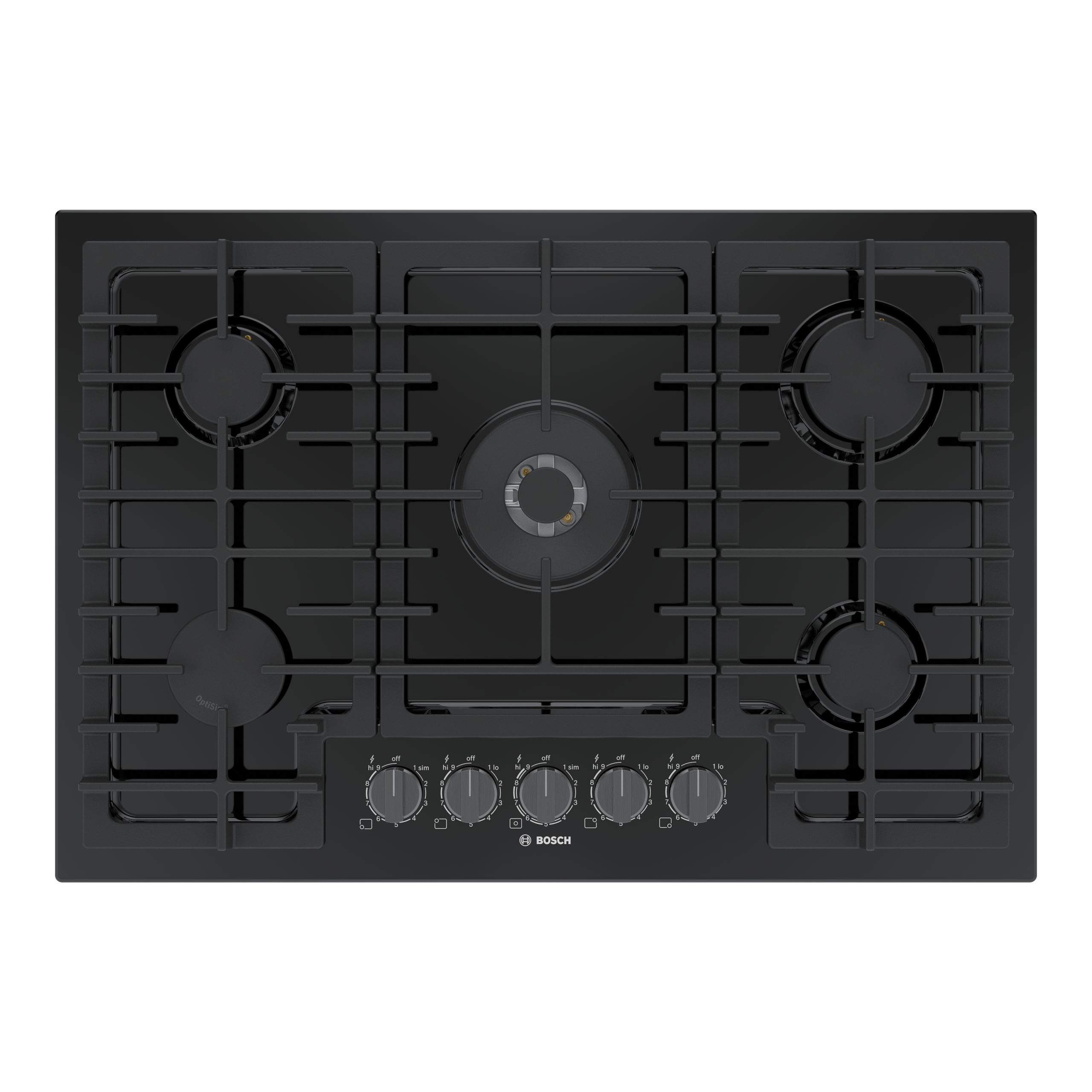

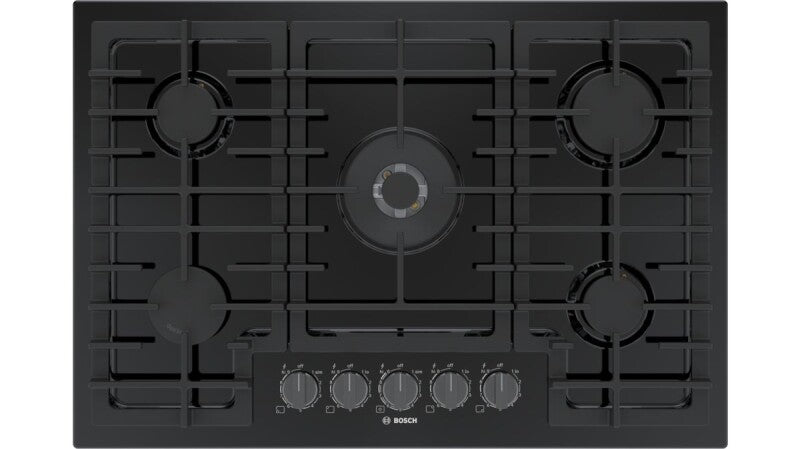

| Number of Gas Burners | 5 |
| Sealed Burners | yes |
| Griddle | no |
| ADA Compliant (When Installed to ADA requirements) | no |
| OptiSim® Burner | no |

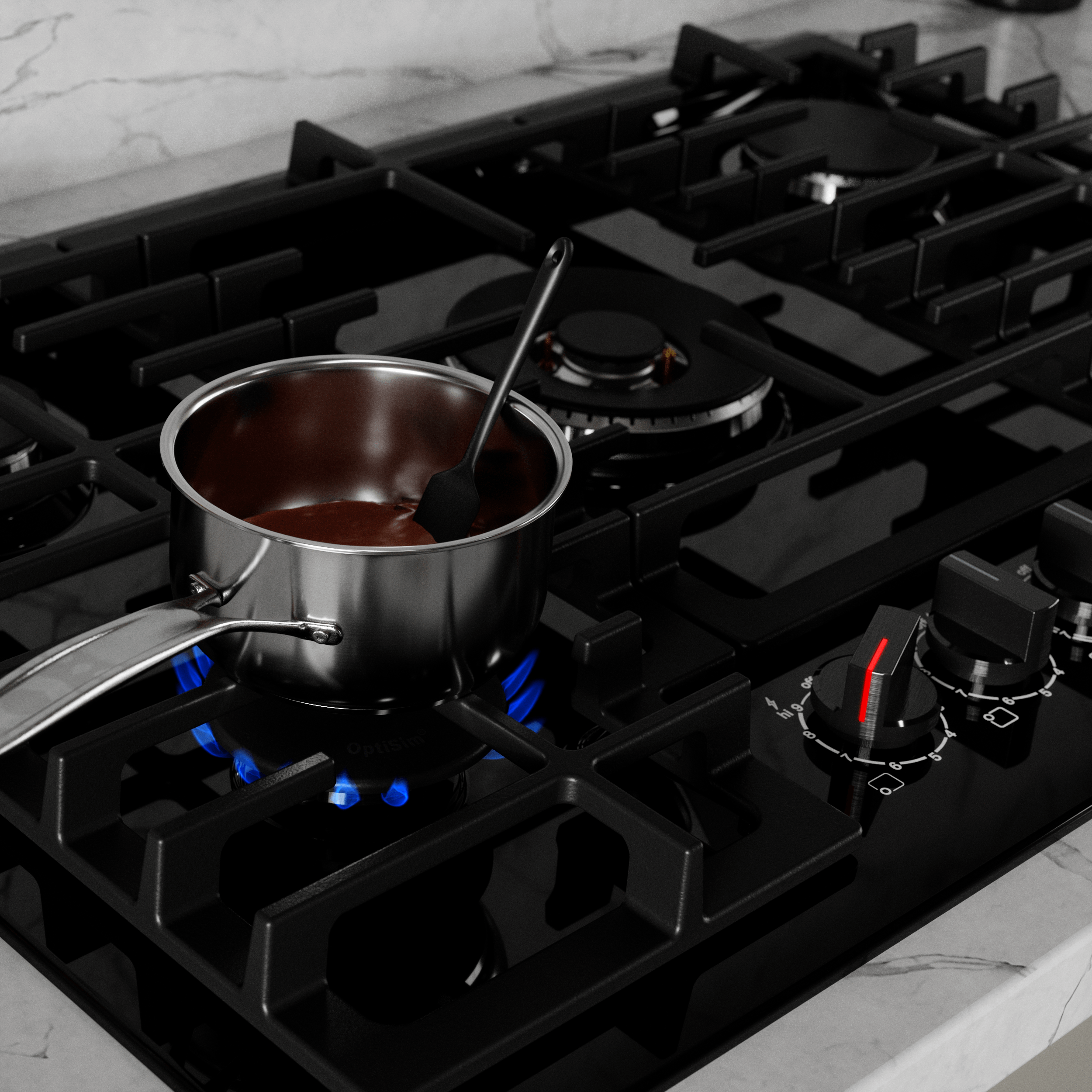

| Special Features | Simmer Cap |
| Width | 31 in. |
| Height | 3.81 in. |
| Length | 21.25 in. |
| Weight | 28 lbs. |
| Number of Boxes | 1 |
| Shipping Width | 36 in. |
| Shipping Height | 8.81 in. |
| Shipping Length | 26.25 in. |
| Shipping Weight | 68 lbs. |
| Total of Shipping Weight | 68 lbs. |
| Source | Calculation |
| Cubic Feet Measurement | 1.45 ft³ |
| Dimensional Weight | 18.07 lbs. |
| Total of Cubes | 1.45 ft³ |
| Total of Dimensional Weight | 18.07 lbs. |
| Safety | Flame failure safety device for each burner, |

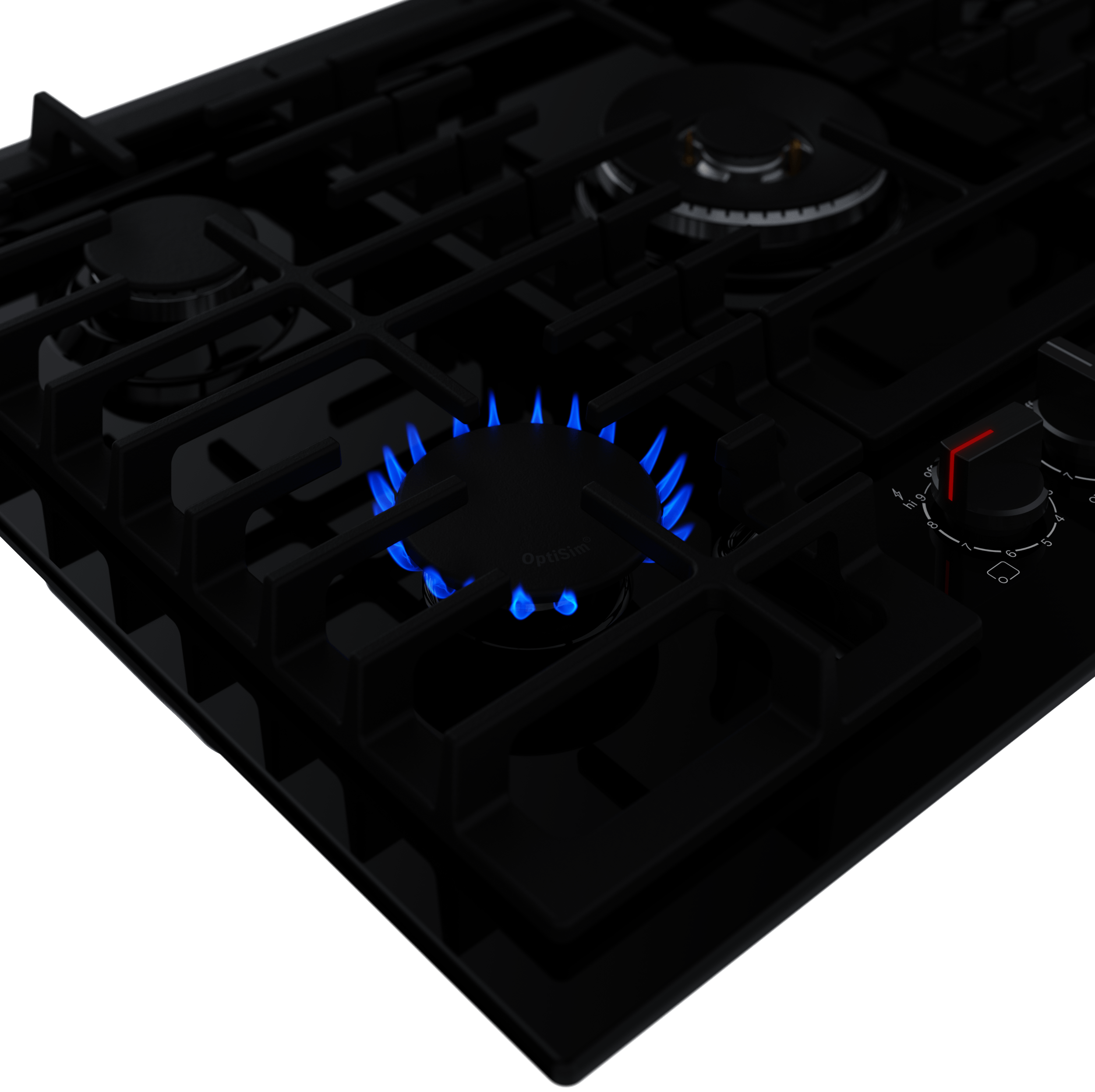

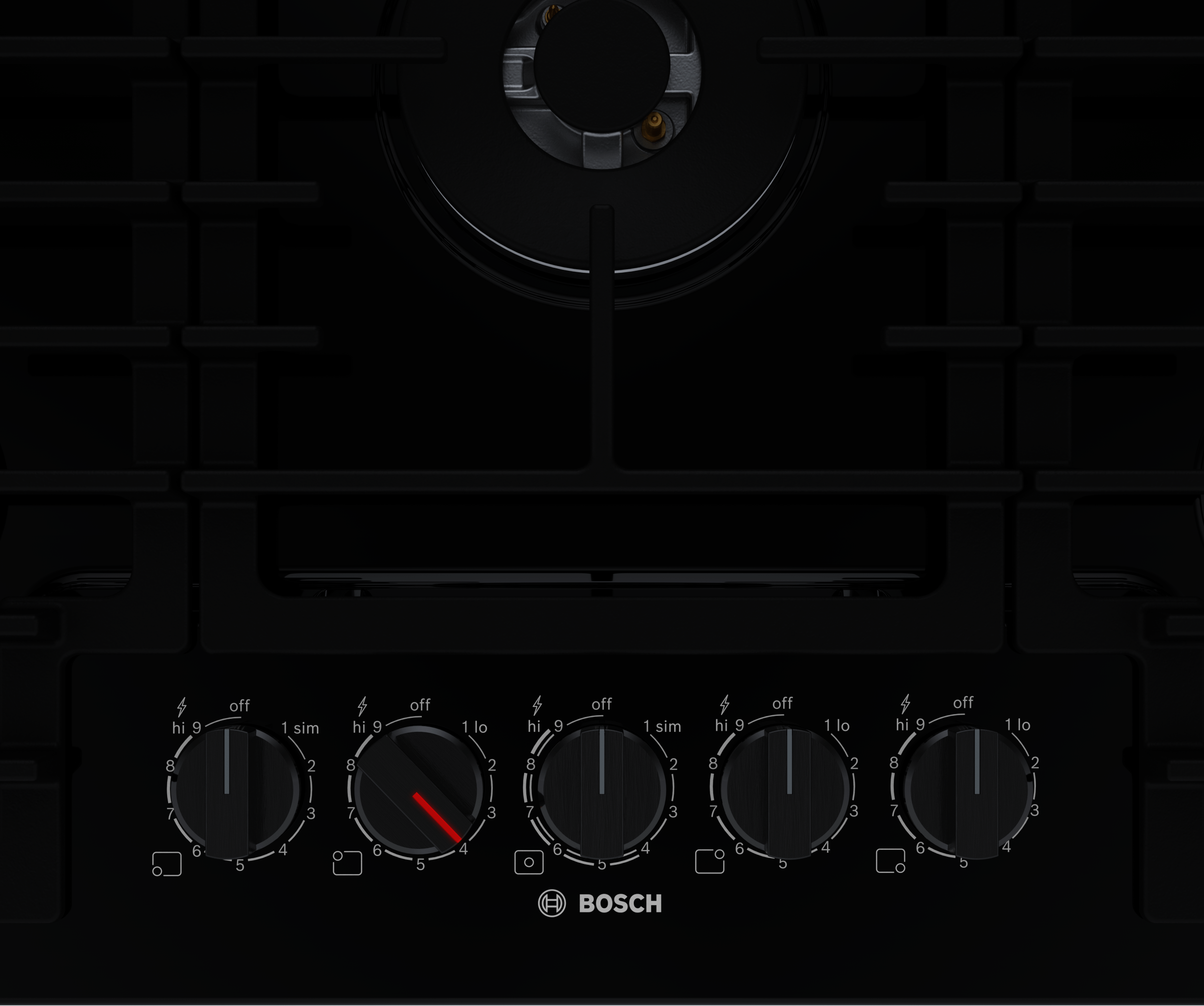

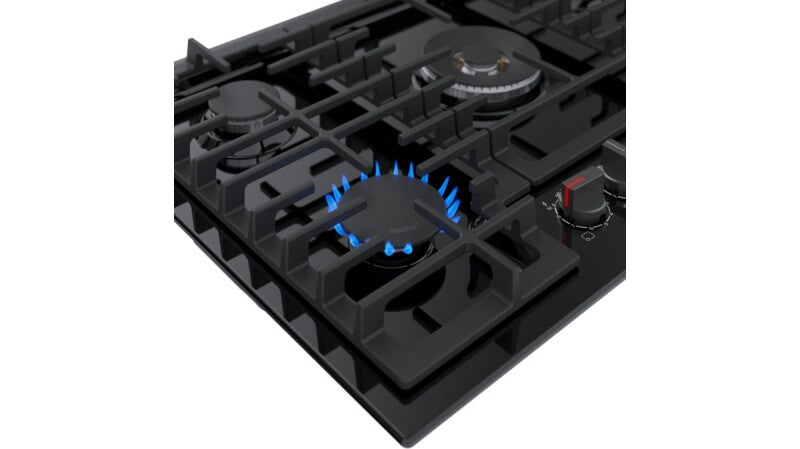

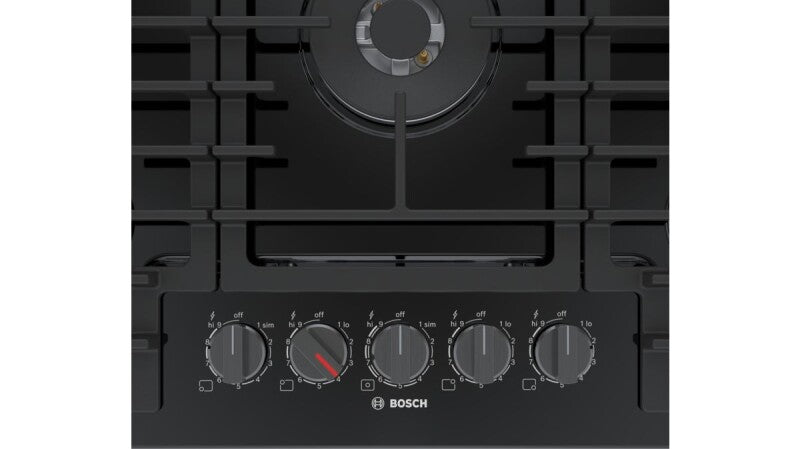

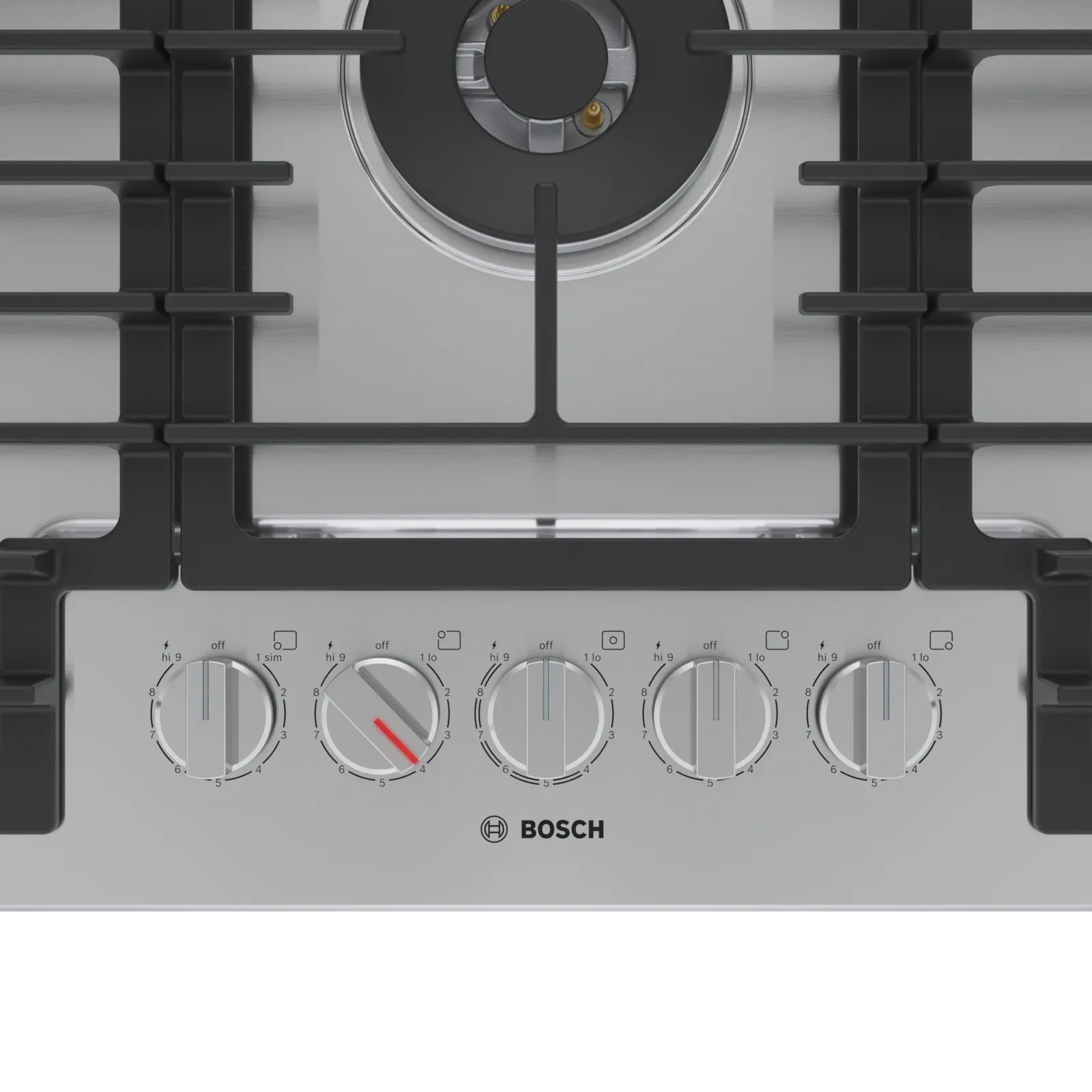

Control knobs with an embedded red LED light line indicate if the burner is on or if there is residual heat.

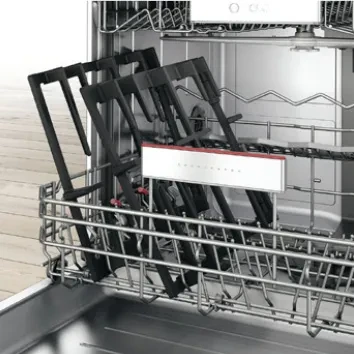

A special enameling process allows the grates to be washed directly in the dishwasher instead of by hand for easier clean up.

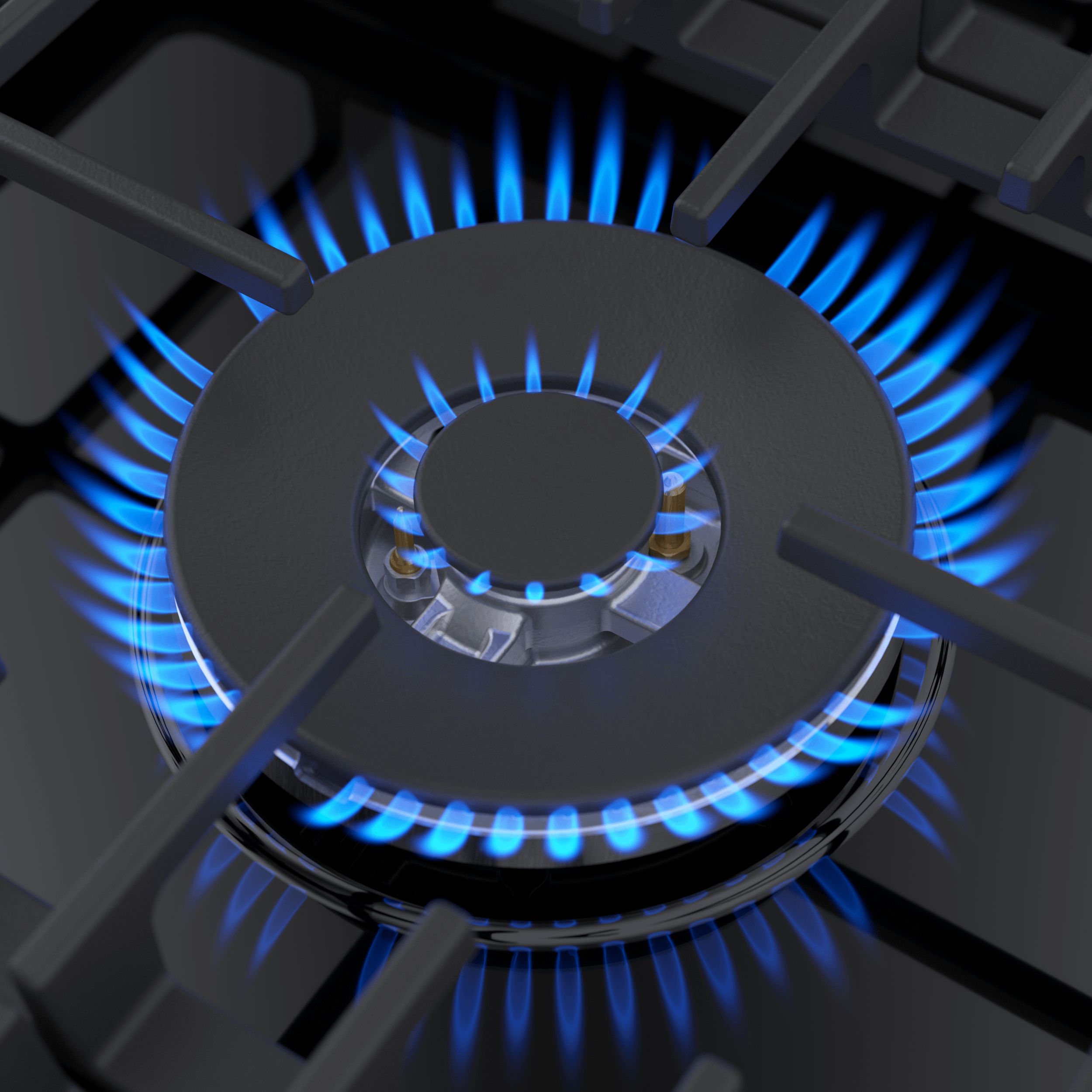

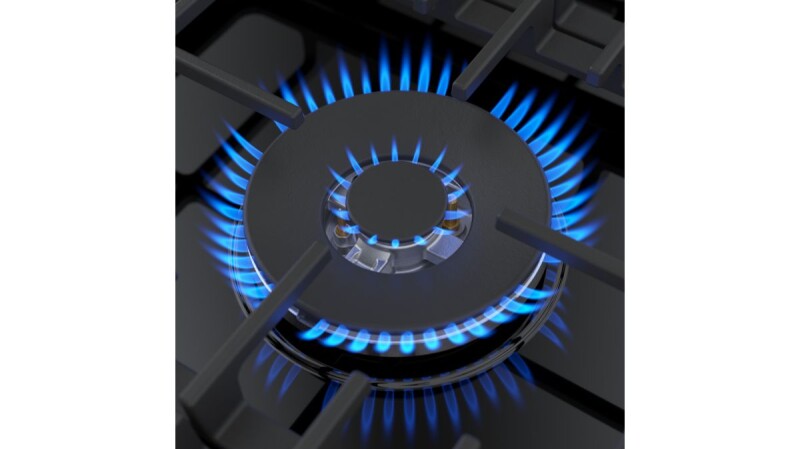

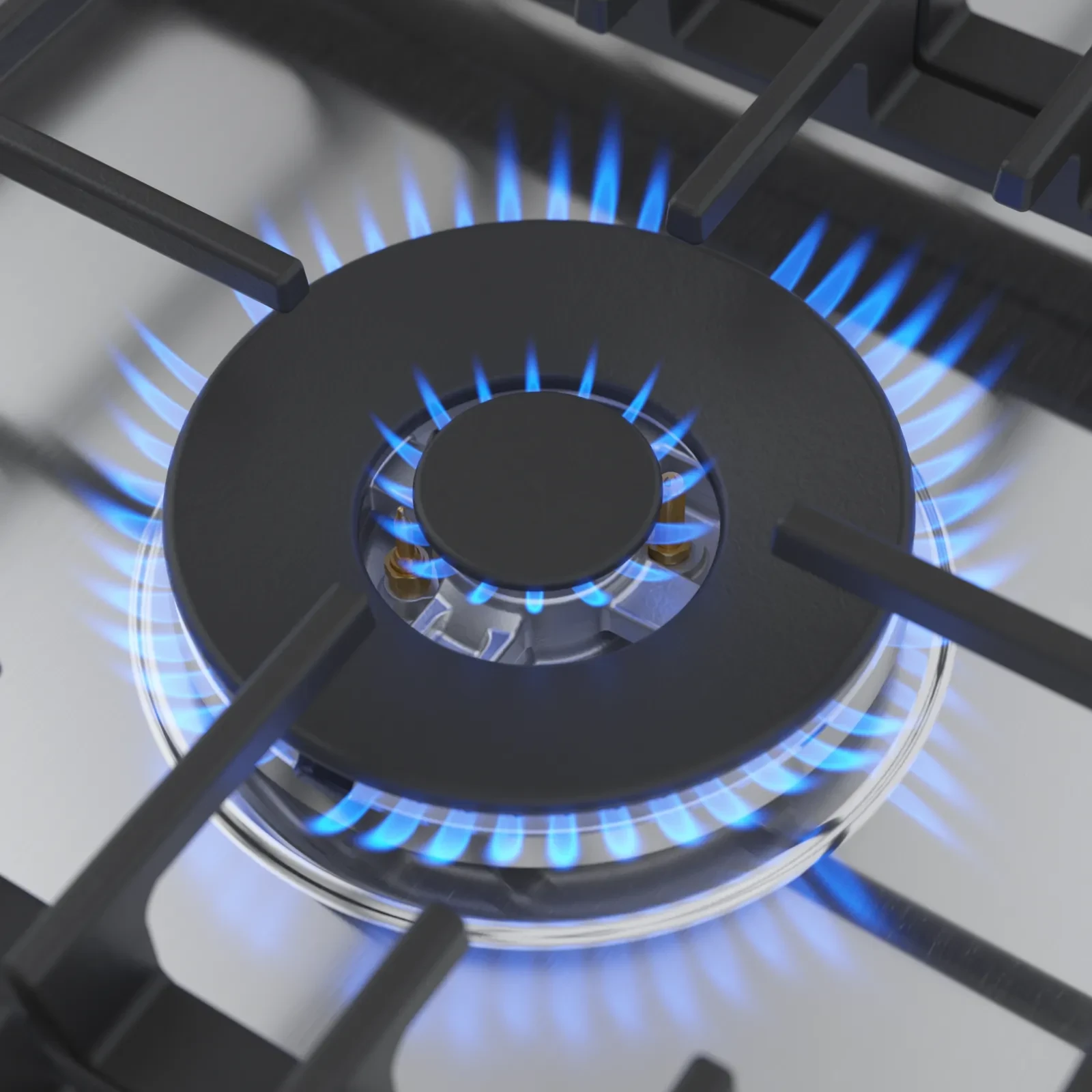

The dual flame ring power burner has two rings for low and high flame settings so you can go from simmer to sear with ease. Heat level 1-3 uses the inner ring, and 4-9 uses both rings for maximum heat.
