| Cubic Feet Measurement | 23.13 ft³ |
| Dimensional Weight | 287.52 lbs. |
| Total of Cubes | 23.13 ft³ |
| Total of Dimensional Weight | 287.52 lbs. |
| Door Type | Metal & Glass |
| Oven Window Size | Extra Large |
| Door Lock | Yes |
| Handle Color | White |
| Handle Material | Metal |

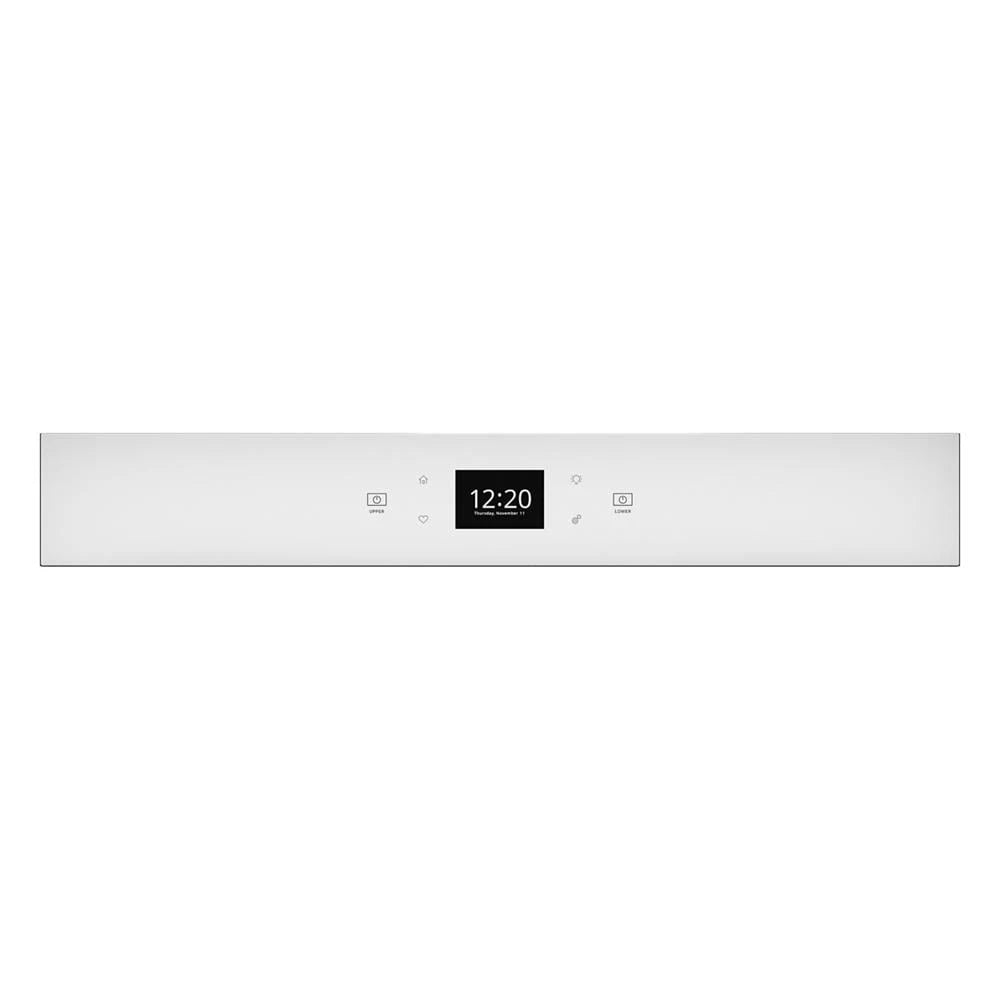

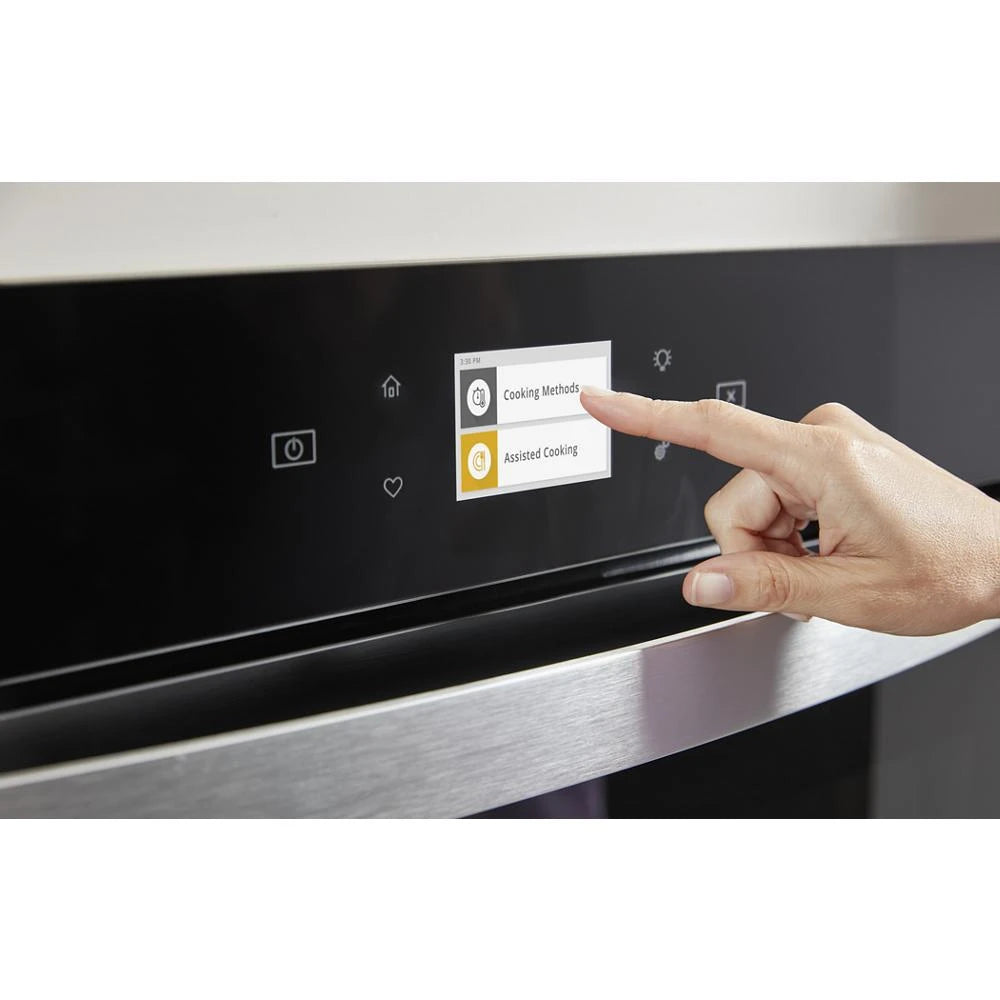

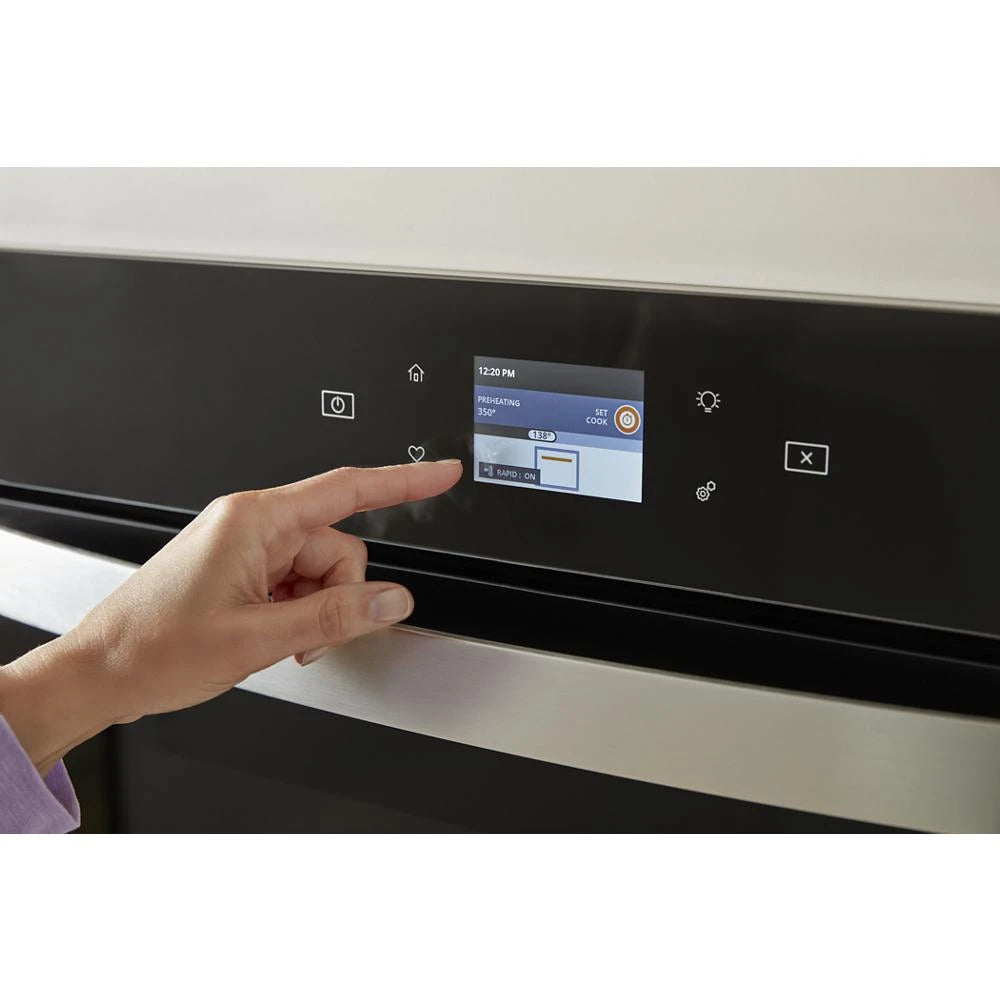

| Control Type | Glass Touch Digital Display |
| Display Color | Full Color |
| Electronic Display Type | Full Color LCD |
| Language Conversion | English/French/Spanish |
| Light Control | Oven Light Touch Pad |

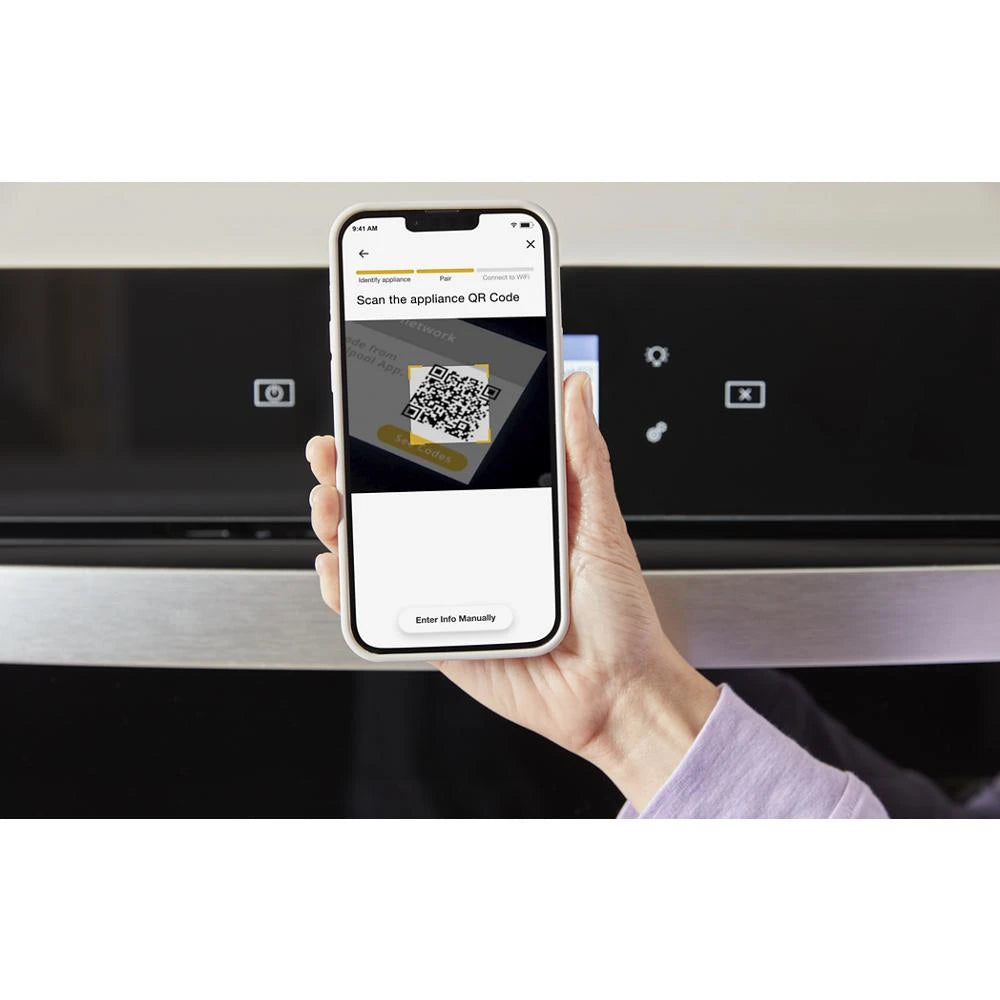

| Smart Appliance | Yes |
| Connectivity | Amazon Alexa, Android, Google Assistant, iOS |
| Works With | App, Remote Access, Voice Controlled, WiFi |
| Flush Installation Approved | Yes |
| Delay Clean | Yes |
| Fuel Type | Electric |
| Oven Automatic Shut-Off | Yes |

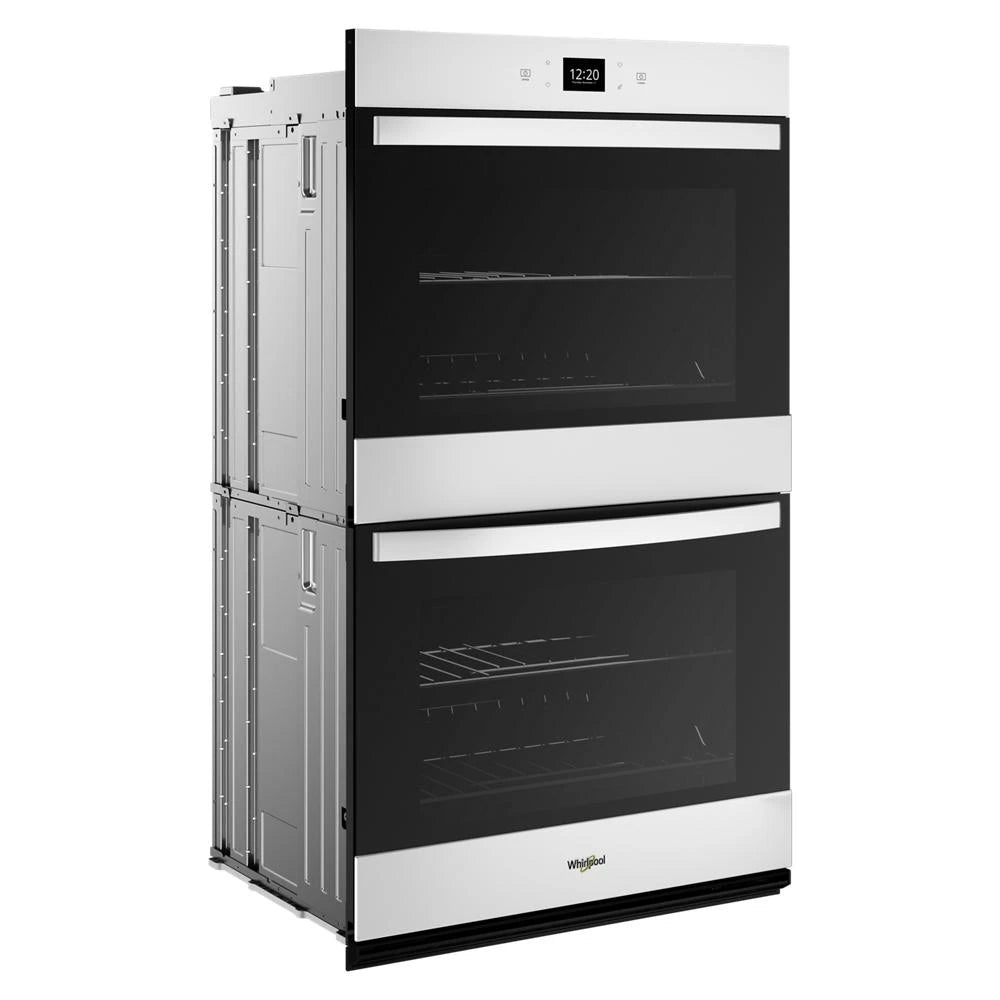

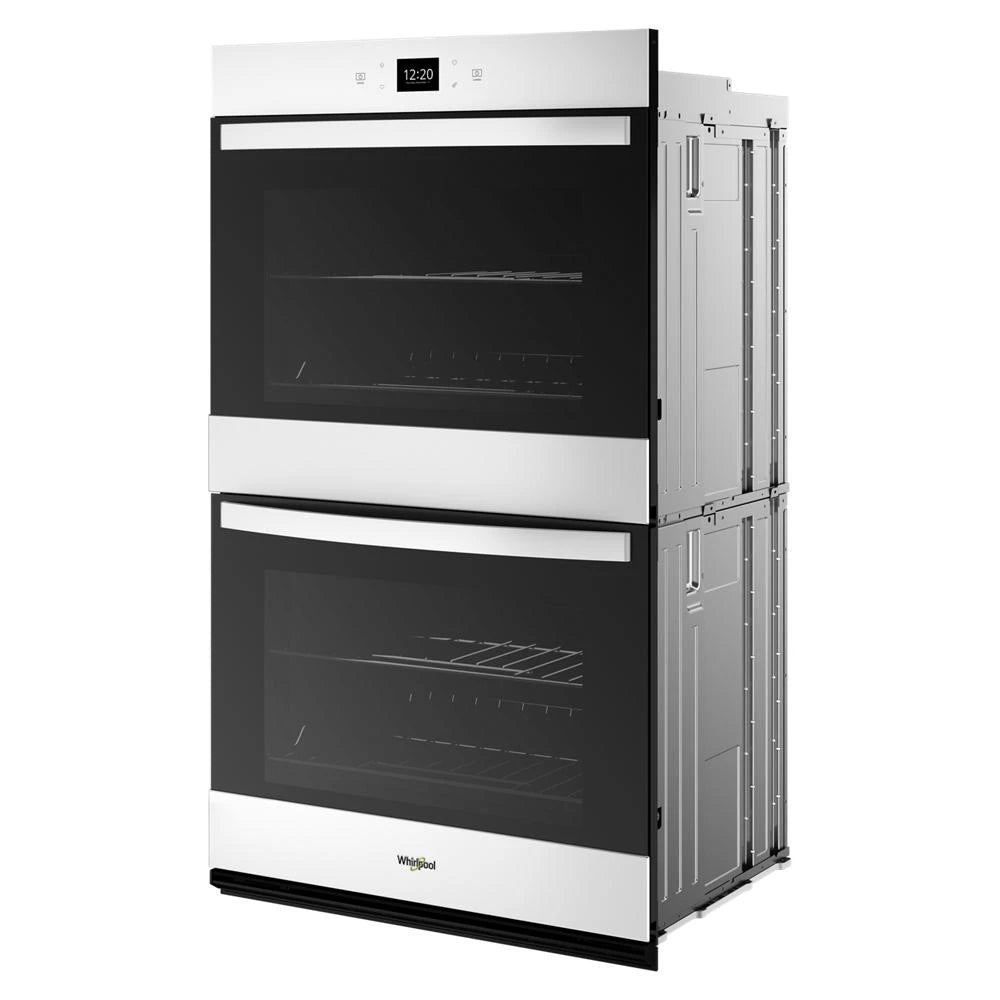

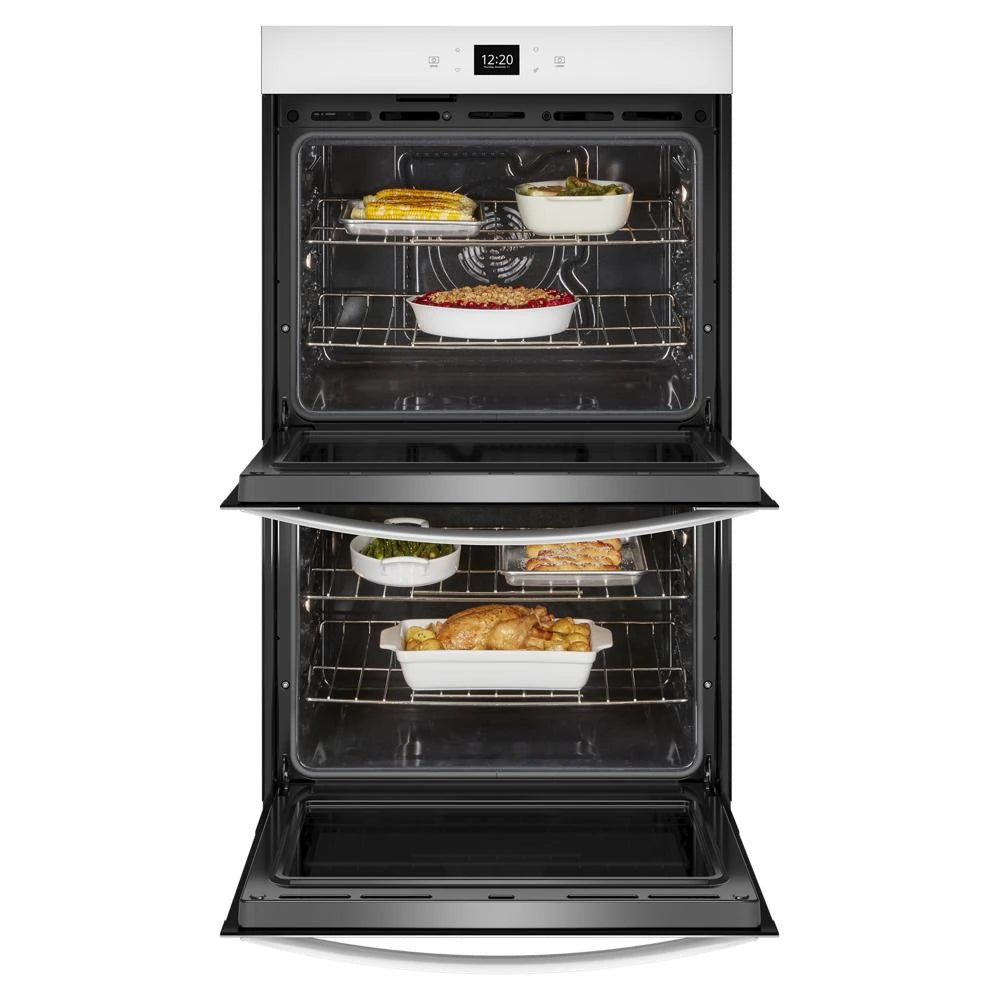

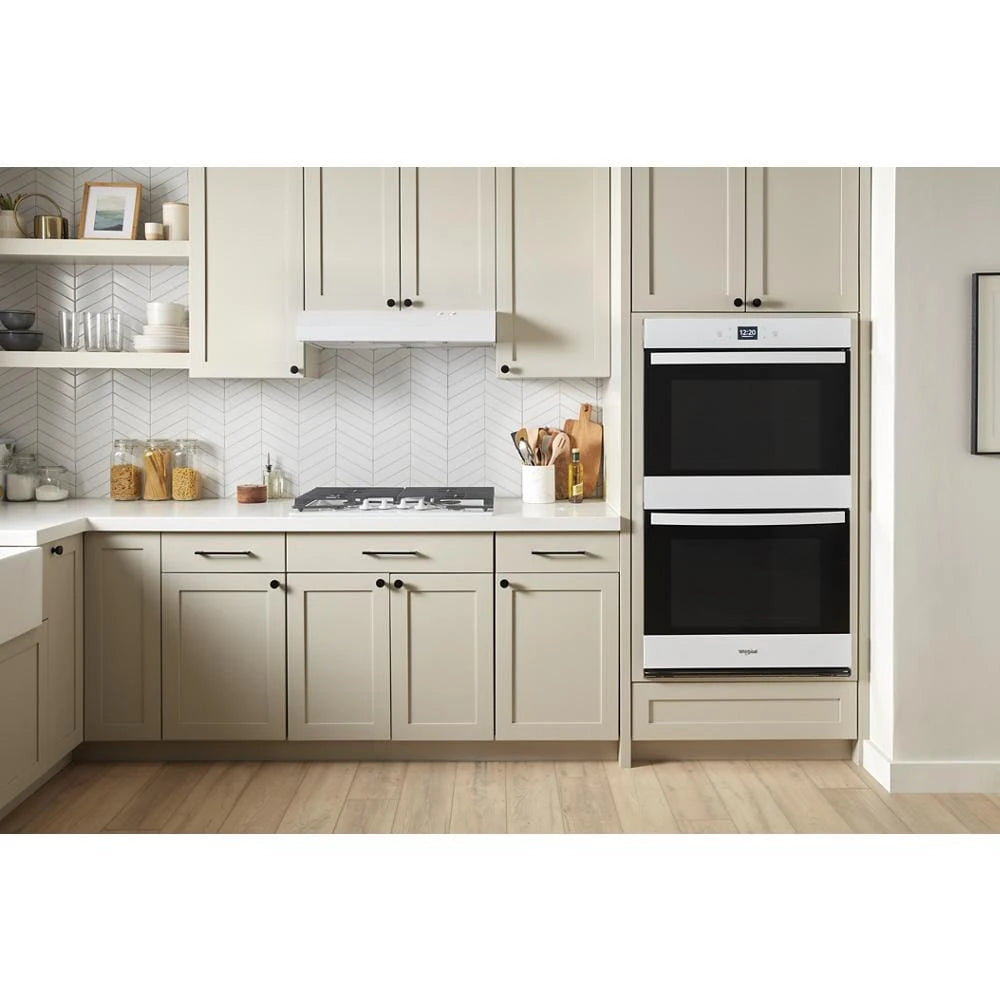

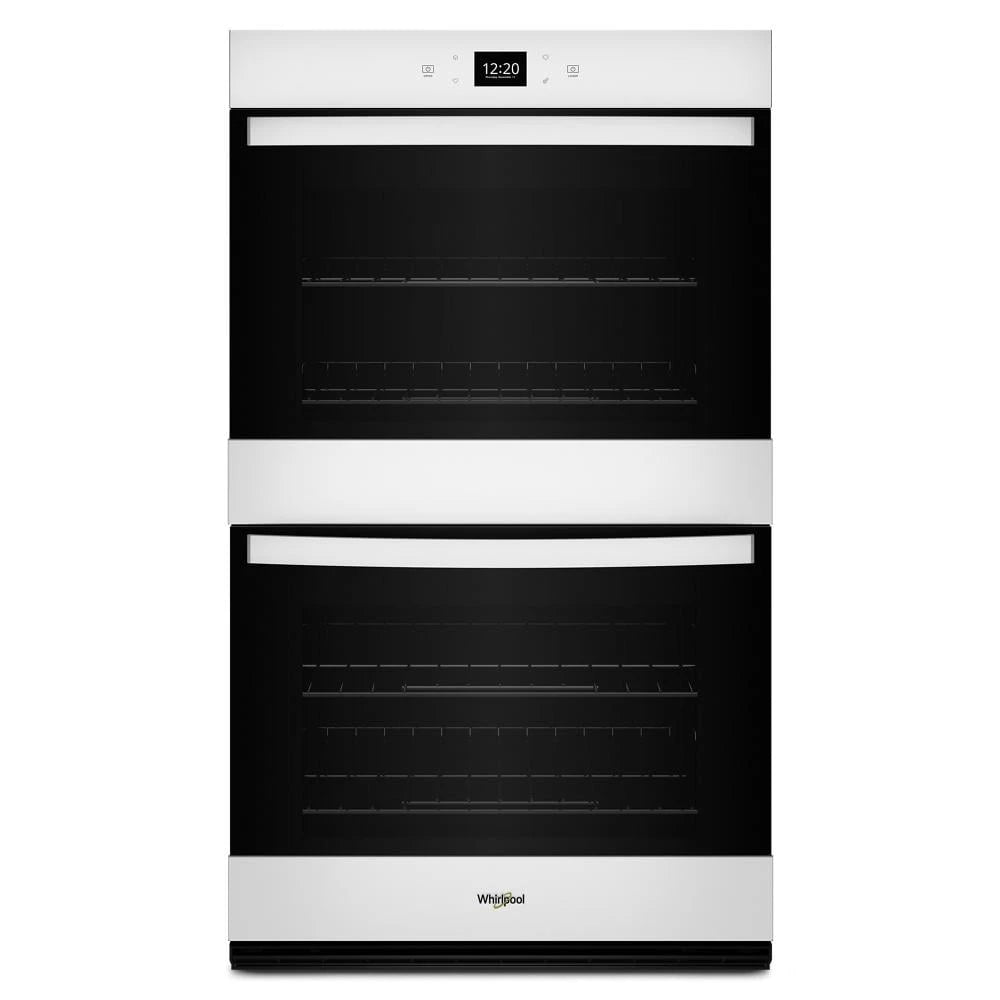

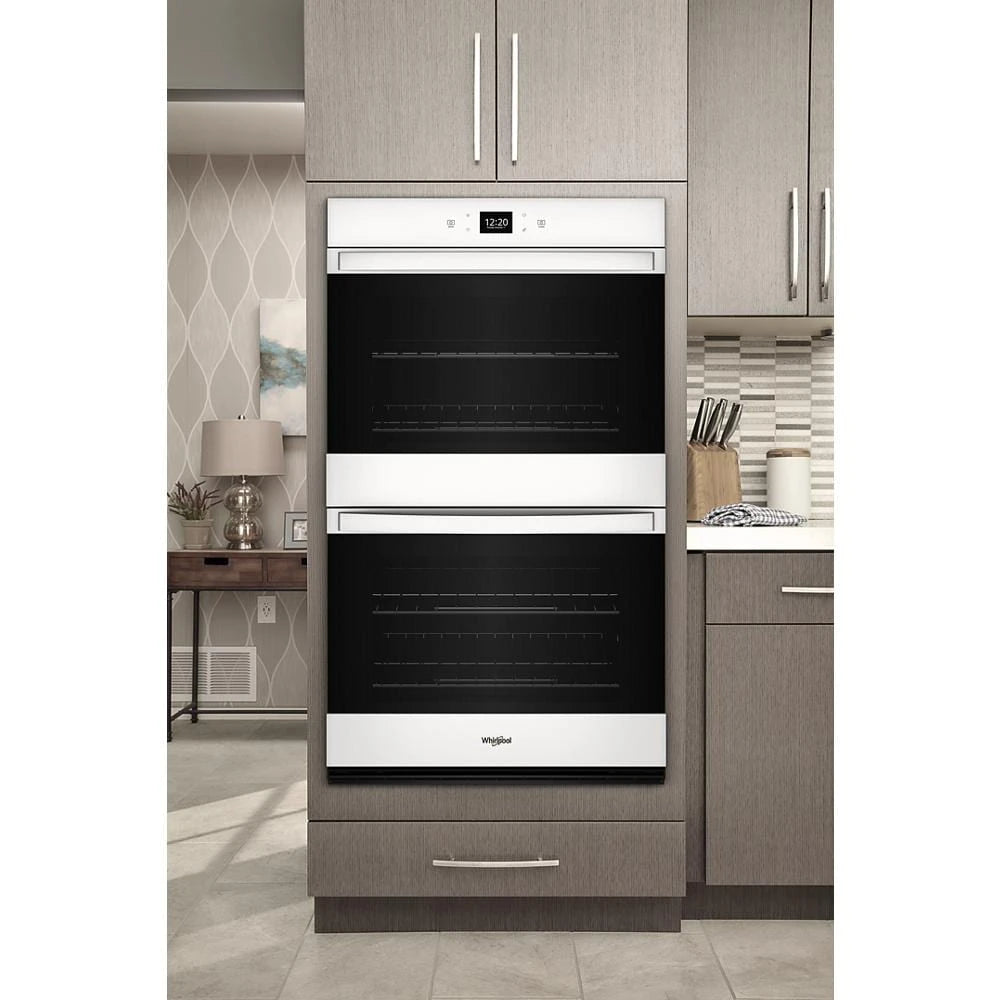

| Oven Type | Double |
| Power On Indicator Light | Yes |

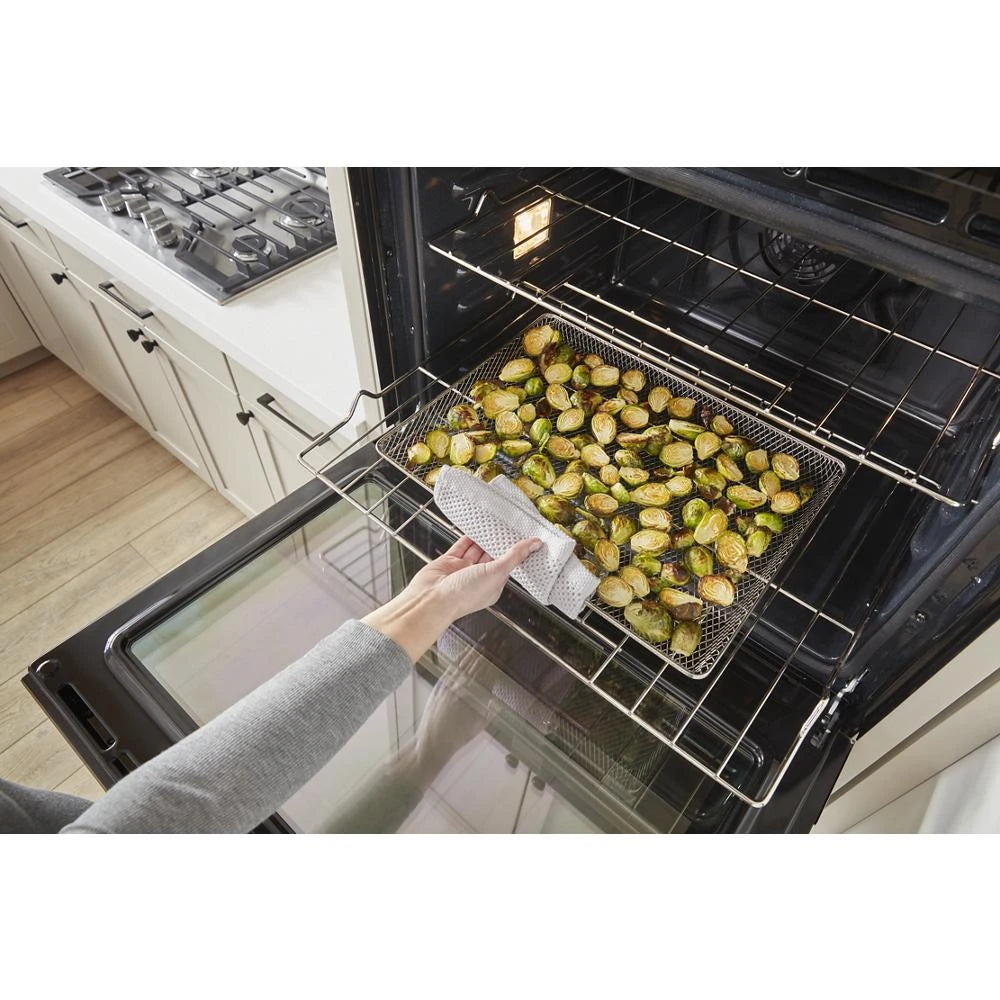

| Oven Selections | Air Fry, when connected, Audible Signal, Bake, Broil, Cancel/Off, Clock, Control Lock, Cook Time Indicator, Delay Start, Favorites, Frozen Bake, Keep Warm/Warm Hold, Language Conversion, Rapi |
| Power Cord Included | No |
| Amps | 40 |
| Hz | 60 |
| Volts | 240 |
| ADA Compliant | No |
| CUL | Yes |
| Star K Certified | Star K Certified |
| UL | Yes |

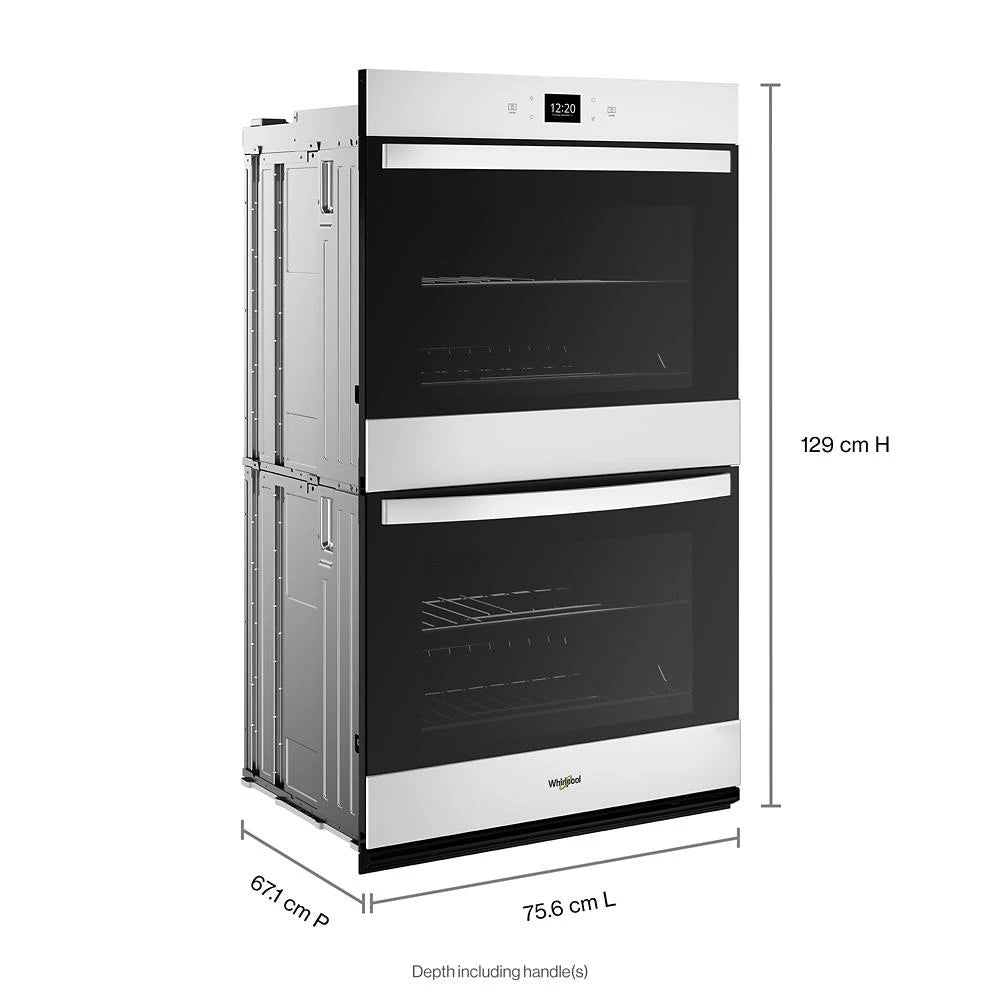

| Width | 29.75 in. |
| Height | 50.81 in. |
| Length | 26.44 in. |
| Weight | 264 lbs. |
| Cutout Depth | 24 in |
| Gross Weight | 264 lbs |
| Lower Oven Interior Depth | 19 in |
| Lower Oven Interior Height | 18 in |
| Lower Oven Interior Width | 25 in |
| Net Weight | 259 lbs |
| Upper Oven Interior Depth | 19 in |
| Upper Oven Interior Height | 18 in |
| Upper Oven Interior Width | 25 in |
| Cutout Height | 50.25 in |
| Cutout Width | 28.5 in |
| Depth Closed Excluding Handles | 24.438 in |
| Depth Closed Including Handles | 26.438 in |
| Depth With Door Open 90 Degree | 46.188 in |
| Maximum Height | 52.5625 in |
| Minimum Height | 50.8125 in |
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 54 in. |
| Shipping Length | 31.44 in. |
| Shipping Weight | 304 lbs. |
| Total of Shipping Weight | 304 lbs. |
| Source | Calculation |
| Common Size | 30 in |

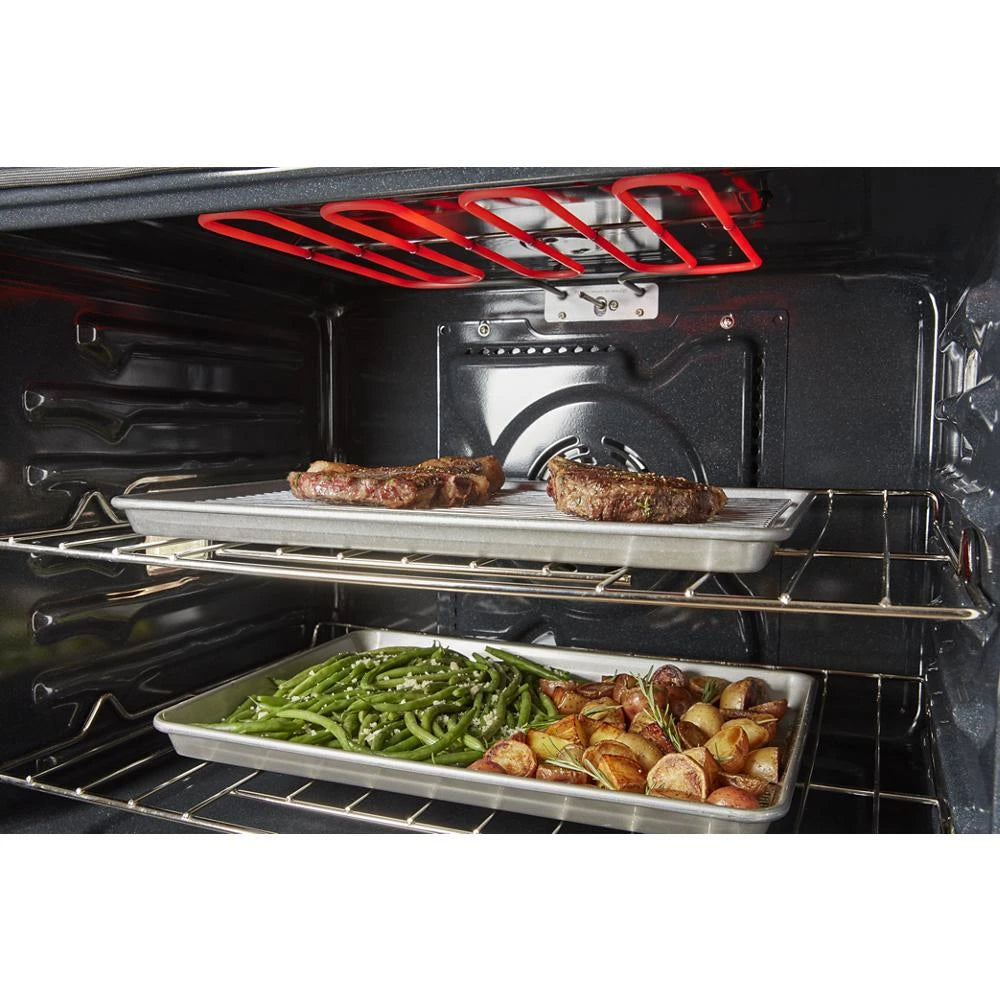

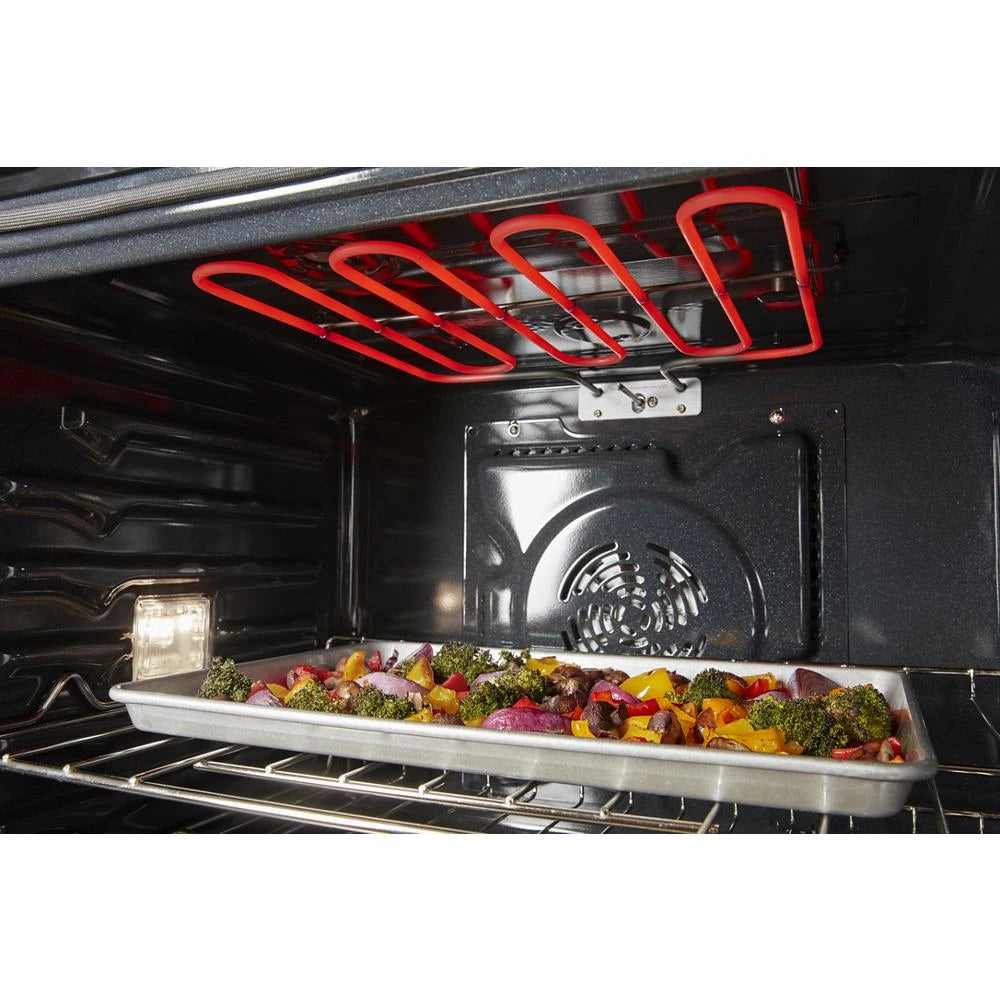

| Broiler Element Power | 3600 W/3120 W |
| Broiler Location | Top of Oven |
| Convection Element Power | 2500 W/2167 W w |

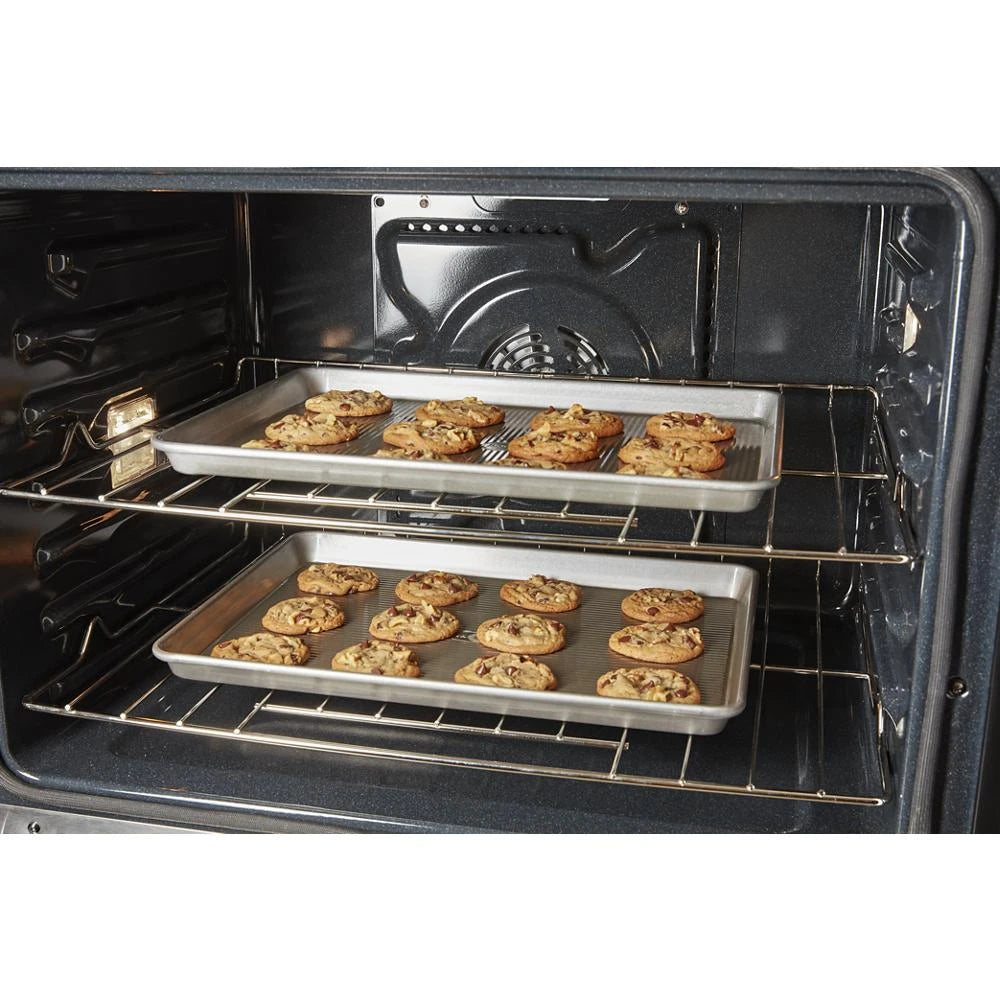

| Convection Element Type | Single Fan |
| Convection Functions | Bake, Broil, Convection Conversion |
| Door Broil Position | Closed |
| Door Lock | Yes |
| Door Removable | Yes |
| Hidden Bake Element | Yes |
| Installable Under Cooktop | No |
| Interior Coating | Porcelain |
| Interior Color | Grey |
| Light Type | Halogen |
| Lower Oven Number of Oven Lights | 2 |
| Number of Bake Elements | 1 |
| Number of Broil Elements | 1 |

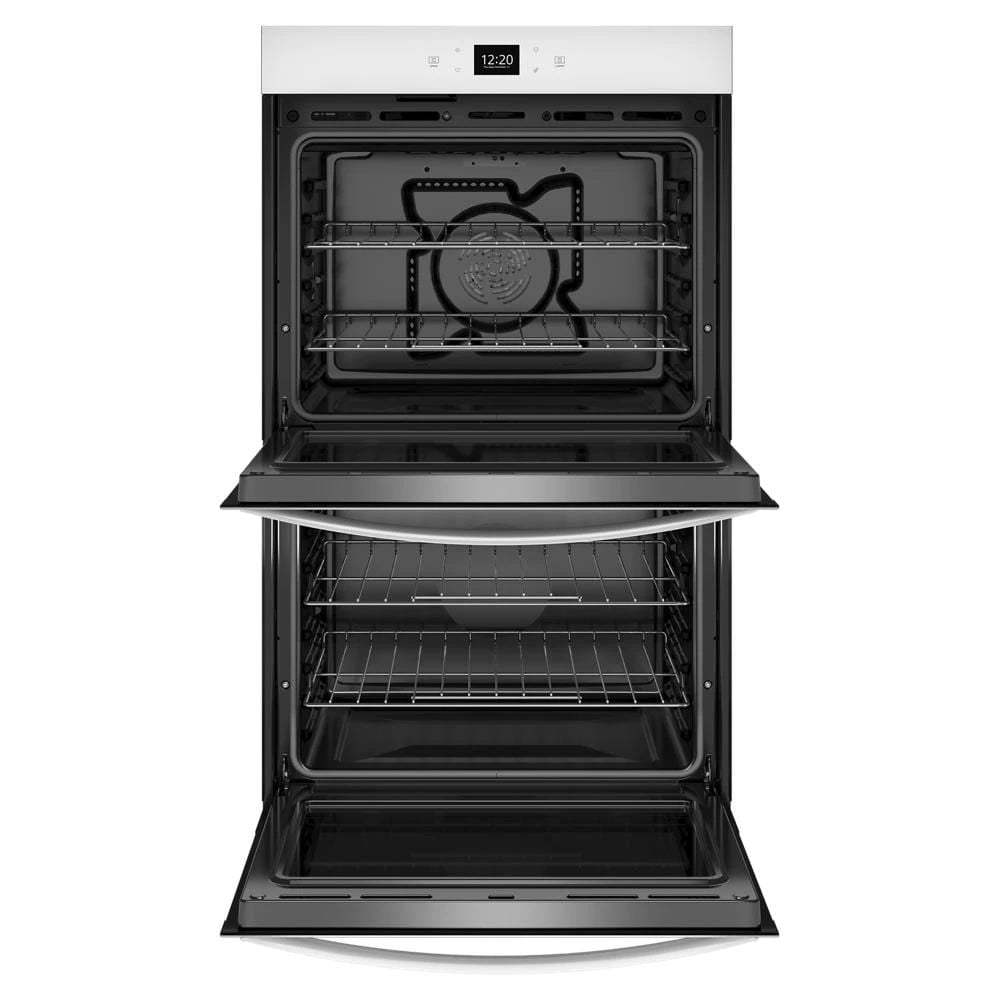

| Number of Lower Oven Racks | 2 |
| Number of Lower Rack Guides | 6 |
| Number of Upper Oven Racks | 2 |
| Number of Upper Rack Guides | 6 |

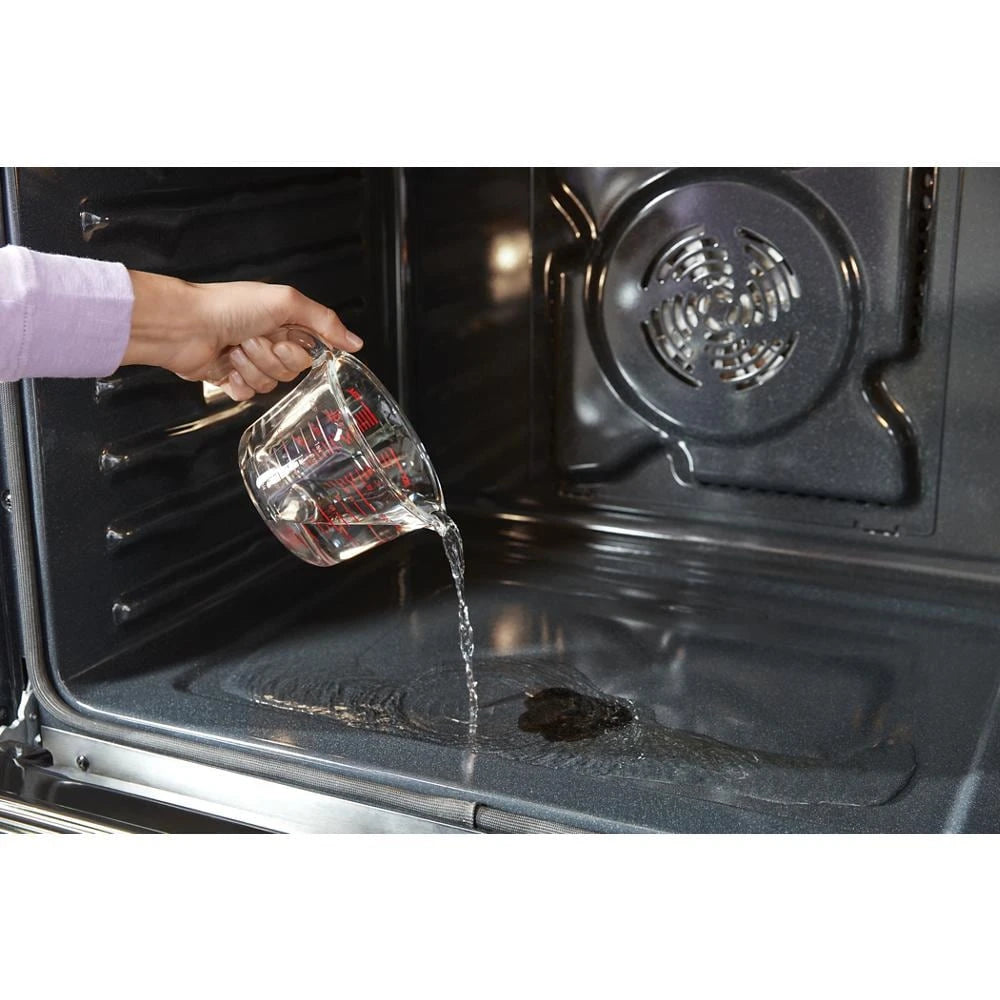

| Oven Cleaning Type | Self-Cleaning |
| Self-Cleaning Oven Racks | No |
| Temperature Conversion | Yes |
| Upper Oven Number of Oven Lights | 2 |
| Bake Element Power | 2,800 W/2,427W |
| Volume | 33.906 Cu.Ft. |

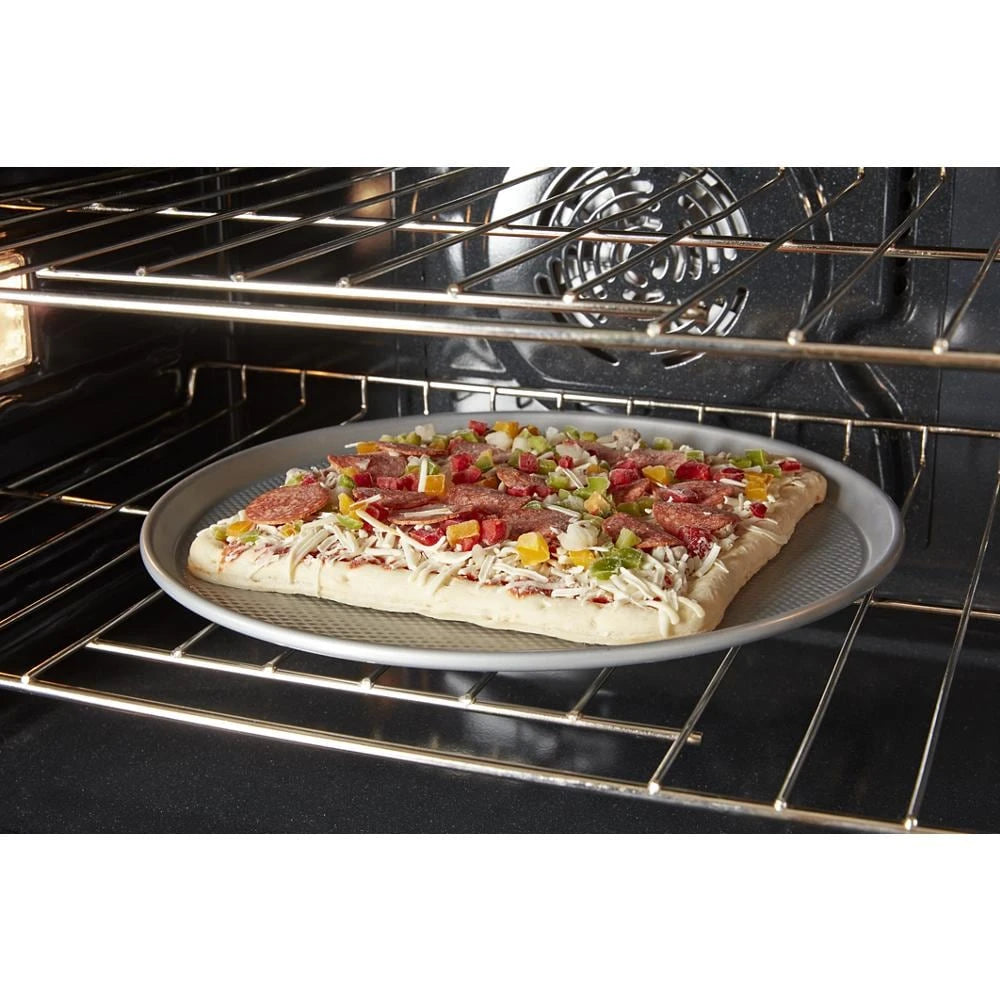

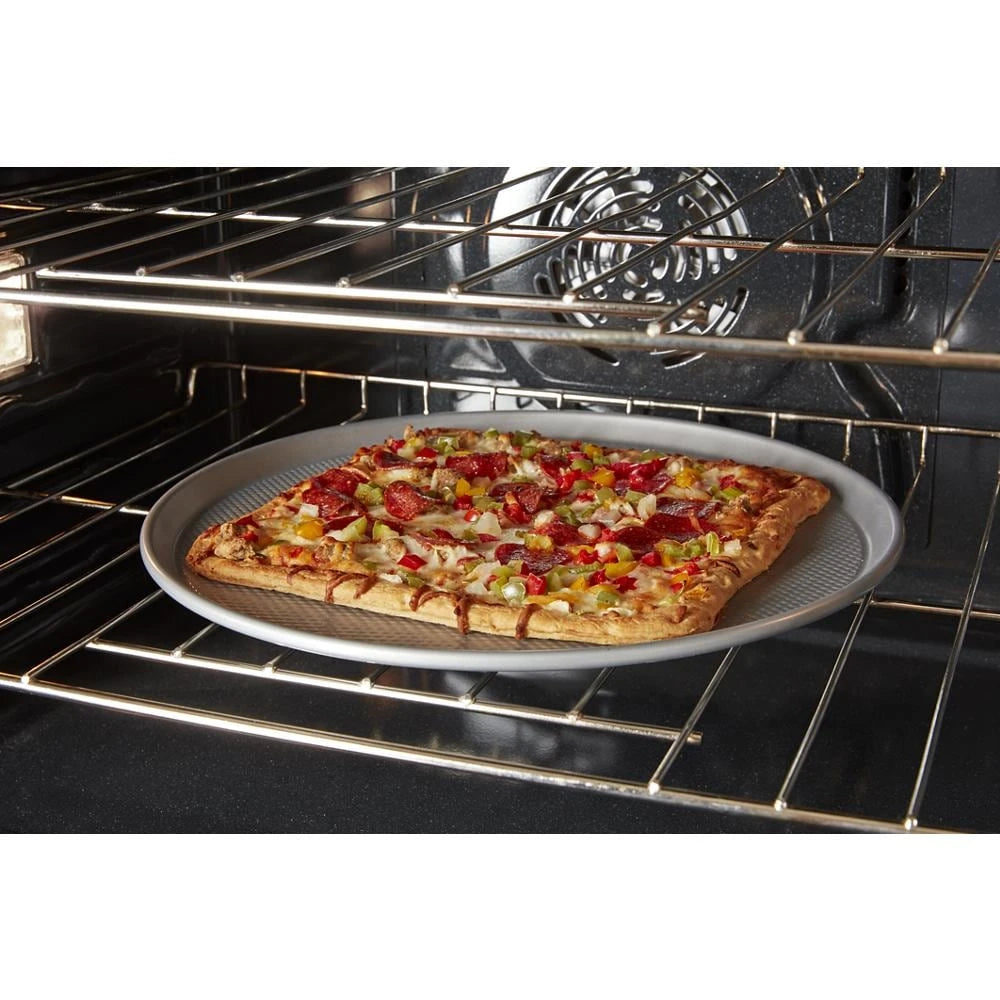

Skip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings that automatically adjust cooking times for you.

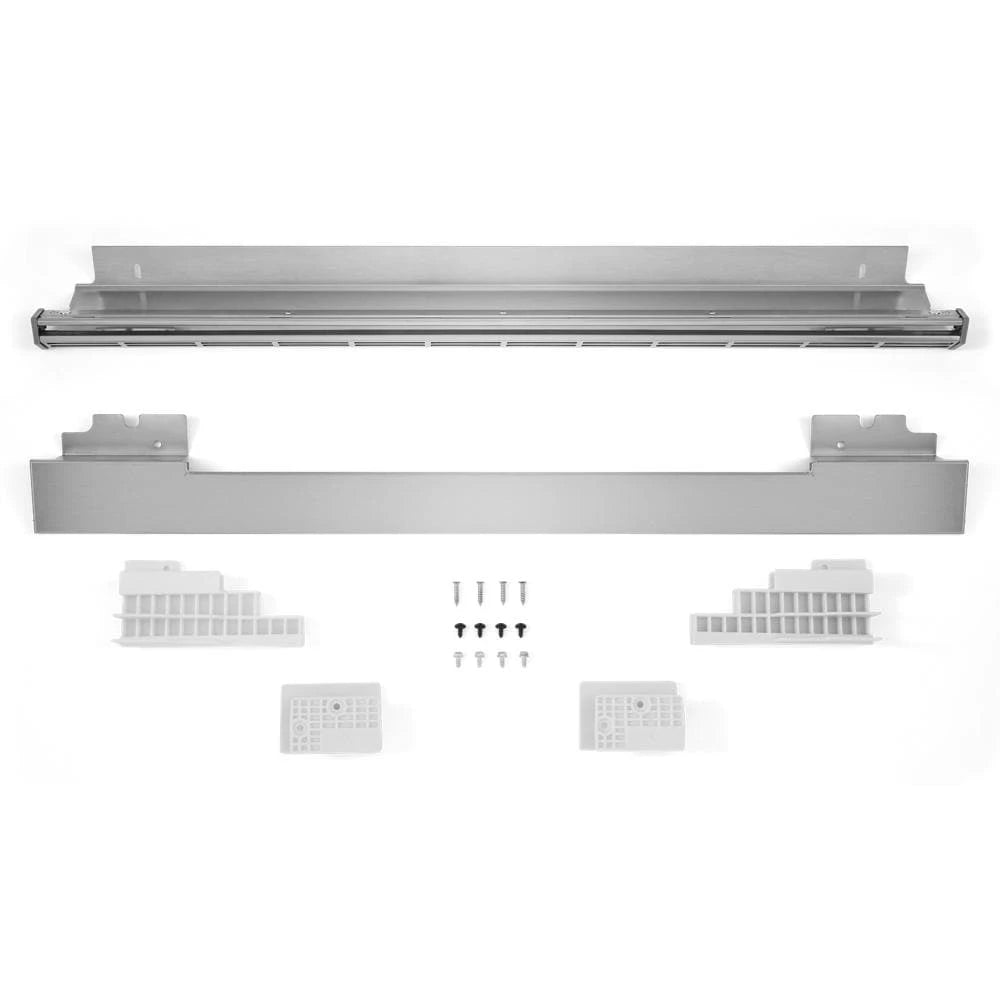

The FIT System Limited Guarantee ensures your new Whirlpool® Wall Oven will fit or get up to $300 toward cabinet modification.**Fit System Limited Guarantee: On 27"" and 30"" Whirlpool® Wall Ovens. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified. Visit www.whirlpool.com/fit-guarantee.html for complete details.
