Product Details for Cafe CTD70DP2NS1

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Weights & dimensions

Overall Depth 26.75 in
Overall Height 53 in
Cabinet Width 30 in
Oven Interior Dimensions (lower) 25 x 17-3/8 x 20-1/4
Overall Width 29.75 in
Oven Interior Dimensions (upper) 25 x 17-3/8 x 20-1/4
Net Weight 260 lb
Approximate Shipping Weight 278 lb
Cutout Depth (in) 23.5
Cutout Dimensions (w x h x d) (in.) 28-1/2 x 51-13/16 x 23-1/2
Depth with Door Open 48.75 in
Cutout Height (in) 51.8125
Cutout Width (in) 28.5

Power / ratings

Bake Wattage 2850W
Electrical Requirements 208/240V ; 60Hz ; 40A
Amp Rating at 208V 40
Broiler Wattage 4300W; Dual Element
Convection Wattage 2400W
KW Rating at 240V 9
Amp Rating at 240V 40
KW Rating at 208V 6.8
Hertz 60

Features

Fuel Type Electric
Oven Interior Hidden Bake
Oven Features Closed Door Broiling
Configuration Double Oven
Product Type Double Oven
Oven Rack Features Embossed Rack Positions (Both Ovens)
Cooking Technology Convection
Self-Clean Oven Door Lock Automatic

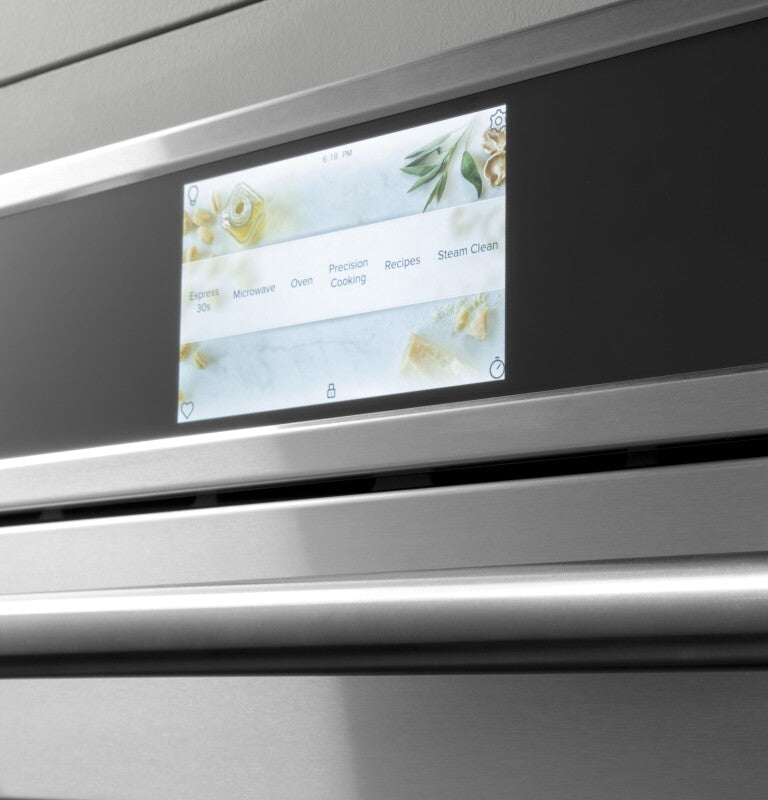

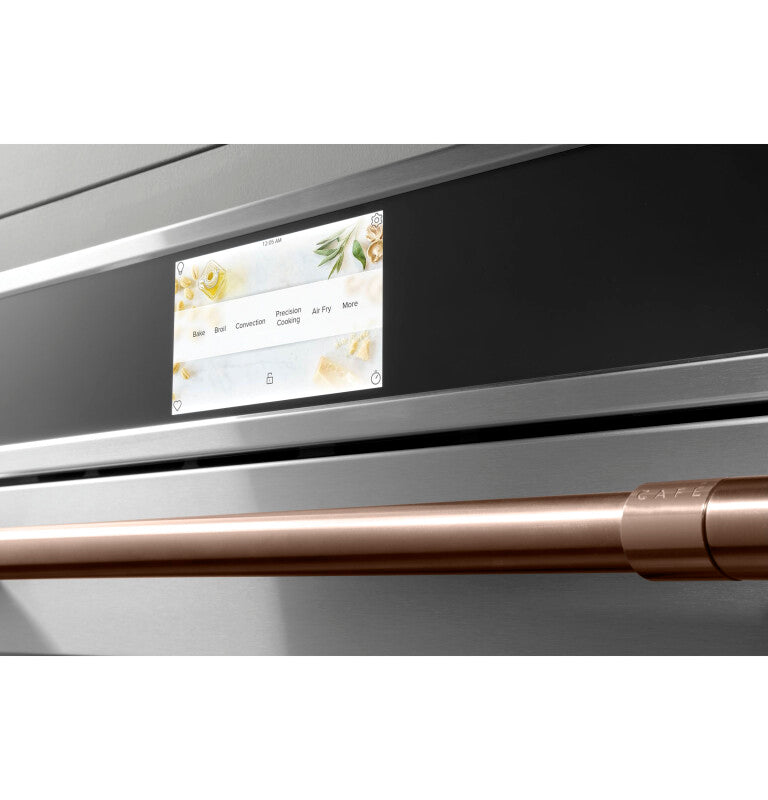

Control Type 7" Full-Color Touch LCD Screen
Connected Capabilities The Google Assistant
Cooking System True European Convection with Direct Air (Upper)
Sabbath Mode Yes
Oven Cooking Modes Turkey Mode
OU Certified No
Oven Cleaning Type Self-Clean with Steam Clean Option
WiFi Connect Built-In
Cleaning Time Variable with Delay Clean Option
Oven Rack Positions (Single or Upper/Lower) 6 / 6
Oven Control Features Temperature Probe
Oven Interior Black Gloss Finish
Oven Features 10-Pass Dual Broil Element
Oven Rack Features 2 Heavy-Duty Roller Racks
Connected Capabilities Fresco
Oven Cooking Modes Convection Bake Multi-Rack
Oven Control Features Audible Preheat Signal
Connected Capabilities Amazon Alexa
Connected Capabilities IFTTT
Connected Capabilities Innit
Connected Capabilities Sonos
Cooking System True European Convection (Lower)
Oven Control Features 12-Hour Shut-Off Capability
Oven Control Features Auto Recipe Conversion
Oven Control Features C° or F° Programmable
Oven Control Features Sabbath Mode
Oven Control Features Control Lock Capability
Oven Control Features Cook Time
Oven Control Features Delay Time
Oven Control Features Electronic Clock & Kitchen Timer
Oven Control Features Remote Enabled
Oven Cooking Modes Convection Bake
Oven Cooking Modes Convection Broil Hi/Lo
Oven Cooking Modes Convection Roast
Oven Cooking Modes Thermal Bake
Oven Cooking Modes Thermal Broil Hi/Lo
Oven Cooking Modes Keep Warm
Oven Cooking Modes Proof
Oven Cooking Modes Precision Cooking Modes
Oven Cooking Modes Scan-to-Cook
Oven Cooking Modes No Preheat Air Fry
Oven Features 10-Pass Bake Element
Oven Interior 2 Halogen Interior Oven Lights (Both Ovens)
Oven Rack Features 2 Heavy-Duty Flat Racks
Connected Capabilities Google Home

Warranty

Labor Warranty Limited 1-year entire appliance
Parts Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details

Appearance

Handle Color Brushed Stainless
Installation Side-by-Side
Handle Customizable
Oven Door Features Big View Oven Window
Color Appearance Stainless Steel
Handle CAFÉ™ Pro Style
Installation Above Warming Drawer

Accessories

Air Fry Basket Optional- JXAFTRAY1VSS
Optional Accessories WB48X10056 - Large Broiler Pan
Optional Kits CXWD0H0PMSS Brushed Stainless
Optional Accessories WB18T10574 - 60" Replacement Electrical Conduit
Optional Kits CXWD0H0PMBZ Brushed Bronze
Optional Accessories UXWORXR30 - 30" Never Scrub Roller Rack
Optional Accessories WB18T10580 - 72" Replacement Electrical Conduit
Optional Kits CXWD0H0PMBT Brushed Black
Optional Kits CXWD0H0PMCU Brushed Copper
Optional Kits CXWD0H0PMCG - Brushed Brass
Optional Kits CXWD0H0PMFB - Flat Black

Capacity

Capacity (Cu. Ft.) 5.0 Upper / 5.0 Lower
Total Capacity (cubic feet) 10.00 cu ft

Dimensions & weight

Width 29.75 in.
Height 53 in.
Length 26.75 in.
Weight 260 lbs.
Oven Interior Dimensions (lower) 25 x 17-3/8 x 20-1/4
Oven Interior Dimensions (upper) 25 x 17-3/8 x 20-1/4
Cutout Dimensions (w x h x d) (in.) 28-1/2 x 51-13/16 x 23-1/2

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 34.75 in.
Shipping Height 58 in.
Shipping Length 31.75 in.
Shipping Weight 278 lbs.
Total of Shipping Weight 278 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 24.41 ft³
Dimensional Weight 303.44 lbs.
Total of Cubes 24.41 ft³
Total of Dimensional Weight 303.44 lbs.

Description

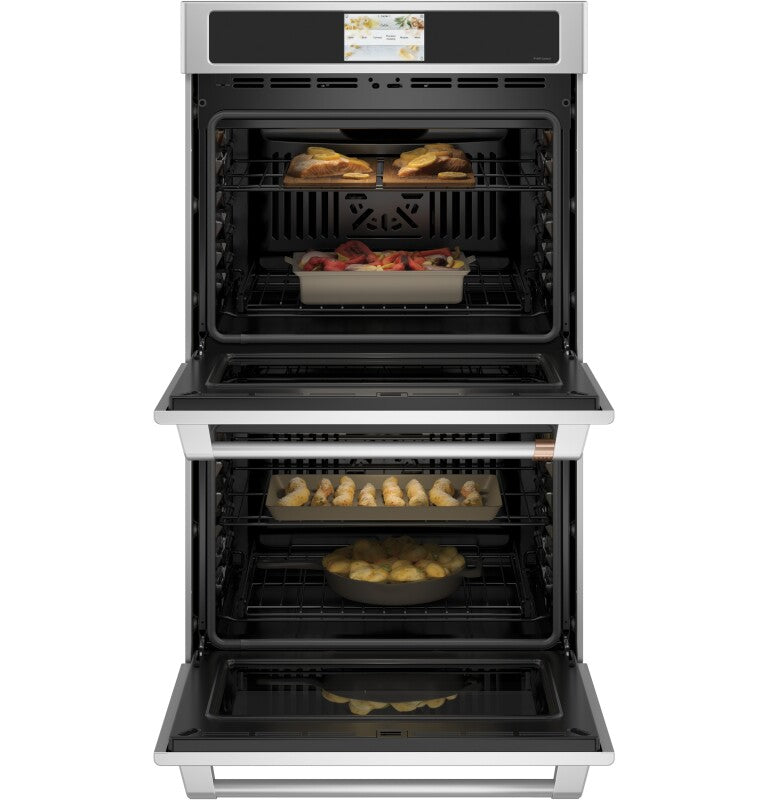

Are you in the market for a new oven that will elevate your cooking experience to the next level? Look no further than the Cafe 30" Smart Double Wall Oven with Convection. With a modern stainless steel appearance and a generous 10.0 cu. ft. capacity, this oven is the perfect addition to any modern kitchen. The 7" Full-Color Touch LCD Screen Control makes it easy to operate this smart oven, and the Big View Oven Window lets you keep an eye on your food without having to open the door. The Hidden Bake Oven Interior, 6 Embossed Rack Positions, and Closed Door Broiling feature make cooking more efficient and seamless. The Cafe double wall oven boasts advanced features that make it stand out from its competitors. With Built-In WiFi and the SmartHQ App, you can control and monitor the oven from anywhere using your smartphone or tablet. This means that you can start preheating the oven or adjust the temperature without having to leave the comfort of your couch or while you're out running errands. The Self-Clean with Steam Clean Option is another game-changing feature that makes cleaning up a breeze. You no longer have to worry about scrubbing away at stubborn stains or dealing with harsh chemical cleaners. With the push of a button, the oven uses steam to loosen and remove food particles and spills, leaving you with a sparkling clean oven in no time. The Scan-to-cook technology takes the guesswork out of cooking. With this feature, you can simply scan the barcode on your food packaging, and the oven will automatically adjust the temperature and cook time to ensure that your food is cooked to perfection. This feature is especially helpful for those who are new to cooking or for those who simply want to save time and effort. Finally, the smart system in the Cafe double wall oven automatically tracks progress, modifies temperatures, and adjusts cook times to ensure that your food is cooked to perfection every time. You can rest assured that your food will come out just the way you want it, whether you're cooking a roast, baking a cake, or broiling your favorite dish. Investing in the Cafe double wall oven means investing in your culinary future. With its cutting-edge features and sleek design, this oven will revolutionize the way you cook and entertain. Don't settle for less than the best – upgrade your kitchen with the Cafe 30" Smart Double Wall Oven with Convection today.


Product Features

  • Create a look that matches your personal style
    Select any combination of premium finishes and hardware options to create a stunning look customized to any owner’s taste

Key Features

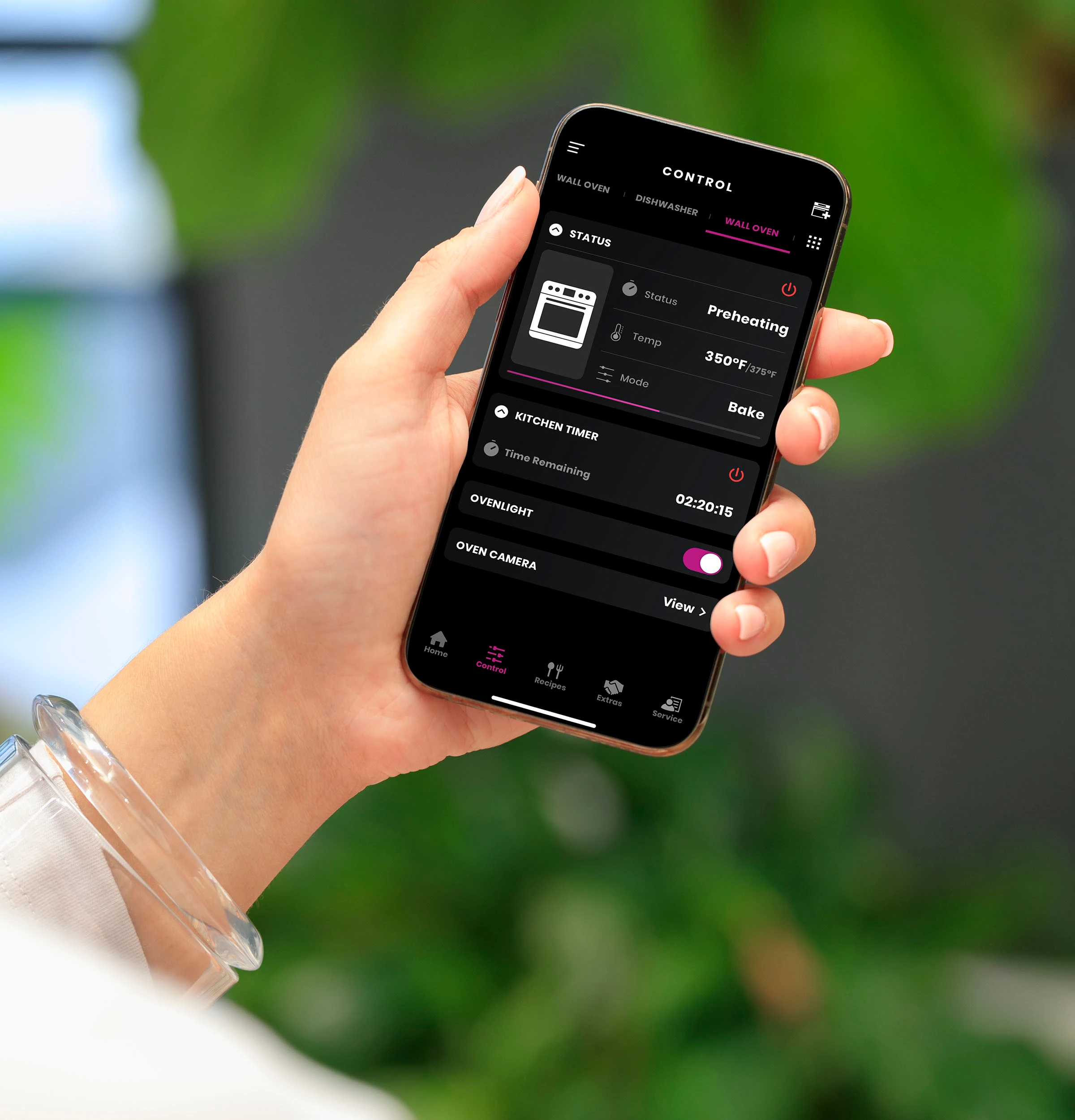

Built-In WiFi, Powered by SmartHQ App

Manage all aspects of your kitchen with the help of the SmartHQ™ App or your voice assistant (Select features require WiFi Connection) See details

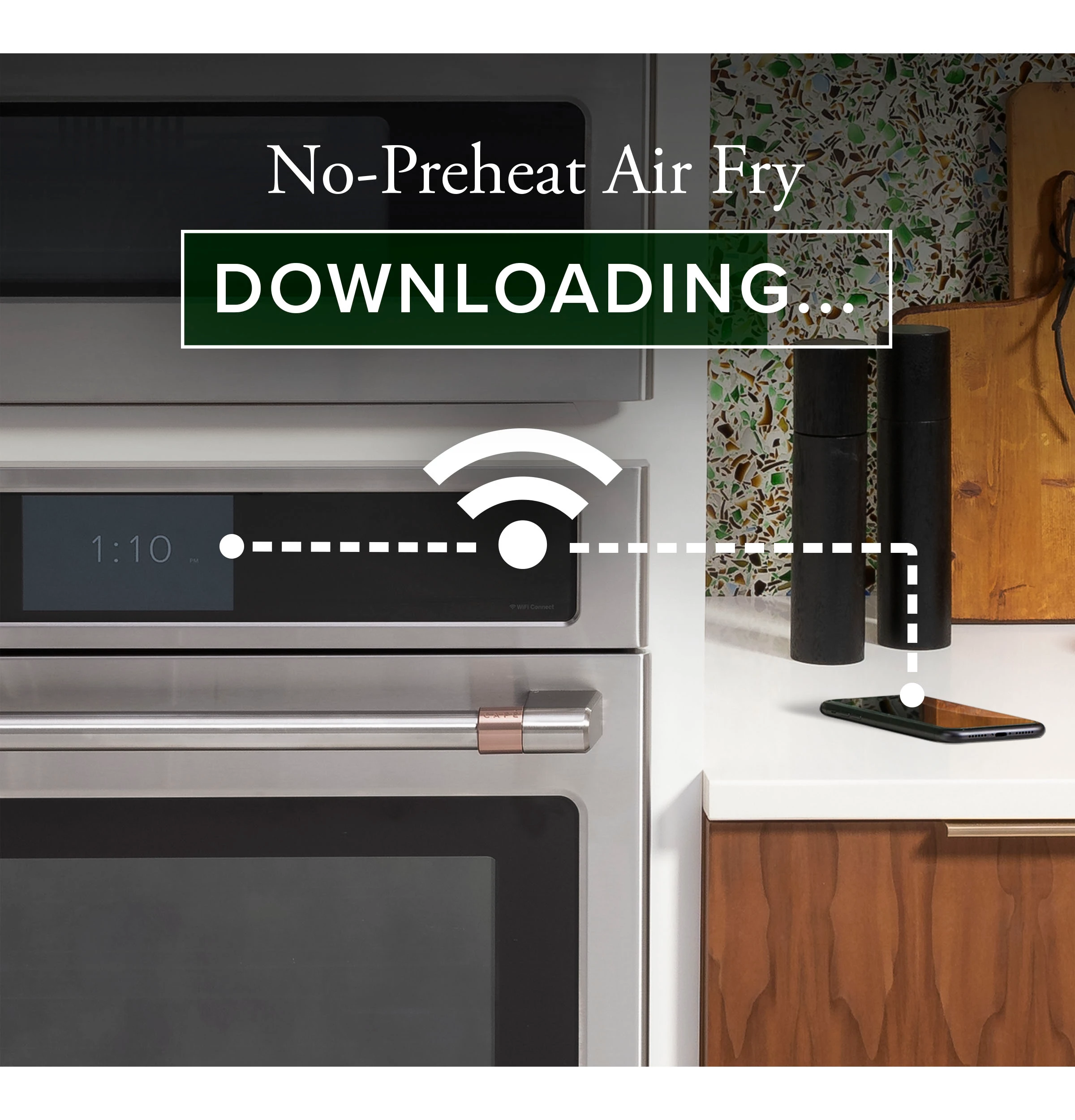

Personalized Features + Upgrades

Usher in the latest features by downloading cooking upgrades right to your oven, putting Air Fry and more in your repertoire

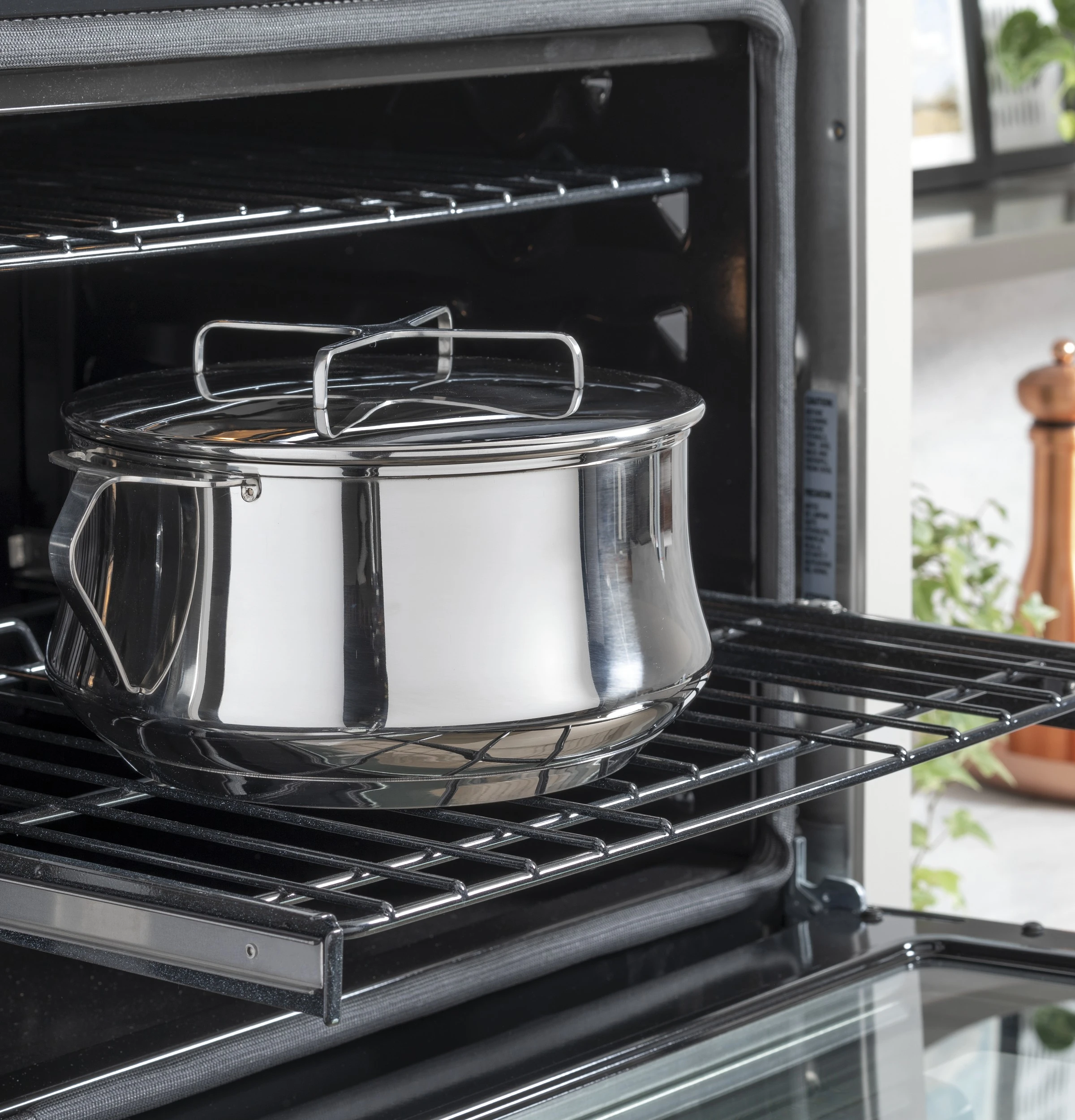

The oven rack that handles it all

Easily remove heavy dishes with a roller rack that is specially designed to glide smoothly

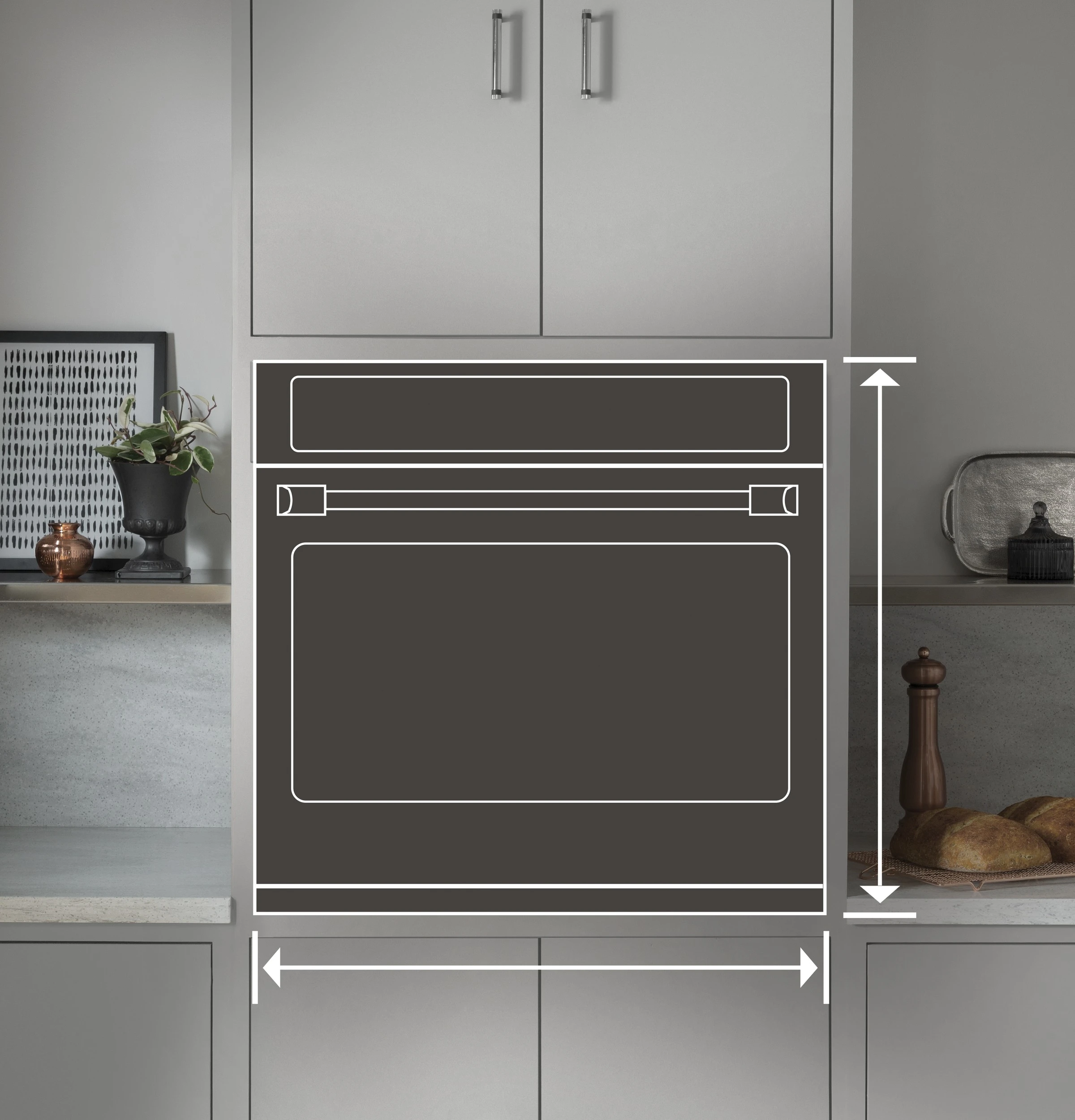

The perfect fit you’ve always dreamed of

When you’re updating your kitchen, attention to detail is a priority. That’s why CAFÉ™ wall ovens are guaranteed for an exact fit or CAFÉ™ Appliances will pay up to $300 toward modifications.

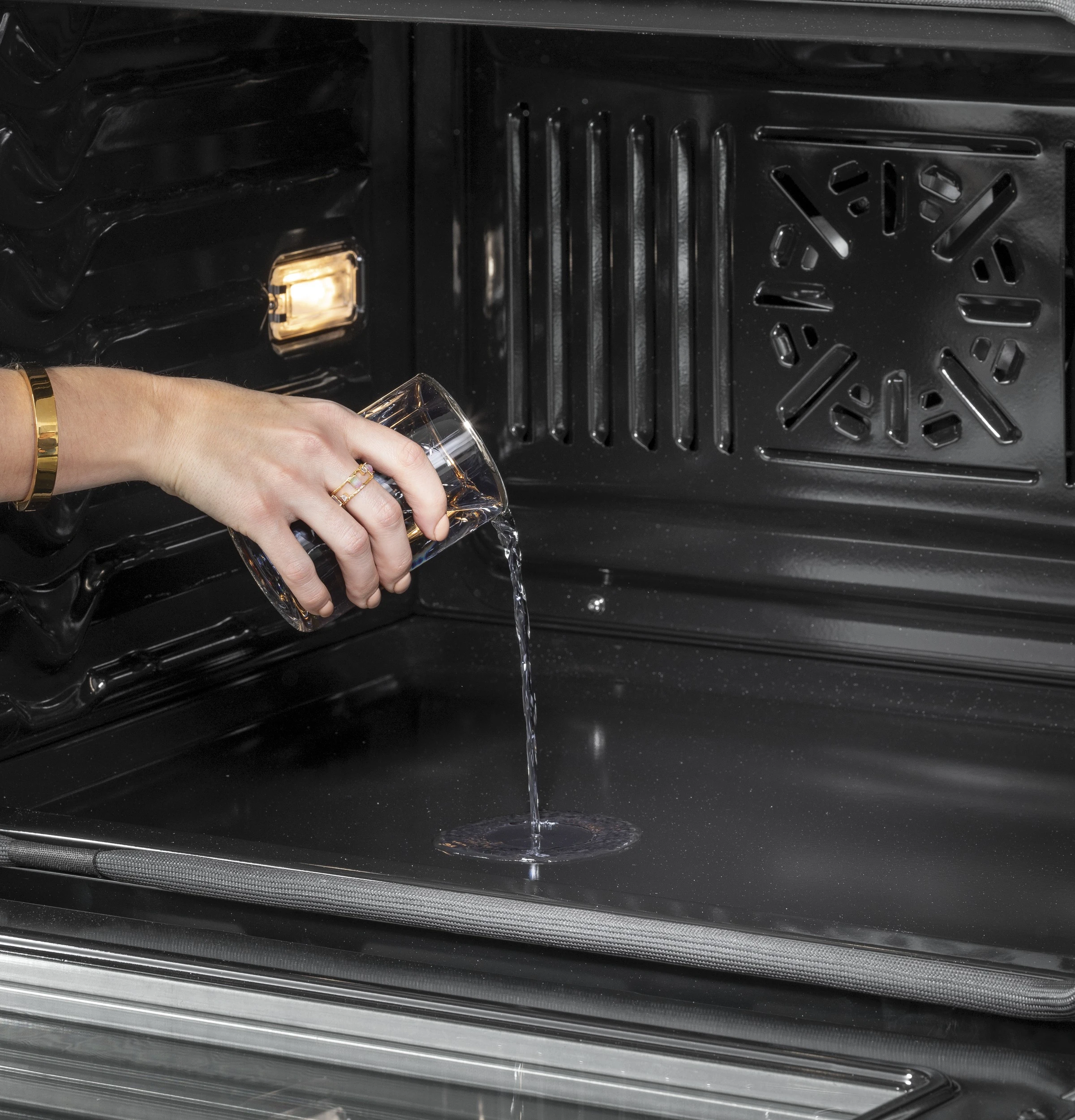

Clean up has never been easier

Keep your oven looking like new at all times with a steam clean option for small spills and a self clean cycle for larger messes

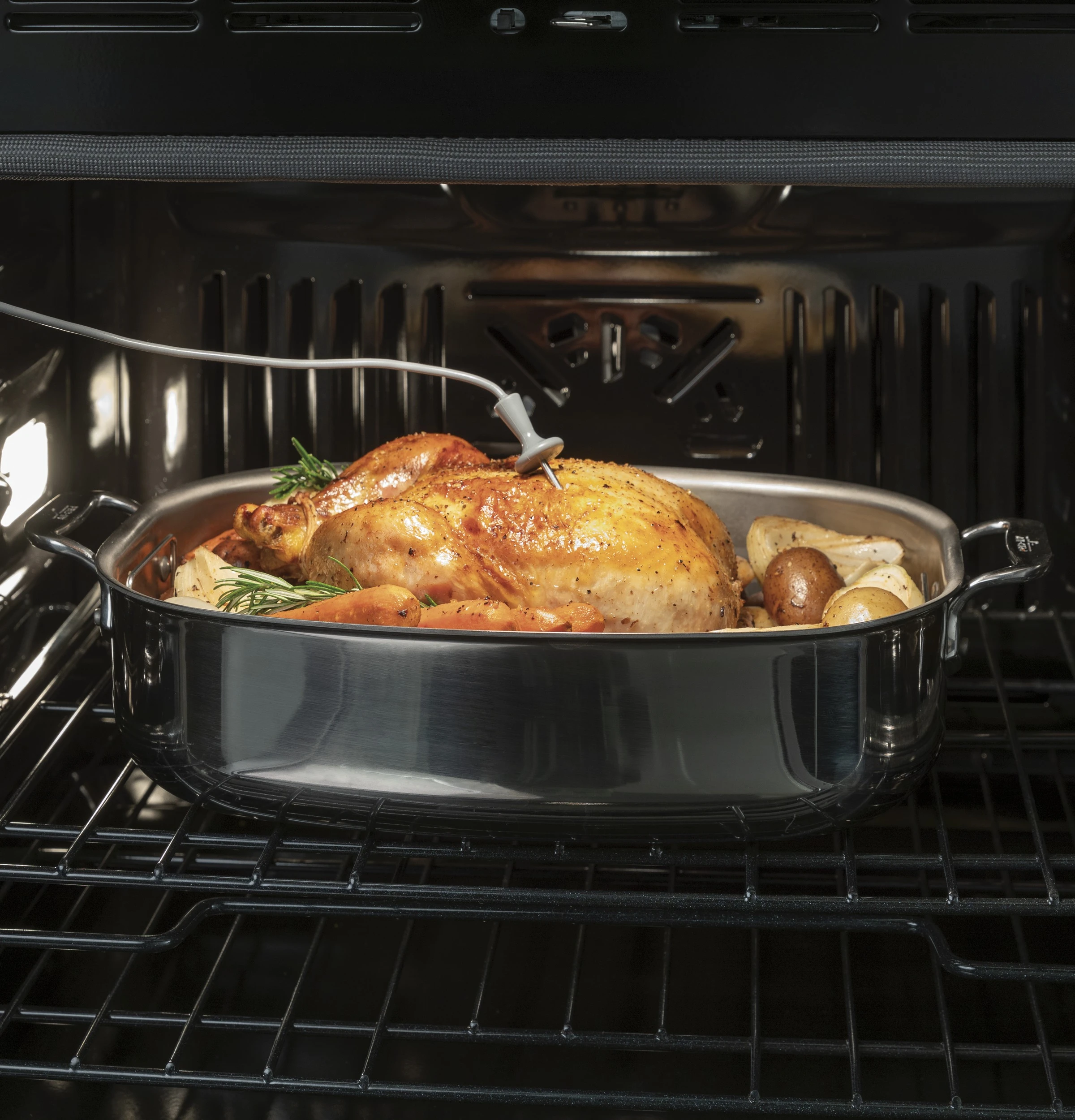

Prepare foods to perfect doneness

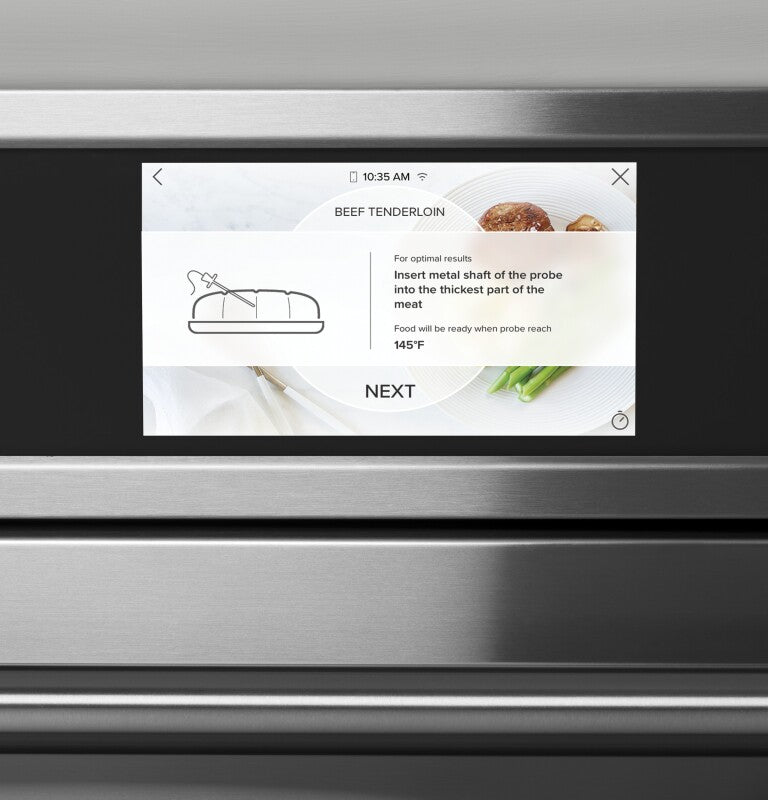

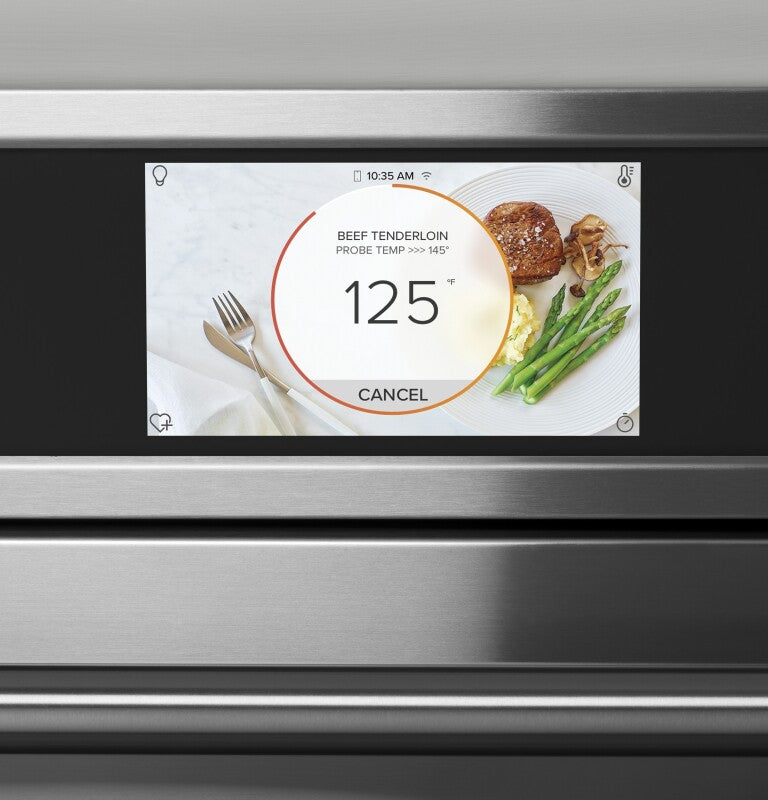

Get roasts and meats just right with a temperature probe that lets you monitor progress on the wall oven screen, eliminating the need to open the oven door during cooking

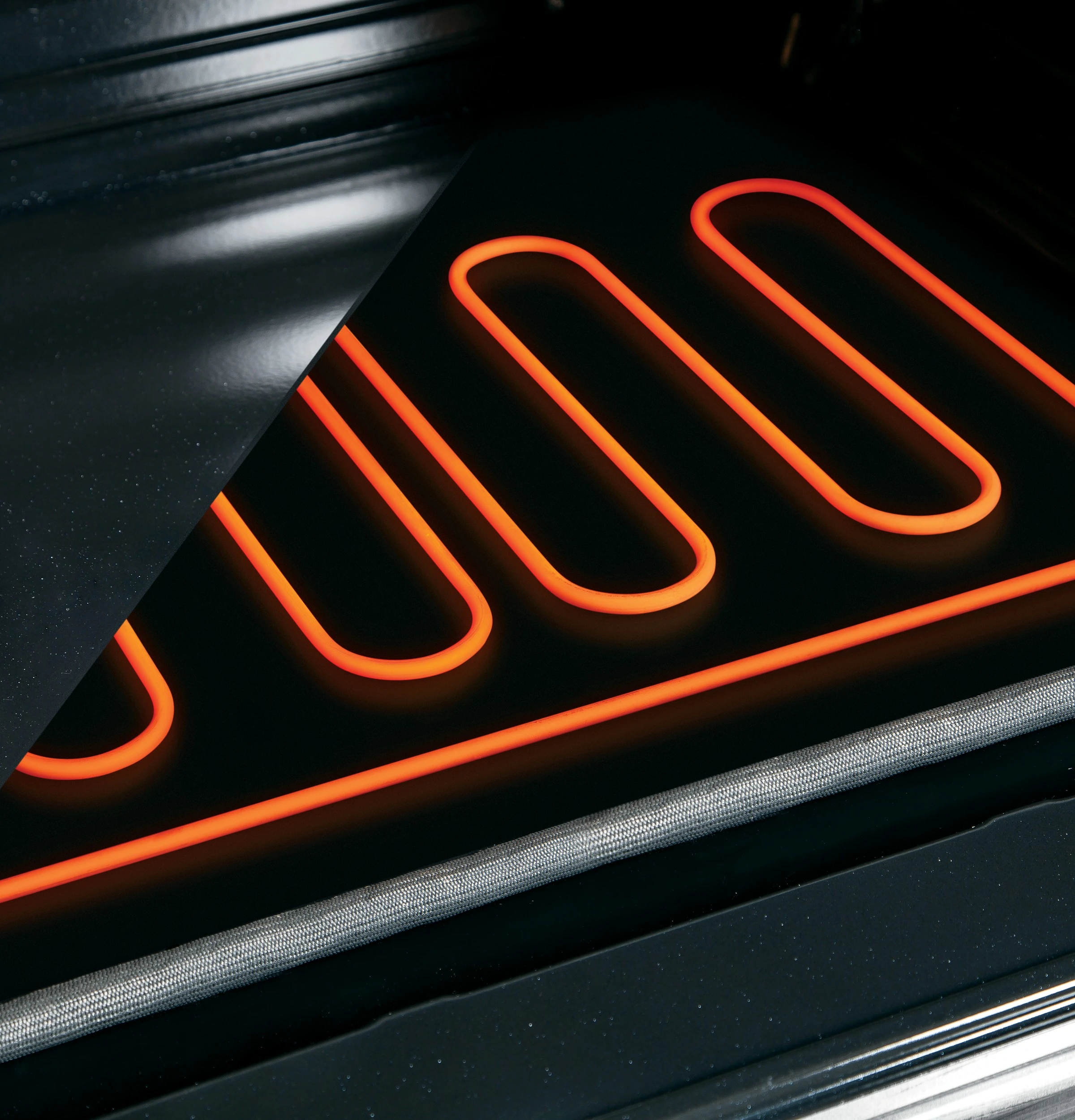

More heat coverage means better results

Ensure even baking with an element that covers more surface area for better distribution of heat

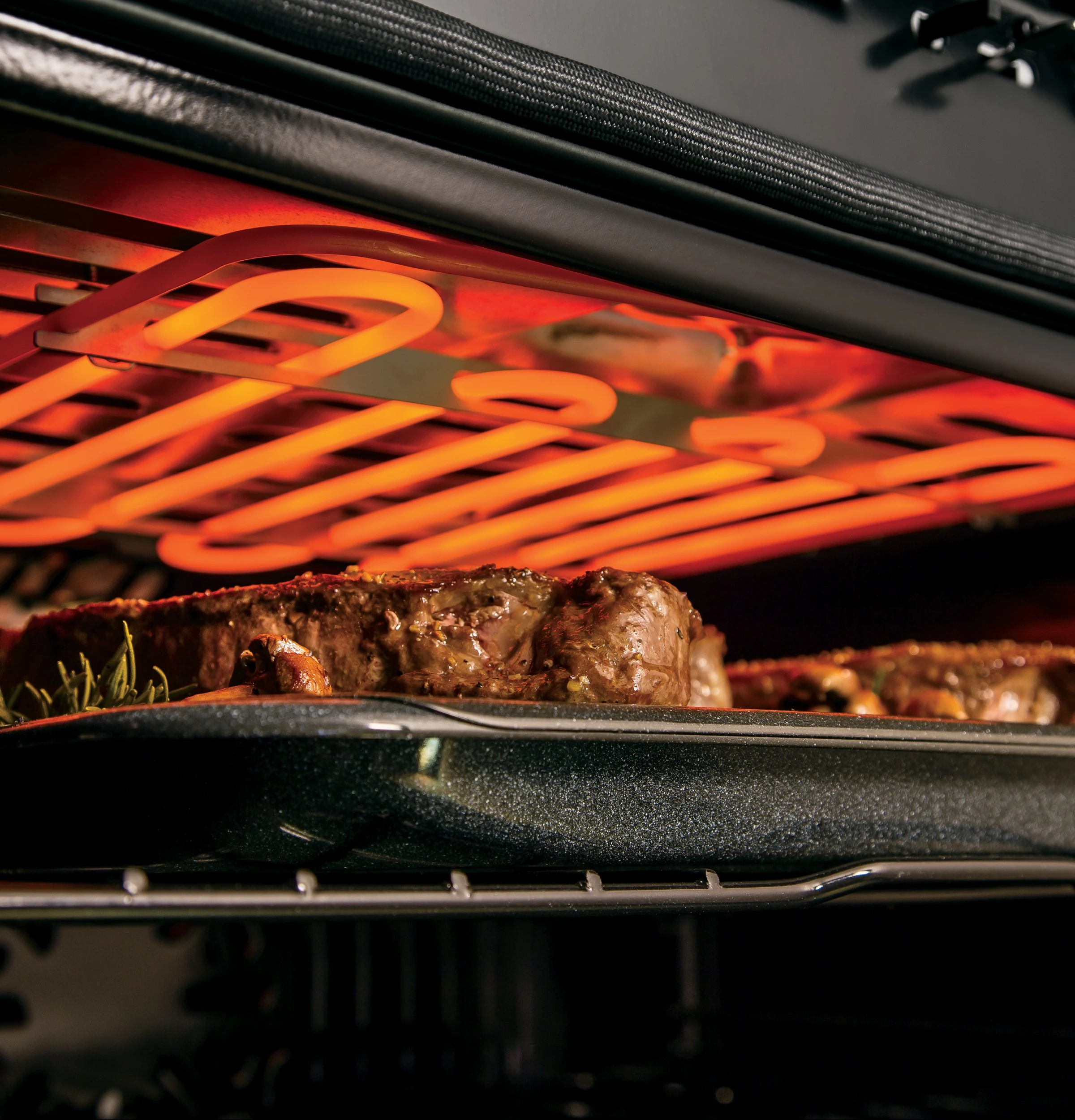

An even broil is yours

Achieve completely even browning on any size dish with a full-coverage broil element

Precision is the name of your cooking game

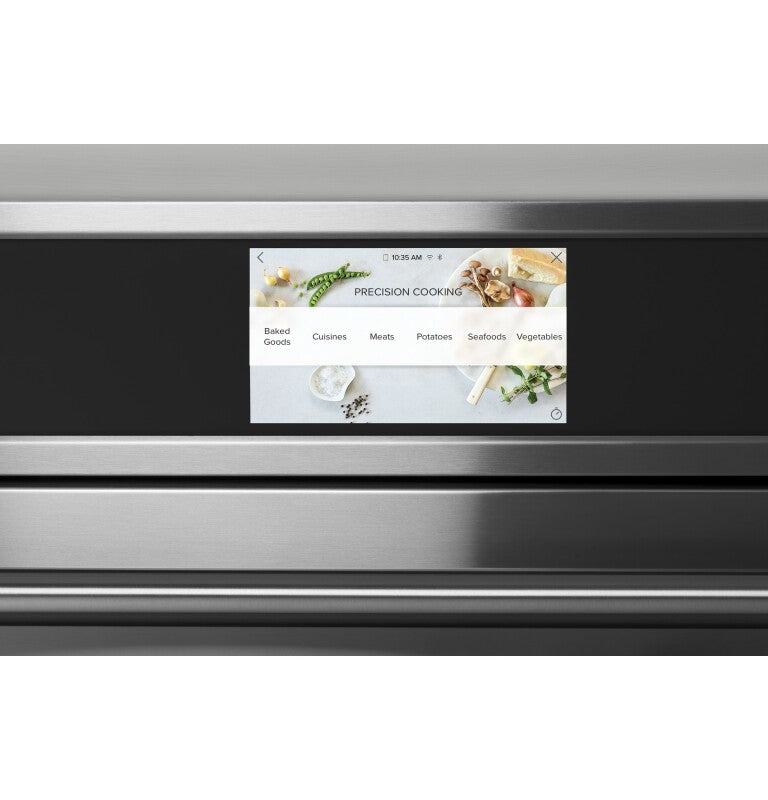

Confidently try new recipes and perfectly execute your favorites, using a smart system that automatically tracks progress, modifies temperatures and adjusts cook times

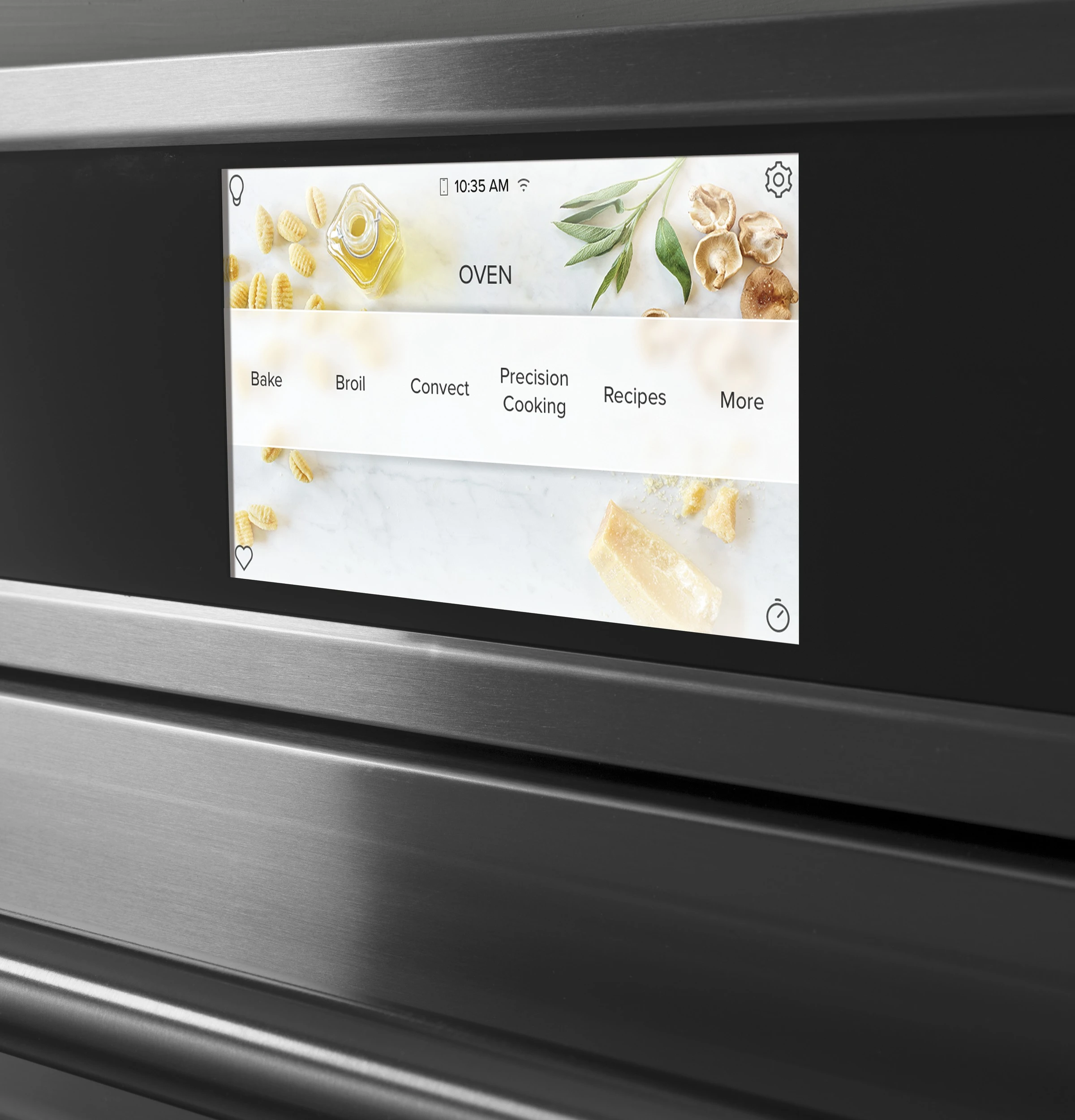

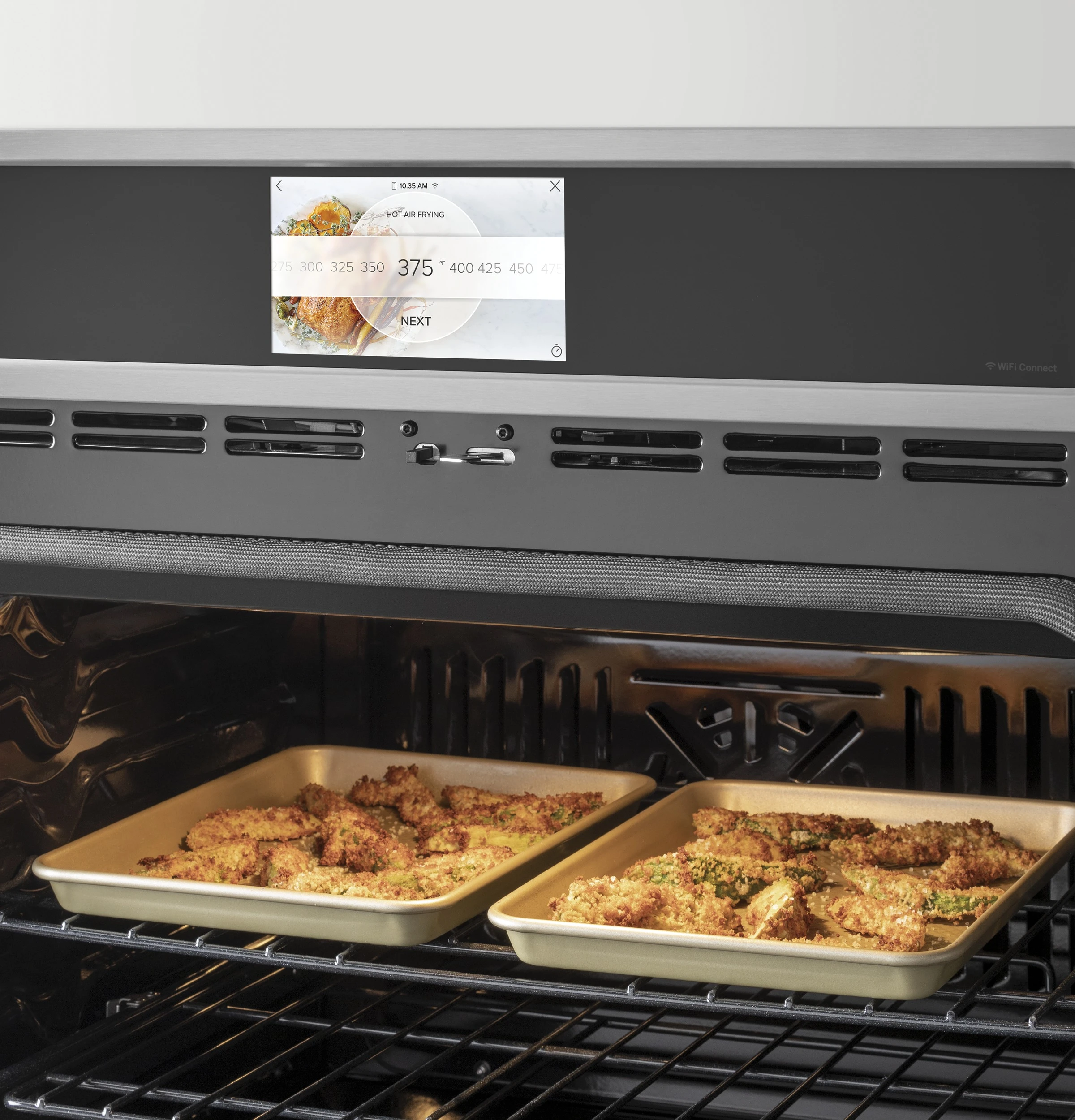

Brighten up life in the kitchen

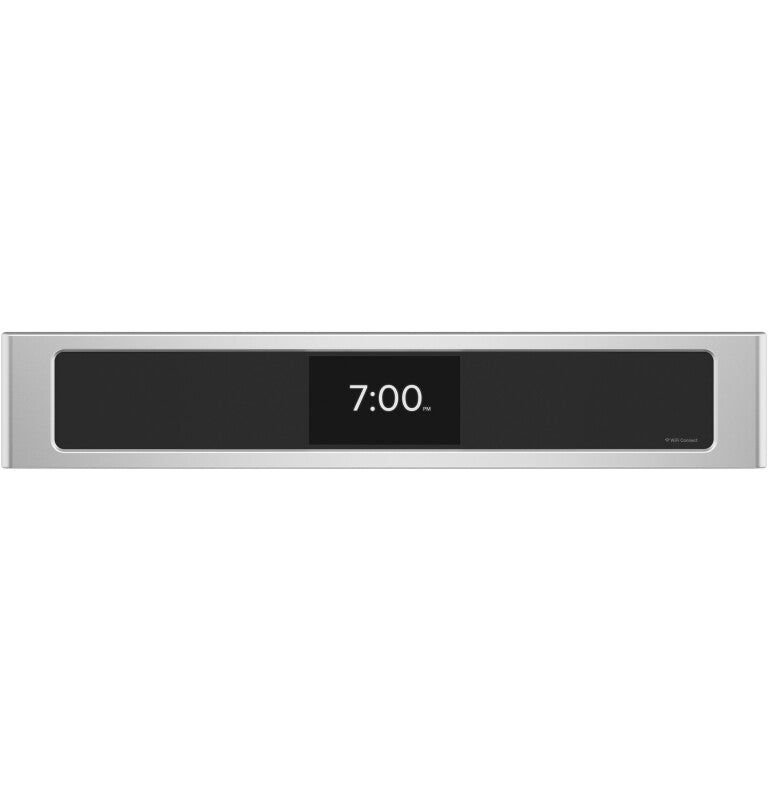

Easily navigate settings using a stunning full color display that adds an unexpected touch of style to your kitchen, including custom screen backgrounds and weather updates

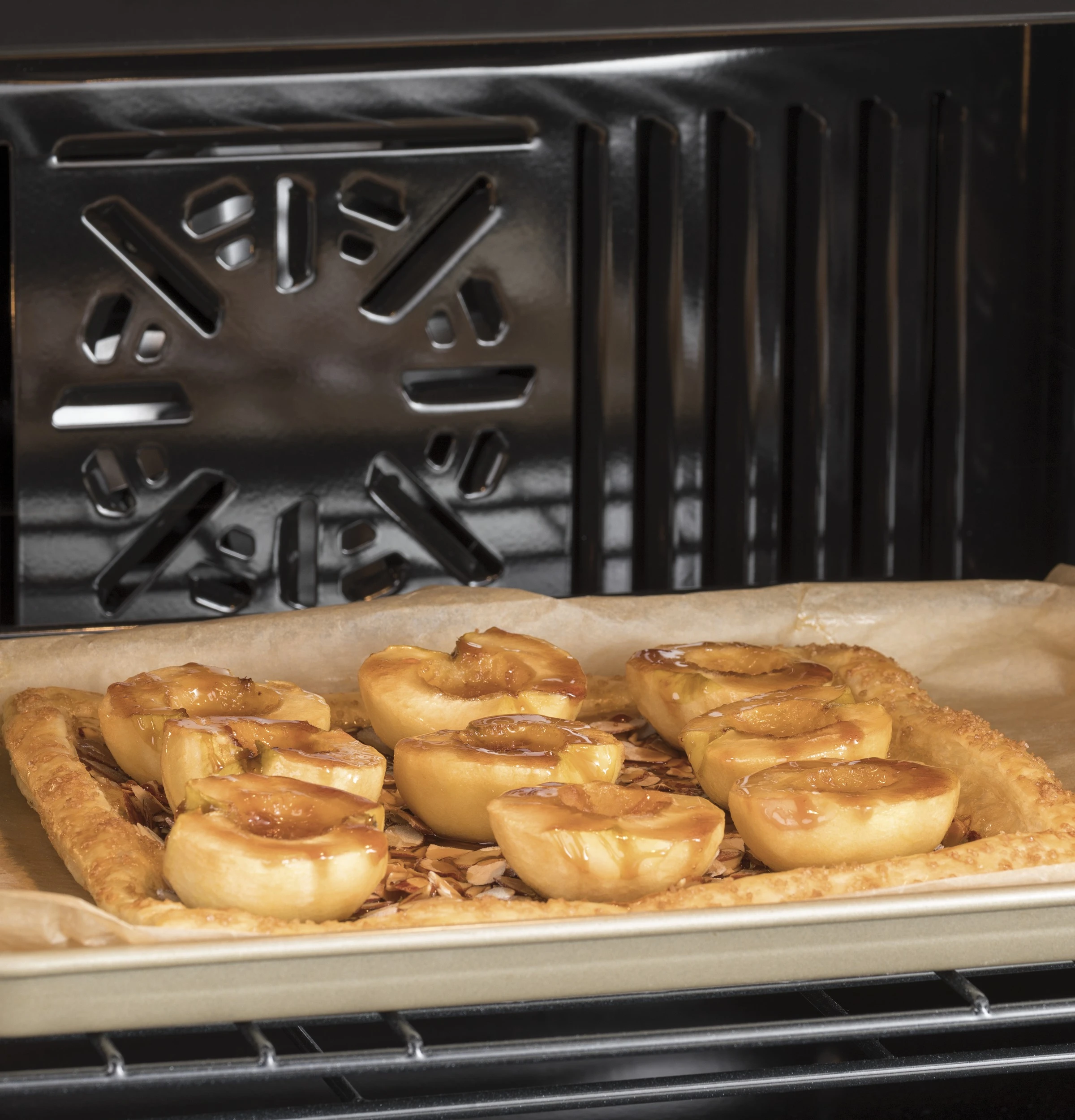

The perfect bake is now perfectly easy

Achieve unrivaled performance with the only system that delivers top-down true convection for consistent results on special occasion favorites like roasts, chicken, turkey and more

No preheat, no hassle

Save time with a variety of precision cooking modes that eliminate the need for preheating

Fried taste. Crisp texture. Less oil.

Make your favorite "fried" foods healthy, thanks to Air Fry that crisps without using oil for frying

Enjoy convenient temperature control from anywhere

Preheat while running errands or change oven temperatures while doing yard work with the CAFÉ™ Appliances Kitchen app
