| Cubic Feet Measurement | 23.13 ft³ |
| Dimensional Weight | 287.52 lbs. |
| Total of Cubes | 23.13 ft³ |
| Total of Dimensional Weight | 287.52 lbs. |
| Door Type | Metal & Glass |
| Oven Window Size | Extra Large |
| Door Lock | Yes |
| Handle Color | Black |
| Handle Material | Metal |
| Delay Clean | Yes |
| Flush Installation Approved | Yes |
| Fuel Type | Electric |
| Oven Automatic Shut-Off | Yes |

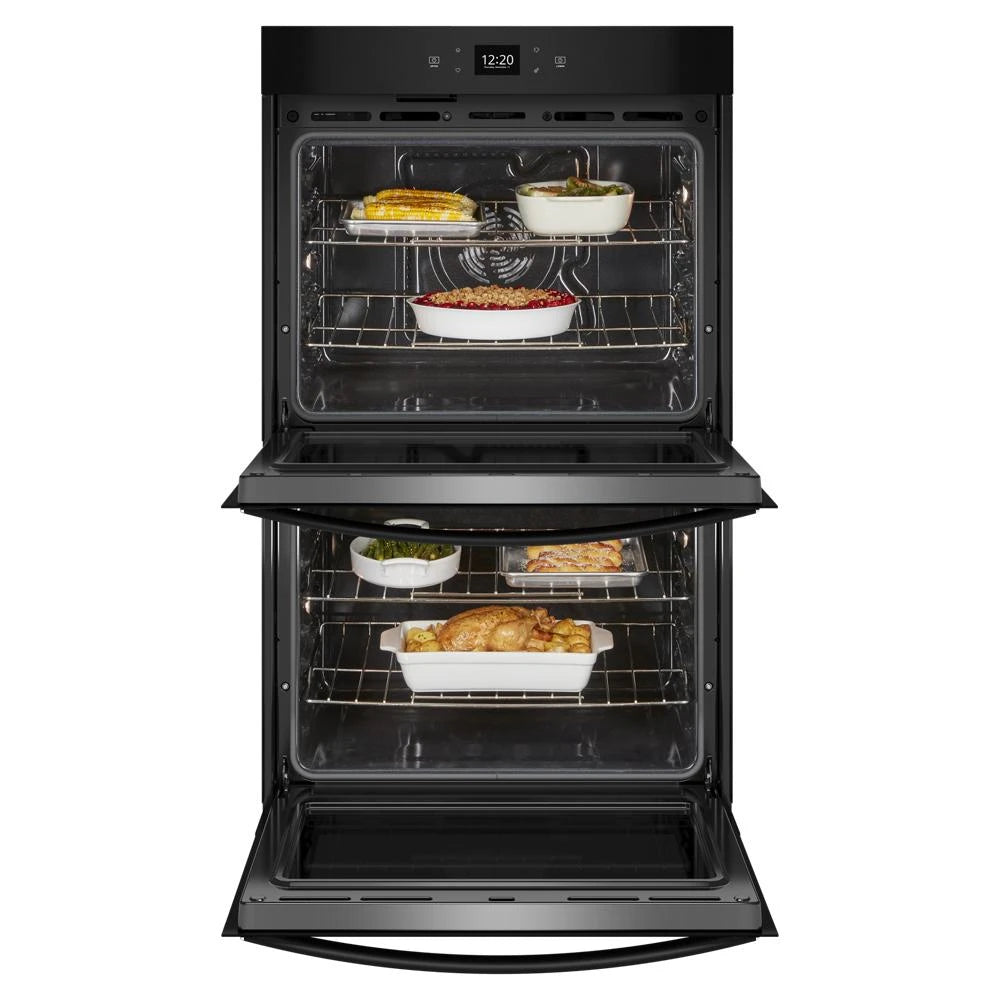

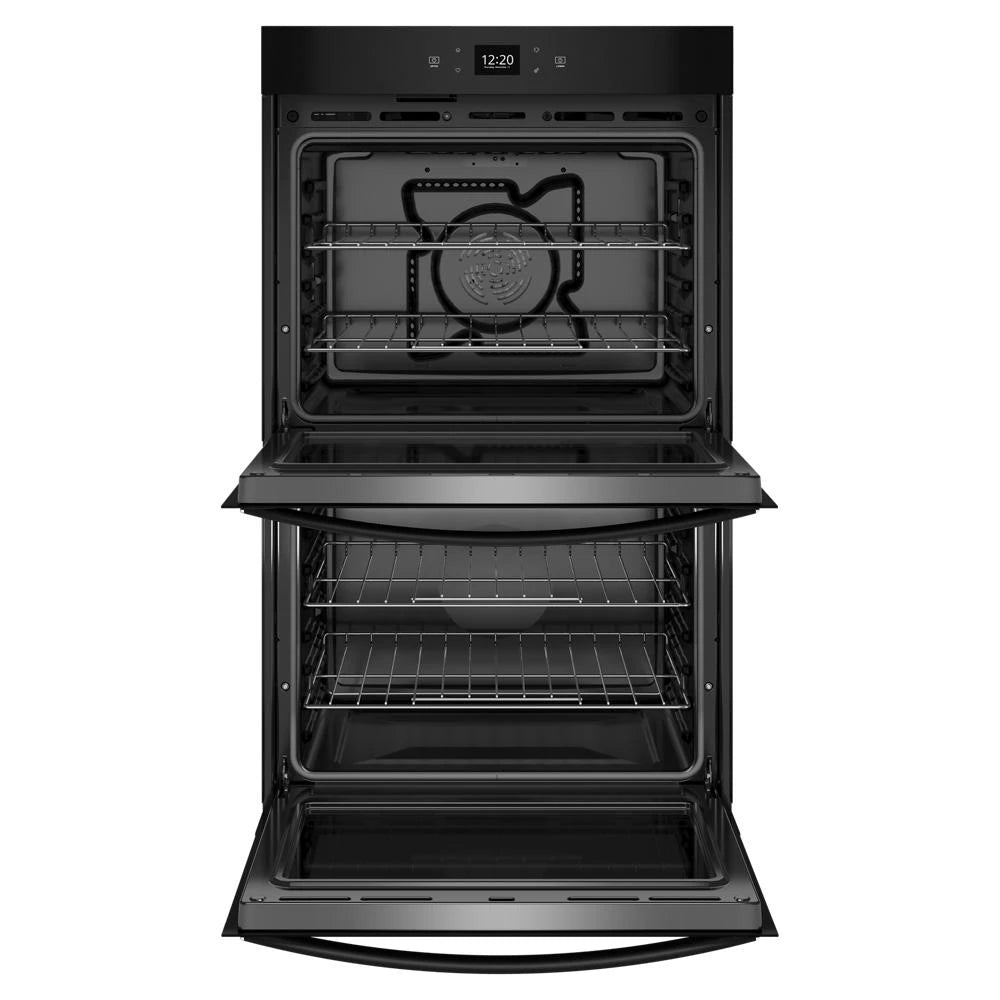

| Oven Type | Double |
| Power On Indicator Light | Yes |

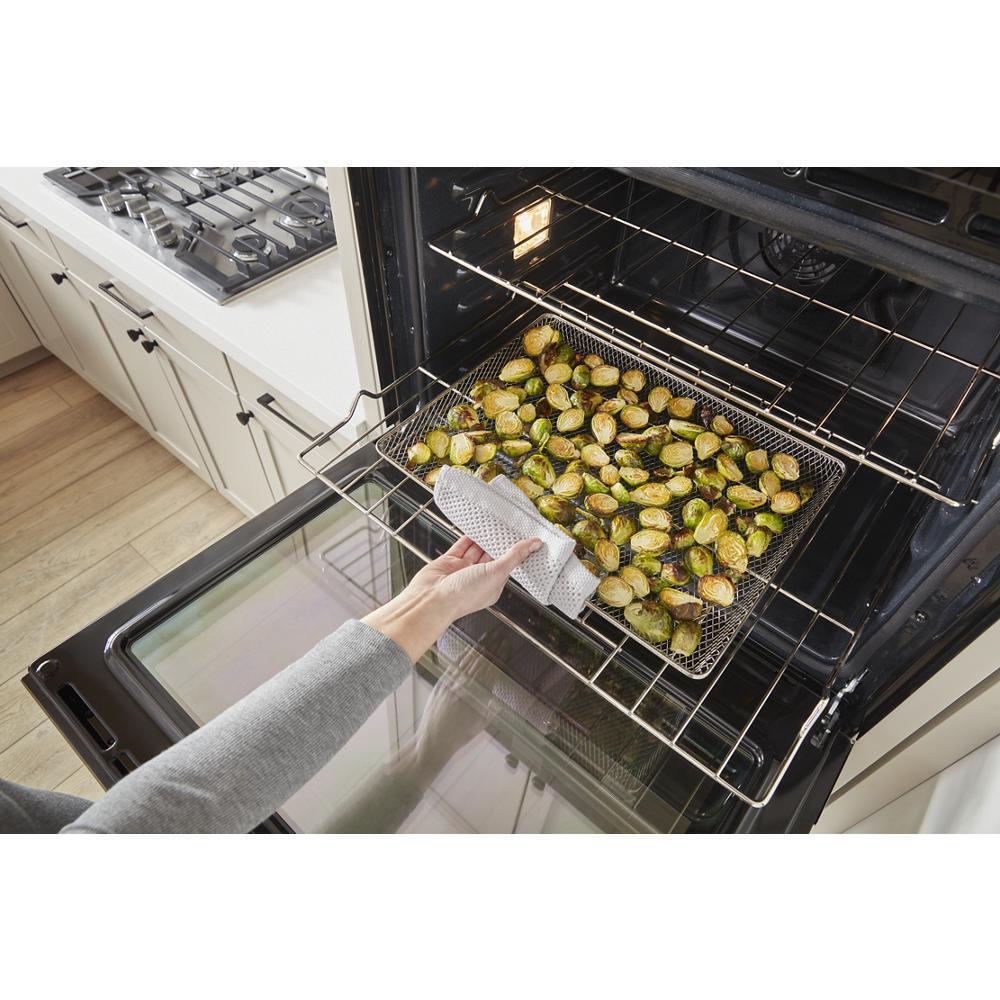

| Oven Selections | Air Fry, when connected, Audible Signal, Bake, Broil, Cancel/Off, Clock, Control Lock, Cook Time Indicator, Delay Start, Favorites, Frozen Bake, Keep Warm/Warm Hold, Language Conversion, Rapi |
| Smart Appliance | Yes |

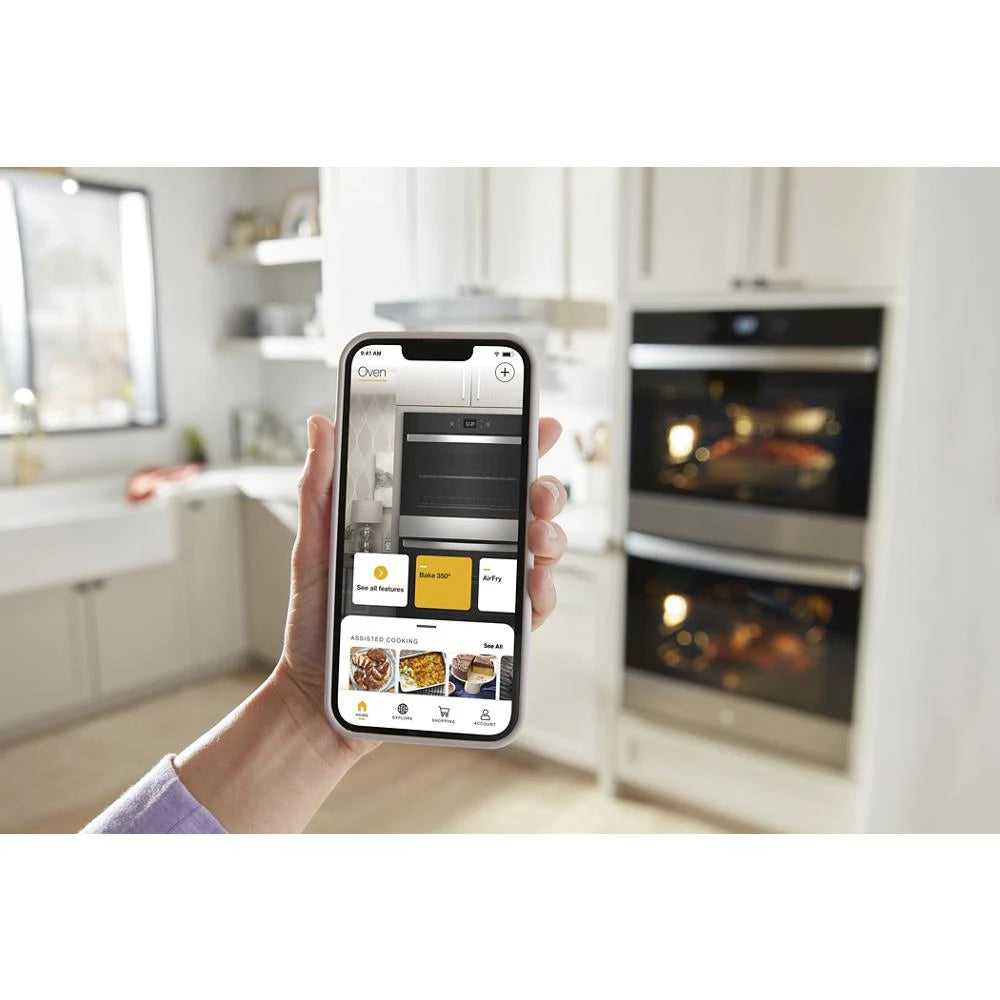

| Connectivity | Amazon Alexa, Android, Google Assistant, iOS |
| Works With | App, Remote Access, Voice Controlled, WiFi |

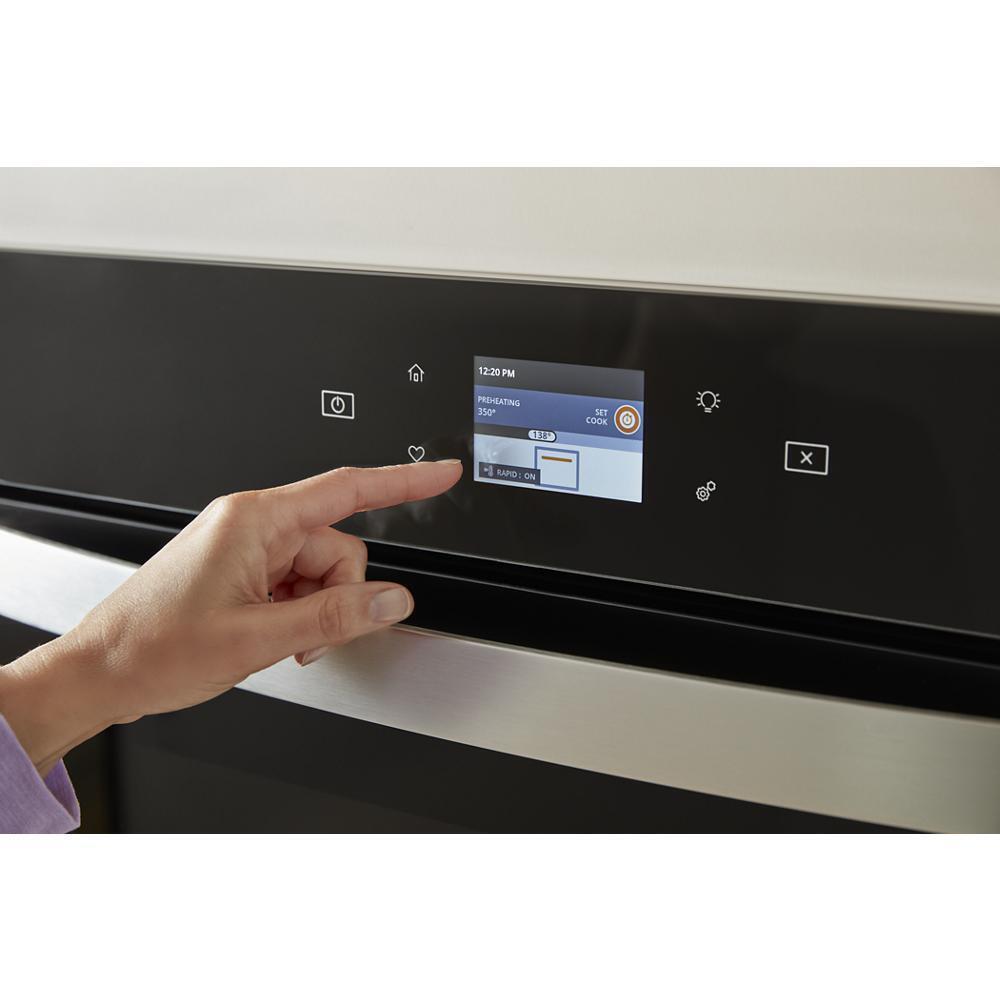

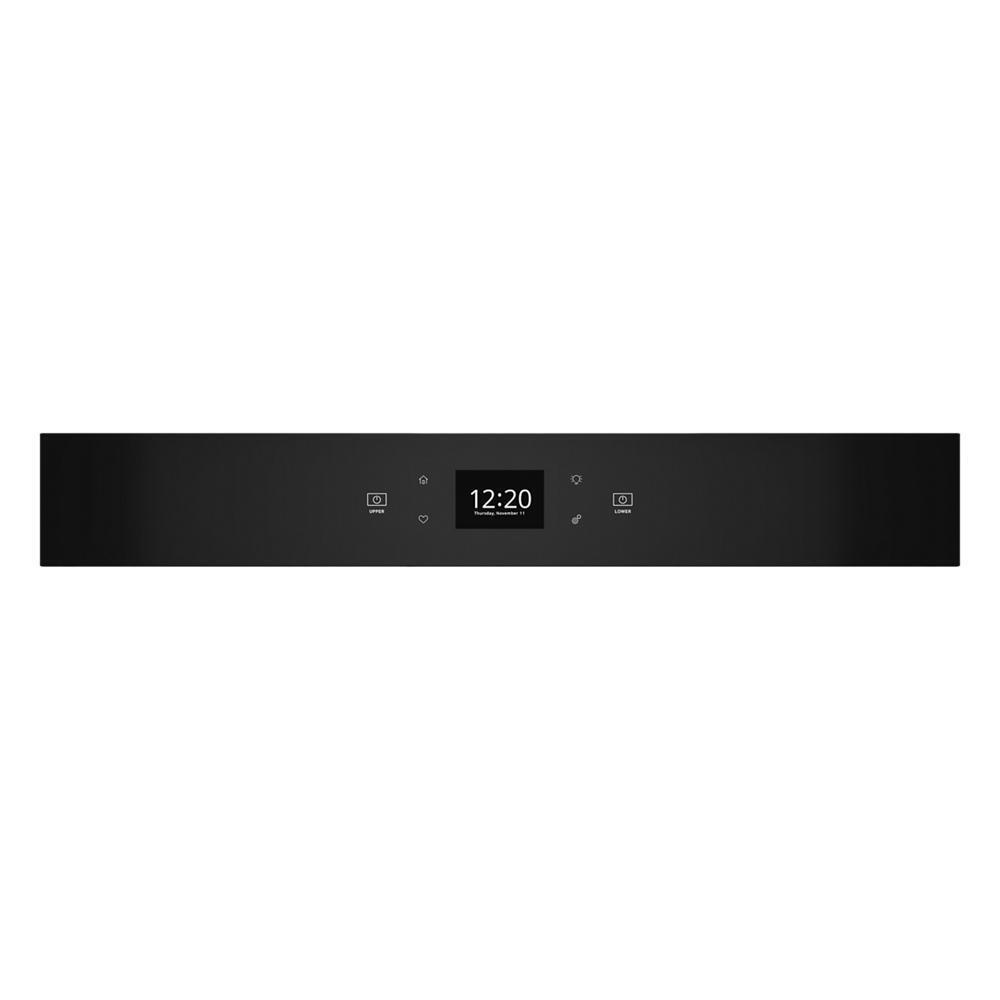

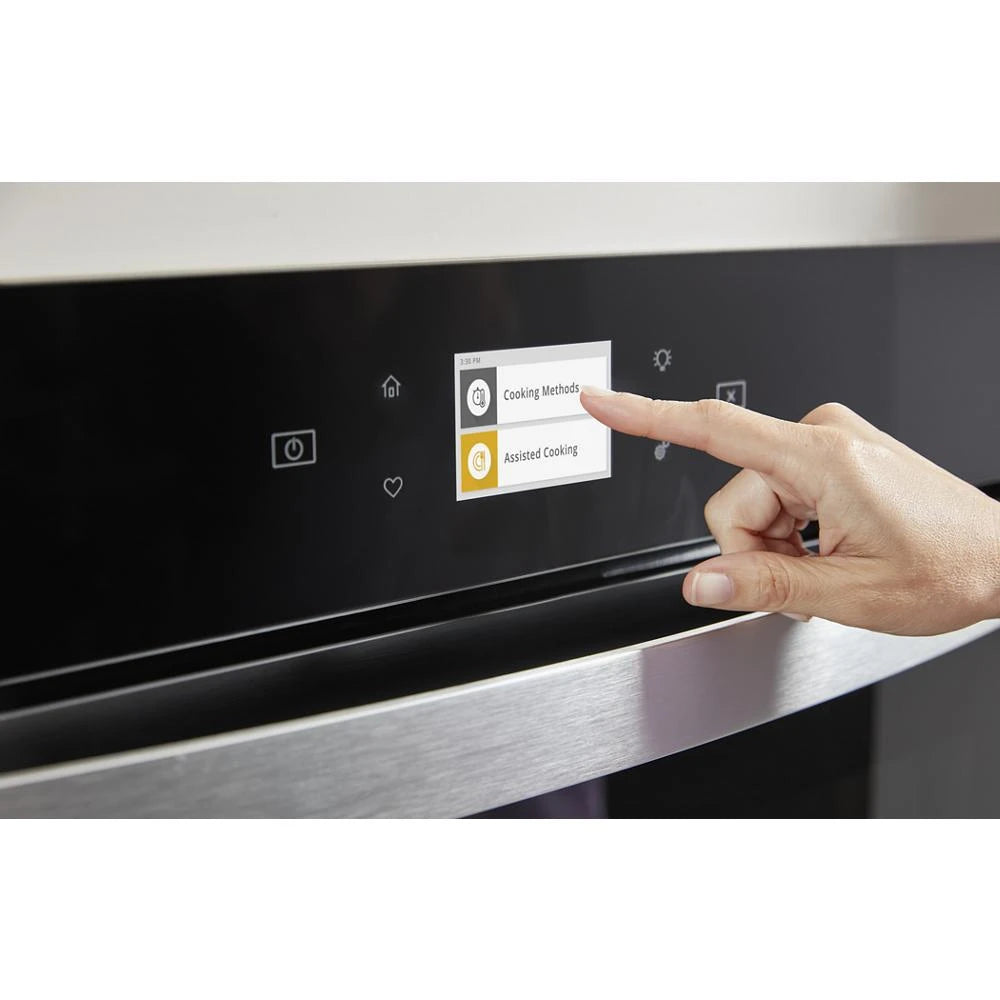

| Control Type | Glass Touch Digital Display |
| Display Color | Full Color |
| Electronic Display Type | Full Color LCD |
| Language Conversion | English/French/Spanish |
| Light Control | Oven Light Touch Pad |
| Power Cord Included | No |
| Amps | 40 |
| Hz | 60 |
| Volts | 240 |
| ADA Compliant | No |
| CUL | Yes |
| Star K Certified | Star K Certified |
| UL | Yes |

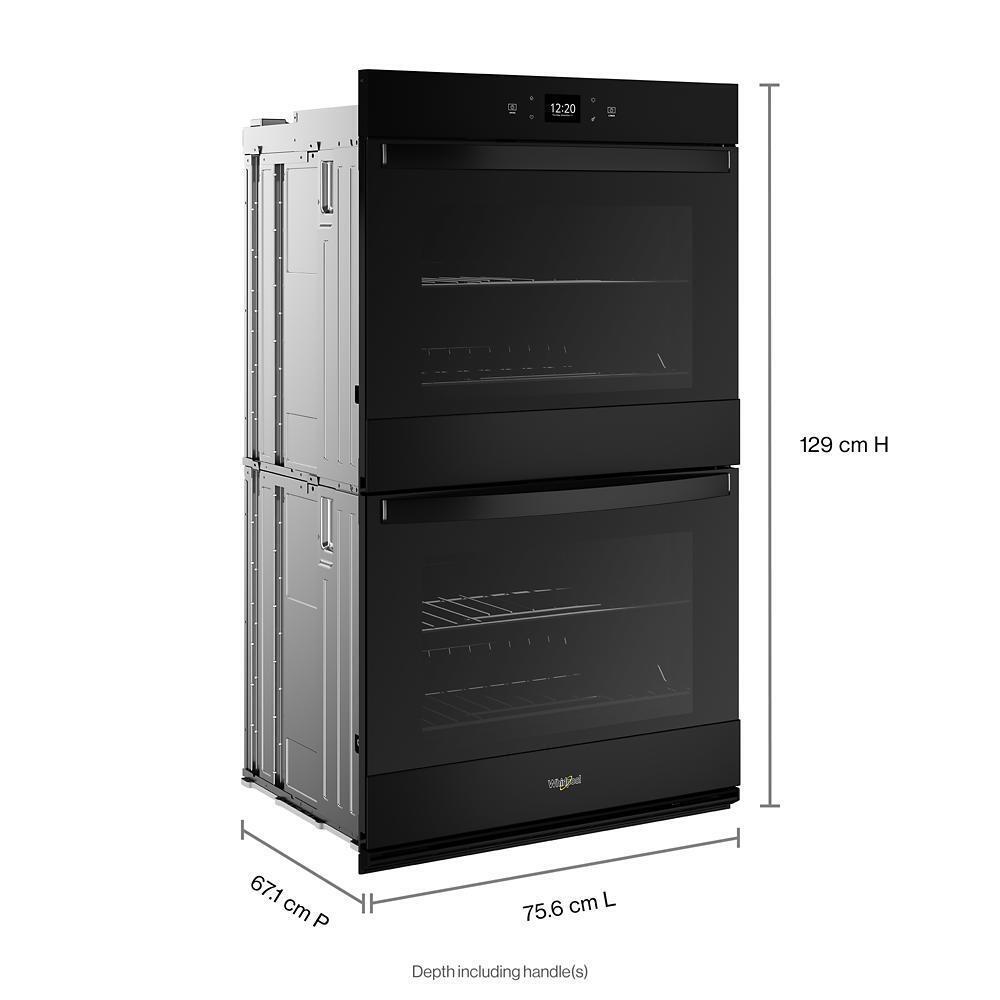

| Width | 29.75 in. |
| Height | 50.81 in. |
| Length | 26.44 in. |
| Weight | 264 lbs. |
| Cutout Depth | 24 in |
| Gross Weight | 264 lbs |
| Lower Oven Interior Depth | 19 in |
| Lower Oven Interior Height | 18 in |
| Lower Oven Interior Width | 25 in |
| Net Weight | 259 lbs |
| Upper Oven Interior Depth | 19 in |
| Upper Oven Interior Height | 18 in |
| Upper Oven Interior Width | 25 in |
| Cutout Height | 50.25 in |
| Cutout Width | 28.5 in |
| Depth Closed Excluding Handles | 24.438 in |
| Depth Closed Including Handles | 26.438 in |
| Depth With Door Open 90 Degree | 46.188 in |
| Maximum Height | 52.5625 in |
| Minimum Height | 50.8125 in |
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 54 in. |
| Shipping Length | 31.44 in. |
| Shipping Weight | 304 lbs. |
| Total of Shipping Weight | 304 lbs. |
| Source | Calculation |
| Common Size | 30 in |

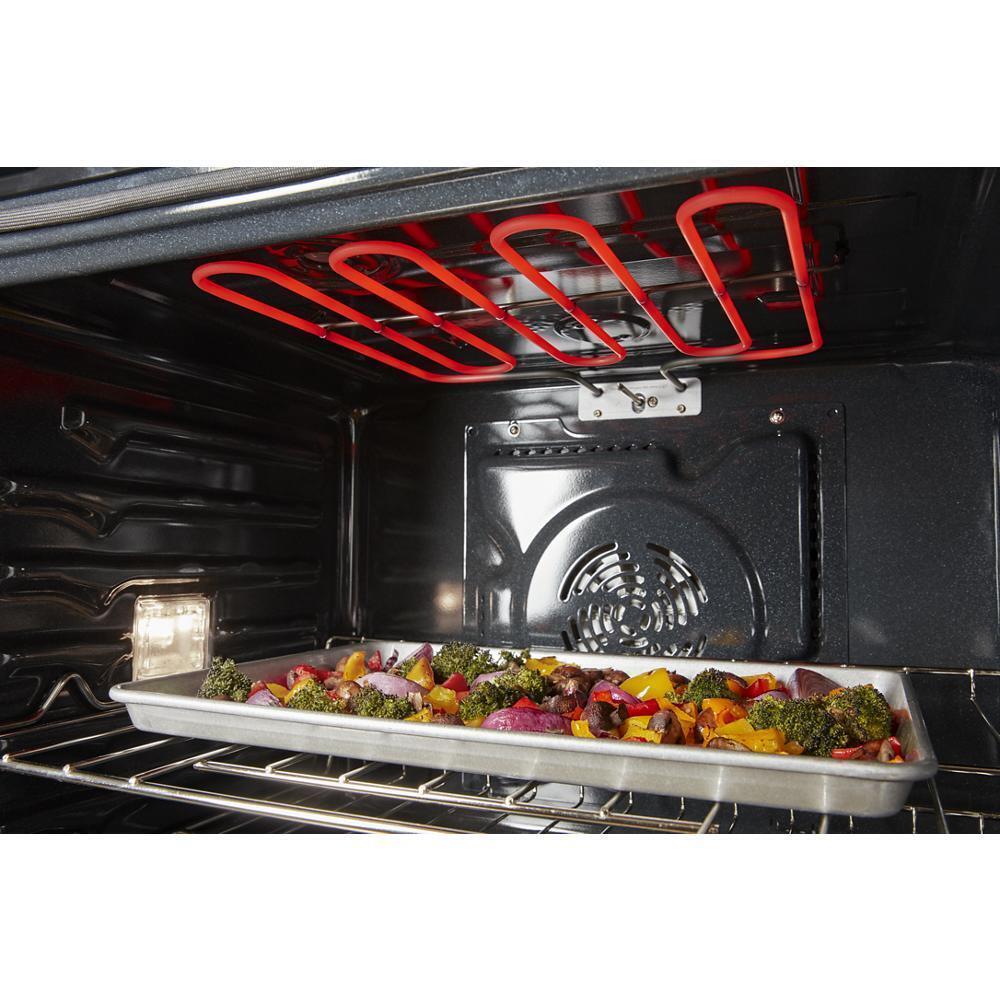

| Broiler Element Power | 3600 W/3120 W |

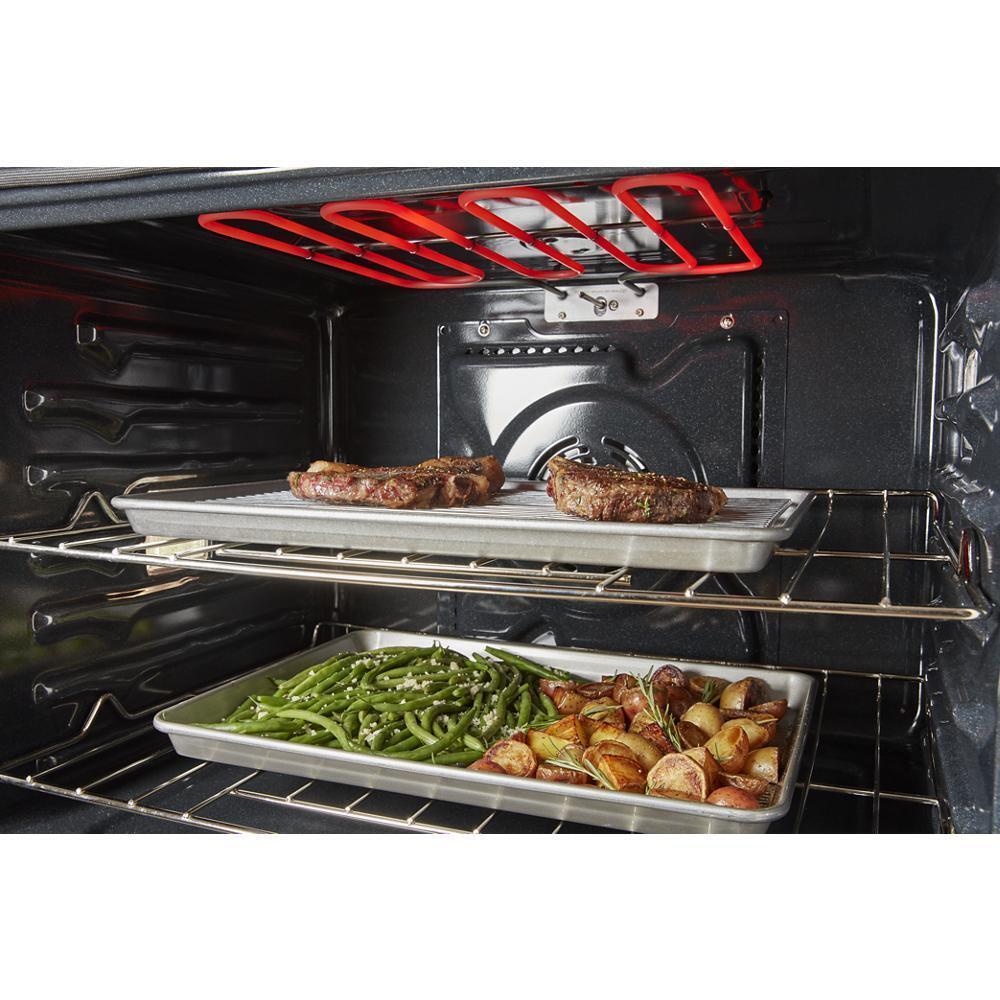

| Broiler Location | Top of Oven |
| Convection Element Power | 2500 W/2167 W w |
| Convection Element Type | Single Fan |
| Convection Functions | Bake, Broil, Convection Conversion |
| Door Broil Position | Closed |
| Door Lock | Yes |
| Door Removable | Yes |
| Hidden Bake Element | Yes |
| Installable Under Cooktop | No |
| Interior Coating | Porcelain |
| Interior Color | Grey |
| Light Type | Halogen |
| Lower Oven Number of Oven Lights | 2 |
| Number of Bake Elements | 1 |
| Number of Broil Elements | 1 |
| Number of Lower Oven Racks | 2 |
| Number of Lower Rack Guides | 6 |
| Number of Upper Oven Racks | 2 |
| Number of Upper Rack Guides | 6 |
| Oven Cleaning Type | Self-Cleaning |
| Self-Cleaning Oven Racks | No |
| Temperature Conversion | Yes |
| Upper Oven Number of Oven Lights | 2 |
| Bake Element Power | 2,800 W/2,427W |
| Volume | 33.906 Cu.Ft. |

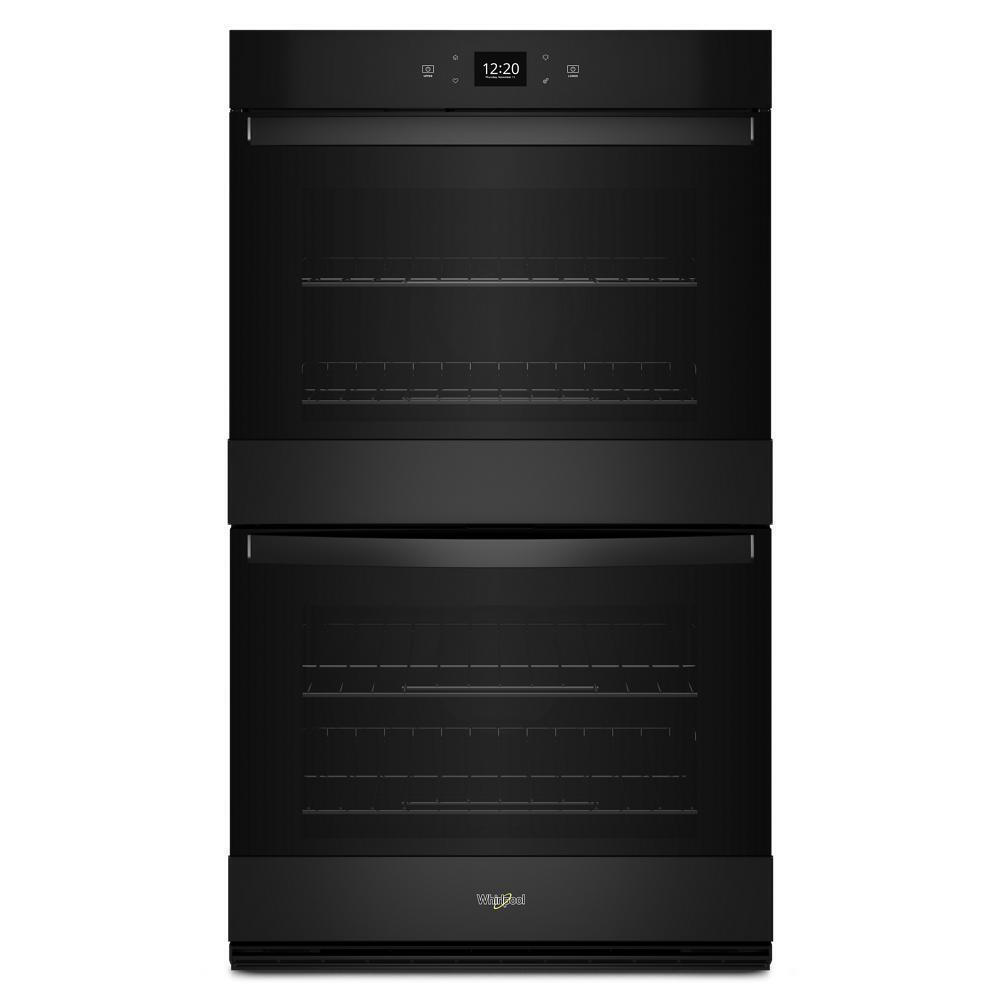

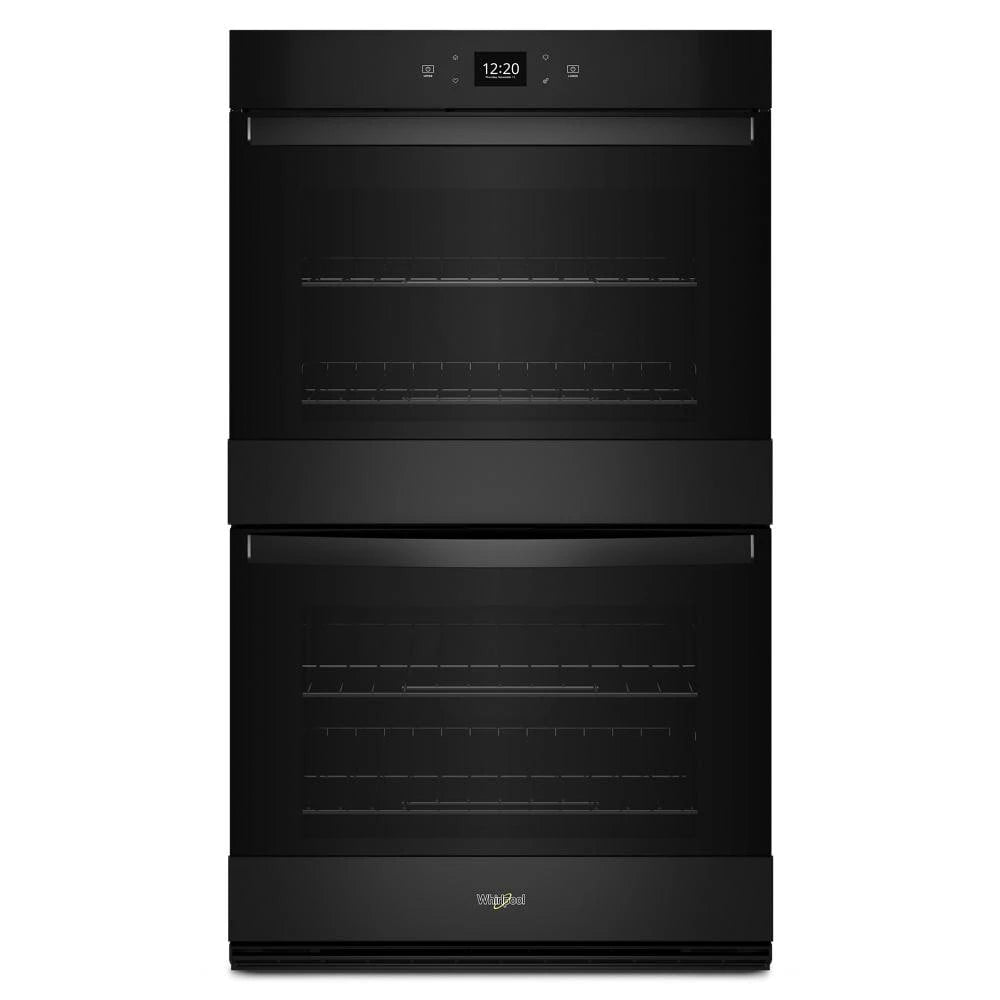

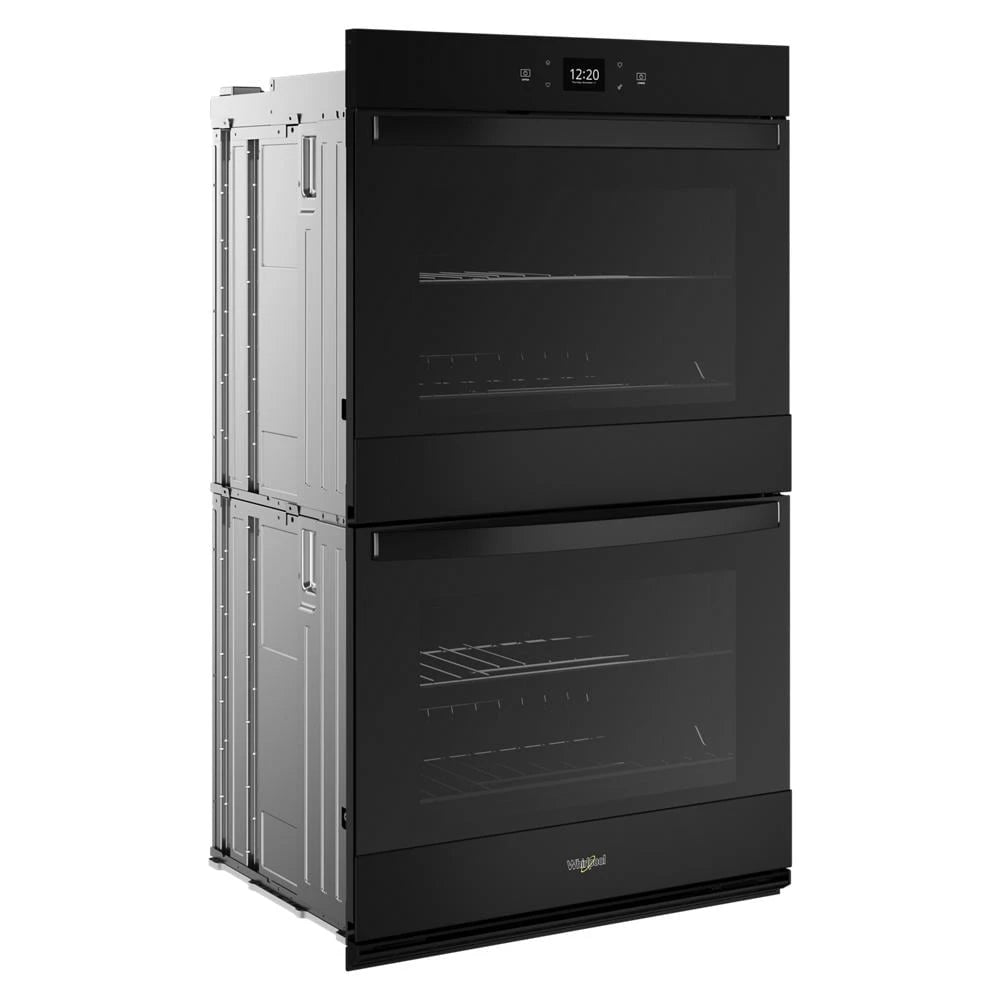

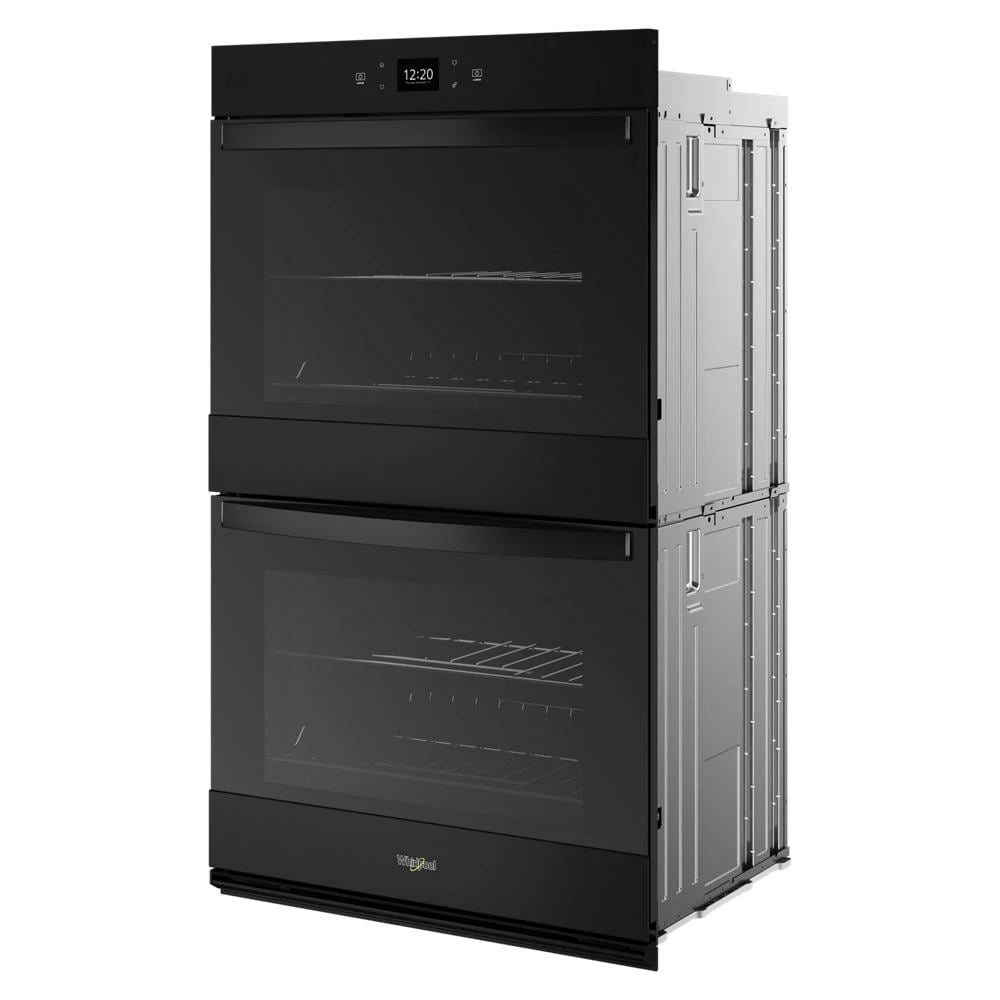

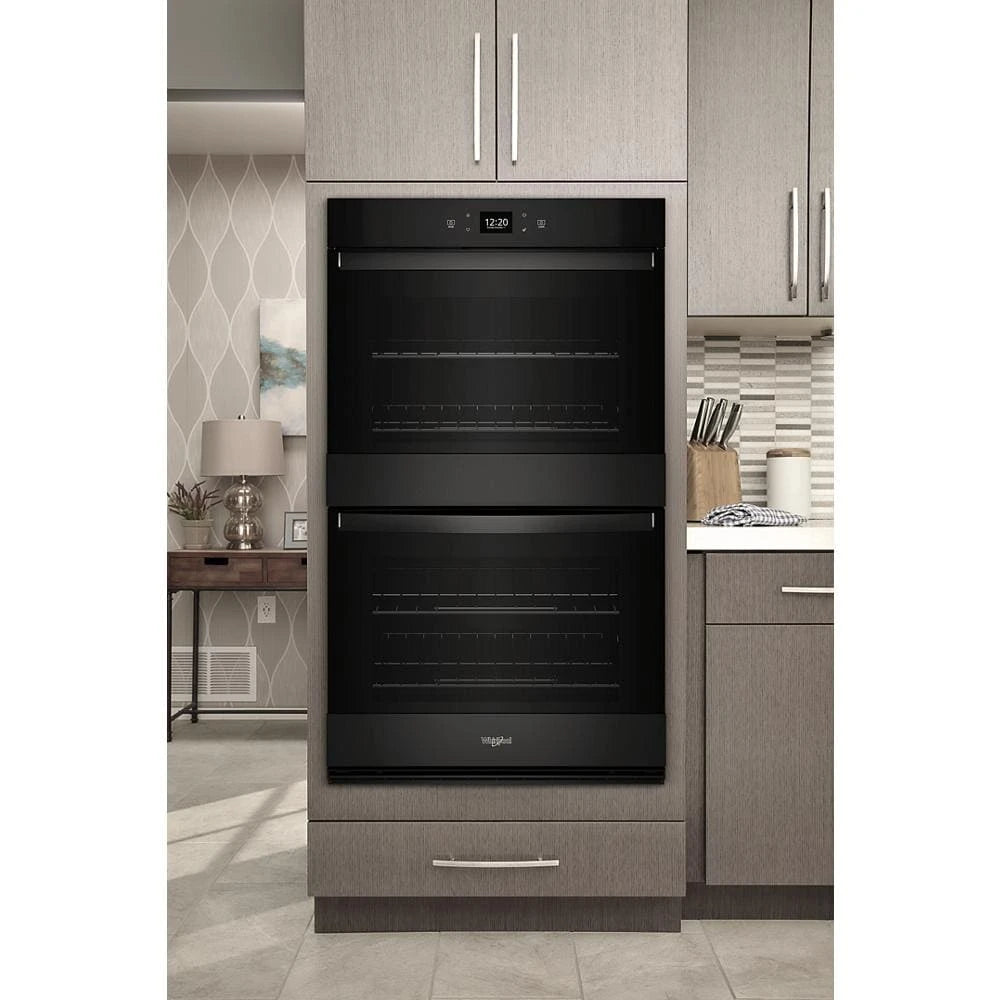

The brand Whirlpool WOED5030LB combines modern smart home features with dependable cooking performance. It includes a convection oven for even, consistent baking, Wi‑Fi capability for remote monitoring and control, and a fingerprint-resistant Black finish for a polished look. Additional highlights include intuitive touchscreen controls, LED interior lighting, a self-cleaning cycle, and a soft-close door—delivering convenience, style, and smart functionality in one built-in wall oven.

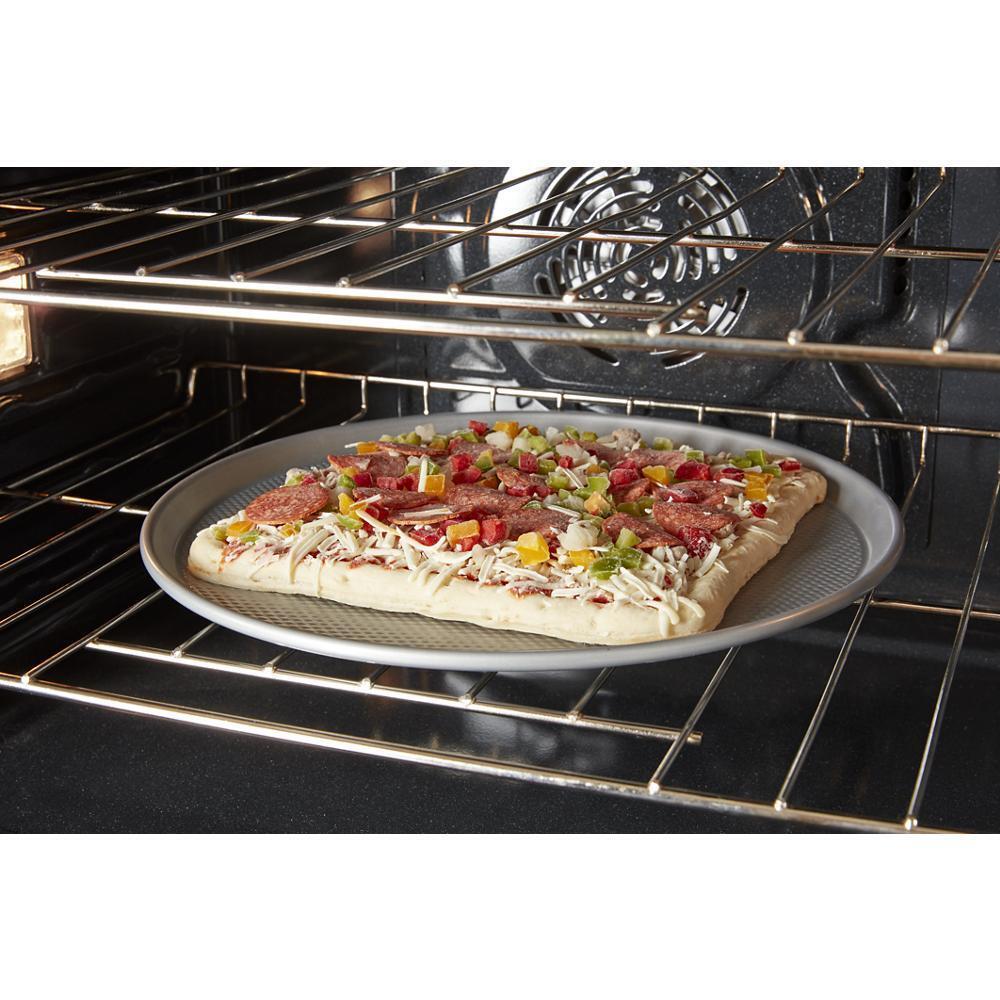

Skip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings that automatically adjust cooking times for you.

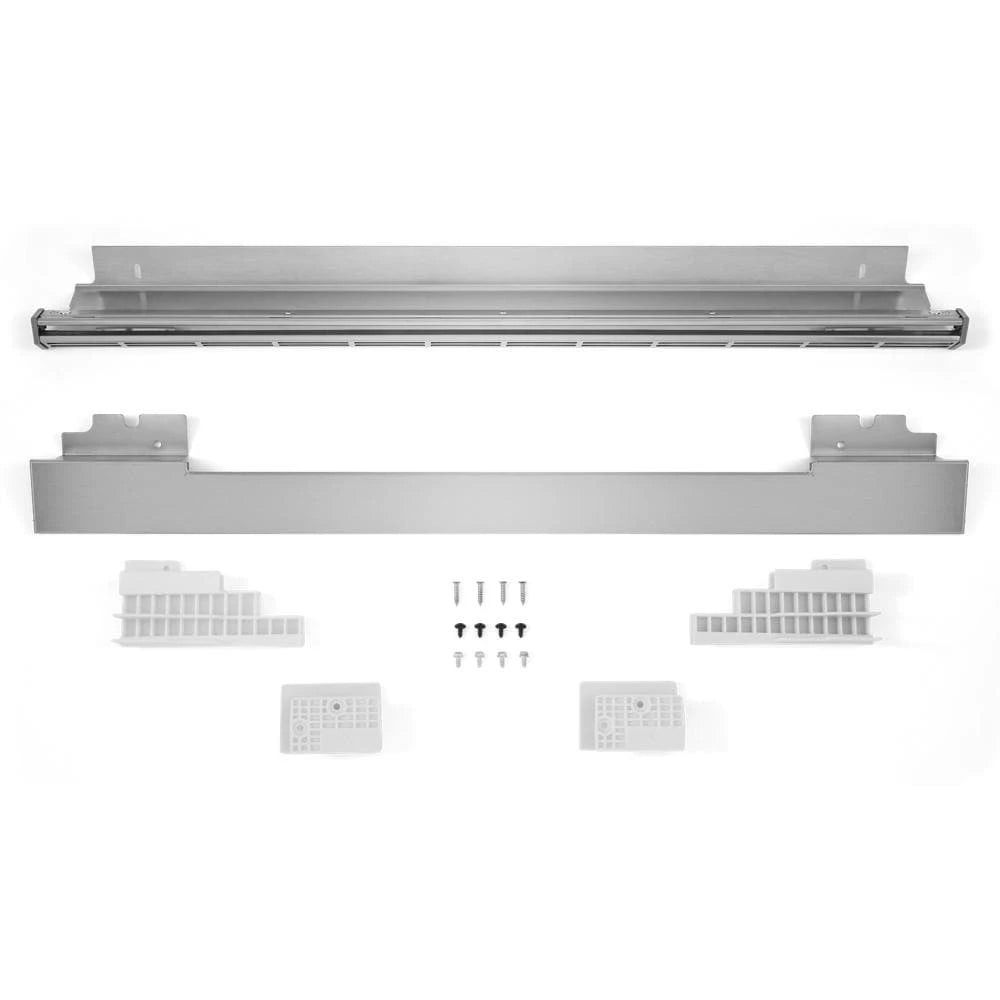

The FIT System Limited Guarantee ensures your new Whirlpool® Wall Oven will fit or get up to $300 toward cabinet modification.**Fit System Limited Guarantee: On 27"" and 30"" Whirlpool® Wall Ovens. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified. Visit www.whirlpool.com/fit-guarantee.html for complete details.
