Product Details for Whirlpool WEG745H0LZ

Technical Details

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 19.69 ft³
Dimensional Weight 244.79 lbs.
Total of Cubes 19.69 ft³
Total of Dimensional Weight 244.79 lbs.

Certifications

ADA Compliant Yes
CUL Yes
UL Yes
prop65 Standard

Cooktop details

Auto Re-ignition No

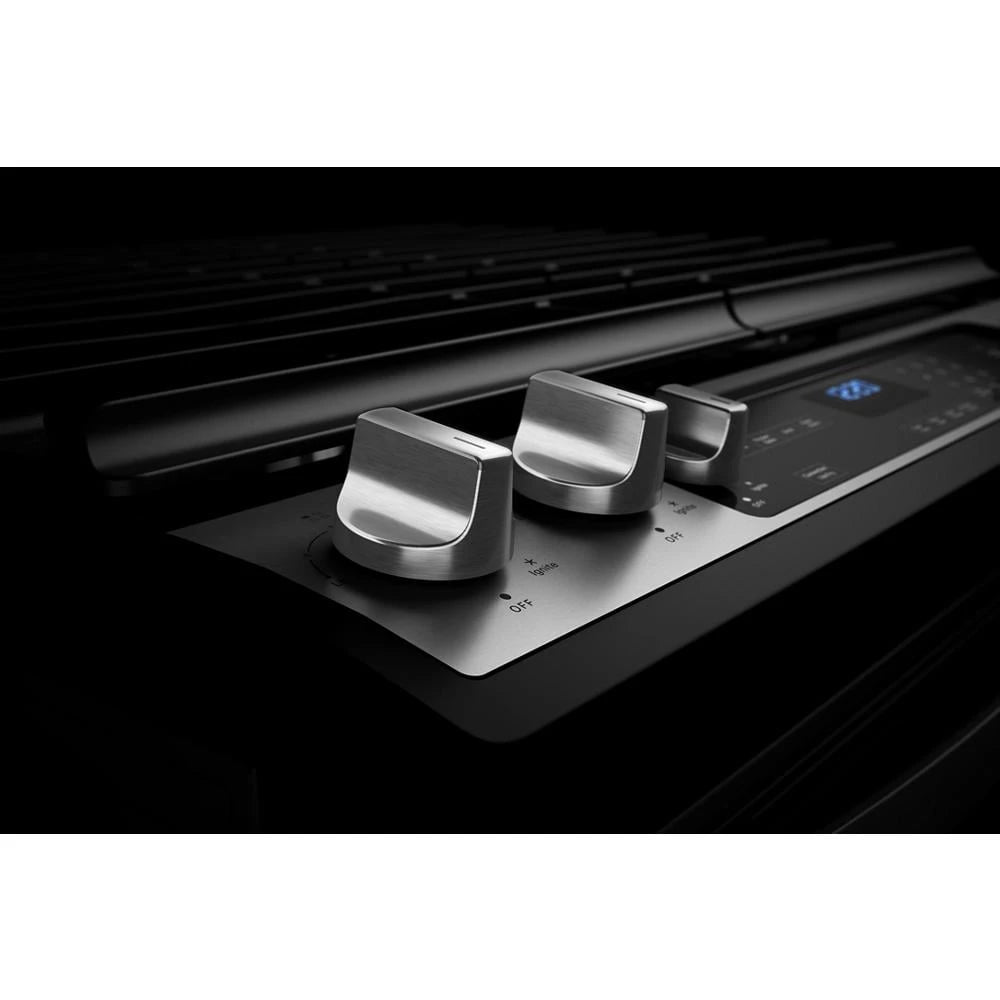

Cooktop Control Knob Type Dishwasher Safe Weighted
Cooktop Control Location Front
Cooktop Control Type Knobs
Cooktop Surface Material Porcelain Coated Steel

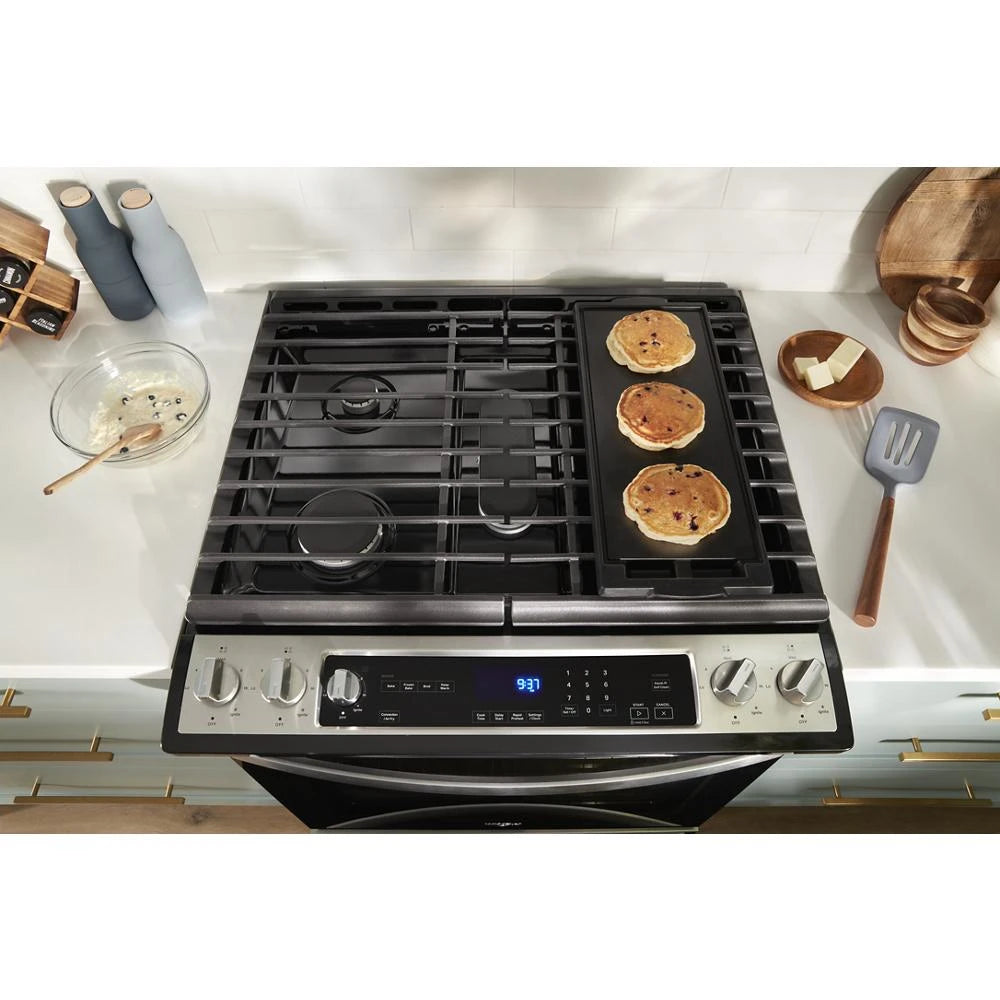

Griddle Included Optional Accessory
Heating Element On Indicator Light Yes
Hot Surface Indicator Light Yes
Ignition Type Direct Spark Ignition
Total Gas BTUs - Cooktop 54, 200

Exterior details

Door Type Glass
Oven Control Location Front

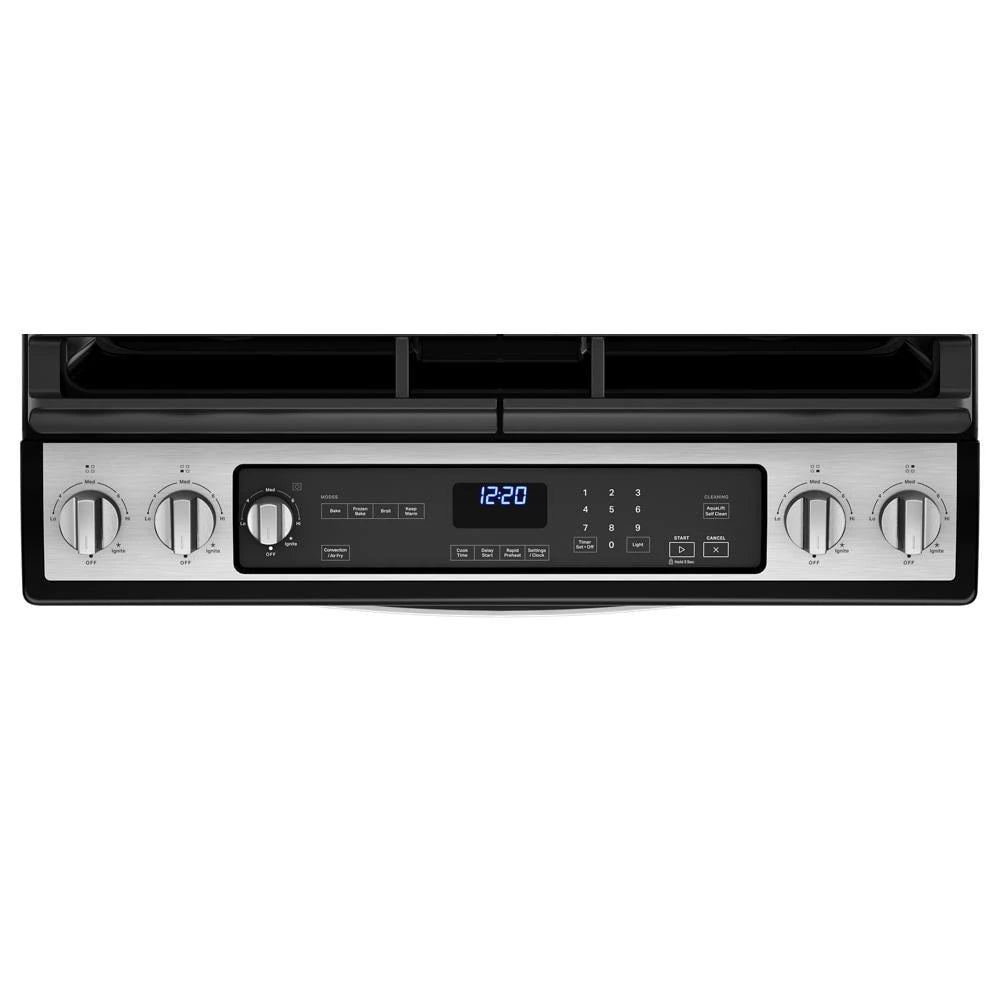

Oven Control Type Electronic Touch
Oven Window Size Extra Large

Controls

Display Color Blue

Element/burner details

Center Front Element-Burner Type Warming
Cooktop Element Style Sealed Burners
Left Front Element-Burner Type Standard
Left Rear Element-Burner Type Standard

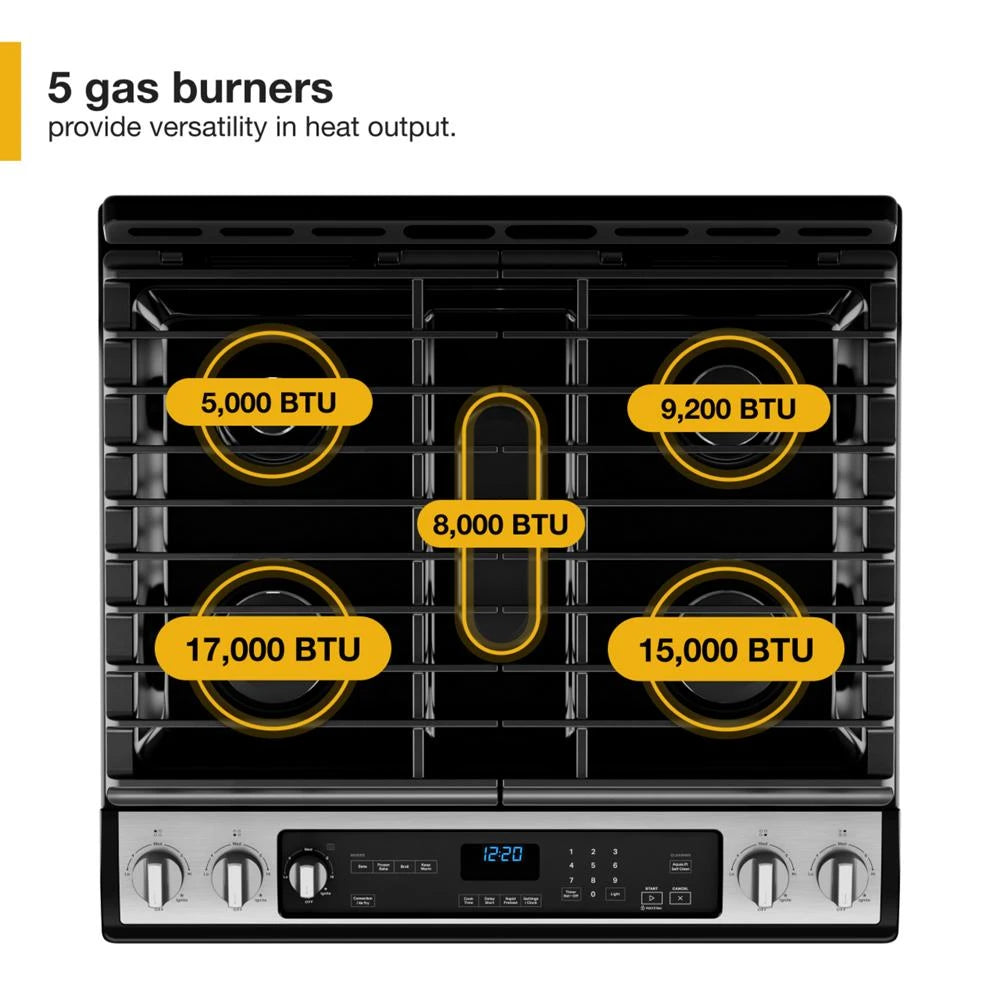

Number of Cooking Element-Burners 5
Right Front Element-Burner Type Standard
Right Rear Element-Burner Type Standard
Center Front Element-Burner Power 8, 000 BTU
Left Front Element-Burner Power 17, 000 BTU
Left Rear Element-Burner Power 5, 000 BTU
Right Front Element-Burner Power 15, 000 BTU
Right Rear Element-Burner Power 9, 200 BTU

Details

Fuel Type Gas
LP Convertible Yes - Kit Included
Oven Automatic Shut-Off No
Power On Indicator Light Yes
Power Outage Compatible Yes
Range Type Slide-in
Automatic Convection Conversion Temperature Adjust Yes
Oven Light Switch Location Top of Console
Range Drawer Type Storage Drawer
Oven Selections Air Fry; Audible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Convect Modes; Cook Time Indicator; Delay Start; Frozen Bake; Keep Warm/Warm Hold; Rapid Preheat; Sabbath Mode; Timer

Smart compatibility

Connectivity No
Works With No

Electrical

Power Cord Included Yes

Oven details

Bake Element Power 18, 000 BTU
Broiler Element Power 13, 000 BTU
Broiler Location Top of Oven
Convection Element Power 925
Convection Element Type True Bow Tie
Convection Functions Bake; Broil
Door Removable Yes
Hidden Bake Element Yes
Number of Oven Lights 1
Number of Oven Racks 3
Number of Rack Guides 7
Oven Cleaning Type AquaLift® Self Clean
Oven Cooking System True Convection
Oven Light Type Incandescent
Oven Rack Type 2 Standard and 1 Max Capacity
Total Gas BTUs - Ovens 31, 000

Grate details

Grate Details Dishwasher Safe; Matte Finish; Porcelain Coated Cast Grates; Rear Hinged Grate

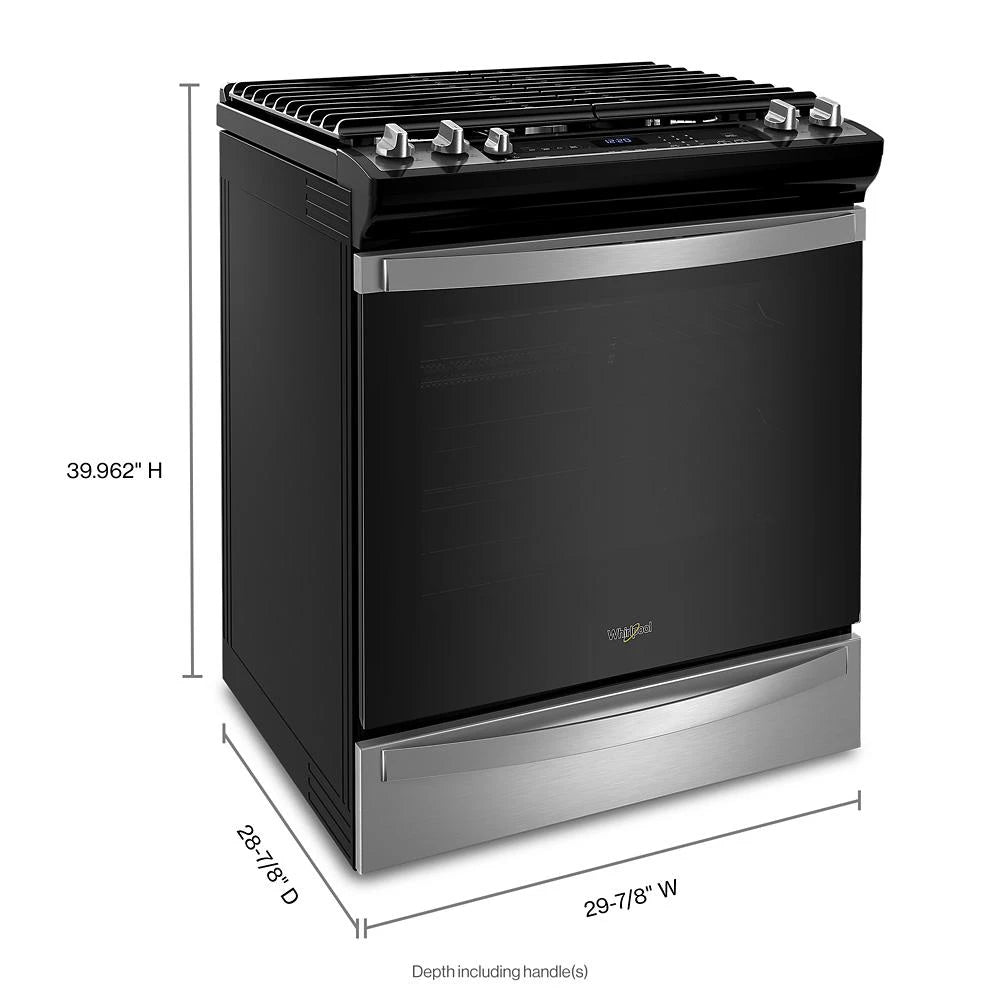

Dimensions & weight

Width 29.88 in.
Height 39.96 in.
Length 28.5 in.
Weight 213 lbs.
Cutout Depth 24 in
Cutout Height 36 in
Cutout Width 30 in
Depth Closed Excluding Handles 27-7/8 in
Depth Closed Including Handles 28-7/8 in
Depth With Door Open 90 Degree 48-1/2 in
Gross Weight 213 lbs
Maximum Height 39-481/500 in
Minimum Height 38-481/500 in
Net Weight 196 lbs
Oven Interior Depth 20-5/8 in
Oven Interior Height 22-1/8 in
Oven Interior Width 24-3/8 in
carton depth 30.5
carton height 43.5
carton width 31.5

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 31.5 in.
Shipping Height 43.5 in.
Shipping Length 33.5 in.
Shipping Weight 253 lbs.
Total of Shipping Weight 253 lbs.
Source Calculation

Other

Capacity 5.8 cu. ft.
Common Size 30 in

Description

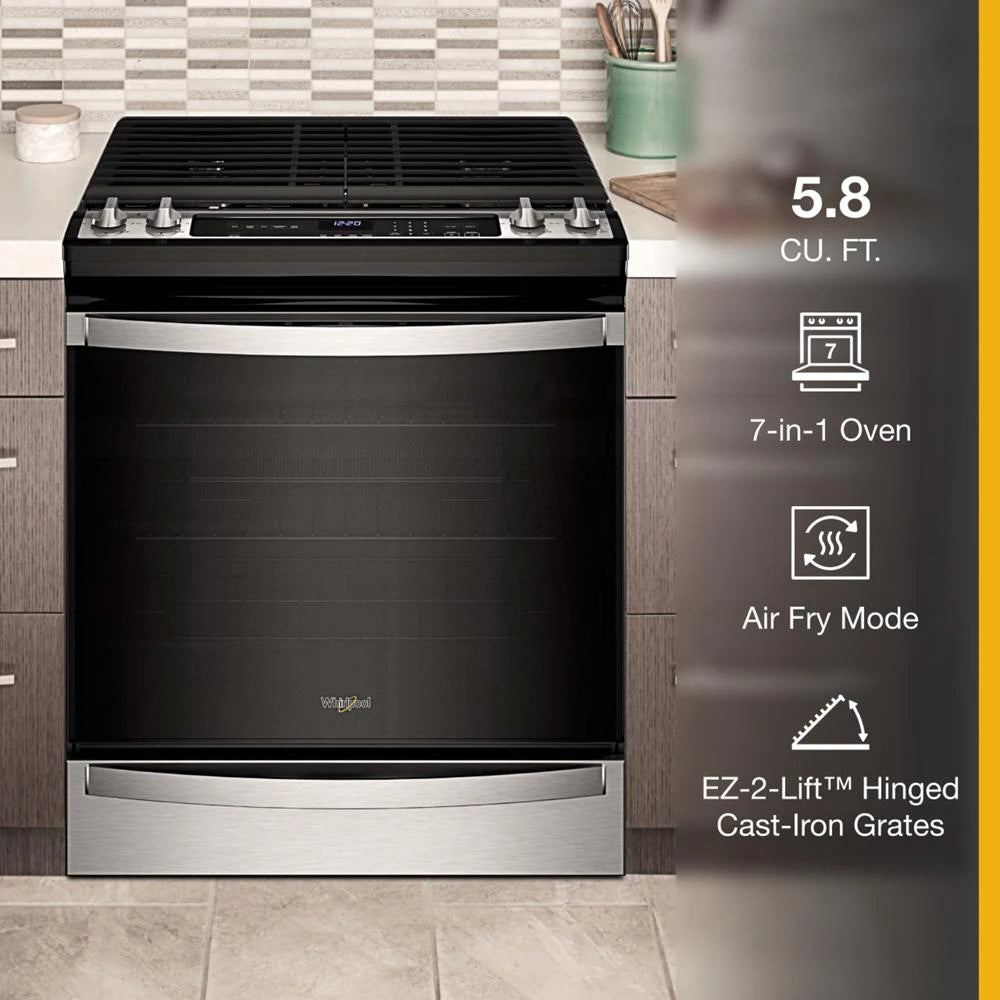

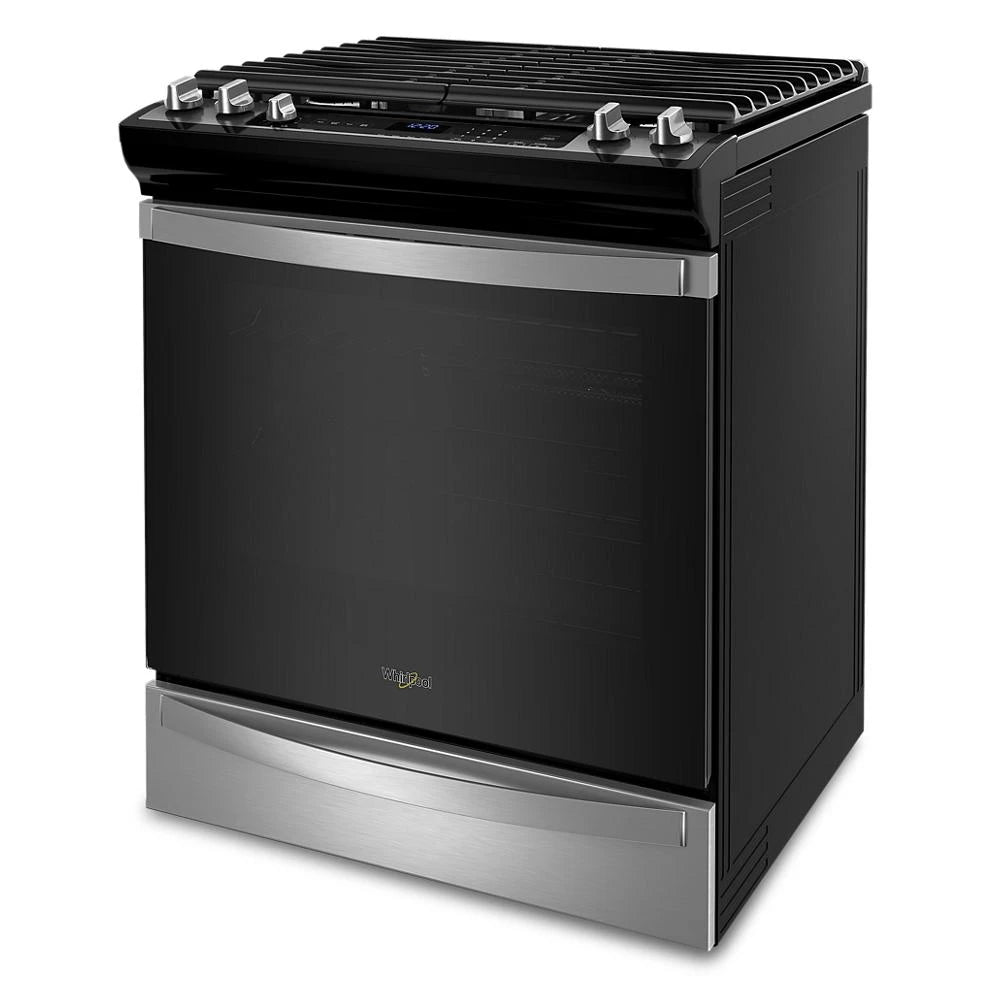

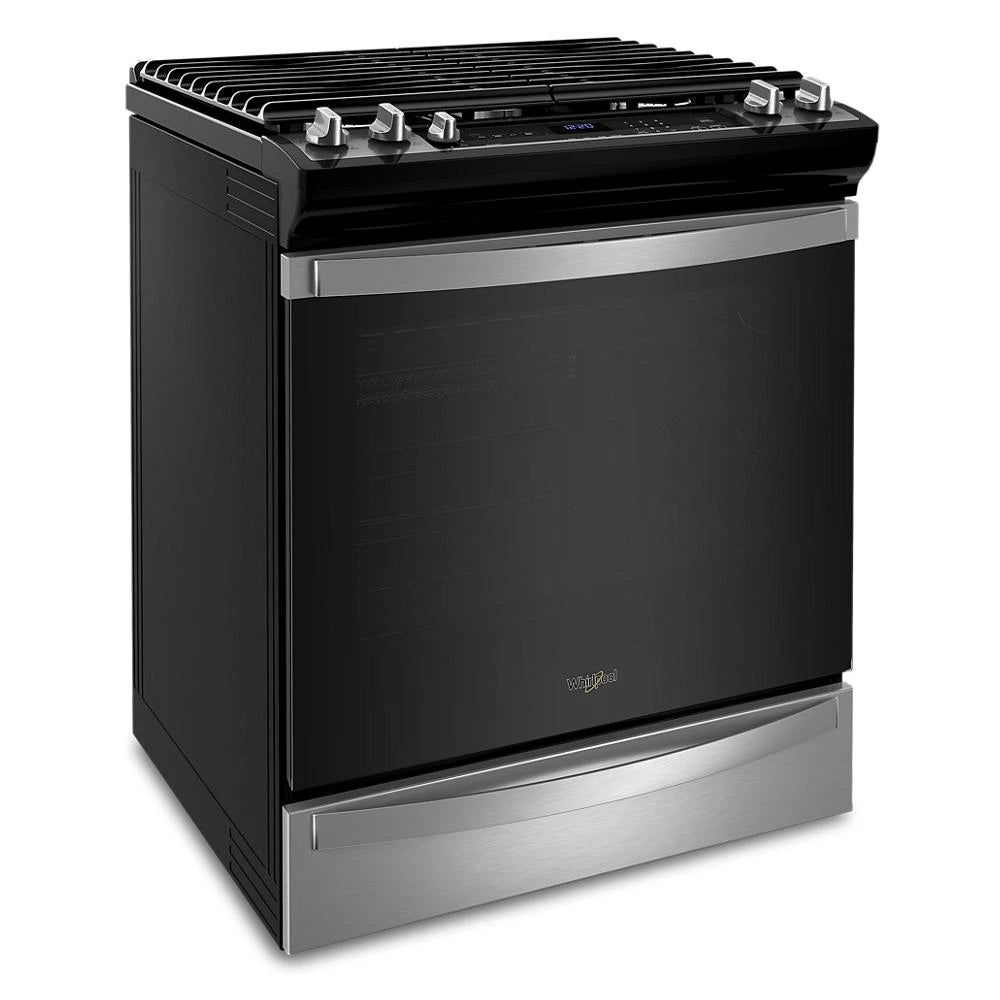

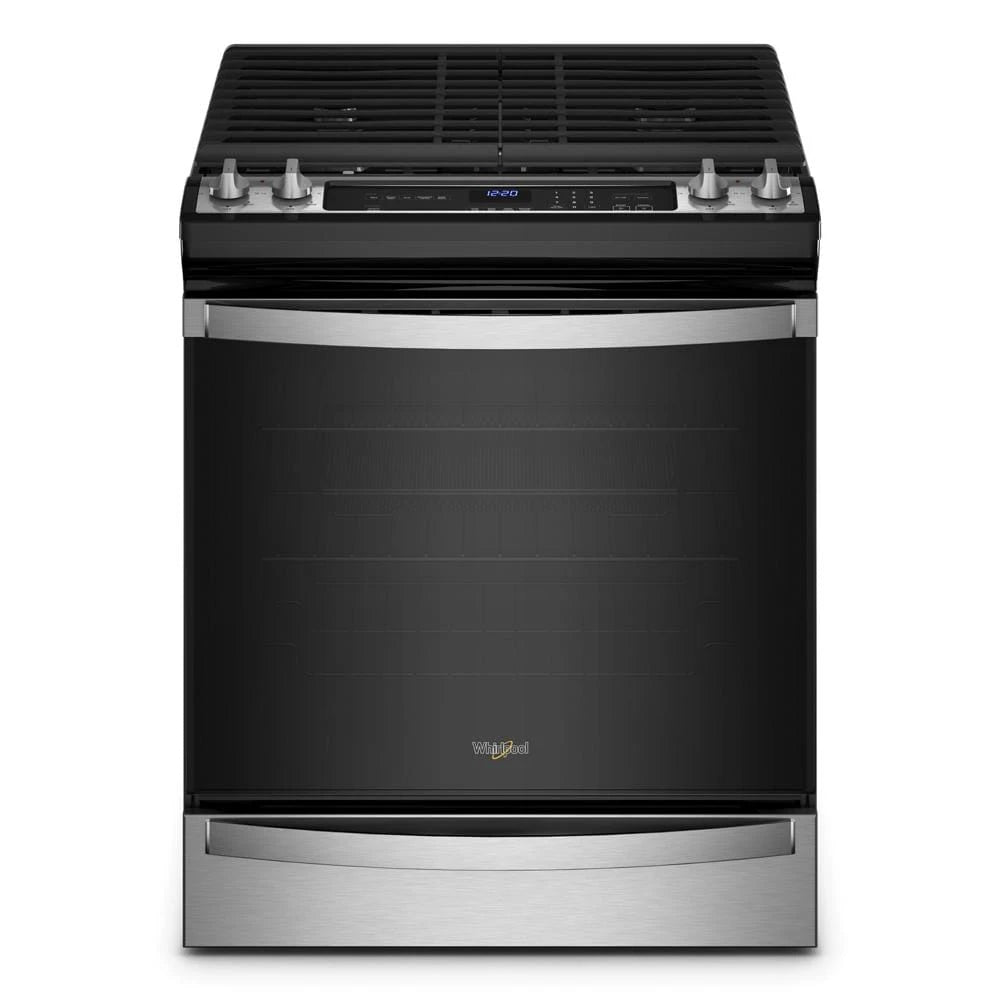

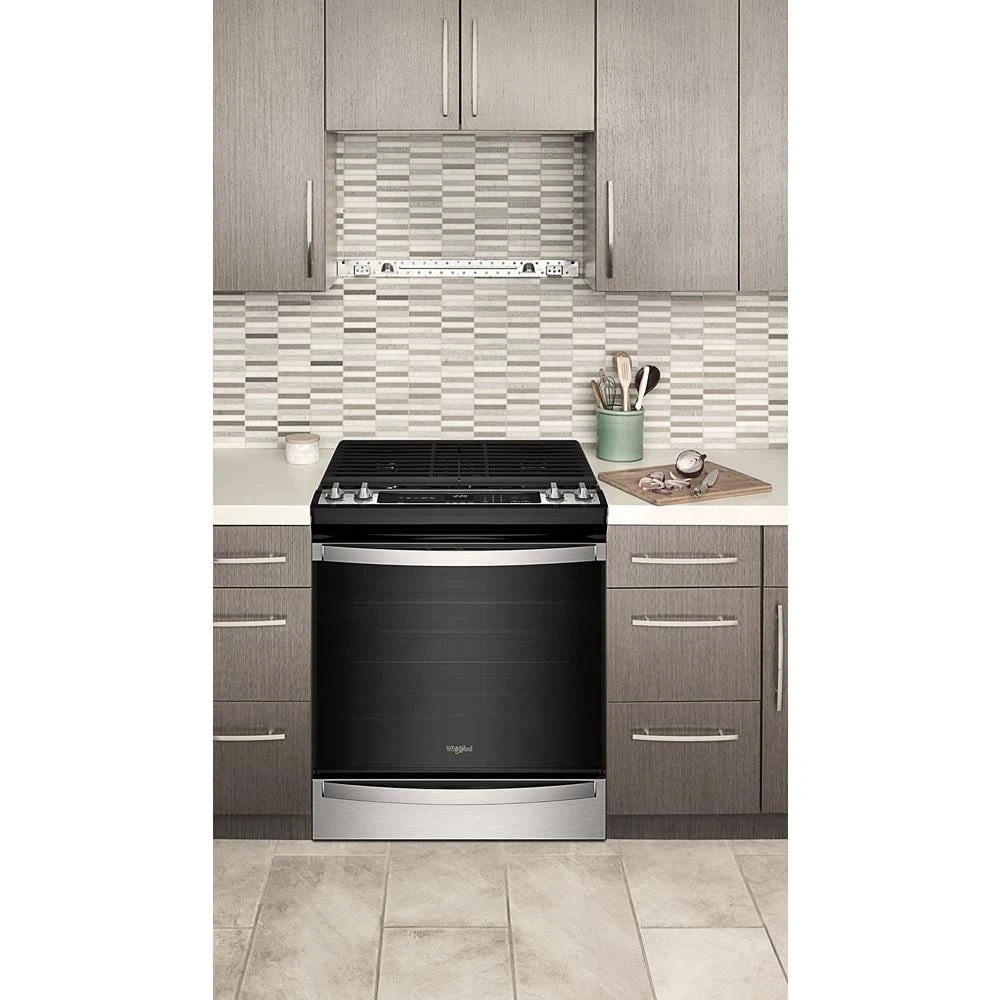

The brand Whirlpool WEG745H0LZ delivers power and precision with this 30" Gas Range, featuring five sealed burners up to 17,000 BTUs, including a center oval burner for oversized cookware. The spacious 5.8 Cu. Ft. oven includes True Convection and an Air Fry function to deliver crispy results without added oil. Additional highlights include EZ-2-Lift™ hinged cast-iron grates, Frozen Bake™ technology, and SpeedHeat™ burners for faster boiling. Finished in fingerprint-resistant stainless steel, this range combines performance and convenience for busy kitchens.



Product Features

  • 7-in-1 Oven
    Cook however you want with 7 cooking modes in 1 oven: Air Fry, Convect Bake, Convect Broil, Frozen Bake™, Bake, Broil and Keep Warm cycles. This range gives you the flexibility to cook a variety of dishes by combining multiple cooking modes in one oven.

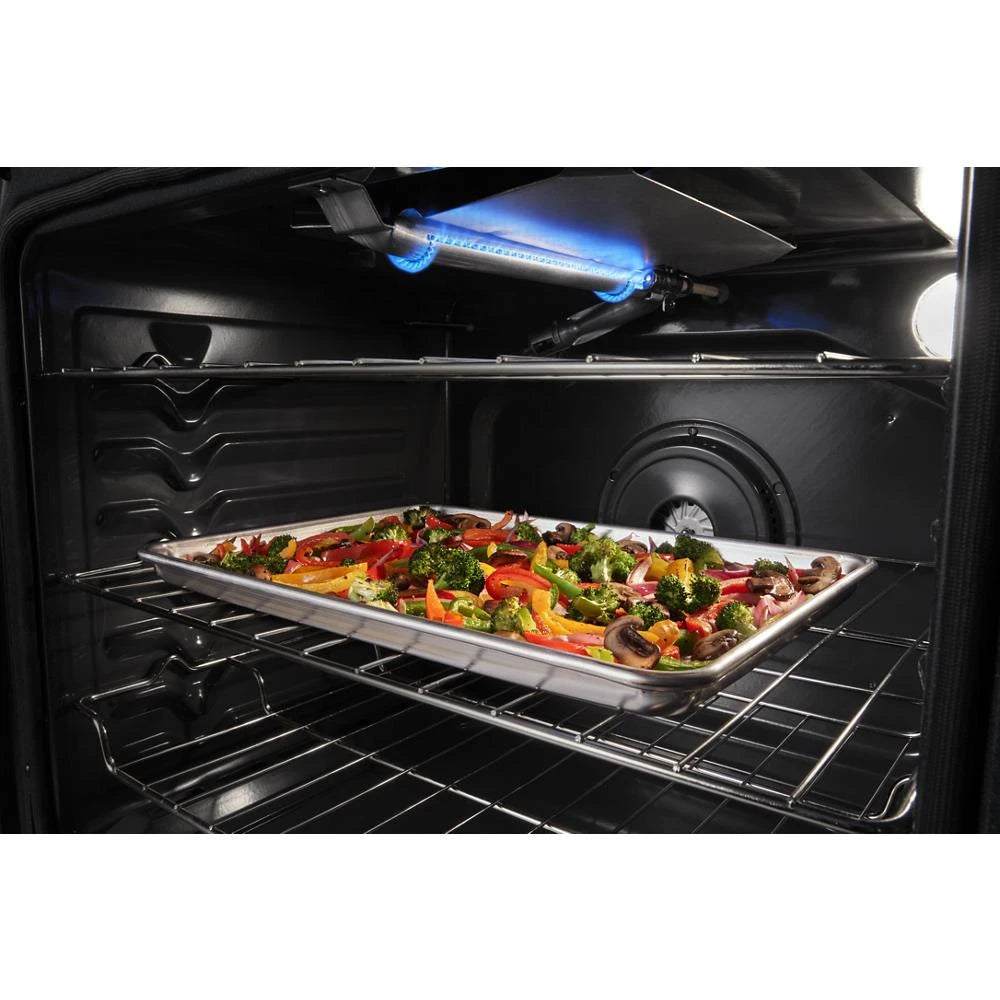

  • True Convection with Third Heating Element

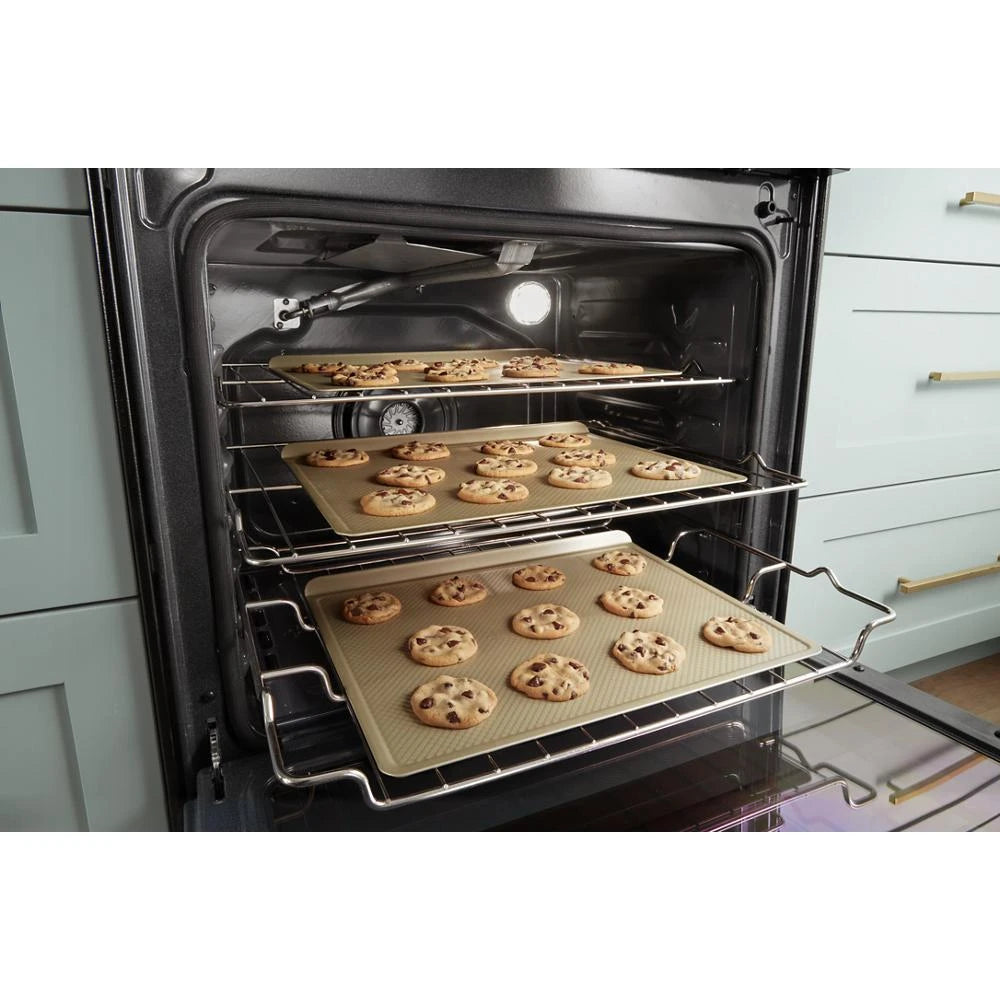

    Quickly bake multiple items at once with True Convection Cooking. The oven fan circulates hot air from three heating elements around the oven so you can cook foods fast and don’t have to move dishes around as you cook.

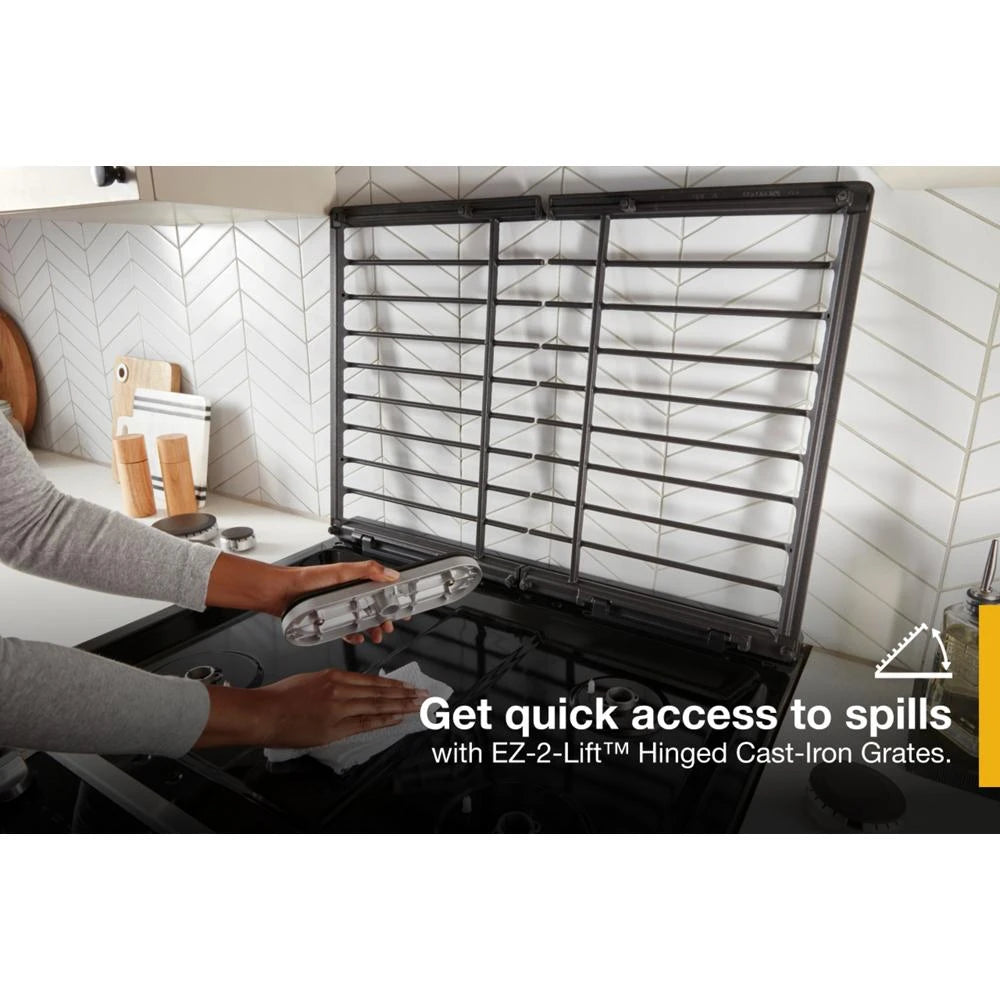

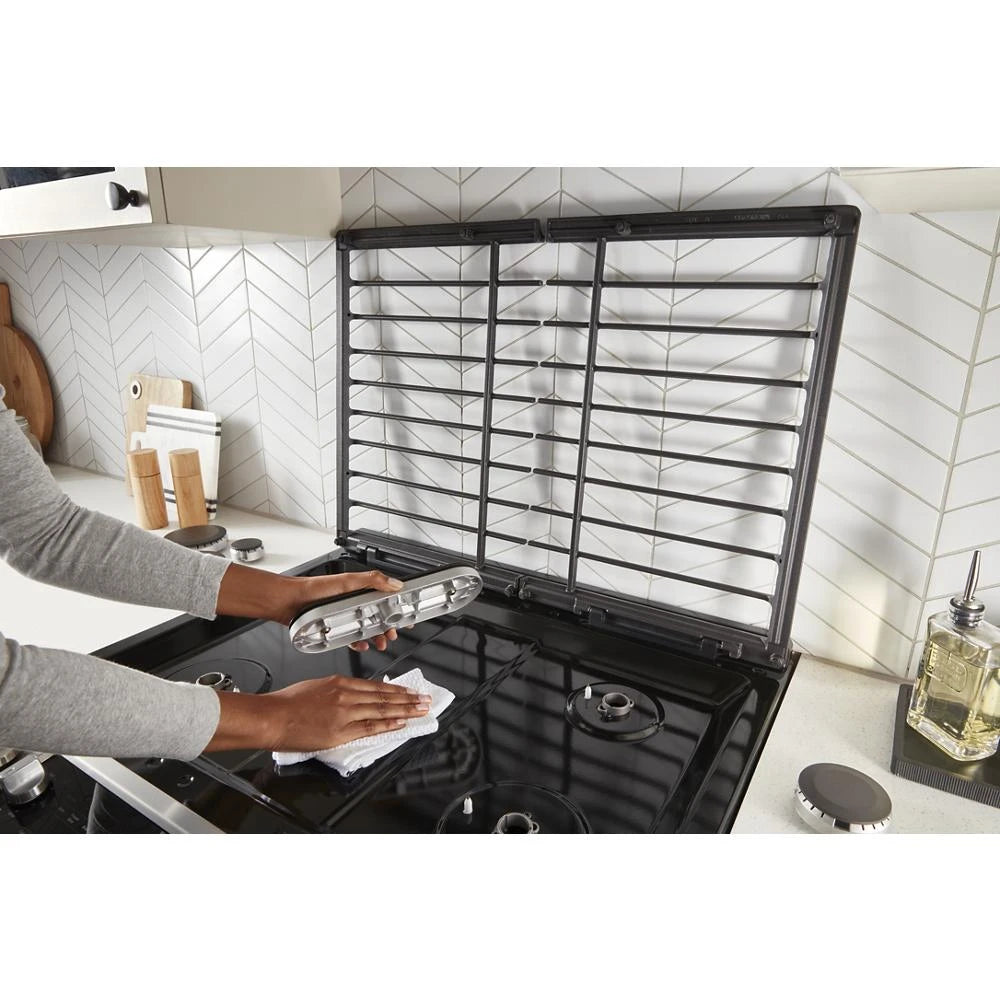

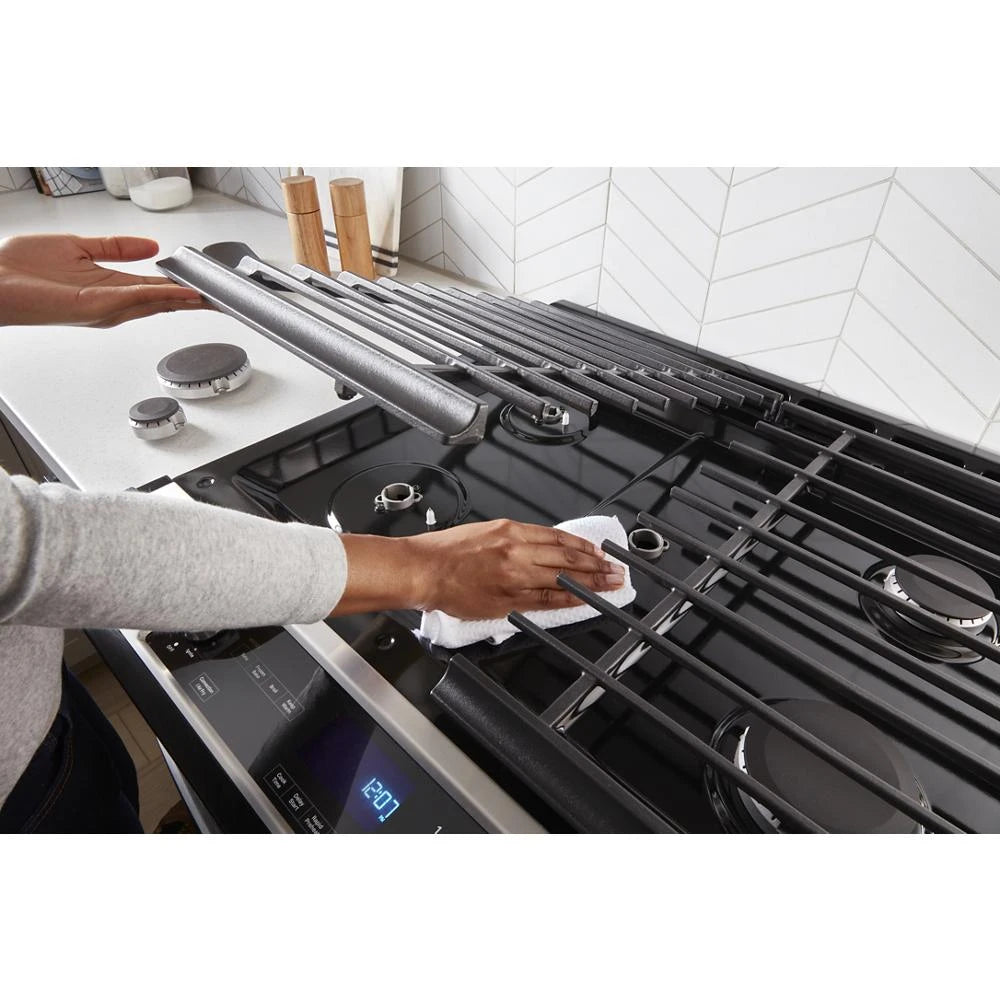

  • EZ-2-Lift™ Hinged Cast-Iron Grates
    Get quick access to spills on the cooktop with our industry-first EZ-2-Lift™ Hinged Cast-Iron Grates. The hinged design lets you wipe up underneath without removing them.

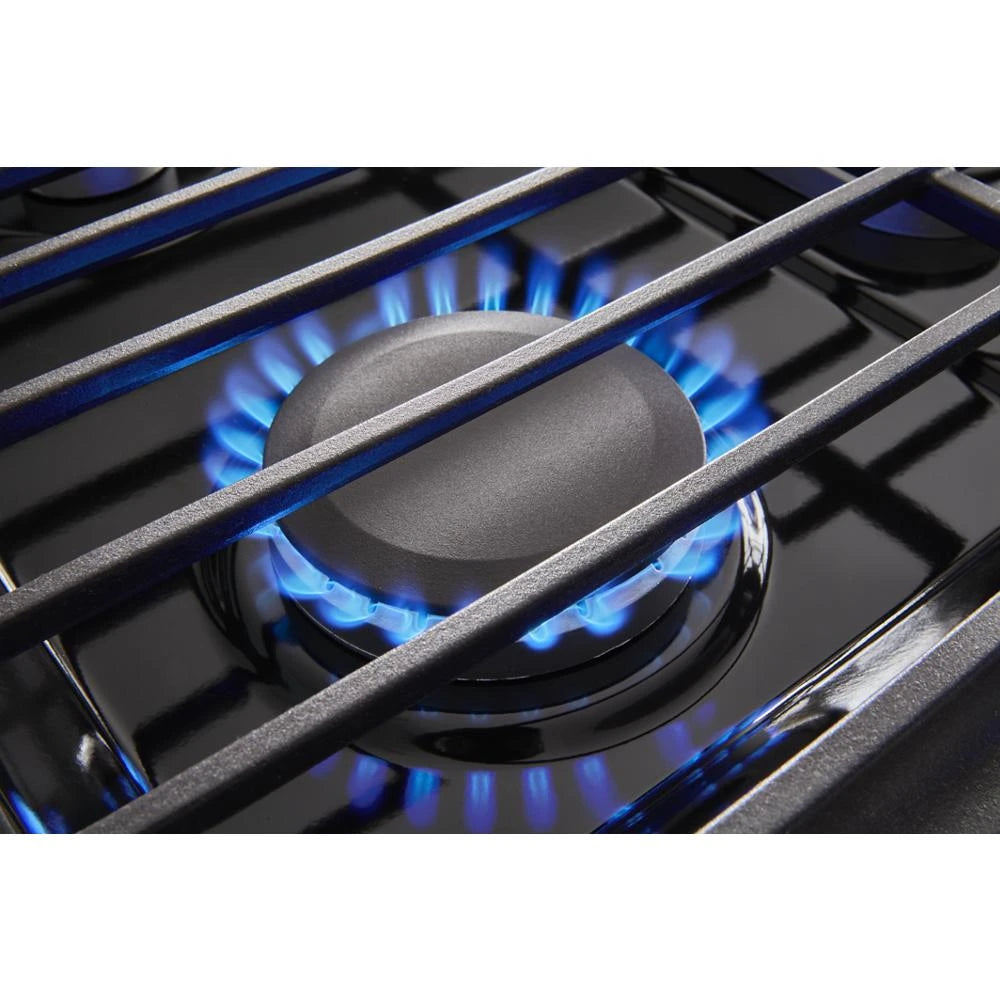

  • SpeedHeat™ Burner
    Get dinner to the table fast with this burner that generates the high heat needed to sear and boil quickly.
  • Frozen Bake™ Technology
    Skip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings.
  • AquaLift® Self-Cleaning Technology
    Clean your oven without harsh chemicals in only 40 minutes with AquaLift® Self-Cleaning Technology. Add water, run the cycle and then wipe away any remaining soils once the cycle is done.

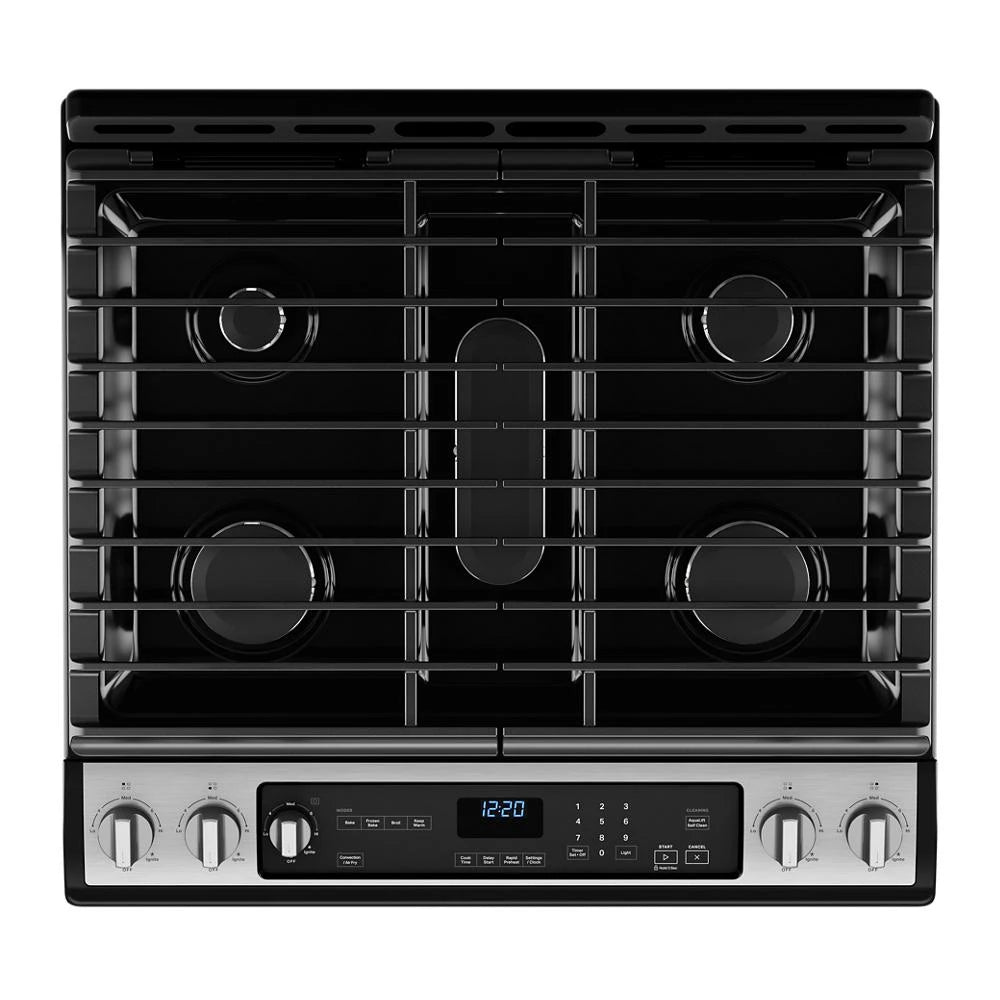

  • Center Oval Burner
    Easily fit large griddles and other longer cookware on this fifth burner.
  • Rapid Preheat
    Save time with faster preheating.* A rear fan combined with the use of all of the elements helps to heat the oven quickly.
  • Keep Warm Setting
    Keep dishes from getting cold with this setting that delivers low heat to the oven.

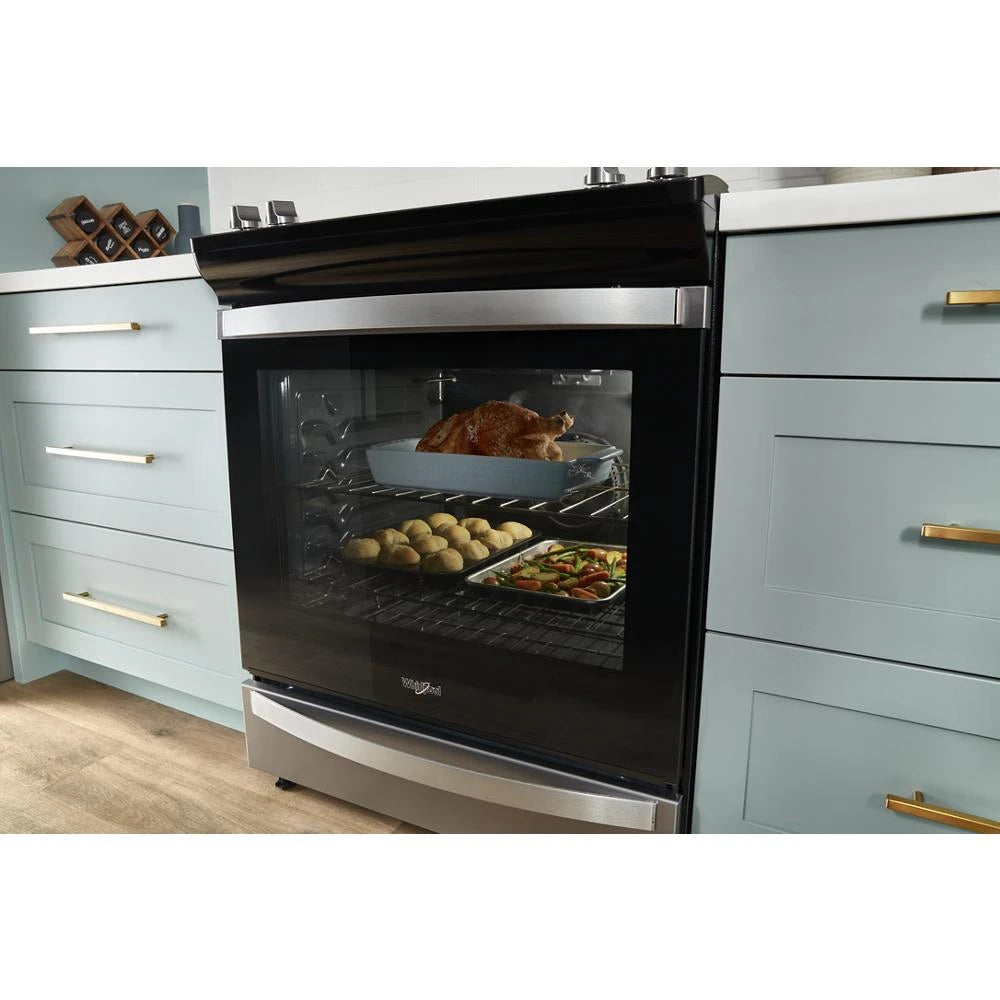

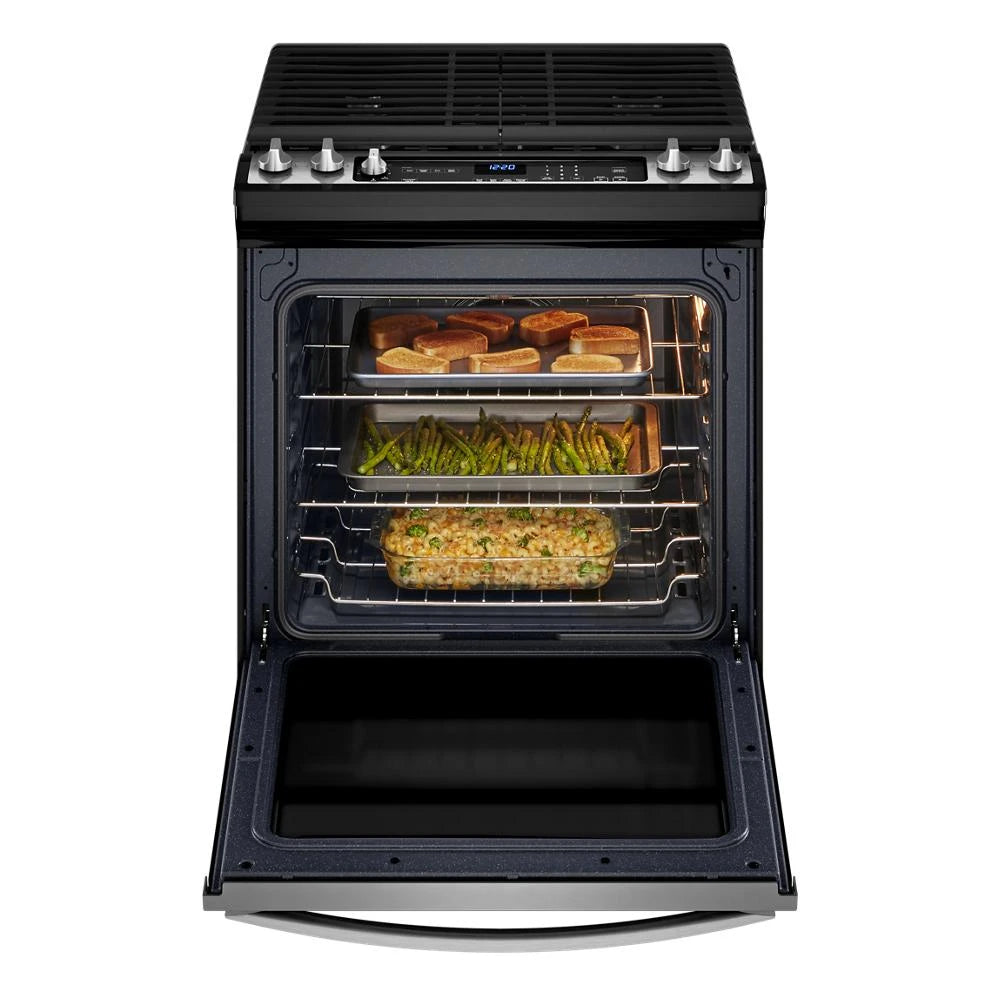

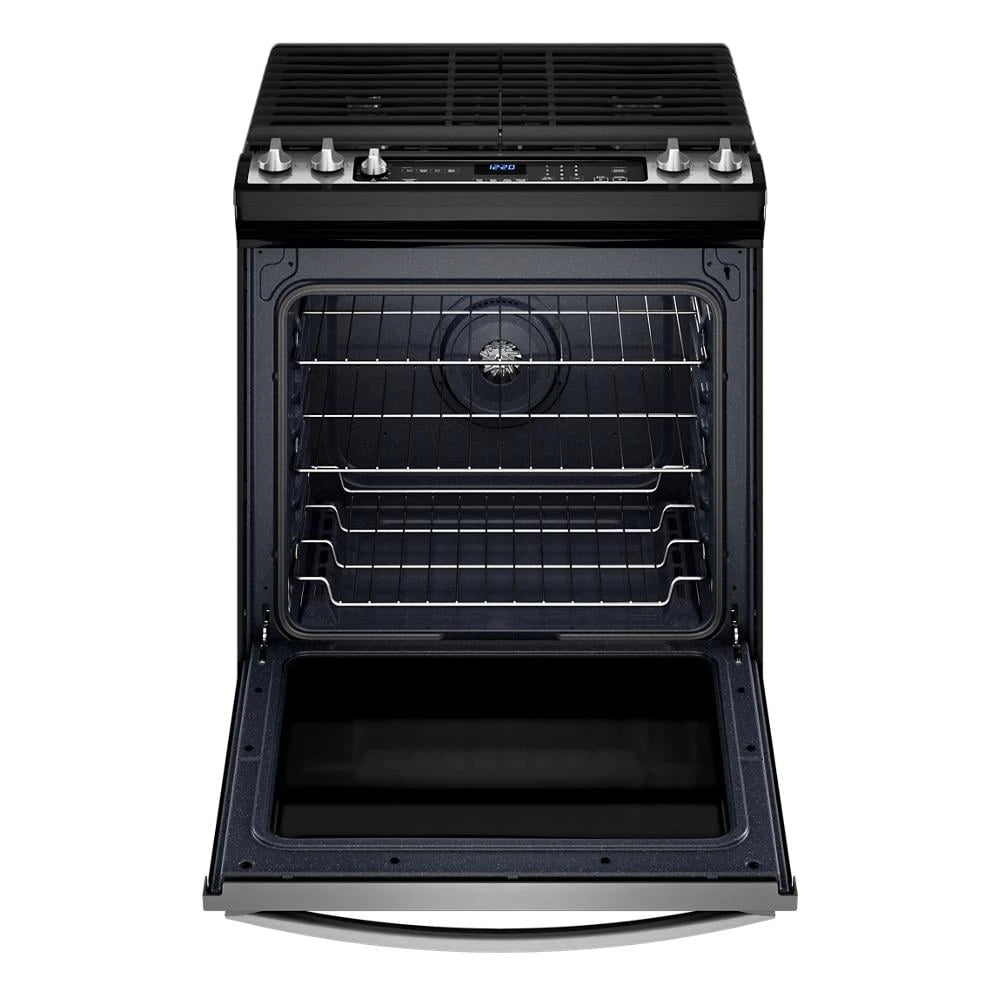

  • 5.8 Cu. Ft. Capacity
    Easily cook a whole meal with 5.8 Cu. Ft. Capacity.
  • Fingerprint Resistant
    Available in a stainless finish that’s easy to clean and resists fingerprints and smudges.
  • Control Lock Mode
    Disable the control panel to avoid unintended use and easily clean the controls.

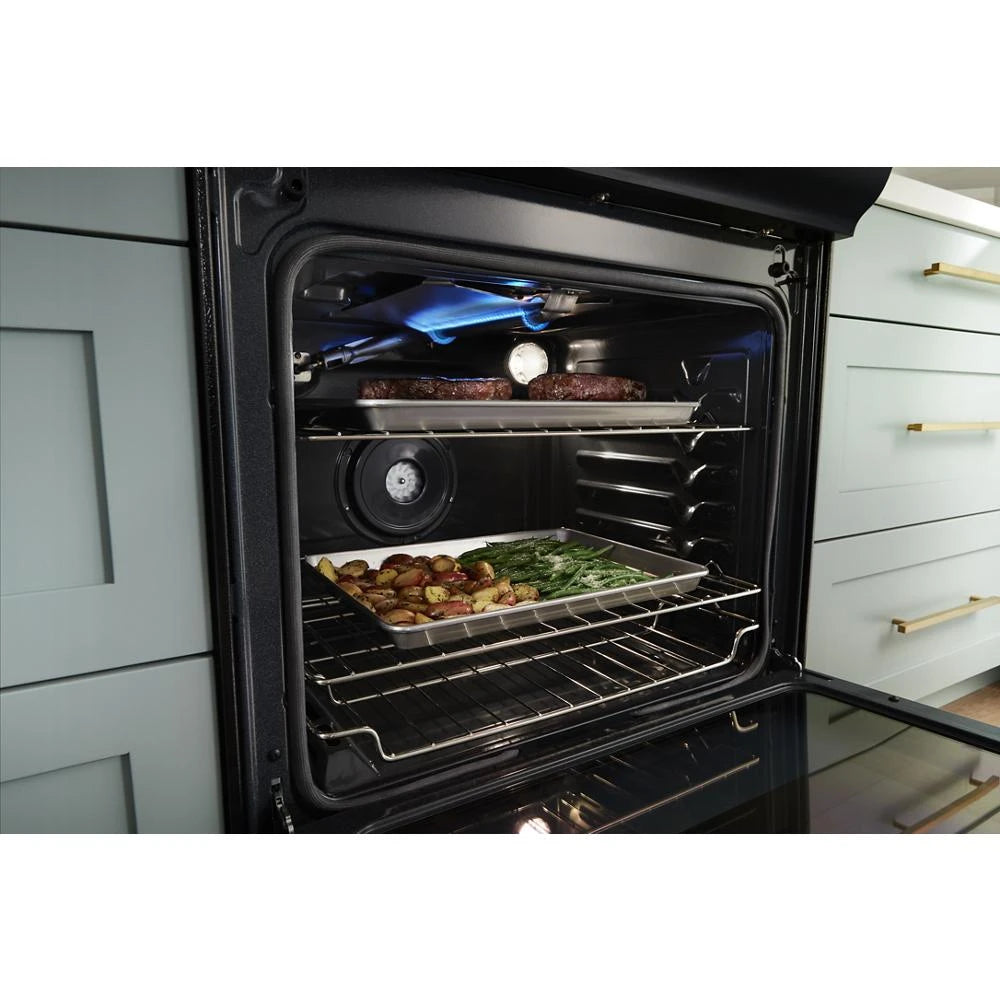

  • Broil Setting
    When you place food close to the oven’s top heating element using the Broil Setting, you can quickly sear meat, char vegetables, brown lasagna, caramelize the top of a casserole and more.
  • Hidden Bake Element
    A hidden bake element under the floor of the oven creates a smooth surface inside the oven that’s easier to clean.

Key Features

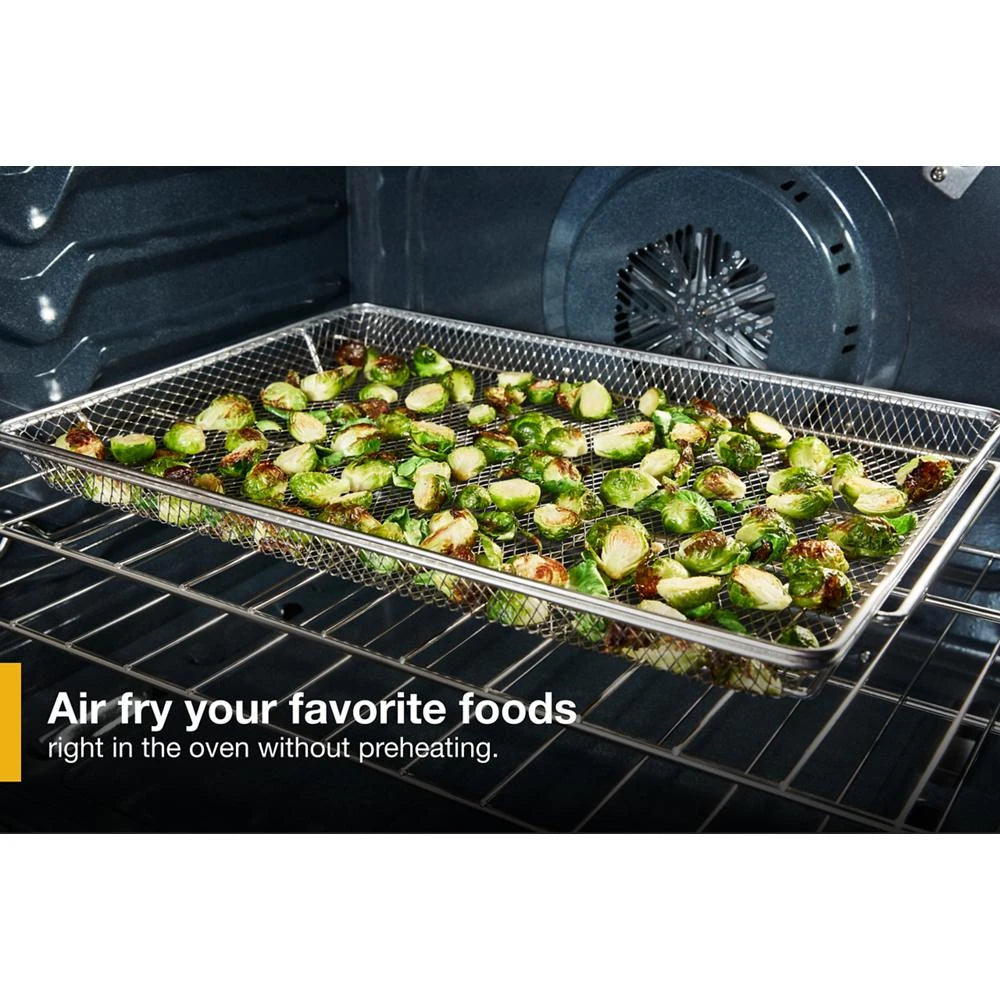

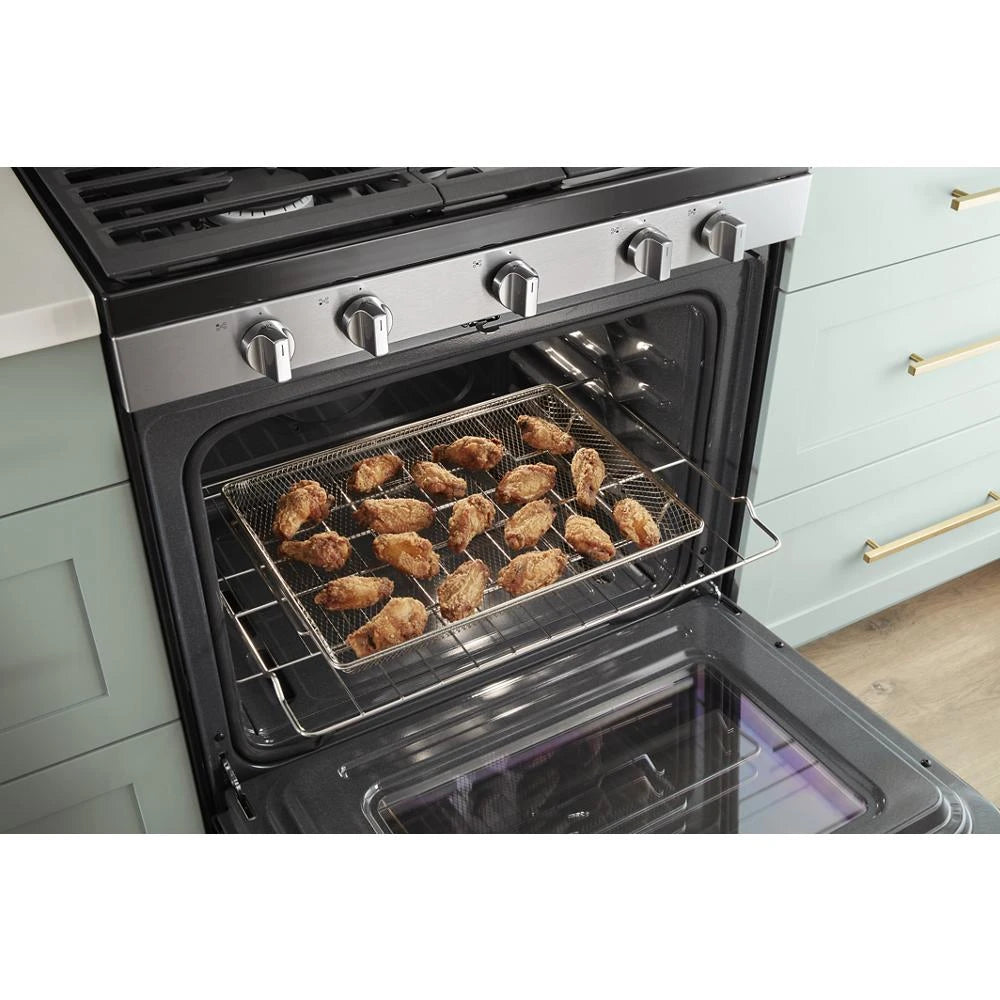

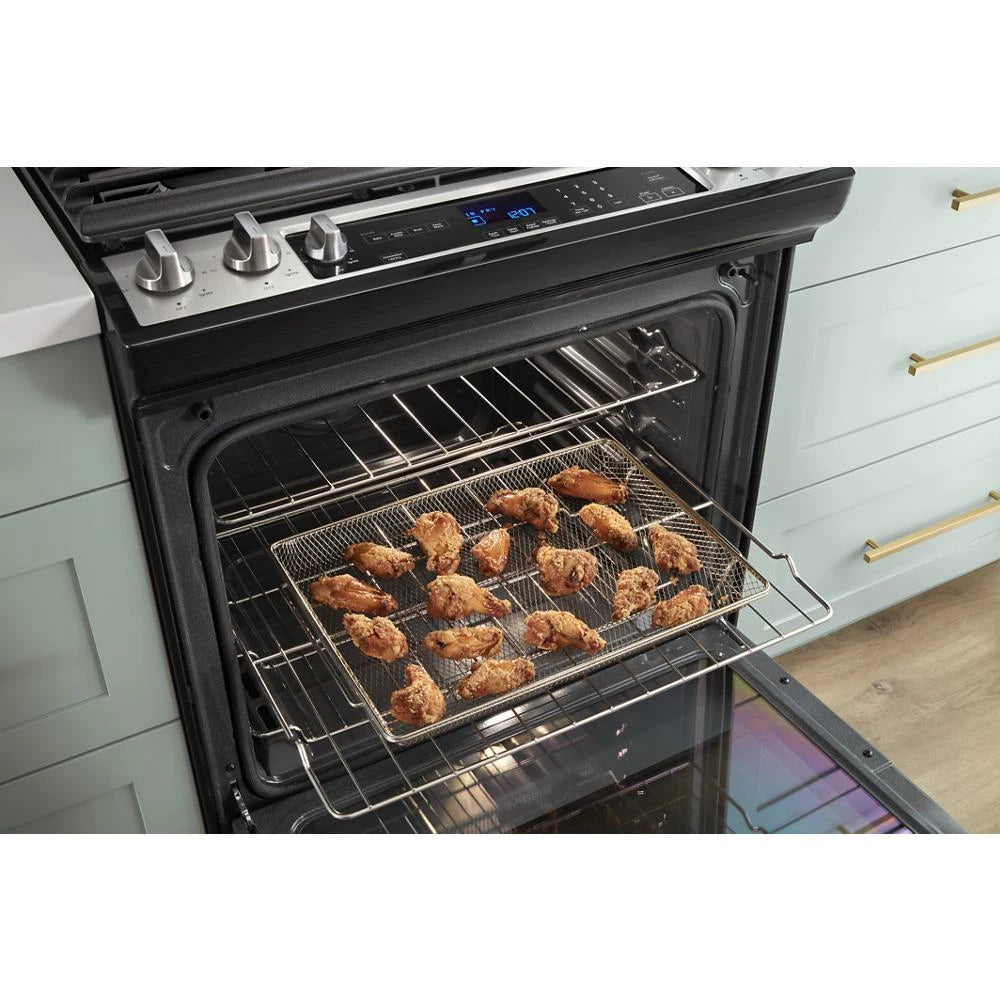

Air Fry Mode

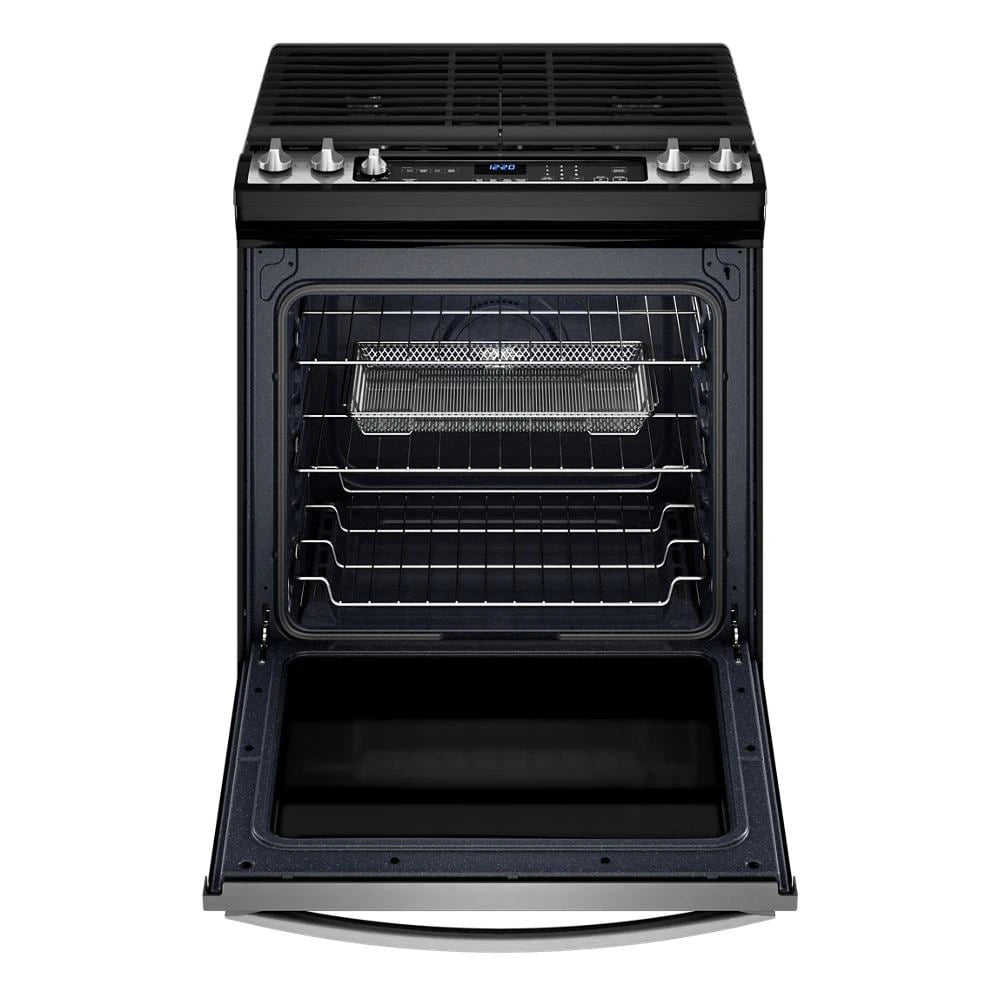

Skip preheating and air fry chicken nuggets, wings, fries and more to get crispy results right in your oven. The Air Fry Mode circulates hot air around the air fry basket to cook fried food in a healthy way, with less oil than traditional frying.

Storage Drawer

A Storage Drawer in the bottom of your range allows easy access to the items you use most and opens up space elsewhere.
