Sale price $1,422.70 Regular price $1,448.99 Save $26.29 / 1% OFF

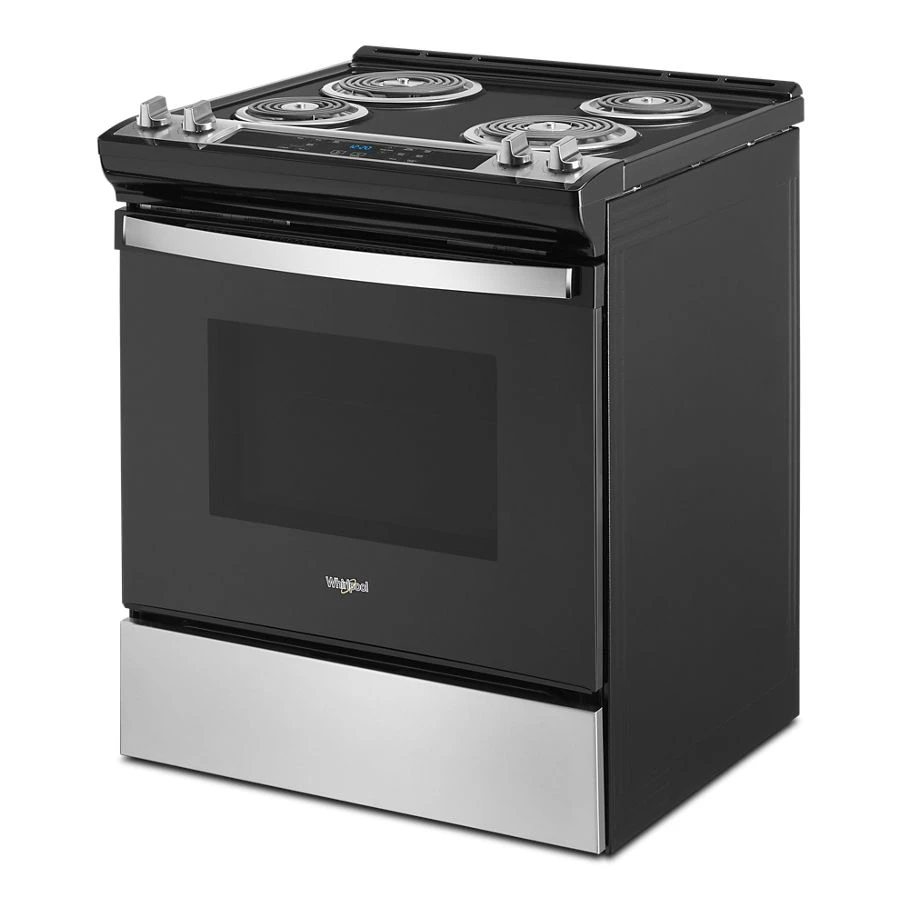

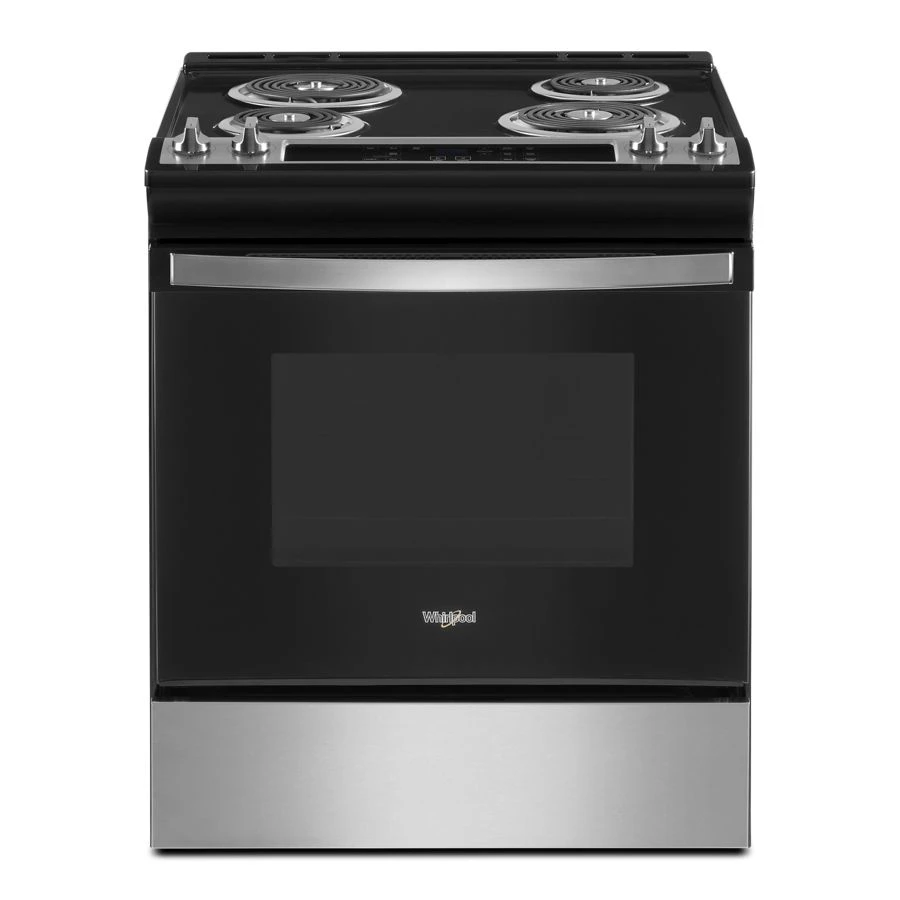

Product Details for WHIRLPOOL WEC310S0LS

Technical Details

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 31.5 in.
Shipping Height 43.5 in.
Shipping Length 33.94 in.
Shipping Weight 213 lbs.
Total of Shipping Weight 213 lbs.
Source Calculation

Dimensions & weight

Width 29.88 in.
Height 37 in.
Length 28.94 in.
Weight 173 lbs.
Cutout Depth 24 in
Cutout Height 36 in
Cutout Width 30-1/8 in
Depth Closed Excluding Handles 28-1/8 in
Depth With Door Open 90 Degree 47-3/8 in
Gross Weight 173 lbs
Maximum Height 37 in
Minimum Height 36 in
Net Weight 156 lbs
Oven Interior Depth 18-1/2 in
Oven Interior Height 18-1/8 in
Oven Interior Width 24-1/2 in

Electrical

Amps 40
Hz 60
Volts 120

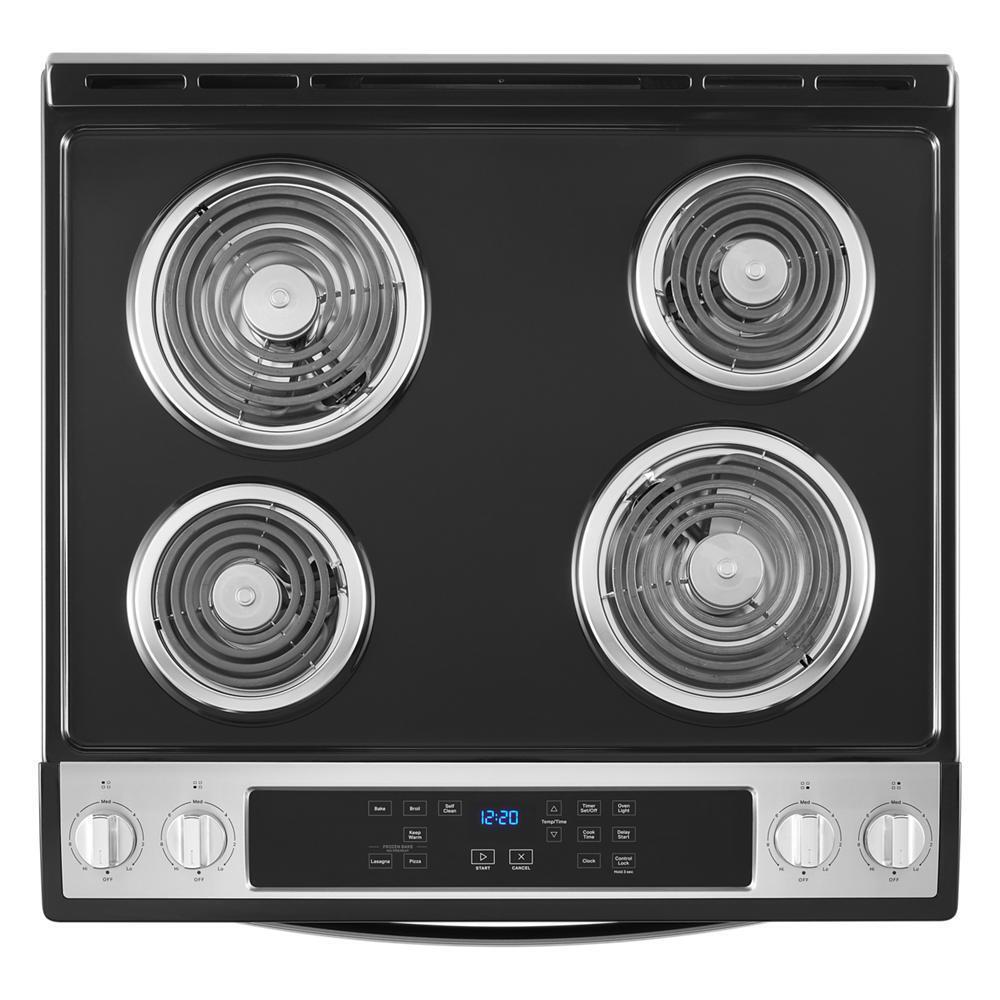

Element/burner details

Cooktop Element Style Coil
Left Front Element-Burner Size 8in.
Left Front Element-Burner Type Coil
Left Rear Element-Burner Size 6in.
Left Rear Element-Burner Type Coil
Number of Cooking Element-Burners 4
Right Front Element-Burner Size 6in.
Right Front Element-Burner Type Coil
Right Rear Element-Burner Size 8in.
Right Rear Element-Burner Type Coil
Left Front Element-Burner Power 2,600W
Left Rear Element-Burner Power 1,500W
Right Front Element-Burner Power 1,500W
Right Rear Element-Burner Power 2,600W

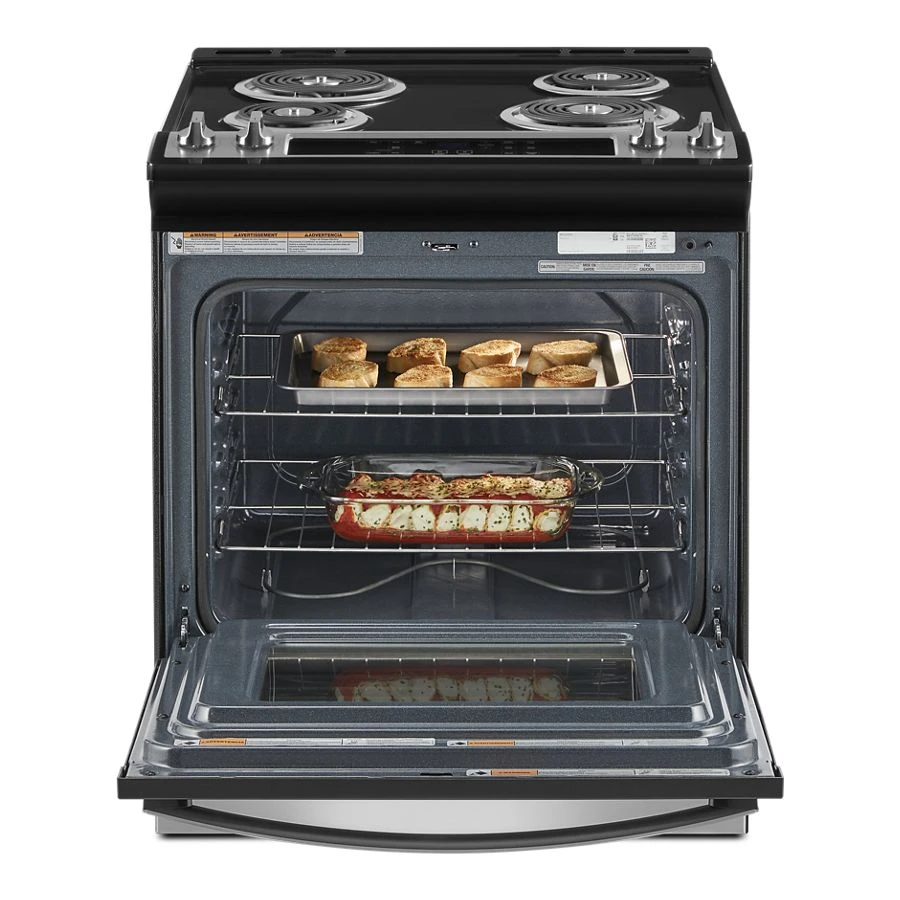

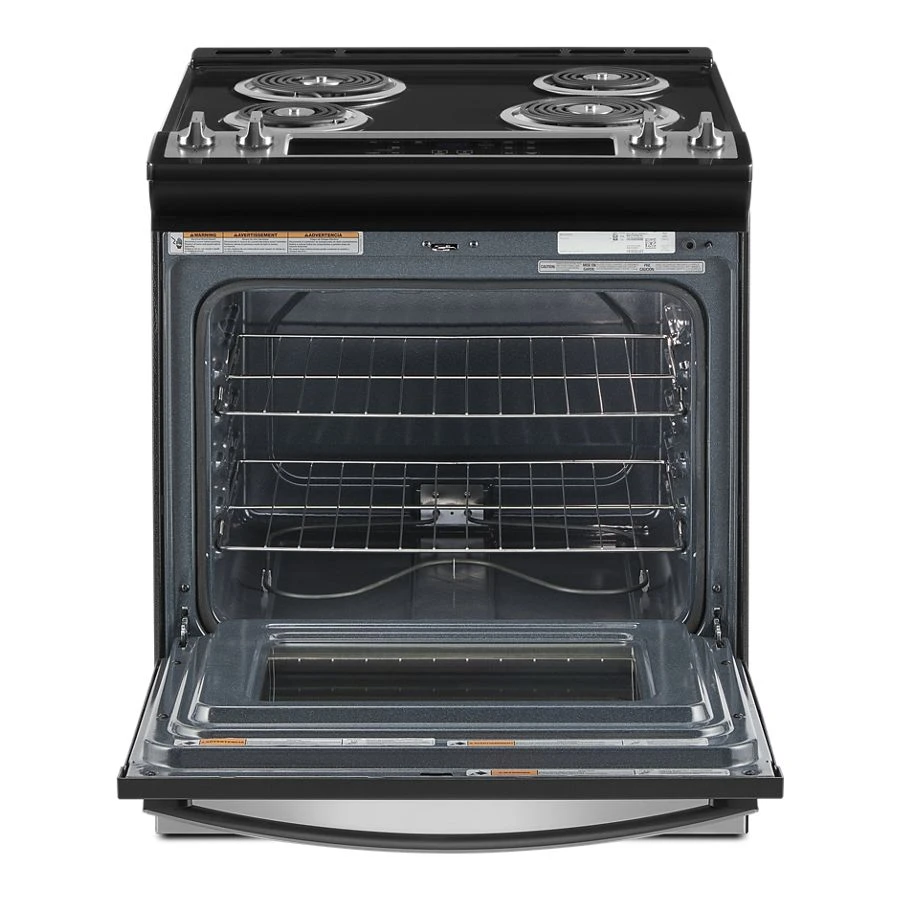

Oven cavity details

Automatic Convection Conversion Temperature Adjust No
Broiler Location Top of Oven
Convection Element Type None
Door Removable Yes
Hidden Bake Element No
Interior Color Dark Grey
Number of Oven Lights 1
Number of Oven Racks 2
Number of Rack Guides 5
Oven Cleaning Type Self-Cleaning
Oven Cooking System Thermal
Oven Light Switch Location Oven Control
Oven Light Type Incandescent
Oven Rack Type Standard (Both)
Bake Element Power 2,400 W
Broiler Element Power 3,400 W

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 18.51 ft³
Dimensional Weight 230.12 lbs.
Total of Cubes 18.51 ft³
Total of Dimensional Weight 230.12 lbs.

Other

Capacity 4.8 cu. ft.
Common Size 30 in

Certifications

Ada Compliant Yes
Prop65 CA
Ul Yes
ADA Compliant Yes
UL Yes

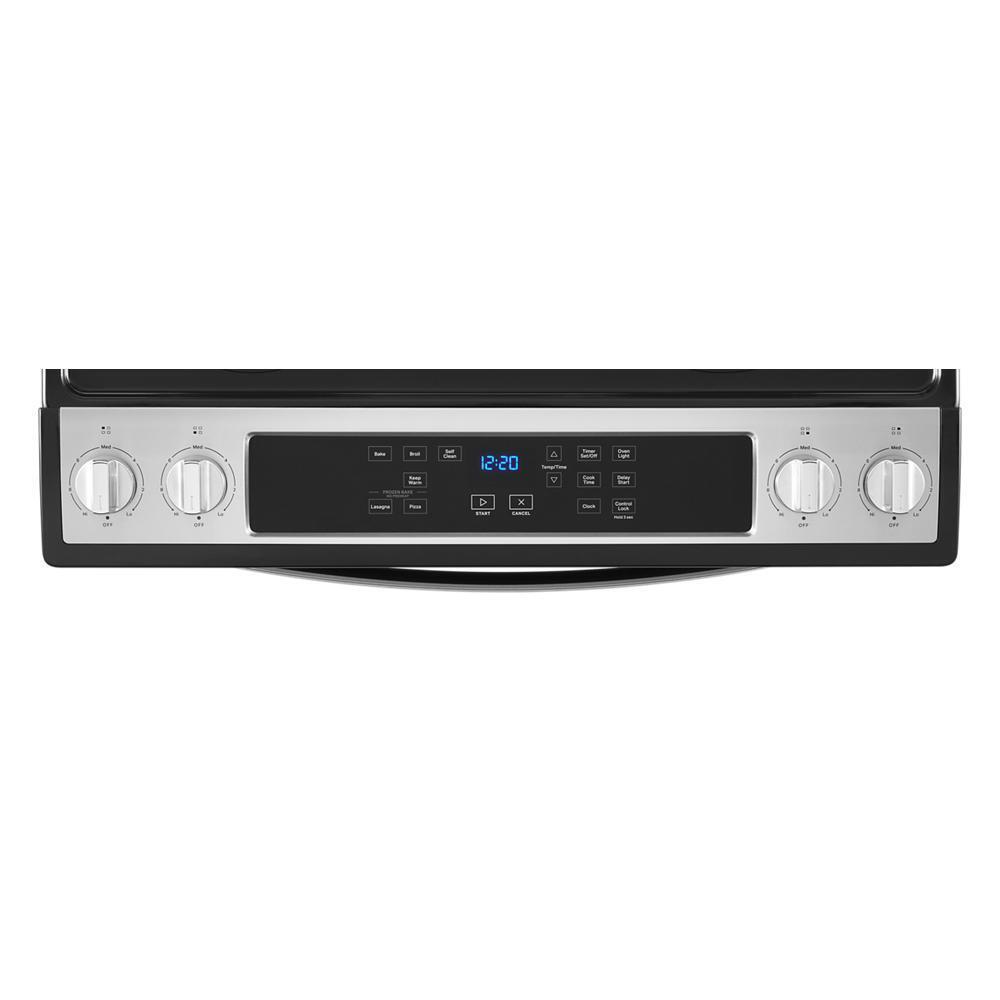

Controls

Display Color Blue
Electronic Display Type LED

Cooktop details

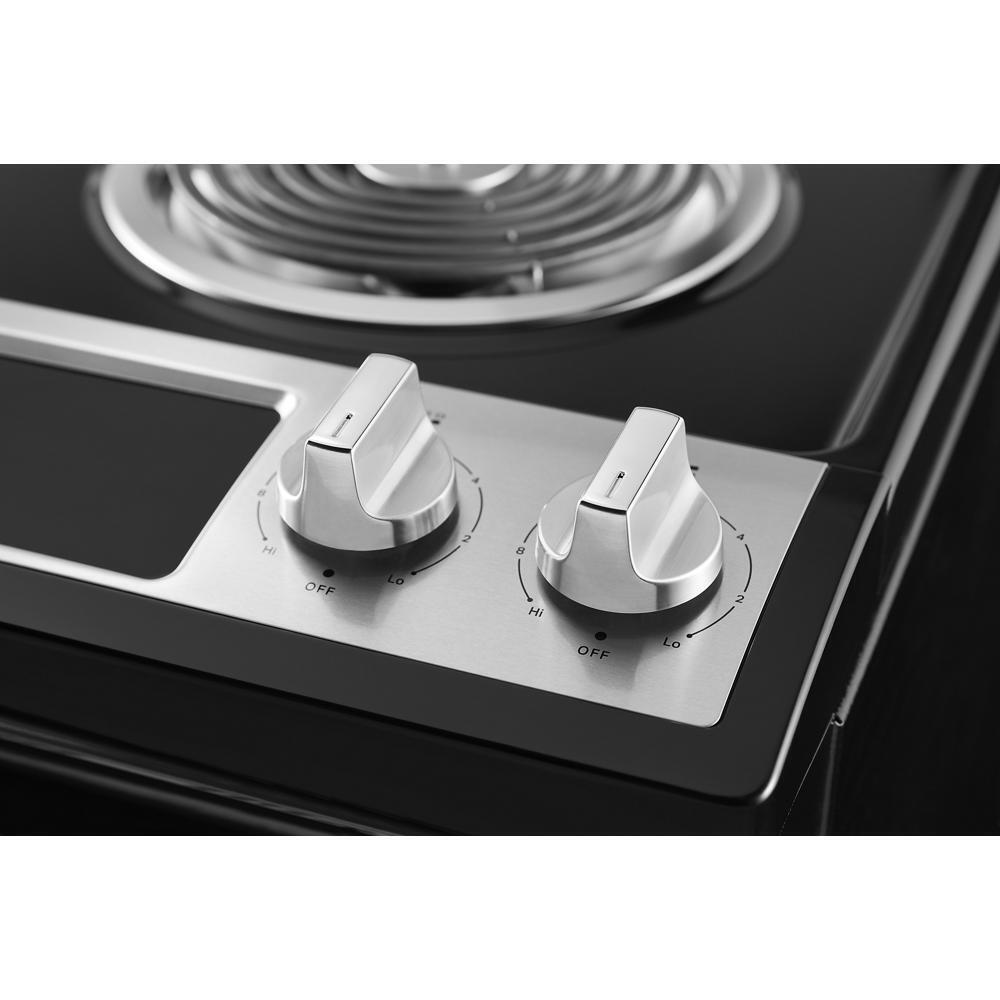

Cooktop Control Knob Color Stainless Steel
Cooktop Control Knob Type Plastic
Cooktop Control Location Front
Cooktop Control Type Knobs
Cooktop Surface Color Black
Cooktop Surface Material Porcelain Coated Steel
Griddle Included N/A
Heating Element On Indicator Light Yes
Hot Surface Indicator Light Yes

Details

Automatic Convection Conversion Temperature Adjust No
Cooktop Configuration All Burners
Fuel Type Electric
Oven Light Switch Location Oven Control
Power Outage Compatible No
Range Drawer Type Storage Drawer
Range Type Freestanding
Oven Selections Audible Signal, Bake, Broil, Cancel/Off, Clock, Control Lock, Cook Time Indicator, Delay Start, Frozen Bake, Keep Warm/Warm Hold, Sabbath Mode, Smart Mode, Timer

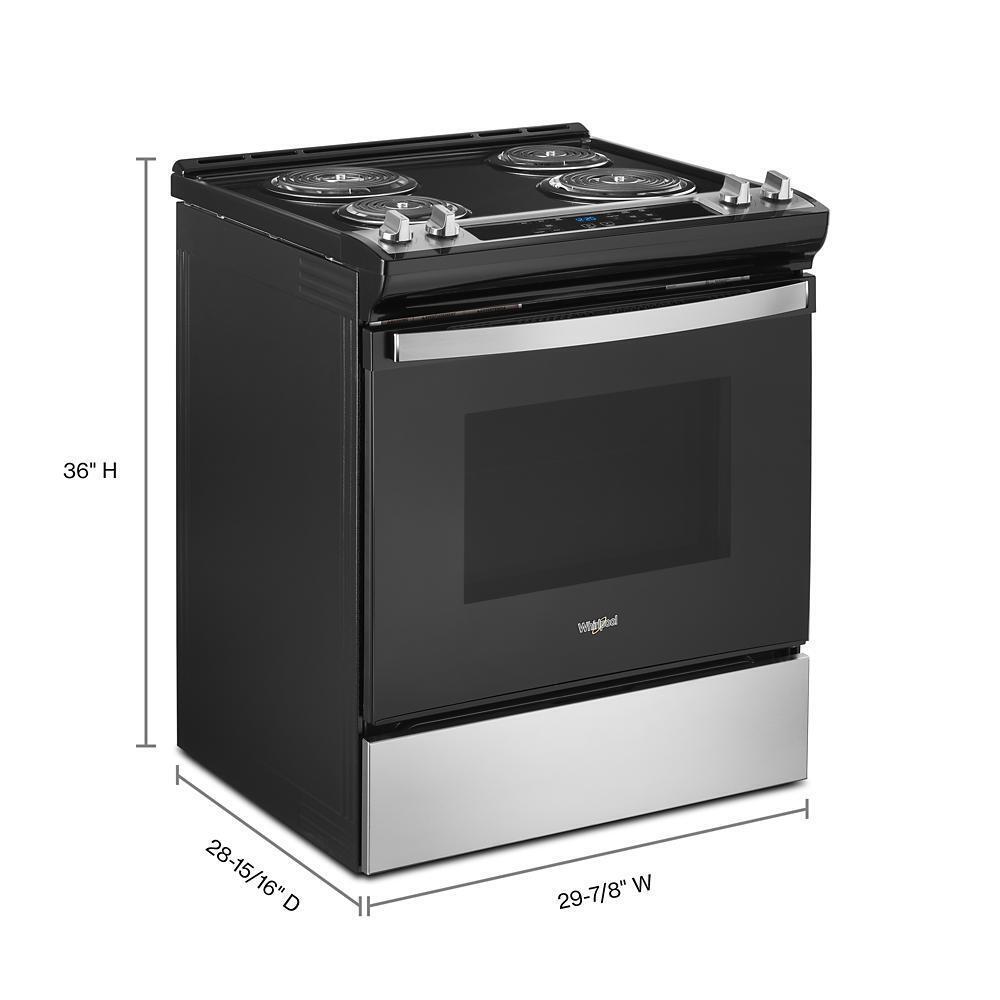

Dimensions

Carton Height 43.5
Capacity 4.8 cu. ft.
Common Size 30 in
Depth 28-15/16 in
Depth With Door Open 90 Degree 47-3/8 in
Maximum Height 37 in
Minimum Height 36 in
Width 29-7/8 in
Height 36 in
Product Height 36.0
Gross Weight 173 lbs
Oven Interior Height 18-1/8 in
Carton Width 31.5
Product Depth 28.94
Oven Interior Depth 18-1/2 in
Cutout Depth 24 in
Cutout Height 36 in
Depth Closed Excluding Handles 28-1/8 in
Carton Depth 30.5
Cutout Width 30-1/8 in
Oven Interior Width 24-1/2 in
Net Weight 156 lbs
Product Width 29.88

Element/burner details

Cooktop Element Style Coil
Left Front Element-burner Power 2
Left Front Element-burner Size 8.0
Left Front Element-burner Type Coil
Left Rear Element-burner Power 1
Left Rear Element-burner Size 6.0
Left Rear Element-burner Type Coil
Number of Cooking Element-burners 4
Right Front Element-burner Power 1
Right Front Element-burner Size 6.0
Right Front Element-burner Type Coil
Right Rear Element-burner Power 2
Right Rear Element-burner Size 8.0
Right Rear Element-burner Type Coil

Exterior details

Door Type Glass
Handle Color Stainless Steel
Handle Material Metal
Handle Type Reach Through Handle
Oven Control Location Front
Oven Control Type Tap Touch
Oven Window Size Large

Oven details

Bake Element Power 2
Broiler Element Power 3
Broiler Location Top of Oven
Convection Element Type None
Door Removable Yes
Hidden Bake Element No
Interior Color Dark Grey
Number of Oven Lights 1
Number of Oven Racks 2
Number of Rack Guides 5
Oven Cleaning Type Self-Cleaning
Oven Cooking System Thermal
Oven Light Type Incandescent
Oven Rack Type Standard (Both)

Features

  • Meets ADA Standards for Accessible Design
  • Clean without chemicals using the Adjustable Self-Clean Cycle
  • Sear, char, brown or caramelize foods with the Broil Setting
  • See when the cooktop s still on or hot with Cooktop Indicator Lights
  • Program the oven to bake at a future time with Delay Start
  • Skip preheating with FROZEN BAKE cooking technology
  • Dishes stay ready to serve with the Keep Warm Setting
  • Use Sabbath mode for regular baking at a constant temperature



Description

Simplify steps in your cooking process with an electric slide in range that lets you skip preheating using Frozen Bake(TM) Technology and get favorites like frozen pizza on the table quickly. It also features a high-temperature, adjustable self clean oven cycle so you can clean inside the oven without using chemicals.

Key Features

4.8 Cu. Ft. Capacity

Easily cook large meals with 4.8 Cu. Ft. Capacity

4.8 Cu. Ft. Capacity

Easily cook large meals with 4.8 Cu. Ft. Capacity

4.8 Cu. Ft. Capacity

Easily cook large meals with 4.8 Cu. Ft. Capacity

4.8 Cu. Ft. Capacity

Easily cook large meals with 4.8 Cu. Ft. Capacity

4.8 Cu. Ft. Capacity

Easily cook large meals with 4.8 Cu. Ft. Capacity

4.8 Cu. Ft. Capacity

Easily cook large meals with 4.8 Cu. Ft. Capacity

4.8 Cu. Ft. Capacity

Easily cook large meals with 4.8 Cu. Ft. Capacity

4.8 Cu. Ft. Capacity

Easily cook large meals with 4.8 Cu. Ft. Capacity

4.8 Cu. Ft. Capacity

Easily cook large meals with 4.8 Cu. Ft. Capacity

4.8 Cu. Ft. Capacity

Easily cook large meals with 4.8 Cu. Ft. Capacity

4.8 Cu. Ft. Capacity

Easily cook large meals with 4.8 Cu. Ft. Capacity

4.8 Cu. Ft. Capacity

Easily cook large meals with 4.8 Cu. Ft. Capacity
