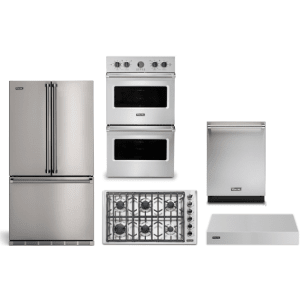

Viking 5-Piece Package RVFFR336SS 36 Counter-Depth French-Door Refrigerator and VGSU53616BSS 36 Professional 5 Series Gas Cooktop and VDOE530SS 30 Double Electric Wall Oven and VDWU524SS 24 Integrated Dishwasher and VWH536121SS 36 Wall Mount Range Hood

Commercial-Type Cooking Power

• Gas 36" Wide Cooktop
  • Exclusive BlackChrome(TM) Knobs ship standard
  • Left front - 18,000 BTU high
  • Left rear - 10,000 BTU high
  • Center/Center front - 12,000 BTU high
  • Center rear - 12,000 BTU high
  • Right front - 6,000 BTU high
  • Right rear - 8,000 BTU high
• Highest combined BTU rating in the industry, featuring sealed burners with brass burner rings in a wide variety of sizes
• Powerful 18,000 BTU burner delivers commercial power for high heat saut(eback)ing, rapid boiling and quick recovery
• Simmer settings on all burners allows low BTU output for heating delicate sauces
• EXCLUSIVE SureSpark(TM) Ignition System ensures automatic ignition/re-ignition should flame extinguish at any time while cooking

Safe-Easy Operation

• Child proof, push-to-turn metal knobs for safe use
• Automatic electric spark ignition means no standing pilot to re-light, waste energy or add extra heat to the kitchen
• EXCLUSIVE ScratchSafe(TM) Grate Design provides ultimate protection from scratches and ensures proper placement of the heavy-duty, porcelain-coated cast iron grate

Easy Maintenance and Cleanup

• Updated commercial-type styling incorporates refined detailing
• Permanently sealed burners prevent spills from entering burner box
• Deep, seamless recessed burner pan retains liquid spills
• Durable laser-etched graphics withstand the rigors of regular cleaning
• Removable knobs, grates, and burner ports/caps make cleanup easy

Replaces Most Ordinary Cooktops

• Overall/burner box dimensions designed to fit virtually all 36" wide cooktop cutouts

Optional Accessories

• WRGVGC - Porcelain-coated cast iron wok ring fits securely over grates to accommodate a traditional wok
• LPKVGC - LP/Propane Conversion Kit
• NATVGC - Natural Gas Conversion Kit
• NKHAVGC - High Altitude Natural Gas Conversion Kit

Exclusive Finishes

• Available in Stainless Steel (SS)

Model Numbers

• VGSU53616BSS - 36"W. Gas Cooktop; six burners

California Prop. 65 WARNING: Cancer and birth defects or other reproductive harm - www.P65Warnings.ca.gov

The brand Viking VDOE530SS delivers premium performance with this 30-inch double electric wall oven. Designed with true convection in both ovens, digital touch controls, and halogen lighting, it offers precise cooking in a professional-grade stainless steel package. The heavy-duty racks, multi-mode settings, and self-cleaning function ensure convenience and durability for everyday and gourmet meals.

MULTI-LEVEL WASHING
Variable pressure wash adjusts water volume, pressure, and temperature according to load size and soil levels
(BULL)Multi-level washing with stainless steel bottom spray arm, upper spray arm and top nozzle ensures clean dishes
(BULL)Intensive lower rack washing with Extra Spray Arm
(BULL)Turbidity sensor monitors the soil level of the dishes for superior quality
(BULL)Triple filtration system removes the smallest particles for clean water circulation
(BULL)Flow-through water heater is concealed to provide a safer alternative to exposed heaters TURBO FAN DRY
Fan circulates air for efficient drying performance QUIET CLEAN(TM) PERFORMANCE PACKAGE - 42dB
Three layers of insulation - bitumen, cotton, and full side walls create one of the quietest dishwashers on the market
(BULL)Brushless discharge and circulation motor LOADING
Industry-leading heavy gauge top and bottom dish baskets hold even the heaviest dishes
(BULL)Upper Smart FullSize(TM) Rack is designed to allow cleaning of cutlery while washing tall items simultaneously in upper rack
(BULL)Holds up to 16 international place settings along with silverware and cutlery
(BULL)Top rack is 3-positon adjustable with or without dishes for versatile loading
(BULL)Telescopic rail provides smooth motion for upper basket
(BULL)Adjustable stemware shelves can be used for holding ladles or other small utensils
(BULL)Foldable tines provide versatility for the loading of pots, pans, and uniquely sized items in top and bottom racks
(BULL)Bottom rack has eight and top rack has six split foldable tines with variable setting from flat to vertical
(BULL)Sliding cutlery basket can be moved horizontally to any position FEATURES
LCD screen with remaining time indicator
(BULL)Touch button direct access control
(BULL)Cycle indicator light on floor
(BULL)Energy Star QualifiedCYCLES/OPTIONS
Cycles
Pots/Pans Plus - Extra-heavy soil level
(BULL)GlassCare
(BULL)Auto - determines the amount of water and temperature, needed
(BULL)CombiClean - washes delicate items in upper basket and heavier soiled items in lower basket
(BULL)Regular Wash - Normal soil level
(BULL)HourWash
(BULL)Quick Wash - 35 Minutes!
(BULL)Rinse/Hold - Pre-rinse dishes clean
(BULL)Options
Express Function - Sensor detects rinse aid and automatically sets drying cycle duration
(BULL)Sanitize Function - Raises water temperature in final rinse to meet NSF requirements
(BULL)High Gloss - Provides superior drying performance
(BULL)Intense Wash - Helps wash heavily soiled dishes
(BULL)Delay Start - Allows delayed activation for up to 24 hoursMODELS
VDWU524SS - 24"W. Dishwasher
California Prop. 65 WARNING: Cancer and birth defects or other reproductive harm - www.P65Warnings.ca.gov

The brand Viking VWH536121SS is a professional-grade 36-inch wall mount range hood that provides chef-level ventilation and stylish presence. Equipped with a high-performance 600 CFM blower, dual LED lamps, and four-speed electronic controls, it delivers quiet yet powerful airflow. Dishwasher-safe stainless steel baffle filters simplify maintenance, while brushed stainless steel construction adds durability and timeless aesthetics. Ideal for removing smoke, odors, and grease, this hood complements high-output cooktops in upscale kitchen environments.
