What's included: 5 items

  • Energy Star 22.3 Cu. Ft. Smart Counter-depth 4-door French-door Refrigerator

    Cafe CXE22DP4PW2 Café 22.3 Cu. Ft. Smart Counter-depth 4-door French-door Refrigerator Matte White

    • SKU SKU: CXE22DP4PW2 UPC: 84691855194
    • Type French Door Refrigerators
  • 30" Smart Slide-in, Front-control, Induction And Convection Double-oven Range

    Cafe CHS950P4MW2 Café 30" Smart Slide-in, Front-control, Induction And Convection Double-oven Range Matte White

    • SKU SKU: CHS950P4MW2 UPC: 84691834892
    • Type Slide-In Ranges
  • Café Customfit Stainless Interior Smart Dishwasher With Ultra Wash Top Rack And Dual Convection Ultra Dry, 44 Dba

    Cafe CDT858P4VW2 Café Customfit Stainless Interior Smart Dishwasher With Ultra Wash Top Rack And Dual Convection Ultra Dry, 44 Dba Matte White

    • SKU SKU: CDT858P4VW2 UPC: 84691914600
    • Type Built-In Dishwashers
  • 1.7 Cu. Ft. Convection Over-the-range Microwave Oven

    Cafe CVM517P4RW2 Café 1.7 Cu. Ft. Convection Over-the-range Microwave Oven Matte White

    • SKU SKU: CVM517P4RW2 UPC: 84691882718
    • Type Over-the-Range Microwaves

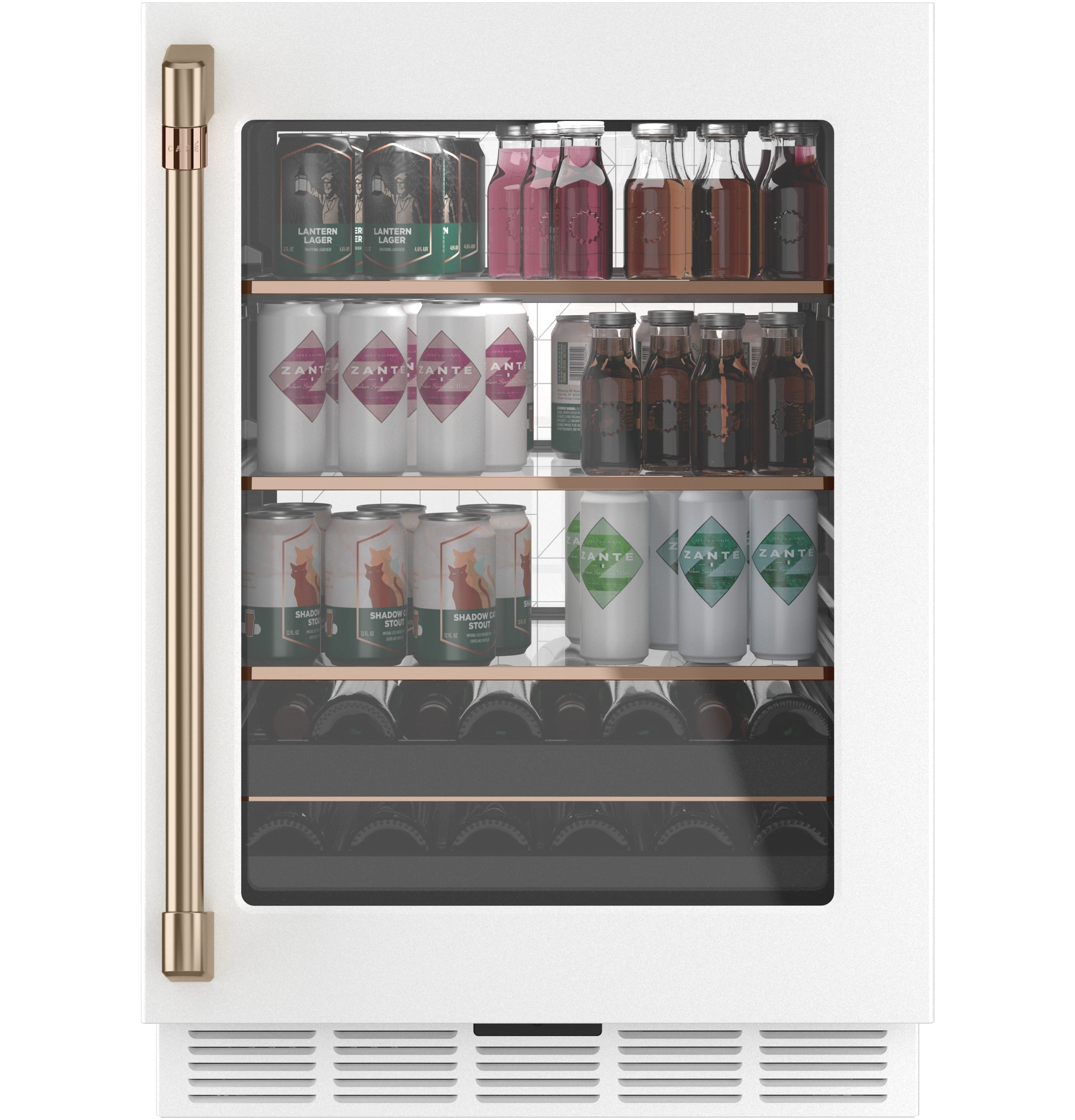

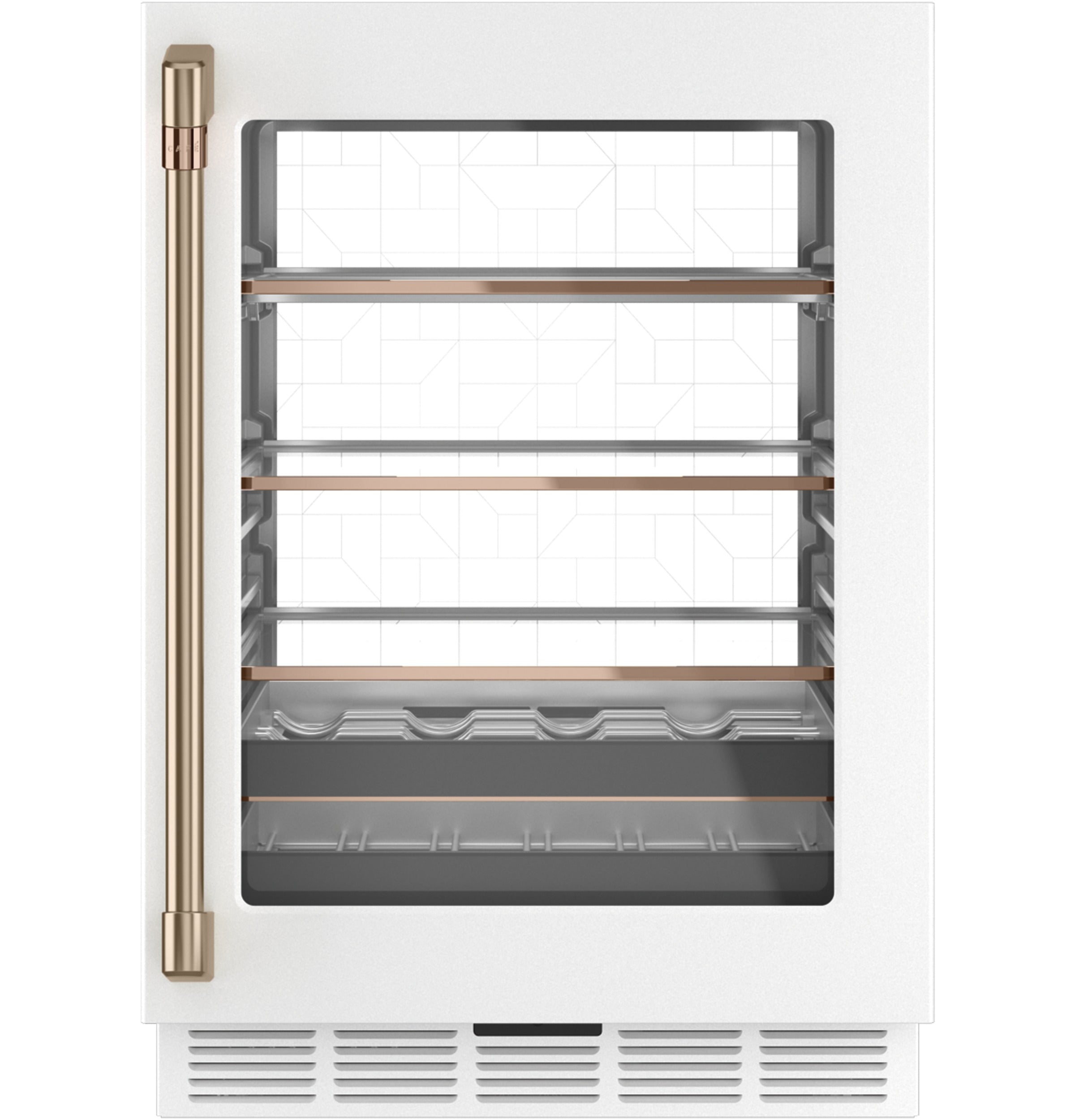

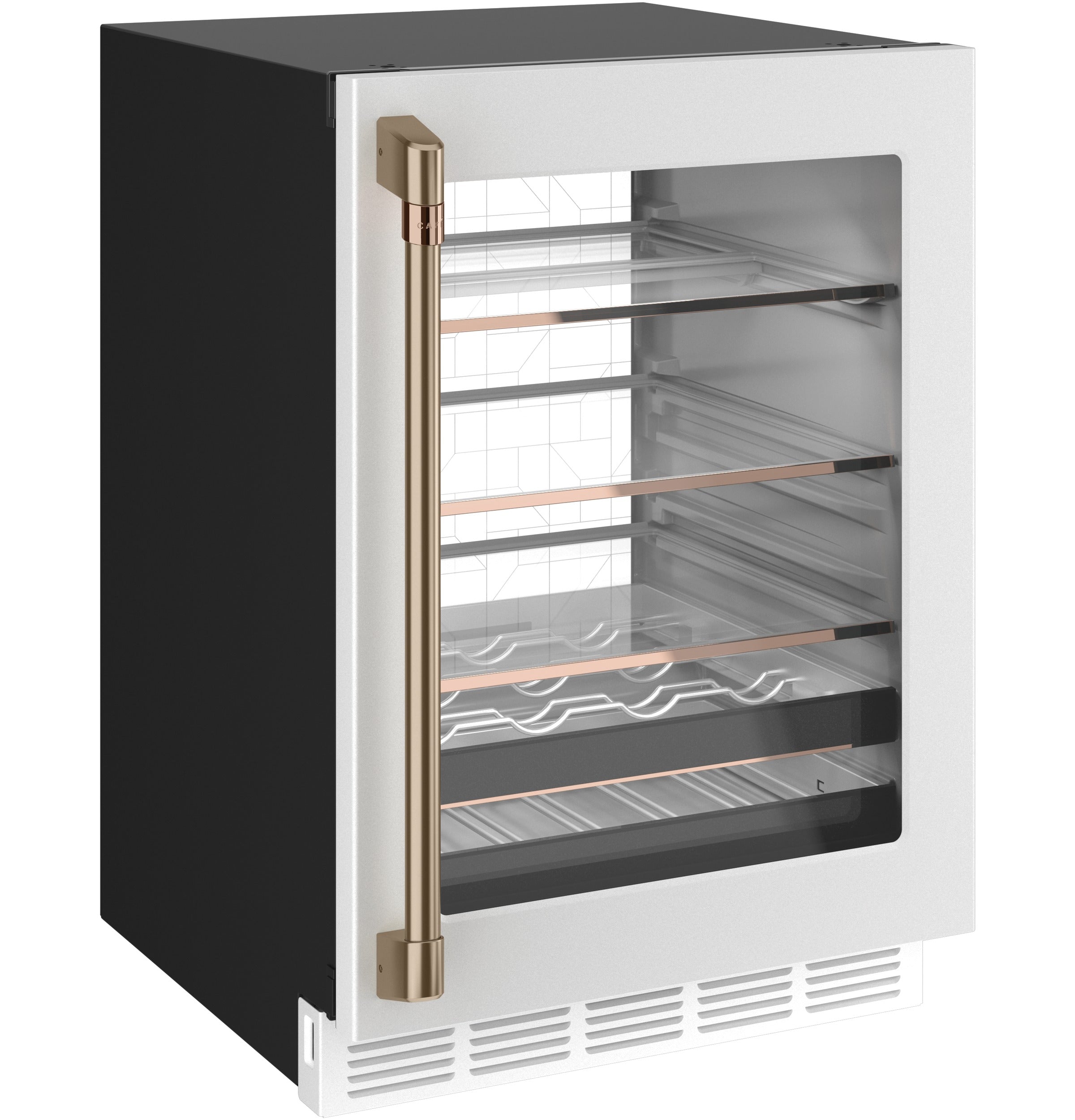

  • Energy Star® Beverage Center

    Cafe CCP06BP4PW2 Café 126-can Or 14-bottle Beverage Center Matte White

    • SKU SKU: CCP06BP4PW2 UPC: 84691853930
    • Type Beverage Centers
  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Videos
  • Rebates
  • Reviews
Sale price $13,866.13 Regular price $21,308.98 Save $7,442.85 / 34% OFF

Product Details for Cafe CXE22DP4PW2

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Weights & dimensions

Overall Depth 31.25 in
Overall Height 69.875 in
Height to Top of Hinge 69.75 in
Net Weight 360 lb
Overall Width 35.625 in
Back Air Clearances 2 in
Approximate Shipping Weight 384 lb
Depth with Door Open 90° 43 in
Width w/Door Open 90 Degrees Incl. Handle 44.875 in
Case Depth Without Door 24.5 in
Top Air Clearances 1 in
Depth Without Handle 28.875 in
Height to Top of Case 68.625 in
Overall Depth with Handle 31.25 in
Side Air Clearances 1/8 in

Features

Temperature Management Features Multiflow Air System
Center Drawer Features Removable Drawer Liner
Dispenser Features Water Filter Indicator Light
Control Type Electronic Temperature Controls
Icemaker Space Saving Ice
Number of Doors 4
WiFi Connect Built-In
Performance Features Easily Removable Door Gaskets
Sabbath Mode Optional
Filter Location Left wall
Door Alarm Yes
Freezer Storage Baskets 3 Total Full-Width
Temperature Management System TwinChill™ Evaporators
Freezer Cabinet Drawer Features LED Lighting
Connected Capabilities IFTTT
Freezer Door Bins 1 Tilt-Out
Defrost Type Frost Guard
Center Drawer Select Temp Convertible
Fresh Food Door Features Dairy Compartment
Leveling System 2 Point Front Adjustable
Fresh Food Cabinet Shelves 4 Glass Split
Mobility Rollers Yes
Fresh Food Door Bins 6 Total
Freezer Features Interior Lighting - LED
Exterior Style Counter-Depth
Temperature Display External Digital
Fresh Food Features LED Back Lit Wall
Configuration French Door & Double Drawer
Refrigerant Type R600a
Dispenser Large Stainless Steel
Fresh Food Cabinet Drawers 2 Total
Water Filtration XWFE
Freezer Storage 3 Baskets (1 Large Bulk, 1 Flat Bread, 1 Quick Reach)
Product Type French-Door Refrigerator
OU Certified OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately
Center Drawer Features Convertible Drawer
Dispenser Features Hands-Free AutoFill
Performance Features Dual Evaporator Cooling
Freezer Storage Baskets 1 Flat Bread
Freezer Cabinet Drawer Features 3 Tiered Baskets
Connected Capabilities DSM Capable
Fresh Food Door Bins 2 with Gallon Storage
Fresh Food Cabinet Drawers 1 Sealed Low Humidity
Water Filtration Water Filter Indicator Light
Connected Features Dispenser Proximity Lighting
Center Drawer Features Electronic Temp Control with 5 Settings (Soft Freezer, Meats, Beverages, Snacks, Wine & Control Lock)
Center Drawer Features 2 Tuck Away Sliding Glass Bin Dividers
Center Drawer Features Full-Extension Slides
Dispenser Cubes, Crushed Ice and Chilled Water
Dispenser Features Door Alarm
Dispenser Features Proximity Activated LED Dispenser Light
Freezer Cabinet Drawer Features 1 Tilt-Out Door BIn
Freezer Features Freezer Drawer with Full Extension Slides
Freezer Storage 1 Tilt-Out Door Bin
Freezer Storage Baskets 1 Quick Reach
Freezer Storage Baskets 1 Deep Bulk Storage
Fresh Food Cabinet Drawers 1 Sealed High Humidity
Fresh Food Cabinet Shelves 1 Quick Space Shelf
Fresh Food Door Bins 2 Adjustable
Performance Features Deluxe Quiet Design
Product Type Bottom Freezer Refrigerator
Water Filtration GE Water Filtration 6 Month
Connected Capabilities Amazon Alexa
Connected Capabilities Google Home
Connected Features Icemaker On/Off
Connected Features High Temperature Alerts
Connected Features Temperature Adjustments
Connected Features Water Filter Status
Connected Features LED Light Wall Brightness
Connected Features Door Alarm Alerts
Connected Features Demand Response

Capacity

Fresh Food Capacity 12.68 cu ft
Convertible Drawer Capacity 2.92 cu ft
Freezer Capacity 6.73 cu ft
Total Capacity (cubic feet) 22.30 cu ft

Accessories

Optional Kits CXQB4H4PNSS - Brushed Stainless
Optional Matte White Side Panels CKQBRSCVW2
Optional Kits CXQB4H4PNBZ - Brushed Bronze
Optional Kits CXQB4H4PNBT - Brushed Black
Optional Kits CXQB4H4PNCU - Brushed Copper
Optional Kits CXQB4H4PNCG - Brushed Brass
Optional Kits CXQB4H4PNFB - Flat Black
Optional Matte White Side Panels CKQBLSCVW2

Appearance

Case Color White
Exterior Design Hidden Door Hinges
Door Stops Yes
Textured Steel Case Case Only - Dark Gray
Handle Color Brushed Bronze
Counter-Depth Design Yes
Door Swing French Door
Color Appearance Matte White
Hidden Door Hinge(s) Yes
Exterior Design Contoured Doors
Counter-Depth Design true
Handle Design CAFÉ™ Pro
Handle CAFÉ™

Power / ratings

Energy Consumption (kWh/year) 697
Volts/Hertz/Amps 120V ; 60Hz ; 15A
Electrical Requirements 120V
Hertz 60

Warranty

Warranty Notes See written warranty for full details
Labor Warranty Limited 1-year entire appliance
Parts Warranty Limited 1-year entire appliance

Other

Back Air Clearances 2 in
Top Air Clearances 1 in
Side Air Clearances 0.125 in

Dimensions & weight

Width 35.63 in.
Height 69.88 in.
Length 31.25 in.
Weight 360 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 40.63 in.
Shipping Height 74.88 in.
Shipping Length 36.25 in.
Shipping Weight 384 lbs.
Total of Shipping Weight 384 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 45.02 ft³
Dimensional Weight 559.64 lbs.
Total of Cubes 45.02 ft³
Total of Dimensional Weight 559.64 lbs.

Description

22.3 Cu. Ft. Smart Counter-Depth 4-Door French-Door Refrigerator


Product Features

  • Stunning Aesthetics
    The counter depth refrigerator with gray interior and signature CAFÉ™ copper accents complements the LED light wall for stunning style inside and out
  • Advanced Water Filtration
    The included refrigerator water filter reduces 50+ impurities including lead, chlorine, microplastics, and PFOA/PFOS; providing clean, safe drinking water and ice (replacement water filters sold separately - check refrigerator filter compartment for compatible model)
  • Enhanced Shabbos Mode
    The Shabbos Keeper connects to your refrigerator to automatically enable Shabbos compatible modes each week and before every holiday (Shabbos Keeper sold separately, visit www.zmantechnologies.com for details)

Key Features

Counter Depth Design

Get a built-in look in the kitchen with a counter depth refrigerator that fits almost flush with the rest of the cabinets and counters

Built-In WiFi

Receive refrigerator alerts to a smart device and enable a range of features on this smart refrigerator, thanks to built-in WiFi powered by SmartHQ app

Flatbread Freezer Compartment

Use the slim, full-width freezer compartment for flatbread, pizzas and other uniquely shaped frozen items, which is part of a three-level, freezer storage system of sliding shelves and trays

Turbo Cool & Freeze

Quickly cool down the refrigerator with the Turbo Cool Setting, which is accessible through the SmartHQ app

Dual-Evaporators

This dual evaporator refrigerator features TwinChill™ evaporator climate zones in the fresh food and freezer sections, which help keep food at optimum freshness

Integrated Dispenser with Sensor

The integrated dispenser blends in with the refrigerator when not in use and, thanks to its refrigerator dispenser sensor system, automatically illuminates when you're close by and ready to use it

Convertible Drawer with Soft Freeze

Experience the flexibility of an adjustable temperature drawer with five customized temperature settings - Soft Freeze, Meat, Beverage, Snacks, and Wine - that range from 23 to 42 degrees

LED Lighting

Quickly find even the smallest refrigerated items with the help on an LED light wall, which sheds bright, uniform light throughout the interior of this refrigerator with LED lighting

Hands-Free Autofill

A hands-free AutoFill feature dispenses the perfect amount of filtered water as you multitask

Keep your leafy greens twice as long*

A Humidity Control System provides an environment for leafy green vegetables to last 2-1/2 times longer than standard vegetable drawers. (*Based on internal testing vs. similar size vegetable drawers with humidity controls from a leading competitor.)

In-the-Door Ice Maker

This refrigerator with in-the-door ice maker produces ice on demand and provides more interior storage space

From The Manufacturer

Videos

Rebates

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Videos
  • Rebates
  • Reviews
Sale price $13,866.13 Regular price $21,308.98 Save $7,442.85 / 34% OFF

Product Details for Cafe CHS950P4MW2

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Weights & dimensions

Overall Height 37.375 in
Overall Depth 29.5 in
Net Weight 236 lb
Depth Without Handle 26.875 in
Cabinet Width 30 in
Approximate Shipping Weight 256 lb
Overall Width 29.875 in
Height to Top of Rear Vent Trim 37.375 in
Depth with Door Open 43.875 in
Oven Interior Dimensions (W x H x D) (in.) 24 x 10-1/8 x 19-1/8 - Upper; 24 x 15 x 20-5/8 - Lower
Height to Cooking Surface (in.) 36.25 +/- .25

Features

Cooking System True Convection with Precise Air
Oven Interior Black
Element - Center 6" 100W Warming Zone
Oven Control Features Temperature Probe
Element - Left Front 8" 2500W Sync Element
Power Boil Burner Yes
Oven Cleaning Type Self-Clean with Steam Clean Option
Connected Capabilities The Google Assistant
Product Type Slide-In Double Oven
Heating Element "ON" Indicator Light 5
Cooktop Type Induction
Fuel Type Electric
Element - Right Front 11" 3700W Power Boil
Control Location Front controls
WiFi Connect Built-In
Control Type White Backlit
Hot Surface Indicator Lights 1
Sabbath Mode Yes
Element - Left Rear 8" 2500W Sync Element
Configuration Double Oven Range
Oven Features Hidden Bake (Both Ovens)
OU Certified No
Oven Cooking Modes Warming
Cooktop Burner Type Induction
Element - Right Rear 6" 1800W
Cooktop Surface Edge-to-Edge
Oven Rack Positions (Single or Upper/Lower) 6
Self-Clean Oven Door Lock Automatic
Oven Control Features Auto Oven Shut-Off with Override
Oven Rack Features 2 Self-Clean Heavy-Duty Oven Racks
Connected Capabilities DiGiorno
Oven Features 8-Pass Broil Element (Lower)
Oven Cooking Modes Convection Bake
Connected Capabilities Amazon Alexa
Connected Capabilities Hestan Cue
Connected Capabilities IFTTT
Connected Capabilities Fresco
Connected Capabilities Innit
Connected Capabilities Sonos
Control Type Glass Touch
Cooking Technology Traditional Upper; True Convection with Precise Air Lower
Cooktop Surface Black Patterned Ceramic Glass
Oven Control Features Audible Preheat Signal
Oven Control Features Auto Recipe Conversion
Oven Control Features Auto Self Clean
Oven Control Features C° or F° Programmable
Oven Control Features Sabbath Mode
Oven Control Features Chef Connect
Oven Control Features Control Lock Capability
Oven Control Features Delay Bake Option (Time Cook)
Oven Control Features Delay Clean Option
Oven Control Features Electronic Clock & Kitchen Timer
Oven Control Features Fast Preheat
Oven Control Features Hi / Low Broil
Oven Control Features Oven "ON" Light
Oven Control Features Self-Clean Cool Down Time Display
Oven Cooking Modes Baked Goods - Both Ovens
Oven Cooking Modes Convection Roast
Oven Cooking Modes Frozen Pizza Multi Rack - Lower Oven
Oven Cooking Modes Frozen Snacks Single Rack- Lower Oven (No Preheat)
Oven Cooking Modes Frozen Snacks Multi Rack - Lower Oven
Oven Cooking Modes Frozen Pizza Single Rack - Lower Oven (No Preheat)
Oven Cooking Modes Proof
Oven Cooking Modes No Preheat Air Fry
Oven Features 6-Pass Broil Element (Upper)
Oven Interior 2 Incandescent Lights
Connected Capabilities Google Home
Oven Rack Features 1 Self-Clean Heavy-Duty Roller Rack
Oven Control Features Certified Oven Kosher Separation

Accessories

Air Fry Basket Optional- JXAFTRAY1VSS
Optional Kits CXFCHHKPMSS Brushed Stainless
Probe Accessory Sous Vide JXPROBE1 - optional
Trim Kit Optional
Optional Kits CXFCHHKPMBZ Brushed Bronze
Optional Kits CXFCHHKPMCU Brushed Copper
Optional Kits CXFCHHKPMBT Brushed Black
Trim Kit JXFILLR1BB
Optional Kits CXFCHHKPMCG Brushed Brass
Optional Kits CXFCHHKPMFB Flat Black

Appearance

Handle Professional Style
Textured Steel Side Panels Yes
Installation Free-standing cut-out
Oven Door Features Full-Wrapped Matte White
Handle Color Brushed Bronze
Control Knobs Weighted
Color Appearance Matte White
Handle Customizable
Oven Door Features Easy clean oven door
Handle Consumer Removable
Installation Flush Appearance
Oven Door Features Big View Oven Window
Control Knobs Brushed Bronze Appearance

Power / ratings

Electrical Requirements 208/240V ; 60Hz ; 40A
Amp Rating at 208V 40
Broiler Wattage 3000W Upper / 3600W Lower
Amp Rating at 240V 40
Convection Wattage 2500W
KW Rating at 240V 15.2
Bake Wattage 2650W Upper / 2650W Lower
KW Rating at 208V 12.6
Hertz 60

Capacity

Capacity (Cu. Ft.) 2.4 Upper / 4.3 Lower
Total Capacity (cubic feet) 6.70 cu ft

Warranty

Parts Warranty Limited 1-year entire appliance
Labor Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details

Other

Oven Interior Dimensions (W x H x D) (in.) 24 x 10-1/8 x 19-1/8 - Upper; 24 x 15 x 20-5/8 - Lower

Dimensions & weight

Width 29.88 in.
Height 37.38 in.
Length 29.5 in.
Weight 236 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 34.88 in.
Shipping Height 42.38 in.
Shipping Length 34.5 in.
Shipping Weight 256 lbs.
Total of Shipping Weight 256 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 19.06 ft³
Dimensional Weight 236.97 lbs.
Total of Cubes 19.06 ft³
Total of Dimensional Weight 236.97 lbs.

Description

This is the ultimate in convenient cooking features. You’ll love the powerful 11" induction element, which boils water quickly or maintains exact temperatures for perfect melting and simmering. No-Preheat Air Fry lets you enjoy healthier, crispier versions of your favorite foods in less time, while two independent ovens offer the flexibility to prepare multiple dishes at once


Product Features

  • Create a look that matches your personal style
    Select any combination of premium finishes and hardware options to create a stunning look customized to any owner’s taste
  • Choose the range you want with total confidence
    When you’re updating your kitchen, attention to detail is a priority. That’s why CAFÉ™ 30” slide-in ranges are guaranteed for an exact fit or CAFÉ™ Appliances will pay up to $300 toward modifications.

Key Features

Built-In WiFi, Powered by SmartHQ App

Manage all aspects of your kitchen with the help of the SmartHQ™ App or your voice assistant (Select features require WiFi Connection) See details

Create dinners and desserts at the exact same time

From everyday gourmet meals to large dinner parties, achieve impressive results with two independent ovens with a total capacity of 6.7 cu. ft. for true cooking flexibility, along with the accurate heat circulation of True Convection with Precise Air in the lower oven

An attractive appearance at all times

Every detail of your kitchen is designed to delight, thanks to a sleek LED control panel that visually disappears when not in use and wakes up when prompted. Plus, backlit knobs bring an extra sparkle to the kitchen

Ensure consistent temperatures across a large area

Evenly heat large griddles or enamel cookware across two 8" synchronized elements

Personalized Features + Upgrades

Usher in the latest features by downloading cooking upgrades right to your oven, putting Air Fry and more in your repertoire

No-Preheat Air Fry

Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn’t require preheating, a basket or a special tray (WiFi Enabled)

Gourmet results without any guesswork

Take culinary skills to the next level with Gourmet Guided Cooking, which combines video-guided recipes from chefs with a system that automatically adjusts the time, temperature and cooking pace for perfect results. Cookware rebate available. https://www.cafeappliances.com/offers/induction-range-cookware-rebate/

The perfect combination of power & precision

Stun guests by showing off your 11" 3,700-watt induction element, which uses chef-preferred induction cooktop technology to deliver precise heat to cookware only. That means you can do everything from boiling a quart of water in 101 seconds to melting butter at exact temperatures with amazing efficiency.

Precise control for flawless results

Delight guests with the precision of sous vide cooking or perfectly prepared fondues and delicate sauces using a precision cooking probe that is sold separately

From The Manufacturer

Videos

Rebates

Café Fit Guarantee Rebate – Upgrade Your Kitchen Risk-Free in 2026

Café Fit Guarantee Rebate – Upgrade Your Kitchen Risk-Free in 2026

OFFER VALID REGARDLESS OF PREVIOUSLY PURCHASED BRAND.
Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Videos
  • Rebates
  • Reviews
Sale price $13,866.13 Regular price $21,308.98 Save $7,442.85 / 34% OFF

Product Details for Cafe CDT858P4VW2

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Weights & dimensions

Overall Depth 24 in
Overall Height 34 in
Height w/ Legs Retracted - Minimum Height 33.375 in
Cabinet Width 24 in
Net Weight 124 lb
Overall Width 23.75 in
Approximate Shipping Weight 137 lb
Overall Depth with Handle 26.3 in
Height w/Legs Extended - Maximum Height 34.625 in
Depth with Door Open 25.5 in
Depth Without Handle 24 in
Cutout Height (in) 33.5
Cutout Width (in) 24
Cutout Depth (in) 24

Features

Wash System 800 Series
Lower Rack Ball-Tip Tines
Sensor Clean Sensor
Tub Type Tall Tub
Leveling System 4 Leveling Legs
OU Certified No
Additional Protection Active Flood Protect
Number of Place Settings 16
Dishwasher Options WiFi/Remote Enabled
Latch Pull with Handle
Style Built-In Top Control
Number of Options 15
Water Filtration System 100% Filtration with Hard Food Disposer and Removable Filter
Cutlery Tray One piece removable 3rd rack
Rack Features Lid Manager
Racking Material Nylon
Smart Assist Yes
Dishwasher Cycles Normal
Rack Color Black Pearl
Dispenser Rinse Aid with Indicator and Adjustment
EcoBalance Compatible Yes
WiFi Connect Built-In
Control Type Top Controls
Racking System Full 3rd rack
Dishwasher Drying Features Multi-Wattage Wash & Dry Element
Wash Arms Upper
Wash System Features Variable Speed Dual Pumps and Motors
Top Rack/3rd Rack Washing, Sliding 3rd Rack w/ removable caddy
Exterior Style Customizable Professional
Product Type Built-In
Connected Capabilities Google Home
Upper Rack Smooth Glide Upper Rack
Dishwasher Control Features Last Cycle Memory
Number of Cycles 6
Tub and Door Liner Stainless Steel
Sabbath Mode Yes
Showroom Power Mode Yes
Lower Rack 1/2 fixed tines, 1/2 fold down tines
Dishwasher Options Delay Start 1-12 Hr.
Rack Features Ball-Tipped Tines
Dishwasher Cycles Cascade Platinum Plus (on app)
Control Type Cap Touch Controls
Dishwasher Drying Features Heated Dry - Ultra/Normal/Off
Wash Arms 4 Wash Levels
Wash System Features Automatic HotStart
Upper Rack 1/2 fixed tines, 1/2 fold down tines
Dishwasher Control Features Cycle Countdown with Bi-Color LED Status Light on door
Control Type 8 Touchpads
Dishwasher Control Features Cycle Progress Indicators: Clean/Sanitized/Smart Assist/WiFI/Remote Enabled
Dishwasher Control Features Audible End-of-Cycle Signal
Dishwasher Cycles Auto Wash
Dishwasher Cycles Cookware
Dishwasher Cycles Gentle
Dishwasher Cycles Express
Dishwasher Drying Features Dual Convection Ultra Dry
Dishwasher Options Favorites
Dishwasher Options Presoak + Sanitize (Certified to NSF Standard 184)
Dishwasher Options Hi-Temp Wash
Dishwasher Options Silverware Wash
Dishwasher Options Heated Dry Off
Dishwasher Options Normal Dry
Dishwasher Options Ultra Dry
Dishwasher Options Lock Controls
Dishwasher Options Bottle Wash (on app)
Dishwasher Options Wash Zones/Half Load (on app)
Dishwasher Options Favorites (on app)
Dishwasher Options Sabbath Mode
Dishwasher Options Start/Cancel
Lower Rack 1 Rack handle
Rack Features Adjustable Upper Rack
Rack Features Full Extension Slides - Upper
Rack Features Cafe Flex Silverware Basket
Upper Rack Premium Height Adjustable
Upper Rack Ball-Tip Tines
Upper Rack Fixed tines with Bottle Jets
Upper Rack 1 Rack handle
Upper Rack Lid Manager
Wash Arms Lower
Wash Arms Middle
Wash Arms 3rd Rack
Wash Arms Bottle Jets
Wash Arms Deep Clean Silverware Jets
Wash System 4-Level
Wash System Features 90+ Spray Jet Wash System
Wash System Features Automatic Temperature Control
Wash System Features Bottle Jets (4)
Wash System Features Deep Clean Silverware Jets
Wash System Features Hard Food Disposer with removable filter
Wash System Features Middle Wash Arm
Wash System Features Lower Wash Arm
Connected Capabilities Amazon Alexa

Power / ratings

Power Connection Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
Energy Consumption (kWh/year) 240
Electrical Requirements 120v ; 60Hz ; 7.2A
Calrod Heater Watts 800/500
Volts/Hertz/Amps 120v; 60Hz; 7.2A
Hertz 60
Watts 936

Economical / quiet

Door Insulation Mastic
Quiet Package 44 dBA
Outer Wrap Full-wrap Blanket
Motor Type Variable Speed
Quiet Features Tub Collar Trim
Quiet Features Sealed Toe Kick
Door Insulation Insulation
Outer Wrap Bitumen
Quiet Features Quiet Water Valve

Accessories

Optional 12' Drain Hose Optional hose kit (WD24X10065)
Optional Kits CXADTH1PVSS Brushed Stainless
Optional Kits CXADTH1PVBZ Brushed Bronze
Optional Kits CXADTH1PVCU Brushed Copper
Optional Kits CXADTH1PVBT Brushed Black
Optional Kits CXADTH1PVCG Brushed Brass
Optional Kits CXADTH1PVFB Flat Black

Appearance

Installation Side Installation or Top Installation Included
Door Style Long Door with Top Controls
Handle Color Brushed Bronze
Door Appearance Full-length flat door
Color Appearance Matte White
Control Panel Color Matte Dark Slate, Fingerprint Resistant
Handle Design Customizable
Handle CAFÉ™
Installation Flush Cabinet Installation
Installation Built-Up Floor Capable

Warranty

Labor Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details
Parts Warranty Limited 1-year entire appliance

Dimensions & weight

Width 23.75 in.
Height 34 in.
Length 24 in.
Weight 124 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 28.75 in.
Shipping Height 39 in.
Shipping Length 29 in.
Shipping Weight 137 lbs.
Total of Shipping Weight 137 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 11.22 ft³
Dimensional Weight 139.42 lbs.
Total of Cubes 11.22 ft³
Total of Dimensional Weight 139.42 lbs.

Description

CustomFit Top Rack with Ultra Wash
Load your way in this dishwasher with a customizable top rack. The CustomFit Top Rack can be configured to maximize flexibility. In addition, the UltraWash Zone uses powerful jets to target stuck-on food on silverware, cooking utensils and ramekins.

CustomFit Basket with Ultra Wash
Load more than just silverware in this flexible basket with dedicated wash jets below. The CustomFit Basket holds all your silverware, stemware and reusable straws, so items that were hand wash before can safely be washed in the dishwasher.

CustomFit Lid Caddy
Cup lids and blender blades can easily dry thanks to the CustomFit Lid Caddy. It is designed to hold items at the perfect position for cleaning and restricts water from pooling, so pieces come out clean and dry after every wash.

Ultra Wash & Dual Convection Ultra Dry
Expect precision cleaning and superior dryness on fine china, dinnerware and plastics in this ultra-wash and dry dishwasher. Exceptional features like Variable-Pressure Jets and Dual-Convection Ultra Dry offer great results with every cycle.

Customizable Dishwasher Handles
Choose from six unique CAF(EBACK)(TM) handle finishes to complement the rest of your kitchen thanks to this dishwasher with customizable hardware.

4 Bottle Wash Jets
This dishwasher with 4 bottle wash jets ensures a deep clean for tall items, narrow glasses, jars and more. In the upper rack, each of the jets directs water and detergent inside to effectively wash hard-to-reach areas.

Smart Features Powered by SmartHQ(TM)
Built-in WiFi and the SmartHQ(TM) app make it easy to control and monitor your smart dishwasher from anywhere. You can also conveniently access the latest features like Favorites, which allows you to access your favorite cycles with a single button.

Smart Assist
Smart Assist makes it simple for you to unlock optimal wash and dry performance. Innovative dishwasher sensors and intelligent machine learning enhance and improve cycles over time.

Smooth-Glide Adjustable Middle Rack
Load your dishwasher your way thanks to an adjustable middle rack. Easily move it up and down to fit bottles, large platters and other items as tall as 10.5".

Presoak + Sanitize
Save time with a high-temperature cycle that steams and sanitizes. Loosen tough soils before the wash cycle begins without the need to pre-rinse or soak. Plus, a sanitation cycle reduces 99.999% of bacteria on dishes.

Silverware Wash
Powerful jets in the top rack and and below the basket in the lower rack work in unison using targeted washing action to clean even the most stuck-on foods from silverware and cooking utensils.

Middle and Lower Rack Fold-Down Tines
Two rows of adjustable tines in both the middle and lower rack allow you to load the way you want. 16 different tine positions offer the ultimate customization to fit all of your items.

Wash Zones
Wash a true half load in the upper or lower rack whenever you need to in this dishwasher with loading flexibility. Just choose your wash zone: upper or lower. The feature works in combination with most cycles, saving you time and conserving energy.

Active Flood Protect
Active Flood Protect prevents potential overflows for greater peace of mind. It works by using a water leak detector to sense when water is too high, pumping it out until a safe level is reached.

Flush Installation
Cabinet-depth flush installation ensures your dishwasher blends in with the design of your kitchen without sacrificing space for dishes inside.



Product Features

  • Flush Installation
    Cabinet-depth flush installation ensures your dishwasher blends in with the design of your kitchen without sacrificing space for dishes inside.

Key Features

CustomFit Basket with Ultra Wash

Load more than just silverware in this flexible basket with dedicated wash jets below. The CustomFit Basket holds all your silverware, stemware and reusable straws, so items that were hand wash before can safely be washed in the dishwasher.

CustomFit Lid Caddy

Cup lids and blender blades can easily dry thanks to the CustomFit Lid Caddy. It is designed to hold items at the perfect position for cleaning and restricts water from pooling, so pieces come out clean and dry after every wash.

Customizable Dishwasher Handles

Choose from six unique CAFÉ™ handle finishes to complement the rest of your kitchen thanks to this dishwasher with customizable hardware.

4 Bottle Wash Jets

This dishwasher with 4 bottle wash jets ensures a deep clean for tall items, narrow glasses, jars and more. In the upper rack, each of the jets directs water and detergent inside to effectively wash hard-to-reach areas.

Smart Assist

Smart Assist makes it simple for you to unlock optimal wash and dry performance. Innovative dishwasher sensors and intelligent machine learning enhance and improve cycles over time.

Smooth-Glide Adjustable Middle Rack

Load your dishwasher your way thanks to an adjustable middle rack. Easily move it up and down to fit bottles, large platters and other items as tall as 10.5".

Presoak + Sanitize

Save time with a high-temperature cycle that steams and sanitizes. Loosen tough soils before the wash cycle begins without the need to pre-rinse or soak. Plus, a sanitation cycle reduces 99.999% of bacteria on dishes.

Silverware Wash

Powerful jets in the top rack and and below the basket in the lower rack work in unison using targeted washing action to clean even the most stuck-on foods from silverware and cooking utensils.

Wash Zones

Wash a true half load in the upper or lower rack whenever you need to in this dishwasher with loading flexibility. Just choose your wash zone: upper or lower. The feature works in combination with most cycles, saving you time and conserving energy.

Middle and Lower Rack Fold-Down Tines

Two rows of adjustable tines in both the middle and lower rack allow you to load the way you want. 16 different tine positions offer the ultimate customization to fit all of your items.

Active Flood Protect

Active Flood Protect prevents potential overflows for greater peace of mind. It works by using a water leak detector to sense when water is too high, pumping it out until a safe level is reached.

CustomFit Top Rack with Ultra Wash

Load your way in this dishwasher with a customizable top rack. The CustomFit Top Rack can be configured to maximize flexibility. In addition, the UltraWash Zone uses powerful jets to target stuck-on food on silverware, cooking utensils and ramekins.

Ultra Wash & Dual Convection Ultra Dry

Expect precision cleaning and superior dryness on fine china, dinnerware and plastics in this ultra-wash and dry dishwasher. Exceptional features like Variable-Pressure Jets and Dual-Convection Ultra Dry offer great results with every cycle.

Smart Features Powered by SmartHQ

Built-in WiFi and the SmartHQ app make it easy to control and monitor your smart dishwasher from anywhere. You can also conveniently access the latest features like Favorites, which allows you to access your favorite cycles with a single button.

Smart Features Powered by SmartHQ™

Built-in WiFi and the SmartHQ™ app make it easy to control and monitor your smart dishwasher from anywhere. You can also conveniently access the latest features like Favorites, which allows you to access your favorite cycles with a single button.

From The Manufacturer

Videos

Rebates

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Videos
  • Rebates
  • Reviews
Sale price $13,866.13 Regular price $21,308.98 Save $7,442.85 / 34% OFF

Product Details for Cafe CVM517P4RW2

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Features

Display Type LED
Microwave Sensor Cooking Controls Steam Cook
Display Screen Size (Diagonal Length) 3.13
Electronic Digital Display with Clock Yes (LED)
Cooking Modes Microwave
Control Location Side Controls
Style Over-The-Range
Oven Interior Stainless Steel
Rack Type 2 Fixed Positions
Microwave Watts (IEC-705) 950 W
Turntable On / Off Yes
Power Levels 10
Control Type Glass Touch
Cooktop Lighting LED
Control Features Vent Fan
Product Type Over-the-range Microwave
Turntable Glass
Cooking Technology Microwave/Convection/Air Fry
Convection Cooking Controls Roast
Display On/Off Yes
Microwave Oven Interior Stainless Steel
Exhaust Fan Hi/Med/Low/Off
Vent Top
Interior Oven Light Halogen
Microwave Sensor Cooking Controls Cook (5 Foods)
Cooking Modes Convection Bake
Rack Type 1 Square Rack
Cooktop Lighting High/Low/Off
Control Features Air Fry
Convection Cooking Controls Fast Cook
Exhaust Fan 300-CFM
Vent Front
Control Features Start/Pause
Control Features Cancel/Off
Control Features Power Level
Control Features Add 30 Seconds
Control Features Cook Time
Control Features Steam Clean
Control Features Chef Connect On/Off
Control Features Timer On/Off
Control Features Turntable On/Off
Control Features Mute On/Off
Control Features Settings
Control Features Surface Light
Control Features My Cycle
Control Features Display On/Off
Control Features Defrost: Weight/Time
Control Features Sync Auto Off; Surface Light Sync; Vent Fan Sync
Control Type Dial
Convection Cooking Controls Bake
Cooking Modes Convection Roast
Cooking Modes Fast Cook
Cooking Modes Air Fry
Cooktop Lighting Auto Night Light
Exhaust Fan 3-Speed
Microwave Sensor Cooking Controls Popcorn
Microwave Sensor Cooking Controls Reheat
Microwave Sensor Cooking Controls Beverage
Rack Type 1 Round Rack
Turntable Size 13.6
Vent Back

Appearance

Door Swing Hinges on Left
Handle Color Brushed Bronze
Door Color Matte White
Case Color Graphite Gray
Color Appearance Matte White

Weights & dimensions

Approximate Shipping Weight 95 lb
Cabinet Width 30 in
Net Weight 85 lb
Overall Width 29.875 in
Overall Depth 17.9375 in
Overall Height 16.3125 in
Exterior Height (Rear) 16.5 in
Cavity (W x H x D) 21-5/8 x 9-3/4 x 14-1/8
Depth with Door Open 25.0625 in
Cutout Width (in) 30
Cutout Depth (in) 12
Cutout Height (in) 16.5

Power / ratings

Input Volts/Hertz 120/60
Electrical Input - 120V Amperage 14.5
Electrical Input - 120V Watts 1700

Warranty

Labor Warranty Limited 1-year entire appliance
Parts Warranty Limited 5-year magnetron tube
Warranty Notes See written warranty for full details
Parts Warranty Limited 1-year entire appliance

Accessories

Optional Kits CXOTRHKPMSS Brushed Stainless
Recirculating Charcoal Filter Kit WB02X35607
Optional Kits 36" Filler Kit -- JX36BW1
Optional Kits CXOTRHKPMBT Brushed Black
Optional Kits CXOTRHKPMCU Brushed Copper
Optional Kits CXOTRHKPMBZ Brushed Bronze
Optional Kits CXOTRHKPMCG Brushed Brass
Optional Kits CXOTRHKPMFB Flat Black
Optional Kits 15" Bump Out Kit - JXBUMPWW
Recirculating Charcoal Filter Kit Included

Capacity

Exhaust Capacity 300 ft3/min
Vent CFM 300
Total Capacity (cubic feet) 1.70 cu ft

Economical / quiet

Venting Type Externally Vented

Dimensions & weight

Width 29.88 in.
Height 16.31 in.
Length 17.94 in.
Weight 85 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 34.88 in.
Shipping Height 21.31 in.
Shipping Length 22.94 in.
Shipping Weight 95 lbs.
Total of Shipping Weight 95 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 5.06 ft³
Dimensional Weight 62.89 lbs.
Total of Cubes 5.06 ft³
Total of Dimensional Weight 62.89 lbs.

Description

Air Fry
Make your favorite "fried" foods healthy, thanks to a mode that crisps without using oil for frying

Create a streamlined cooking experience
Simplify your cooking steps by using Chef Connect to automatically activate vents and surface lights when a range element is turned on, as well as sync your microwave and range clocks

A simple and smart addition to your culinary repertoire
Fresh vegetables and rice are perfectly prepared with a steam cook button that simplifies the entire process

Say goodbye to guesswork
Enjoy consistently delicious results with sensor cooking controls that automatically adjust the time and power

Delicious results in no time at all
Enjoy oven-quality results in mere minutes with a fast cook setting that combines convection and microwave cooking technology

A microwave that's as versatile as you are
Achieve crisp, golden brown results with a convection cooking setting and a special rack that allows air to circulate around foods for even heat distribution

Brighten up the room
Illuminate the entire cooking surface with crisp, clear LED cooktop lighting that can also save on energy costs

Sparkling clean with just a wipe
Focus on the food and forget the mess knowing that the stainless steel interior with steam clean lets you swiftly wipe away spills and splatters

Like a breath of fresh air
Keep your kitchen ready for guests with a three-speed, 300-CFM venting system that removes smoke, grease, odors and moisture

Cook more at once
Prepare plenty of food with full-width removable oven rack that allow for multi-level cooking at the same time

Cook your way with just one touch of a button
Enjoy the convenience of one-touch cooking with My Cycle, a custom cycle that remembers the exact time and temperature settings of your favorite foods

More room for more food
Entertaining unexpected guests is easy with the 1.7 cu. ft. capacity that helps prepare a large amount of food quickly

10 Power Levels for Culinary Excellence
The Cafe Microwave offers 10 power levels, designed to elevate your cooking from the robust intensity needed for vibrant vegetables and aromatic beverages to the subtle warmth ideal for defrosting and nurturing delicate sauces

Express Elegance
Express Cook unites style & speed, offering you one-button 1 to 6 minutes of cooking time with flawless efficiency



Product Features

  • Like a breath of fresh air
    Keep your kitchen ready for guests with a three-speed, 300-CFM venting system that removes smoke, grease, odors and moisture
  • Cook more at once
    Prepare plenty of food with full-width removable oven rack that allow for multi-level cooking at the same time
  • Cook your way with just one touch of a button
    Enjoy the convenience of one-touch cooking with My Cycle, a custom cycle that remembers the exact time and temperature settings of your favorite foods
  • 10 Power Levels for Culinary Excellence
    The Cafe Microwave offers 10 power levels, designed to elevate your cooking from the robust intensity needed for vibrant vegetables and aromatic beverages to the subtle warmth ideal for defrosting and nurturing delicate sauces
  • Express Elegance
    Express Cook unites style & speed, offering you one-button 1 to 6 minutes of cooking time with flawless efficiency

Key Features

Delicious results in no time at all

Enjoy oven-quality results in mere minutes with a fast cook setting that combines convection and microwave cooking technology

A microwave that’s as versatile as you are

Achieve crisp, golden brown results with a convection cooking setting and a special rack that allows air to circulate around foods for even heat distribution

Brighten up the room

Illuminate the entire cooking surface with crisp, clear LED cooktop lighting that can also save on energy costs

More room for more food

Entertaining unexpected guests is easy with the 1.7 cu. ft. capacity that helps prepare a large amount of food quickly

Air Fry

Make your favorite "fried" foods healthy, thanks to a mode that crisps without using oil for frying

Create a streamlined cooking experience

Simplify your cooking steps by using Chef Connect to automatically activate vents and surface lights when a range element is turned on, as well as sync your microwave and range clocks

A simple and smart addition to your culinary repertoire

Fresh vegetables and rice are perfectly prepared with a steam cook button that simplifies the entire process

Say goodbye to guesswork

Enjoy consistently delicious results with sensor cooking controls that automatically adjust the time and power

Sparkling clean with just a wipe

Focus on the food and forget the mess knowing that the stainless steel interior with steam clean lets you swiftly wipe away spills and splatters

From The Manufacturer

Videos

Rebates

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Videos
  • Rebates
  • Reviews
Sale price $13,866.13 Regular price $21,308.98 Save $7,442.85 / 34% OFF

Product Details for Cafe CCP06BP4PW2

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Weights & dimensions

Overall Height 34.125 in
Overall Depth 26 in
Back Air Clearances 0 in
Top Air Clearances 0 in
Height to Top of Hinge 34.125 in
Side Air Clearances 0 in
Overall Width 23.75 in
Case Depth Without Door 21.75 in
Approximate Shipping Weight 120 lb
Depth Without Handle 23.375 in
Net Weight 110 lb

Features

Spillproof Glass Shelves 3
Shelves/Racks - Total Number 5 - 3 glass shelves, 2 wine racks
Hi Temp Alarm Yes, Audible & Visual
Removable Slide-Out Shelves Yes
WiFi Connect Built-In
Proximity Lighting Control Yes - On/Off Option, Multi Key or in App
Temperature Range 34 - 45 F
Number of Doors 1
Door Ajar Alarm Yes, Audible & Visual
Cooling method Compressor
Adjustable Shelves Yes
Large Wine Bottle Capability Yes, Top Rack
Product Type Beverage Center
Defrost Type Auto
Interior Lighting LED/ LED Light Wall
Turbo Cool Yes
Adjustable Temperature Control Yes
Triple Pane Glass Door Yes
Sabbath Mode Yes
Control Type Electronic
Wine Racks 2 Full-Extension, with Matte Black Fronts and Copper Accents
Refrigerant Type R600a
OU Certified No
Interior Lighting Control Door Open: Always On
Connected Capabilities Google Home
Leveling System Leveling Legs
Quick Space Shelf Yes, Top Shelf
Number of Cooling Zones 1
Interior Lighting Control Door Closed: On/Off Option
Connected Capabilities Amazon Alexa

Appearance

Toe kick Matte White, 3/4" adjustable
Color Appearance Matte White
Installation Built-In or Free-Standing
Door Swing Reversible Door
Handle Color Brushed Bronze
Door Stops 110 Degree
Handle CAFÉ™

Capacity

Unit Capacity 126 12 oz. Cans/14 Wine Bottles
Total Capacity (cubic feet) 5.10 cu ft

Accessories

Optional Kits CXQW1H1PPSS - Brushed Stainless
Optional Kits CXQW1H1PPBZ - Brushed Bronze
Optional Kits CXQW1H1PPBT - Brushed Black
Optional Kits CXQW1H1PPCU - Brushed Copper
Optional Kits CXQW1H1PPCG Brushed Brass
Optional Kits CXQW1H1PPFB Flat Black

Power / ratings

Volts/Hertz 115V; 60Hz
Hertz 60
Electrical Requirements 115V
Energy Consumption (kWh/year) 274

Warranty

Warranty Notes See written warranty for full details
Labor Warranty Limited 1-year entire appliance
Parts Warranty Limited 1-year entire appliance
Warranty Notes Full Five Year - Sealed System

Other

Back Air Clearances 0 in

Dimensions & weight

Width 23.75 in.
Height 34.13 in.
Length 26 in.
Weight 110 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 28.75 in.
Shipping Height 39.13 in.
Shipping Length 31 in.
Shipping Weight 120 lbs.
Total of Shipping Weight 120 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 12.19 ft³
Dimensional Weight 151.6 lbs.
Total of Cubes 12.19 ft³
Total of Dimensional Weight 151.6 lbs.

Description

This stunning undercounter refrigerator chills beverages to perfection, so you’re prepared to entertain at all times. A LED light wall spans the back of the unit, illuminating the entire interior so every item is easy to find. The capacity is large enough to hold 126 cans and 14 bottles, and magnum bottle storage lets you chill up to four 1.5 liter bottles of wine. Plus, built-in WiFi gives you control from anywhere via the SmartHQ app.


Product Features

  • Open Door Notifications
    Protect your drink collection by receiving a push notification on your smart phone each time the beverage center door is opened
  • Adjustable Lighting
    This beverage center has flexible lighting options you can change from the SmartHQ app. Choose from proximity lighting that illuminates automatically as you approach, gradient lighting or lighting that turns on and off as you open or close the door
  • Temperature Alarm
    Always maintain the ideal temperature, even when you're on the go, with Built-In WiFi that notifies you when the door has been left open or the power goes out
  • Hidden Temperature Controls
    These temperature controls maintain any temperature between 34 and 45 degrees Fahrenheit, all while blending into the beverage center's overall design
  • Customizable Handle Options
    Choose from four unique CAFÉ™ handle finishes to complement the rest of your kitchen, or your other CAFÉ™ appliances
  • Finish Options
    This beverage center comes in multiple finish options, including Stainless, Matte Black and Matte White

Key Features

Flush Installation

With built-in, flush-to-cabinet installation, this beverage center fits in perfectly with your home's overall design

Articulating Door Hinges

These hinges prevent the beverage center door from striking anything in the kitchen, including your cabinetry. They also help the door open smoothly and close softly

QuickSpace Shelf

This beverage center offers flexible storage options with a shelf that lets you make room for tall items like bottles of wine and craft beer

14-Bottle or 126-Can Capacity

This large capacity beverage center gives you the space to store your favorite beverages and more

Reversible Door Options

A reversible door lets you choose whether the beverage center opens to the left or the right

LED Light Wall

Take lighting to the next level with an LED light wall that spans the back panel, illuminating the interior so every item is easy to find

Magnum Bottle Storage

Chill up to four 1.5 liter bottles of wine or prosecco without scratching the label

Smart Technology

The beverage center has Built-In WiFi so you can control it from anywhere. Using the SmartHQ app, you can remotely change your temperature or dim the LED light wall. Plus, you'll get the latest connected home capabilities with new modes and updates

From The Manufacturer

Videos

Rebates

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

Compare with similar products

Recommendations

Previously viewed products
