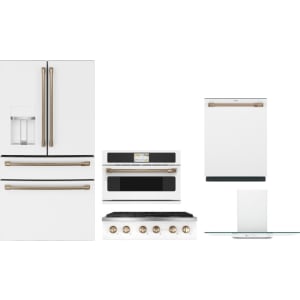

What's included: 5 items

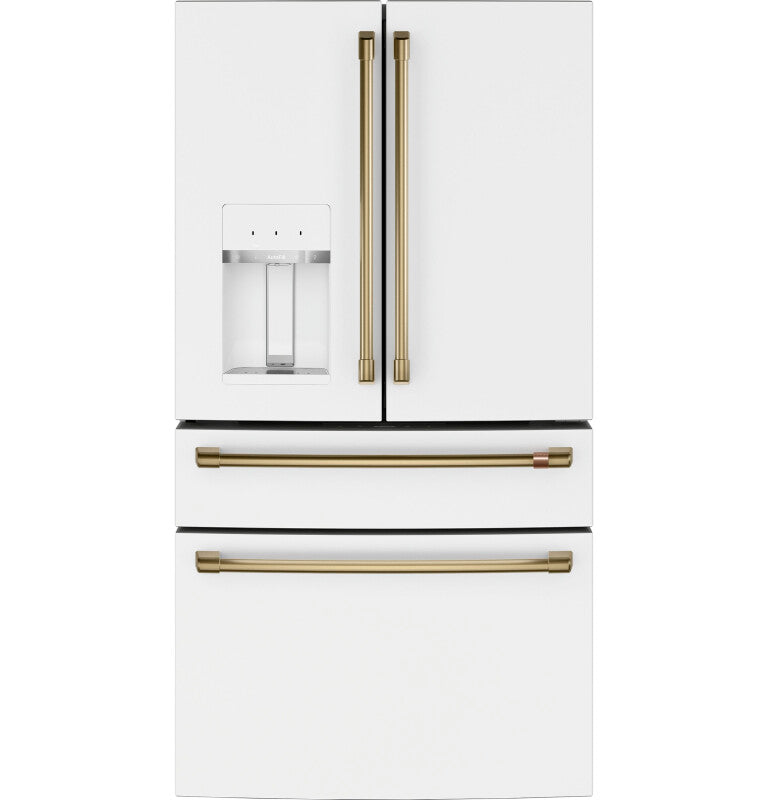

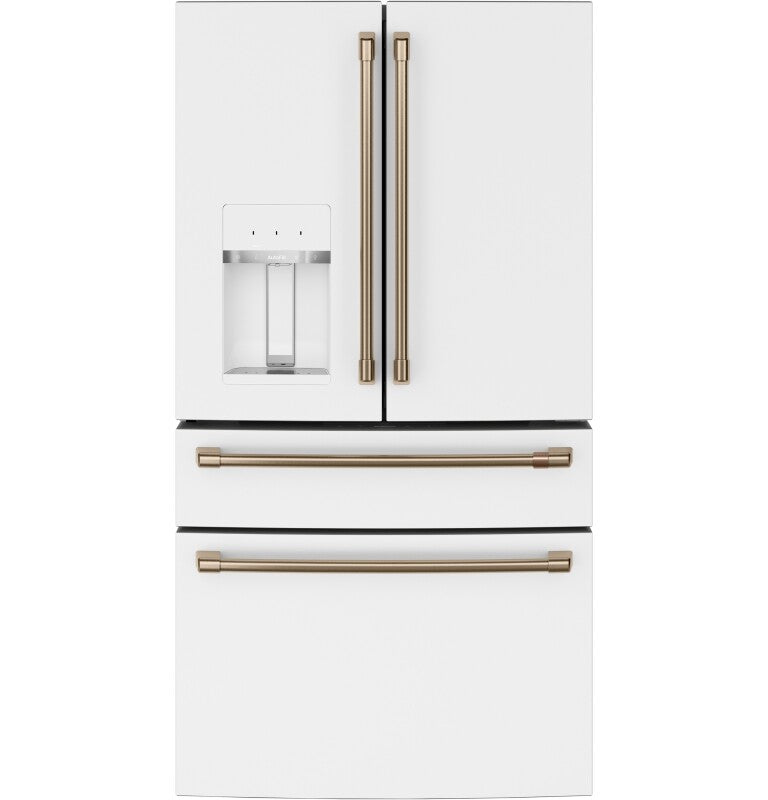

  • Café 27.8 Cu. Ft. Smart 4-door French-door Refrigerator

    Cafe CVE28DP4NW2 Café 27.8 Cu. Ft. Smart 4-door French-door Refrigerator Matte White

    • SKU SKU: CVE28DP4NW2 UPC: 84691844068
    • Type French Door Refrigerators
  • 36" Commercial-style Gas Rangetop With 6 Burners (natural Gas)

    Cafe CGU366P4TW2 Café 36" Commercial-style Gas Rangetop With 6 Burners (natural Gas) Matte White

    • SKU SKU: CGU366P4TW2 UPC: 84691851271
    • Type Rangetops

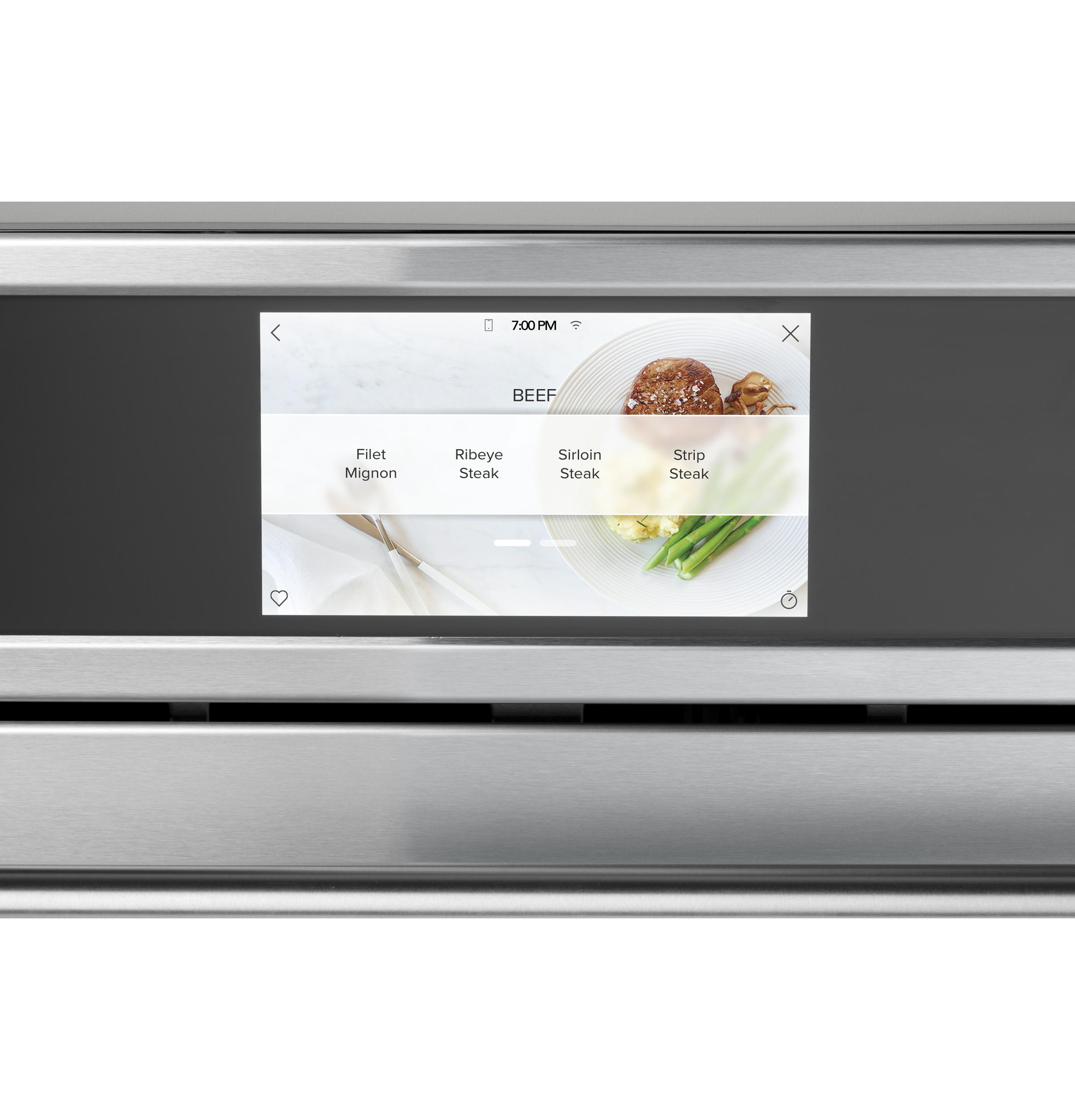

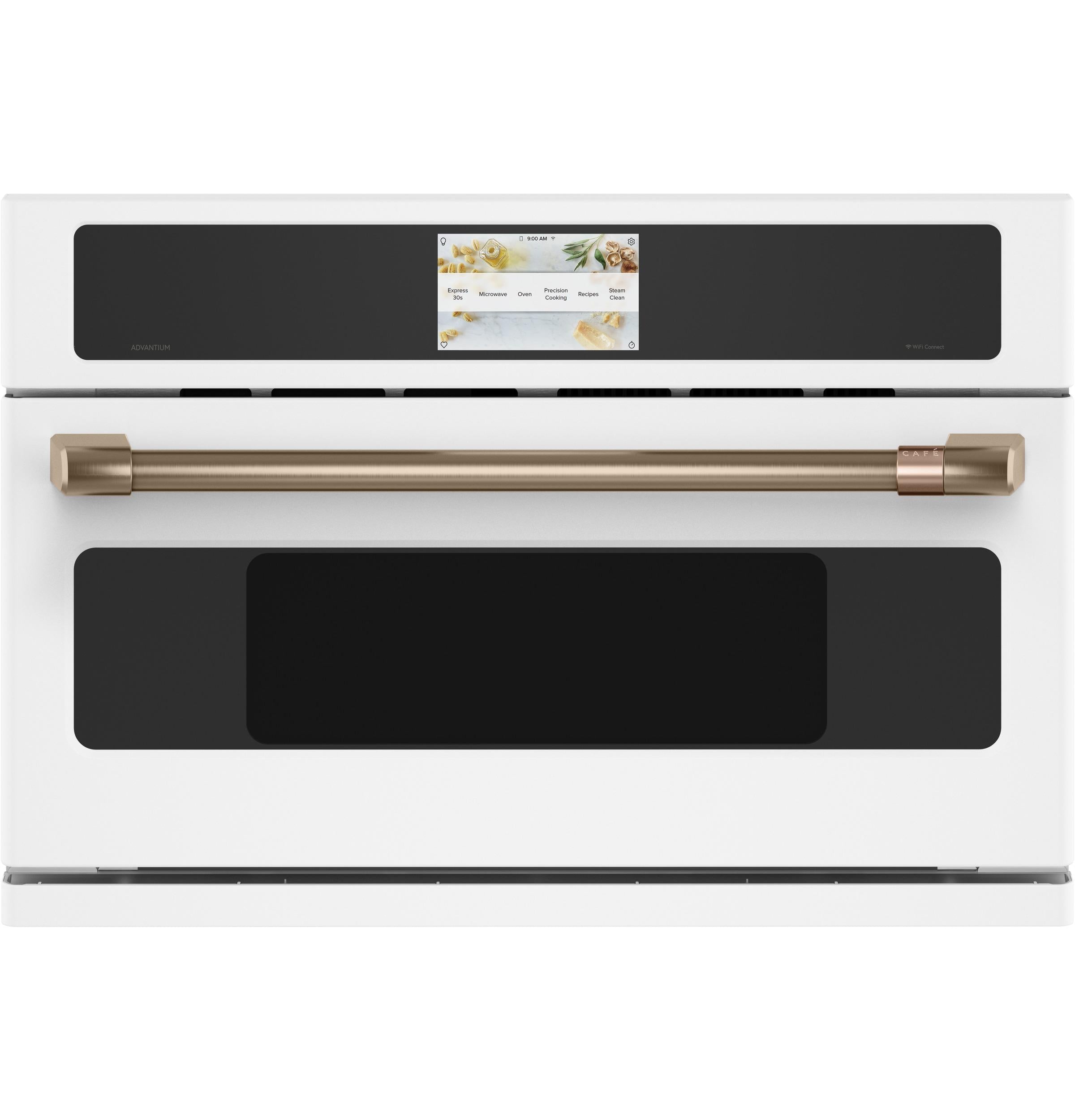

  • 30" Custom Speed Cook Oven With 120v Advantium® Technology

    Cafe CSB913P4VW2 Café 30" Custom Speed Cook Oven With 120v Advantium Technology Matte White

    • SKU SKU: CSB913P4VW2 UPC: 84691896814
    • Type Single Wall Ovens
  • Café Customfit Stainless Interior Smart Dishwasher With Ultra Wash Top Rack And Dual Convection Ultra Dry, 44 Dba

    Cafe CDT858P4VW2 Café Customfit Stainless Interior Smart Dishwasher With Ultra Wash Top Rack And Dual Convection Ultra Dry, 44 Dba Matte White

    • SKU SKU: CDT858P4VW2 UPC: 84691914600
    • Type Built-In Dishwashers

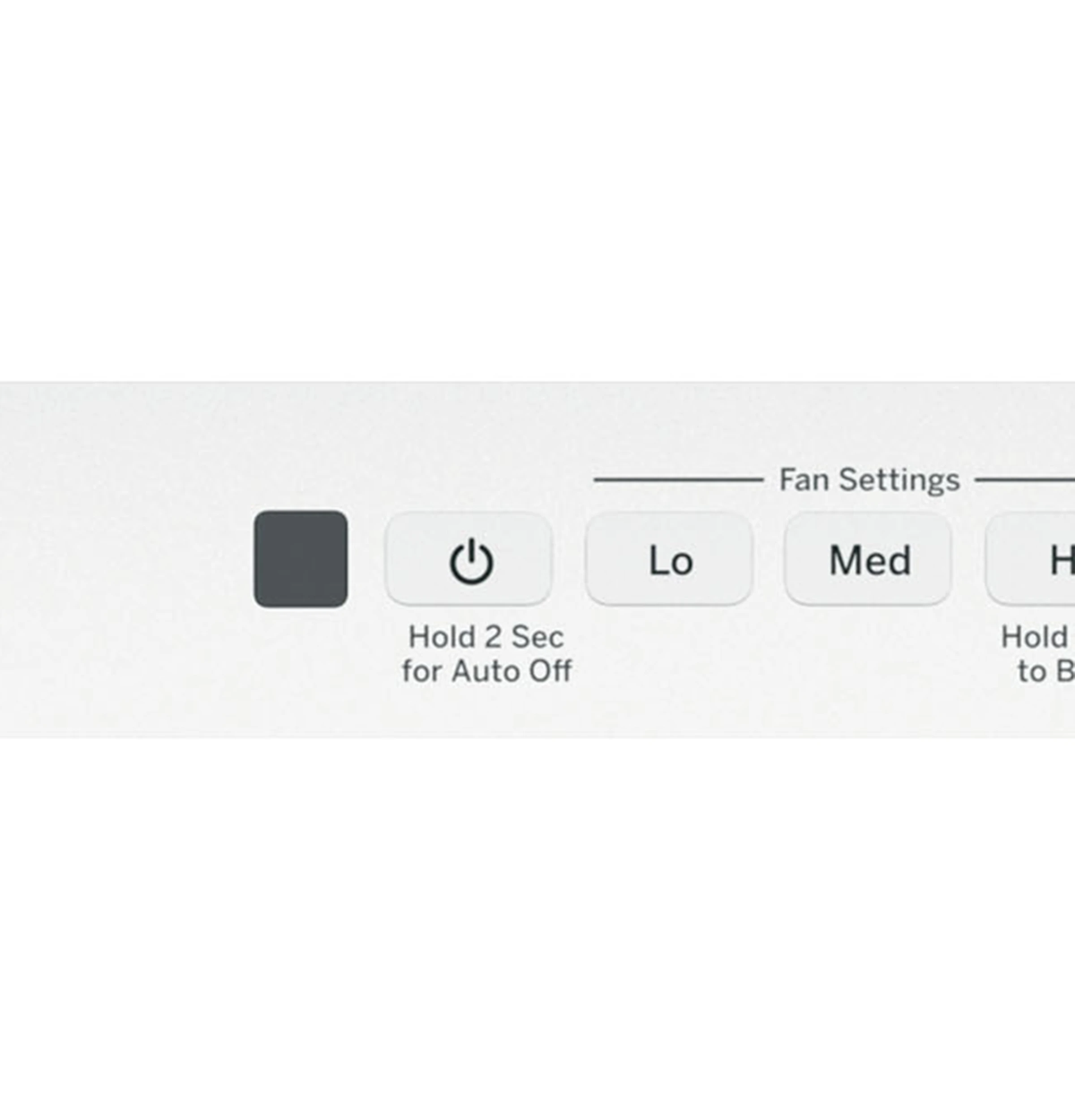

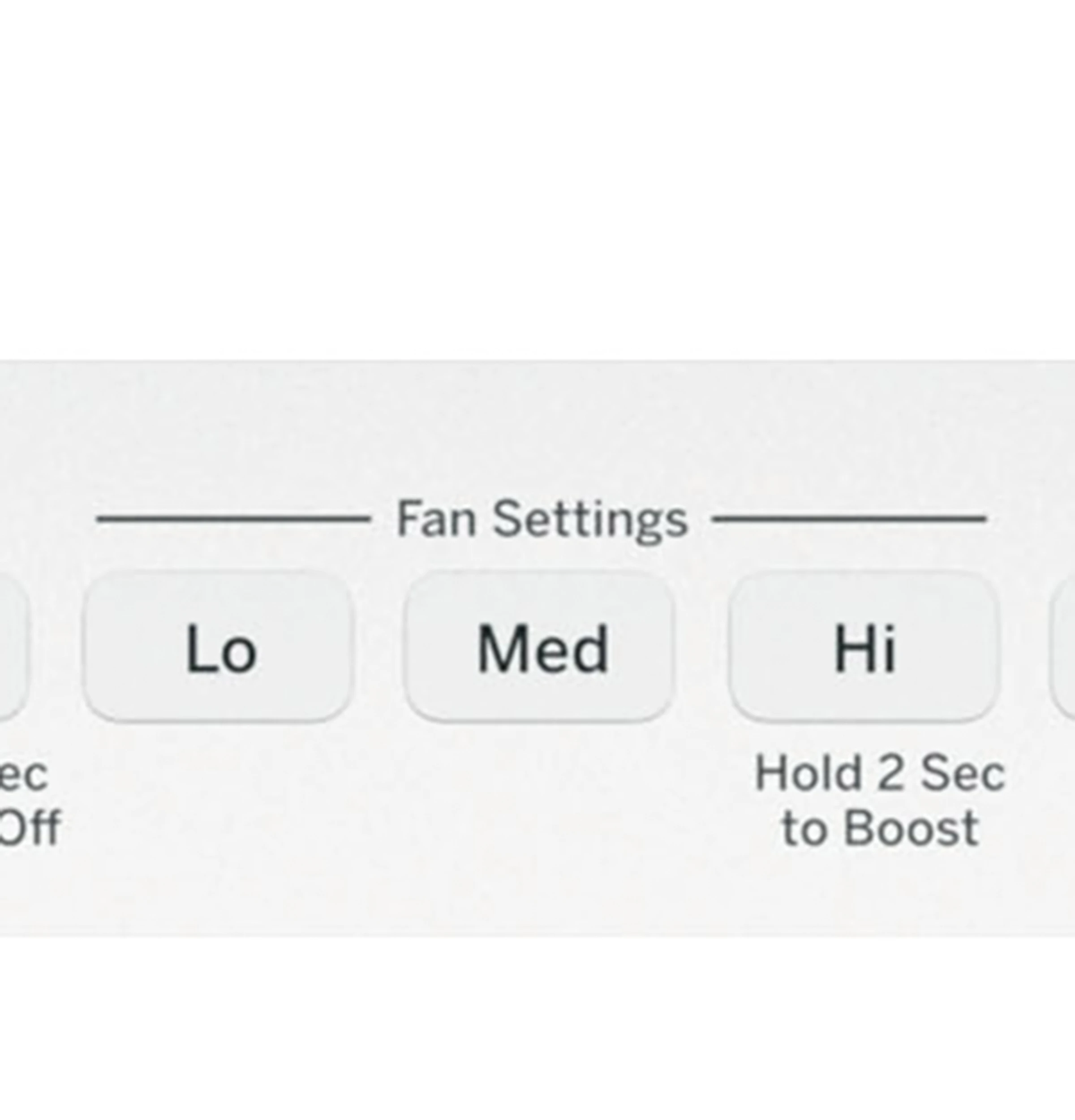

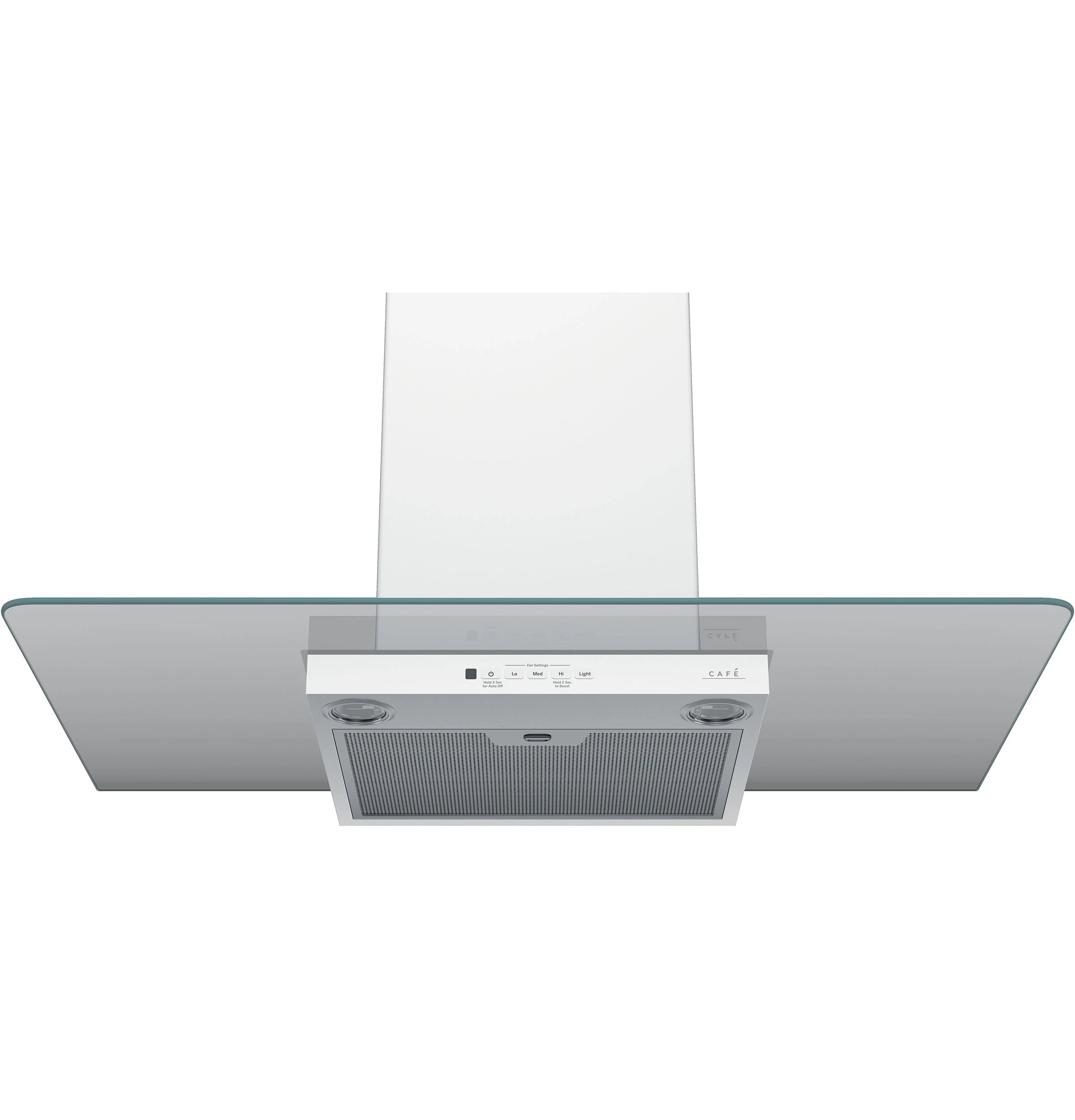

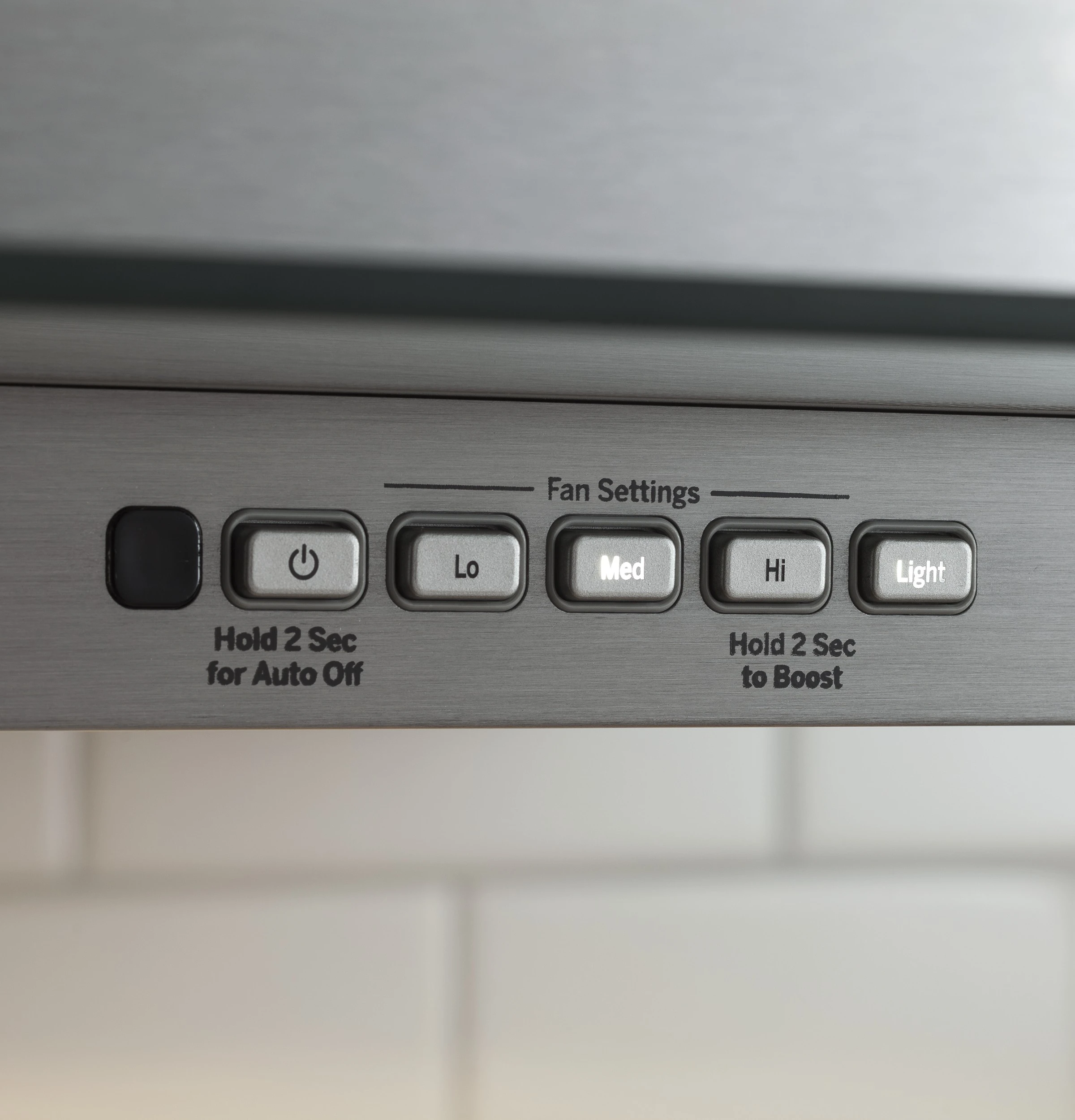

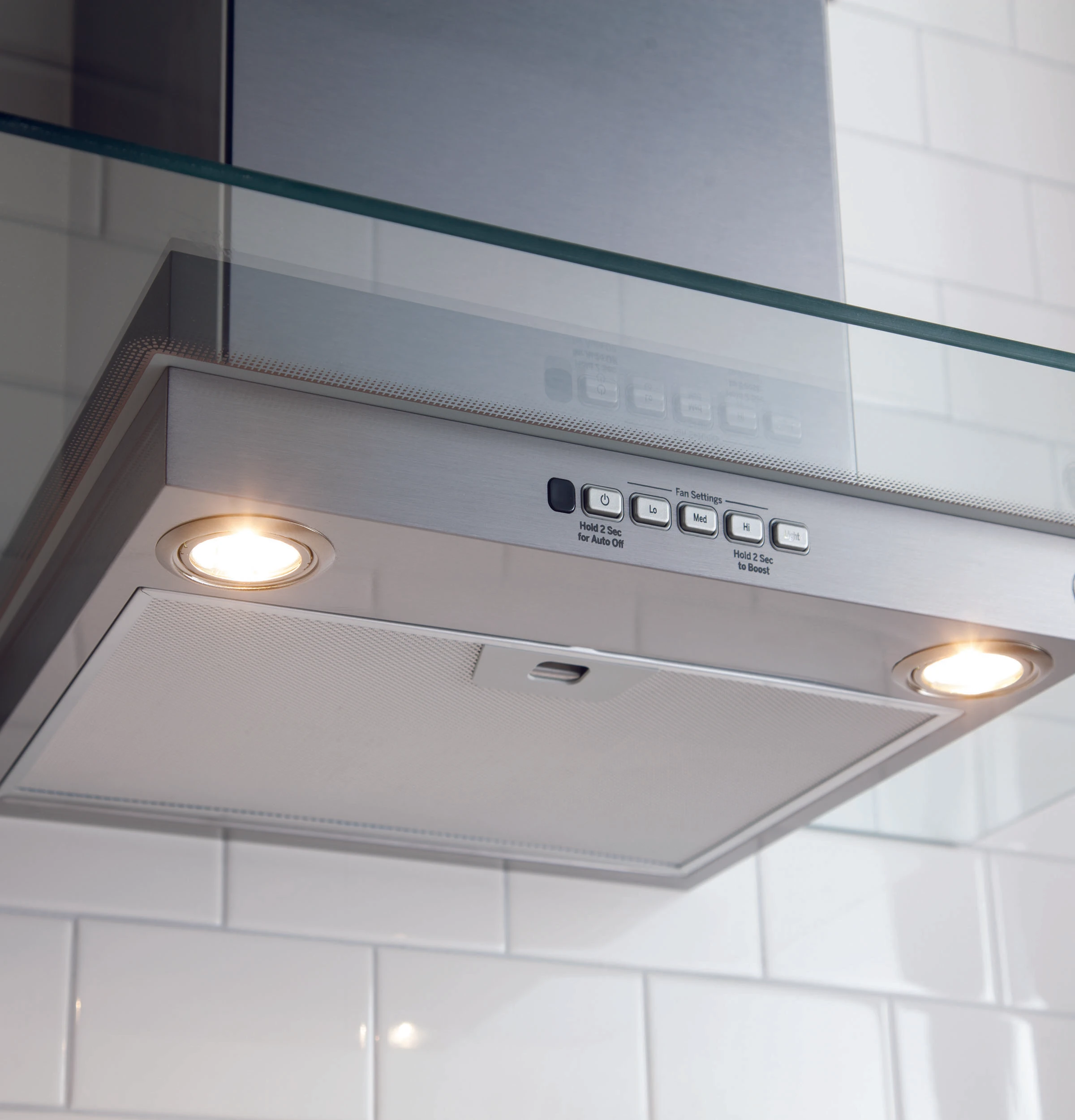

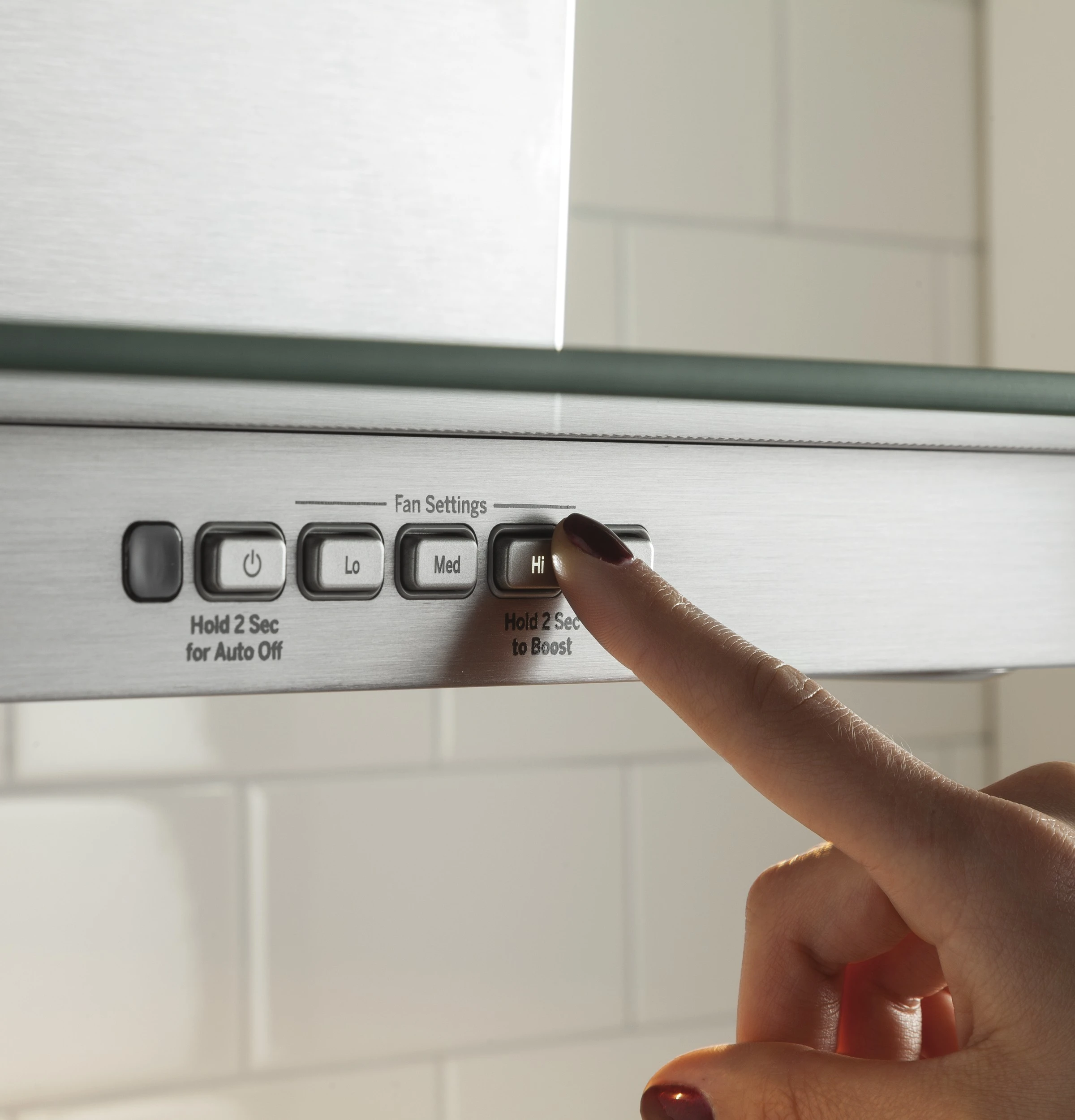

  • 36" Wall-mount Glass Canopy Chimney Hood

    Cafe CVW73614MWM Café 36" Wall-mount Glass Canopy Chimney Hood Matte White

    • SKU SKU: CVW73614MWM UPC: 84691839217
    • Type Wall & Chimney Hoods
  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Videos
  • Rebates
  • Reviews
Sale price $12,997.64 Regular price $20,700.85 Save $7,703.21 / 37% OFF

Product Details for Cafe CVE28DP4NW2

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Weights & dimensions

Overall Depth 36.75 in
Overall Height 69.875 in
Height to Top of Hinge 69.75 in
Net Weight 375 lb
Overall Width 35.625 in
Back Air Clearances 2 in
Approximate Shipping Weight 408 lb
Depth with Door Open 90° 48.375 in
Width w/Door Open 90 Degrees Incl. Handle 44.875 in
Case Depth Without Door 29.5 in
Top Air Clearances 1 in
Depth Without Handle 34.25 in
Height to Top of Case 68.625 in
Overall Depth with Handle 36.75 in
Side Air Clearances 1/8 in

Features

Temperature Management Features Multiflow Air System
Center Drawer Features Removable Drawer Liner
Dispenser Features Water Filter Indicator Light
Control Type Electronic Temperature Controls
Icemaker Space Saving Ice
Number of Doors 4
WiFi Connect Built-In
Performance Features Easily Removable Door Gaskets
Sabbath Mode Optional
Filter Location Left wall
Door Alarm Yes
Freezer Storage Baskets 3 Total Full-Width
Temperature Management System TwinChill™ Evaporators
Connected Capabilities IFTTT
Freezer Cabinet Drawer Features LED Lighting
Freezer Door Bins 1 Tilt-Out
Defrost Type Frost Guard
Center Drawer Select Temp Convertible
Fresh Food Door Features Dairy Compartment
Leveling System 2 Point Front Adjustable
Fresh Food Cabinet Shelves 4 Glass Split
Mobility Rollers Yes
Fresh Food Door Bins 6 Total
Freezer Features Interior Lighting - LED
Exterior Style Standard Depth
Temperature Display External Digital
Fresh Food Features LED Back Lit Wall
Configuration French Door & Double Drawer
Refrigerant Type R600a
Dispenser Large Stainless Steel
Fresh Food Cabinet Drawers 2 Total
Water Filtration XWFE
Freezer Storage 3 Baskets (1 Large Bulk, 1 Flat Bread, 1 Quick Reach)
Product Type French-Door Refrigerator
OU Certified OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately
Center Drawer Features Convertible Drawer
Dispenser Features Hands-Free AutoFill
Performance Features Dual Evaporator Cooling
Freezer Storage Baskets 1 Flat Bread
Freezer Cabinet Drawer Features 3 Tiered Baskets
Connected Capabilities Google Home
Fresh Food Door Bins 2 with Gallon Storage
Fresh Food Cabinet Drawers 1 Sealed Low Humidity
Water Filtration Water Filter Indicator Light
Connected Features Dispenser Proximity Lighting
Center Drawer Features Electronic Temp Control with 5 Settings (Soft Freezer, Meats, Beverages, Snacks, Wine & Control Lock)
Center Drawer Features 2 Tuck Away Sliding Glass Bin Dividers
Center Drawer Features Full-Extension Slides
Dispenser Cubes, Crushed Ice and Chilled Water
Dispenser Features Door Alarm
Dispenser Features Proximity Activated LED Dispenser Light
Freezer Cabinet Drawer Features 1 Tilt-Out Door BIn
Freezer Features Freezer Drawer with Full Extension Slides
Freezer Storage 1 Tilt-Out Door Bin
Freezer Storage Baskets 1 Quick Reach
Freezer Storage Baskets 1 Deep Bulk Storage
Fresh Food Cabinet Drawers 1 Sealed High Humidity
Fresh Food Cabinet Shelves 1 Quick Space Shelf
Fresh Food Door Bins 2 Adjustable
Performance Features Deluxe Quiet Design
Product Type Bottom Freezer Refrigerator
Water Filtration GE Water Filtration 6 Month
Exterior Style Free-Standing
Connected Capabilities Amazon Alexa
Connected Features Icemaker On/Off
Connected Features High Temperature Alerts
Connected Features Temperature Adjustments
Connected Features Water Filter Status
Connected Features LED Light Wall Brightness
Connected Features Door Alarm Alerts
Connected Features Demand Response

Capacity

Fresh Food Capacity 15.62 cu ft
Convertible Drawer Capacity 3.62 cu ft
Freezer Capacity 8.57 cu ft
Total Capacity (cubic feet) 27.80 cu ft

Accessories

Optional Kits CXQB4H4PNSS - Brushed Stainless
Optional Matte White Side Panels CKQBRSFNW2
Optional Kits CXQB4H4PNBZ - Brushed Bronze
Optional Kits CXQB4H4PNBT - Brushed Black
Optional Kits CXQB4H4PNCU - Brushed Copper
Optional Kits CXQB4H4PNCG - Brushed Brass
Optional Kits CXQB4H4PNFB - Flat Black
Optional Matte White Side Panels CKQBLSFNW2

Appearance

Case Color White
Exterior Design Hidden Door Hinges
Door Stops Yes
Textured Steel Case Case Only - Dark Gray
Handle Color Brushed Bronze
Door Swing French Door
Color Appearance Matte White
Hidden Door Hinge(s) Yes
Exterior Design Contoured Doors
Handle Design CAFÉ™ Pro
Handle CAFÉ™

Power / ratings

Energy Consumption (kWh/year) 757
Volts/Hertz/Amps 120V ; 60Hz ; 15A
Electrical Requirements 120V
Hertz 60

Warranty

Warranty Notes See written warranty for full details
Labor Warranty Limited 1-year entire appliance
Parts Warranty Limited 1-year entire appliance

Other

Back Air Clearances 2 in
Top Air Clearances 1 in
Side Air Clearances 0.125 in

Dimensions & weight

Width 35.63 in.
Height 69.88 in.
Length 36.75 in.
Weight 375 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 40.63 in.
Shipping Height 74.88 in.
Shipping Length 41.75 in.
Shipping Weight 408 lbs.
Total of Shipping Weight 408 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 52.94 ft³
Dimensional Weight 658.14 lbs.
Total of Cubes 52.94 ft³
Total of Dimensional Weight 658.14 lbs.

Description

Get the ultimate refrigeration solution with the Cafe ENERGY STAR 27.8 Cu. Ft. Smart 4-Door French-Door Refrigerator. With its 27.8 cu. ft. capacity and Free-Standing French Door design, this refrigerator provides ample storage space for all your favorite foods and beverages. The Convertible Drawer with Soft Freeze, Flatbread Freezer Compartment, and adjustable temperature drawer ensures that your food stays fresh and tasty for longer periods. The Cafe ENERGY STAR 27.8 Cu. Ft. Smart 4-Door French-Door Refrigerator is a must-have appliance for anyone who wants to simplify their life while keeping their food fresh and flavorful. The Built-In WiFi feature allows you to control the refrigerator from your smartphone, giving you the ability to monitor and adjust the temperature, set reminders, and receive alerts if the door is left open or if there's a power outage. The Dual-Evaporators and Humidity Control System work together to maintain the ideal temperature and humidity levels, ensuring that your food stays fresher for longer periods. This feature also prevents cross-contamination between the refrigerator and freezer compartments, so you can store your food with peace of mind. The Integrated Dispenser with Sensor and Auto Fill button provide an effortless way to get chilled water and ice on demand, without having to manually fill up water bottles or ice trays. The dispenser's sensor technology ensures that the water and ice dispensers are always clean and hygienic, while the auto fill button ensures that you'll never run out of ice. With the advanced temperature management system, you can be confident that your food is always at the right temperature, reducing waste and saving you money on your grocery bills. Plus, the Cafe ENERGY STAR 27.8 Cu. Ft. Smart 4-Door French-Door Refrigerator is Energy Star certified, which means it uses less energy and helps to reduce your carbon footprint. Elevate your kitchen with the Cafe ENERGY STAR 27.8 Cu. Ft. Smart 4-Door French-Door Refrigerator - perfect for families, entertainers, and foodies alike. Order now!


Product Features

  • Integrated Dispenser with Sensor
    The integrated dispenser blends in with the refrigerator when not in use and, thanks to its refrigerator dispenser sensor system, automatically illuminates when you're close by and ready to use it
  • A stunning clean, made simple
    Keep this refrigerator drawer sparkling at all times, thanks to a gray liner you can easily remove to clean up spills and messes.
  • Enhanced Shabbos Mode
    The Shabbos Keeper connects to your refrigerator to automatically enable Shabbos compatible modes each week and before every holiday (Shabbos Keeper sold separately, visit www.zmantechnologies.com for details)

Key Features

Flatbread Freezer Compartment

Use the slim, full-width freezer compartment for flatbread, pizzas and other uniquely shaped frozen items, which is part of a three-level, freezer storage system of sliding shelves and trays

A superior surface that reflects your style

Keep your refrigerator looking clean and chic with a fingerprint-resistant exterior that lets you wipe away smudges with ease

Built-In WiFi

Receive refrigerator alerts to a smart device and enable a range of features on this smart refrigerator, thanks to built-in WiFi powered by SmartHQ app

Dual-Evaporators

This dual evaporator refrigerator features TwinChill™ evaporator climate zones in the fresh food and freezer sections, which help keep food at optimum freshness

Convertible Drawer with Soft Freeze

Experience the flexibility of an adjustable temperature drawer with five customized temperature settings - Soft Freeze, Meat, Beverage, Snacks, and Wine - that range from 23 to 42 degrees

No need to wait as you fill your glass

Effortlessly fill containers with filtered water by simply pressing the Auto Fill button, which uses sensors to dispense the perfect amount every time

Unmatched visibility meets undeniable style

Relish the bright, uniform light of an LED light wall that spans the back wall of the refrigerator, illuminating the fresh food section so every item is easy to find

Keep your leafy greens twice as long*

A Humidity Control System provides an environment for leafy green vegetables to last 2-1/2 times longer than standard vegetable drawers. (*Based on internal testing vs. similar size vegetable drawers with humidity controls from a leading competitor.)

Advanced Water Filtration

The included refrigerator water filter reduces 50+ impurities including lead, chlorine, microplastics, and PFOA/PFOS; providing clean, safe drinking water and ice (replacement water filters sold separately - check refrigerator filter compartment for compatible model)

From The Manufacturer

Videos

Rebates

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Videos
  • Rebates
  • Reviews
Sale price $12,997.64 Regular price $20,700.85 Save $7,703.21 / 37% OFF

Product Details for Cafe CGU366P4TW2

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Weights & dimensions

Overall Height 8.5 in
Overall Depth 27.5 in
Cabinet Width 36 in
Approximate Shipping Weight 163 lb
Overall Width 35.875 in
Net Weight 135 lb
Cutout Height (in) 8
Cutout Depth (in) 25.25
Cutout Width (in) 35

Features

Dishwasher Safe Knobs Yes
Valves (Degree of Turn) 270
Burner - Right Rear 18,000 BTU
Burner - Right Front 10,000 BTU
Fuel Type Natural Gas
Control Location Upfront
Cooktop Type Continuous Grates
Ignition System Electronic w/Auto Reignition
Burner - Center 12,000 BTU Front / 12,000 BTU Rear
Cooktop Surface Porcelain-Enamel
Burner - Left Rear 18,000 BTU
Extra Low Simmer All Burners - Adjustable
Automatic Re-Ignition Yes
Control Type Simmer (1-9) Hi
Cooktop Burner Grate Material Heavy Cast
Cooktop Burner Grate Features Porcelainized Cast Iron
140 Deg. Simmer Burner All Burners - Adjustable
Configuration 6 Burners
Burner - Left Front 21,000 BTU Multi-ring Burner
Product Type Rangetop
Cooktop Burner Grate Features Dishwasher Safe
Control Type Manual
Cooktop Burner Grate Features Continuous Grates
Cooktop Burner Grate Features Matte Black
Cooktop Surface Gray

Power / ratings

Burner BTU Ratings (000's/BTU) - LP Gas (1) 18.0; (2) 15.0; (2) 12.0; (1) 9.1
Burner BTU Ratings (000's/BTU) - Natural Gas (1) 21.0; (2) 18.0; (2) 12.0; (1) 10.0
Volts/Hertz/Amps 120v; 60Hz; 15A
Hertz 60
Electrical Requirements 120V

Appearance

Design Style Professional
Color Appearance Matte White
Control Knobs Professional-Style
Control Knobs Dishwasher Safe
Control Knobs Brushed Bronze

Warranty

Parts Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details
Labor Warranty Limited 1-year entire appliance

Accessories

High Altitude Kit Natural Gas: WB28X39728; LP: WB28X39729
Conversion Kit Included - Nat. Gas to LP
Factory-installed island backguard Yes
Reversible Griddle/Grill Accessory UXPRRGG
Optional Kits CXPR6HKPTSS Brushed Stainless
Griddle Cover WB34X39889
Optional Backguard 30"-36" adjustable stainless steel backsplash with warming shelf (UXADJB36PSS)
Optional Kits CXPR6HKPTBZ Brushed Bronze
Optional Backguard 12" stainless steel backsplash (UX12B36PSS)
Optional Kits CXPR6HKPTBT Brushed Black
Optional Kits CXPR6HKPTCU Brushed Copper
Optional Kits CXPR6HKPTCG Brushed Brass
Optional Kits CXPR6HKPTFB Flat Black

Dimensions & weight

Width 35.88 in.
Height 8.5 in.
Length 27.5 in.
Weight 135 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 40.88 in.
Shipping Height 13.5 in.
Shipping Length 32.5 in.
Shipping Weight 163 lbs.
Total of Shipping Weight 163 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 4.85 ft³
Dimensional Weight 60.33 lbs.
Total of Cubes 4.85 ft³
Total of Dimensional Weight 60.33 lbs.

Description

Revel in this CAFÉ™ 36-inch gas cooktop. Commercial-style design and function with six burners give you the versatility you need to host any-sized soiree. Notably, the industry-exclusive Inspiral Burner is as beautiful as it is powerful, and the color-matched manifold is the only one of its kind.


Product Features

  • Reversible Stove Top Grill/Griddle Accessory
    Optional, reversible stove top grill/griddle is available for purchase at an additional cost, the part number is UXPRRGG.

Key Features

Versatile Cooktop

The versatile cooktop on this commercial style range features an entire arsenal of burners that give you the right amount of heat and control to perfectly cook anything from delicate sauces to expertly seared meats.

Multi-Ring Burner

A versatile burner offers different-sized flame rings on a single burner element, so it's like having multiple burners in one

Two Griddle Burners

Cook more at once with two 12,000-BTU powerful burners that can be used together or separately with an optional griddle grill accessory

Sealed Burner Cooktop

Keep your kitchen sparkling, even when there's a spill, with a sealed burner cooktop design that contains messes for easy cleanup, every time.

Continuous Gas Stove Grates

Continuous, cast-iron gas stove grates allow you to easily move heavy cookware across the cooktop surface for a more streamlined cooking experience

Electric Ignition Stove with Automatic Reignition

Confidently cook over a steady gas flame with this electric ignition stove, its automatic reignition feature instantly revives any accidentally extinguished flames

Color-Matched Manifold

Get a coordinated look with a manifold that matches the rangetop's finish

Superior Heat Distribution

The industry-exclusive Inspiral burner swirls the cooktop flame under cookware to more evenly spread heat from the center to the edges

Two High-Heat Burners

Boil water quickly with two 18,000-BTU Power Boil burners that give you more cooking power

Inspiral Wok Grate

Perfect for specialty cookware like woks, the Inspiral grate is contoured to fit their shape, concentrating the Inspiral burner's heat for better cooking results.

Inspiral™ Wok Grate

Perfect for specialty cookware like woks, the Inspiral grate is contoured to fit their shape, concentrating the Inspiral burner's heat for better cooking results.

From The Manufacturer

Videos

Rebates

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Rebates
  • Reviews
Sale price $12,997.64 Regular price $20,700.85 Save $7,703.21 / 37% OFF

Product Details for Cafe CSB913P4VW2

Technical Details

Weights & dimensions

Overall Depth 22.75 in
Overall Height 20.125 in
Cabinet Width 30 in
Overall Width 29.75 in
Cavity (W x H x D) 20-1/8 x 8-1/2 x 17
Approximate Shipping Weight 98.5 lb
Overall Depth with Handle 25.375 in
Net Weight 83 lb
Exterior Height (Front) 20.125 in
Height (Front) 20.125 in

Power / ratings

Electrical Input - 120V Amperage 15
Volts/Hertz 120V; 60Hz
Broiler Wattage 1200W
Electrical Input - 120V Watts 1800
Watts 1800
Hertz 60
Electrical Requirements 120V

Features

Control Features Over 175 Programmed Menu Selections
Connected Capabilities Google Home
Configuration Single Oven
Style Built-In
Fuel Type Electric
WiFi Connect Built-In
Product Type Single Oven
Oven Rack Features Pedestal Rack
Interior Oven Light Yes
Oven Interior Stainless Steel
Microwave Watts (IEC-705) 975 W
Control Type 7" Full-Color Touch LCD Screen
Cooking Modes Warm
Control Features Oven Camera
Cooking Technology CustomCook Speedcook Oven with 120V Advantium
Cooking Modes Crisp Reheat
Control Features Add 30 Seconds
Cooking Modes Convection
Cooking Modes Microwave
Cooking Modes Precision Cook
Cooking Modes Proof
Product Type CustomCook Speedcook Oven
Turntable Size 16
Connected Capabilities Amazon Alexa

Appearance

Handle Color Brushed Bronze
Oven Door Features Oven Window
Color Appearance Matte White
Handle CAFÉ™ Pro Style

Accessories

Metal Oven Pan Yes - Precision Cooking Tray
Optional Kits CXWS0H0PMSS Brushed Stainless
Optional Kits CXWS0H0PMBZ Brushed Bronze
Optional Kits CXWS0H0PMBT Brushed Black
Optional Kits CXWS0H0PMCU Brushed Copper
Optional Kits CXWS0H0PMCG - Brushed Brass
Optional Kits CXWS0H0PMFB - Flat Black

Warranty

Warranty Notes See written warranty for full details
Labor Warranty Limited 1-year entire appliance
Parts Warranty Limited 4-Year Magnetron Tube (Parts Only)
Parts Warranty Limited 1-Year Entire Appliance

Other

Cavity (W x H x D) 20-1/8 x 8-1/2 x 17

Dimensions & weight

Width 29.75 in.
Height 20.13 in.
Length 22.75 in.
Weight 83 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 34.75 in.
Shipping Height 25.13 in.
Shipping Length 27.75 in.
Shipping Weight 98.5 lbs.
Total of Shipping Weight 98.5 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 7.88 ft³
Dimensional Weight 97.99 lbs.
Total of Cubes 7.88 ft³
Total of Dimensional Weight 97.99 lbs.

Capacity

Total Capacity (cubic feet) 1.70 cu ft

Description

The CAFÉ™ 30" Custom Speed Cook Oven with 120V Advantium® Technology oven is THE tool that offers multiple cooking technologies in one oven! Customize your cooking with speed cook, convection, toast, broil, warming/proofing, sensor microwave plus over-the-air updates and an in-oven camera that will make you shine in the kitchen like never before. Take your culinary repertoire to the next level with one oven that does it all!


Product Features

  • Check cooking progress - from anywhere!
    You don't have to open the oven door to see how your dish is coming along thanks to the in-oven camera - this tool provides an interior view of cooking food right from your smartphone, even outside the kitchen

Key Features

Customize your cooking

Create meals that reflect your personal style with a single oven that can be used in many ways. The advanced cooking technologies include a Convection Oven, Microwave, Toaster Oven, Warming/Proofing Oven, and Speed Cook Oven with Advantium Technology

Speed cooking with oven quality results

Achieve delicious oven-quality results two to four times faster than a conventional oven with a blend true European convection heat, microwave and the energy from light that balances the heat type and source to give amazing results in a fraction of the time.

An LCD display with a touch of style

Easily navigate wall oven settings with the beautiful full color display that adds a unique element of style to your kitchen.

No pre-heat required

Your dishes begin to cook immediately because the Café™ CustomCook Speed Oven with Advantium® Technology needs no pre-heat time and cooks two to four times faster than a conventional oven.

Perfectly reheated food

You get crispy results at microwave speed with 20+ reheat programs for leftovers that taste like first time to table.

Bring the flavor with steam

Use the steam option to cook a variety of proteins such as fish, chicken and pork, vegetables and grains such as rice, pasta and quinoa. The steam option creates a moist cooking environment, keeping foods juicy and full of flavor.

Create a look that matches your personal style

Select any combination of premium finishes and hardware options to create a stunning look customized to any taste

The perfect fit you’ve always dreamed of

When you’re updating your kitchen, attention to detail is a priority. That’s why CAFÉ™ Advantium wall ovens are guaranteed for an exact fit for an easy and seamless replacement.

From The Manufacturer

Rebates

Café Fit Guarantee Rebate – Upgrade Your Kitchen Risk-Free in 2026

Café Fit Guarantee Rebate – Upgrade Your Kitchen Risk-Free in 2026

OFFER VALID REGARDLESS OF PREVIOUSLY PURCHASED BRAND.
Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Videos
  • Rebates
  • Reviews
Sale price $12,997.64 Regular price $20,700.85 Save $7,703.21 / 37% OFF

Product Details for Cafe CDT858P4VW2

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Weights & dimensions

Overall Depth 24 in
Overall Height 34 in
Height w/ Legs Retracted - Minimum Height 33.375 in
Cabinet Width 24 in
Net Weight 124 lb
Overall Width 23.75 in
Approximate Shipping Weight 137 lb
Overall Depth with Handle 26.3 in
Height w/Legs Extended - Maximum Height 34.625 in
Depth with Door Open 25.5 in
Depth Without Handle 24 in
Cutout Height (in) 33.5
Cutout Width (in) 24
Cutout Depth (in) 24

Features

Wash System 800 Series
Lower Rack Ball-Tip Tines
Sensor Clean Sensor
Tub Type Tall Tub
Leveling System 4 Leveling Legs
OU Certified No
Additional Protection Active Flood Protect
Number of Place Settings 16
Dishwasher Options WiFi/Remote Enabled
Latch Pull with Handle
Style Built-In Top Control
Number of Options 15
Water Filtration System 100% Filtration with Hard Food Disposer and Removable Filter
Cutlery Tray One piece removable 3rd rack
Rack Features Lid Manager
Racking Material Nylon
Smart Assist Yes
Dishwasher Cycles Normal
Rack Color Black Pearl
Dispenser Rinse Aid with Indicator and Adjustment
EcoBalance Compatible Yes
WiFi Connect Built-In
Control Type Top Controls
Racking System Full 3rd rack
Dishwasher Drying Features Multi-Wattage Wash & Dry Element
Wash Arms Upper
Wash System Features Variable Speed Dual Pumps and Motors
Top Rack/3rd Rack Washing, Sliding 3rd Rack w/ removable caddy
Exterior Style Customizable Professional
Product Type Built-In
Connected Capabilities Google Home
Upper Rack Smooth Glide Upper Rack
Dishwasher Control Features Last Cycle Memory
Number of Cycles 6
Tub and Door Liner Stainless Steel
Sabbath Mode Yes
Showroom Power Mode Yes
Lower Rack 1/2 fixed tines, 1/2 fold down tines
Dishwasher Options Delay Start 1-12 Hr.
Rack Features Ball-Tipped Tines
Dishwasher Cycles Cascade Platinum Plus (on app)
Control Type Cap Touch Controls
Dishwasher Drying Features Heated Dry - Ultra/Normal/Off
Wash Arms 4 Wash Levels
Wash System Features Automatic HotStart
Upper Rack 1/2 fixed tines, 1/2 fold down tines
Dishwasher Control Features Cycle Countdown with Bi-Color LED Status Light on door
Control Type 8 Touchpads
Dishwasher Control Features Cycle Progress Indicators: Clean/Sanitized/Smart Assist/WiFI/Remote Enabled
Dishwasher Control Features Audible End-of-Cycle Signal
Dishwasher Cycles Auto Wash
Dishwasher Cycles Cookware
Dishwasher Cycles Gentle
Dishwasher Cycles Express
Dishwasher Drying Features Dual Convection Ultra Dry
Dishwasher Options Favorites
Dishwasher Options Presoak + Sanitize (Certified to NSF Standard 184)
Dishwasher Options Hi-Temp Wash
Dishwasher Options Silverware Wash
Dishwasher Options Heated Dry Off
Dishwasher Options Normal Dry
Dishwasher Options Ultra Dry
Dishwasher Options Lock Controls
Dishwasher Options Bottle Wash (on app)
Dishwasher Options Wash Zones/Half Load (on app)
Dishwasher Options Favorites (on app)
Dishwasher Options Sabbath Mode
Dishwasher Options Start/Cancel
Lower Rack 1 Rack handle
Rack Features Adjustable Upper Rack
Rack Features Full Extension Slides - Upper
Rack Features Cafe Flex Silverware Basket
Upper Rack Premium Height Adjustable
Upper Rack Ball-Tip Tines
Upper Rack Fixed tines with Bottle Jets
Upper Rack 1 Rack handle
Upper Rack Lid Manager
Wash Arms Lower
Wash Arms Middle
Wash Arms 3rd Rack
Wash Arms Bottle Jets
Wash Arms Deep Clean Silverware Jets
Wash System 4-Level
Wash System Features 90+ Spray Jet Wash System
Wash System Features Automatic Temperature Control
Wash System Features Bottle Jets (4)
Wash System Features Deep Clean Silverware Jets
Wash System Features Hard Food Disposer with removable filter
Wash System Features Middle Wash Arm
Wash System Features Lower Wash Arm
Connected Capabilities Amazon Alexa

Power / ratings

Power Connection Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
Energy Consumption (kWh/year) 240
Electrical Requirements 120v ; 60Hz ; 7.2A
Calrod Heater Watts 800/500
Volts/Hertz/Amps 120v; 60Hz; 7.2A
Hertz 60
Watts 936

Economical / quiet

Door Insulation Mastic
Quiet Package 44 dBA
Outer Wrap Full-wrap Blanket
Motor Type Variable Speed
Quiet Features Tub Collar Trim
Quiet Features Sealed Toe Kick
Door Insulation Insulation
Outer Wrap Bitumen
Quiet Features Quiet Water Valve

Accessories

Optional 12' Drain Hose Optional hose kit (WD24X10065)
Optional Kits CXADTH1PVSS Brushed Stainless
Optional Kits CXADTH1PVBZ Brushed Bronze
Optional Kits CXADTH1PVCU Brushed Copper
Optional Kits CXADTH1PVBT Brushed Black
Optional Kits CXADTH1PVCG Brushed Brass
Optional Kits CXADTH1PVFB Flat Black

Appearance

Installation Side Installation or Top Installation Included
Door Style Long Door with Top Controls
Handle Color Brushed Bronze
Door Appearance Full-length flat door
Color Appearance Matte White
Control Panel Color Matte Dark Slate, Fingerprint Resistant
Handle Design Customizable
Handle CAFÉ™
Installation Flush Cabinet Installation
Installation Built-Up Floor Capable

Warranty

Labor Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details
Parts Warranty Limited 1-year entire appliance

Dimensions & weight

Width 23.75 in.
Height 34 in.
Length 24 in.
Weight 124 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 28.75 in.
Shipping Height 39 in.
Shipping Length 29 in.
Shipping Weight 137 lbs.
Total of Shipping Weight 137 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 11.22 ft³
Dimensional Weight 139.42 lbs.
Total of Cubes 11.22 ft³
Total of Dimensional Weight 139.42 lbs.

Description

CustomFit Top Rack with Ultra Wash
Load your way in this dishwasher with a customizable top rack. The CustomFit Top Rack can be configured to maximize flexibility. In addition, the UltraWash Zone uses powerful jets to target stuck-on food on silverware, cooking utensils and ramekins.

CustomFit Basket with Ultra Wash
Load more than just silverware in this flexible basket with dedicated wash jets below. The CustomFit Basket holds all your silverware, stemware and reusable straws, so items that were hand wash before can safely be washed in the dishwasher.

CustomFit Lid Caddy
Cup lids and blender blades can easily dry thanks to the CustomFit Lid Caddy. It is designed to hold items at the perfect position for cleaning and restricts water from pooling, so pieces come out clean and dry after every wash.

Ultra Wash & Dual Convection Ultra Dry
Expect precision cleaning and superior dryness on fine china, dinnerware and plastics in this ultra-wash and dry dishwasher. Exceptional features like Variable-Pressure Jets and Dual-Convection Ultra Dry offer great results with every cycle.

Customizable Dishwasher Handles
Choose from six unique CAF(EBACK)(TM) handle finishes to complement the rest of your kitchen thanks to this dishwasher with customizable hardware.

4 Bottle Wash Jets
This dishwasher with 4 bottle wash jets ensures a deep clean for tall items, narrow glasses, jars and more. In the upper rack, each of the jets directs water and detergent inside to effectively wash hard-to-reach areas.

Smart Features Powered by SmartHQ(TM)
Built-in WiFi and the SmartHQ(TM) app make it easy to control and monitor your smart dishwasher from anywhere. You can also conveniently access the latest features like Favorites, which allows you to access your favorite cycles with a single button.

Smart Assist
Smart Assist makes it simple for you to unlock optimal wash and dry performance. Innovative dishwasher sensors and intelligent machine learning enhance and improve cycles over time.

Smooth-Glide Adjustable Middle Rack
Load your dishwasher your way thanks to an adjustable middle rack. Easily move it up and down to fit bottles, large platters and other items as tall as 10.5".

Presoak + Sanitize
Save time with a high-temperature cycle that steams and sanitizes. Loosen tough soils before the wash cycle begins without the need to pre-rinse or soak. Plus, a sanitation cycle reduces 99.999% of bacteria on dishes.

Silverware Wash
Powerful jets in the top rack and and below the basket in the lower rack work in unison using targeted washing action to clean even the most stuck-on foods from silverware and cooking utensils.

Middle and Lower Rack Fold-Down Tines
Two rows of adjustable tines in both the middle and lower rack allow you to load the way you want. 16 different tine positions offer the ultimate customization to fit all of your items.

Wash Zones
Wash a true half load in the upper or lower rack whenever you need to in this dishwasher with loading flexibility. Just choose your wash zone: upper or lower. The feature works in combination with most cycles, saving you time and conserving energy.

Active Flood Protect
Active Flood Protect prevents potential overflows for greater peace of mind. It works by using a water leak detector to sense when water is too high, pumping it out until a safe level is reached.

Flush Installation
Cabinet-depth flush installation ensures your dishwasher blends in with the design of your kitchen without sacrificing space for dishes inside.



Product Features

  • Flush Installation
    Cabinet-depth flush installation ensures your dishwasher blends in with the design of your kitchen without sacrificing space for dishes inside.

Key Features

CustomFit Basket with Ultra Wash

Load more than just silverware in this flexible basket with dedicated wash jets below. The CustomFit Basket holds all your silverware, stemware and reusable straws, so items that were hand wash before can safely be washed in the dishwasher.

CustomFit Lid Caddy

Cup lids and blender blades can easily dry thanks to the CustomFit Lid Caddy. It is designed to hold items at the perfect position for cleaning and restricts water from pooling, so pieces come out clean and dry after every wash.

Customizable Dishwasher Handles

Choose from six unique CAFÉ™ handle finishes to complement the rest of your kitchen thanks to this dishwasher with customizable hardware.

4 Bottle Wash Jets

This dishwasher with 4 bottle wash jets ensures a deep clean for tall items, narrow glasses, jars and more. In the upper rack, each of the jets directs water and detergent inside to effectively wash hard-to-reach areas.

Smart Assist

Smart Assist makes it simple for you to unlock optimal wash and dry performance. Innovative dishwasher sensors and intelligent machine learning enhance and improve cycles over time.

Smooth-Glide Adjustable Middle Rack

Load your dishwasher your way thanks to an adjustable middle rack. Easily move it up and down to fit bottles, large platters and other items as tall as 10.5".

Presoak + Sanitize

Save time with a high-temperature cycle that steams and sanitizes. Loosen tough soils before the wash cycle begins without the need to pre-rinse or soak. Plus, a sanitation cycle reduces 99.999% of bacteria on dishes.

Silverware Wash

Powerful jets in the top rack and and below the basket in the lower rack work in unison using targeted washing action to clean even the most stuck-on foods from silverware and cooking utensils.

Wash Zones

Wash a true half load in the upper or lower rack whenever you need to in this dishwasher with loading flexibility. Just choose your wash zone: upper or lower. The feature works in combination with most cycles, saving you time and conserving energy.

Middle and Lower Rack Fold-Down Tines

Two rows of adjustable tines in both the middle and lower rack allow you to load the way you want. 16 different tine positions offer the ultimate customization to fit all of your items.

Active Flood Protect

Active Flood Protect prevents potential overflows for greater peace of mind. It works by using a water leak detector to sense when water is too high, pumping it out until a safe level is reached.

CustomFit Top Rack with Ultra Wash

Load your way in this dishwasher with a customizable top rack. The CustomFit Top Rack can be configured to maximize flexibility. In addition, the UltraWash Zone uses powerful jets to target stuck-on food on silverware, cooking utensils and ramekins.

Ultra Wash & Dual Convection Ultra Dry

Expect precision cleaning and superior dryness on fine china, dinnerware and plastics in this ultra-wash and dry dishwasher. Exceptional features like Variable-Pressure Jets and Dual-Convection Ultra Dry offer great results with every cycle.

Smart Features Powered by SmartHQ

Built-in WiFi and the SmartHQ app make it easy to control and monitor your smart dishwasher from anywhere. You can also conveniently access the latest features like Favorites, which allows you to access your favorite cycles with a single button.

Smart Features Powered by SmartHQ™

Built-in WiFi and the SmartHQ™ app make it easy to control and monitor your smart dishwasher from anywhere. You can also conveniently access the latest features like Favorites, which allows you to access your favorite cycles with a single button.

From The Manufacturer

Videos

Rebates

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

  • Product Details
  • Manuals & Guides
  • Key Features
  • From The Manufacturer
  • Rebates
  • Reviews
Sale price $12,997.64 Regular price $20,700.85 Save $7,703.21 / 37% OFF

Product Details for Cafe CVW73614MWM

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Weights & dimensions

Overall Depth 18.5 in
Overall Height 1.75 in
Cabinet Width 36 in
Net Weight 46 lb
Approximate Shipping Weight 60 lb
Overall Width 36 in

Features

Cooktop Lighting Halogen
Fan Speed Control 4-Speed
Max CFM 350
Ducting Vertical Only
Light Controls On/Off/Night
Filter Cleaning Dishwasher Safe
CFM/ Sones Rating 350/6.1 (Boost Speed)
Exhaust Options Vented to Outside
Product Type Wall-Mount Hood
6" Round Duct Yes
Control Type Electronic Touch
Control Location Front
Removable Grease Filter(s) Yes
Blower Type Internal
CFM/ Sones Rating 330/5.4 (High Speed)
CFM/ Sones Rating 160/.9 (Working Speed)
Exhaust Options Recirculating
Required Duct Size 6 in. Round
Control Type Backlit

Appearance

Blower / Light Switch Color Backlit
Material Steel
Color Appearance Matte White

Accessories

Optional Accessories UXRC70 - Remote Control
Optional Accessories UXDC734MWM - 10 (ft.) Ceiling Duct Cover Kit
Optional Accessories JXCF71 - Charcoal Filter

Warranty

Labor Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details
Parts Warranty Limited 1-year entire appliance

Power / ratings

Amp Rating at 120V 5.3
Watts 236
Hertz 60
Electrical Requirements 120V ; 60Hz ; 5.3A

Economical / quiet

Venting Type Convertible

Dimensions & weight

Width 36 in.
Height 1.75 in.
Length 18.5 in.
Weight 46 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 41 in.
Shipping Height 6.75 in.
Shipping Length 23.5 in.
Shipping Weight 60 lbs.
Total of Shipping Weight 60 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 0.67 ft³
Dimensional Weight 7.02 lbs.
Total of Cubes 0.67 ft³
Total of Dimensional Weight 7.02 lbs.

Description

Keep your kitchen smelling fresh and clean with a 350 CFM Venting System that removes odors of all types from the air. Electronic Backlit Controls and Dual Halogen Cooktop Lighting add the right amount of illumination where you need it. Additional features, like a Night Light and a Remote Control, add convenience and functionality.

Key Features

Design a kitchen that breathes

Keep your kitchen smelling fresh and ready for guests with a 350-CFM venting system with boost that removes smoke, grease, odors and moisture

Enjoy effortless control

Add a conversation-starter to your kitchen with electronic backlit controls that look great and are easy to use

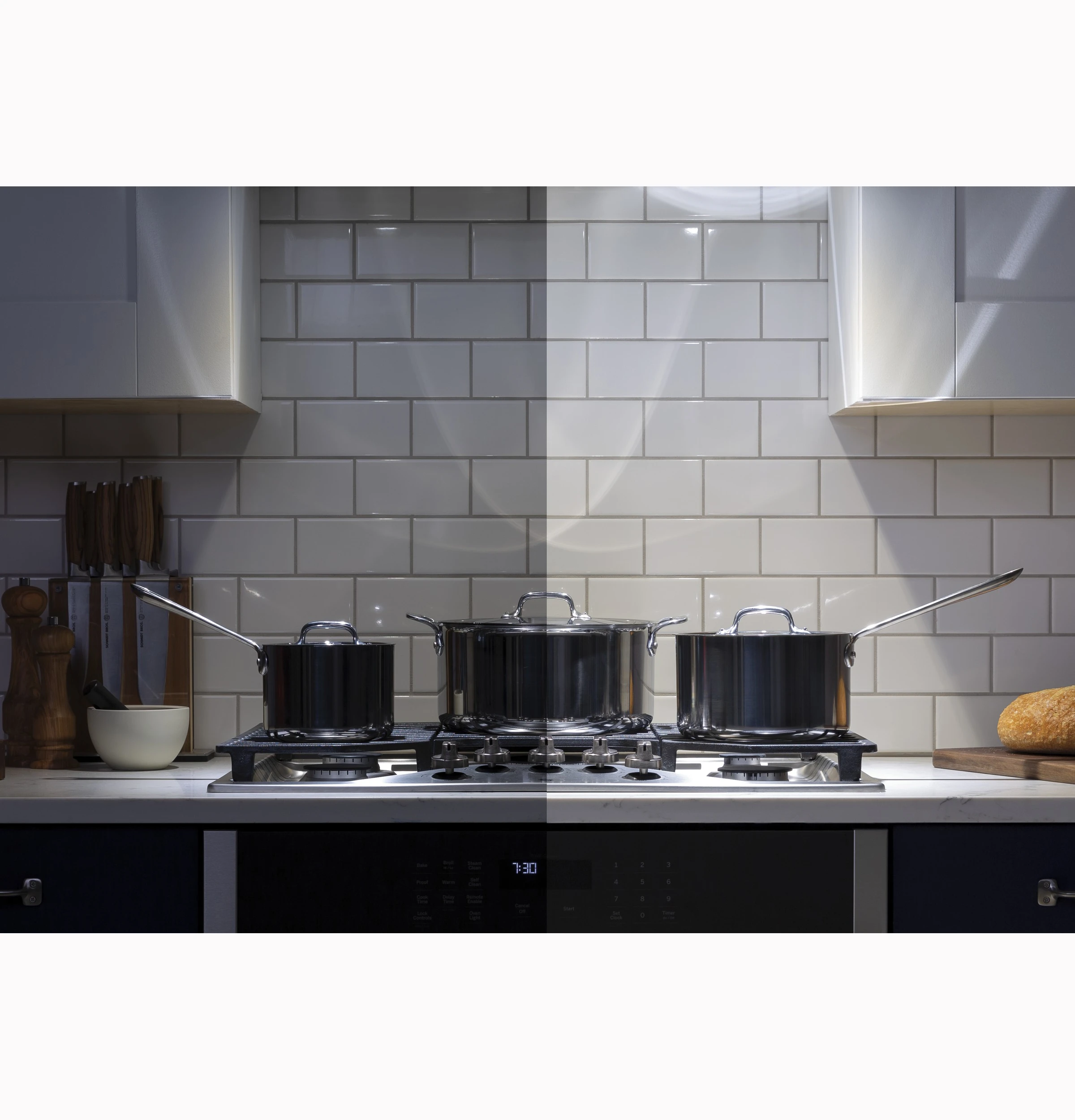

Create a warmly lit atmosphere

Clearly watch the progress of preparing your favorite meals with dual halogen cooktop lighting that brightly illuminates the cooking surface

Light up your night

See your way through midnight snacking with a night light that softly illuminates the cooktop and surrounding areas

Freshen up your kitchen air

Fill the kitchen with fresh air with two convertible venting options: recirculating or external venting

Control at your fingertips

Share favorite stories without interruption, thanks to an optional remote control that can change lighting and fan speed settings from anywhere in the kitchen.

Never forget to power down

Keep conversations flowing without interruption thanks to an auto-off feature that deactivates the vent after 15 minutes

Clean up cleaning up

Simplify clean-up with a dishwasher-safe filter that removes grease and can be cleaned alongside dishes too

From The Manufacturer

Rebates

Express Yourself Personalized Appliances To Make A Statement

Receive up to a $3000 Rebate with the purchase of select suite combinations

Valid: 01/01/2026 - 06/30/2026
Download Rebate formView all rebate products

Reviews

Compare with similar products

Recommendations

Previously viewed products
