Product Details for Thor Kitchen LRG4807U
Technical Details
Technical details
| Fuel Type | Natural Gas / LP Convertible |
| Installation Type | Freestanding |
| Color | Stainless Steel |
| Electrical Requirements | 120 |
| Circuit Breaker (A) | 15 |
| Frequency (Hz) | 60 |
| Controls Type | Knob |
Burner performance
| Total Burners | 6 |
| [1] Front Left (Single) | 12 |
| [2] Front Middle (Single) | 18 |
| [3] Front Right (Single) | 12 |
| [4] Rear Left (Single) | 12 |
| [5] Rear Middle (Single) | 12 |
| [6] Rear Right (Single) | 12 |
| [7] Griddle Burner | 15 |
| Tube Broil burner | 10 |
| U-shape burner (30 Oven) | 22 |
| Tube burner (18 Oven) | 14 |
Dimensions
| Product Width | 47 7/8 |
| Product Height (From Bottom To Top Of Back Splash) | 36 1/8 - 37 1/8 |
| Product height (from bottom to top of back splash) | 36 1/2 - 37 1/2 |
| Product Height (From Bottom To Top Of Side Panel) | 35 9/16 |
| Product height (from bottom to top of side panel) | 34 7/8 - 35 7/8 |
| Product depth (from back panel to bullnose) | 27 1/2 |
| Product Depth (From Back Panel To Bullnose) | 27 1/2 |
| Product depth (from back panel to control board) | 26 3/8 |
| Product Depth (From Back Panel To Control Board) | 26 3/8 |
| Product depth (from back panel to side panel front) | 24.0 |
| Product Depth (From Back Panel To Side Panel Front) | 24.0 |
| Depth Of Control Panel (Minimum) | 2 5/16 |
| Depth of control panel (minimum) | 2 5/16 |
| Depth Of Control Panel (Bullnose) | 3 1/2 |
| Depth of control panel (bullnose) | 3 1/2 |
| Adjustable Leg Sizes | 1.0 |
Weight
| Adjustable Leg Sizes | 1.0 |
| Net weight | 323 |
| Gross weight | 376 |
Cutout
| Cutout Height | 34.88 |
| Cutout Width | 48.13 |
| Cutout Depth | 25.0 |
Cutout
| Cutout Height | 34.88 |
| Cutout Width | 48 1/8 Inch |
| Cutout Depth | 25 |
Accessories not included
| Wok Ring | WK01 |
| Liquid Propane Conversion Kit | LPKLRG4807U |
| Attachable Griddle | RG1022 |
Features
- Dual ovens at 4.6 cu. ft. and 2.2 cu. ft. capacity allow you to cook multiple dishes at a time
- The 15,000 BTU griddle offers additional cooking space and flexibility
- The high-powered 18,000 BTU burner provides fast, intense heat for creating large family meals and restaurant-quality dishes
Description
Key Features
High-Powered BTU Burners
The high-powered 18,000 BTU burner provides fast, intense heat for creating large family meals and restaurant-quality dishes
Oven Capacity
Dual ovens at 4.6 cu. ft. and 2.2 cu. ft. capacity allow you to cook multiple dishes at a time

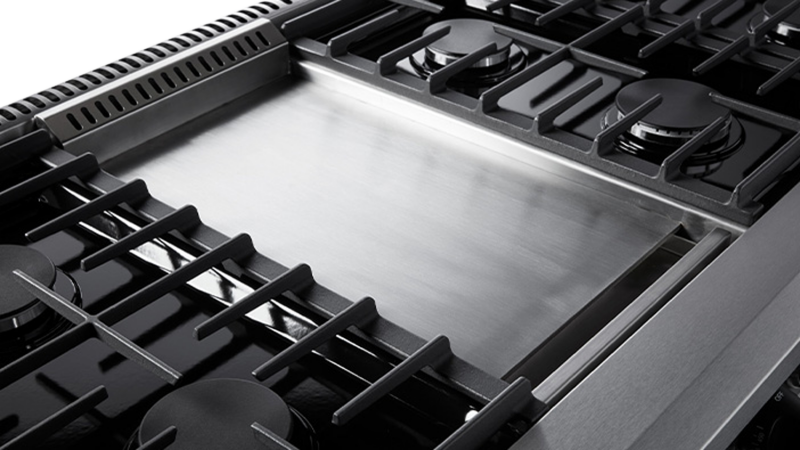

Griddle Feature
The 15,000 BTU griddle offers additional cooking space and flexibility

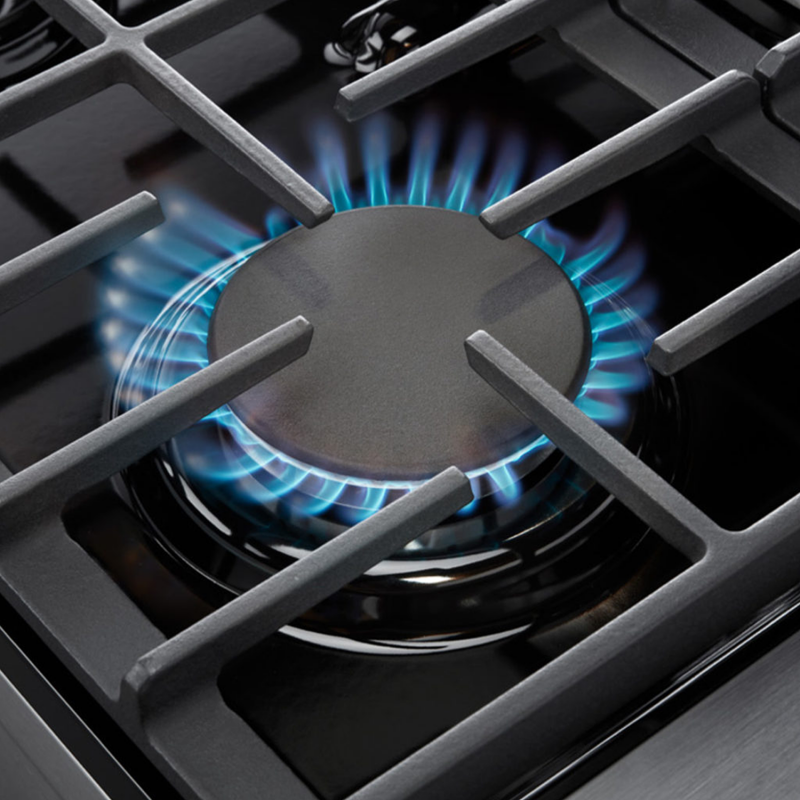

CONTINUOUS CAST-IRON GRATES
Heavy-duty continuous cast-iron cooking grates that can handle any size cookware

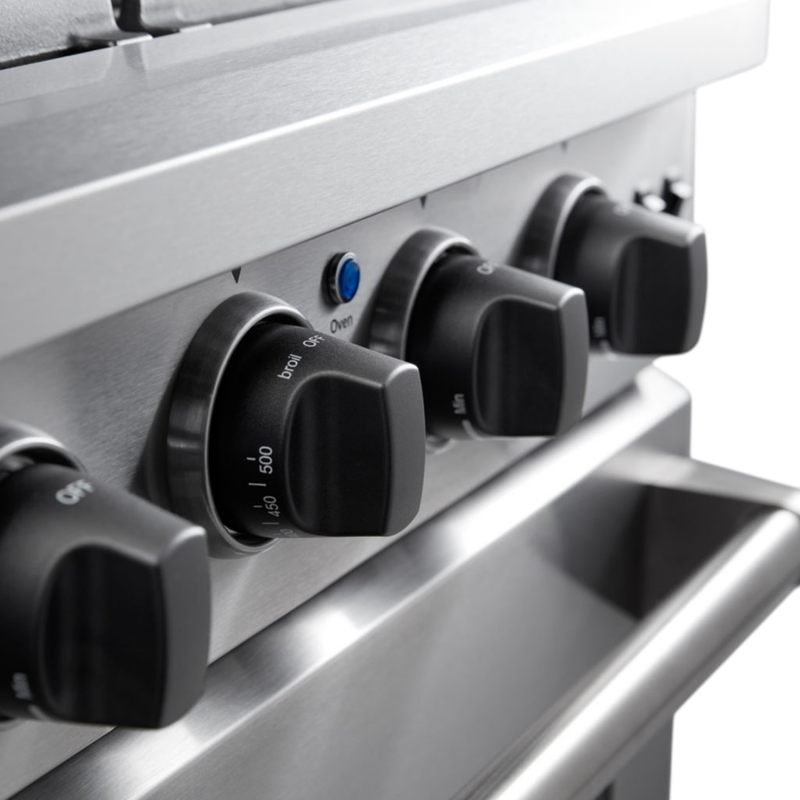

Pro-style Knobs
Black ABS burner control knobs add style to the bold range design
GRIDDLE FEATURE
The 15,000 BTU griddle offers additional cooking space and flexibility
Storage Space
Storage drawer provides additional storage space for cooking trays and other kitchen utensils.
