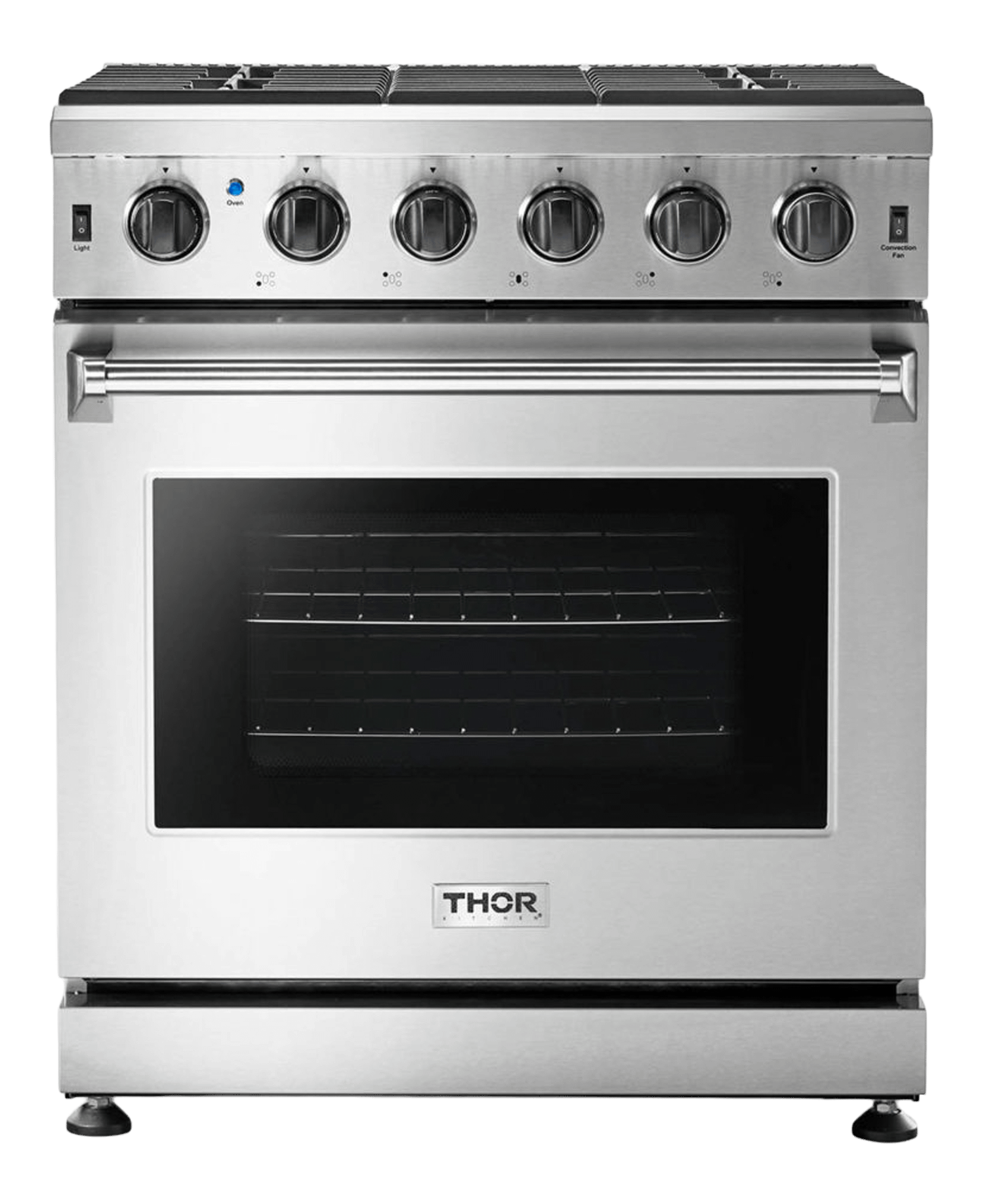

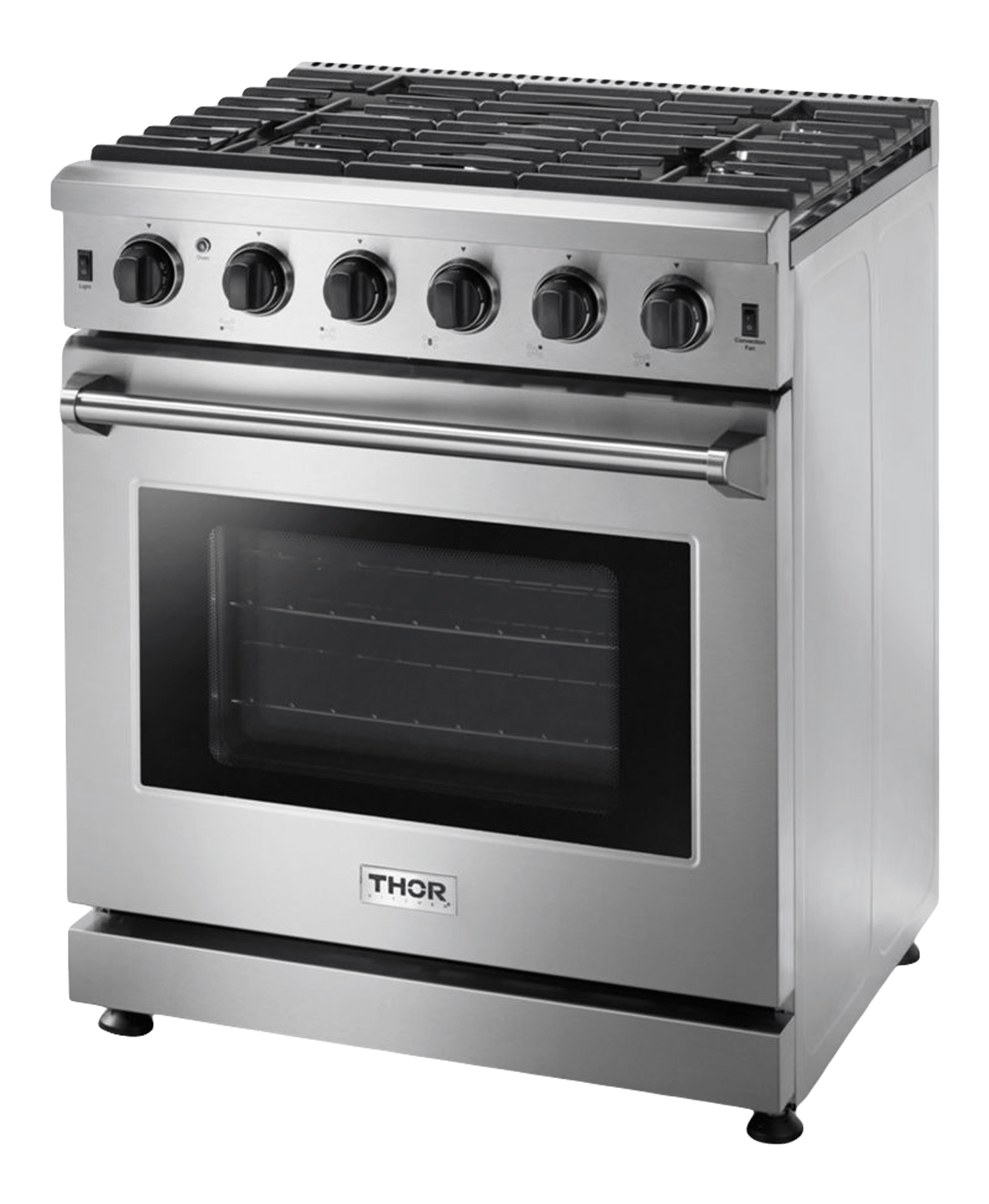

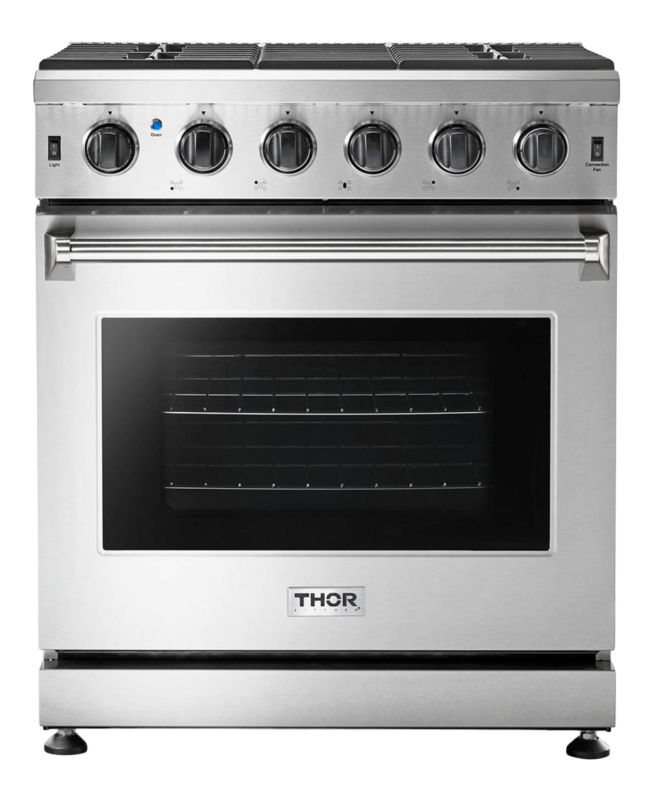

Product Details for Thor Kitchen LRG3001U
Technical Details
Technical details
| Fuel Type | Natural Gas / LP Convertible |
| Installation Type | Freestanding |
| Color | Stainless Steel |
| Electrical Requirements | 120 |
| Circuit Breaker (A) | 15 |
| Frequency (Hz) | 60 |
| Controls Type | Knob |
Burner performance
| Total Burners | 5 |
| [1] Front Left (Single) | 18 |
| [2] Front Right (Single) | 8 |
| [3] Rear Left (Single) | 4 |
| [4] Rear Right (Single) | 6 |

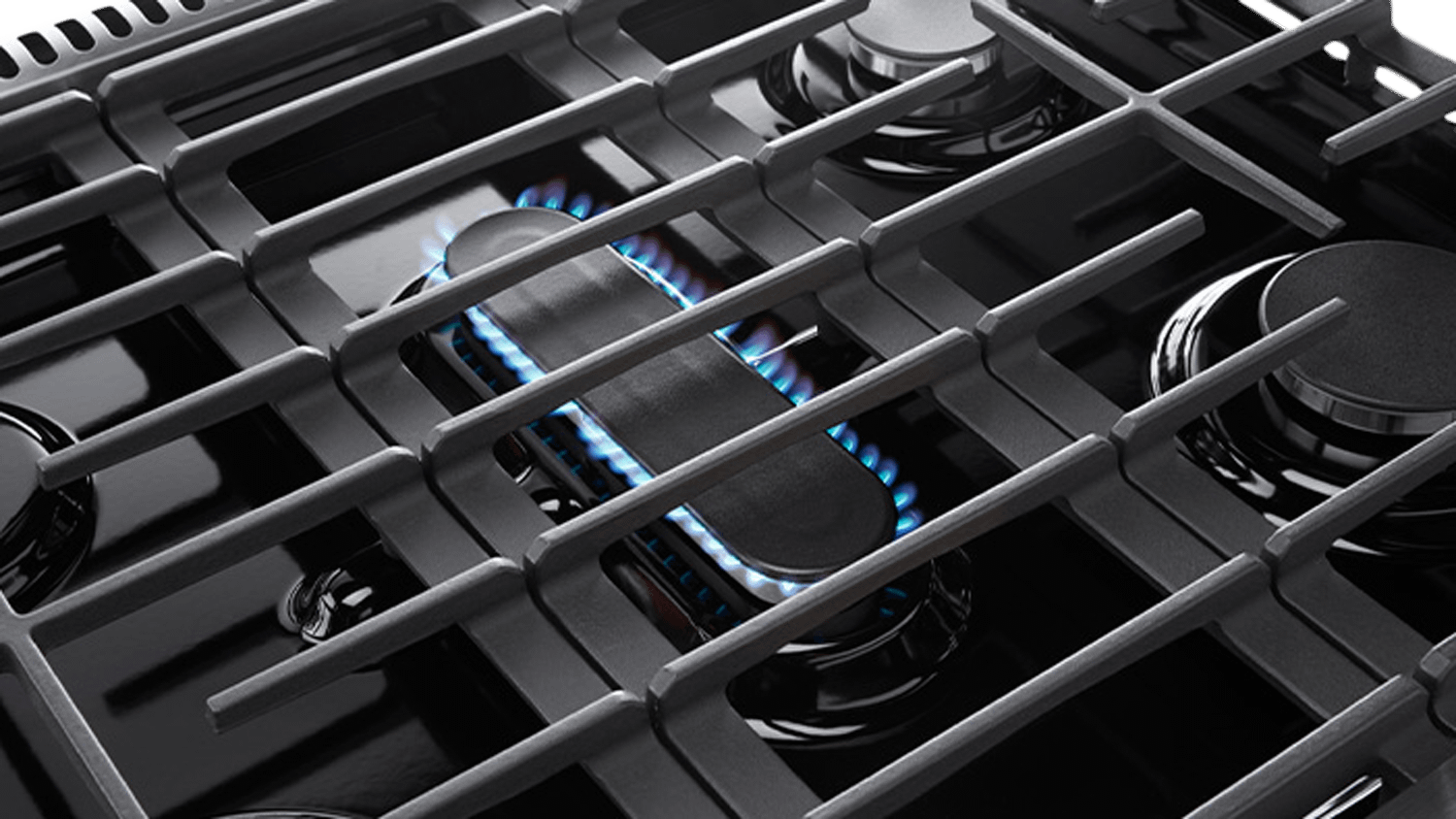

| [5] Middle (Oval) | 9 |
| Tube Broil burner | 10 |
| Bake Burner (30 Oven) | 18 |
Dimensions
| Product Width | 30.0 |
| Product height (from bottom to top of back splash) | 36 5/16 Inch - 37 5/16 Inch |
| Product height (from bottom to top of side panel) | 35 5/8 -36 5/8 |
| Product depth (from back panel to bullnose) | 28 5/16 |
| Product depth (from back panel to control board) | 27 3/4 |
| Product depth (from back panel to side panel front) | 24 3/4 |
| Depth of control panel (minimum) | 2 1/4 |
| Depth of control panel (bullnose) | 3 9/16 |
Weight
| Adjustable Leg Sizes | 1.0 |
| Net weight | 211 |
| Gross weight | 253 |
Cutout
| Cutout Height | 35.63 |
| Cutout Width | 30 1/8 Inch |
| Cutout Depth | 24 3/4 Inch |
Accessories not included
| Wok Ring | WK01 |
| Liquid Propane Conversion Kit | LPKLRG2401U |
| Attachable Griddle | RG1022 |
Features
- The high-powered 18,000 BTU burner provides fast, intense heat for creating large family meals and restaurant-quality dishes
- 4.55 cu. ft. oven capacity can accommodate multiple dishes at a time
- Storage drawer provides additional storage space for cooking trays and other kitchen utensils
Description
Key Features

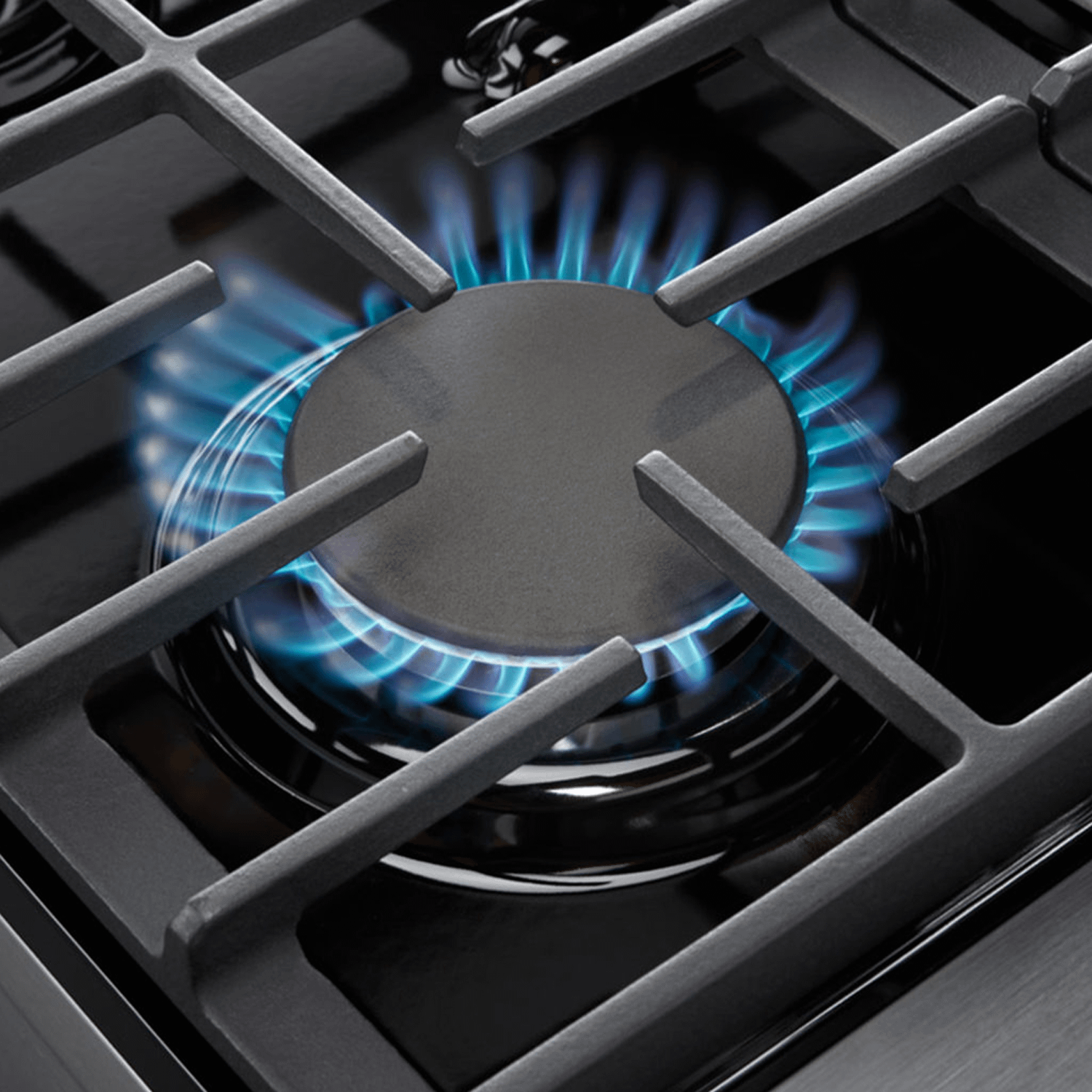

HIGH-POWERED BTU BURNERS
The high-powered 18,000 BTU burner provides fast, intense heat for creating large family meals and restaurant-quality dishes

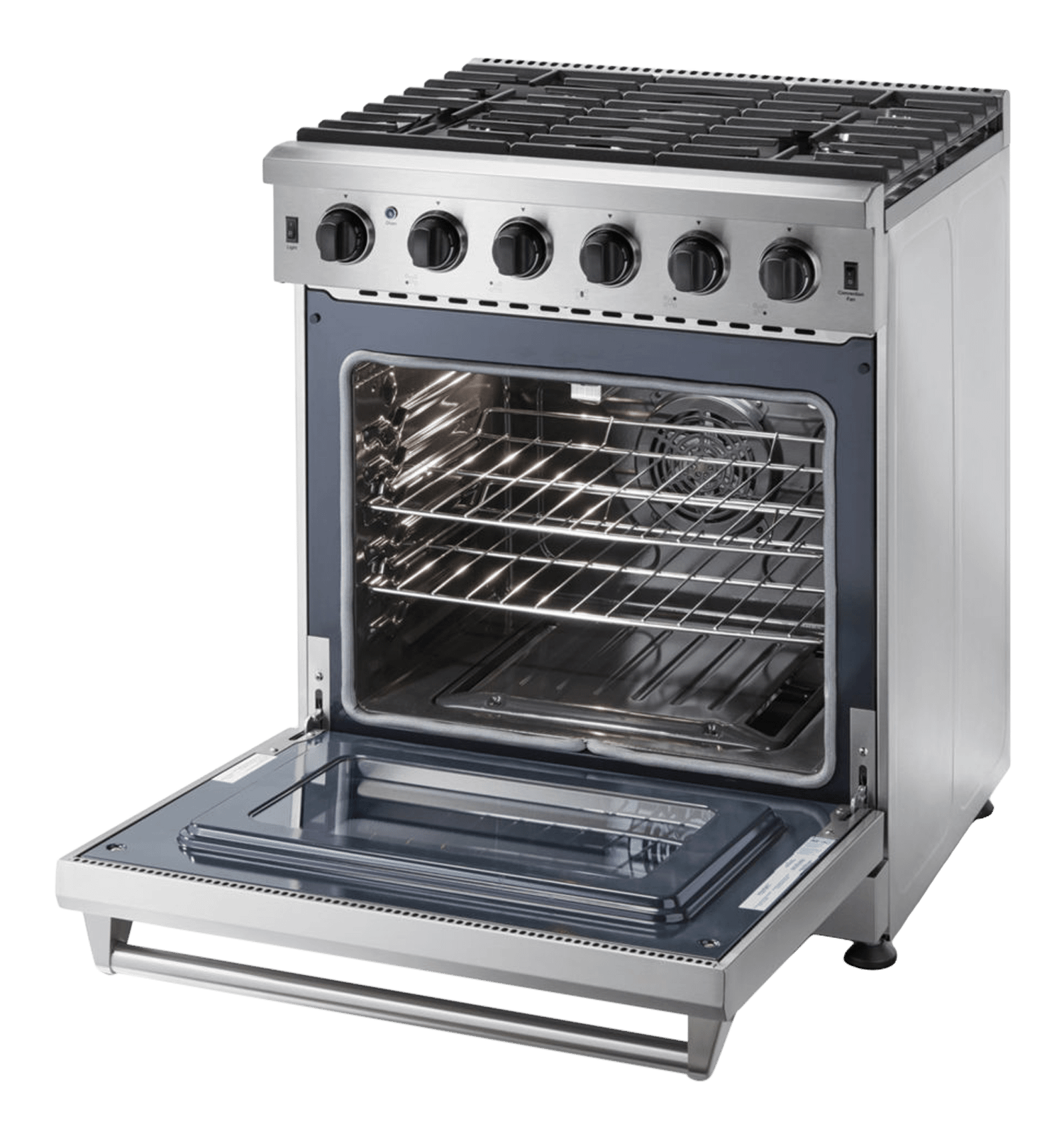

LARGE OVEN CAPACITY
4.55 cu. ft. oven capacity can accommodate multiple dishes at a time
STORAGE SPACE
Storage drawer provides additional storage space for cooking trays and other kitchen utensils
CONVECTION FAN
Commercial convection fan provides controlled heat distribution for fast and efficient cooking
PORCELAIN SPILL TRAY
Single-piece black porcelain spill tray catches the mess and makes cleanup easy

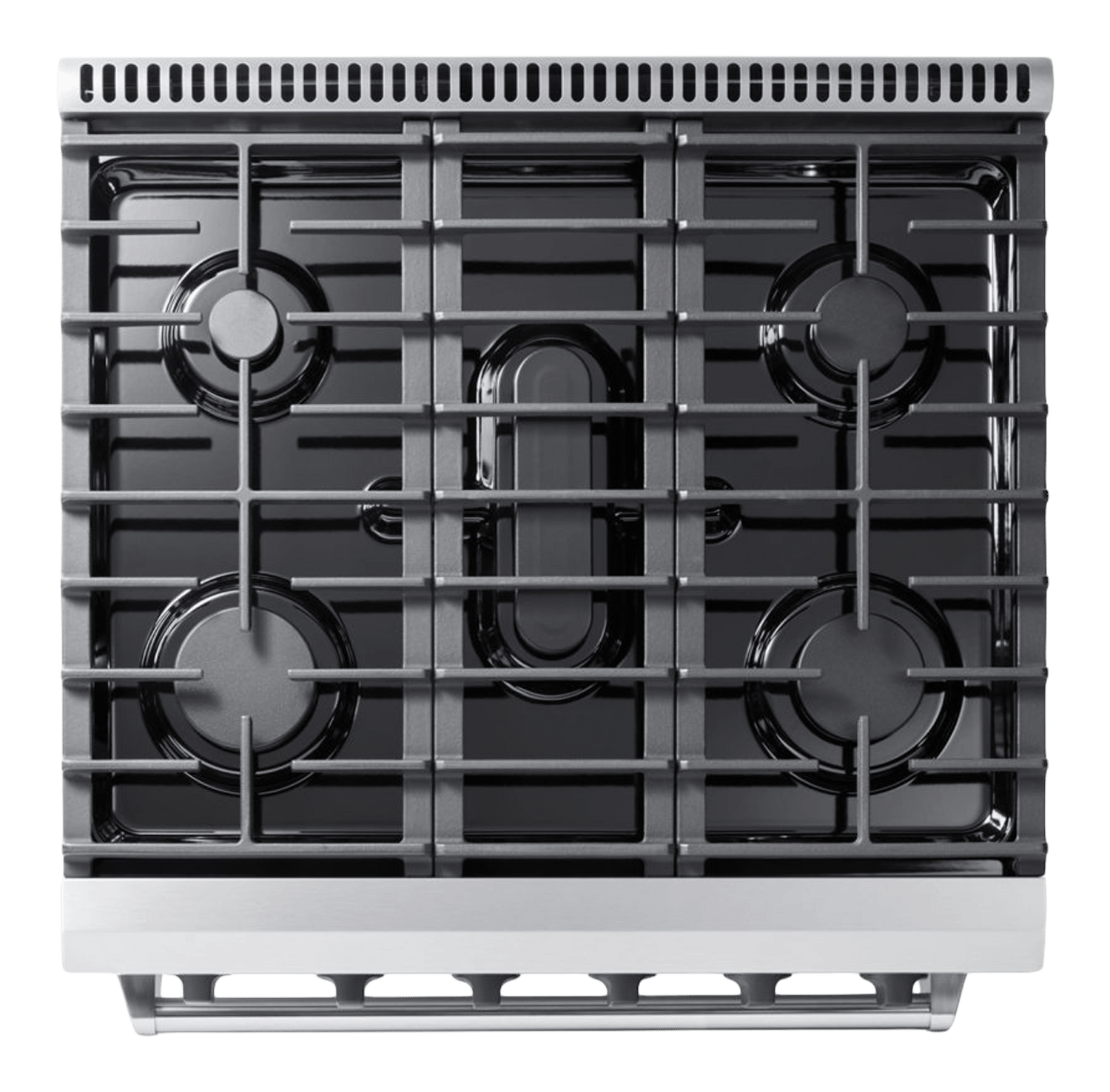

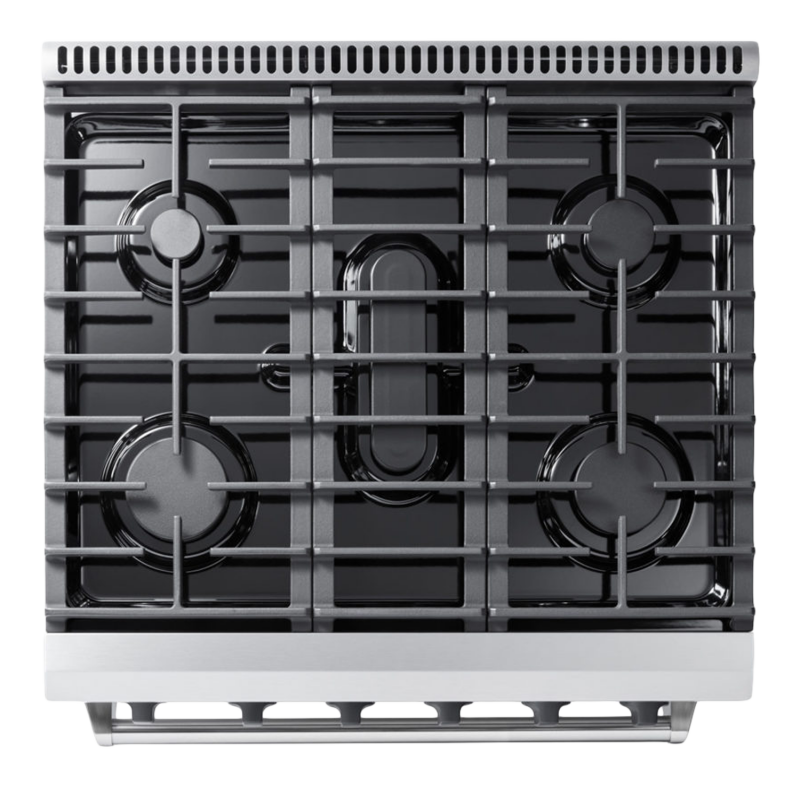

CONTINUOUS CAST-IRON GRATES
Heavy-duty continuous cast-iron cooking grates that can handle any size cookware

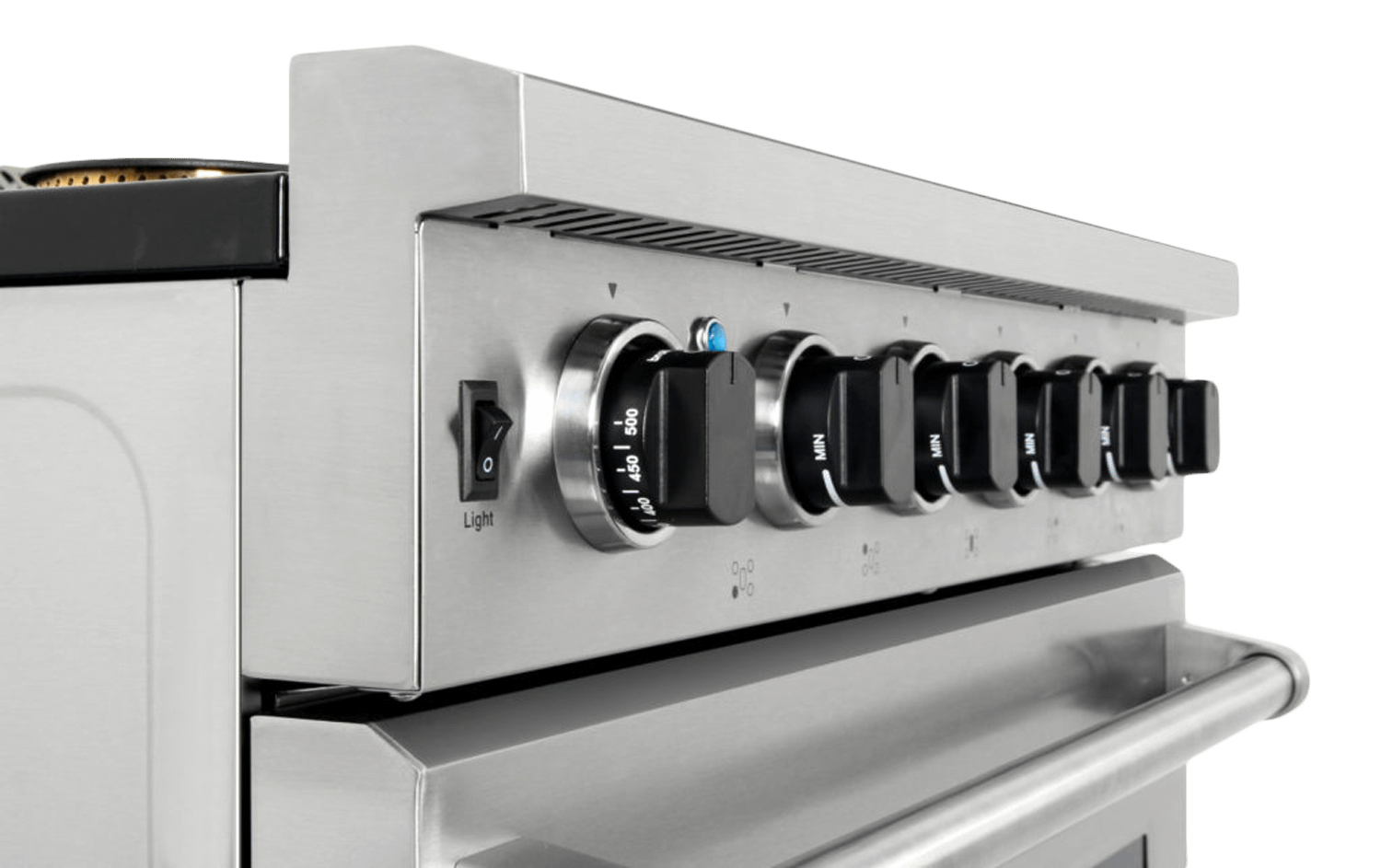

PRO CONTROL KNOBS
Black burner control knobs add style to the bold range design
PROFESSIONAL KNOBS
EVEN HEAT BROILER
Reflective gas tube broiler distributes heat evenly to sear your food and seal in the juices
