Product Details for Summit SBC682WKDTWIN

Technical Details

Overview

Nominal Height 13.39
Height of Cabinet 13.24
Nominal Width 9.45
Width 9.35
Nominal Depth 9.45
Depth 9.45
Depth with Handle 10.33
Depth with door at 90(degree) 18.41
Capacity 5.6
Defrost Type Automatic
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 305.0
Amps 1.25
Voltage/Frequency 115
Weight 120.0
Parts & Labor Warranty 1
Compressor Warranty 5
UPC 761101083988

Kegerator

Door Swing RHD
Reversible Yes
Tap Kit Yes
Height with Tap 20.28
Number of Taps 2
Adjustable Shelves Yes
Shelf Type Chrome
Shelf Qty 2
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant R600a
Refrigerant Amount 1.06
High Side PSI 150.0
Low Side PSI 50.0
Inter Height 10.53
Interior Width 7.87
Interior Depth 7.48
Level Legs Qty 4
Wheel Qty 4
Temperature Range 34
Sound Level 34.0

Features

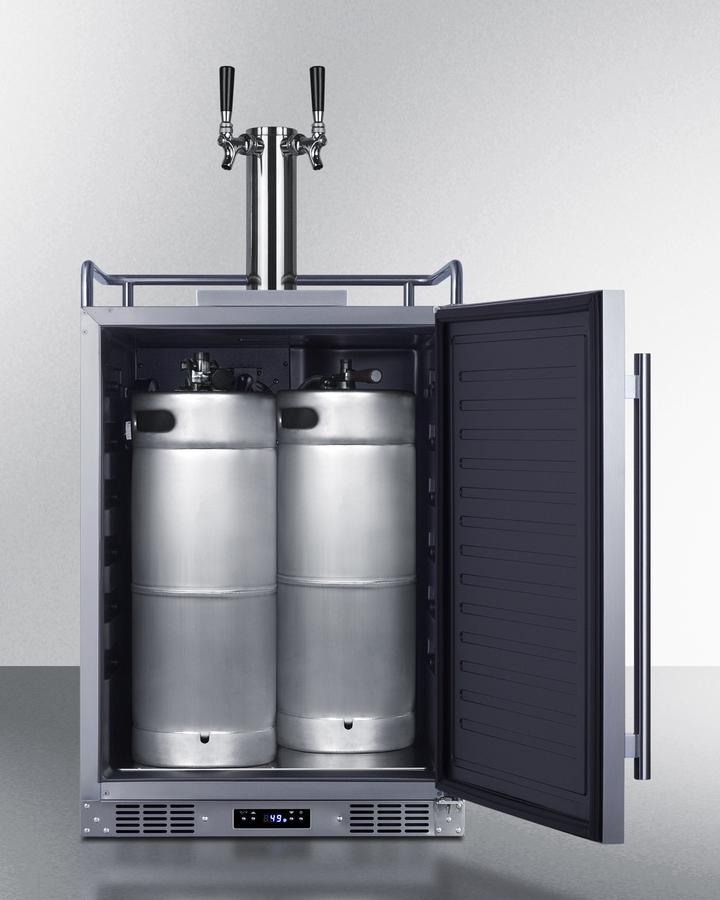

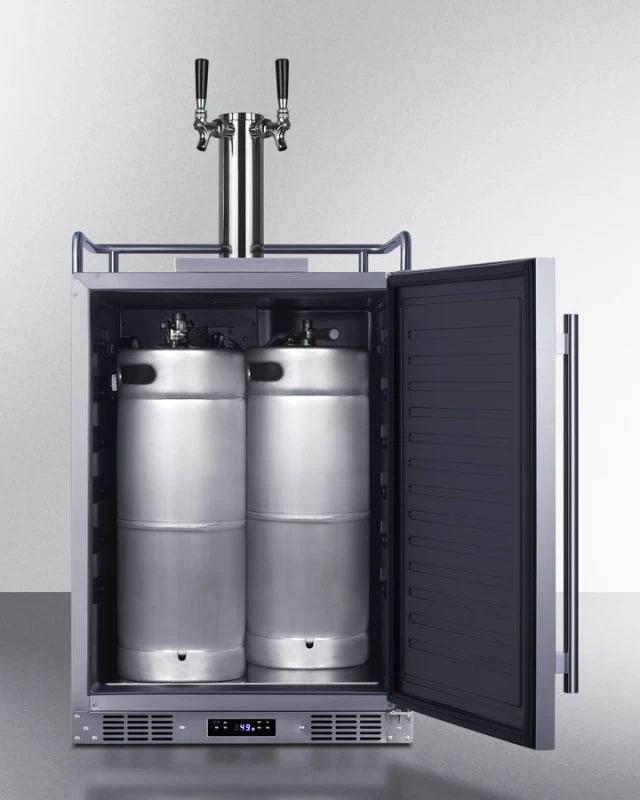

  • 5.6 cu.ft. interior can accept a full half barrel or quarter keg, or up to three sixth barrels or Cornelius style kegs
  • ETL-S listed to NSF-7 standards and meets UL-471 for use in commercial settings
  • Solid 304 grade stainless steel construction allows placement in the outdoors
  • Front-breathing design allows fully recessed installation under counters
  • Ships with a complete twin tap wine tap kit that includes a dispenser tower, regulator, and all the connection equipment you need to serve from a 1/6 wine keg or disposable wine keg
  • Canister is best suited for a 75% nitrogen/25% CO2 mixture

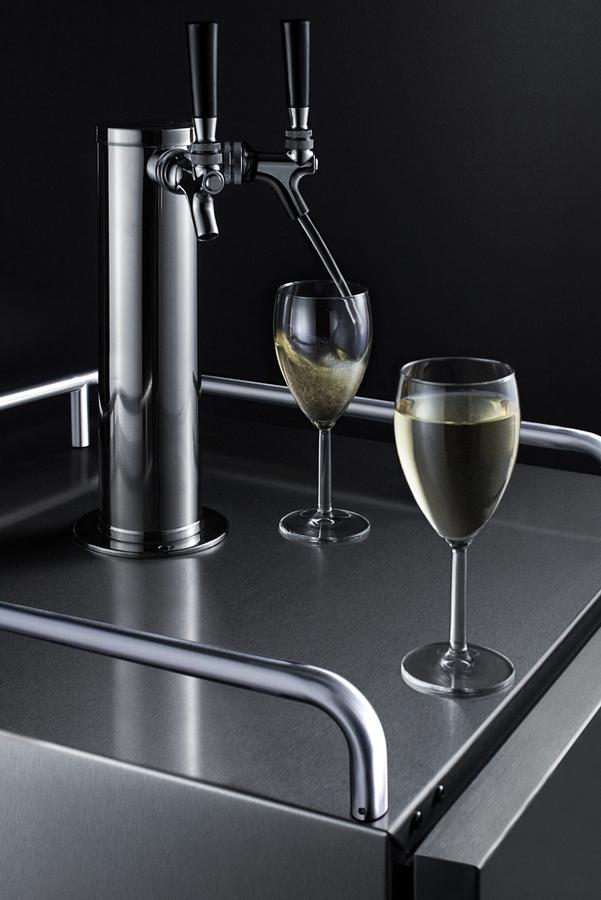

  • Twin draft tower allows you to serve from two 1/6 (sixtel) sized wine kegs
  • Reduced user maintenance with auto defrost operation
  • Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit

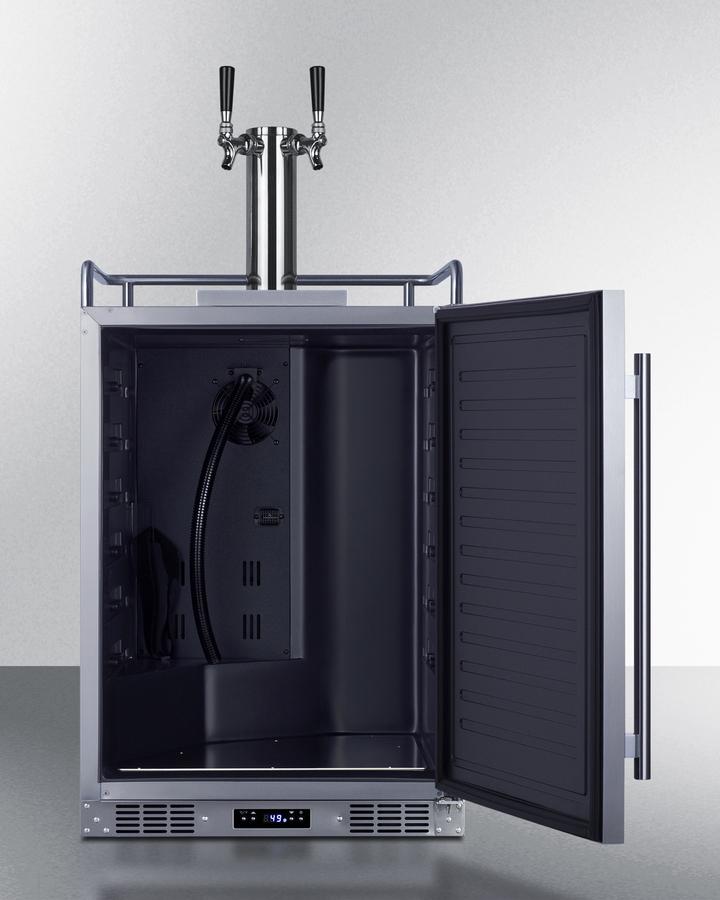

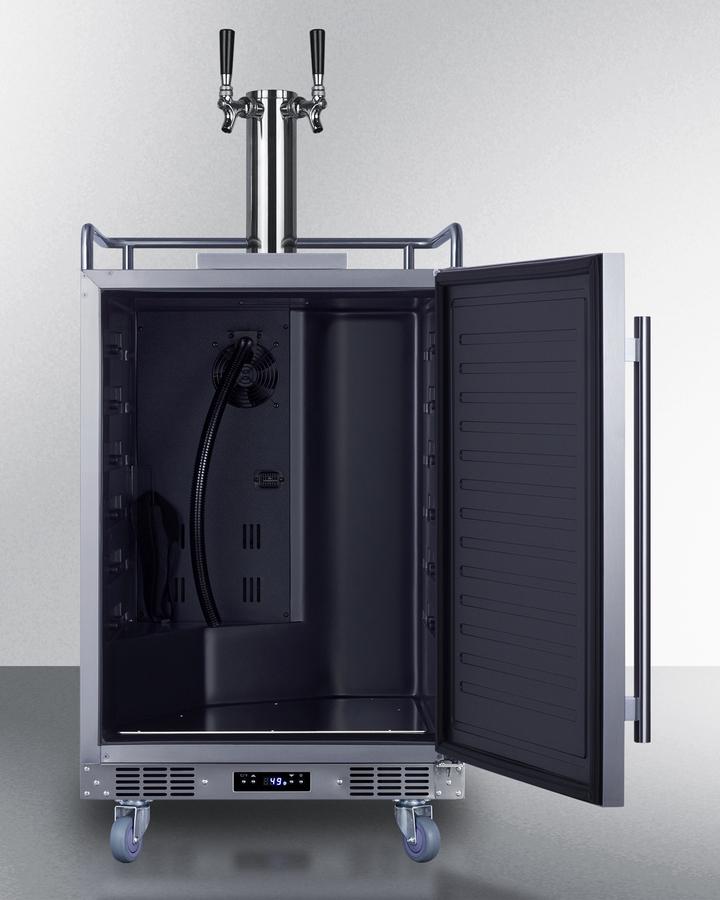

  • Interior tube allows you to extend the cold air flow up into draft tower, ensuring wine freshly tapped stays chilled
  • Interior includes steel cover to protect the floor when loading kegs

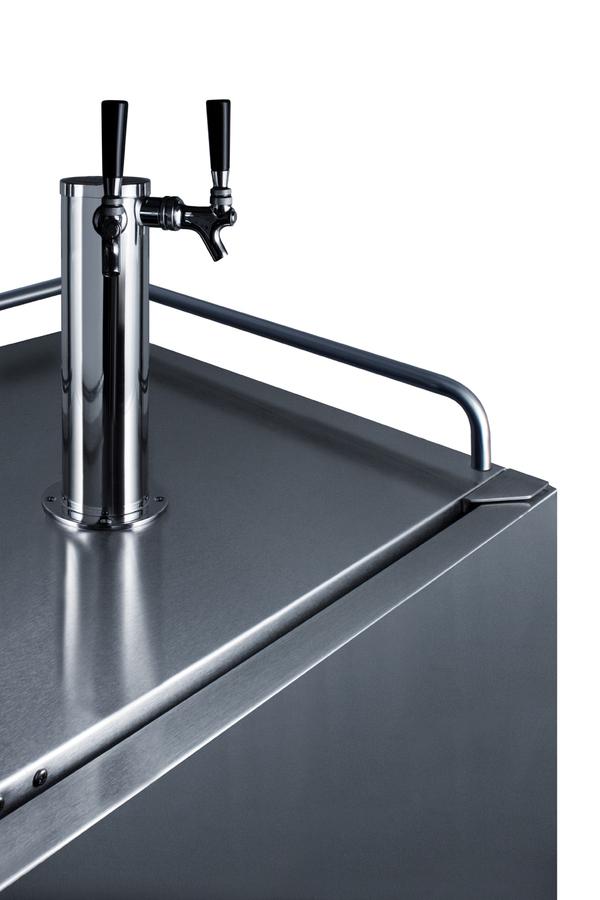

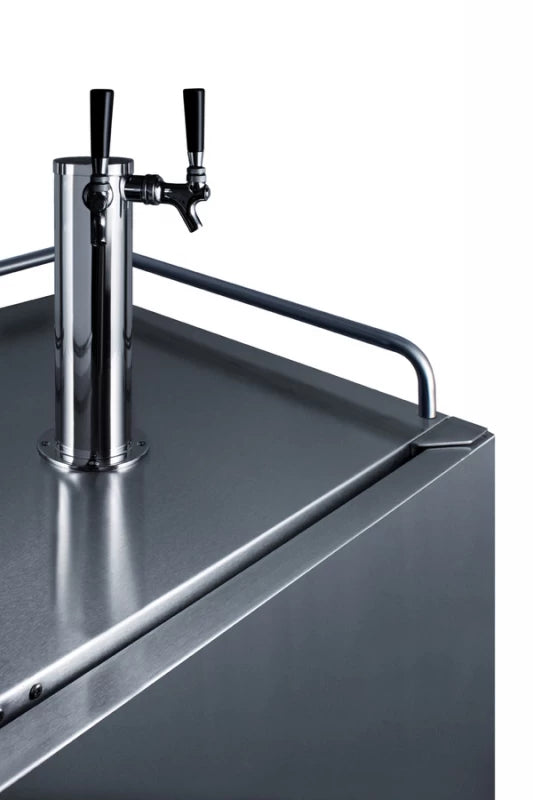

  • Attractive chrome guard rail helps to reduce spills and neaten service
  • Removable two-piece drip tray catches spills to help contain the mess
  • 2 chrome shelves (with six placement options) allow unit to also function as a beverage refrigerator
  • Recovers the unit's last settings in the case of a power outage or disruption
  • User-reversible door swing for added flexibility

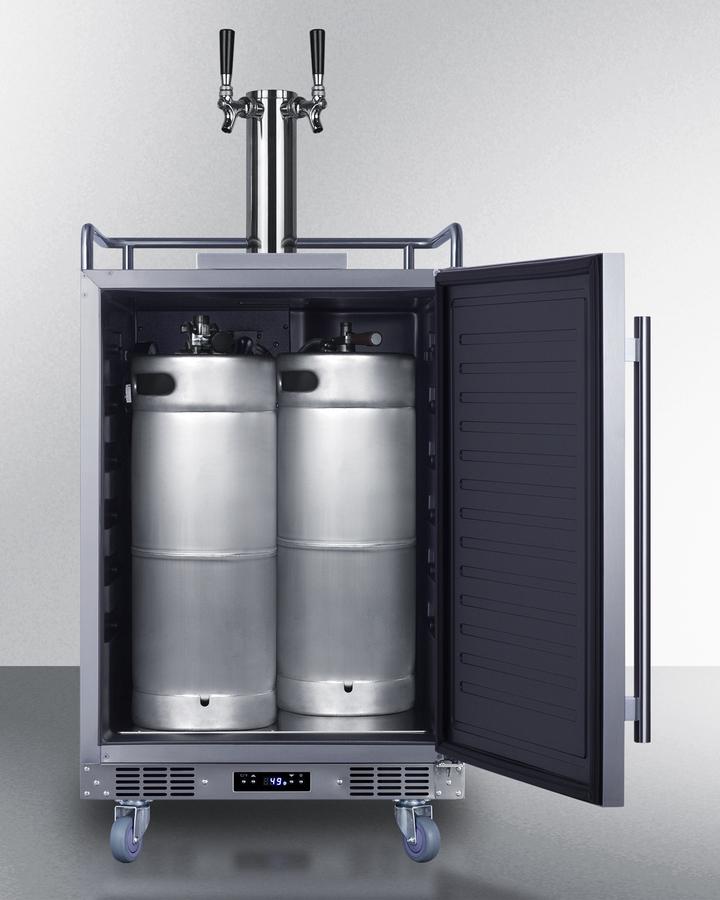

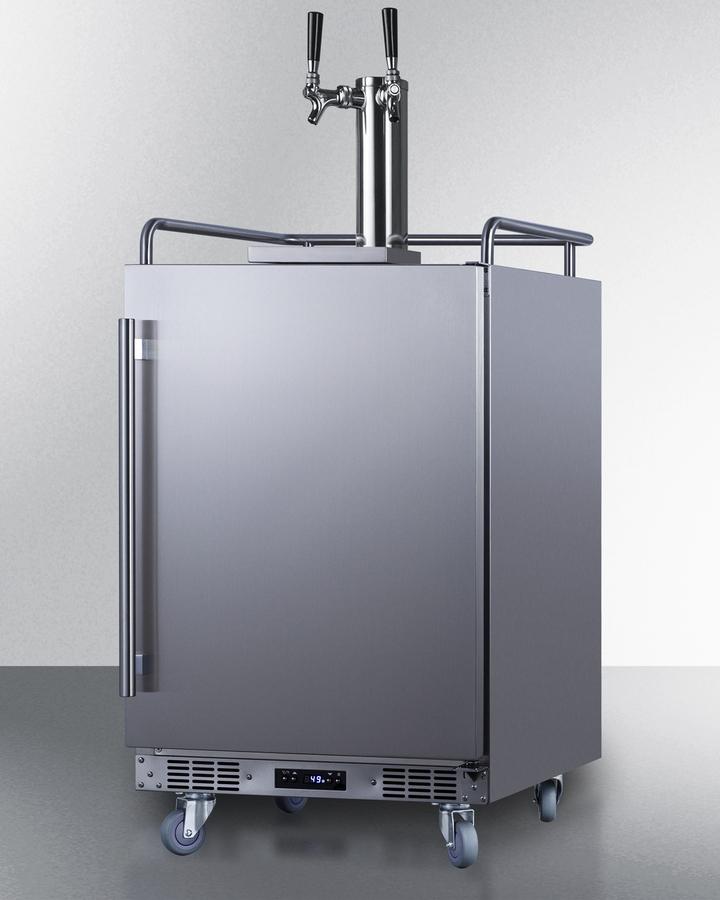

  • Four casters (two locking) afford easy portability
  • Stainless steel handle adds style to any setting
  • Allows the dispenser to be used freestanding
  • Space saving design with easier cleanability
  • Environmentally friendly design without ozone-damaging chemicals
  • Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations



Description

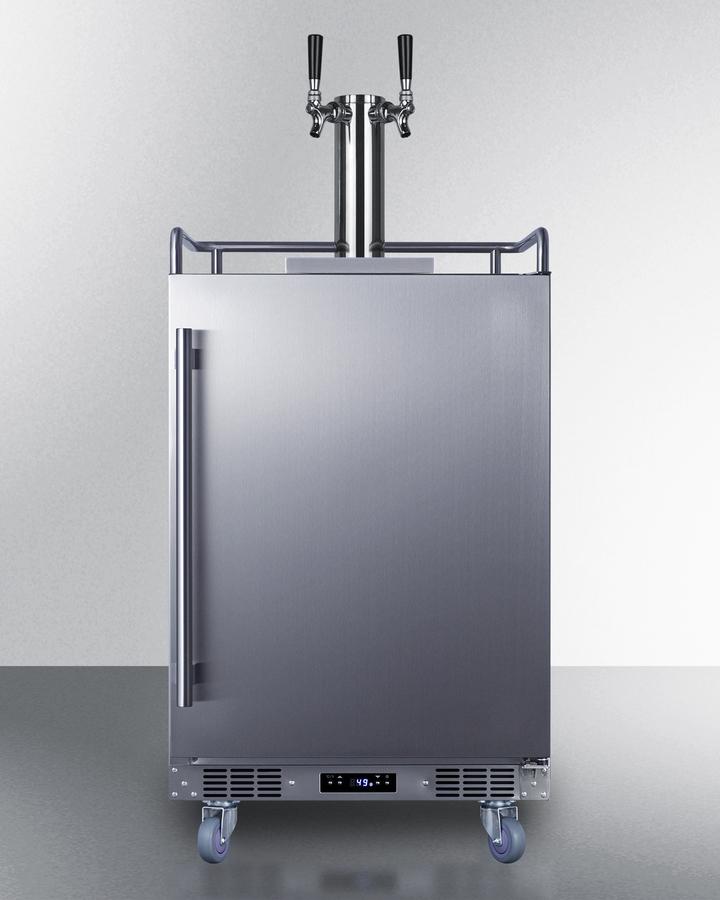

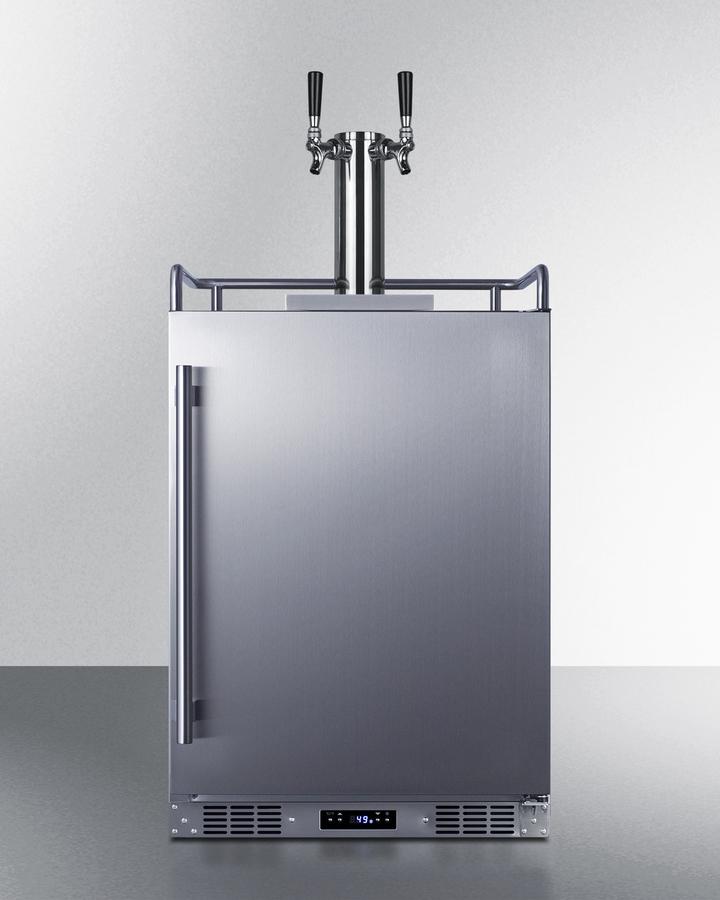

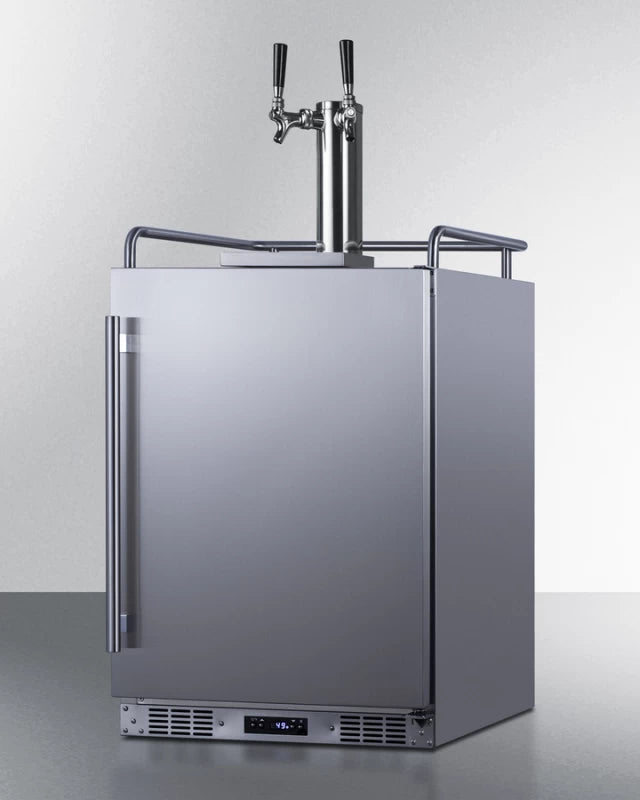

Summit manufactures a complete line of versatile built-in kegerators designed for indoor/outdoor use in commercial or residential settings. The SBC682WKDTWIN is a full-sized wine kegerator that can be used indoors or outdoors. It is ETL-S listed to NSF-7 and meets UL-471 standards for use in commercial establishments. Sized at just 24" wide, it features a weatherproof 304 grade exterior for long-lasting durability safe for use in outdoor settings. The front-breathing system allows built-in installation, while the fully finished cabinet and included caster set make for easy freestanding, portable use. This unit features a user-reversible stainless steel door with a pro style vertically mounted handle. The sealed back allows for easy cleaning of the unit. Additional features include a removable two-piece stainless steel drip tray to collect spills and a chrome guard rail to help keep glasses in place. Inside, the 5.6 cu.ft. interior can accommodate a full half or slim quarter keg, or up to three Cornelius or sixth barrel kegs. A digital thermostat lets you set easily manage the unit temperature, with a wide range between 34(degree)F to 68(degree)F to keep your whites or reds under proper storage conditions. We include a complete commercially listed dual tap Sankey tap system and draft tower, along with a nitrogen/CO2 tank and regulator. Two chrome shelves, with six placement options, allow the kegerator to also function as a beverage refrigerator. A tap cool system keeps your wine chilled as it goes through your tower, and a Velcro strap holds the tank in place. The interior floor is made from stainless steel to add protection when loading and removing kegs. Automatic defrost operation ensures minimal user maintenance. The Memory IC function recovers the unit's last settings in the case of a power outage or disruption. With its solid construction, user-friendly features, and attractive design, the SBC682WKDTWIN is the perfect wine dispenser for indoor or outdoor commercial settings. Additional choices are available with alternate tapping options, including choices to dispense beer and coffee. Browse the full Summit line to explore all of your options.
