Summit SBC58BLBIADAWKDTWIN 24" Wide Built-In Wine Kegerator, ADA Compliant Stainless Steel/Black

Quick Specification More details

Width:
23.63"
Depth:
22.75"
Height:
32"
Type:
Specialty Refrigerators

About this product

ADA compliant height
Commercially approved
Built-in capable
Complete dual tap kit

Summer Sale

Clearance

SKU: SBC58BLBIADAWKDTWIN | UPC: 761101069746

Summit SBC58BLBIADAWKDTWIN 24" Wide Built-In Wine Kegerator, ADA Compliant Stainless Steel/Black

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
23.63"
Depth:
22.75"
Height:
32"
Type:
Specialty Refrigerators

About this product

ADA compliant height
Commercially approved
Built-in capable
Complete dual tap kit

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Product Details for SUMMIT SBC58BLBIADAWKDTWIN

Technical Details

Dimensions & weight

Width	23.63 in.
Height	32 in.
Length	22.75 in.
Weight	110 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	9.96 ft³
Dimensional Weight	123.76 lbs.
Total of Cubes	9.96 ft³
Total of Dimensional Weight	123.76 lbs.

Overview kegerator

Nominal Height	32.0" (81 cm)
Height of Cabinet	32.0" (81 cm)
Height to Hinge Cap	32.25" (82 cm)
Nominal Width	24.0" (61 cm)
Width	23.63" (60 cm)
Nominal Depth	23.0" (58 cm)
Depth	22.75" (58 cm)
Depth with Handle	24.25" (62 cm)
Depth with door at 90°	45.0" (114 cm)
Capacity	5.5 cu.ft. (156 L)
Defrost Type	Automatic
Door	Stainless Steel
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.2
Voltage/Frequency	115 V AC/60 Hz
Weight	110.0 lbs. (50 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101069746
Door Swing	RHD
Reversible	Yes
Tap Kit	Yes
Height with Tap	47.5" (121 cm)
Number of Taps	2
Thermostat Type	Dial
Interior Light	Yes
Fan Type	Exterior
Refrigerant	R600a
Refrigerant Amount	0.64 oz.
High Side PSI	180.0
Low Side PSI	80.0
Inter Height	25.75" (65 cm)
Interior Width	21.0" (53 cm)
Interior Depth	17.75" (45 cm)
Compressor Step Height	6.5" (17 cm)
Compressor Step Width	21.0" (53 cm)
Compressor Step Depth	5.5" (14 cm)
Temperature Range	34º to 43ºF

Description

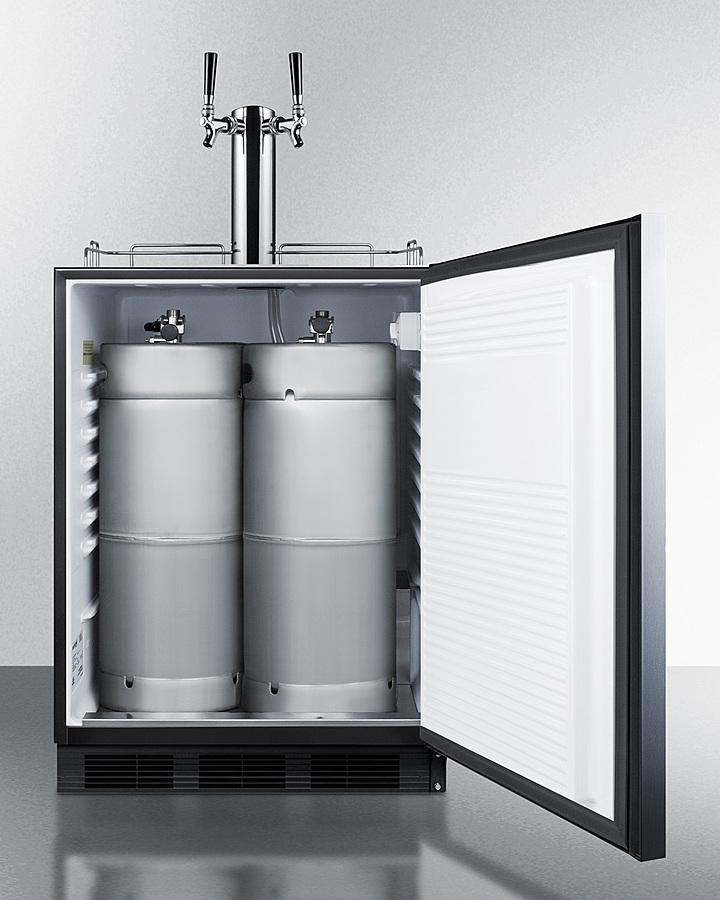

Summit Commercial brings unique appliance choices to ADA compliant settings with a new line of commercial wine dispensers made in Europe. Sized at 32 inches high, the SBC58BLBIADAWKDTWIN is designed to fit under lower ADA compliant counters. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. This unit features a user-reversible 304 grade stainless steel wrapped door complete with a stainless steel handle mounted horizontally for a modern look. We include a removable two-piece stainless steel drip tray for cleaner service. The SBC58BLBIWKDTWINADA ships with a complete Sankey American dual tap kit complete with a draft tower, 5 lb. nitrogen/CO2 tank and regulator, and all the equipment you need to serve white wine on tap. Inside, the SBC58BLBIADAWKDTWIN is designed to hold two 1/6 (sixtel) kegs (note: interior does not accommodate a standard half barrel). Automatic defrost ensures easy user maintenance, with a seamless interior for easier cleaning. The stainless steel floor offers added durability when loading kegs. This unit includes an interior light with an on/off rocker switch and a dial thermostat for easy and intuitive temperature management. A bracket is located inside, allowing you to keep the tank inside and save on exterior depth. The SBC58BLBIADAWKDTWIN is ETL-S listed to NSF-7 commercial standards. Additional ADA compliant kegerator choices are available with panel-ready or glass doors, as well as coffee and beer dispensing options. Browse our complete line for more choices.

Product Features

ADA compliant height
Sized at 32 inches high (32.25 to hinge cap) for installation under lower ADA compliant counters
Commercially approved
ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings
Built-in capable
Front-breathing design allows fully recessed installation under counters
Complete dual tap kit
Ships with a complete twin tap wine tap kit that includes a dispenser tower, regulator, and all the connection equipment you need to serve from a 1/6 wine keg or disposable wine keg
Stainless steel wrapped door
304 grade stainless steel for a professional look with lasting durability
Professional handle
Thin handle with common 14mm diameter in brushed stainless steel mounted horizontally
Adjustable thermostat
Interior dial thermostat ensures easy temperature management
Automatic defrost
No-frost operation for minimum user maintenance
Reversible door
User-reversible door swing allows you to easily adjust to better accommodate your setting
Stainless steel drip tray
Removable two-piece drip tray included for added convenience
Interior light
Turn the light on when you need it and off when you're done with a convenient rocker switch
Interior CO2 holder
Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs
Stainless steel floor cover
Interior includes steel cover to protect the floor when loading kegs
One piece interior liner
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Hidden evaporator
Cold wall design with hidden evaporator and seamless interior
Fully finished cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Nitrogen/CO2 tank included
Canister is best suited for a 75% nitrogen/25% CO2 mixture
