SKU: SBC682PNRWKDTWIN | UPC: 761101087511

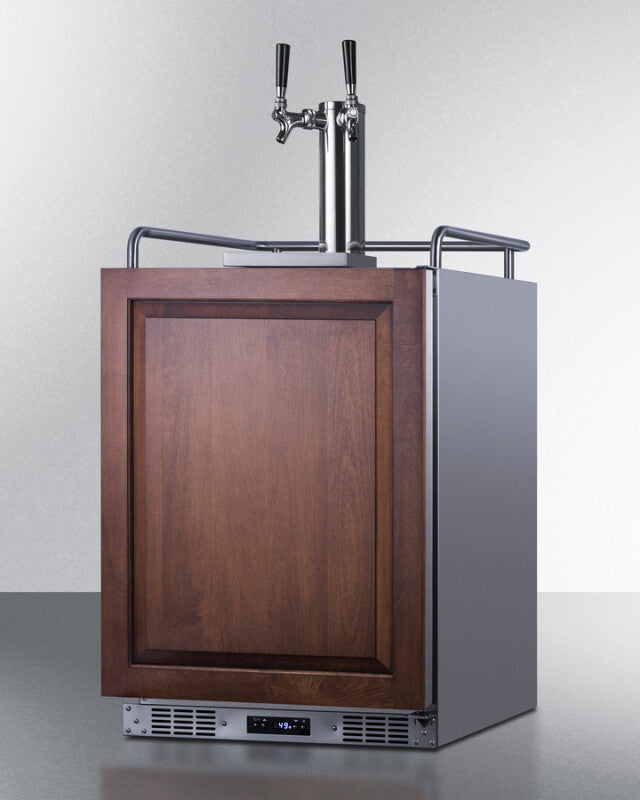

Summit SBC682PNRWKDTWIN 24" Wide Built-In Wine Kegerator (Panel Not Included) Panel-Ready

Quick Specification More details

Width:
23.75"
Depth:
24.75"
Height:
33.63"
Type:
Specialty Refrigerators

About this product

Large capacity wine kegerator
Weatherproof design
Commercially approved
Panel-ready door

Summer Sale

Clearance

SKU: SBC682PNRWKDTWIN | UPC: 761101087511

Summit SBC682PNRWKDTWIN 24" Wide Built-In Wine Kegerator (Panel Not Included) Panel-Ready

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
23.75"
Depth:
24.75"
Height:
33.63"
Type:
Specialty Refrigerators

About this product

Large capacity wine kegerator
Weatherproof design
Commercially approved
Panel-ready door

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Product Details for SUMMIT SBC682PNRWKDTWIN

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Dimensions & weight

Width	23.75 in.
Height	33.63 in.
Length	24.75 in.
Weight	120 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	11.44 ft³
Dimensional Weight	142.22 lbs.
Total of Cubes	11.44 ft³
Total of Dimensional Weight	142.22 lbs.

Overview kegerator

Nominal Height	34.0" (86 cm)
Height of Cabinet	33.63" (85 cm)
Nominal Width	24.0" (61 cm)
Width	23.75" (60 cm)
Nominal Depth	25.0" (64 cm)
Depth	24.75" (63 cm)
Depth with door at 90°	46.75" (119 cm)
Capacity	5.6 cu.ft. (159 L)
Defrost Type	Automatic
Door	Panel-Ready
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	305.0kWh/year
Amps	1.25
Voltage/Frequency	115 V AC/60 Hz
Weight	120.0 lbs. (54 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101087511
Door Swing	RHD
Reversible	Reversible w/ Optional Hinge
Tap Kit	Yes
Height with Tap	51.5" (131 cm)
Number of Taps	2
Adjustable Shelves	Yes
Shelf Type	Chrome
Shelf Qty	2
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant	R600a
Refrigerant Amount	1.06 oz.
High Side PSI	150.0
Low Side PSI	50.0
Inter Height	26.75" (68 cm)
Interior Width	20.0" (51 cm)
Interior Depth	19.0" (48 cm)
Level Legs Qty	4
Wheel Qty	4
Temperature Range	34°F to 68°F (1°C to 20°C)
Sound Level	34.0 db

Description

Summit manufactures a complete line of versatile kegerators capable of built-in installation in indoor or outdoor home settings. The SBC682PNRWKDTWIN is a full-sized wine dispenser approved for both residential or commercial use. Sized at just 24" wide, it features a front-breathing system for built-in installation and a fully-finished cabinet that also allows freestanding use, with an included caster set for optional mobility. The exterior features 304 grade stainless steel construction for safe, weatherproof use in the outdoors. The door is designed to accept overlay panels (sized at 29 3/4" H x 23 5/16" W at a 3/4" thickness) to allow you to create a custom look to best suit your own kitchen design. This unit ships with a right hand door swing. For a left hand version, add option "LHDHinge." Additional features include a removable two-piece stainless steel drip tray to collect spills and a chrome guard rail to help keep glasses in place. This unit has a sealed rear for added protection from the elements. Inside, the 5.6 cu.ft. interior can accommodate a full half or slim quarter keg, or up to three Cornelius or sixth barrel kegs. A digital thermostat lets you set easily manage the unit temperature, with a wide range between 34°F to 68°F to keep your whites or reds under proper storage conditions. We include a complete commercially listed dual tap Sankey tap system and draft tower, along with a nitrogen/CO2 tank and regulator. Two chrome shelves, with six placement options, allow the kegerator to also function as a beverage refrigerator. A tap cool system keeps your wine chilled as it goes through your tower, and a Velcro strap holds the tank in place. The interior floor is made from stainless steel to add protection when loading and removing kegs. Automatic defrost operation ensures minimal user maintenance. The Memory IC function recovers the unit's last settings in the case of a power outage or disruption. With its solid construction, user-friendly features, and attractive design, the SBC682PNRWKDTWIN is the perfect wine dispenser for indoor or outdoor commercial settings. Additional choices are available with alternate tapping options, including choices to dispense beer and coffee. Browse the full Summit line to explore all of your options.

Product Features

Large capacity wine kegerator

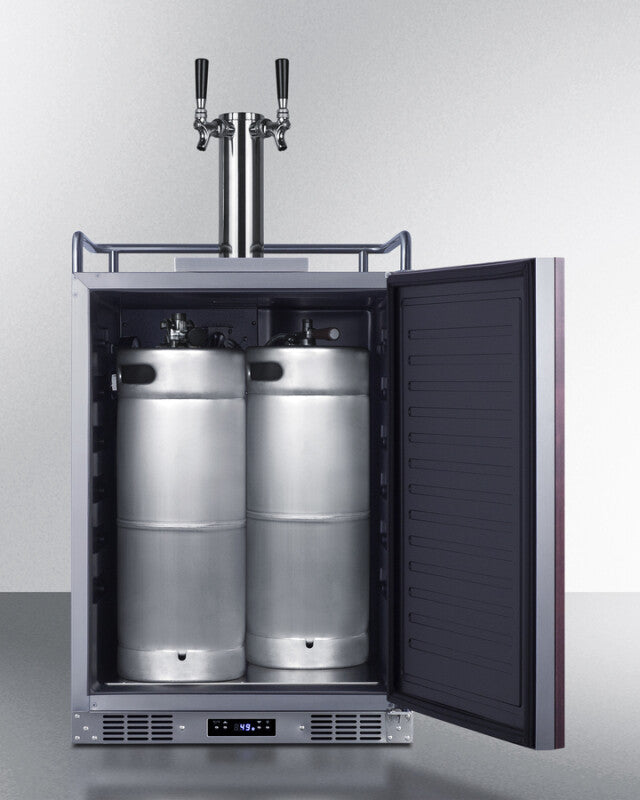

5.6 cu.ft. interior can accept a full half barrel or quarter keg, or up to three sixth barrels or Cornelius style kegs
Weatherproof design
Solid 304 grade stainless steel construction allows placement in the outdoors
Commercially approved
ETL-S listed to NSF-7 standards and meets UL-471 for use in commercial settings

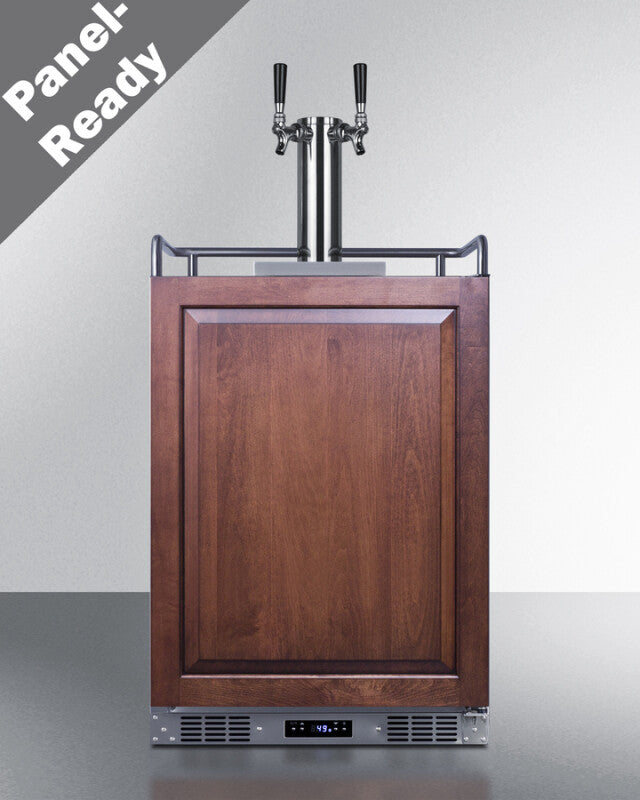

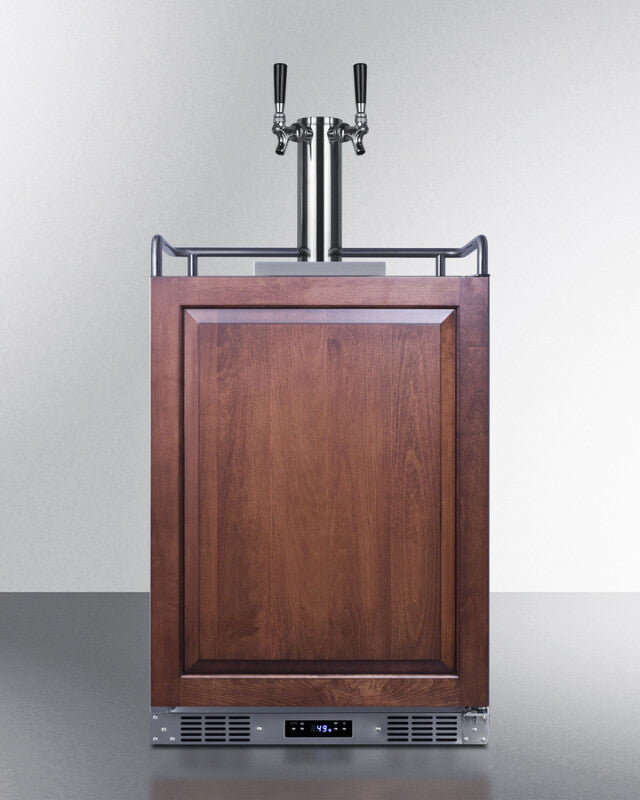

Panel-ready door
Extended hinging allows you to install your own panel overlay on the door, creating a custom look to complement or blend into your own cabinetry (panel size: 29 3/4" H x 23 5/16" W at a 3/4" thickness)
Built-in capable
Front-breathing design allows fully recessed installation under counters
Nitrogen/CO2 tank included
Canister is best suited for a 75% nitrogen/25% CO2 mixture

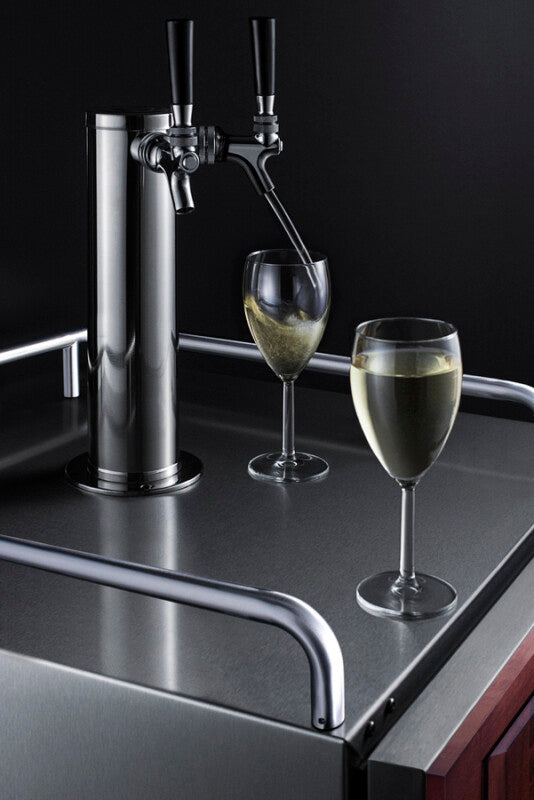

Complete dual tap kit
Ships with a complete twin tap wine tap kit that includes a dispenser tower, regulator, and all the connection equipment you need to serve from a 1/6 wine keg or disposable wine keg

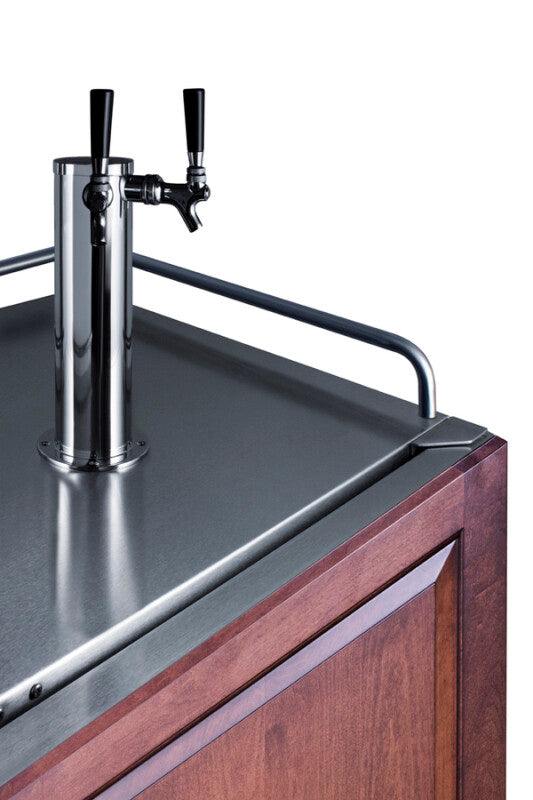

Dual tap system
Twin draft tower allows you to serve from two 1/6 (sixtel) sized wine kegs
Automatic defrost
Reduced user maintenance with auto defrost operation
Digital thermostat
Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit
Tap cool system
Interior tube allows you to extend the cold air flow up into draft tower, ensuring wine freshly tapped stays chilled
Stainless steel floor cover
Interior includes steel cover to protect the floor when loading kegs
Top guard rail (ships unassembled)
Attractive chrome guard rail helps to reduce spills and neaten service
Stainless steel drip tray
Removable two-piece drip tray catches spills to help contain the mess

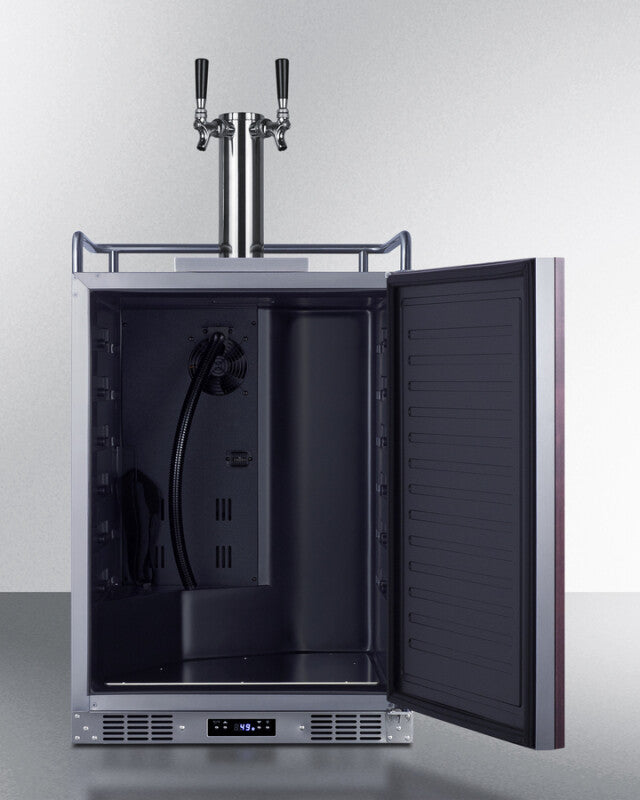

Adjustable shelves
2 chrome shelves (with six placement options) allow unit to also function as a beverage refrigerator
Memory IC function
Recovers the unit's last settings in the case of a power outage or disruption
Reversible door
User-reversible door swing for added flexibility

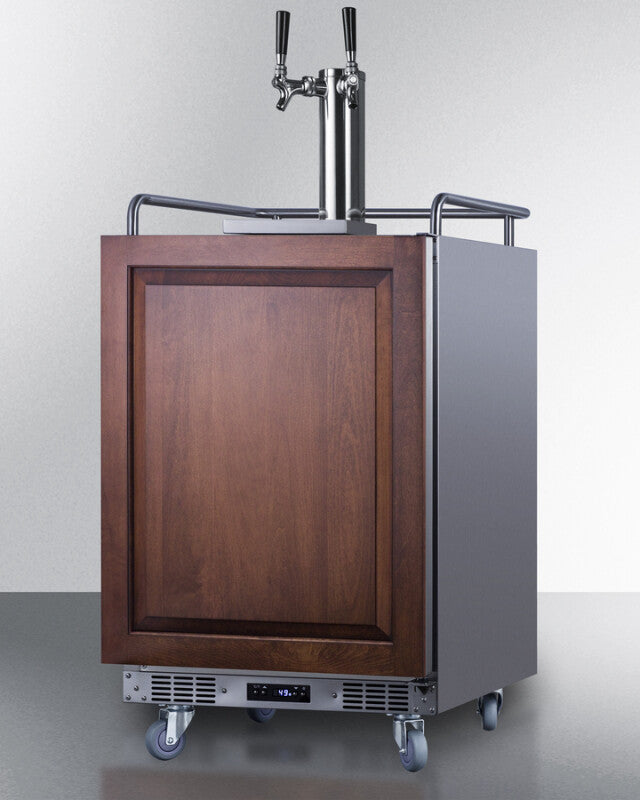

Casters included (ship unassembled)
Four casters (two locking) afford easy portability
Fully finished stainless steel cabinet
Allows the dispenser to be used freestanding
Sealed back
Space saving design with easier cleanability
Right hand door swing
Default swing is RHD. For hinges that will allow this door to open from the left, add upgrade "LHDHinge"
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
