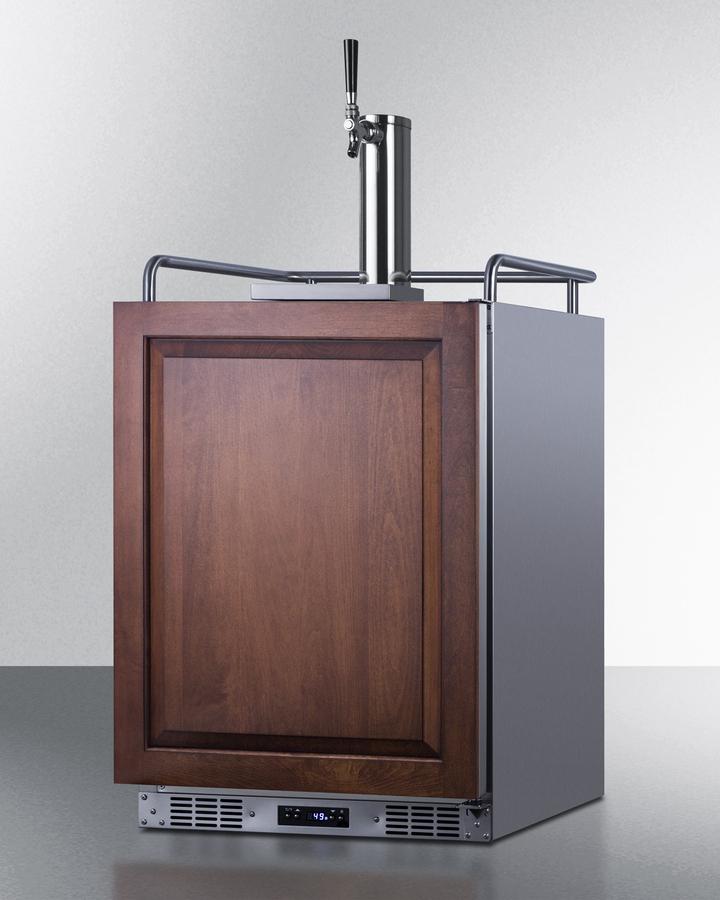

Summit SBC682PNR 24" Wide Built-In Kegerator (Panel Not Included) Panel-Ready

Quick Specification More details

Width:
23.75"
Depth:
24.75"
Height:
33.63"
Type:
Specialty Refrigerators

About this product

Large capacity kegerator
Panel-ready door
Indoor/Outdoor compatible
Built-in capable

Summer Sale

Clearance

SKU: SBC682PNR | UPC: 761101083957

Summit SBC682PNR 24" Wide Built-In Kegerator (Panel Not Included) Panel-Ready

$2,327.47 ~~$2,844.97~~ Save $517.50 / 18% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
23.75"
Depth:
24.75"
Height:
33.63"
Type:
Specialty Refrigerators

About this product

Large capacity kegerator
Panel-ready door
Indoor/Outdoor compatible
Built-in capable

Product Details
Manuals & Guides
From The Manufacturer
Reviews

$2,327.47 ~~$2,844.97~~ Save $517.50 / 18% OFF

Product Details for SUMMIT SBC682PNR

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Dimensions & weight

Width	23.75 in.
Height	33.63 in.
Length	24.75 in.
Weight	120 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	11.44 ft³
Dimensional Weight	142.22 lbs.
Total of Cubes	11.44 ft³
Total of Dimensional Weight	142.22 lbs.

Overview kegerator

Nominal Height	34.0" (86 cm)
Height of Cabinet	33.63" (85 cm)
Nominal Width	24.0" (61 cm)
Width	23.75" (60 cm)
Nominal Depth	25.0" (64 cm)
Depth	24.75" (63 cm)
Depth with door at 90°	46.75" (119 cm)
Capacity	5.6 cu.ft. (159 L)
Defrost Type	Automatic
Door	Panel-Ready
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	305.0kWh/year
Amps	1.25
Voltage/Frequency	115 V AC/60 Hz
Weight	120.0 lbs. (54 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101083957
Door Swing	RHD
Reversible	Reversible w/ Optional Hinge
Tap Kit	Yes
Height with Tap	51.5" (131 cm)
Number of Taps	1
Adjustable Shelves	Yes
Shelf Type	Chrome
Shelf Qty	2
Thermostat Type	Digital
Fan Type	Interior
Refrigerant	R600a
Refrigerant Amount	1.06 oz.
High Side PSI	150.0
Low Side PSI	50.0
Inter Height	26.75" (68 cm)
Interior Width	20.0" (51 cm)
Interior Depth	19.0" (48 cm)
Level Legs Qty	4
Wheel Qty	4
Temperature Range	34°F to 68°F (1°C to 20°C)
Sound Level	34.0 db

Description

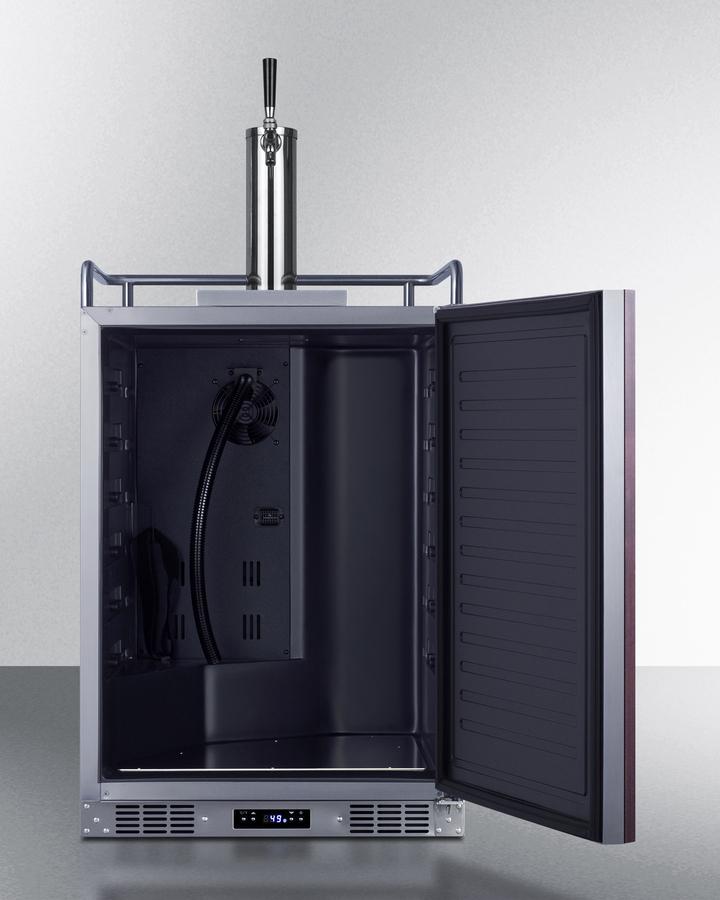

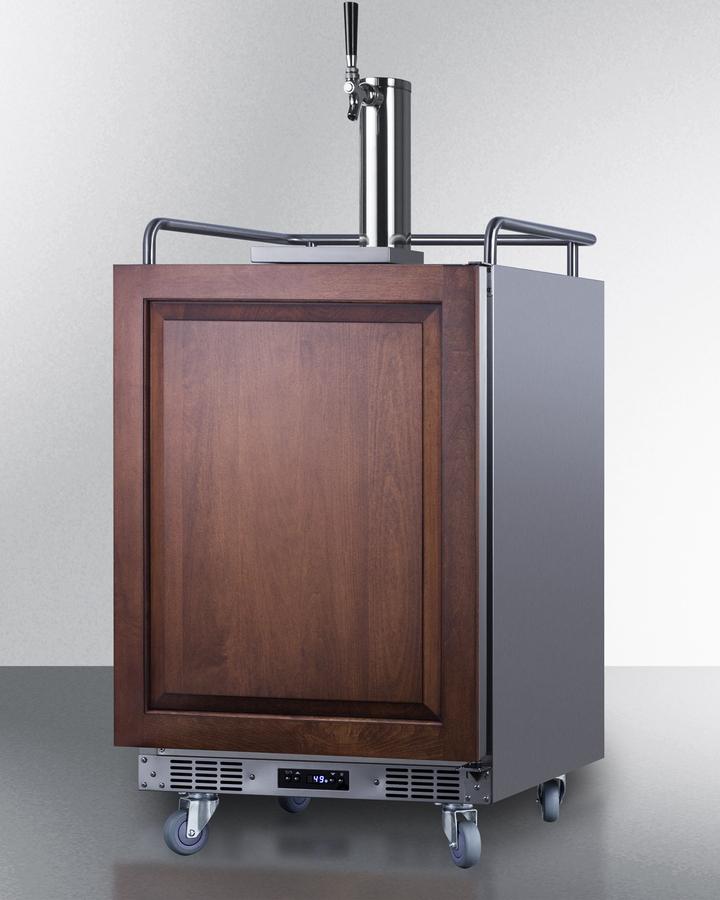

Summit manufactures a complete line of versatile kegerators capable of built-in installation in indoor or outdoor home settings. The SBC682PNR is a full-sized beer dispenser approved for both residential or commercial use. Sized at just 24" wide, it features a front-breathing system for built-in installation and a fully-finished cabinet that also allows freestanding use, with an included caster set for optional mobility. The exterior features 304 grade stainless steel construction for safe, weatherproof use in the outdoors. The door is designed to accept overlay panels (sized at 29 3/4" H x 23 5/16" W at a 3/4" thickness) to allow you to create a custom look to best suit your own kitchen design. This unit ships with a right hand door swing. For a left hand version, add option "LHDHinge." Additional features include a removable two-piece stainless steel drip tray to collect spills and a chrome guard rail to help keep glasses and mugs in place. This unit has a sealed rear for added protection from the elements. Inside, the 5.6 cu. ft. interior can accommodate a full half or quarter keg, or up to three Cornelius or sixth barrel kegs. We include a complete commercial grade tap kit for dispensing your favorite beer, including a Sankey tap system and single tap draft tower, along with a CO2 tank and regulator. A tap cool system keeps your beer cold as it goes through your tower, and a Velcro strap holds the tank in place. The floor is constructed from stainless steel for added protection when loading and removing kegs. Two chrome shelves, with six placement options, allow the kegerator to also function as a beverage refrigerator. A digital thermostat makes it easy to manage the wide range temperature, while the external digital display has a readout in Celsius or Fahrenheit. Automatic defrost operation ensures minimal user maintenance. The Memory IC function recovers the unit's last settings in the case of a power outage or disruption. With its solid construction, user-friendly features, and attractive design, the SBC682PNR is the perfect beer dispenser for indoor or outdoor kitchens. Additional choices are available with alternate tapping options, including choices to dispense wine and coffee. Browse the full Summit line to explore all of your options.

Product Features

Large capacity kegerator

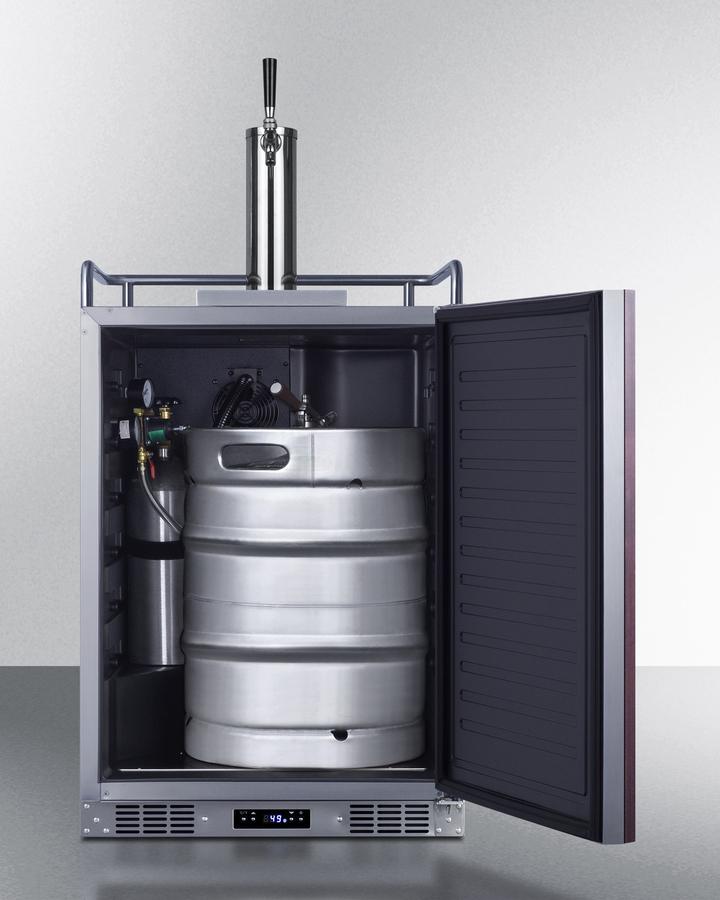

5.6 cu.ft. interior can accept a full half barrel keg, two slim quarter kegs, or up to three sixth barrel or Cornelius style kegs

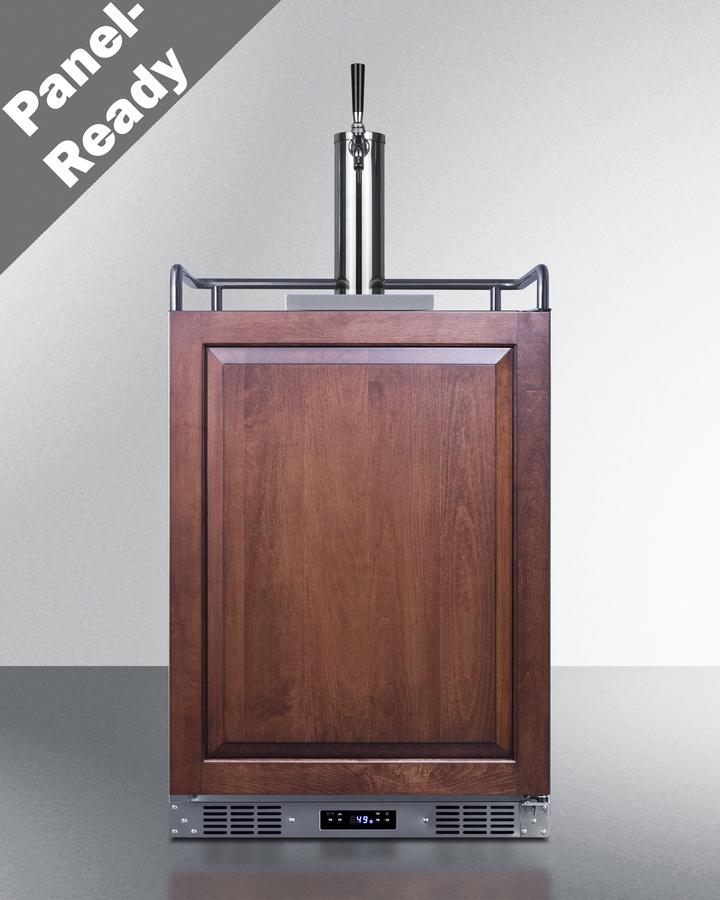

Panel-ready door
Extended hinging allows you to install your own panel overlay on the door, creating a custom look to complement or blend into your own cabinetry (panel size: 29 3/4" H x 23 5/16" W at a 3/4" thickness)
Indoor/Outdoor compatible
Weatherproof construction allows use in outdoor kitchens
Built-in capable

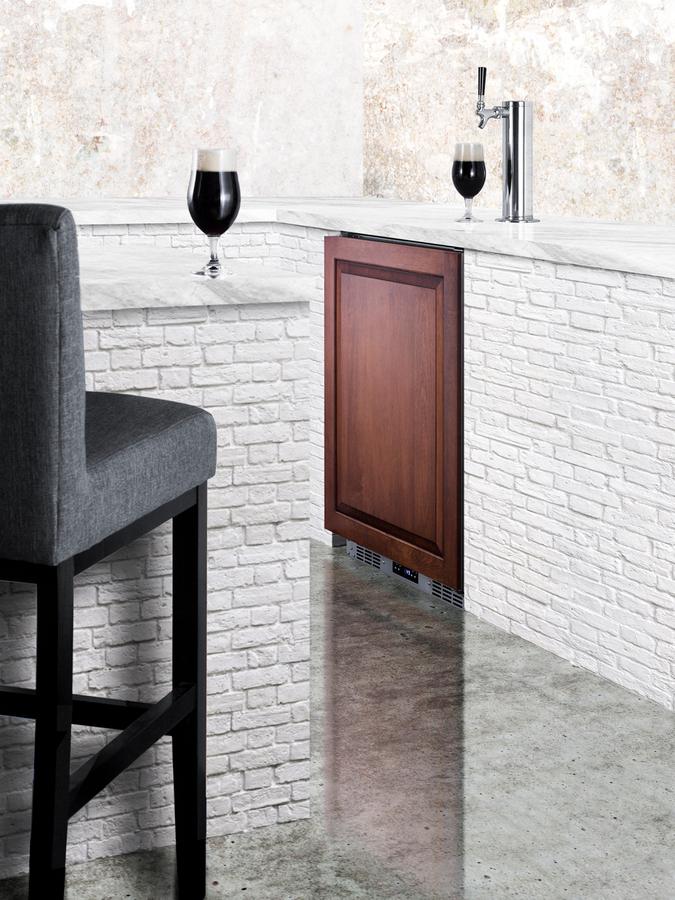

Front-breathing design allows fully recessed installation under counters
Durable design
Solid 304 grade stainless steel construction ensures long-lasting durability
Automatic defrost
Reduced user maintenance with auto defrost operation
Complete tap kit
Includes a 5 lb. CO2 tank and regulator, draft arm, Sankey American tap, and connection hardware
Digital thermostat
Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit
Stainless steel floor cover
Interior includes steel cover to protect the floor when loading kegs
Tap cool system
Keeps cold air flowing to the tower for consistently cold beer
Top guard rail (ships unassembled)
Attractive chrome guard rail helps to reduce spills and neaten service
Stainless steel drip tray
Removable two-piece drip tray catches spills to help contain the mess
Wire shelves
2 wire shelves (with six placement options) allow unit to also function as a beverage refrigerator
Memory IC function
Recovers the unit's last settings in the case of a power outage or disruption
Fully finished stainless steel cabinet
Allows the dispenser to be used freestanding
Sealed back
Space saving design with easier cleanability
Right hand door swing
Default swing is RHD. For hinges that will allow this door to open from the left, add upgrade "LHDHinge"
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
